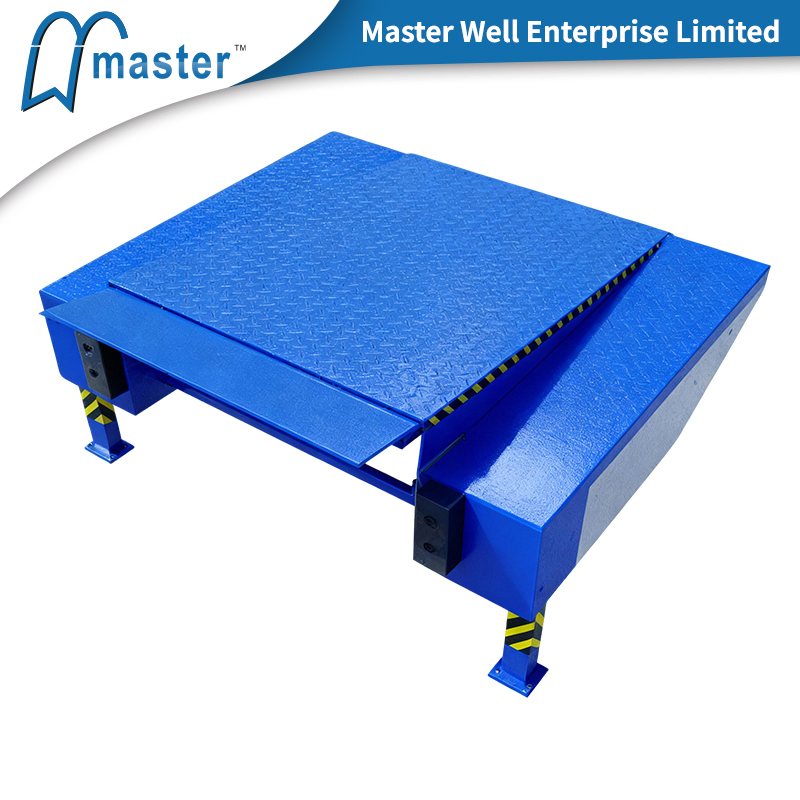

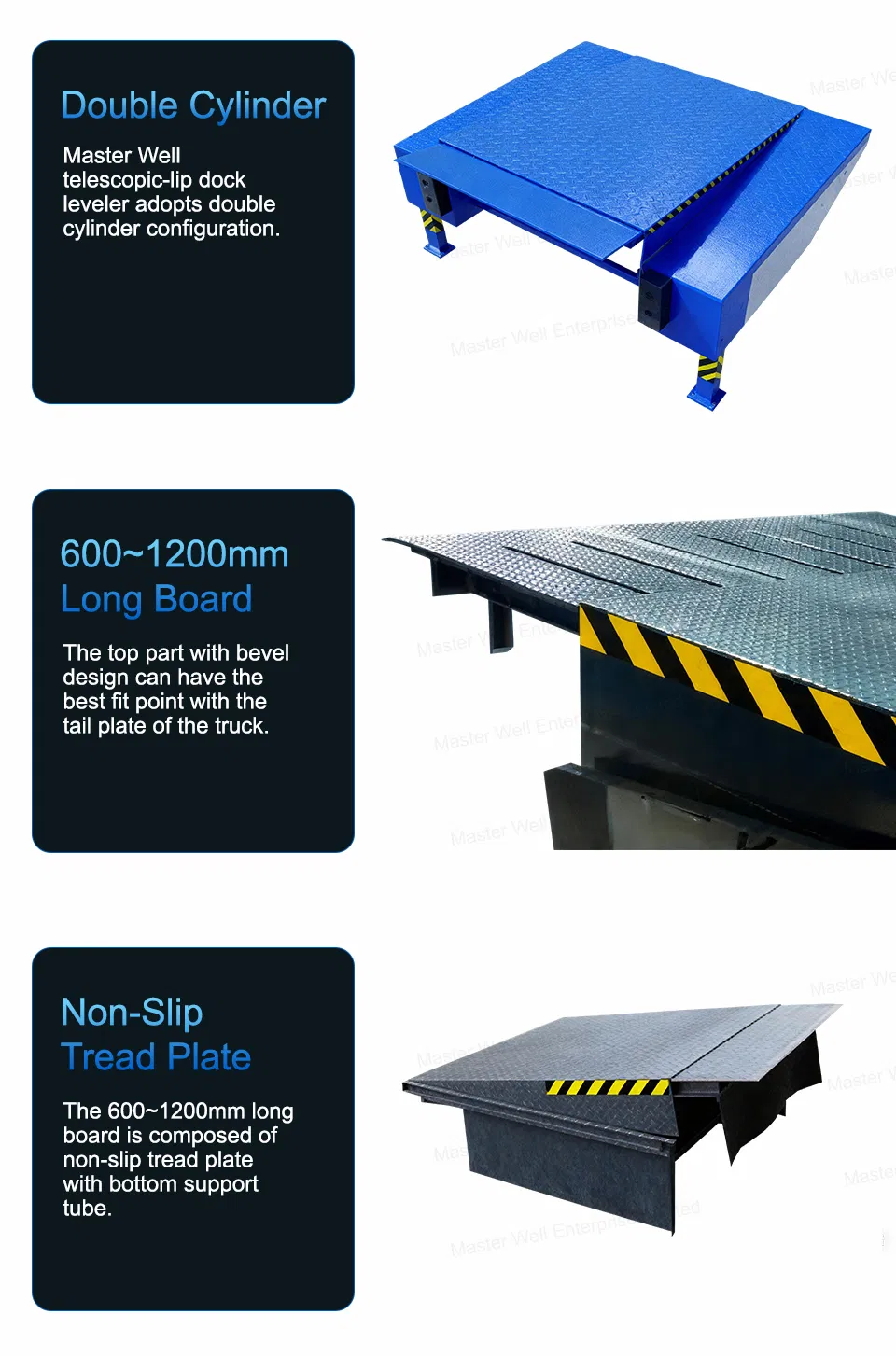

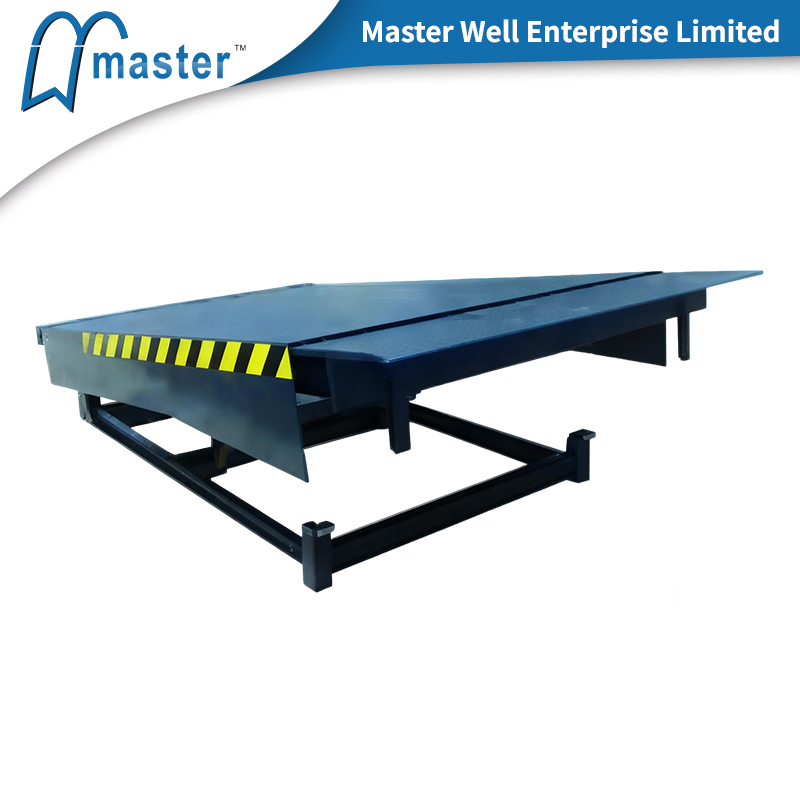

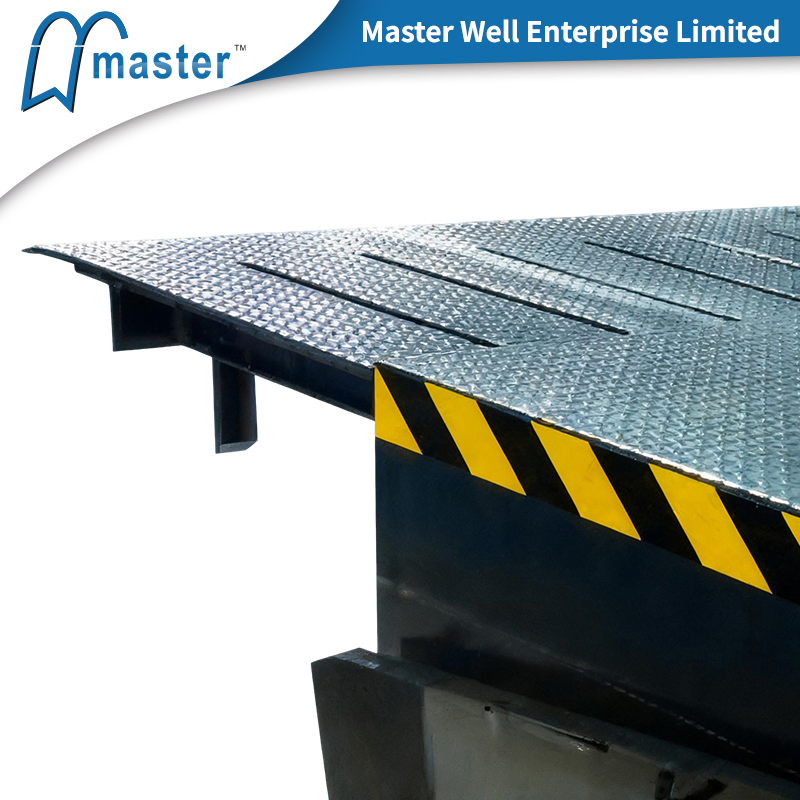

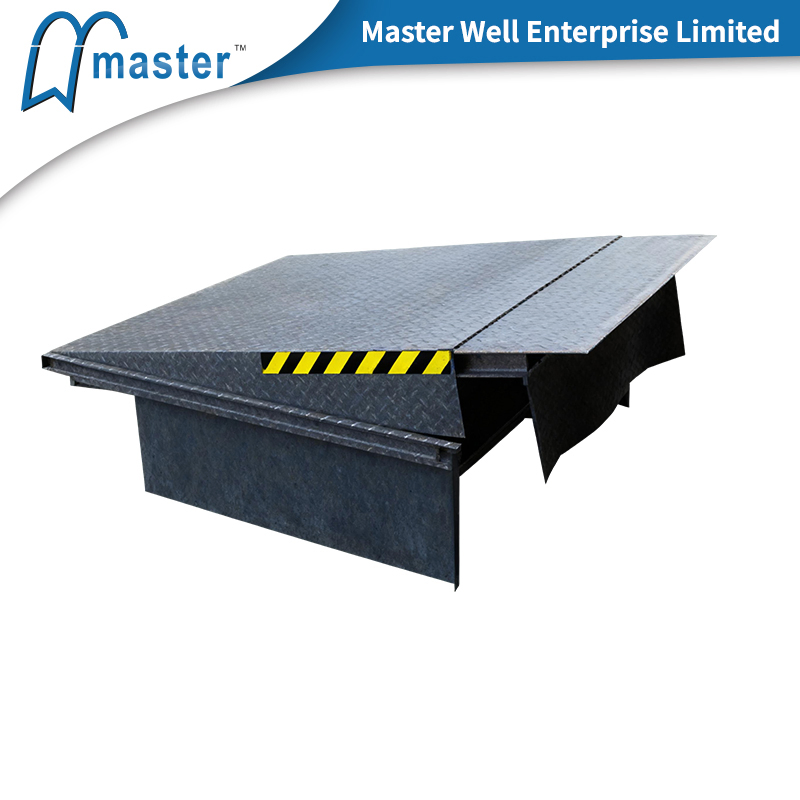

Telescopic-Lip Dock Leveler: The main panel of the whole series adopts double cylinder configuration. It acts as a bridge between the platform and the truck, facilitating efficient loading and unloading of goods.
When the truck height differs from the platform, the height is adjusted accordingly. The lip plate extends directly to the rear of the truck, completing the action via the self-weight of the loading platform.
| Upper Plate | 8 mm thickness, anti-skate steel plate |
| Swinging Lip | Single 16 mm thickness, 400mm length |
| Support Profile | C-shaped stiffener / 14# I Beam |
| Sealing Element | Japan Brand NOK A505 |
| Working Range | +300mm / 260~300mm |
| Adjustment Time | Rise Time ≤16S, Fall time ≤10S |
| Dynamic Loading | 6,000 ~ 25,000 KG |
| Static Loading | 10,000 ~ 31,700 KG |
| Service Life | ≥ 200,000 times |
| Noise Level | < 50db (±5db) |

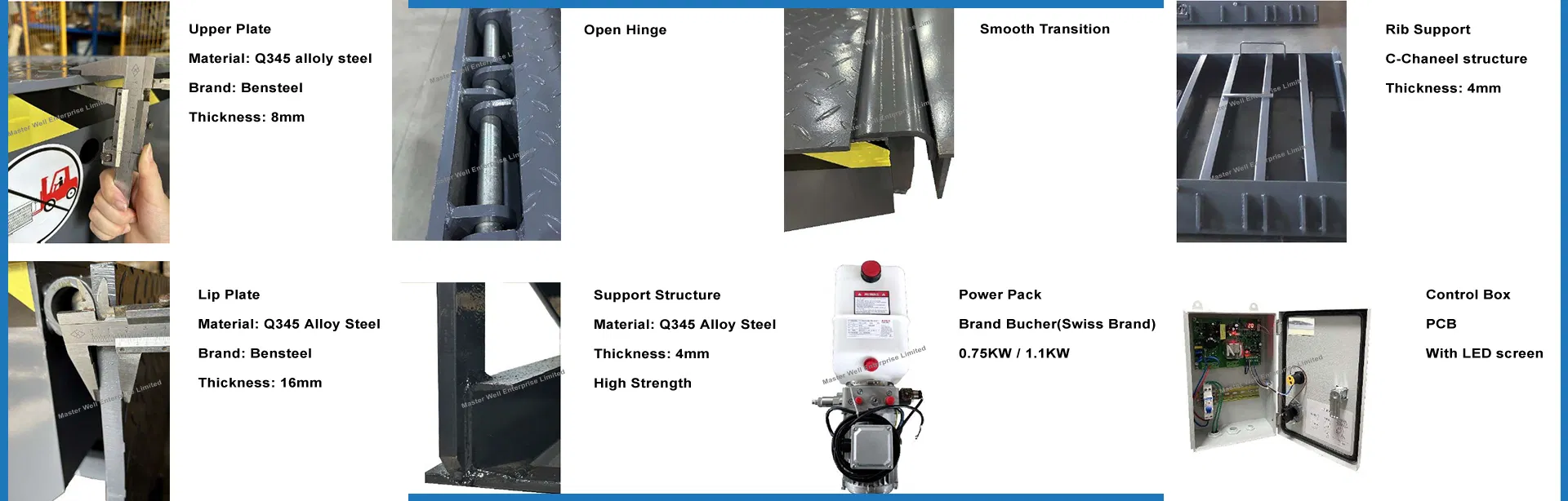

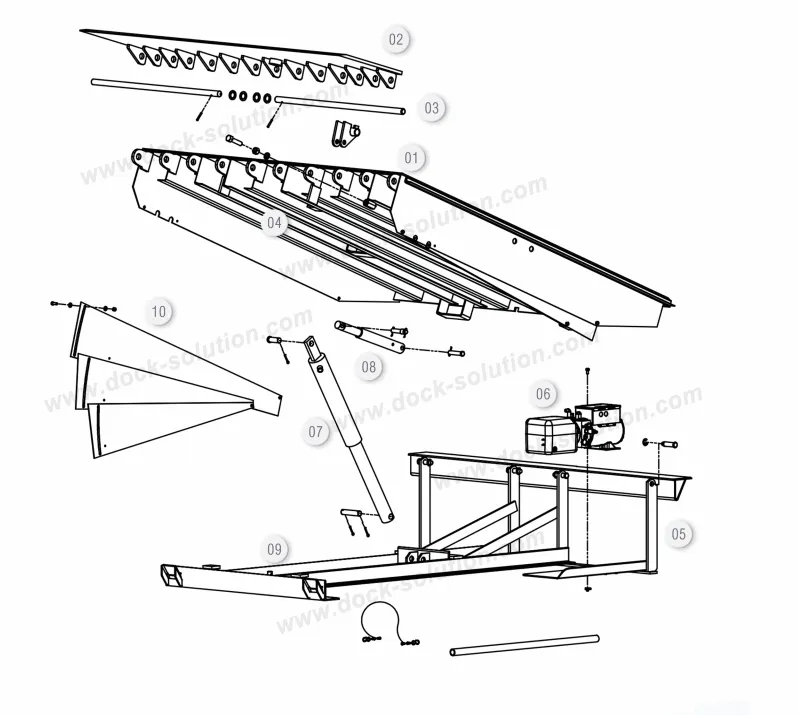

| 1. Upper Plate | 6. Power Pack |
| 2. Lip Plate | 7. Main Cylinder |
| 3. Hinge (Open) | 8. Auxiliary Cylinder |
| 4. Rib Support | 9. Frame |
| 5. Support Structure | 10. Guard |
