Basic Information
Special Function
Thermal Insulated
Surface Finishing
Finished
Power Supply
1-Phase 220V, or 3-Phase 380V
Product Description

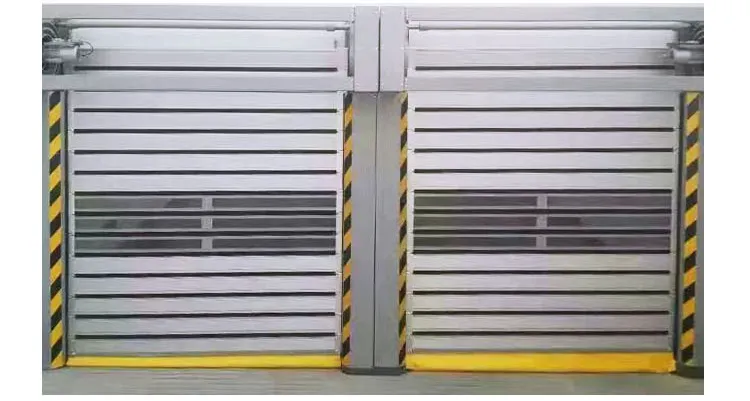

Aluminum alloy high speed doors are applied for areas with high demand of both security, high-strength, thermal insulation and high running speed. Widely used in underground garages, factory exterior, and warehouse exterior.
Technical Data
| Hard Material High Speed Insulated Aluminum Alloy Spiral Door Specifications |
| Max Dimension | Width * Height 8000mm * 8000mm |
| Power Supply | 220±10%V, or 380V, 50/60Hz, IP55 |
| Max. Opening Speed | 2.0m/s |
| Max. Closing Speed | 1.0m/s |
| Wind Resistance | 35m/s (Class 12) |
| Sound Insulation Level | 25DB |
| Water Tightness | 30Pa |
| K Value | 0.4W/m².K |
| Thermal Conductivity | 1.9W/m2.K |

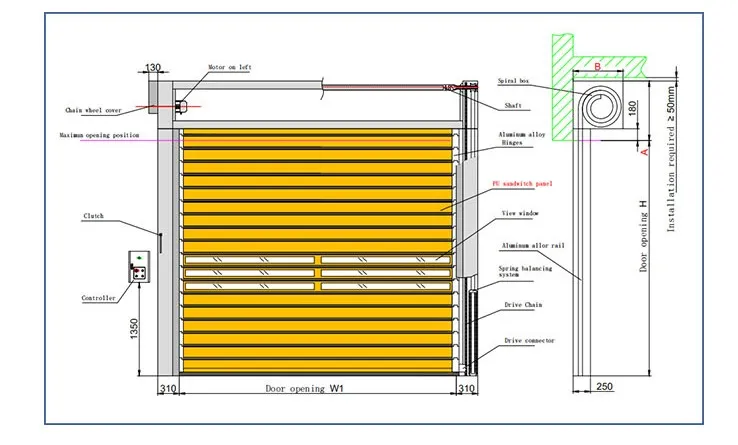

Structure Diagram
Product Details

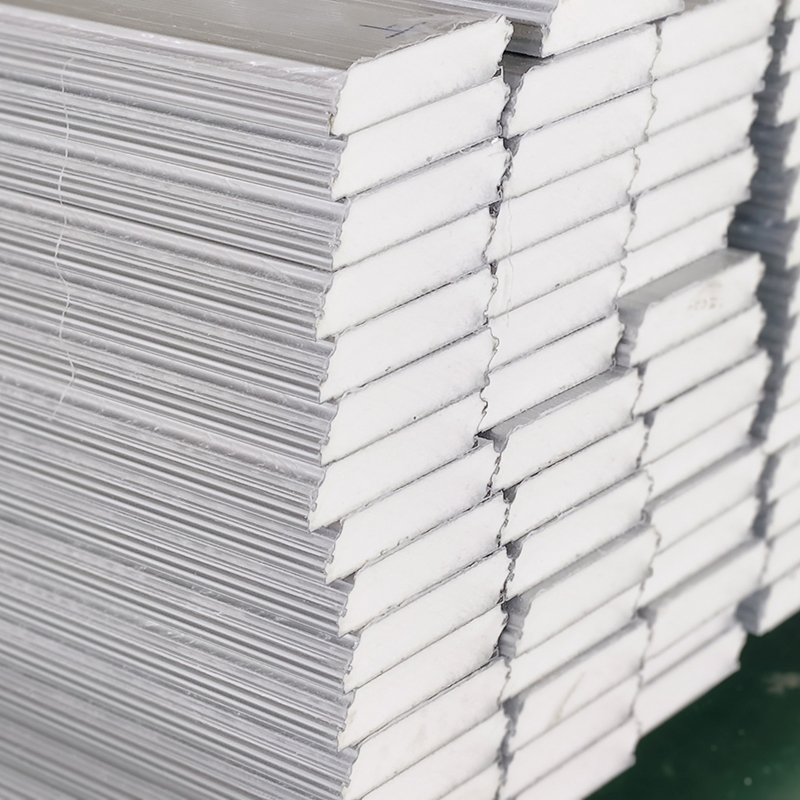

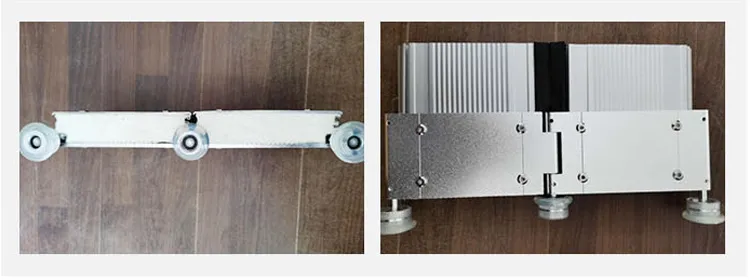

1 Door panel: Thermal insulated and good wind resist performance
43mm double layer (0.7mm/layer) aluminum alloy sandwich panel, foaming density 40kg/m3, high quality nylon wheels and 2.5mm thickness aluminum alloy hinges.

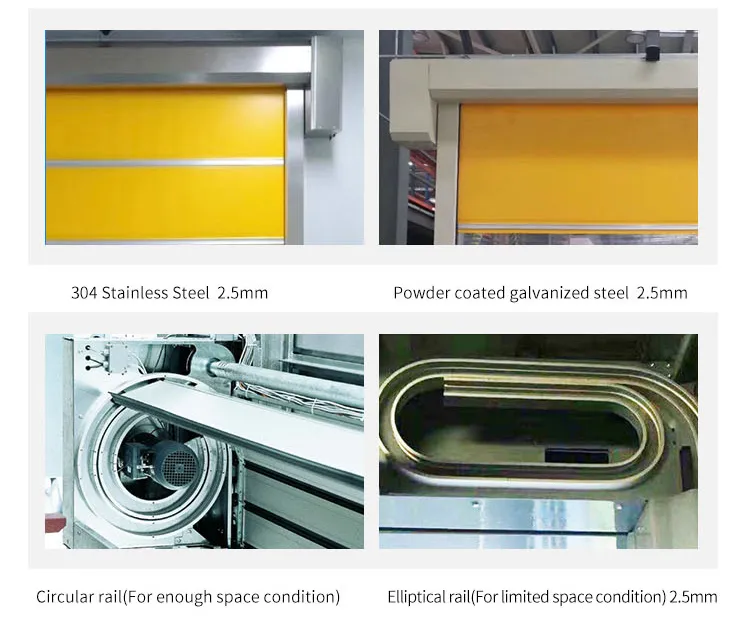

2 Frame and Rails

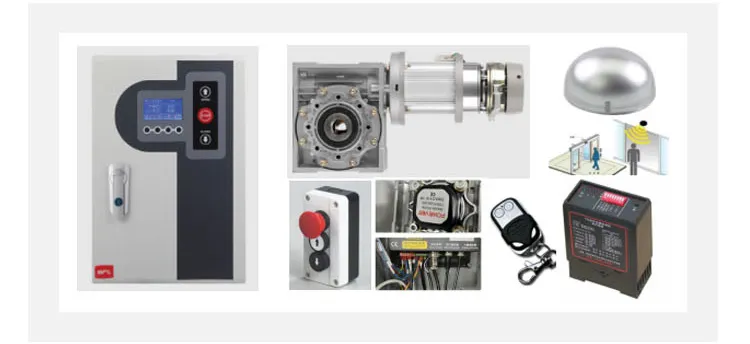

3 Motor and Controller

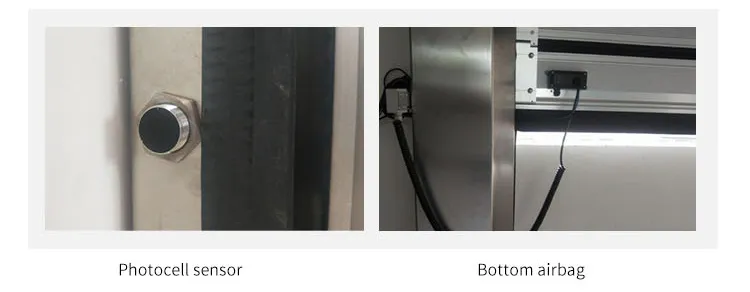

4 Safety Devices
Photocell sensor and bottom airbag ensure maximum safety during operation.

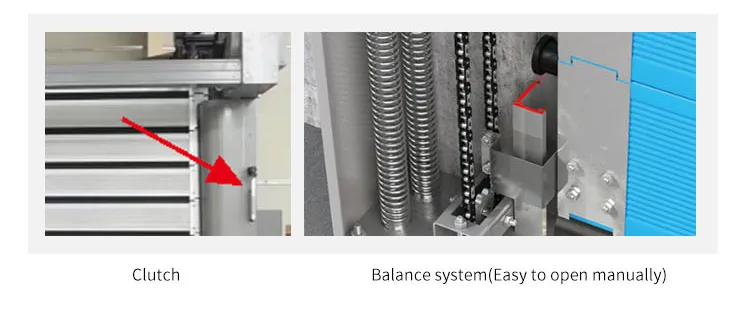

5 Emergency Device

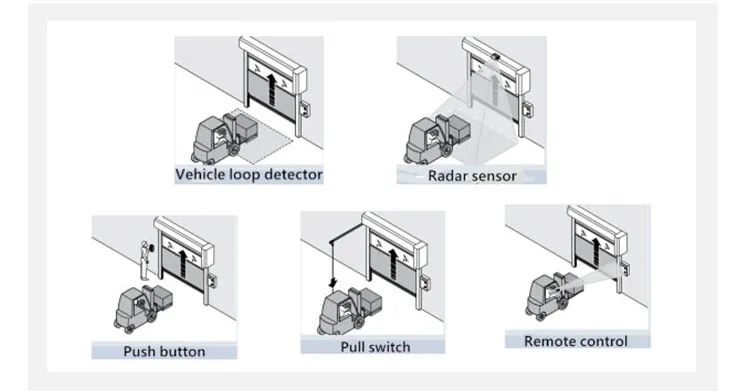

6 Operation Methods

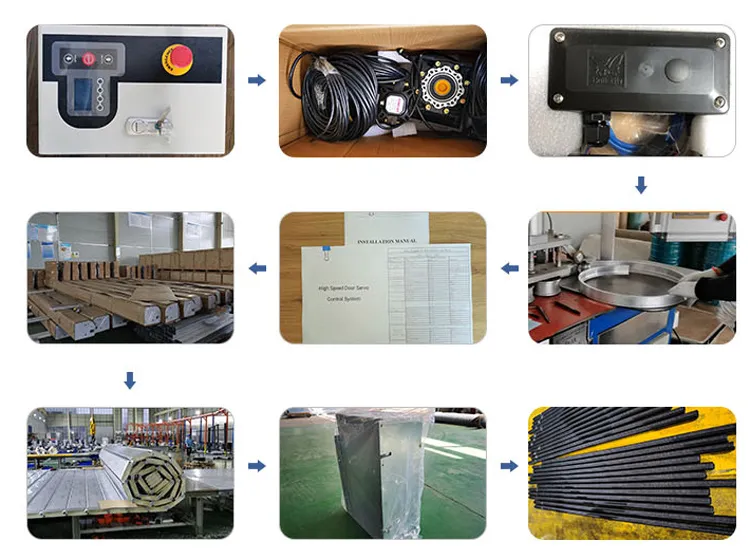

What You Will Receive

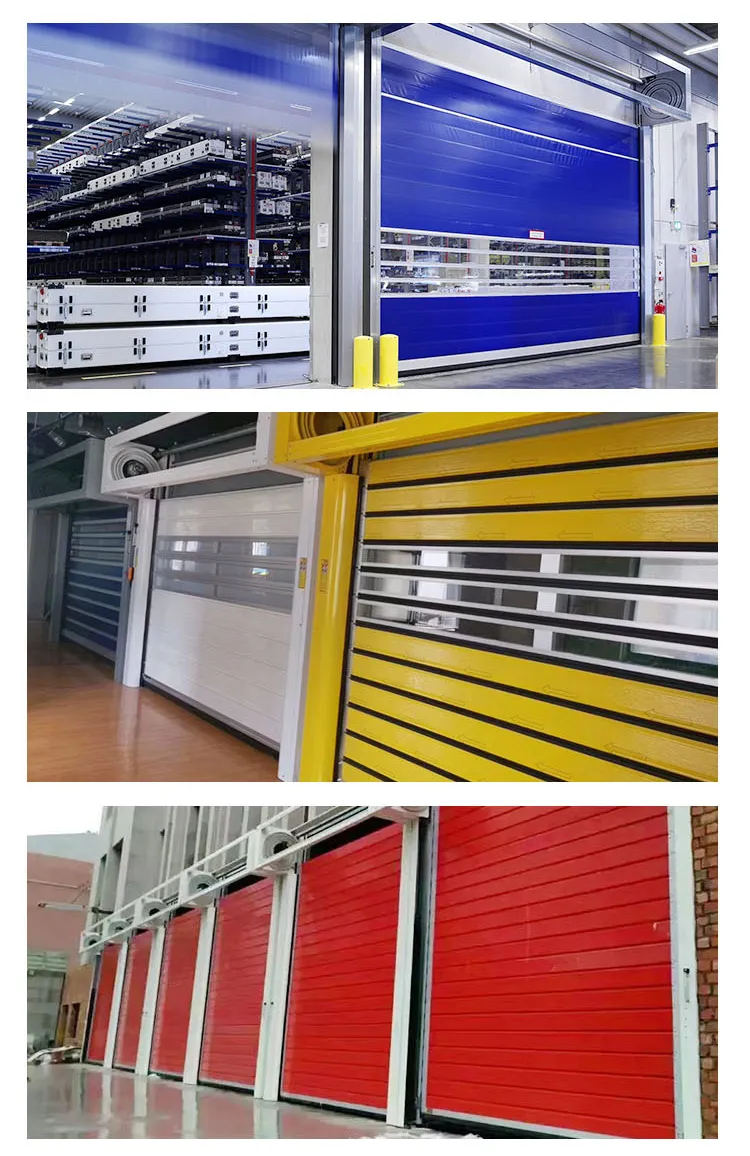

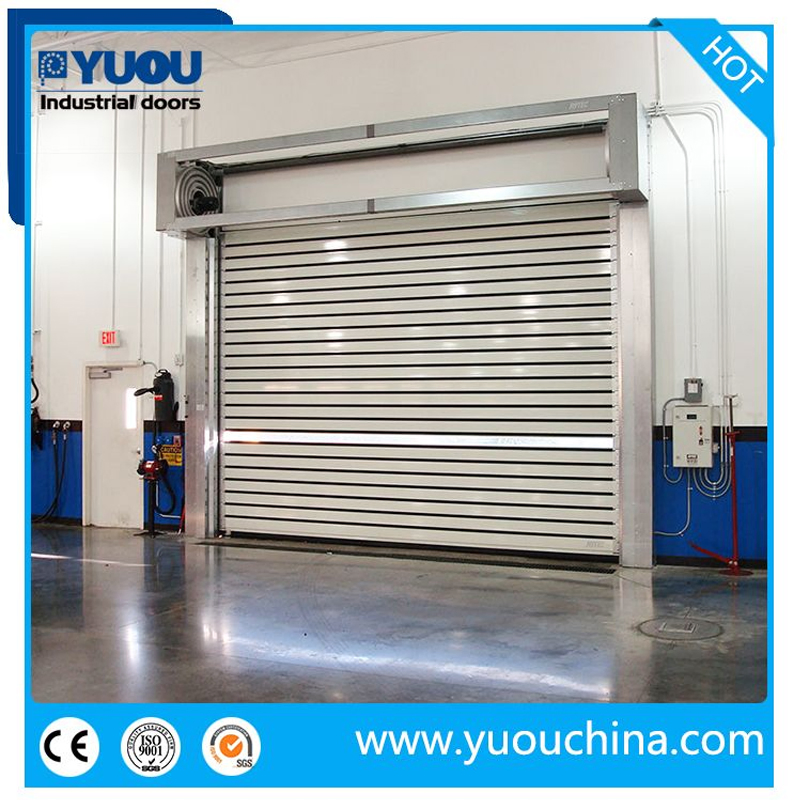

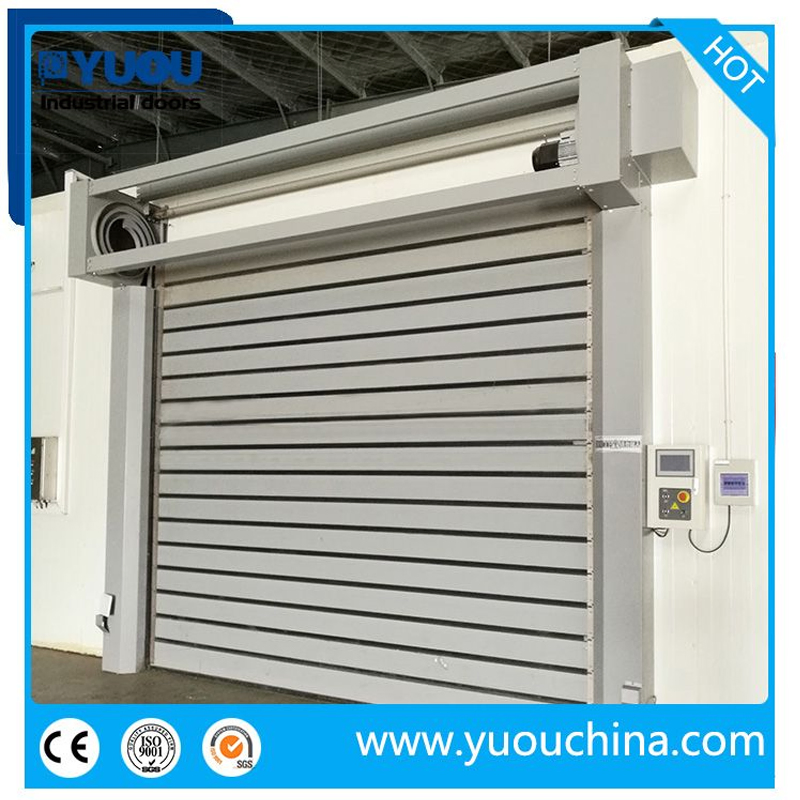

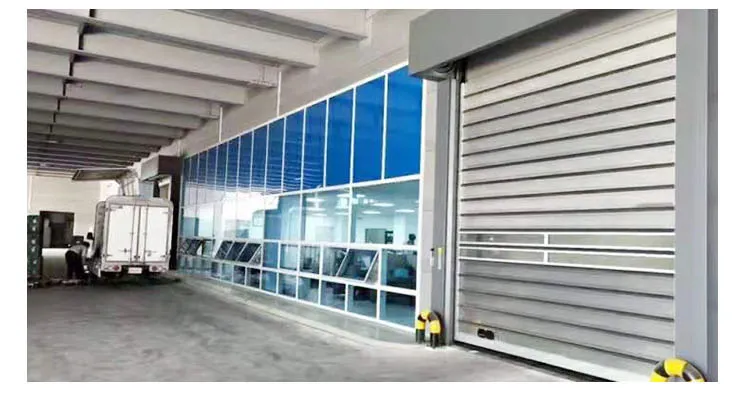

Product Real Shots
Frequently Asked Questions
What are the payment details?
Deposit is required before production, and the balance payment must be settled before shipment.
What is the delivery time?
The standard delivery time is 7-15 days.
What about the warranty for the doors?
We provide a 12-month warranty for all doors and accessories covering product quality issues.
Do you provide OEM Service?
Yes, both OEM and ODM services are available to meet your requirements.
What is the Minimum Order Quantity (MOQ)?
We accept 1 set as a sample order, although we offer better discounts for larger orders.
How is your after-sale service?
We provide a complete set of English documentation for installation. Additionally, we offer patient installation and daily use guidance via internet or mobile phone.
