Antiknock Hydraulic Stationary Heavy Duty Telescopic-Lip Garage Warehouse Lift Table Car Ramp Dock Leveler
Antiknock Hydraulic Stationary Heavy Duty Telescopic-Lip Garage Warehouse Lift Table Car Ramp Dock Leveler
Antiknock Hydraulic Stationary Heavy Duty Telescopic-Lip Garage Warehouse Lift Table Car Ramp Dock Leveler
Antiknock Hydraulic Stationary Heavy Duty Telescopic-Lip Garage Warehouse Lift Table Car Ramp Dock Leveler
Antiknock Hydraulic Stationary Heavy Duty Telescopic-Lip Garage Warehouse Lift Table Car Ramp Dock Leveler
1 / 5
Antiknock Hydraulic Stationary Heavy Duty Telescopic-Lip Garage Warehouse Lift Table Car Ramp Dock Leveler
Antiknock Hydraulic Stationary Heavy Duty Telescopic-Lip Garage Warehouse Lift Table Car Ramp Dock Leveler
Antiknock Hydraulic Stationary Heavy Duty Telescopic-Lip Garage Warehouse Lift Table Car Ramp Dock Leveler
Antiknock Hydraulic Stationary Heavy Duty Telescopic-Lip Garage Warehouse Lift Table Car Ramp Dock Leveler
Antiknock Hydraulic Stationary Heavy Duty Telescopic-Lip Garage Warehouse Lift Table Car Ramp Dock Leveler

Antiknock Hydraulic Stationary Heavy Duty Telescopic-Lip Garage Warehouse Lift Table Car Ramp Dock Leveler

Customization: Available
After-sales Service: Yes
Warranty: 12 Months
Send Inquiry

Product Description

Basic Specifications

Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Feature
Explosion-Proof
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
HS Code
84254290

Packaging & Delivery

Package Size
200.00cm * 100.00cm * 120.00cm
Gross Weight
100.000kg
Transport Package
Wrapping Film

Product Overview

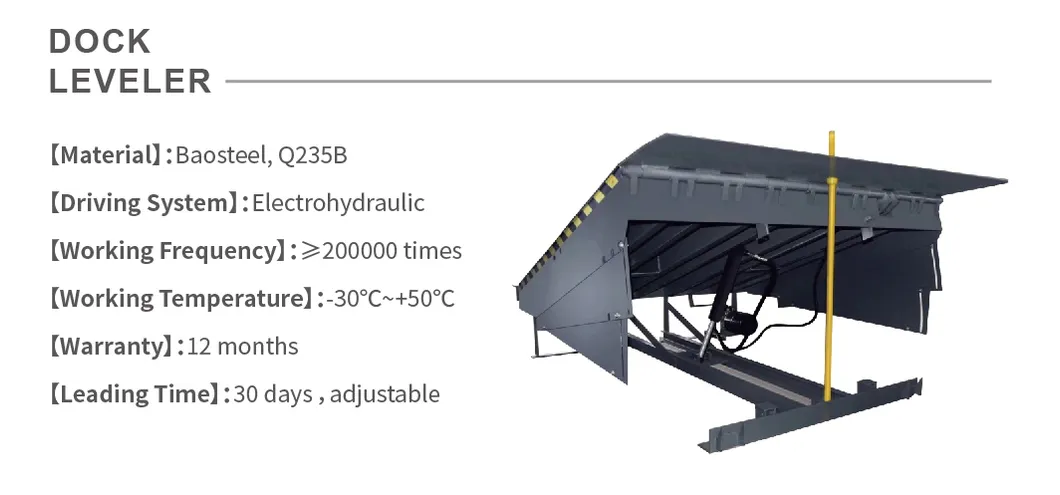

Lift Table Detail 1

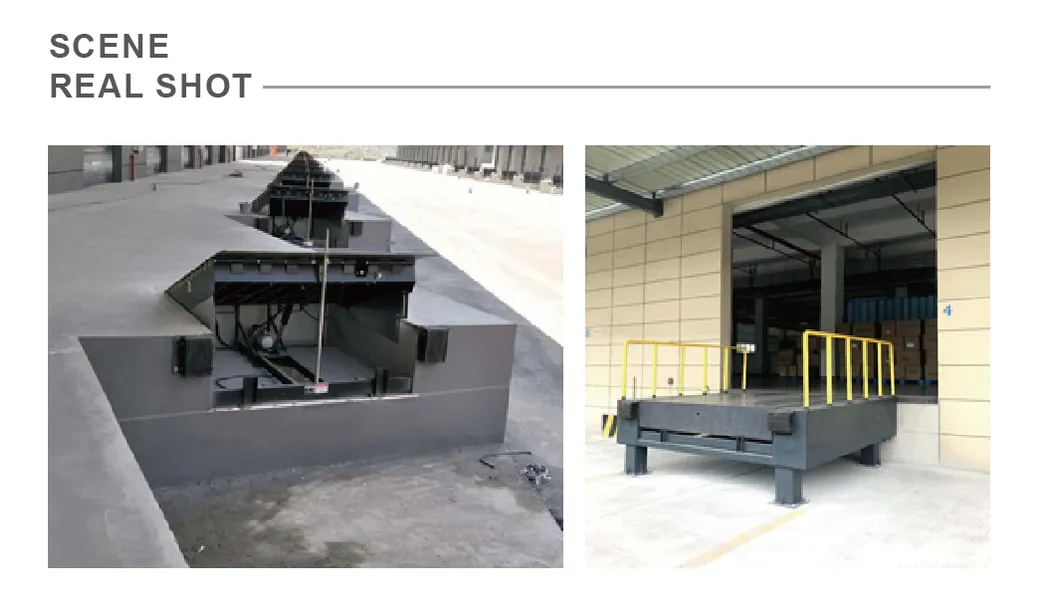

Lift Table Detail 2

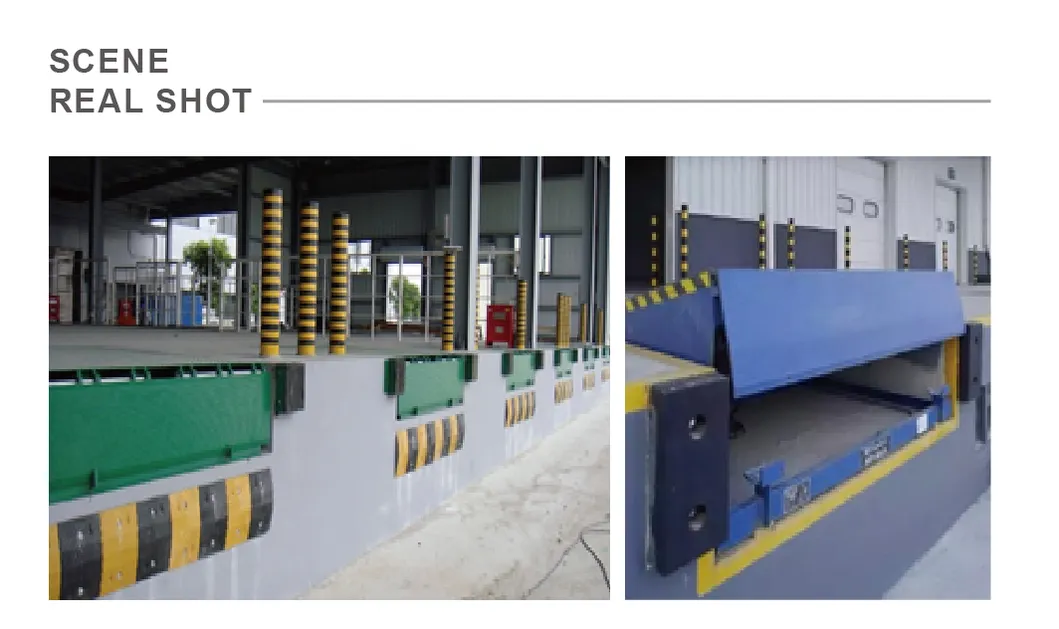

Lift Table Detail 3

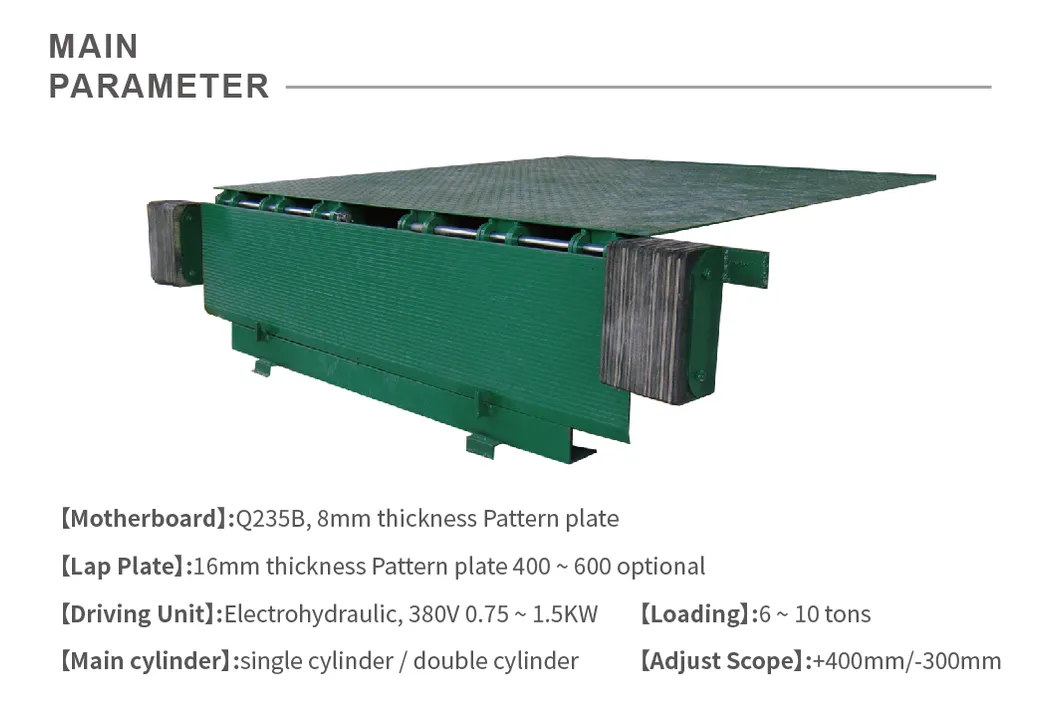

Lift Table Detail 4
DETAILED PARAMETERS
Main BoardQ235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14 / 16mm; blasting and powder coating
Loading WeightDynamic load: 6T / 8T / 10T / 12 T / 15T
Driving SystemElectrohydraulic, 380V 0.75KW ~ 1.5KW powerpack
Adjust Scope+400mm / -300mm
Adjust TimeUp ≤ 16S ; Down ≤ 10S
Sealing PartsBrand: NOK A505 Complete set of seals for oil cylinder
Main Board Stiffener8 pcs of 14# I-Beam, height of Beam is 140mm
Side BafflesAutomatic retraction to ensure safety
Working Temperature-30ºC ~ +50ºC
Safety PartsExplosion proof valve, side safety baffles

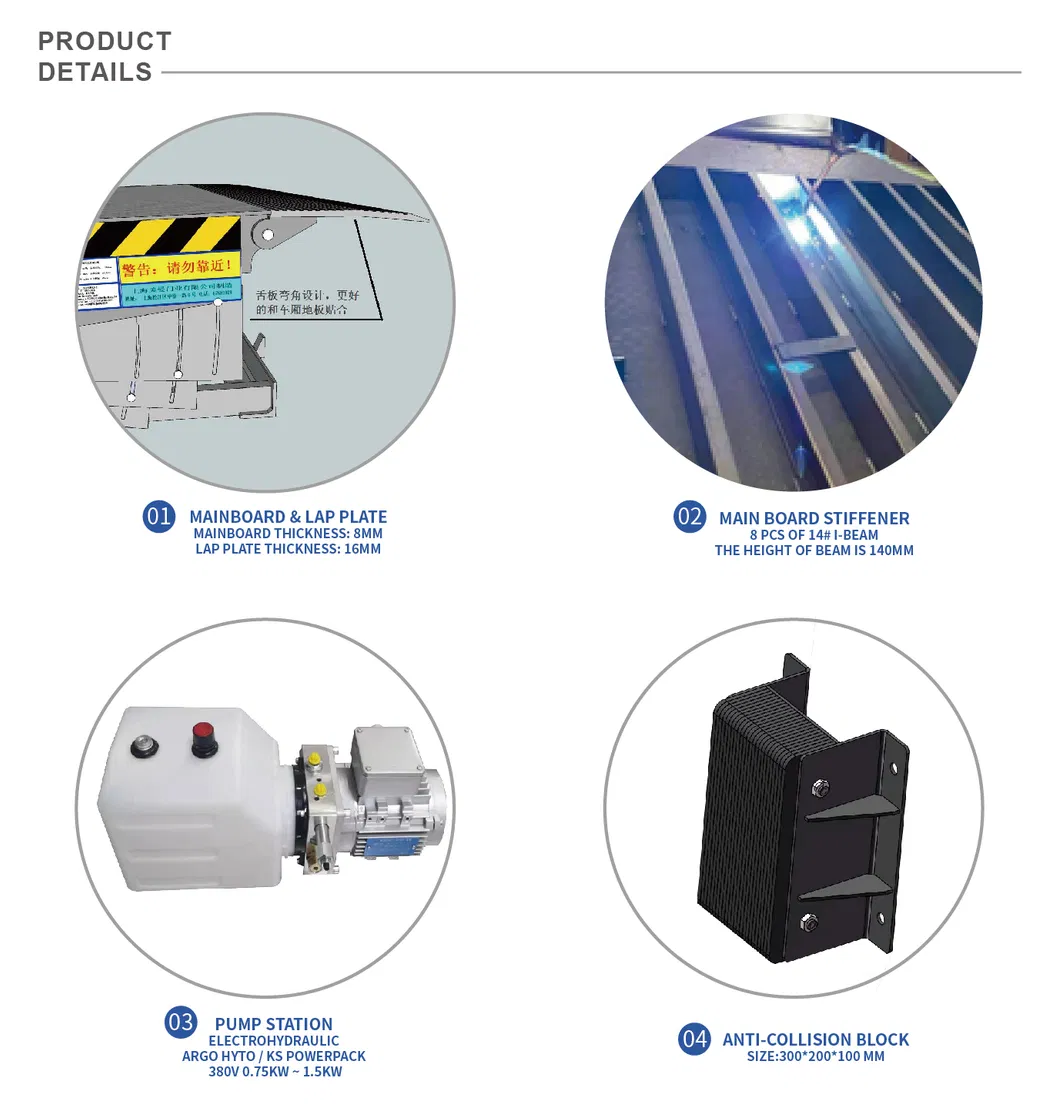

Structural View
Installation Detail
Project Case
Key Features:
• Advanced equipment and technology utilized for precision design.
• Customized solutions available to meet specific logistical needs.
• Certified quality management system (ISO9001:2000) and CE Certification.
• Durable construction with anti-collision bumpers and I-Beam reinforcement.

Frequently Asked Questions

What is the dynamic loading capacity of this dock leveler?
The system supports dynamic loads ranging from 6T, 8T, 10T, up to 15T, depending on the specific configuration chosen.
Can this equipment operate in extreme weather conditions?
Yes, it is designed to operate reliably within a wide temperature range of -30ºC to +50ºC, making it suitable for both cold storage and high-heat environments.
What safety features are included?
Safety is ensured through explosion-proof valves, automatic retraction side baffles, and anti-collision bumpers (300*200*100 mm).
What material is used for the main lifting platform?
The main board is constructed from Q235B high-strength steel plate with an anti-slide pattern, reinforced with 8 pieces of 14# I-Beams for maximum durability.
How long does it take to fully raise or lower the platform?
The raising time is approximately ≤ 16 seconds, and the lowering time is ≤ 10 seconds, ensuring efficient loading dock operations.
Is the surface treated against rust and corrosion?
Yes, all steel surfaces undergo a thorough blasting treatment followed by a professional powder coating to ensure long-term corrosion resistance.
