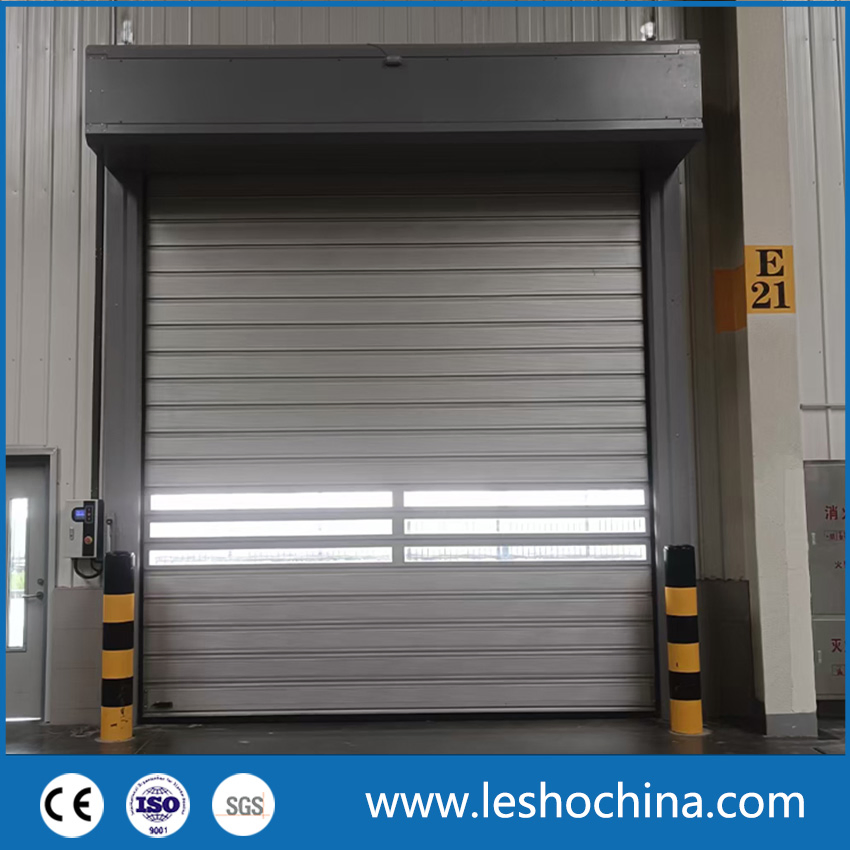

Industrial Rolling Automatic Aluminum Insulated Overhead Fast Rapid Security Spiral Roll up Roller Shutter High Speed Door for Garage Warehouse Factory Garage
Industrial Rolling Automatic Aluminum Insulated Overhead Fast Rapid Security Spiral Roll up Roller Shutter High Speed Door for Garage Warehouse Factory Garage
Industrial Rolling Automatic Aluminum Insulated Overhead Fast Rapid Security Spiral Roll up Roller Shutter High Speed Door for Garage Warehouse Factory Garage
Industrial Rolling Automatic Aluminum Insulated Overhead Fast Rapid Security Spiral Roll up Roller Shutter High Speed Door for Garage Warehouse Factory Garage
Industrial Rolling Automatic Aluminum Insulated Overhead Fast Rapid Security Spiral Roll up Roller Shutter High Speed Door for Garage Warehouse Factory Garage
1 / 5
Industrial Rolling Automatic Aluminum Insulated Overhead Fast Rapid Security Spiral Roll up Roller Shutter High Speed Door for Garage Warehouse Factory Garage
Industrial Rolling Automatic Aluminum Insulated Overhead Fast Rapid Security Spiral Roll up Roller Shutter High Speed Door for Garage Warehouse Factory Garage
Industrial Rolling Automatic Aluminum Insulated Overhead Fast Rapid Security Spiral Roll up Roller Shutter High Speed Door for Garage Warehouse Factory Garage
Industrial Rolling Automatic Aluminum Insulated Overhead Fast Rapid Security Spiral Roll up Roller Shutter High Speed Door for Garage Warehouse Factory Garage
Industrial Rolling Automatic Aluminum Insulated Overhead Fast Rapid Security Spiral Roll up Roller Shutter High Speed Door for Garage Warehouse Factory Garage

Industrial Rolling Automatic Aluminum Insulated Overhead Fast Rapid Security Spiral Roll up Roller Shutter High Speed Door for Garage Warehouse Factory Garage

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.

Model NO.
Spiral
Material
Aluminum Alloy
Type
Rolling
Open Style
Rolling
Special Function
Security
Color
Ral Color Available
Certification
ISO9001, CE
Max Size
W8000mm*H8000mm
Power Supply
1-Phase 220V or 3 Phase 380V
Protection Class
IP55
Features
Thermal Insulation
Package
Wooden Package

Packaging & Delivery

Package Size
300.00cm * 80.00cm * 80.00cm
Gross Weight
300.000kg

Product Description

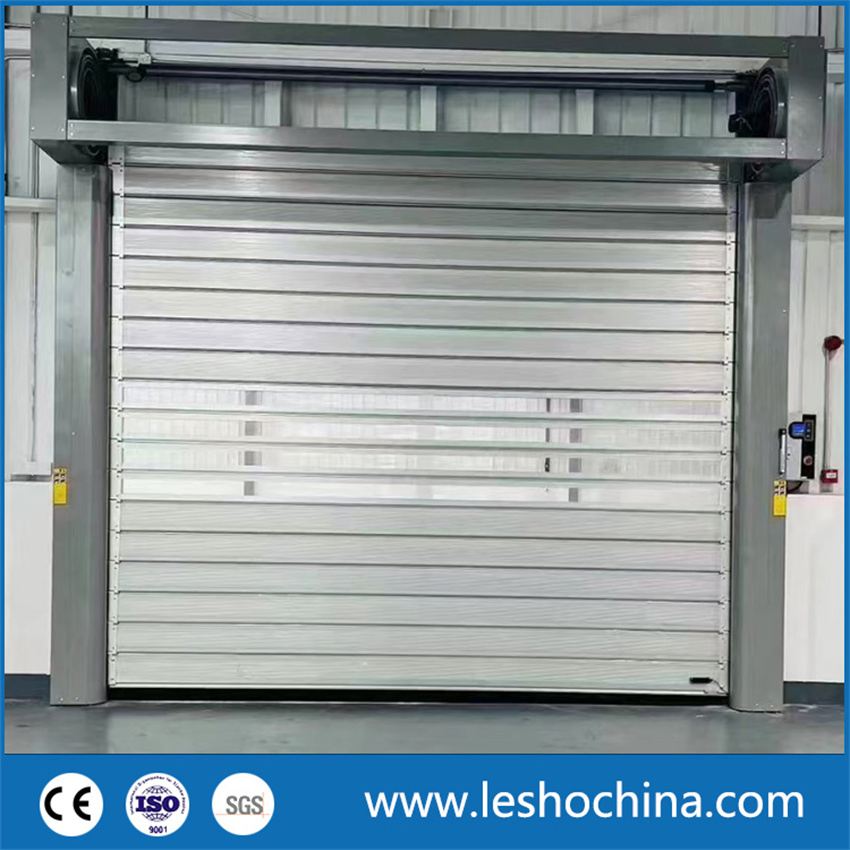

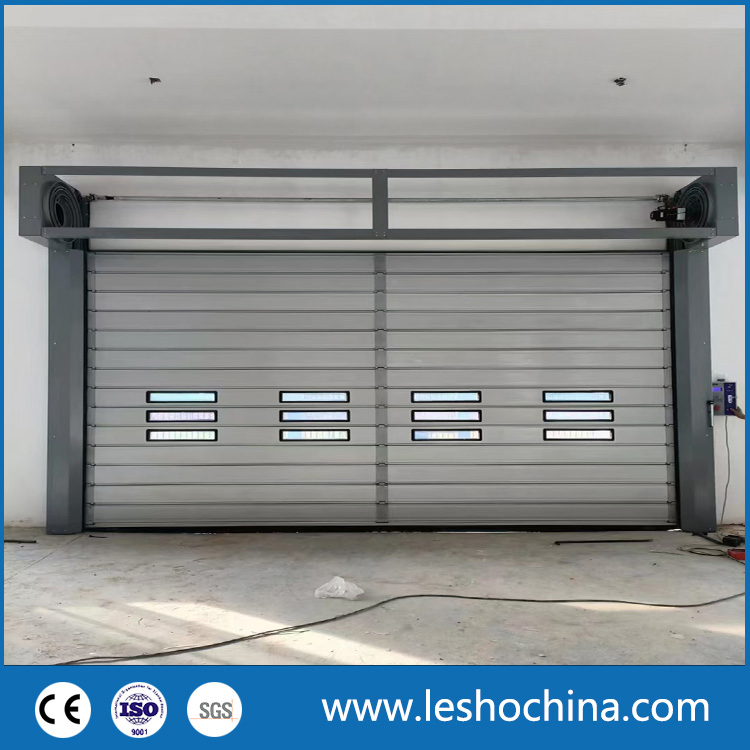

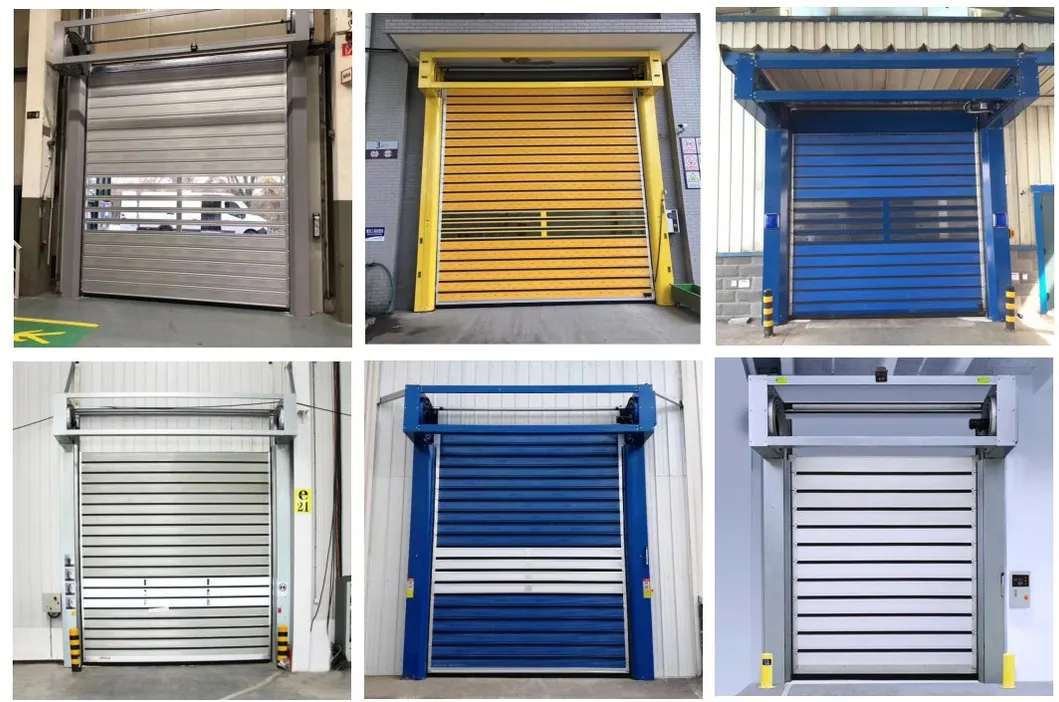

Aluminum Alloy Spiral High Speed Door

Spiral High Speed Door
Application:
A model of Rapid Doors with thermal insulated aluminum slats. Most advanced and high-oriented model. It is fit for areas with high demand of both security, high-strength, thermal insulation and high running speed.

Technical Data

Max dimension8000mm wide * 8000mm high
Power supply1-phase 220V or 3-phase 380V, 50/60HZ
Protection levelIP55
Wind resistanceBeaufort scale 12 (35m/s)
Max opening speed2.0m/s
Max closing speed1.0m/s
Sound insulationR=25dB
Design Service Life20 years

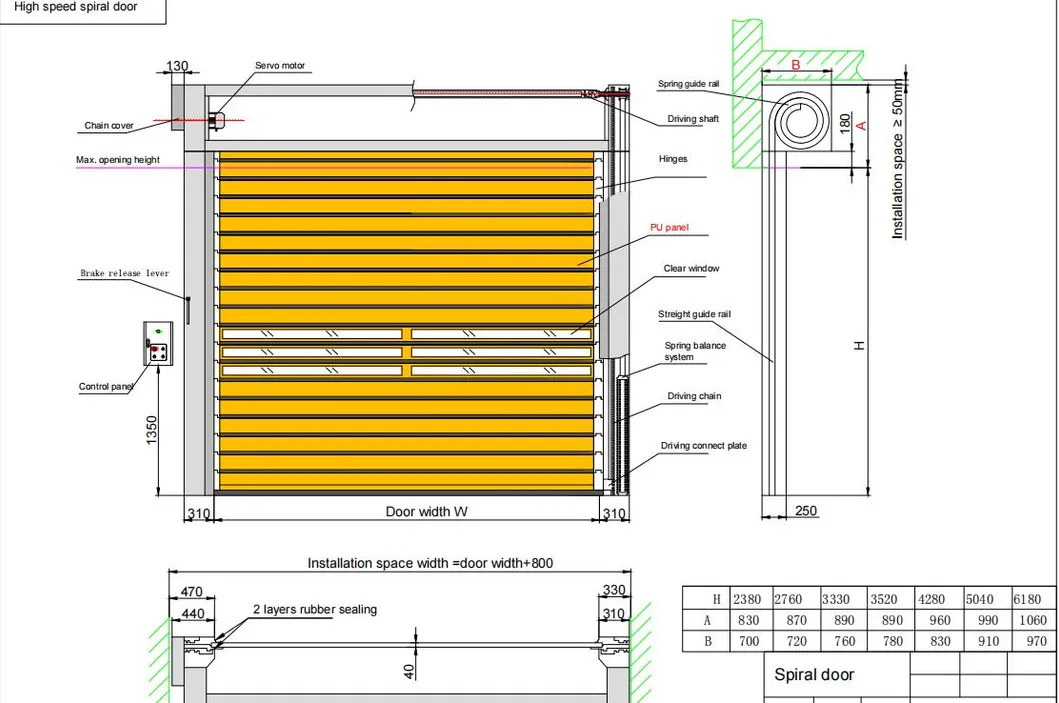

CAD Drawing

Accurate shop drawing to show the door dimension clearly, ensuring no misunderstanding of the door size.

CAD Drawing

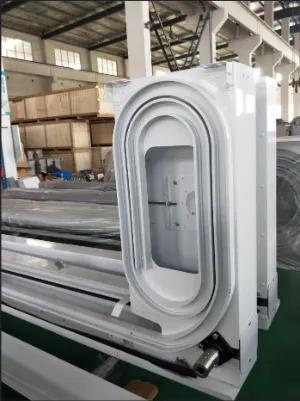

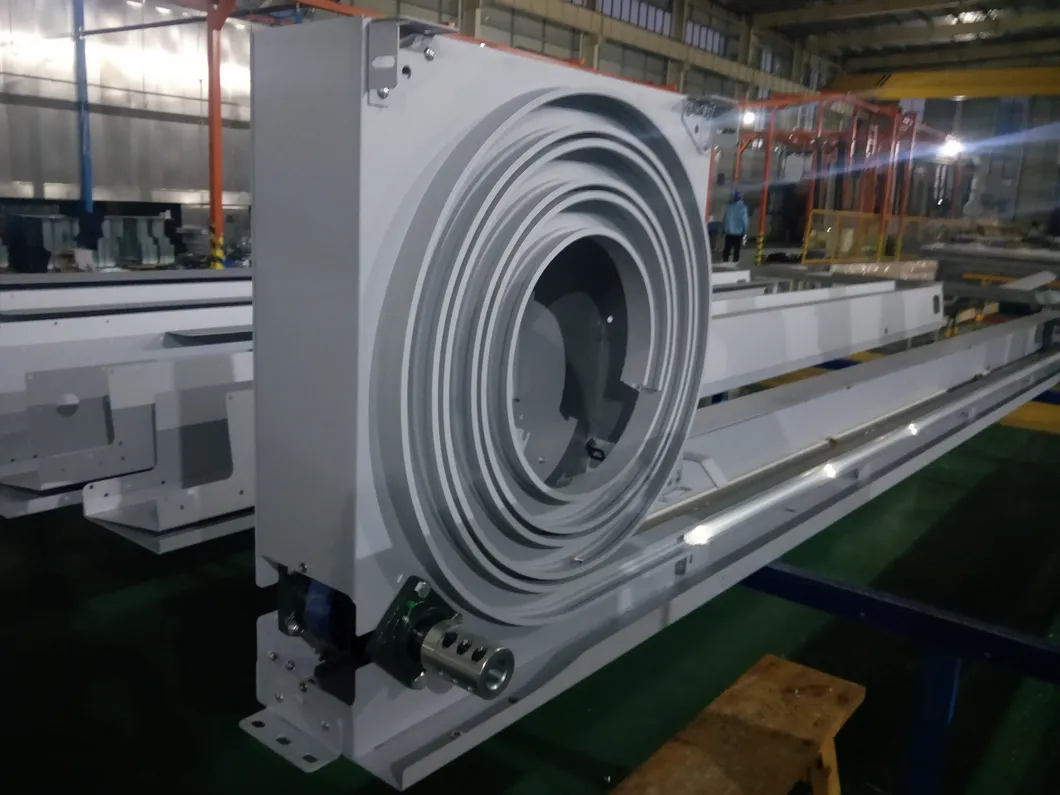

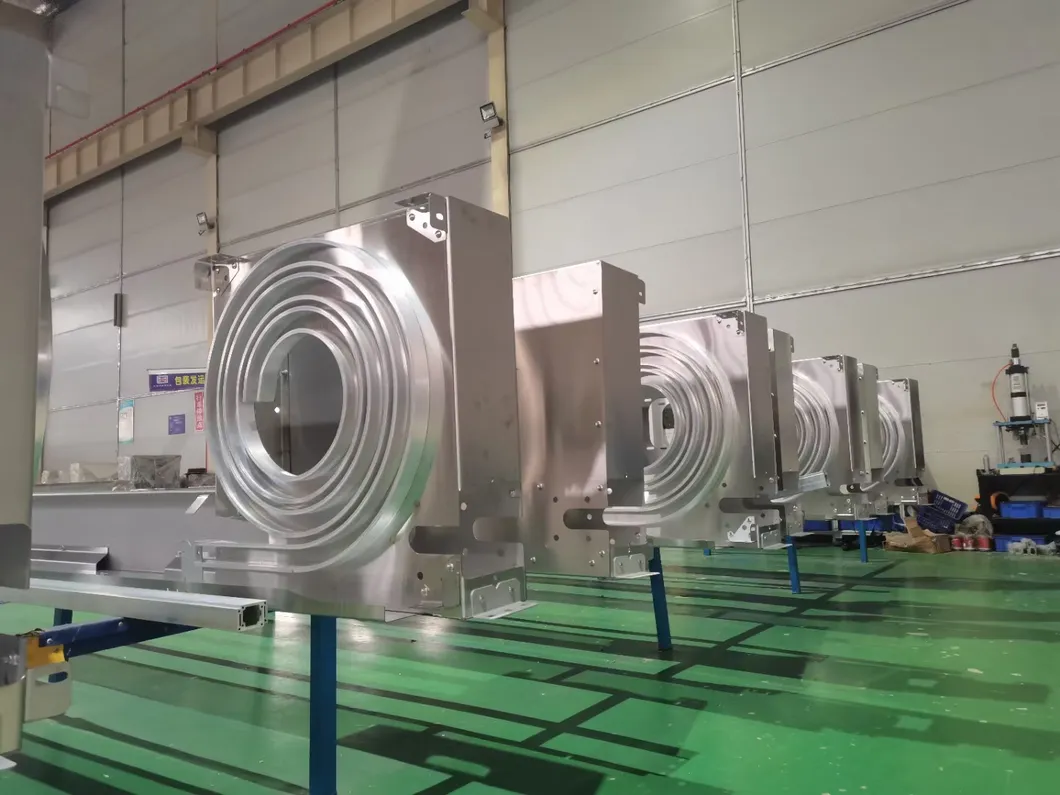

Special Spiral Guide Rail

Aluminum alloy profile rail with smooth anodized surface. The door panel runs in the guide rail by separate wheels without touching each other, completely avoiding friction. This design combines high speed with long service life.

Spiral Rail Detail 1 Spiral Rail Detail 2

Thermal Insulation & Safety

🛡️

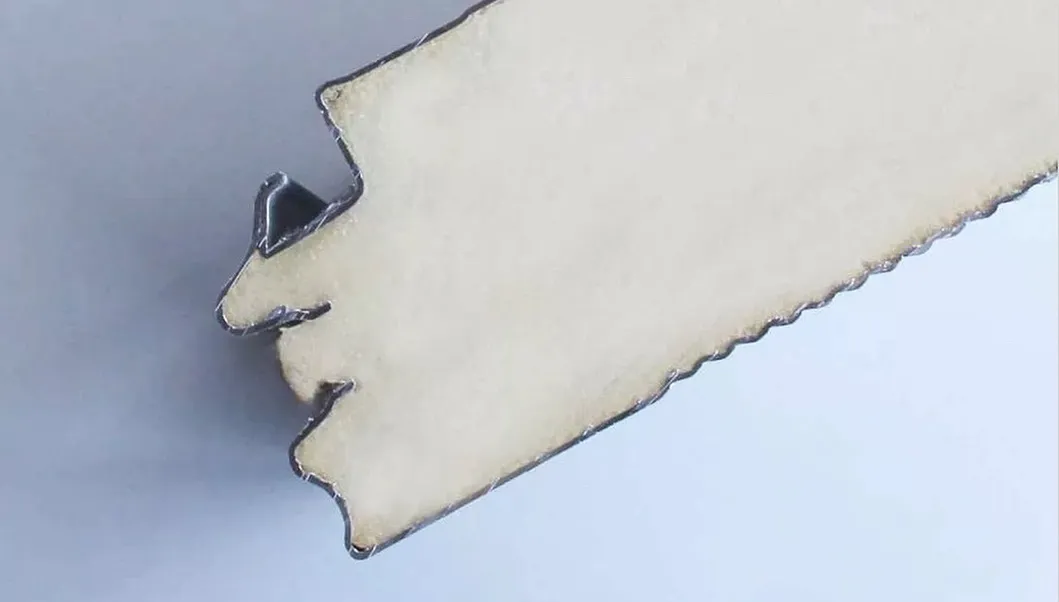

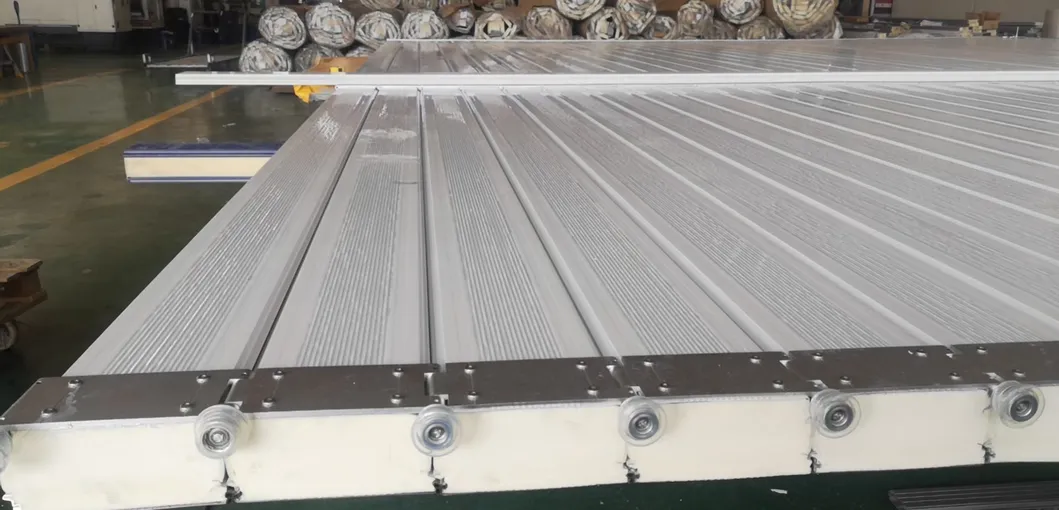

Excellent Thermal Insulation: Double layer aluminum panel filled with polyurethane foam. The broken bridge design prevents temperature loss and saves energy.
Insulation Detail Slat Structure
🔧

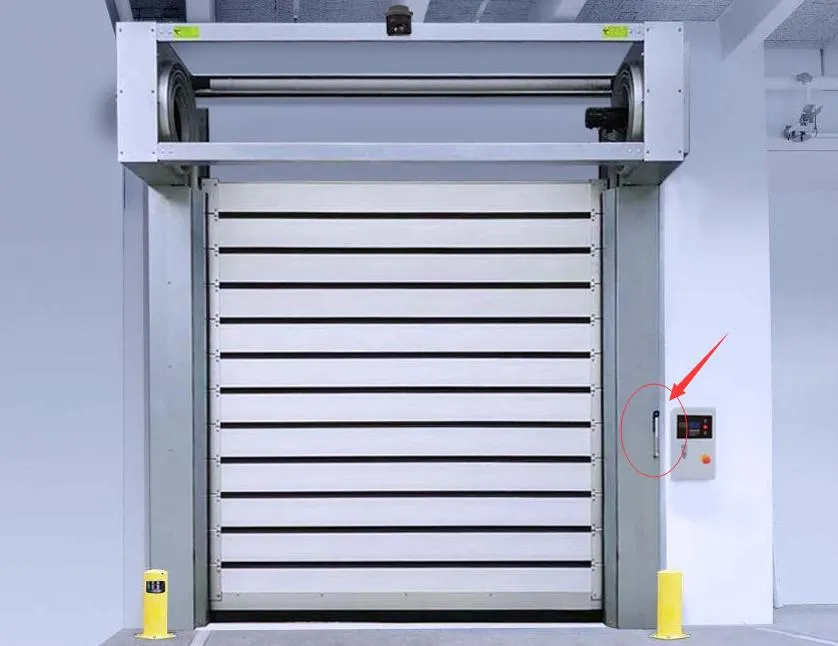

Emergency Manual Device: The door is balanced by a spring system and can be easily opened by hand during power failures.
Manual Device

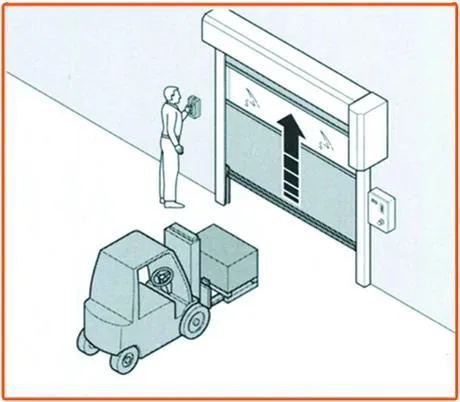

Operation & Control

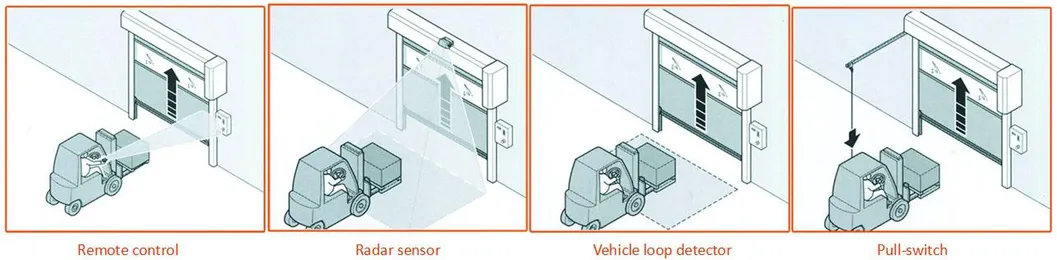

Multiple operation ways to improve factory traffic efficiency:

  • Standard push buttons
  • Remote control
  • Radar Sensor
  • Vehicle loop detector
  • Pull switch
Control 1 Control 2
Italy AC Servo Control System:

• High Speed Running: Max motor speed 2500 rpm.
• Precise Limit: Double encoder design for accuracy.
• Soft Running: Automatic torque adjustment for smooth start/stop.
• Humanized Design: LCD English screen with self-diagnosis function.

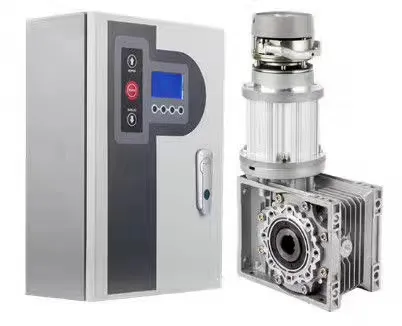

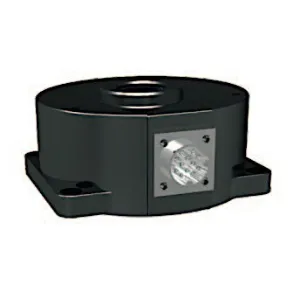

Control Box Servo Motor

Key Benefits

🚀
Efficiency: Reduces waiting time for forklifts and personnel.
✨
Cleanness: Complies with GMP standards, ideal for food/pharmaceutical industries.
🌡️
Energy Saving: High speed opening/closing minimizes air loss.
⚙️
Automation: Can be integrated with production lines and AGV vehicles.
Application 1 Application 2

Frequently Asked Questions

Q: Why choose our spiral high speed doors?
A: We offer the most cost-effective products with stable quality, backed by over 20 years of production and customization experience.
Q: How do we get started with a project?
A: We only need your basic background information and project site details. Providing site drawings allows us to offer a complete solution.
Q: What about the installation process?
A: We provide clear installation manuals and videos. For complex large projects, we can provide engineering guidance to ensure successful setup.
Q: Which types of payment do you accept?
A: We typically accept T/T in advance, L/C for large orders, and West Union. Other terms can be discussed upon request.
Q: What is the typical lead time?
A: The standard production lead time is approximately 7-10 days.
Q: How is the after-sales service handled?
A: Spare parts can be delivered within 24 hours via international couriers like DHL, UPS, or TNT.
