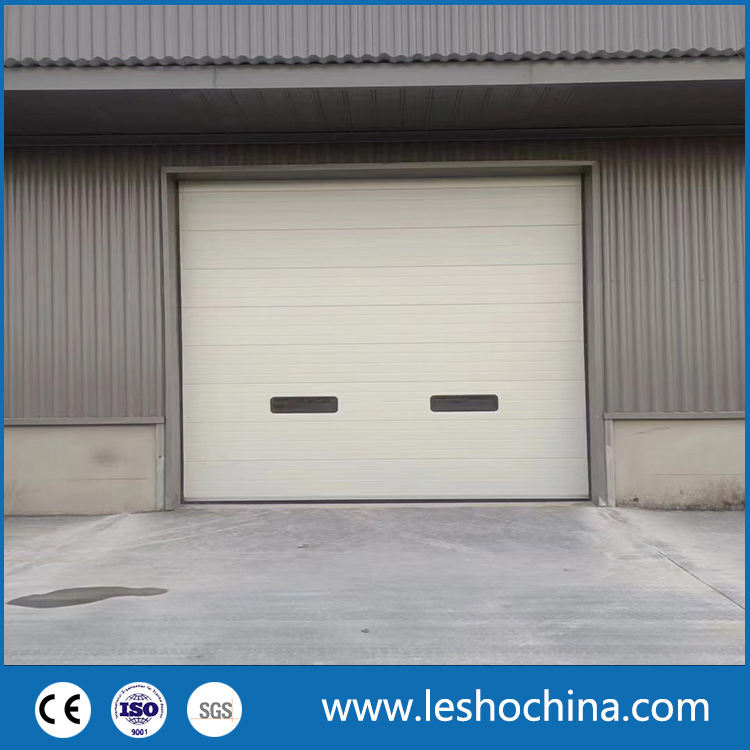

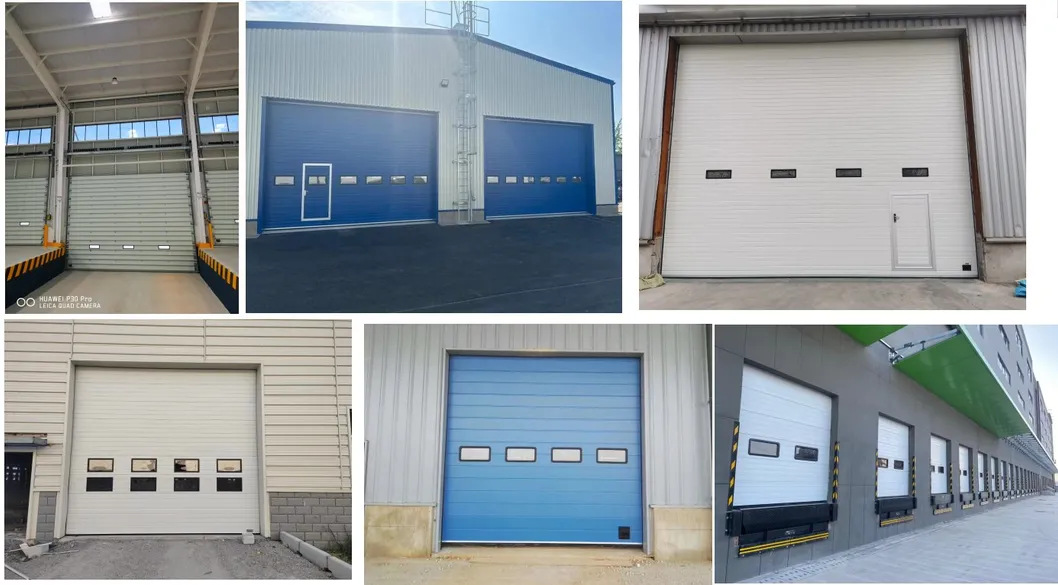

Industrial Sectional Overhead Door
(Normal type, Wind resistant type, Freezer type)
What you will get:

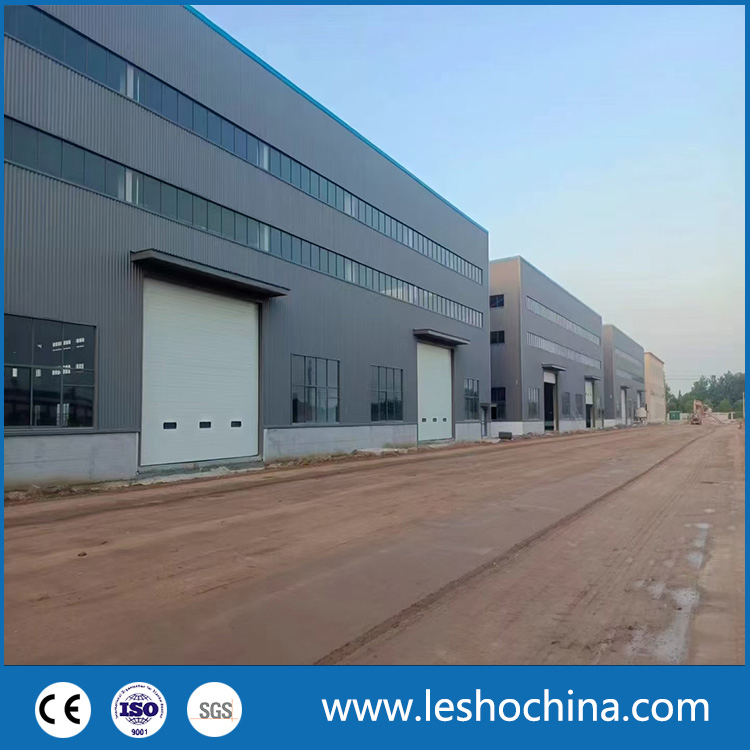

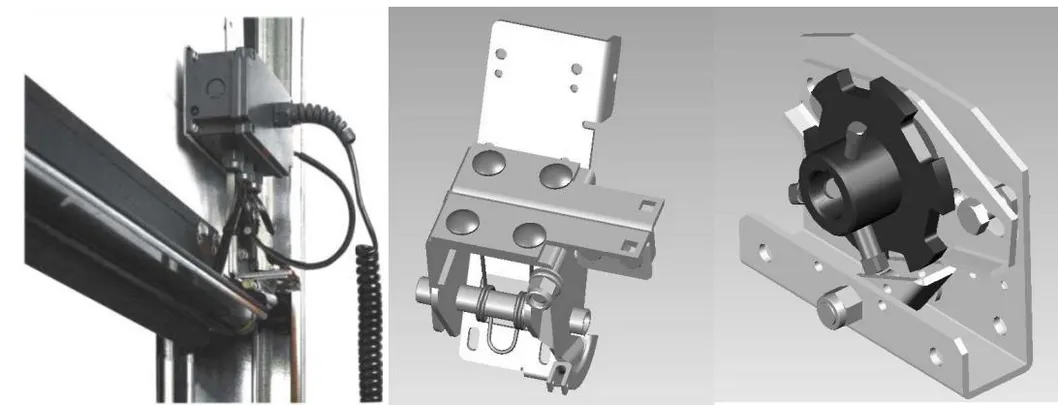

Application: Widely used in various industrial occasions because of scientific torsion spring balance systems and multiple safety devices. Its double-layer PIR sandwich door panel gives it excellent thermal insulation, wind resistance, and fire-retardant properties. Ideal for logistics loading areas, medicine, food, electronics, and printing workshops.
| Application Location | Both interior and exterior |
| Power Supply | 1-phase 220V or 3-phase 380V, 50/60HZ |
| Electric Protection | IP 54 / IP 55 |
| Max Dimension (Anti-wind) | W11.4m * H4.5m |
| Running Speed | 0.3m/s |
| Thermal Insulation (75mm) | 0.30 W/ (m2·K) |
| Wind Resistance | Beaufort scale 10-12 (28m/s-35m/s) |
| Sound Insulation | R = 24 dB |
| Fire Rated PU Foam | B1 Grade |

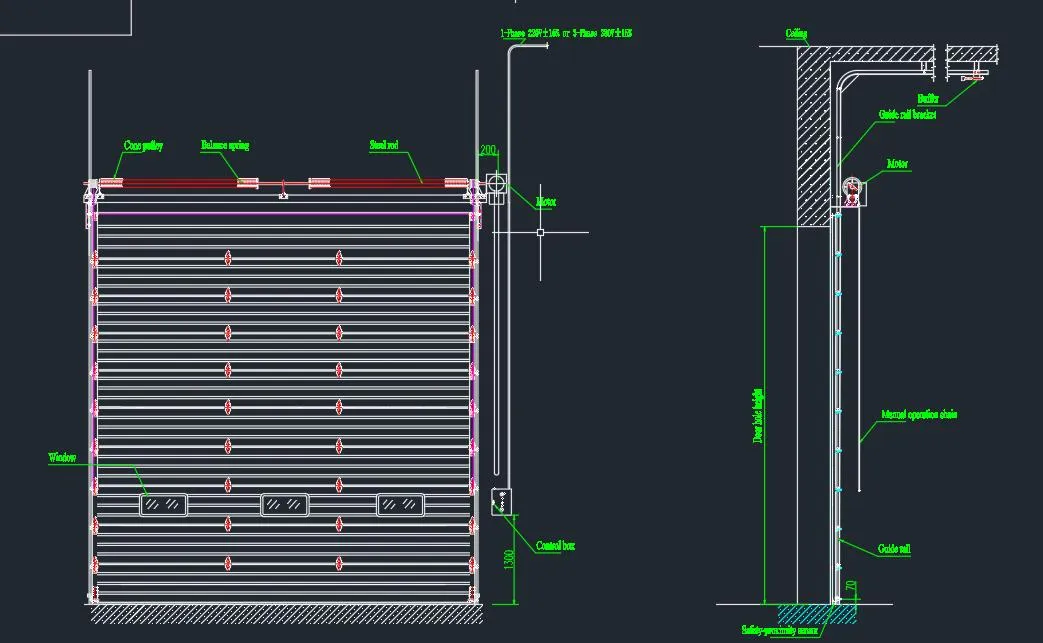

Accurate shop drawings to show dimensions clearly, ensuring no misunderstanding of size requirements.

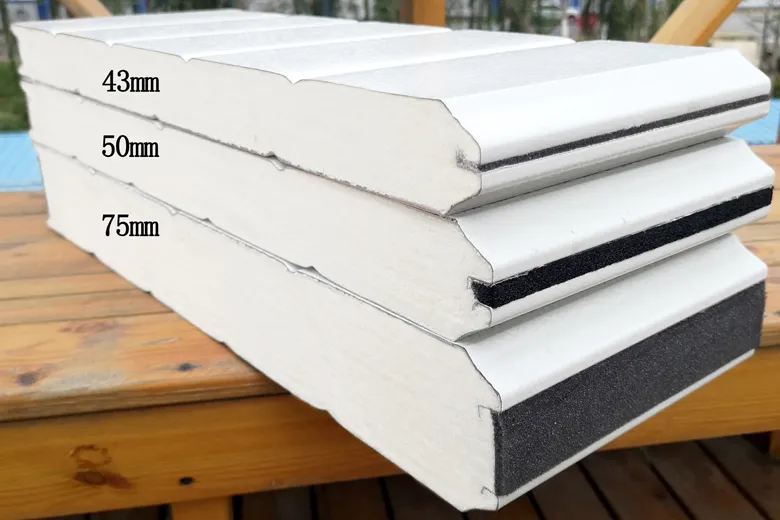

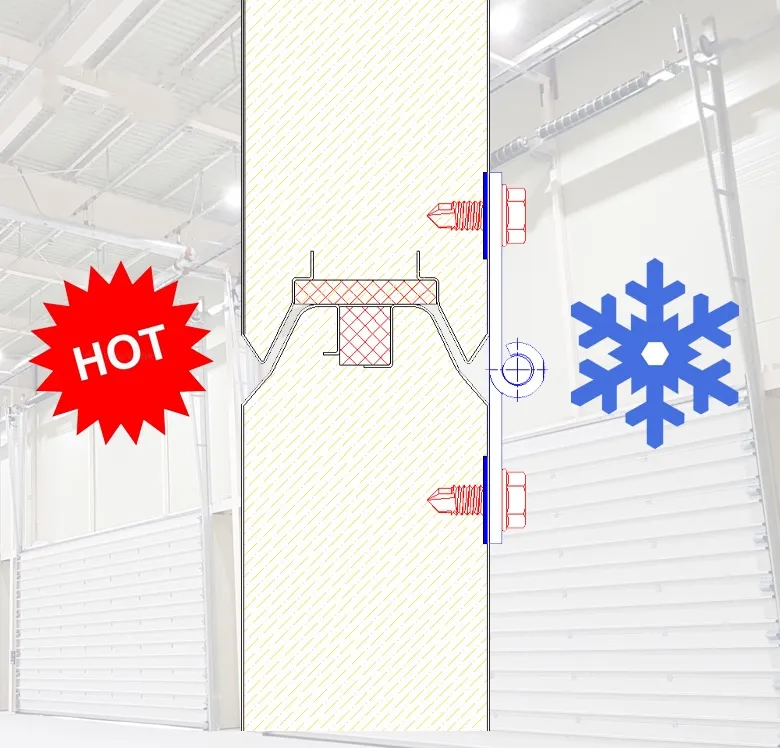

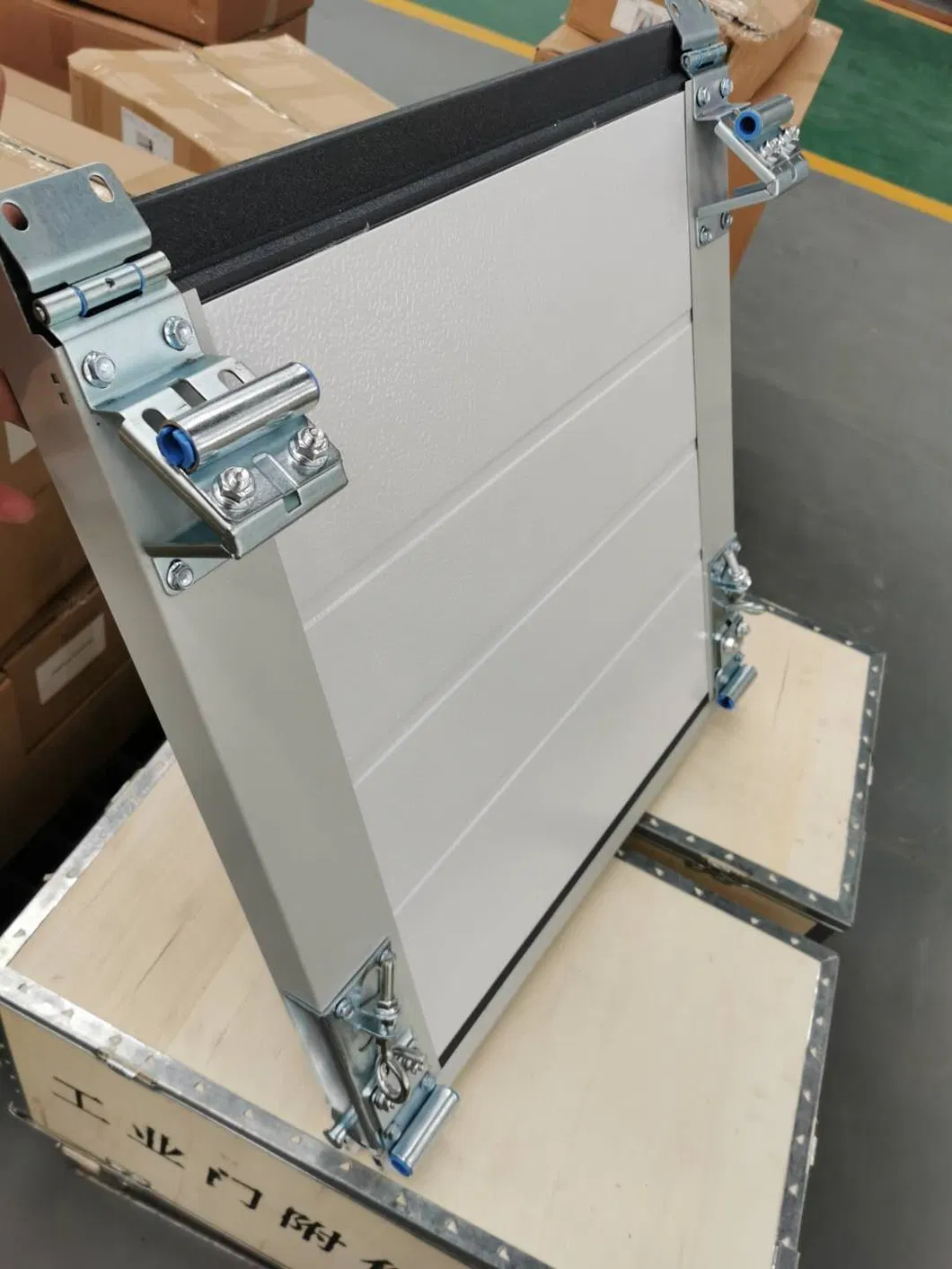

Normal finger protective panel: Double layer PPGI, inside filled with high-density PIR Foam (45kg/m³).

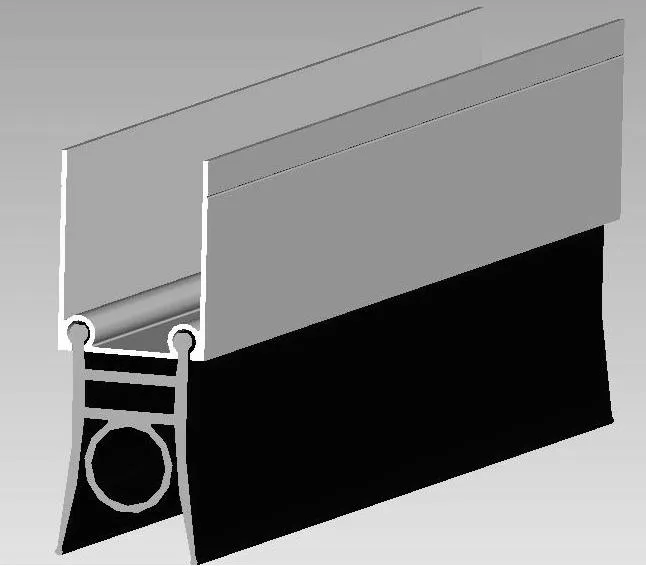

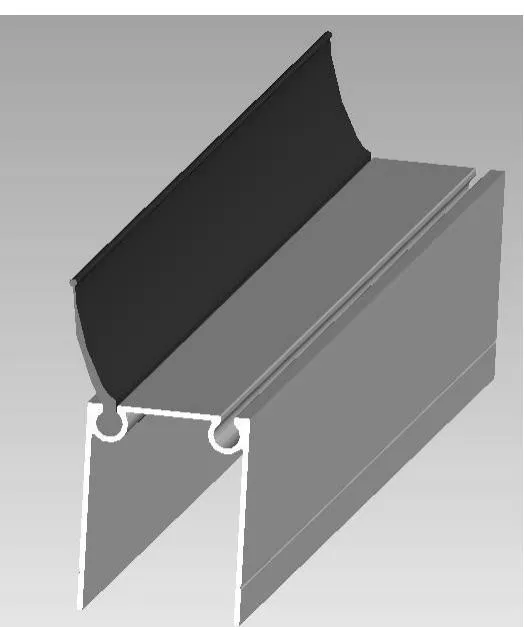

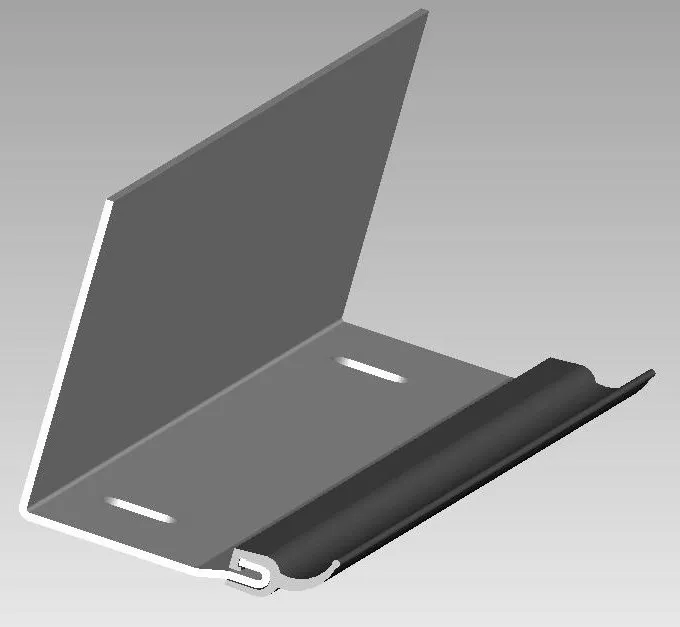

Equipped with EPDM Seal rubber all around to prevent deformation from weather, offering excellent air tightness and rejecting dust and insects.

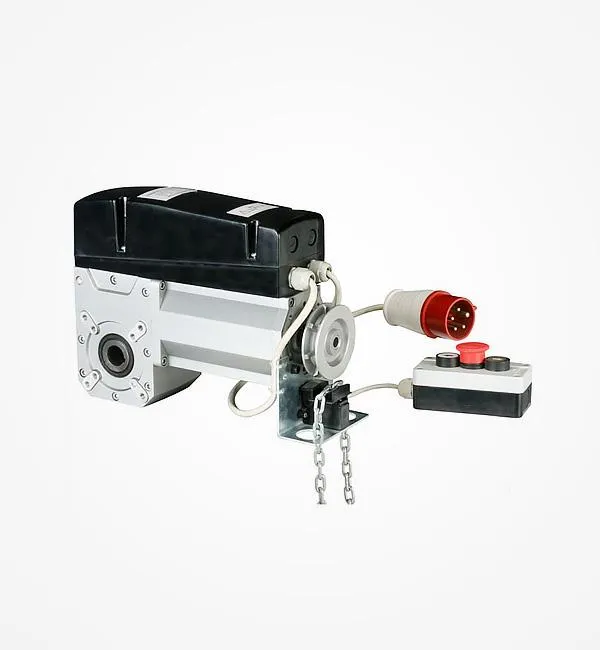

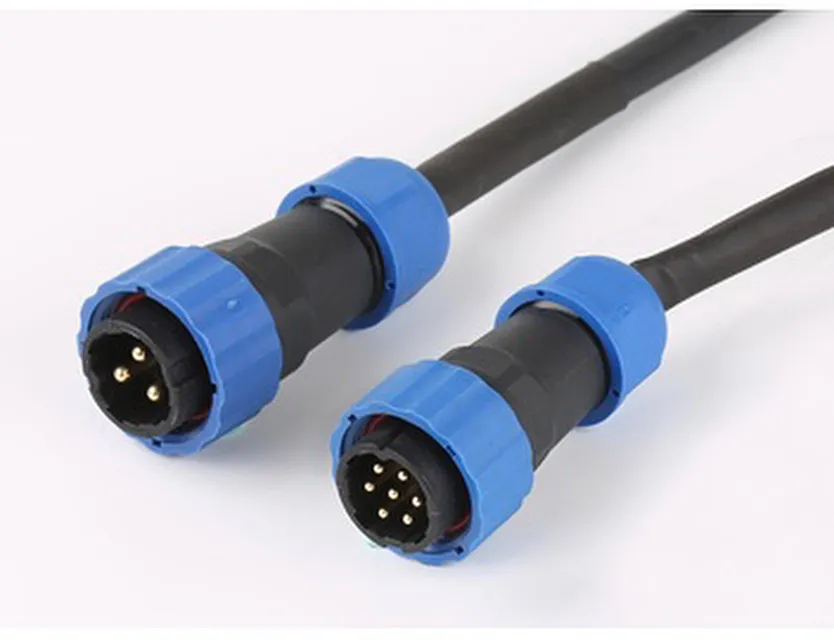

Intelligent Control: Various operation ways to improve transport and production efficiency.

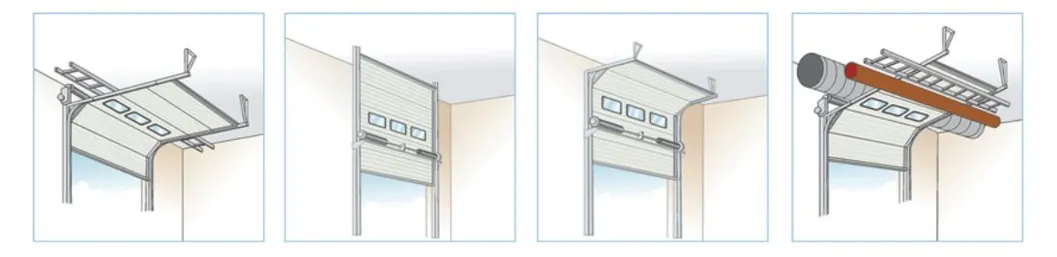

Variety of flexible installation methods available to suit specific factory conditions. Optional parts include vision panels for lighting and small swing personal doors for foot traffic.
