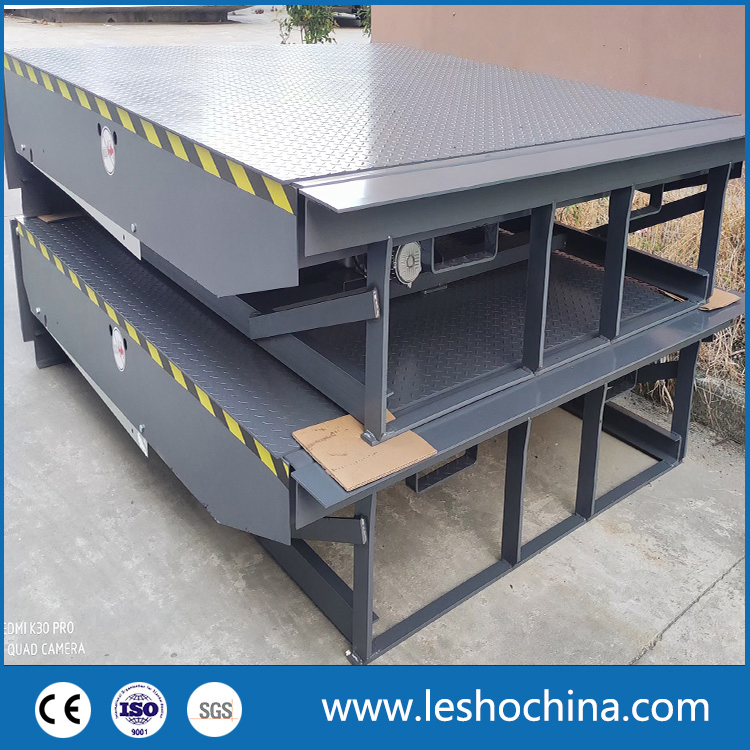

Cheap Price Forklift Free Heavy Duty Loading Equipment Telescopic Lip Dock Leveler

1 / 5

Cheap Price Forklift Free Heavy Duty Loading Equipment Telescopic Lip Dock Leveler

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Leveler

Application

Warehouse Crane

Lift Mechanism

Hydraulic Power

Carrying Capacity

6t, 8t, 10t, 15t

Driven Type

Hydraulic

Certification

CE, ISO 9001

Standard Size

L2000*W2000*H600mm (Customized Available)

Power Supply

220V 50Hz / 380V 50Hz

Temperature

-35 to 65 Celsius Degree

Protection Class

IP55

Package

Wooden Package

Production

50000 sets/Year

Product Description

Automatic Stationary Fixed Hydraulic Dock Leveler or Dock Ramp

Primary Application

The dock leveler is the best solution to adjust the height difference between the loading platform and the container truck. The height can be adjusted arbitrarily, the adjustment range is large, the loading and unloading efficiency is improved, and the manpower is saved.

Widely used for warehouses, stations, docks, warehouse logistics bases, postal transportation, logistics distribution, etc.

Loading Capacity and Type Selection

Dynamic load	Panel thickness	Panel reinforcement	Mouth plate thickness	Base frame	Static load	Forklift range
5 tons	6mm	4mm L steel	12mm	60 channel steel	8 tons	2.5 tons plug-in
8 tons	8mm	4mm L steel	16mm	100 channel steel	11 tons	3.5 tons plug-in
10 tons	8mm	14# I-beam	16mm	100 channel steel	13 tons	5 tons plug-in
14 tons	10mm	16# I-beam	16mm	100 channel steel	17 tons	6 tons plug-in

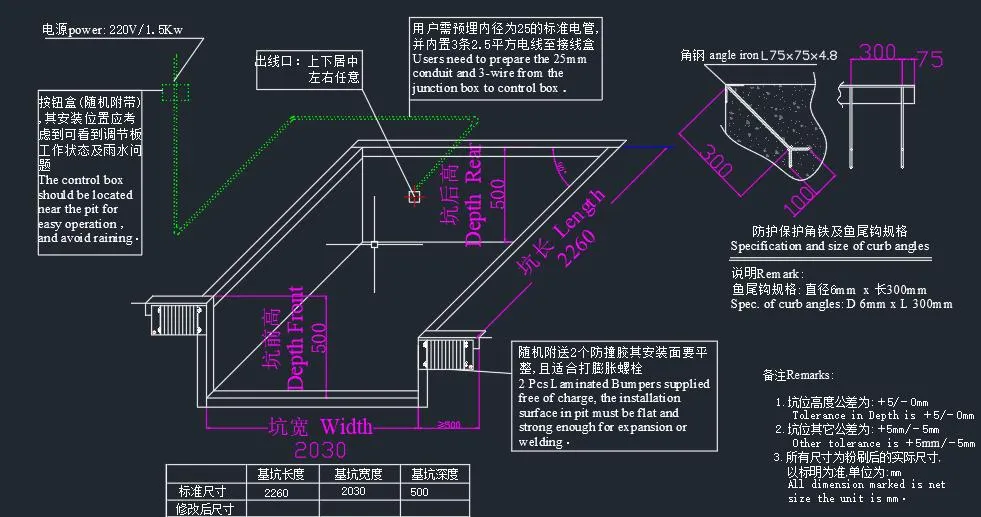

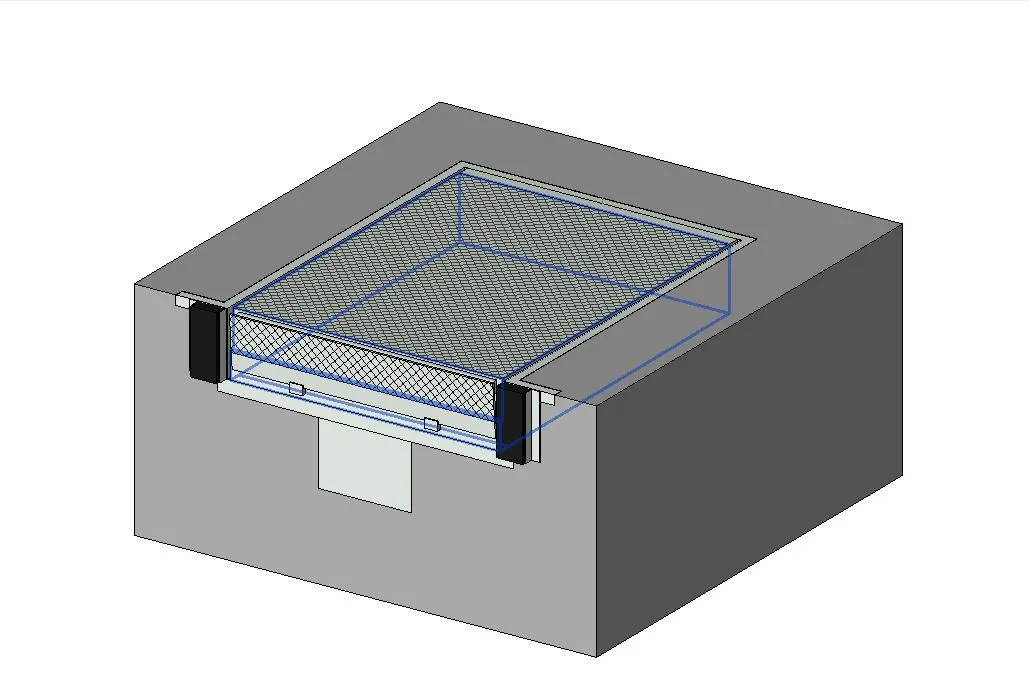

CAD Drawing & Technical Dimensions

Accurate shop drawings show the pit dimensions clearly, ensuring accurate construction and seamless installation.

Commonly Used Standard Sizes:

Width=1830mm, Length=2000m, Height=500mm
Width=2000mm, Length=2000m, Height=500mm
Width=2000mm, Length=2500m, Height=500mm

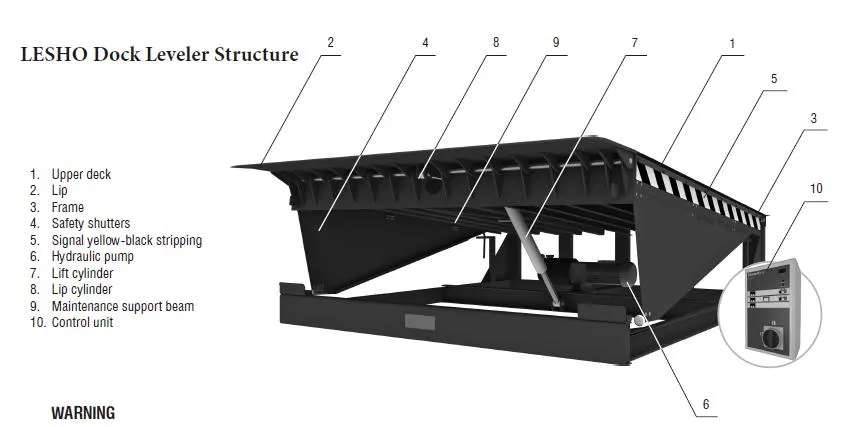

Technical Component Details

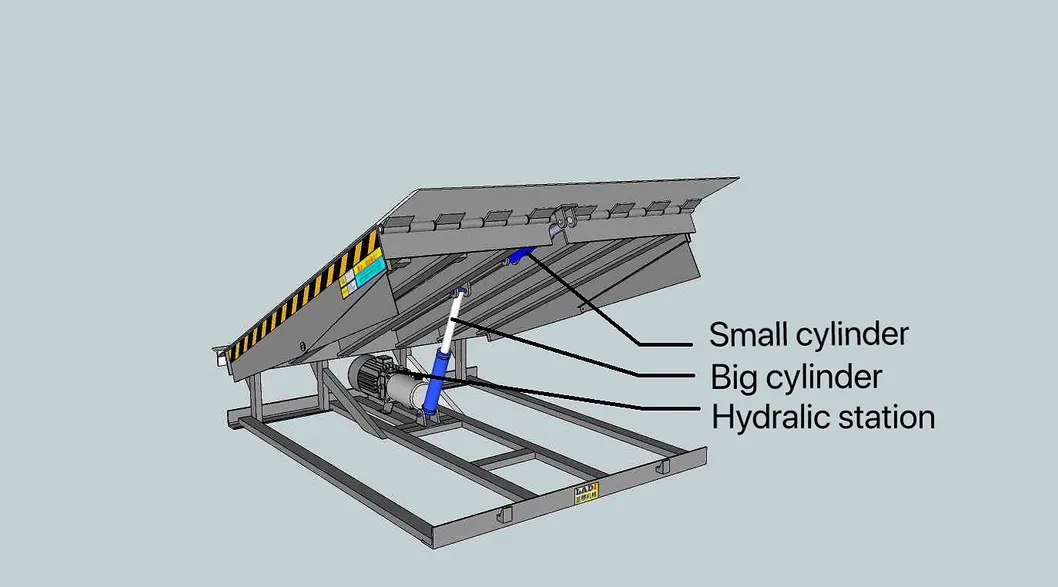

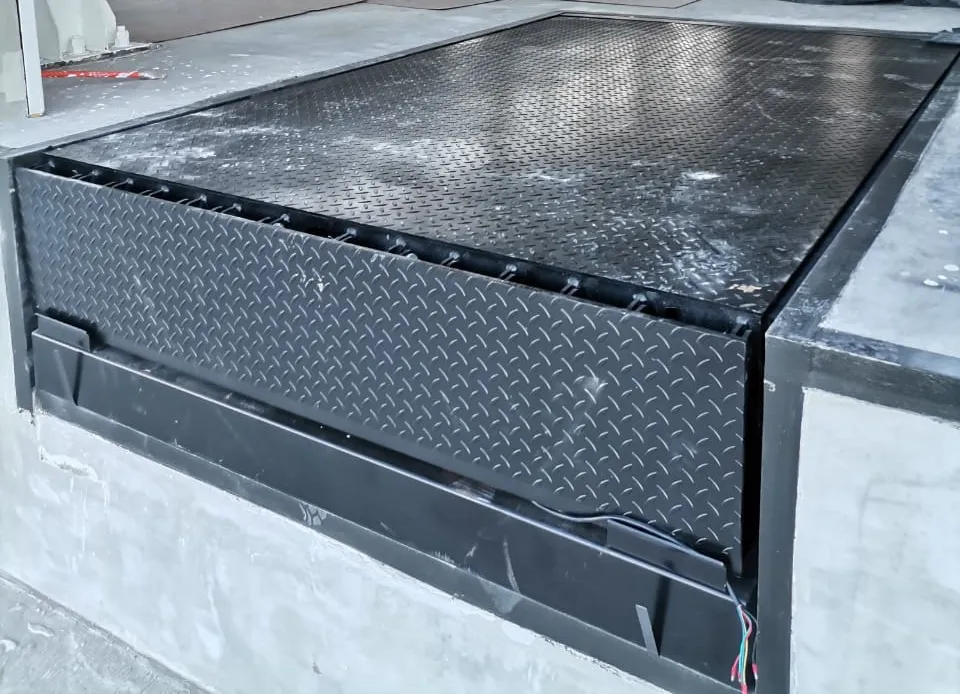

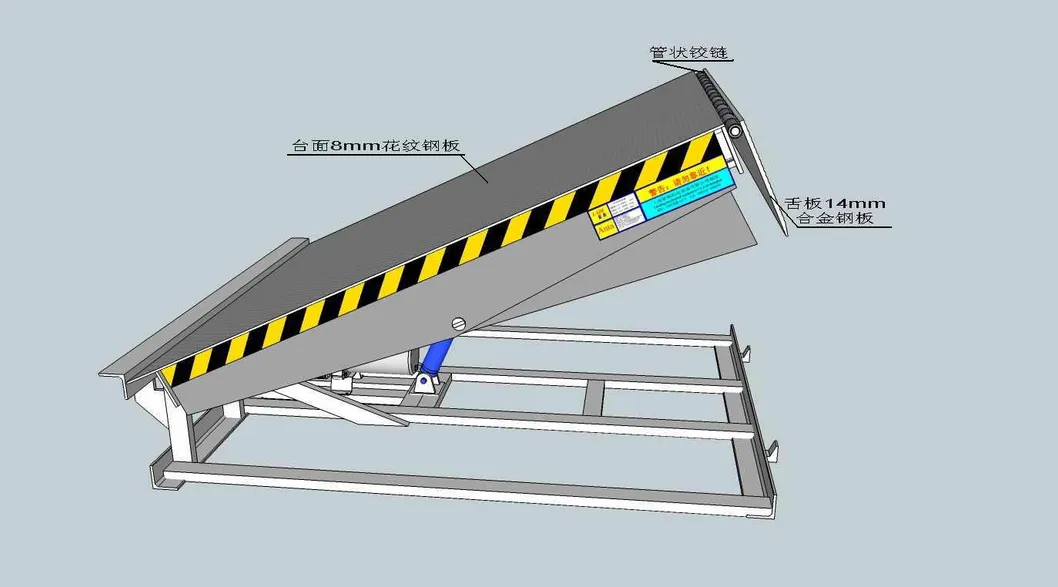

Main Platform & Top Lip

Surface sheet: 6mm-8mm thick whole-piece steel sheet for high strength and longer work life.
Support: Underneath high-density steel tube or C-channel reinforcement.
Lip Material: 12-16mm thick steel with special embossed anti-skidding treatment.
Treatment: Blasting and powder coating for superior rust-proof performance.

Hydraulic & Control Systems

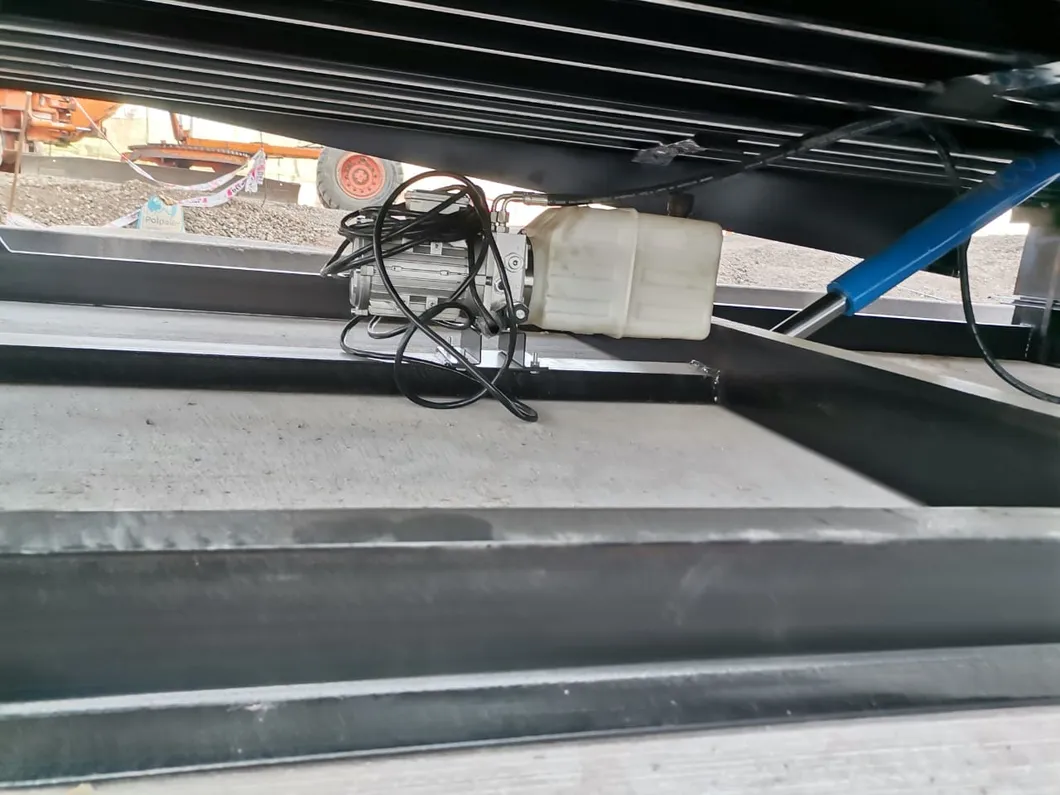

Motor: 3-phase 380V/50Hz power supply, 0.75KW-1.5KW output with overheating protection.

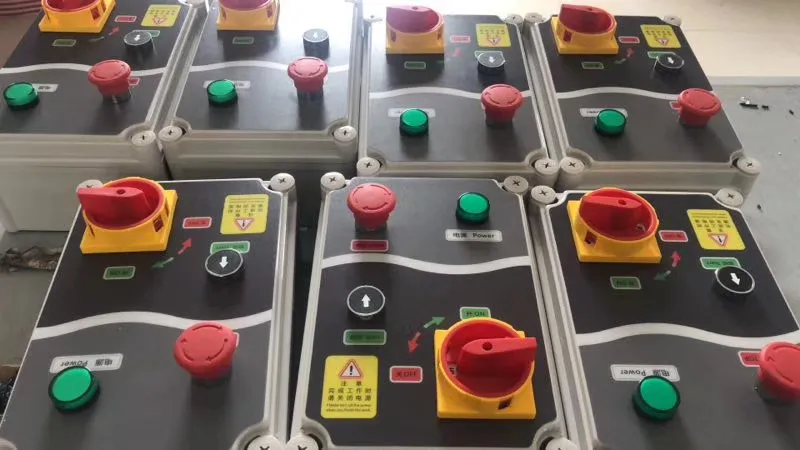

Control Panel: Multi-function controller with emergency stop and easy power-switch buttons.

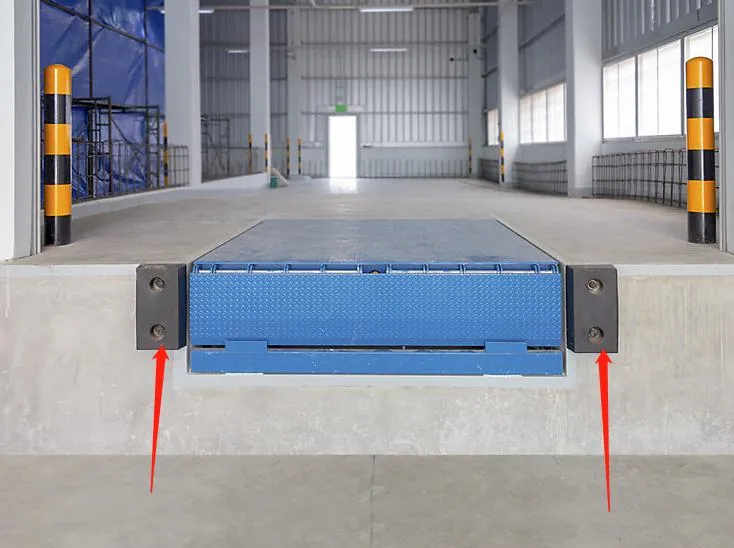

Dock Bumper: Wear-proof high-strength rubber material to protect the loading bay.

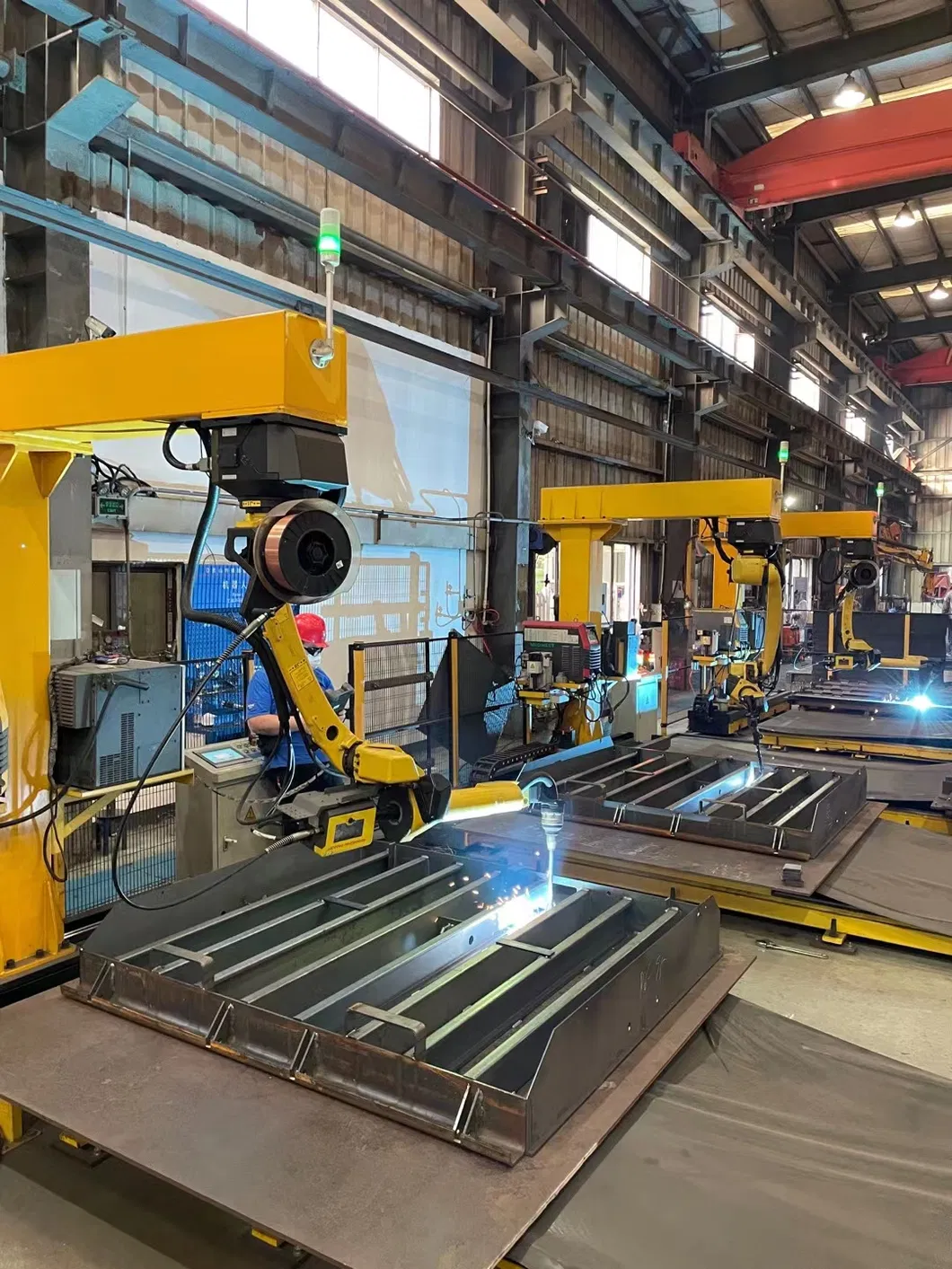

Robot Welding: Precision automatic welding for structural integrity.

Key Features

Load capacity tested to 120% of nominal rating; static pressure deformation within 3mm.
Anti-skid milling surface on high-strength 8mm steel plates.
Super-High-Temperature heat treated hinges and shafts to prevent deformation.
European imported hydraulic drive station with stable output and low working temperature.
Epoxy resin paint coating for high anti-corrosive durability.
Available colors: Blue, Grey, Green, or customized.

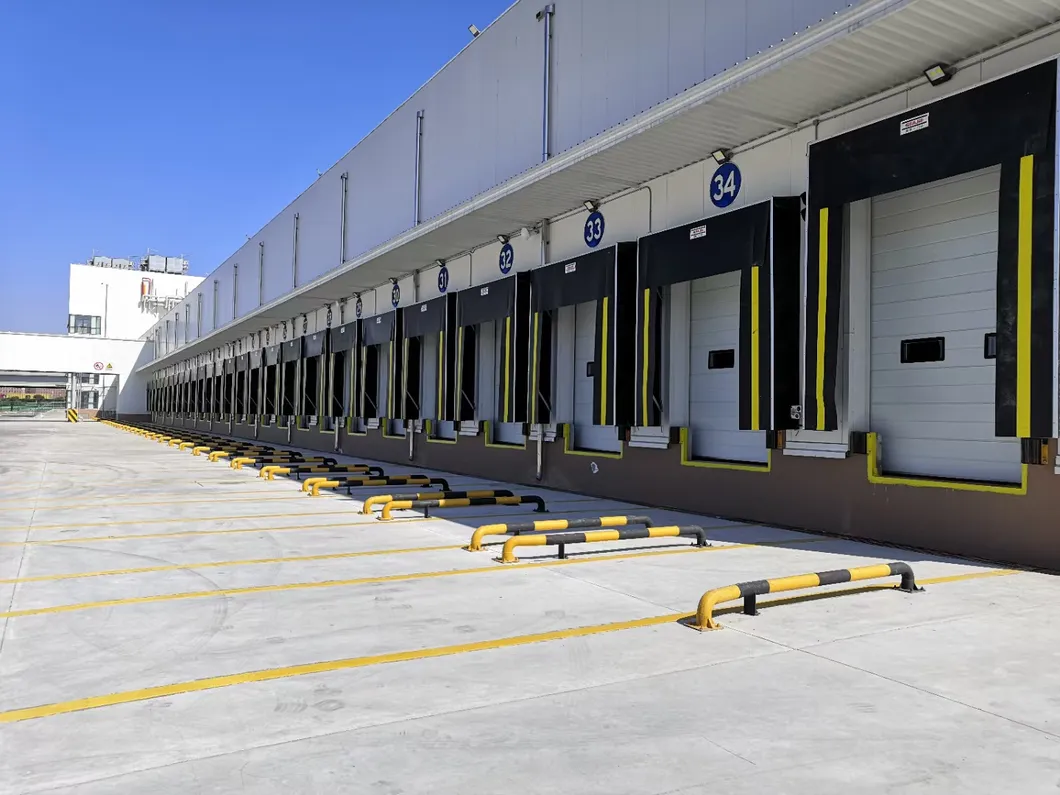

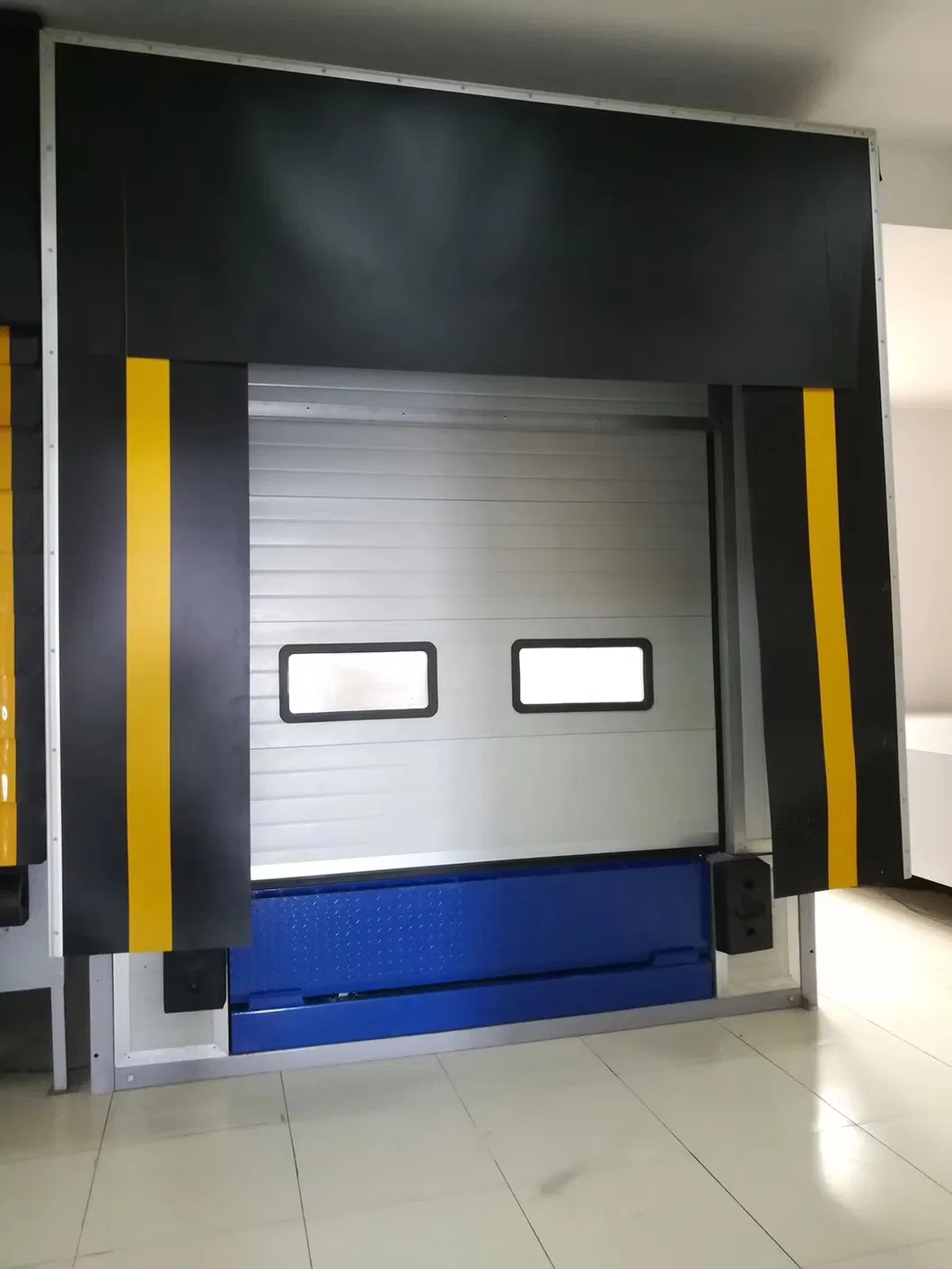

Complete Loading Bay Solutions

We provide complete assemblies including Overhead Doors, Dock Levelers, and Dock Shelters/Seals to improve efficiency and protect indoor environments.

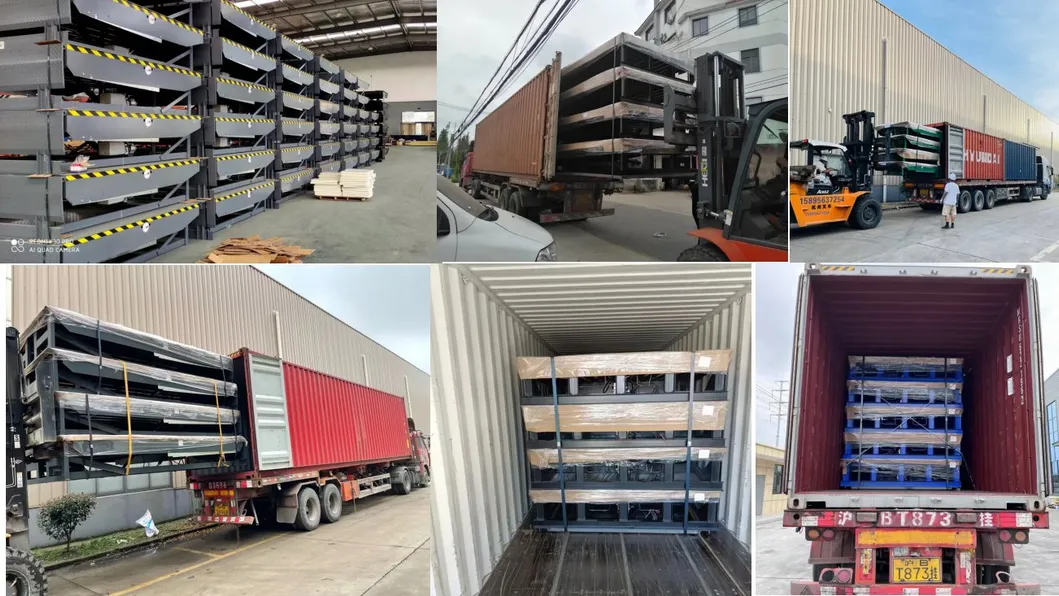

Packaging & Logistics

Standard size: L2000*W2000*H600 mm.

One 40 feet HQ container can load 20 sets.
One 20 feet container can load 8 sets.

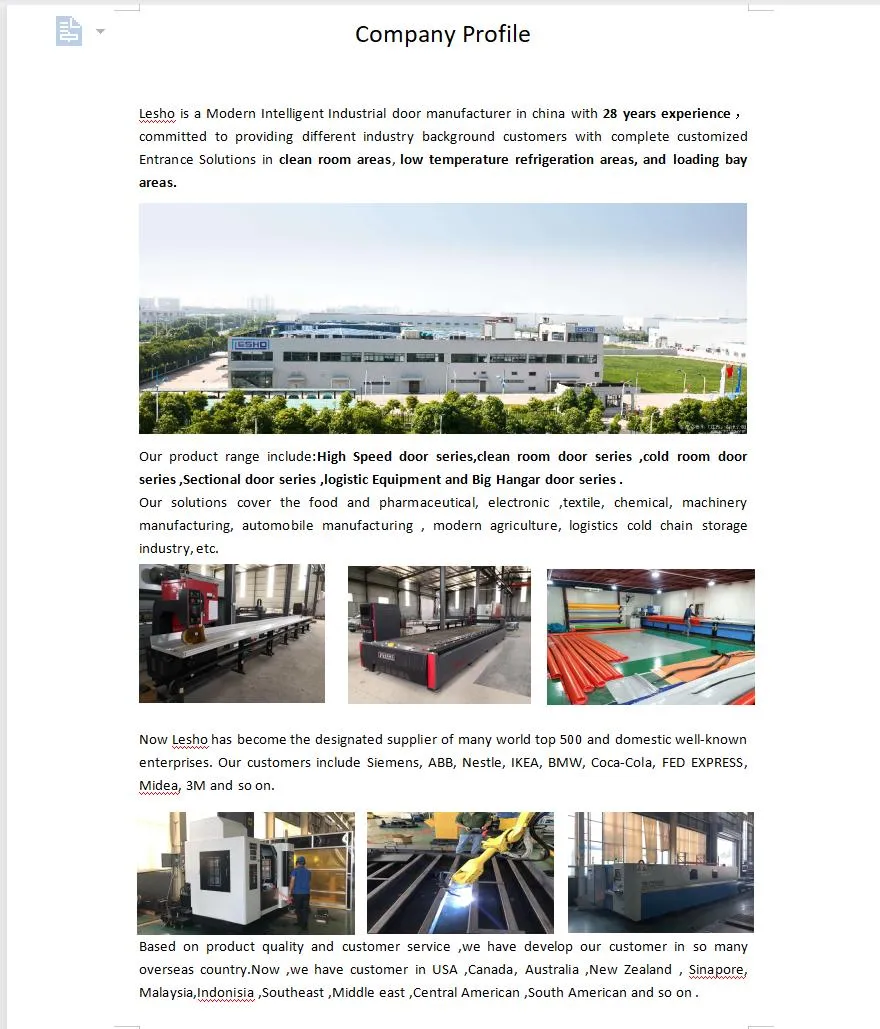

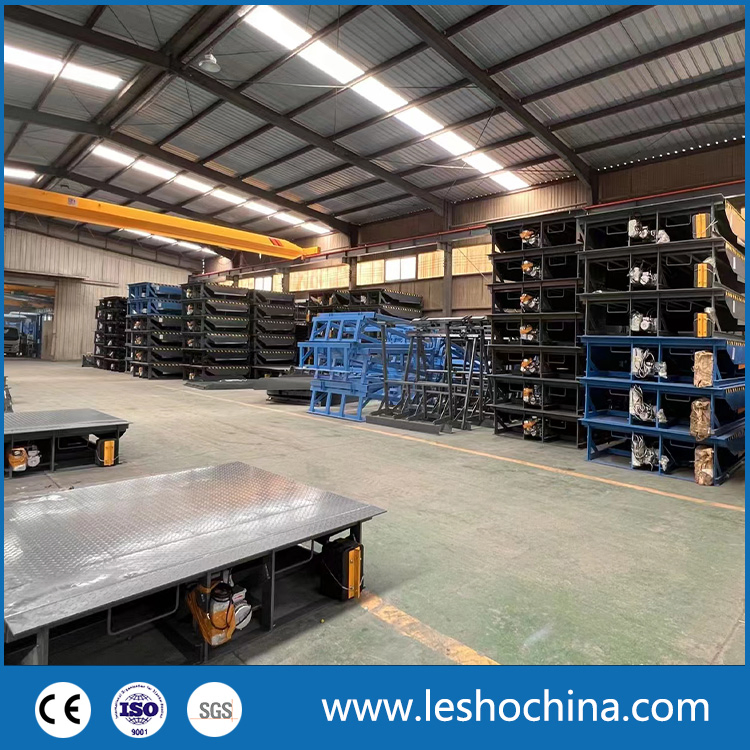

Manufacturing Excellence

Frequently Asked Questions

Q: Why should we choose your dock leveler products?

A: We offer the most cost-effective products with stable quality and professional technical support. With over 20 years of production experience and 10 years of export expertise, we ensure reasonable shipment arrangements and fast delivery.

Q: How do we start the first project or order?

A: We simply need your basic background information and project site details. If you have factory site plan drawings, that is even better. We can then provide a complete solution tailored to your needs.

Q: Is the installation process difficult?

A: No. We provide clear installation manuals, videos, and precaution documents. Even workers without specific experience can install the doors. For complex large-scale projects, we can provide engineering guidance.

Q: What payment terms do you accept?

A: We usually accept T/T in advance, L/C for large sums, and Western Union. Feel free to contact us if you prefer other payment terms.

Q: What is the typical lead time for production?

A: The standard lead time for production is typically 7-10 days.

Q: How is the after-sales service handled?

A: We ensure that spare parts are delivered within 24 hours via major couriers like DHL, UPS, or TNT to minimize any downtime.
