| Model NO. | Steel fire rated roller shutter door | Material | Steel |
| Type | Rolling | Open Style | Rolling |
| Opening Type | Power Driven | Special Function | Fire Proofing |
| Color | Customized | Certification | CCC, ISO9001, CE |
| Position | Industrial | Surface Finishing | Finished |
| Transport Package | Wooden Box | Production Capacity | 1000 Sets/Year |
| Package Size | 3500.00cm * 2000.00cm * 500.00cm |
| Package Gross Weight | 1000.000kg |

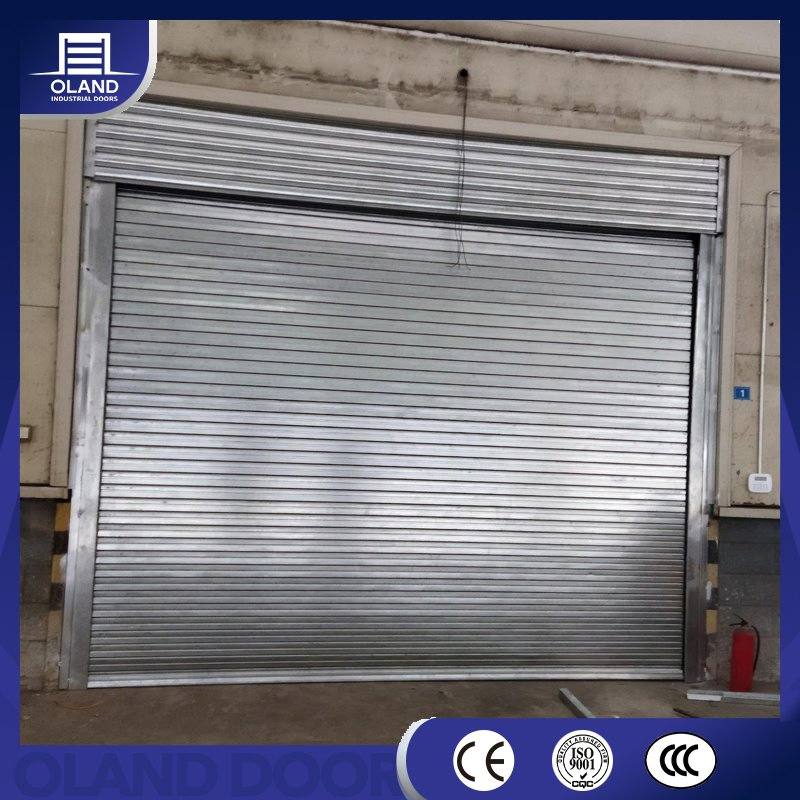

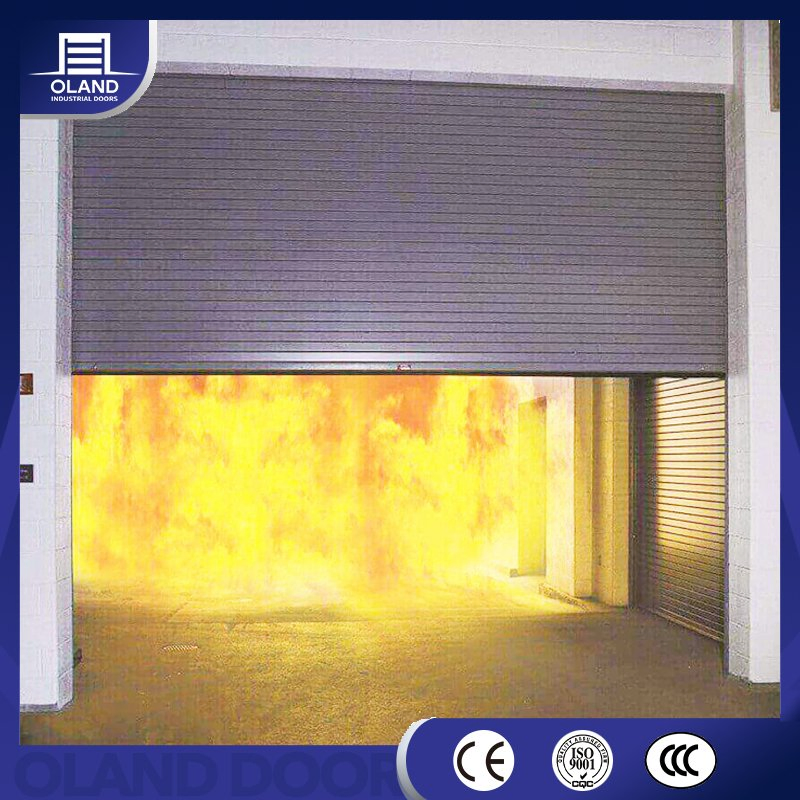

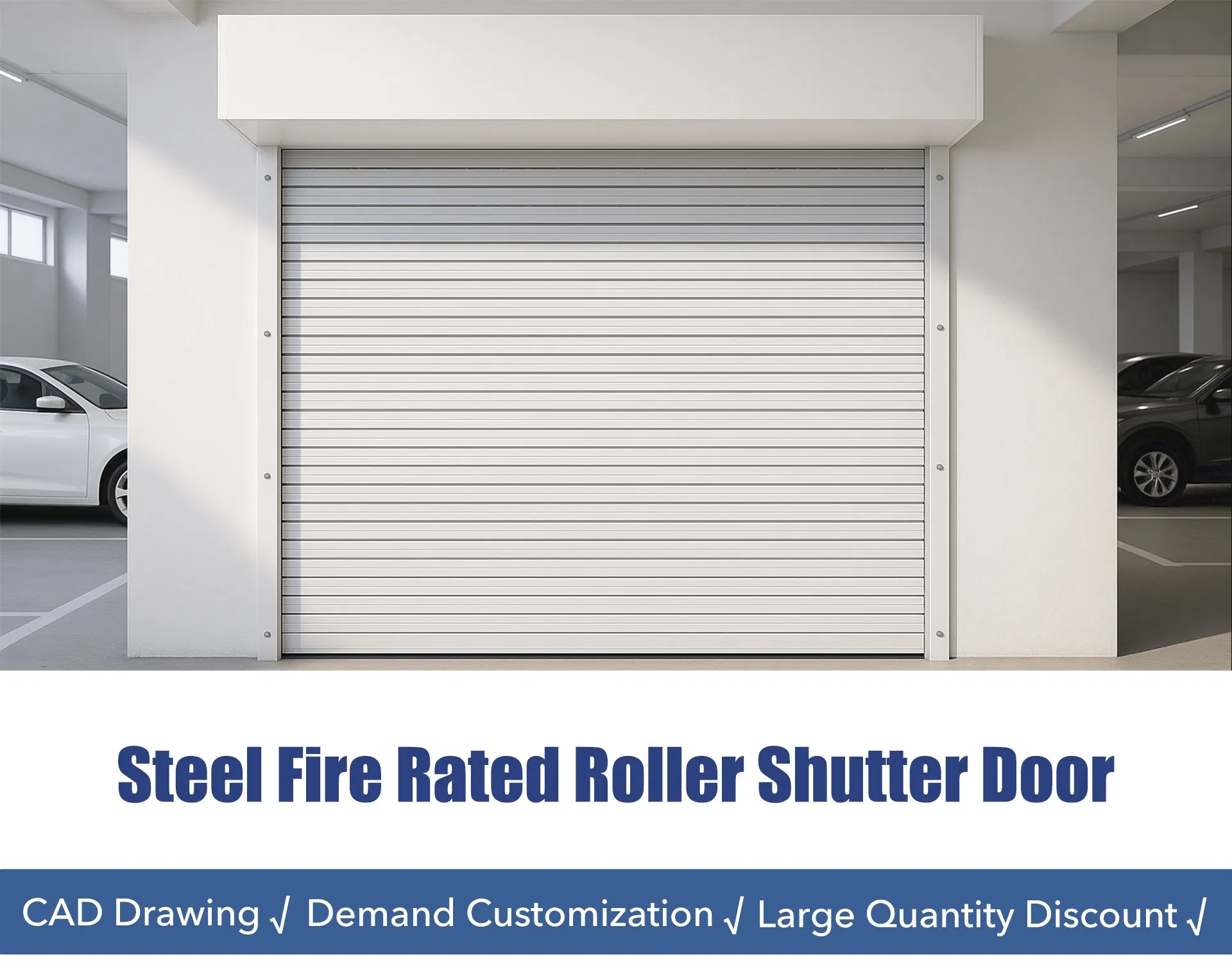

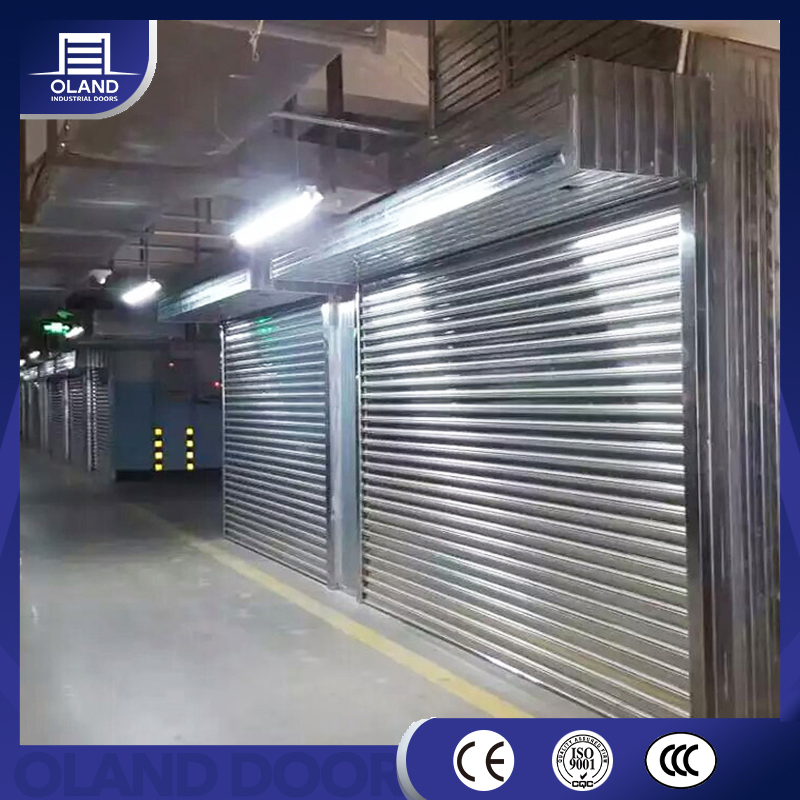

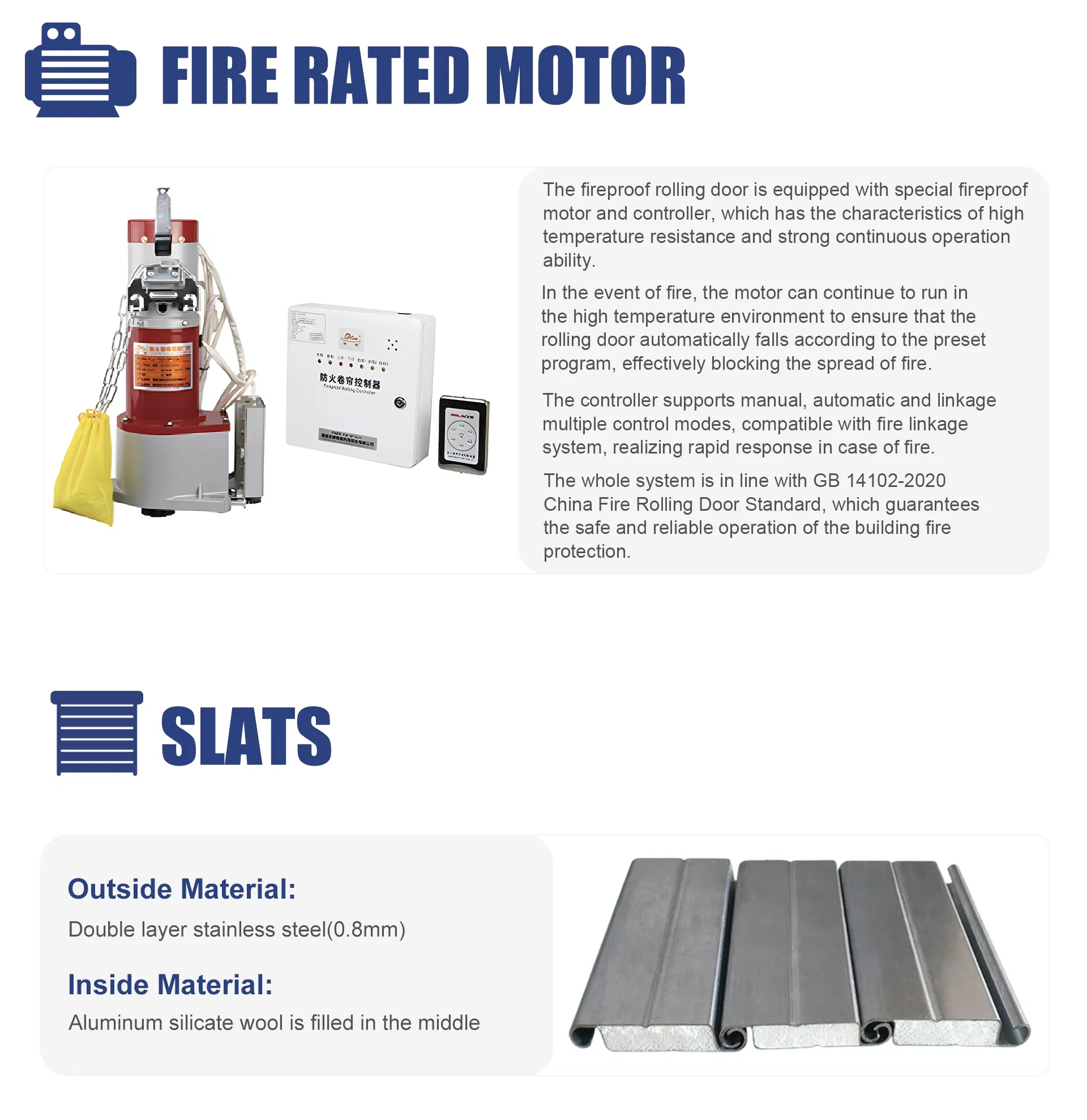

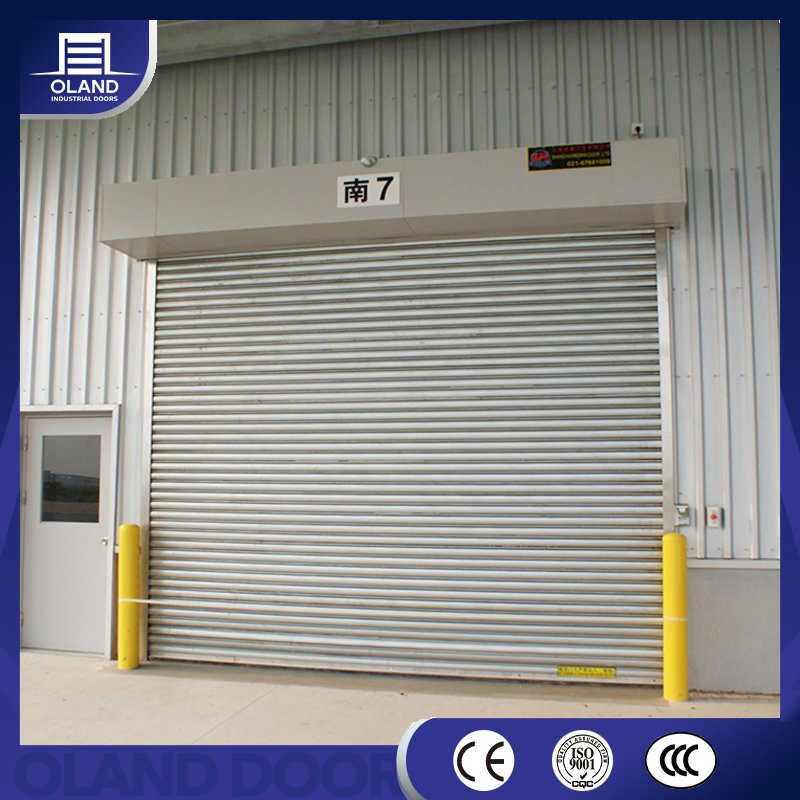

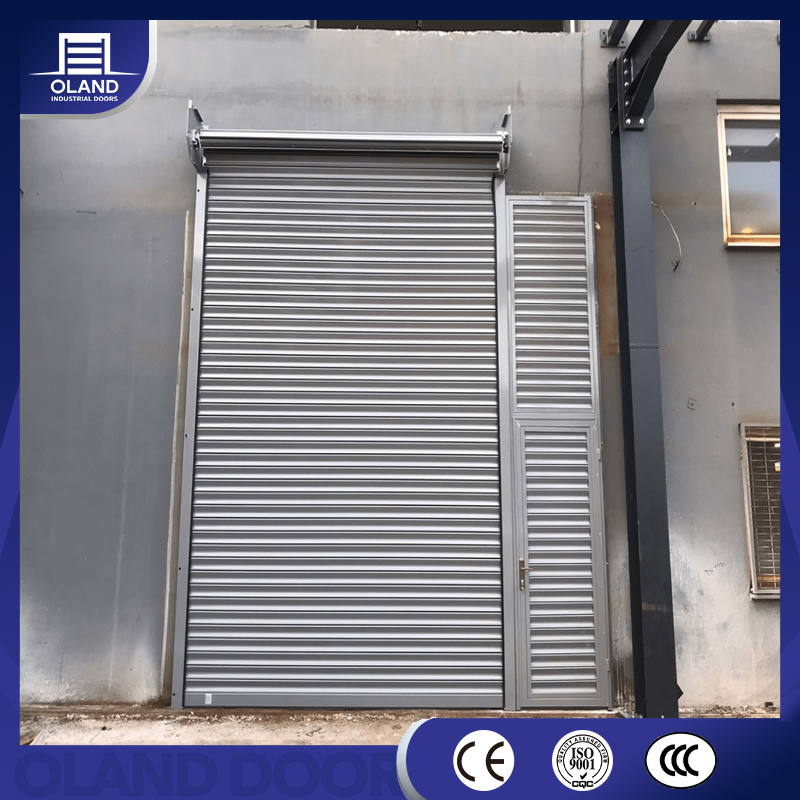

The steel fire rated roller shutter door adopts high-strength galvanized steel plate and is filled with fireproof material inside, which has excellent heat insulation and flame retardant properties. Equipped with special fireproof motor and control system, it can be linked with fire fighting to realize automatic response to fire. Widely used in shopping malls, garages, factories and other areas that require fire separation.
| Max size | width * height 8000mm*10000mm |
| Panel material | Galvanized steel+aluminum silicate wool |
| Opening and closing speed | 5-5.75m/min |
| Power supply | 3phase 380v±10% m 50HZ, DC 24V CONTROLLER |
| Fire resistance time | ≥3 hours |
| Wind resistance | 10level-12level(34m/s) |
| Air tightness | Leakage through the door is 95m³/hour under 30 pa pressure |
| Unexposed surface temperature | ≤154℃ |
| Smoke leakage | ≤0.12m³/(sqm/min) |

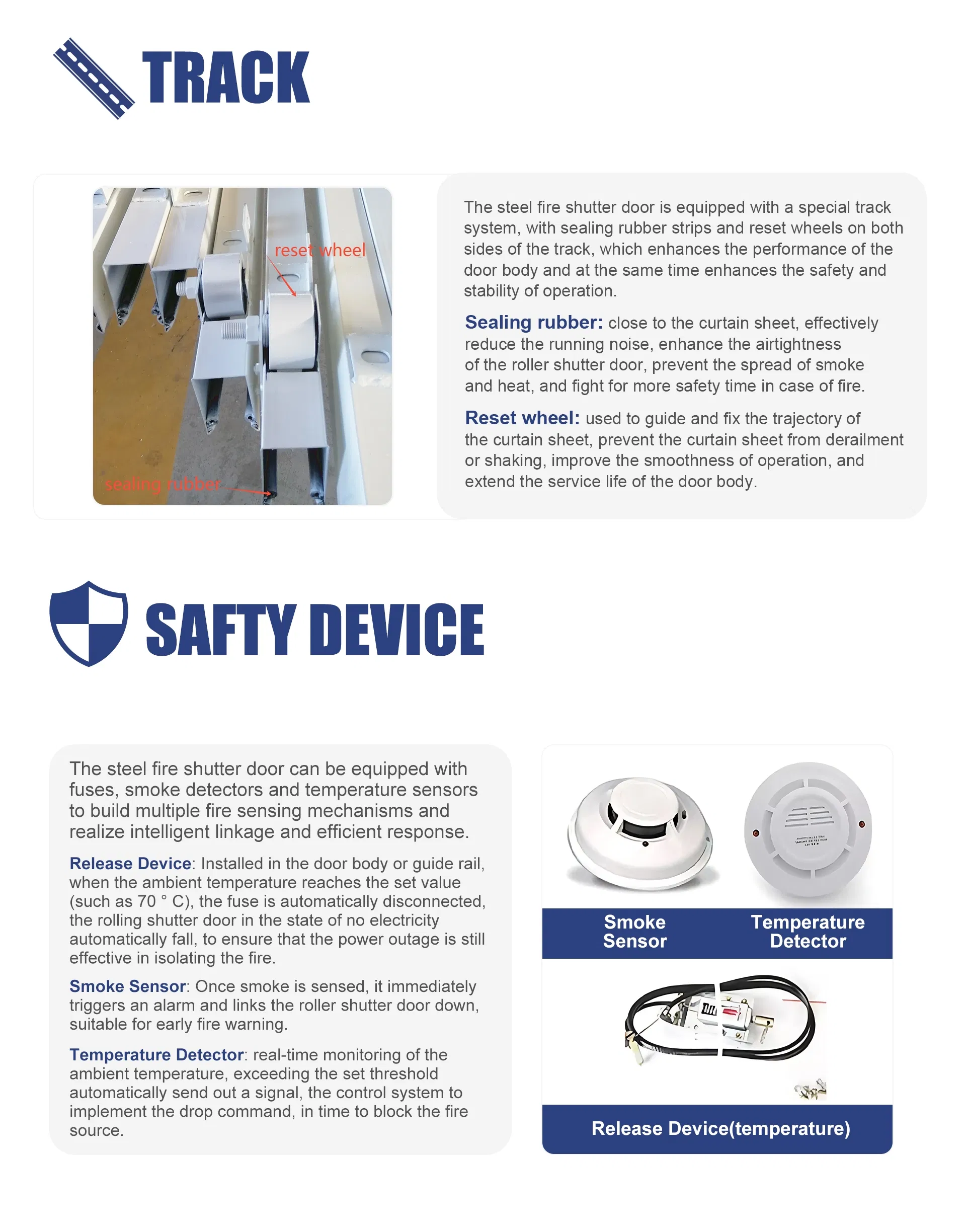

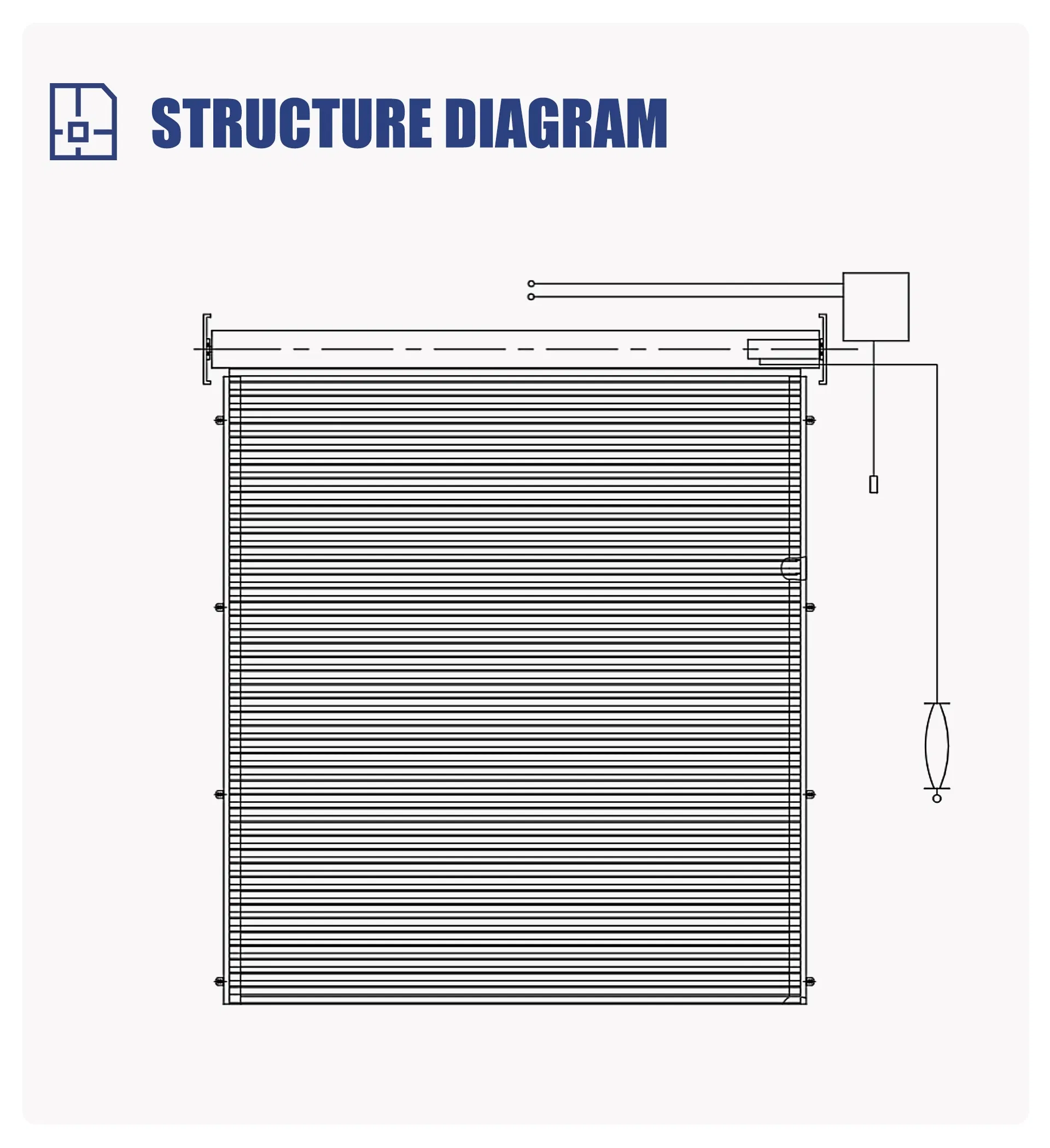

Standard version of the steel fire rated roller shutter door structure and accessories. Customization options are available for specific requirements.
