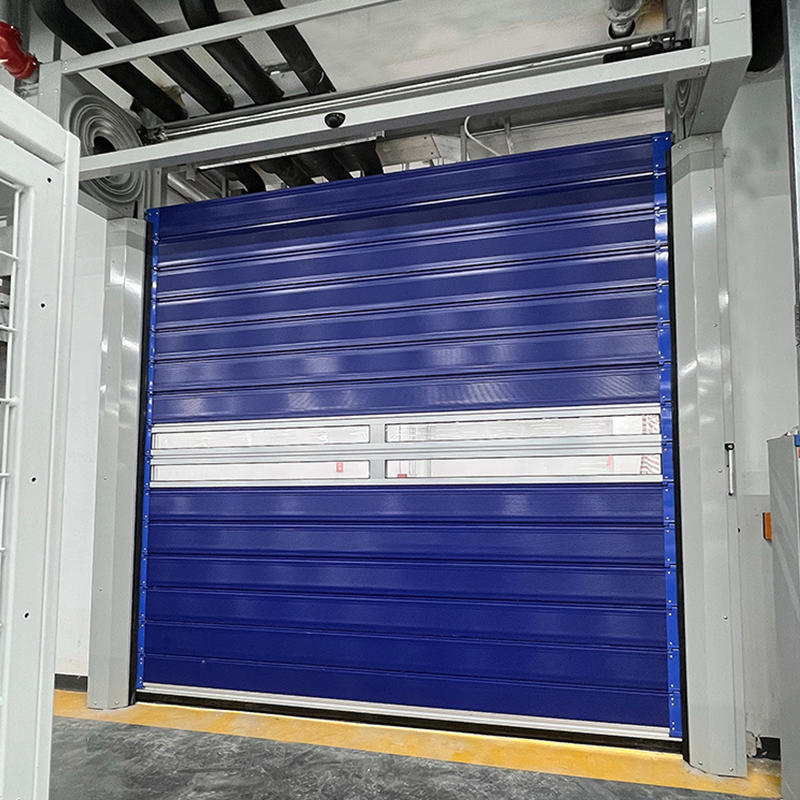

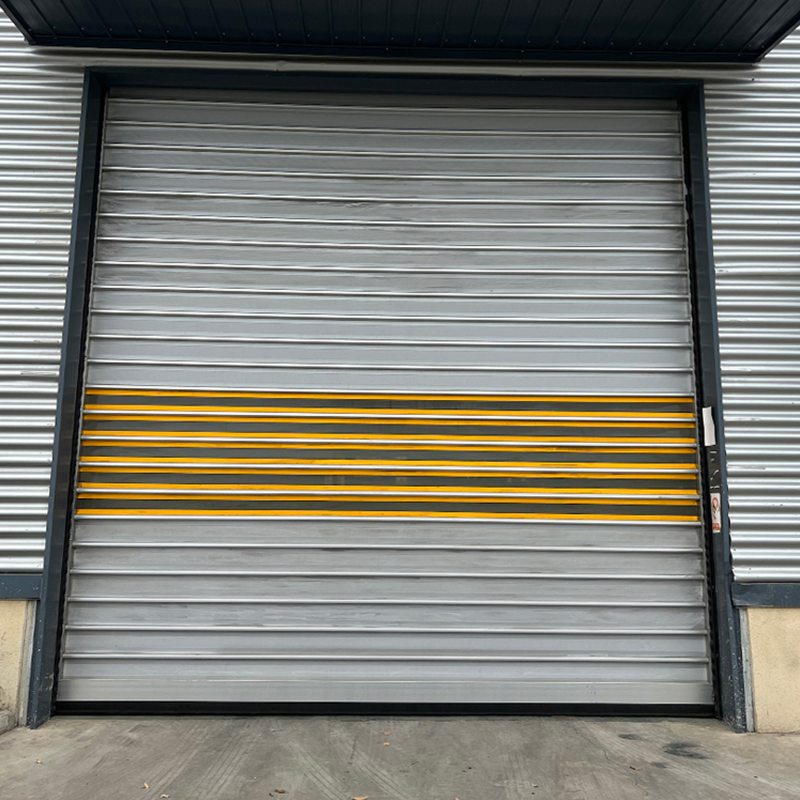

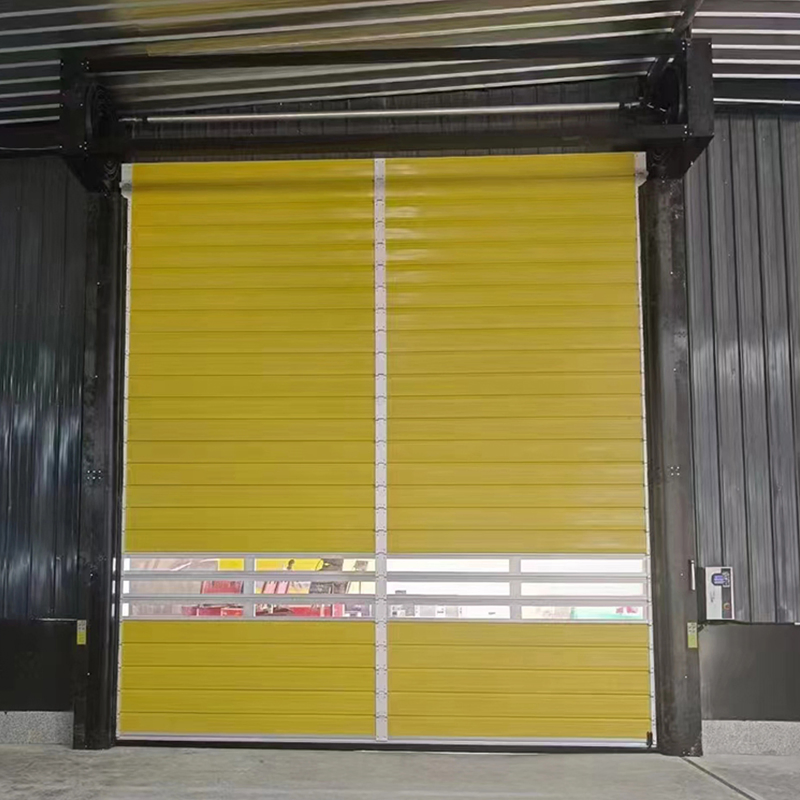

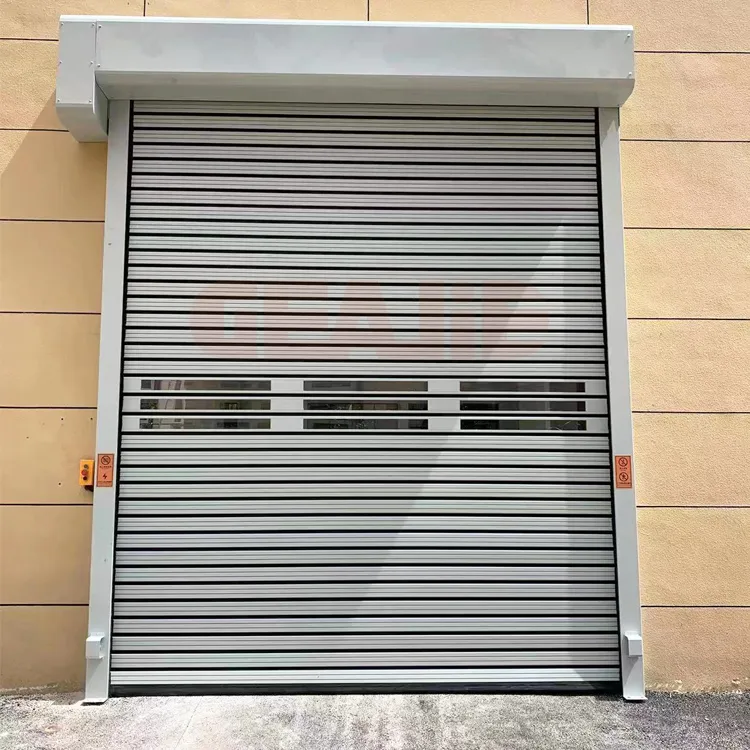

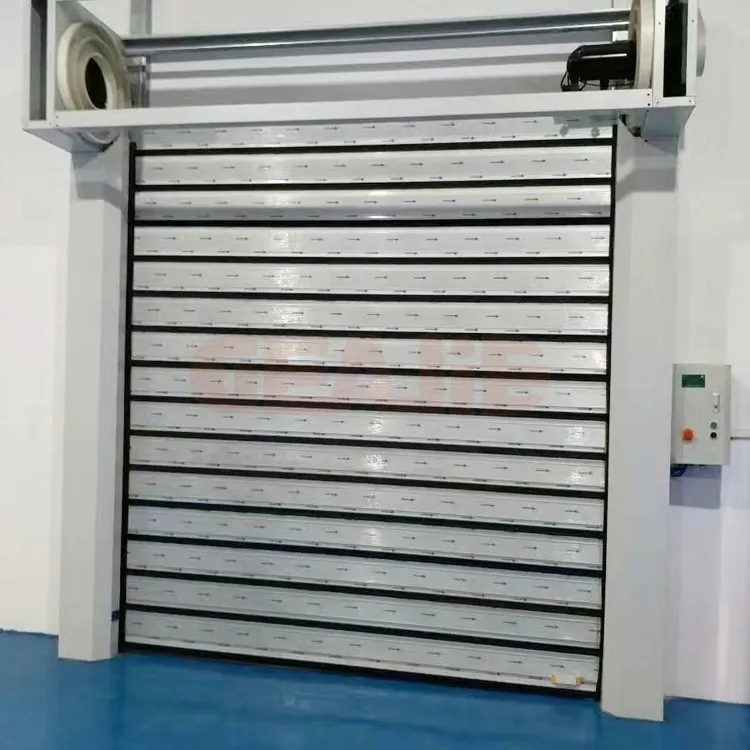

Vistaro Door
1 / 5
| Model NO. | SHFD-11 |
| Material | Aluminum Alloy |
| Type | Rolling |
| Open Style | Rolling |

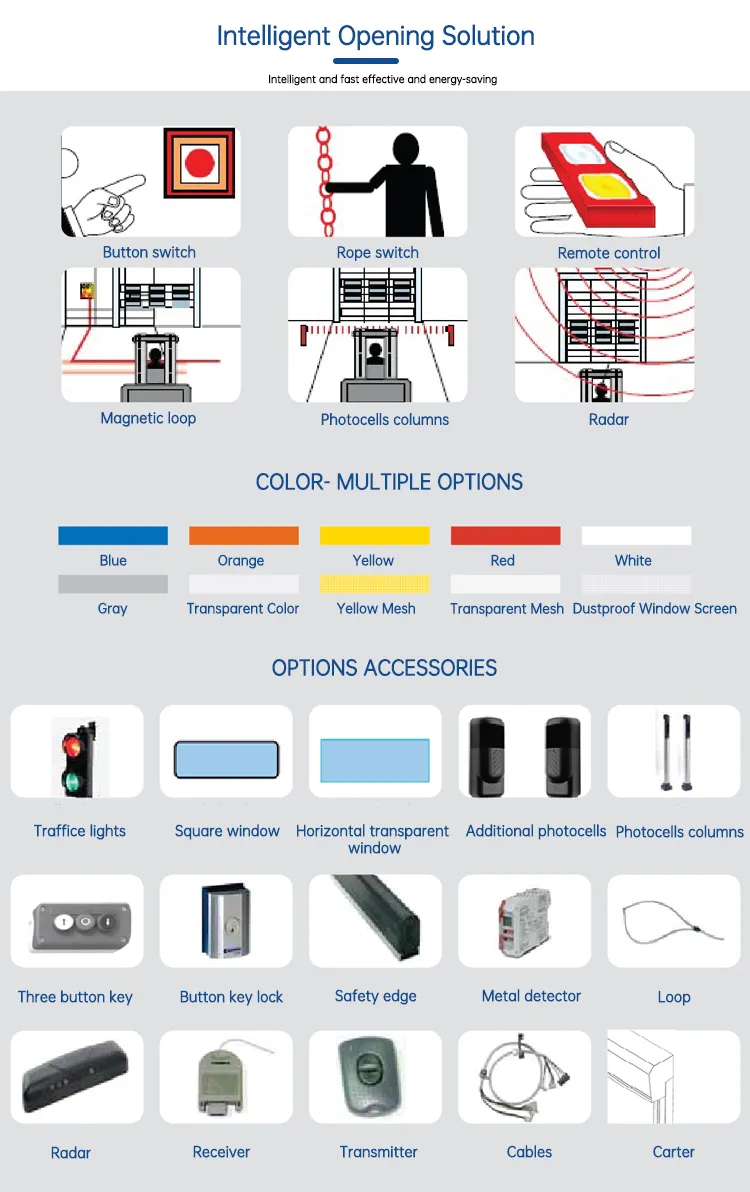

| Opening Type | Three-Button Button, Remote Control, Geomagnetic |
| Special Function | Soundproof |
| Color | Customized |
| Certification | TUV, CCC, ISO9001, RoHS, CE |
| Position | Interior and Exterior |
| Surface Finishing | Finished |
| Application Environment | Exterior Door |
| Opening and Closing Speed | Opening: 1.2-2.0m/S, Closing: 0.8m/S |
| Balanced System | 6 High-Strength Balance Springs |
| Control System | PLC and Frequency Converter |
| Motor | Servo Motor, 220V/380V, 0.55-1.5kw |
| Specification | W: 1250-8000mm H: 2000-8000mm |
| Package Size | 200.00cm * 250.00cm * 150.00cm |
| Package Gross Weight | 500.000kg |
| Technical Specifications | |
|---|---|
| Door Panel | 43mm/80mm Polyurethane door panel |
| Standard Colors | RAL9002, RAL9016, RAL5005 |
| Windows | Standard 2 rows of transparent windows |
| Safety Devices | Standard electro-optical eye, optional light curtain safety hem |
| Manual Operation | Standard configuration for power outages |
Effectively prevents strong light irradiation and UV radiation. Keeps 100% of sunlight outside compared to older material structures.
Filled with high-density polyurethane. The heat transfer coefficient is only 5.3W/(m2.k), ensuring real energy saving.
Quiet operation. Ideal for locations near busy streets or airports, significantly reducing external noise interference.
Designed with anti-burglar lock devices. Once closed, the shutters cannot be opened from the outside.
