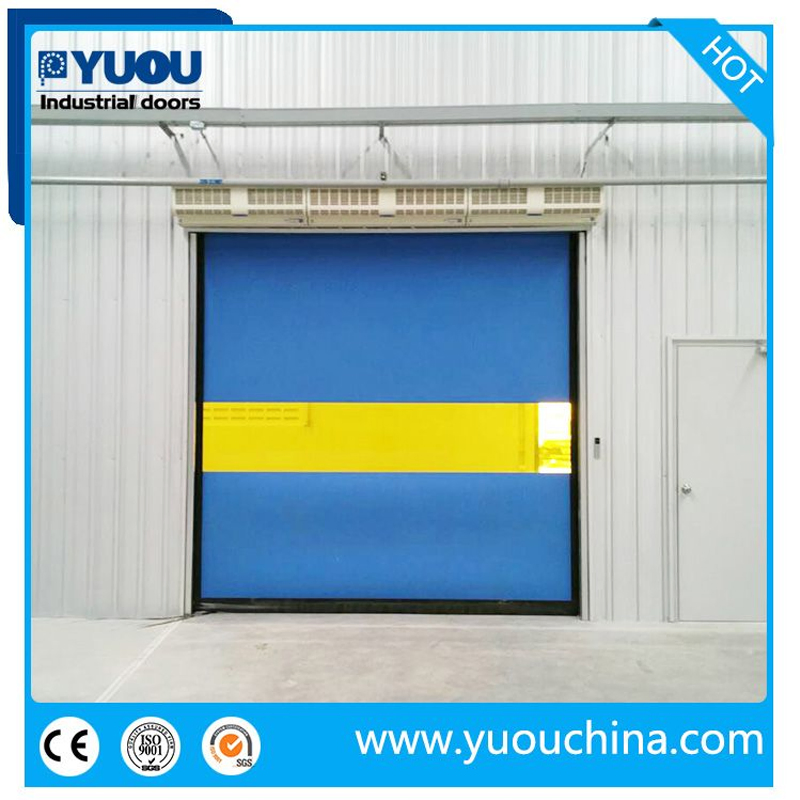

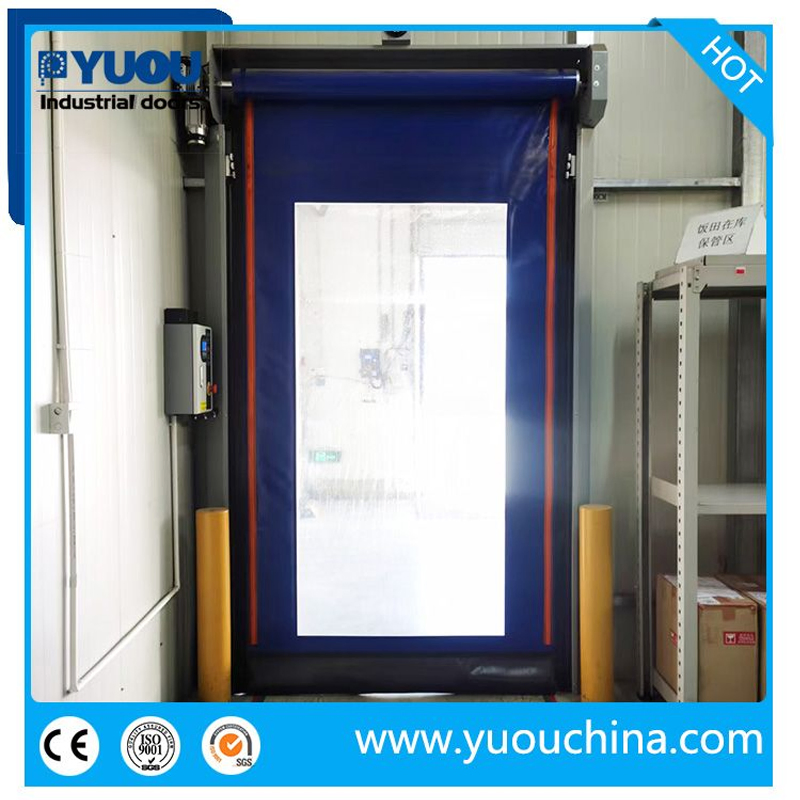

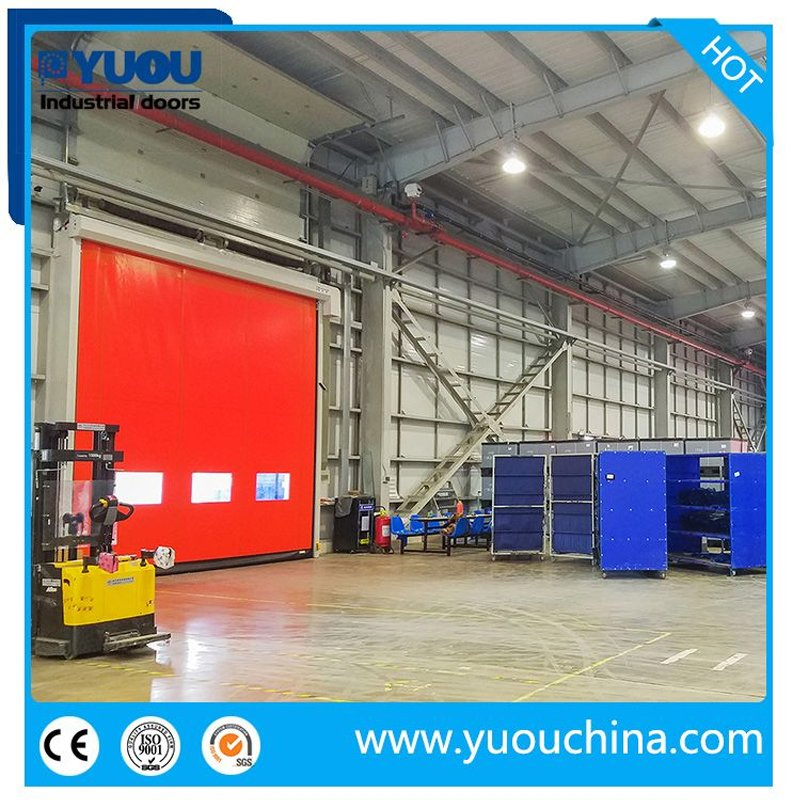

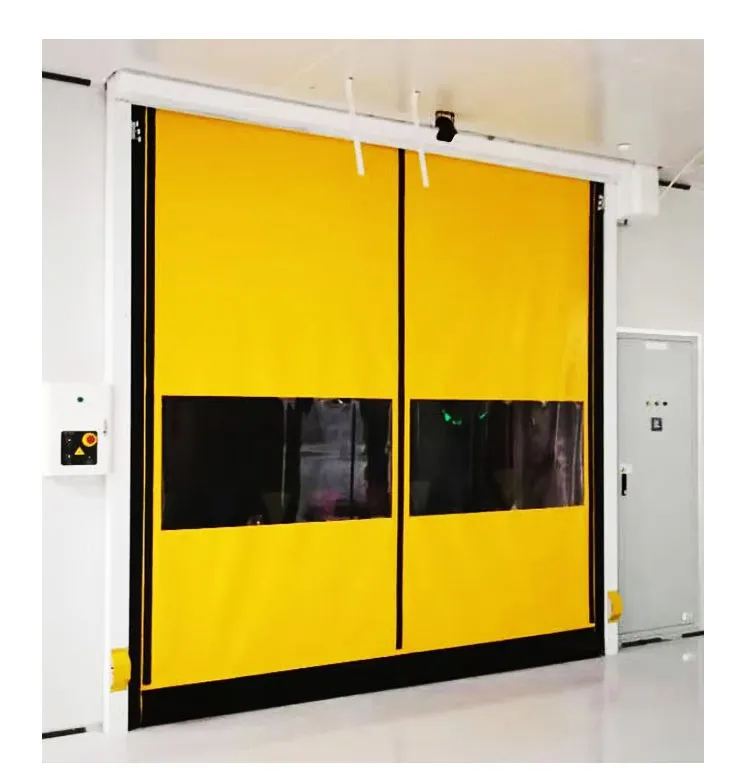

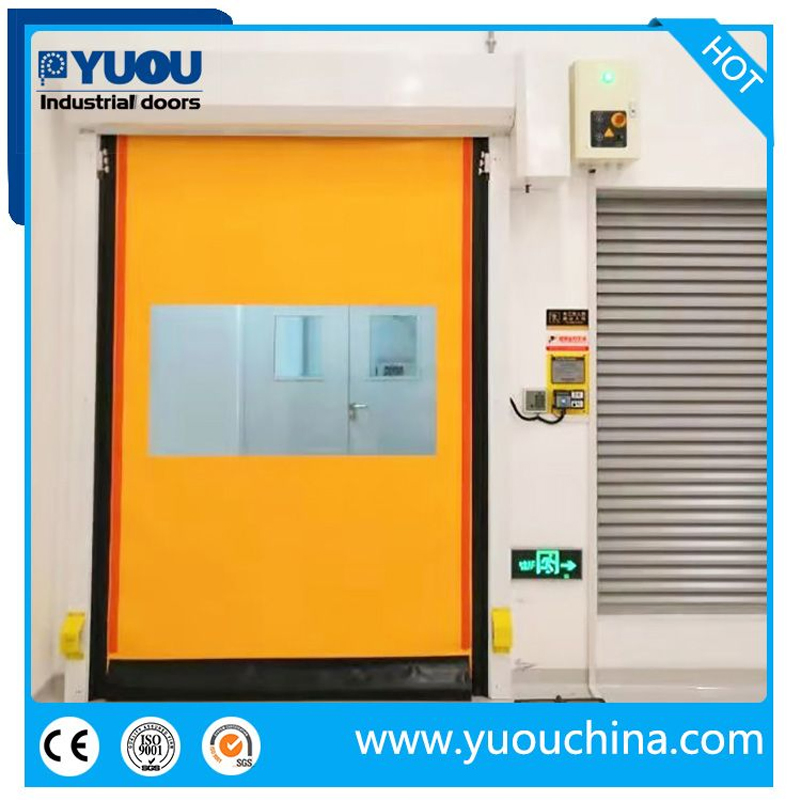

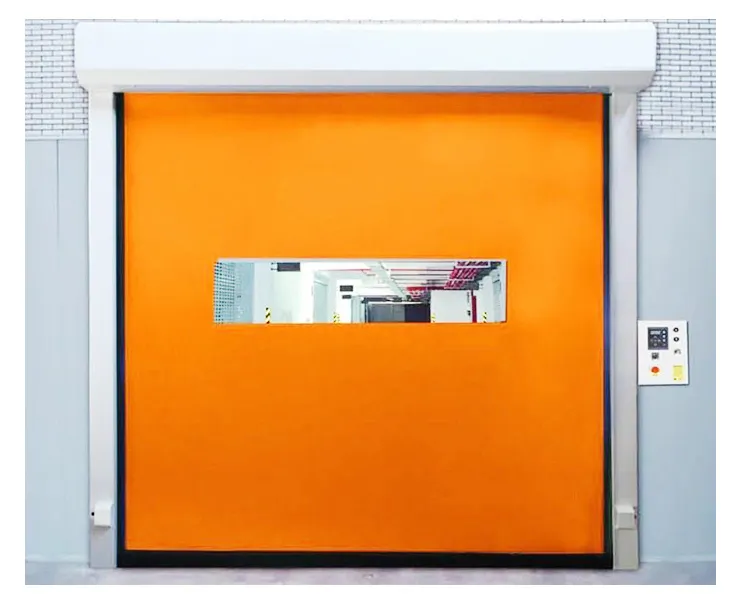

Clean Room High Speed Rolling Up Doors are widely used for food and drug factory, clean room and dust-free workshop, they fit for the areas where have very strict requirement of the hygienic and cleanness indoor requirement.
| Technical Data | |
|---|---|
| Max dimension | width * height 5000mm*5000mm |
| Power supply | 220±10%V, 50/60Hz. Output power 0.75-1.5KW |
| Normal speed | open 1.2m/s, close 0.6m/s |
| Max speed | open 2.5m/s, close 1.0m/s |
| Protection Level | IP55 |
| Control system | Servo type |
| Driving system | Servo motor |
| Wind resistance | Beaufort scale 8 (25m/s) |
| Available colors | Yellow, Blue, Red, Grey, White |

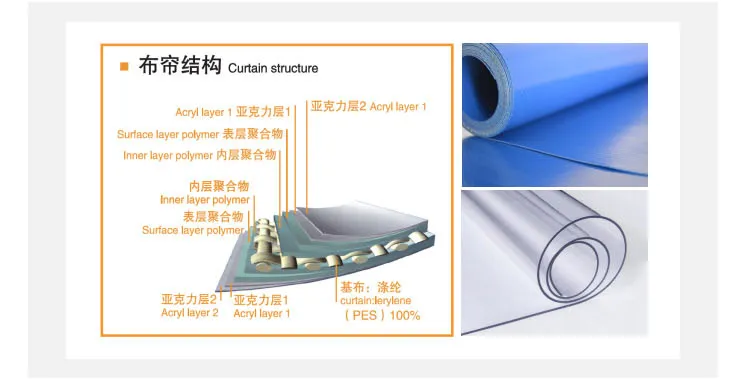

Material: Standard 1.0mm thick (950g/sqm); Available 1.2mm-1.5mm; Flame resistant material.

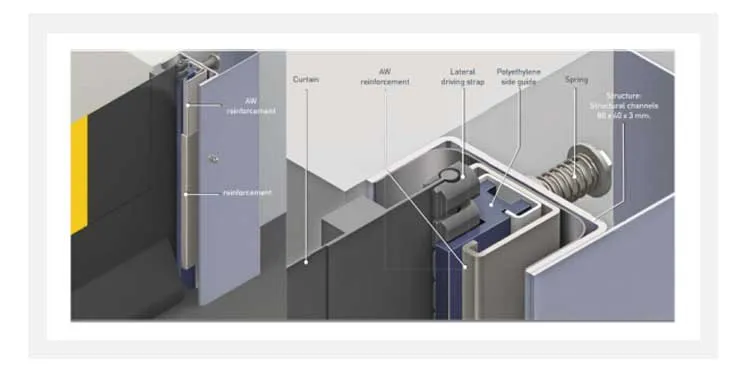

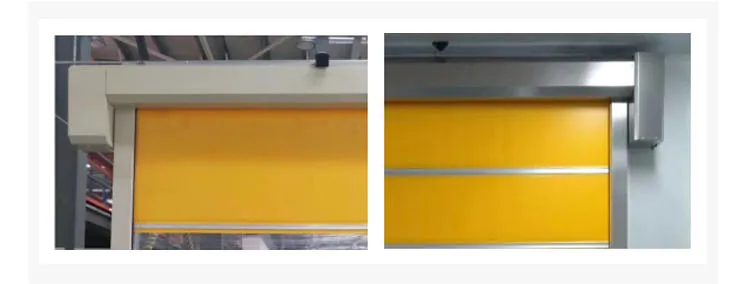

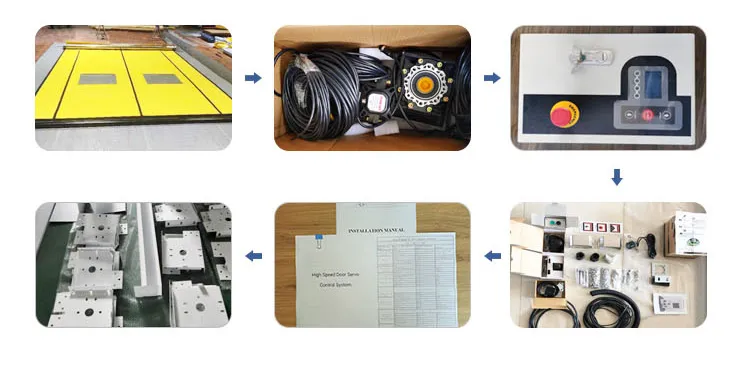

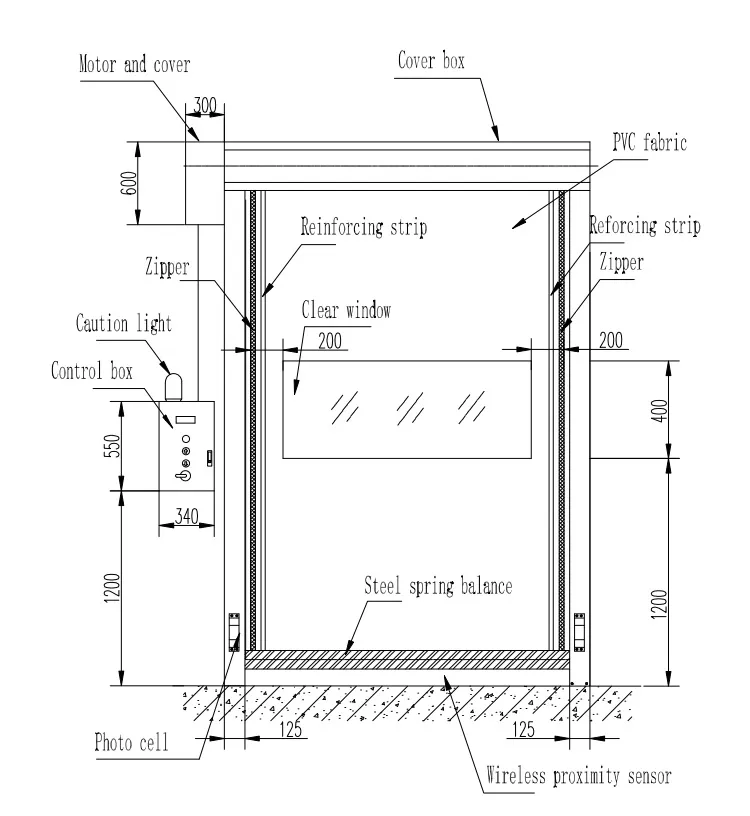

Two guide rails, one top cover and one motor cover included. Thickness: 1.5mm for guide rail, 1.0mm for cover box.
Materials: Galvanized steel (Painted), Optional 304 Stainless Steel or Aluminum Alloy.

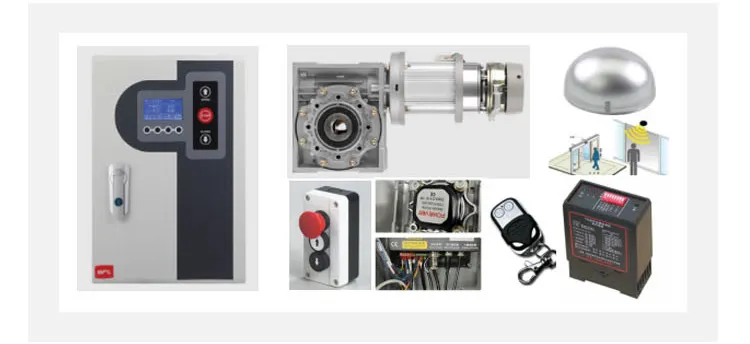

Italy servo technology motor for stable and quick response. Controller with English interface, double encoder for high accuracy and low maintenance.

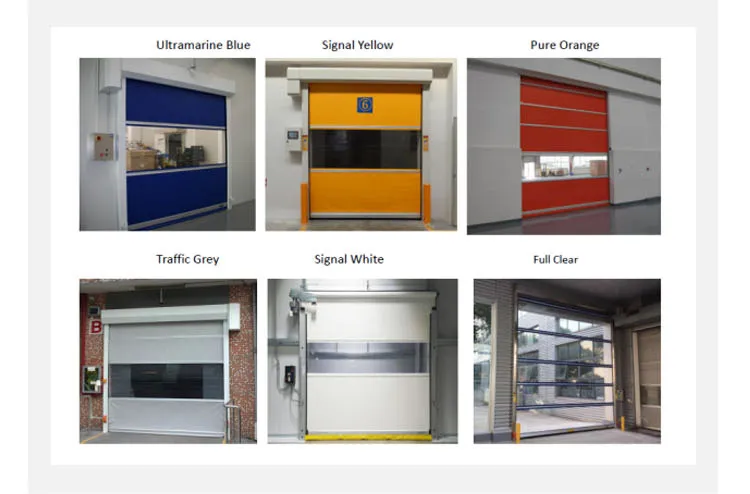

Blue, Yellow, Orange, Grey, White, Full clear, Green

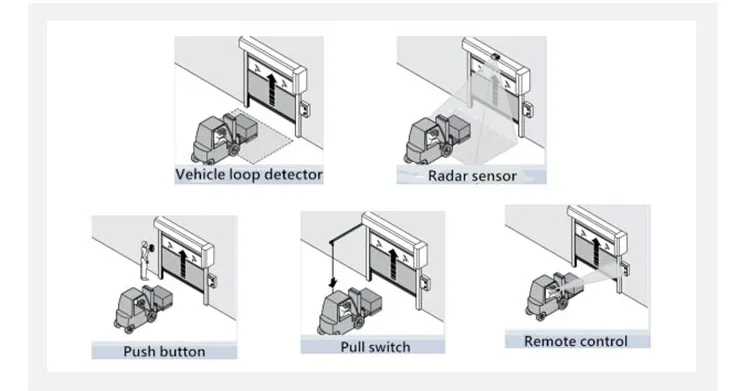

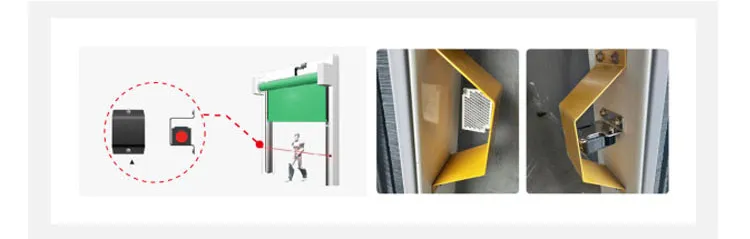

Vehicle loop detector, Radar sensor, Push button, Pull switch, Remote control.
