Clean Room Reset PVC Fabric Self Repairing Self Repairable Roll up Fast High Speed Overhead Rolling Shutter PVC Zipper Overhead Garage Door
Clean Room Reset PVC Fabric Self Repairing Self Repairable Roll up Fast High Speed Overhead Rolling Shutter PVC Zipper Overhead Garage Door
Clean Room Reset PVC Fabric Self Repairing Self Repairable Roll up Fast High Speed Overhead Rolling Shutter PVC Zipper Overhead Garage Door
Clean Room Reset PVC Fabric Self Repairing Self Repairable Roll up Fast High Speed Overhead Rolling Shutter PVC Zipper Overhead Garage Door
Clean Room Reset PVC Fabric Self Repairing Self Repairable Roll up Fast High Speed Overhead Rolling Shutter PVC Zipper Overhead Garage Door
1 / 5
Clean Room Reset PVC Fabric Self Repairing Self Repairable Roll up Fast High Speed Overhead Rolling Shutter PVC Zipper Overhead Garage Door
Clean Room Reset PVC Fabric Self Repairing Self Repairable Roll up Fast High Speed Overhead Rolling Shutter PVC Zipper Overhead Garage Door
Clean Room Reset PVC Fabric Self Repairing Self Repairable Roll up Fast High Speed Overhead Rolling Shutter PVC Zipper Overhead Garage Door
Clean Room Reset PVC Fabric Self Repairing Self Repairable Roll up Fast High Speed Overhead Rolling Shutter PVC Zipper Overhead Garage Door
Clean Room Reset PVC Fabric Self Repairing Self Repairable Roll up Fast High Speed Overhead Rolling Shutter PVC Zipper Overhead Garage Door

Clean Room Reset PVC Fabric Self Repairing Self Repairable Roll up Fast High Speed Overhead Rolling Shutter PVC Zipper Overhead Garage Door

Customization: Available
After-sales Service: Yes
Warranty: Yes
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
XF-H-2000
Material
PVC + Steel
Type
Rolling
Open Style
Rolling
Opening Type
Power Driven
Color
Customer-Tailor
Certification
ISO9001, CE
Position
Industrial
Surface Finishing
Finished
Speed
0.6 ~ 2.0m/S
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 ~ 2.2kw
Specification
3000*3000mm
Origin
China
HS Code
3925200000
Production Capacity
8000/Year
📦

Packaging & Delivery

Package Size
220.00cm * 100.00cm * 60.00cm
Gross Weight
100.000kg
Transport Package
Wooden Case
★

Product Description

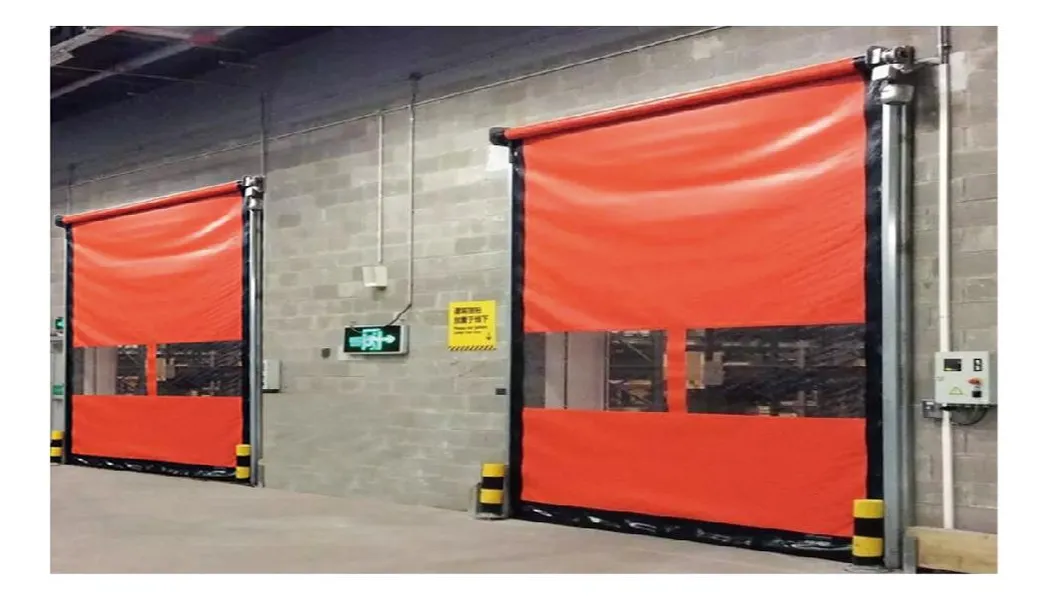

High Speed Rolling Shutter

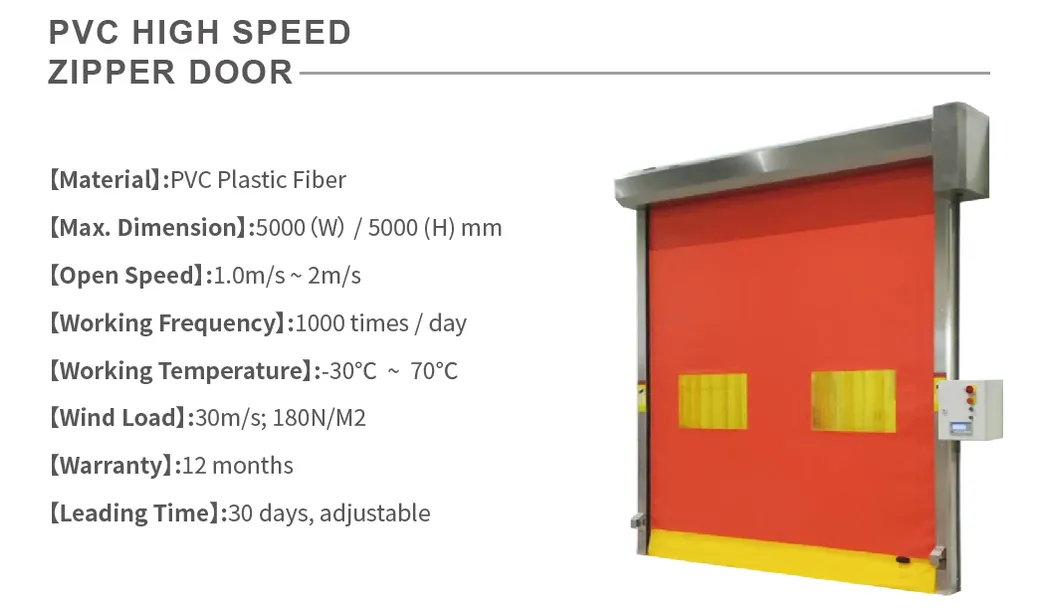

Product Detail 1

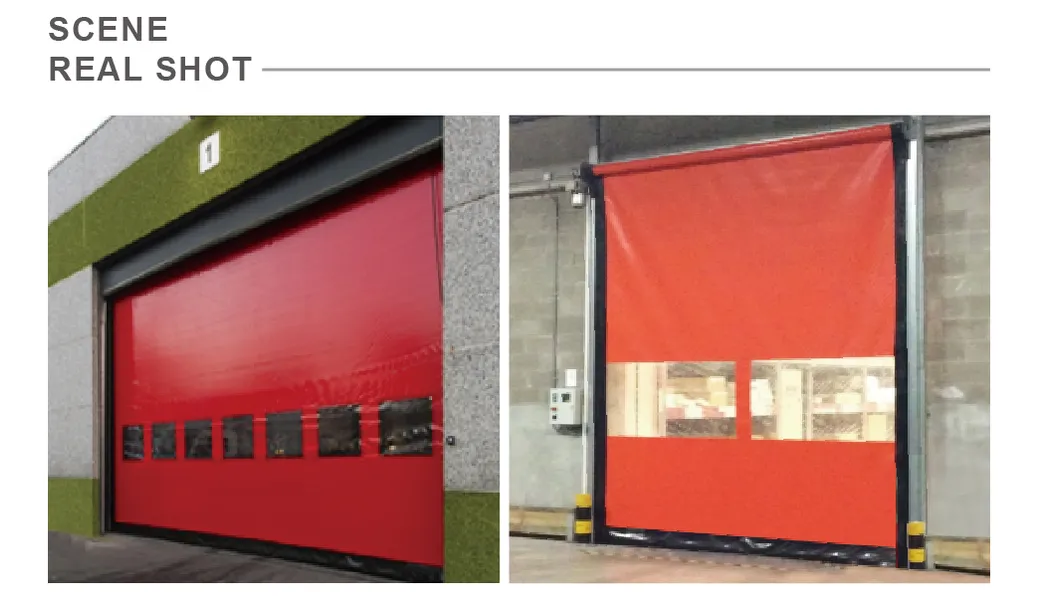

Product Detail 2

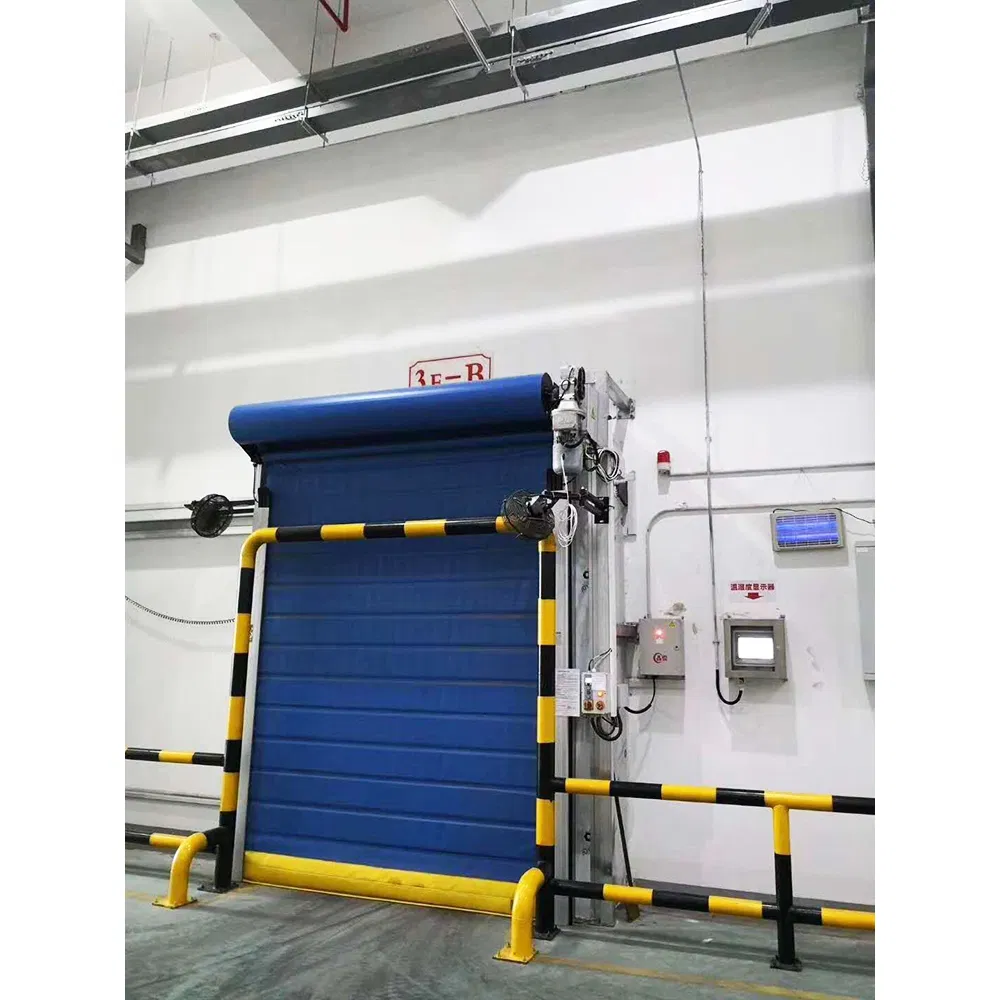

Product Detail 3

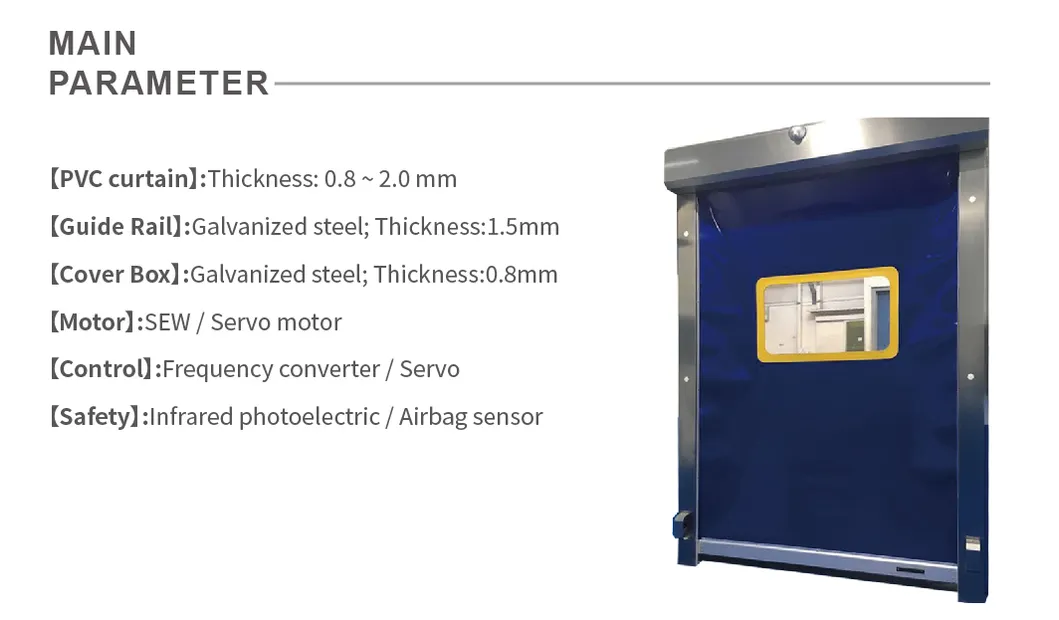

Product Detail 4
MORE PARAMETERS
Door Curtain a. PVC curtain thickness: 0.8/1.0 mm/1.2mm/1.5mm/2.0mm
b. Transparent Strip thickness: 1.2-1.5mm
c. Inflaming retarding :B1
Guide Rail Stainless steel /Aluminum alloy (Optional), T:2.0mm
Zipper Function Automatic repair function, good sealing performance
Motor a. Brand: ABB / Servo motor
b. Protection: IP55
Control System a. Frequency converter + PLC
b. Servo control system
Working Frequency 1000 Times/day
Surface Treatment Electrostatic painting, various colors available
Safety a. Photoelectric protection system or Optical grating (optional)
b. Air chamber at the bottom (optional)
Sealing EPDM Rubber: Heat resistance, weather resistance and aging resistance
Emergency Operation Manual Swing Bar

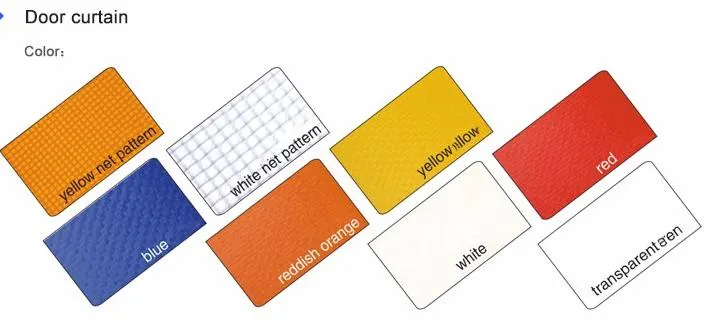

Application 1

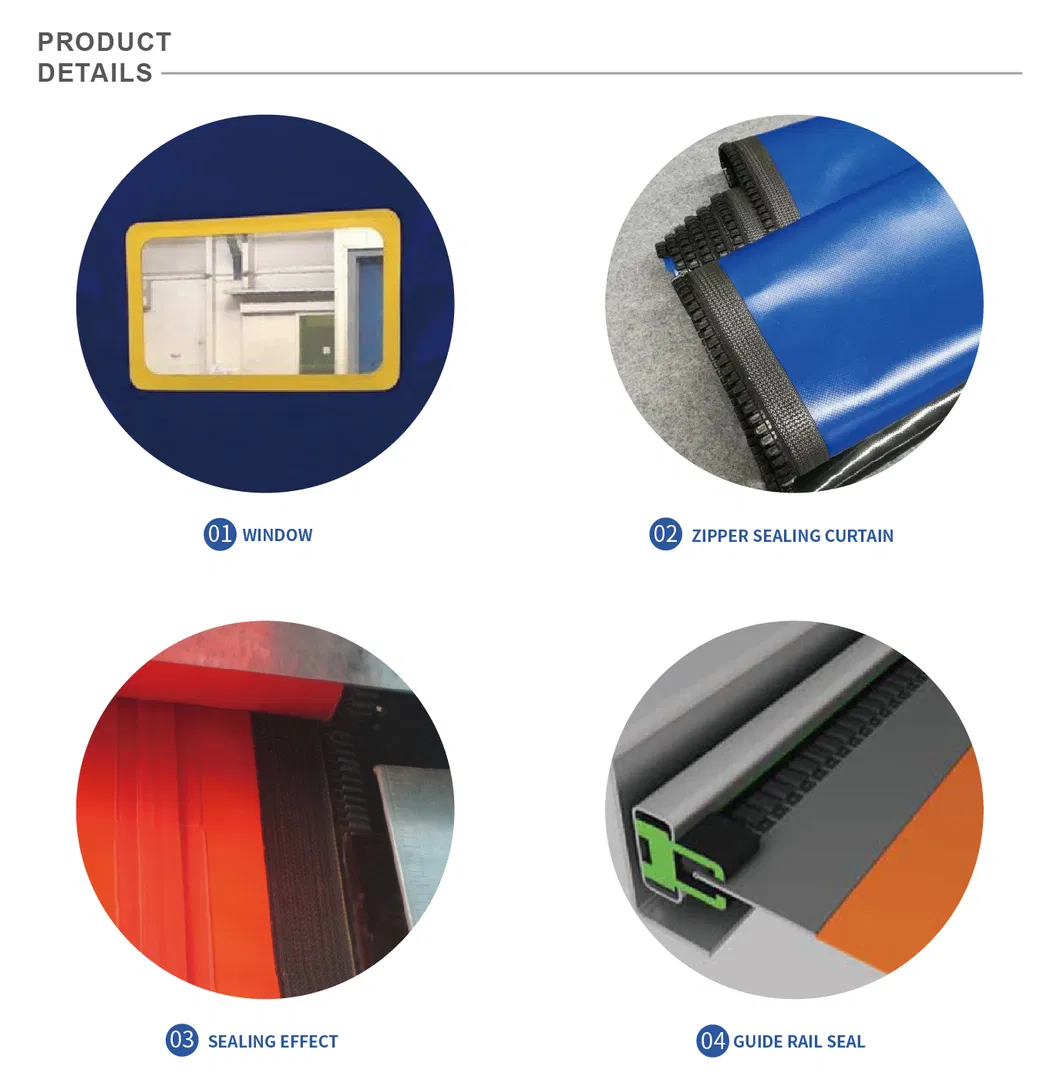

Application 2
Application 3
Application 4
?

Frequently Asked Questions

What is the opening speed of this high-speed door?
The door offers an adjustable opening and closing speed ranging from 0.6 to 2.0 meters per second, ideal for high-traffic industrial environments.
Does the door have a self-repairing function?
Yes, it features a zipper-style design with an automatic repair function. If the curtain is impacted, it can reset itself into the guide rails during the next cycle.
What safety features are included?
The door is equipped with a photoelectric protection system as standard. Optional optical gratings and bottom air chambers are also available for enhanced safety.
Is the door curtain fire-retardant?
Yes, the PVC curtain material meets the B1 inflaming retarding standard, providing excellent safety for industrial use.
How many times can the door operate per day?
The system is designed for high-frequency use, capable of operating up to 1000 times per day.
What happens during a power failure?
The door includes a manual swing bar for emergency operation, allowing you to open or close the door manually if power is lost.
