Commercial Thermal Insulated Burglar Proof Quick Performance Aluminum Spiral High Speed Garage Door
Commercial Thermal Insulated Burglar Proof Quick Performance Aluminum Spiral High Speed Garage Door
Commercial Thermal Insulated Burglar Proof Quick Performance Aluminum Spiral High Speed Garage Door
Commercial Thermal Insulated Burglar Proof Quick Performance Aluminum Spiral High Speed Garage Door
Commercial Thermal Insulated Burglar Proof Quick Performance Aluminum Spiral High Speed Garage Door
1 / 5
Commercial Thermal Insulated Burglar Proof Quick Performance Aluminum Spiral High Speed Garage Door
Commercial Thermal Insulated Burglar Proof Quick Performance Aluminum Spiral High Speed Garage Door
Commercial Thermal Insulated Burglar Proof Quick Performance Aluminum Spiral High Speed Garage Door
Commercial Thermal Insulated Burglar Proof Quick Performance Aluminum Spiral High Speed Garage Door
Commercial Thermal Insulated Burglar Proof Quick Performance Aluminum Spiral High Speed Garage Door

Commercial Thermal Insulated Burglar Proof Quick Performance Aluminum Spiral High Speed Garage Door

Customization: Available
After-sales Service: Yes
Warranty: Yes
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
XF-H-3000
Material
Aluminum Alloy
Type
Rolling
Open Style
Rolling
Opening Type
Power Driven
Special Function
Security
Certification
ISO9001, CE
Position
Industrial
Surface Finishing
Finished
Thermal Insulation
PU Sandwich
Speed
1.5 ~ 2.5 M / S
Transport Package
Wooden Case
Specification
5000*6000 mm
Origin
China
HS Code
7610100000
📦

Packaging & Delivery

Package Size
2200.00cm * 1000.00cm * 1000.00cm
Gross Weight
100.000kg
★

Product Description

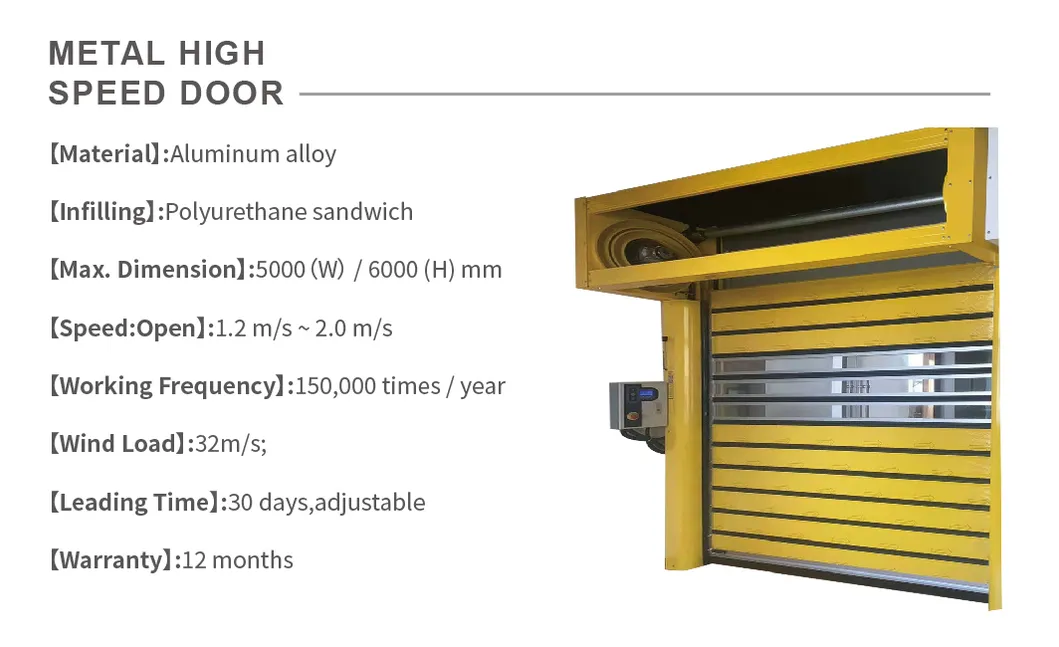

High Speed Door Image 1

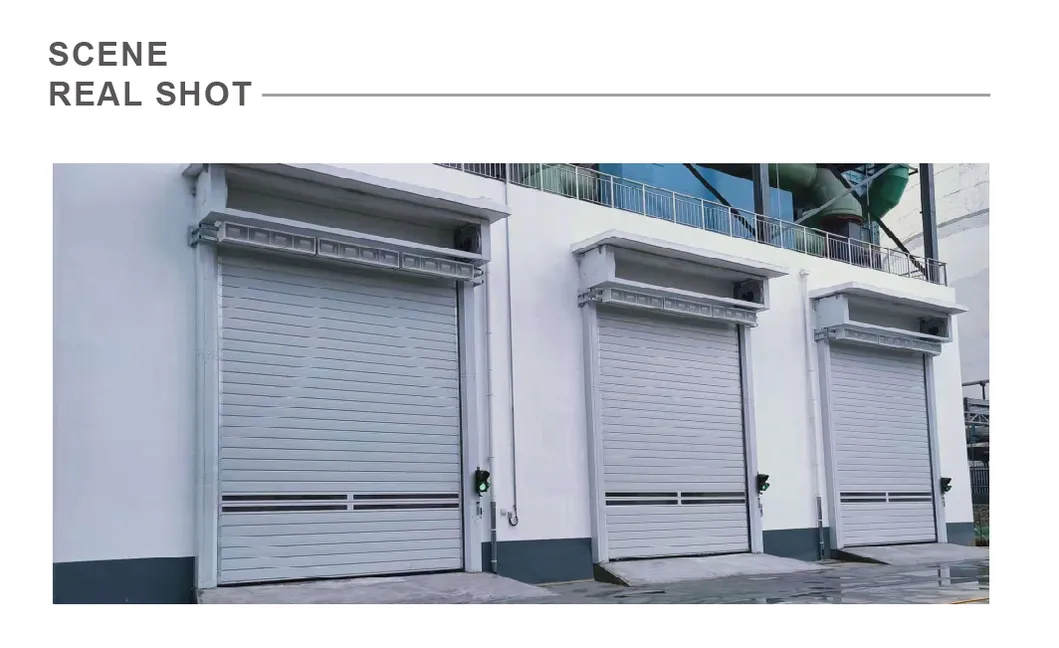

High Speed Door Image 2

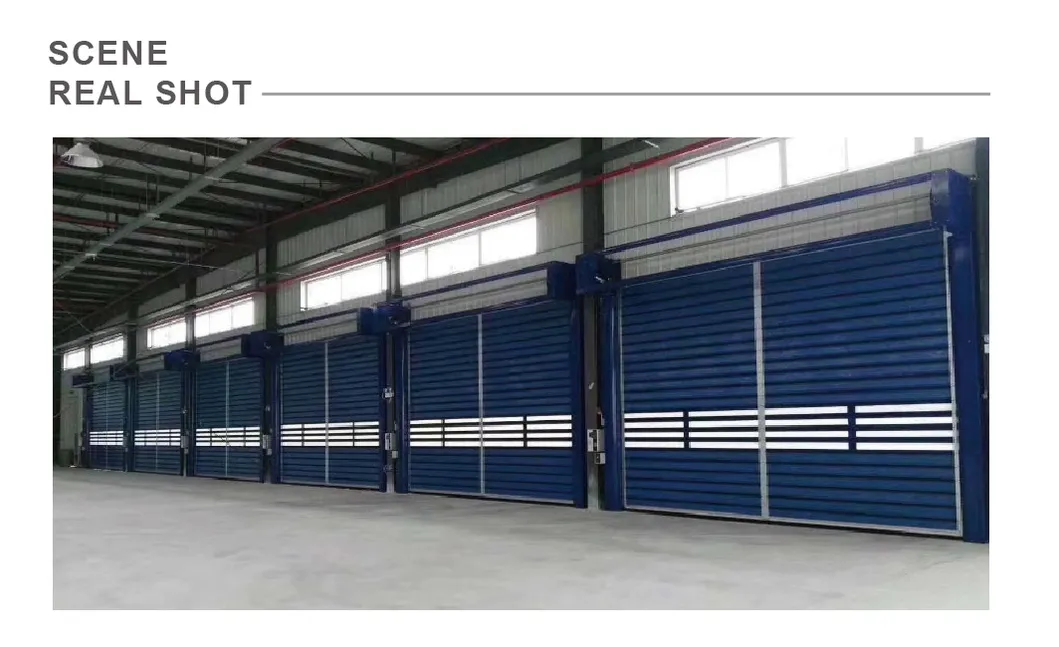

High Speed Door Image 3

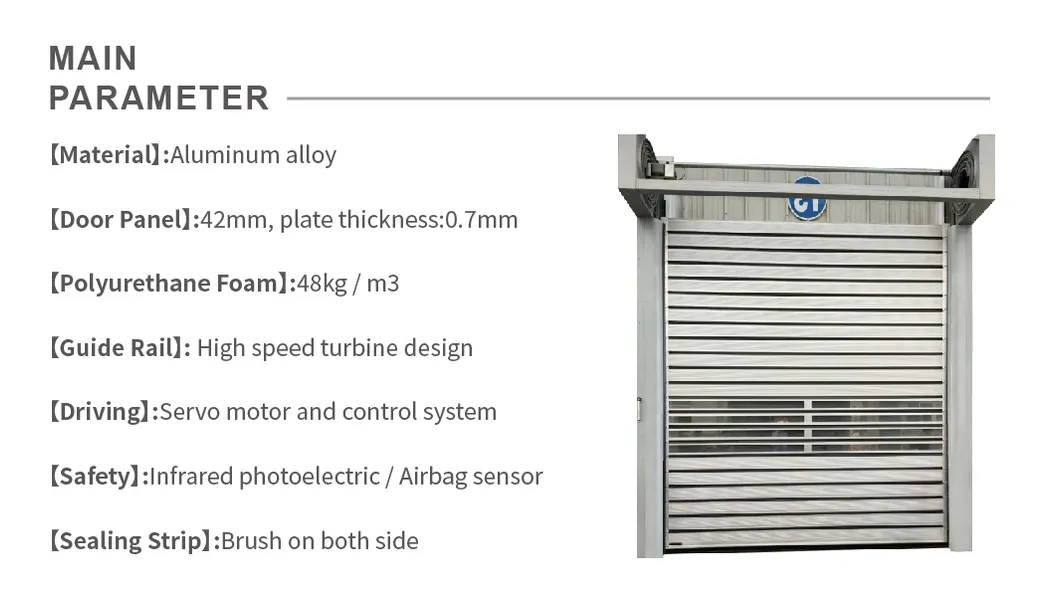

High Speed Door Image 4

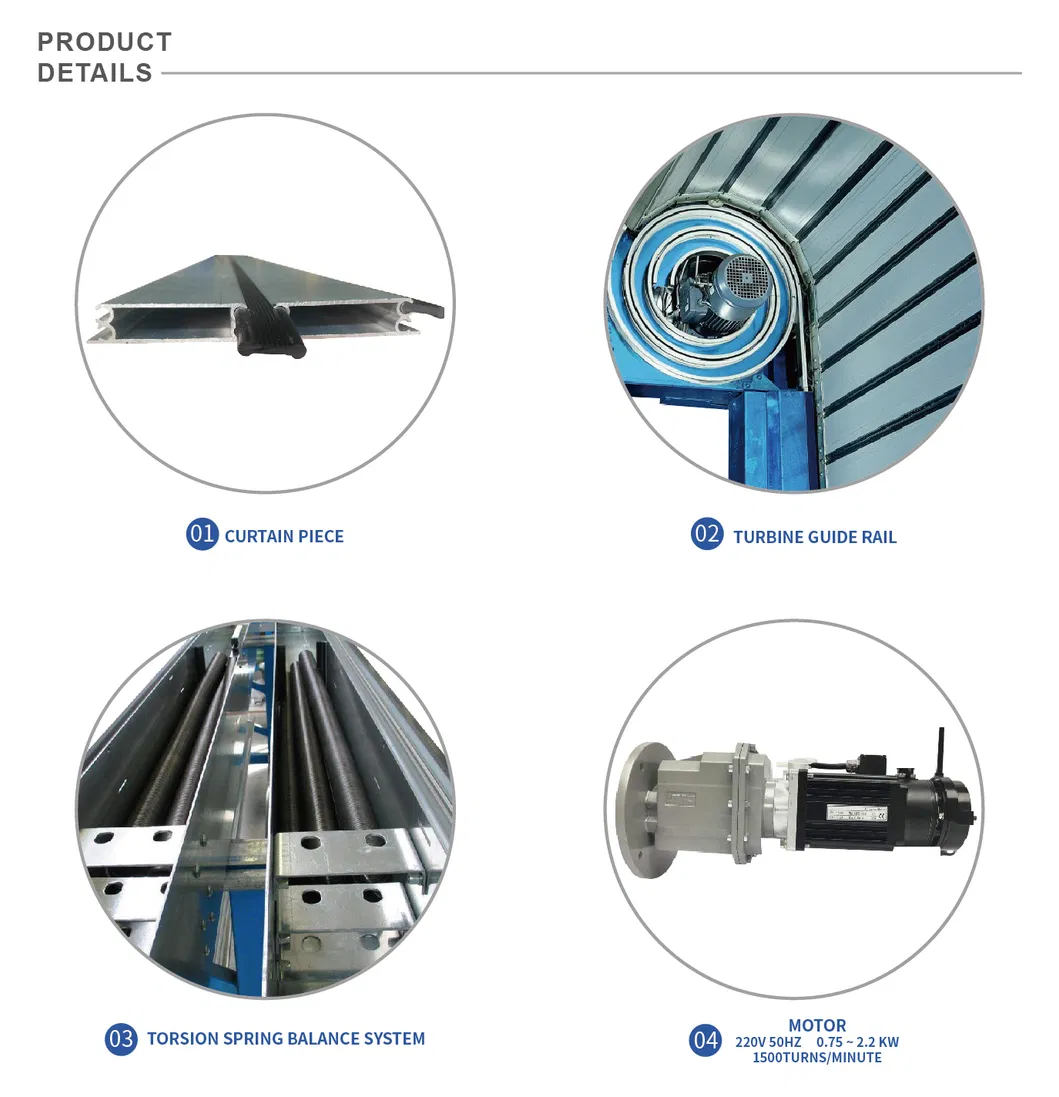

High Speed Door Image 5
Technical Item Detailed Description
MaterialAluminum Alloy Profile (with or without PU Sandwich), Transparent PVC Strip
Thickness of MaterialDouble-layer Aluminum with PU Sandwich (0.8 mm) / Without PU Sandwich (1.2mm)
Thickness of Panel40mm, surface treated by anodizing and organic coloring
Foam Density50kg / m3
Operating Speed1 ~ 2.5 m / s
Wind ResistanceBeaufort scale 12 (35 m / s)
Available ColorsWhite / Grey / Sliver / Blue / Red / Custom-tailor
Noise Level< 60dB
Lifting Way90°Vertical Lift / Turbo Type / Ellipse Type
Max Dimension5000*7500 MM
Drive SystemServo Motor (220V 50HZ / 380V 50HZ, 0.75Kw to 2.2Kw)
Control SystemFrequency Converter + PLC or Servo Type
Heat PreservationBroken bridge thermal insulation structure; K<0.6W/(m2•K)
Sealing SystemGuide rail, door panel middle, top, and bottom seals
Safety Features1) Photocell Sensor; 2) Airbag Installed at Door Edge Bottom
High Speed Door Detail 6
High Speed Door Detail 7
?

Frequently Asked Questions

What is the maximum opening speed of the XF-H-3000?
The door operates at a high-performance speed ranging from 1.5 to 2.5 meters per second, ideal for industrial high-traffic areas.
Can this door withstand strong winds?
Yes, it features excellent wind resistance rated up to Beaufort scale 12 (35 m/s), making it suitable for exterior industrial installations.
What safety mechanisms are included?
The door is equipped with advanced safety features including photocell sensors and an safety airbag installed at the bottom edge to prevent accidents during operation.
How effective is the thermal insulation?
The door uses a PU sandwich structure with a broken bridge thermal insulation design, achieving a heat preservation coefficient of K<0.6W/(m2•K).
Is the door operation noisy?
No, the design ensures a low noise level of less than 60dB, providing a quieter environment for industrial and commercial facilities.
What are the maximum dimensions available?
The standard maximum dimension for this model is up to 5000mm in width and 7500mm in height.
