| Application | Workshop Crane, Warehouse Crane |
| Lift Mechanism | Lift |
| Driven Type | Hydraulic |
| Certification | CE |
| Loading Capacity | 6000kg / 8000kg |
| Working Range | -300mm to +300mm |
| System Power | 0.75kw, 380V / 50Hz |
| Upper Plate | 8mm Thick, Anti-Skate Steel Plate |
| Swinging Lip | Single 16mm Thickness, 400mm Length |
| HS Code | 842542 |
| Production Capacity | 500 Sets/Month |

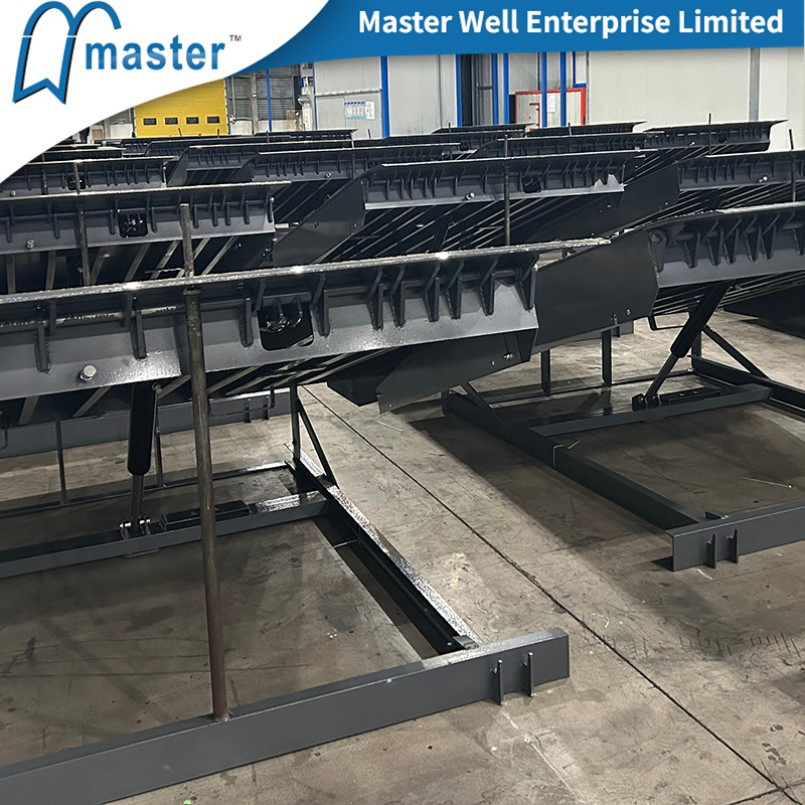

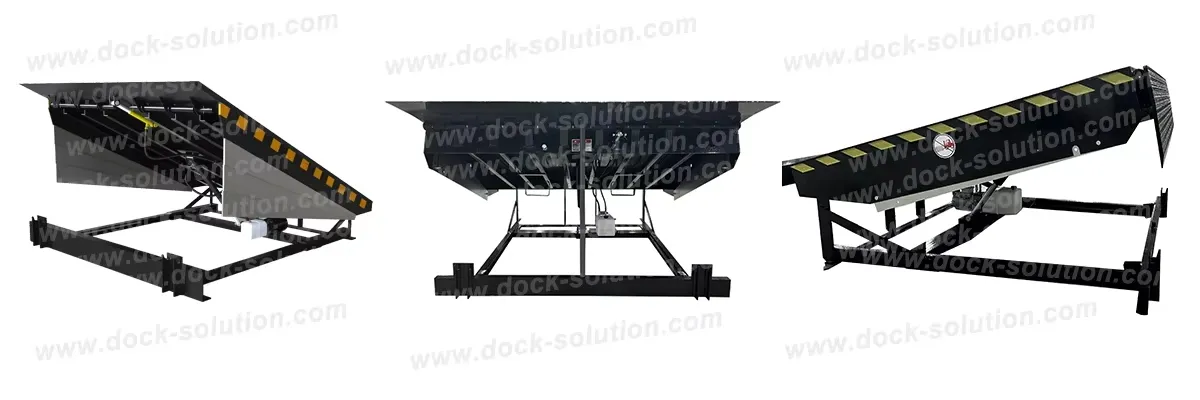

Hydraulic Dock Leveler uses a hydraulic power unit to lift the upper main panel through a main oil cylinder, while a small auxiliary oil cylinder pushes out the lip plate. It is highly effective for bridging the gap when dock height and truck height differ. Through the principle of self-weight drop, the lip plate is positioned securely onto the rear of the truck to facilitate seamless loading.
The hydraulic system is the most widely used loading platform solution, known for its stable performance, simple operation, low maintenance requirements, and ease of repair.
| Sealing Element | High-grade Japanese Brand Seals |
| Support Profile | C-shaped stiffener / 14# I Beam |
| Adjustment Time | Rise Time ≤16s, Fall time ≤10s |
| Electric Control | 24V weak current control box |
| Static Capacity | 10,000 ~ 31,700 KG |
| Operating Temp | -30℃ ~ +50℃ |
| Noise Level | <50db (±5db) |
| Service Life | ≥200,000 cycles |

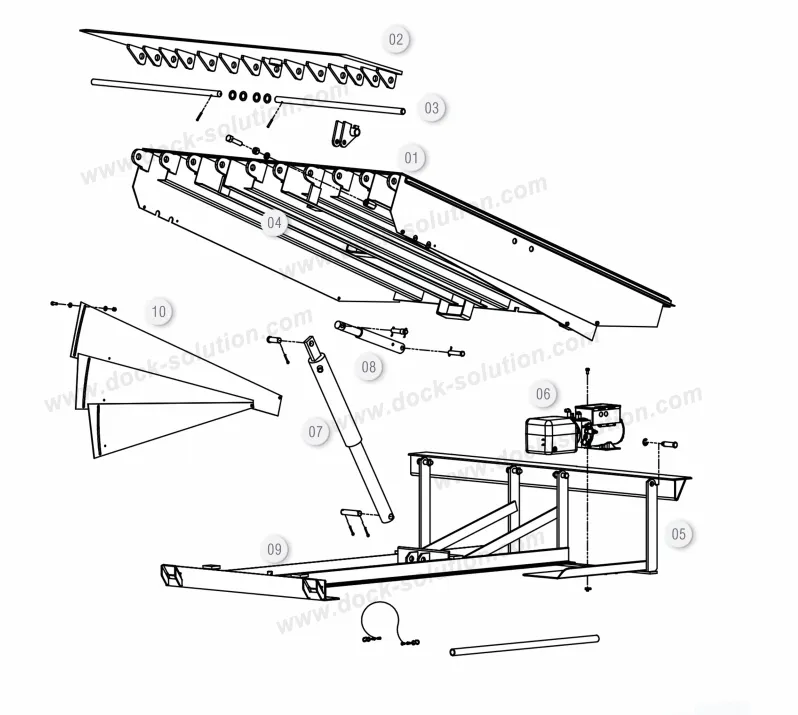

| 1. Upper Plate | 6. Power Pack |
| 2. Lip Plate | 7. Main Cylinder |
| 3. Hinge (Open) | 8. Auxiliary Cylinder |
| 4. Rib Support | 9. Frame |
| 5. Support Structure | 10. Guard |
