⚙️ Product Description

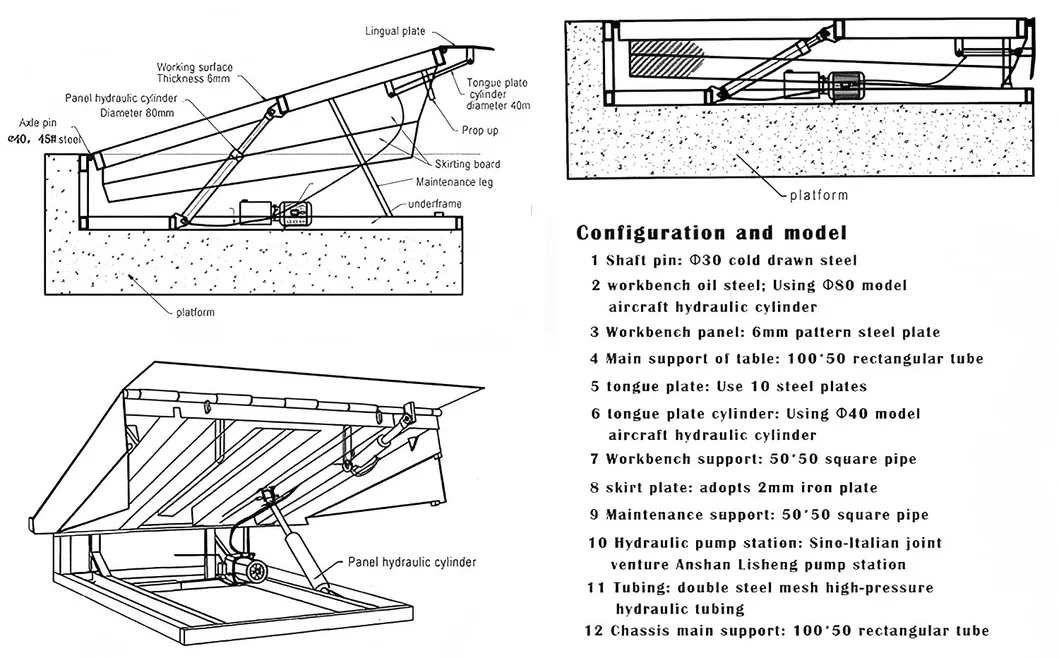

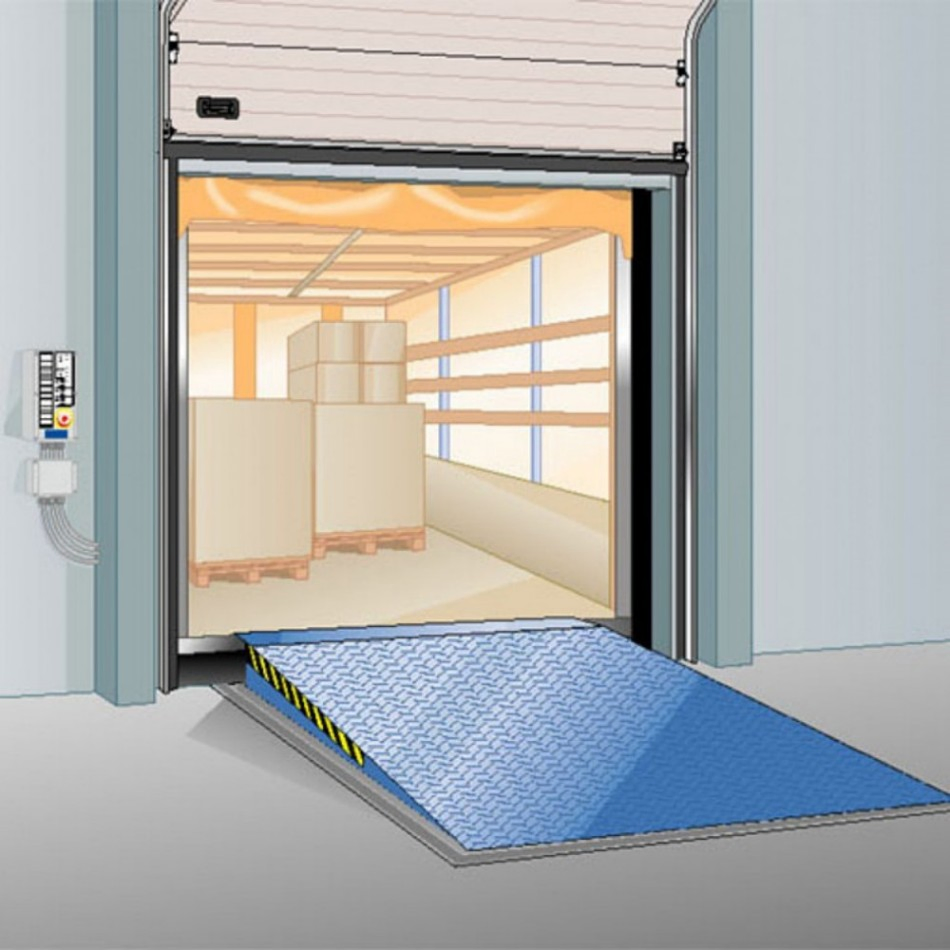

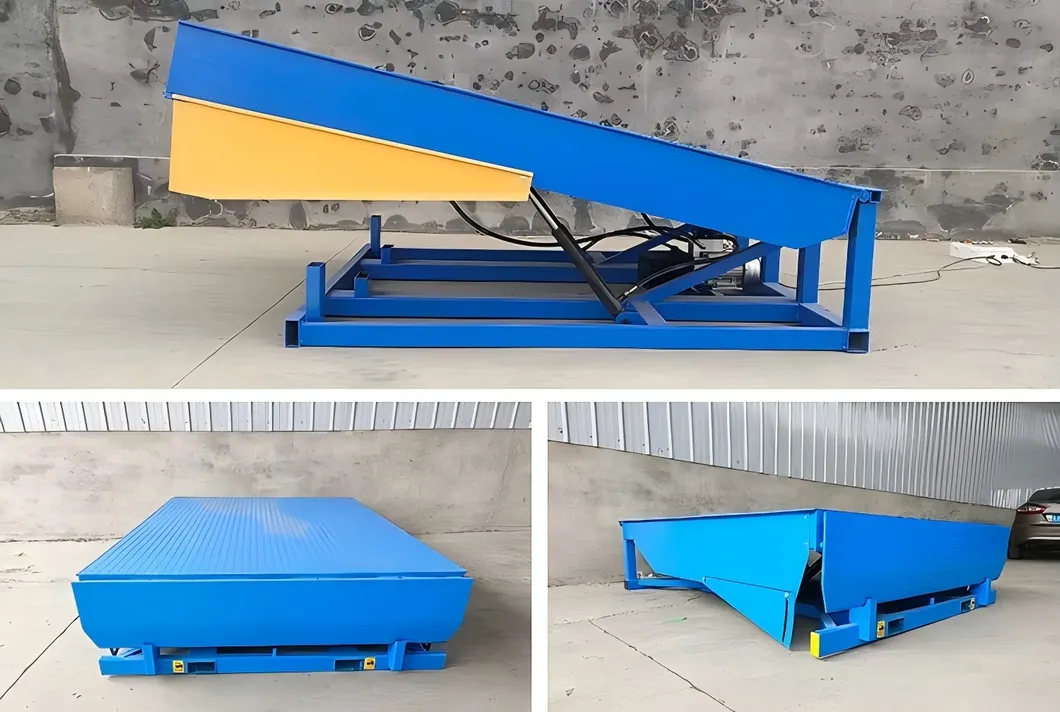

Hydraulic Dock Levelers operate on hydraulic principles. The main hydraulic cylinder lifts the platform panel, while a smaller cylinder raises the lip plate. As the lip plate extends and rests on the rear of the truck using its own weight, it creates a seamless bridge between the warehouse and the truck, facilitating efficient loading and unloading.
The scalable fixed dock leveler is designed to adjust to different vehicle heights and loading requirements, offering excellent adaptability. Its flexibility makes it suitable for various truck and container types, effectively solving height differences that traditional loading methods cannot accommodate.
- Adjusting height range 300mm to 450mm. Loading capacity can be 6t, 8t, 10t, 12t and so on.
- Hydraulic pump: High-quality brand, double-acting, two hydraulic cylinders.
- Grating: Meshwork steel block on the surface, serrated for traction, self-cleaning.
- Driven by: manual oil pump or electrical oil cylinder.
- Hose burst valve locks the system in case of explosion or sudden movement.
- Automatic level adjustment according to the height of the vehicle.
- Equipped with emergency stop activation button.
| Model |
Capacity |
Platform Size |
Distance |
Lip Board Size |
Motor Power |
| MF6-0.6 | 6T | 2500*2000mm | +300/-200 | 400mm | 0.75KW |
| MF8-0.6 | 8T | 2500*2000mm | +300/-200 | 400mm | 0.75KW |
| MF10-0.6 | 10T | 2500*2000mm | +300/-200 | 400mm | 0.75KW |
| MF12-0.6 | 12T | 2500*2000mm | +300/-200 | 400mm | 0.75KW |
❓ FAQ
What information is required for an inquiry?
To provide the best solution, please provide the lifting capacity, span, lift height, traveling distance, and your power source requirements.
What is your minimum order quantity (MOQ)?
Our minimum order quantity is 1 set.
How are the products packaged for delivery?
The main body is packaged with plywood boxes or plastic woven fabrics. Spare parts are securely placed inside plywood boxes for protection.
What is the typical delivery cycle?
Delivery usually takes between 10 to 40 days after receiving the advance payment, depending on specific requirements and production schedules.
Do you provide additional lifting accessories?
Yes, we can provide various crane accessories including hooks, grab buckets, magnets, pulley blocks, locks, and wire ropes.
Do you offer custom OEM/ODM services?
Yes, our factory fully supports both OEM and ODM services to meet your specific industrial needs.
