| Model NO. | High Speed Spiral Door |
|---|---|
| Material | Aluminum Alloy |
| Type | Rolling |
| Open Style | Rolling |
| Opening Type | With Remote Control |
| Special Function | Security |

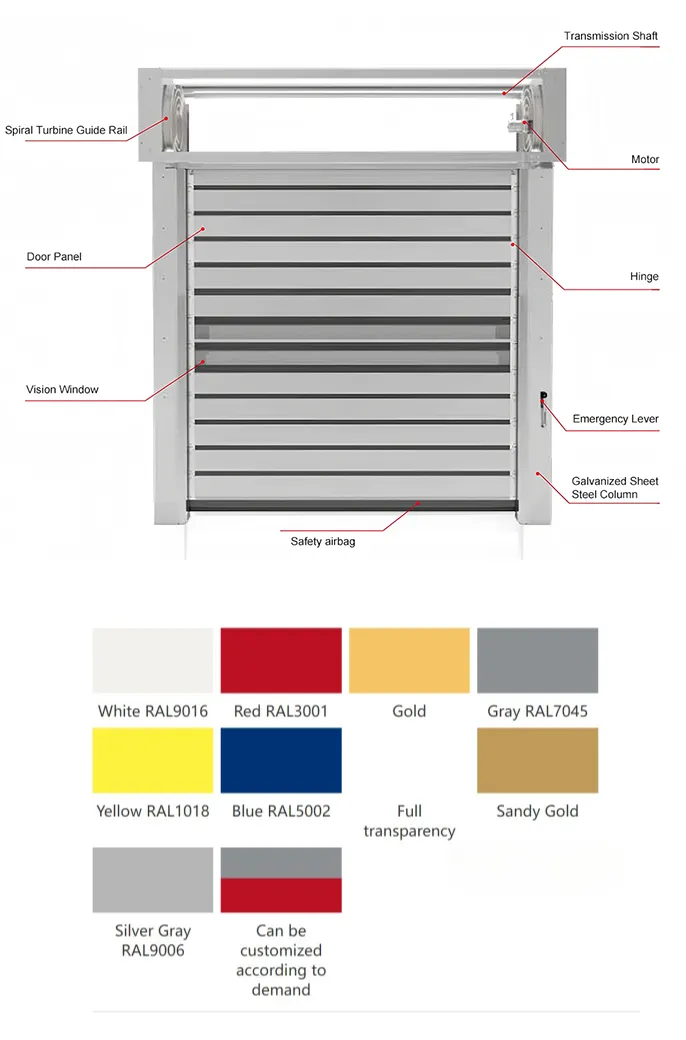

| Color | White, Silver, Blue, Red, Yellow, Coffee |
| Certification | ISO9001, CE |
| Position | Industrial |
| Surface Finishing | Finished |
| Opening Speed | up to 2.5m/S |
| Wind Resistance | 12 Wind (Refer to The Size of The Door) |
| Induction Mode | Photoelectric, Radar, Remote Control, Geomagnetism |
| Maximum Size | 8000mm X 9000mm |
| Production Capacity | 2000 Sets/Month |
| Package Size | 320.00cm * 110.00cm * 100.00cm |
|---|---|
| Package Gross Weight | 480.000kg |
| Transport Package | Wooden Cases |

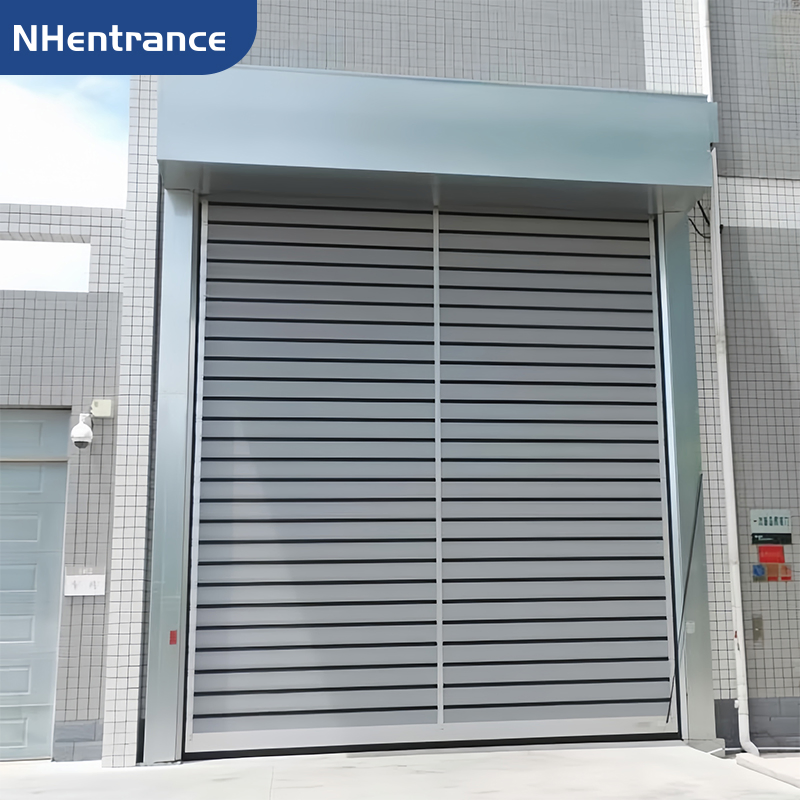

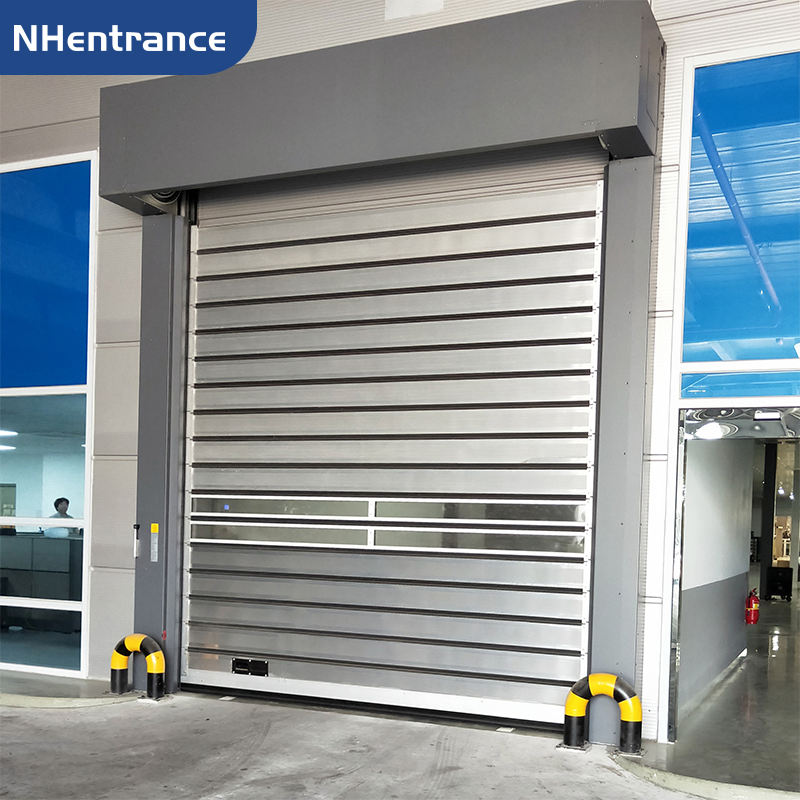

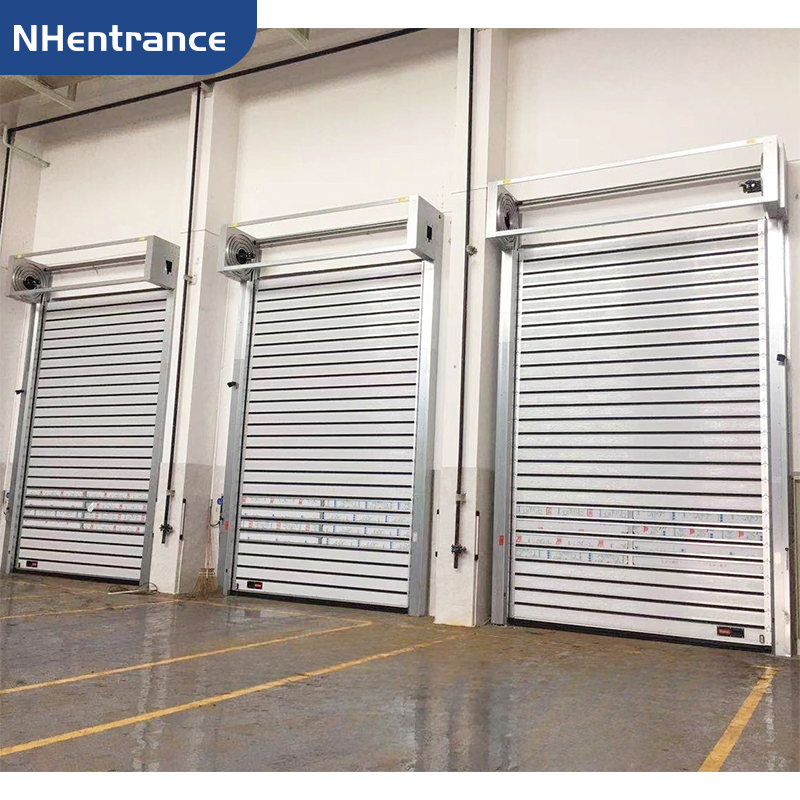

Set fast, energy-saving, sealed, wind-resistant, environmentally friendly in one of the new metal industrial doors, has a high degree of reliability and practicality, its operating speed is more than 6 times that of the industrial sliding door, by virtue of the efficiency of the work, the high speed spiral door is gradually replacing the industrial sliding door.

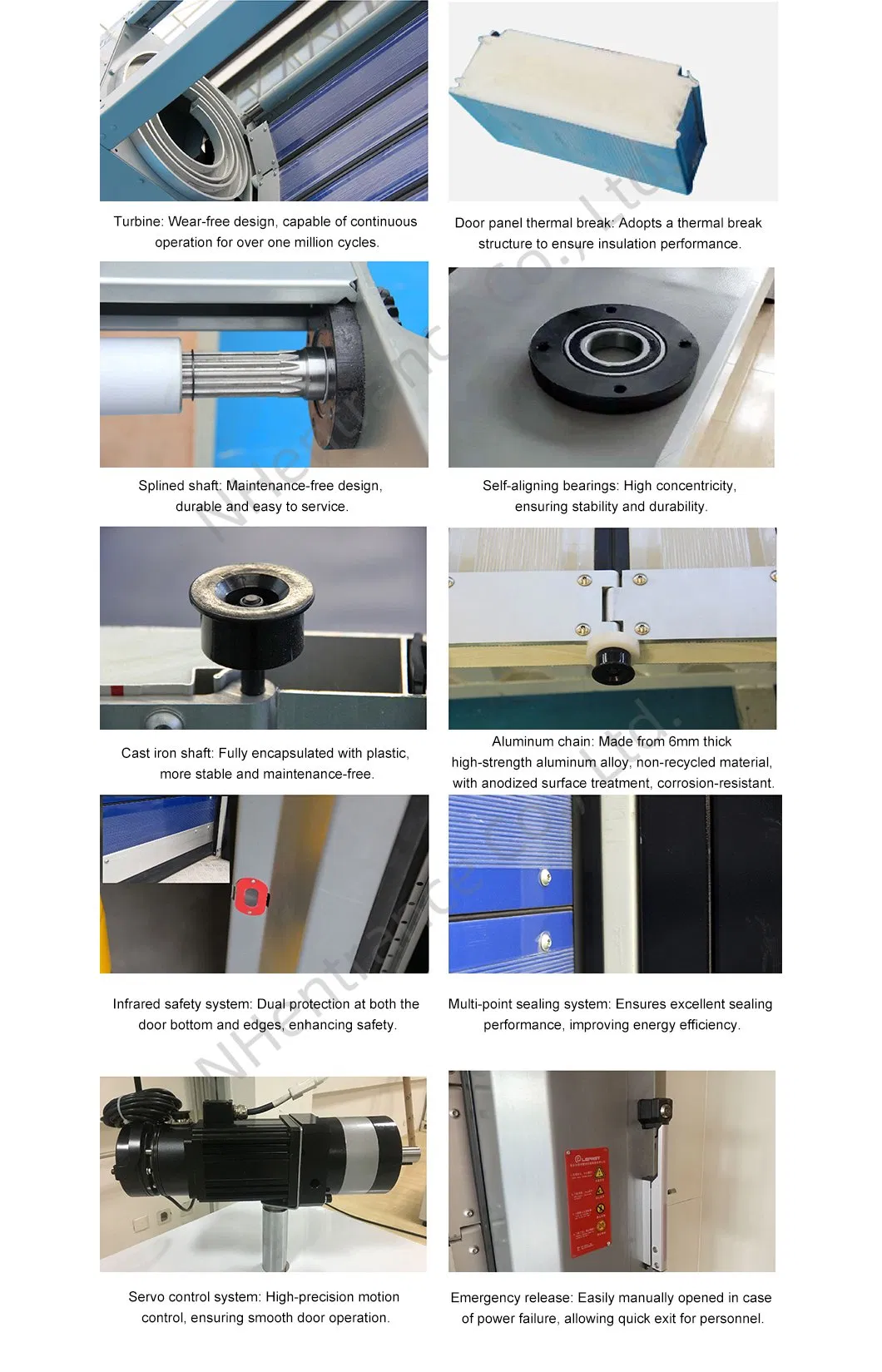

The door plate is produced by a large-scale assembly line with French technology, filled with polyurethane industrial heat preservation material inside the door plate, and the bridge-breaking design can isolate the indoor and outdoor temperature loss, which can effectively save energy. The two ends are connected by hinges, and the door panels are connected by double side sealing strips, which ensures the sealing and also effectively fights against the strong convection wind pressure.
Turbo high speed spiral door can prevent the intrusion of outsiders and at the same time can withstand weather changes, can isolate the indoor and outdoor air convection, is used in frequent access, and is the ideal choice for industrial energy saving and reduced consumption.
| Speed | Up to 2.5m/s (98.43 inches/second) with servo drive. Maximum speed depends on door size. |
|---|---|
| Size | Minimum: 1000mm x 1000mm; Maximum: 8000mm X 9000mm |
| Panel Material | 0.7mm thick aluminum plate; foaming density 45kg/m3; thickness 43mm and 80mm; panel height 220mm. |
| Drive System | Servo-motor (0.75KW, 1.5KW, 2.2KW) with gearbox and brake. Servo-drive controls motor running. |
| Electrical Requirements | Standard: 220V/1PH/50/60Hz; Oversize: 380V/3PH/50/60Hz. |
| Vision Options | Transparent PC material, thickness 2mm. |
| Control Box | Servo-drive, metal enclosure: 250mm X 450mm X 150mm. |

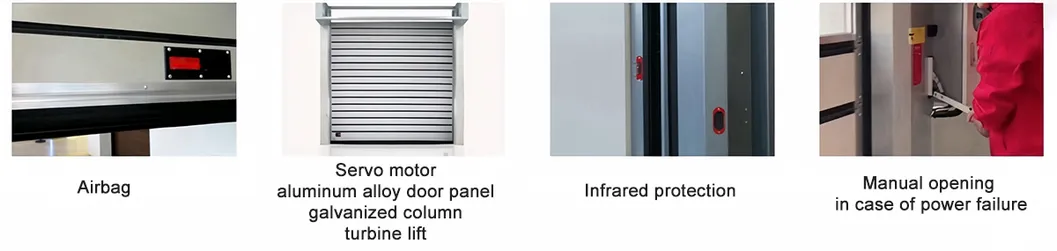

| Safety Features | Photoelectric sensors, wireless airbags, and optional light curtain. |

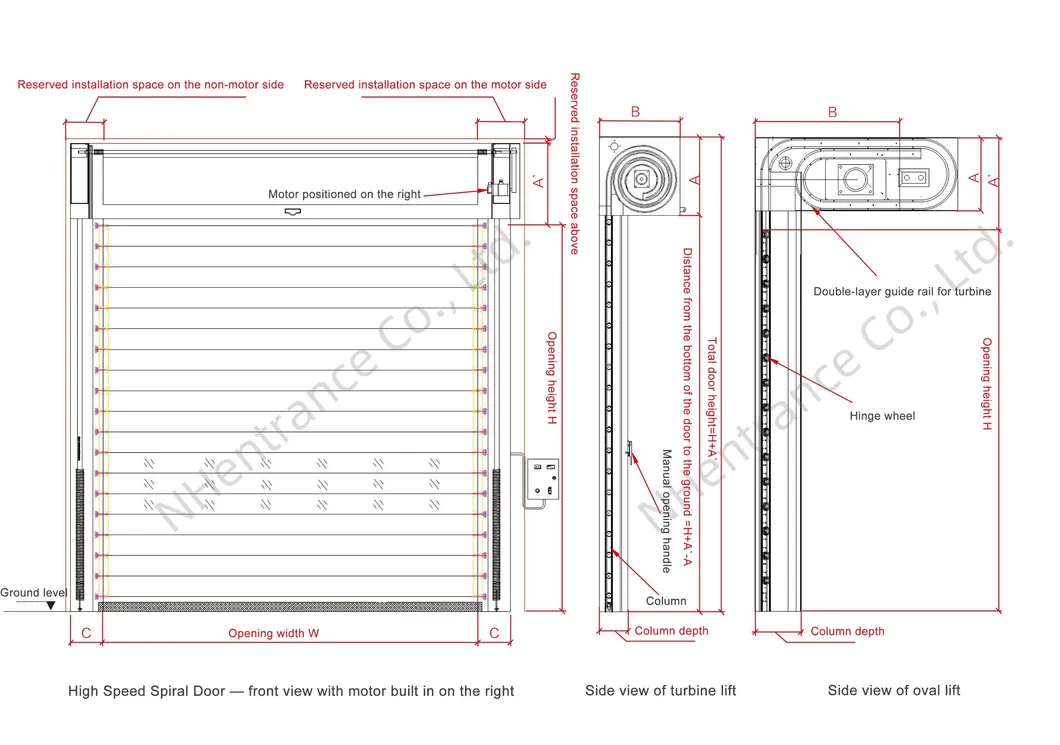

| Lift Style | Round Spiral, Oval Spiral |
| Warranty | 13 months after delivery. |
Opening speed 0.8m/s ~2m/s (adjustable). Archimedean spiral principle reduces friction for smooth high-speed operation.
Patented broken bridge design for superior heat preservation. Resistant to 12 winds (National Standard Level 3).
Designed for thousands of daily cycles. Total trouble-free operation exceeds 1 million times.

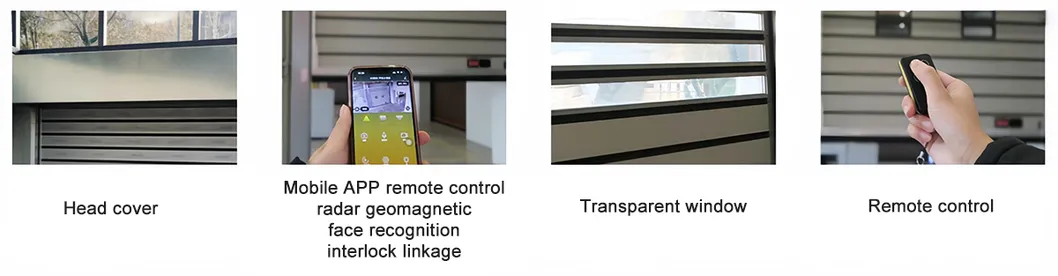

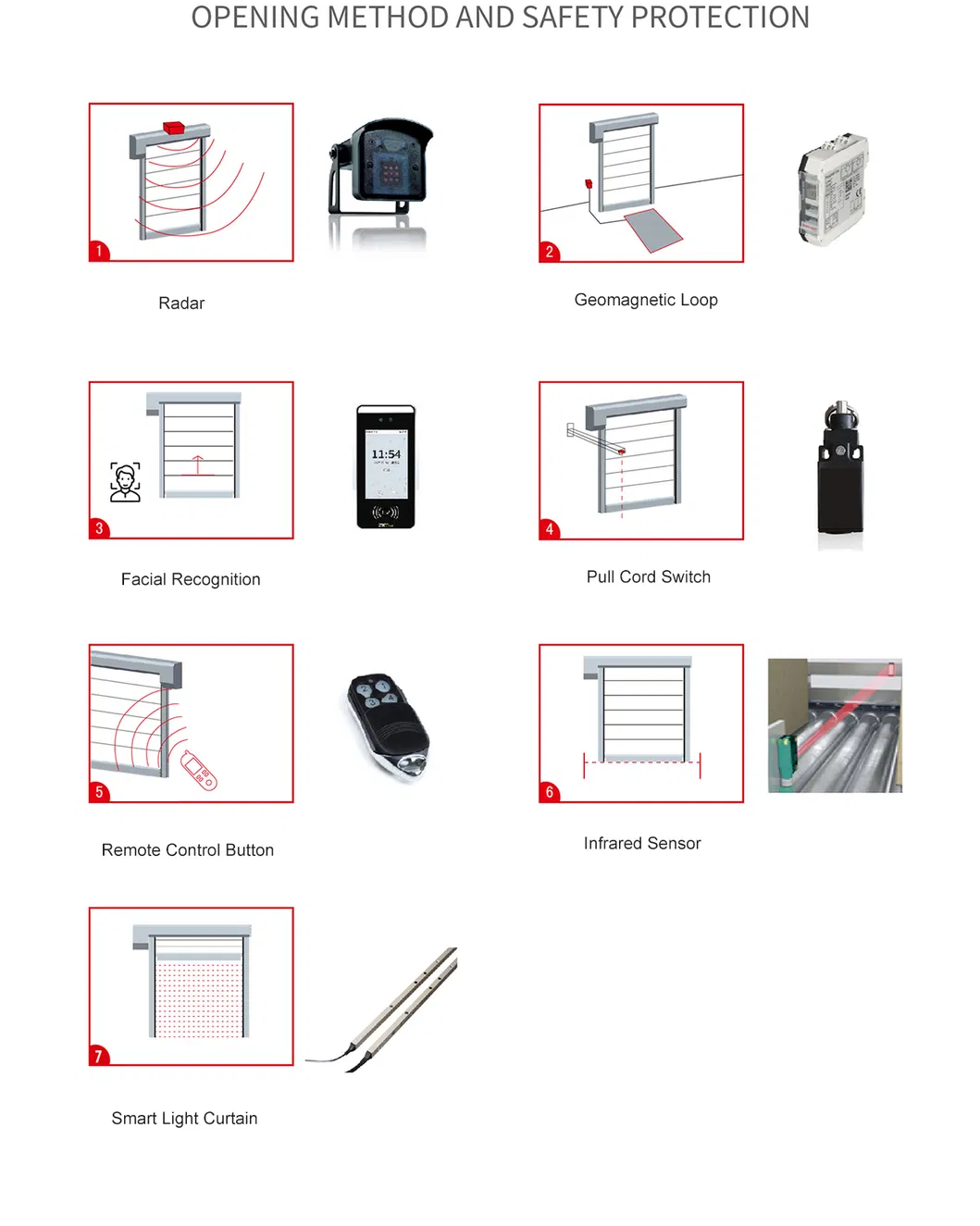

Multiple opening methods: Radar, geomagnetism, remote control, Bluetooth, and APP available.
Specializing in high-performance industrial doors, garage doors, and loading dock systems with over two decades of expertise. The production facilities utilize advanced technology to ensure large-scale output and meet global market demands.
Products adhere to stringent European industry standards and have earned certifications including the EU CE mark, international SGS, and ISO9001 Quality Management System certification. Solutions are exported to over 30 countries and regions, including the European Union, the United States, Canada, Australia, and India.
Serving industries such as manufacturing, logistics, electronics, and food processing, the focus remains on advanced engineering, durability, and operational efficiency for industrial applications.
