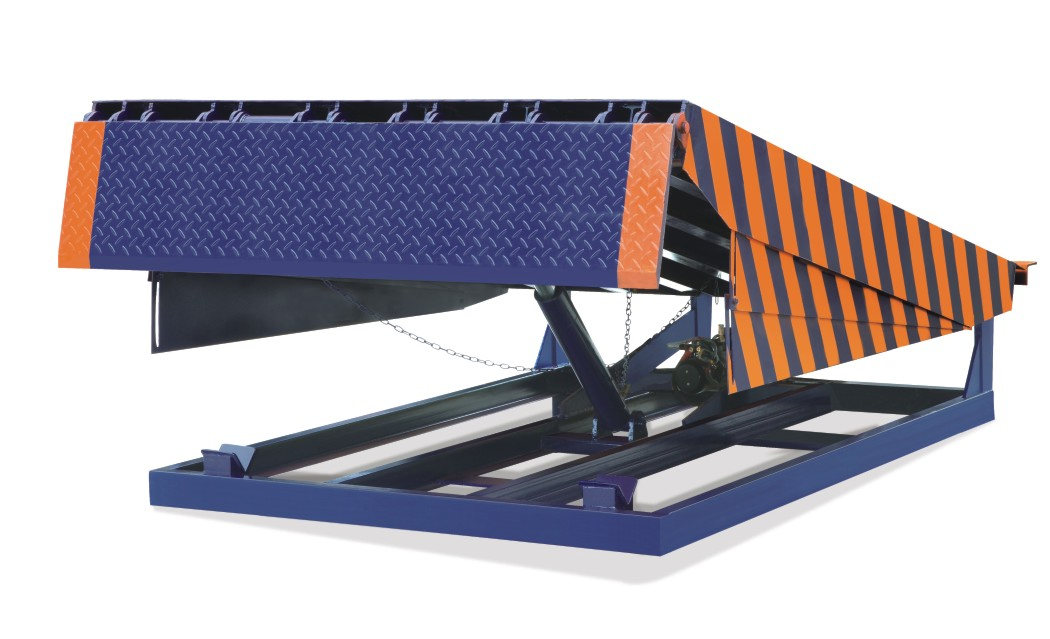

CE Certified Electric Load Table Telescopic Lip Fixed Truck Ramp Loading Hydraulic Lift Dock Leveler

1 / 5

CE Certified Electric Load Table Telescopic Lip Fixed Truck Ramp Loading Hydraulic Lift Dock Leveler

Customization:	Available
After-sales Service:	Yes
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.:XF-O-2500

Lift Mechanism:Hydraulic Cylinder

Carrying Capacity:6t / 8t / 10t

Moves:Stationary

Driven Type:Hydraulic

Feature:Explosion-Proof

Certification:CE, ISO 9001

Voltage:220V 50Hz / 380V 50Hz

Power:0.75 Kw / 1.5kw

Package Size:200.00cm * 200.00cm * 60.00cm

Gross Weight:1000.000kg

Production Capacity:10000/ Year

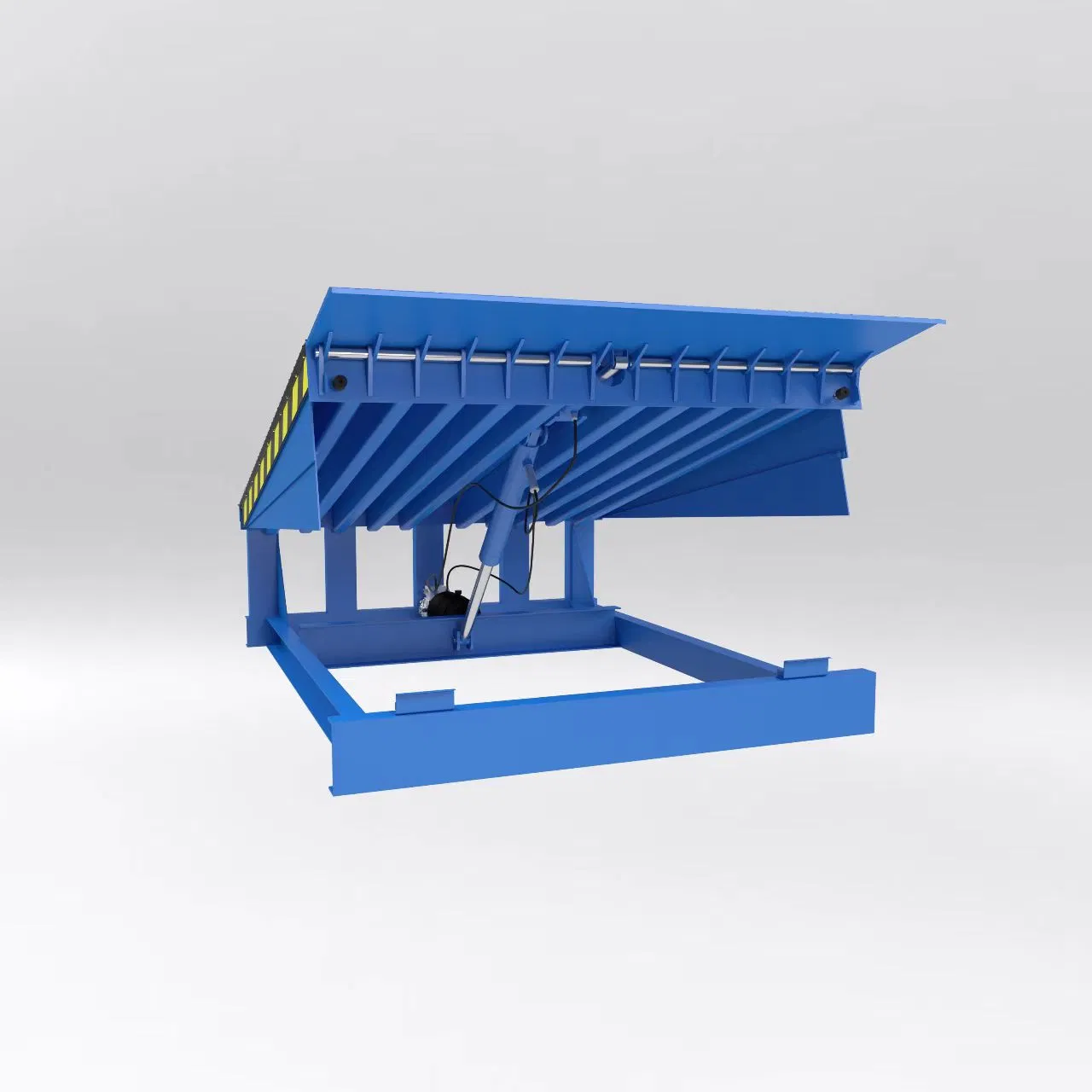

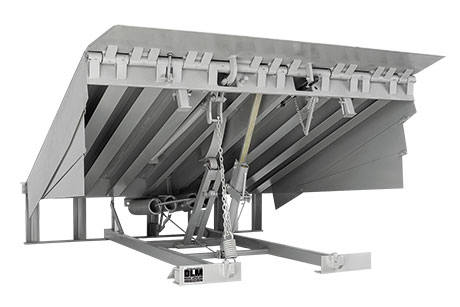

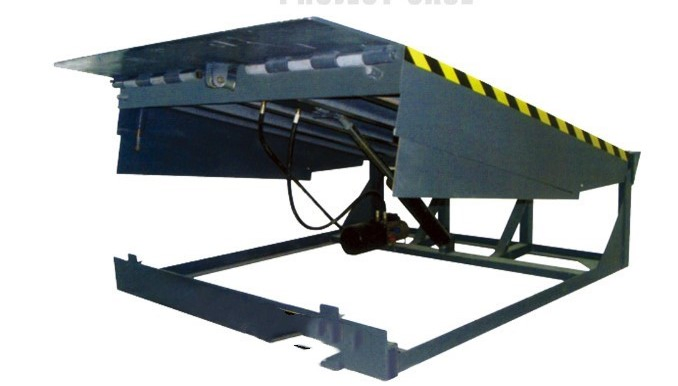

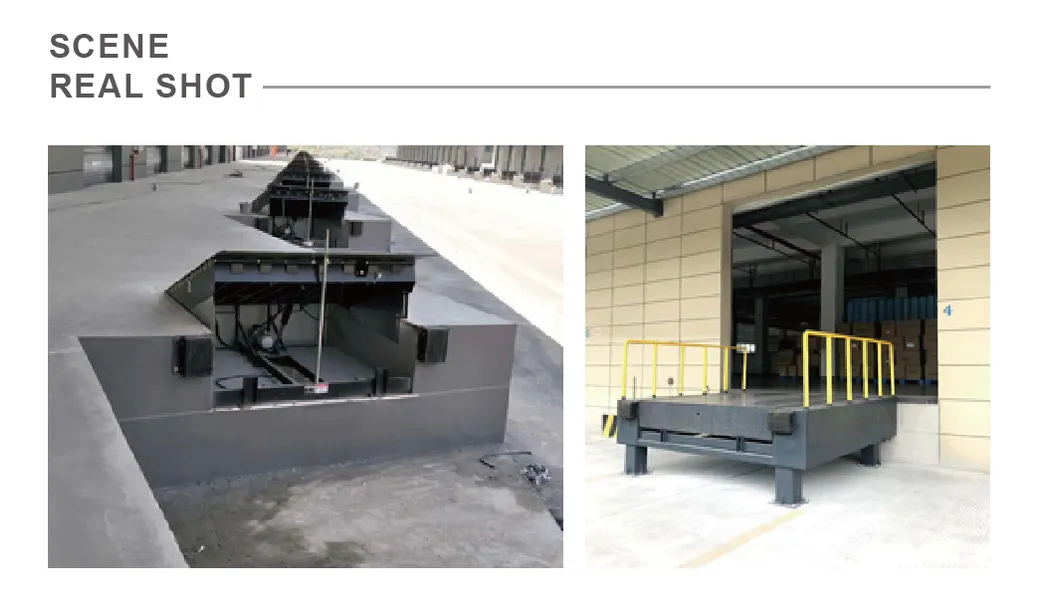

Product Showcase

Technical Parameters

MORE PARAMETERS

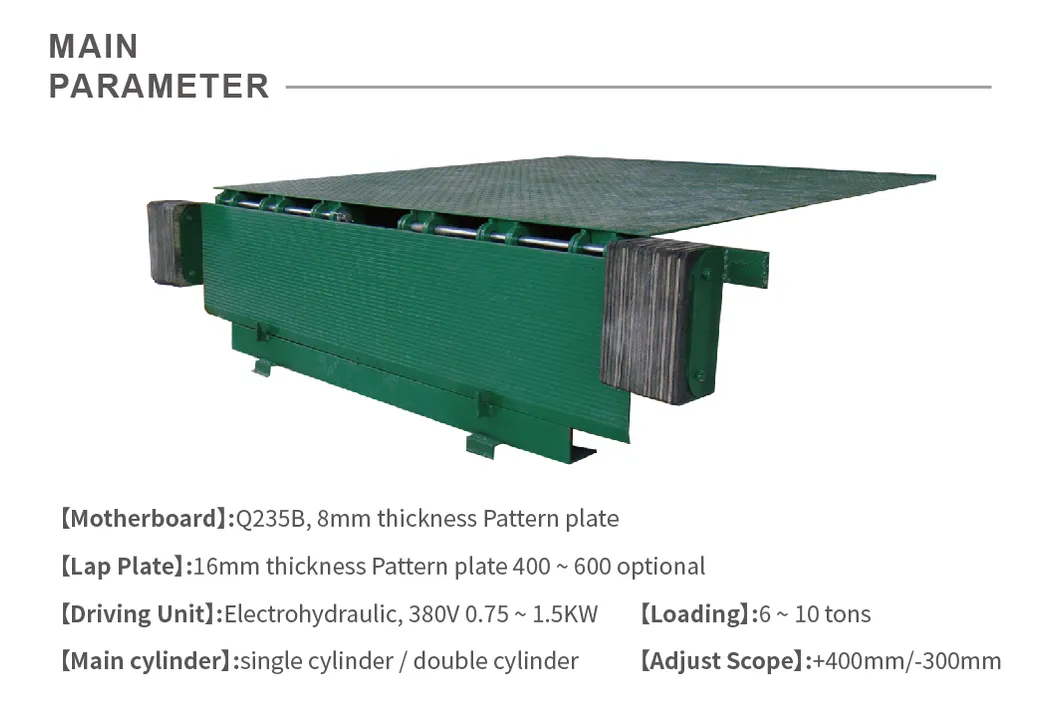

Main Board	Q235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap Plate	Q235B steel plate with anti-slide pattern, thickness: 14 / 16mm; surface treatment is blasting and powder coating
Hinge	Open type, 8*150mm
Loading Weight	Dynamic load: 6T / 8T / 10T / 12T / 15T
Driving	Electrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Control System	Standard 380V English interface
Adjust Scope	+400mm / -300mm
Adjust Time	Up ≤ 16S; Down ≤ 10S
Sealing Parts	Brand: NOK A505 Complete set of seals for oil cylinder
Main Cylinder	Single cylinder / double cylinders

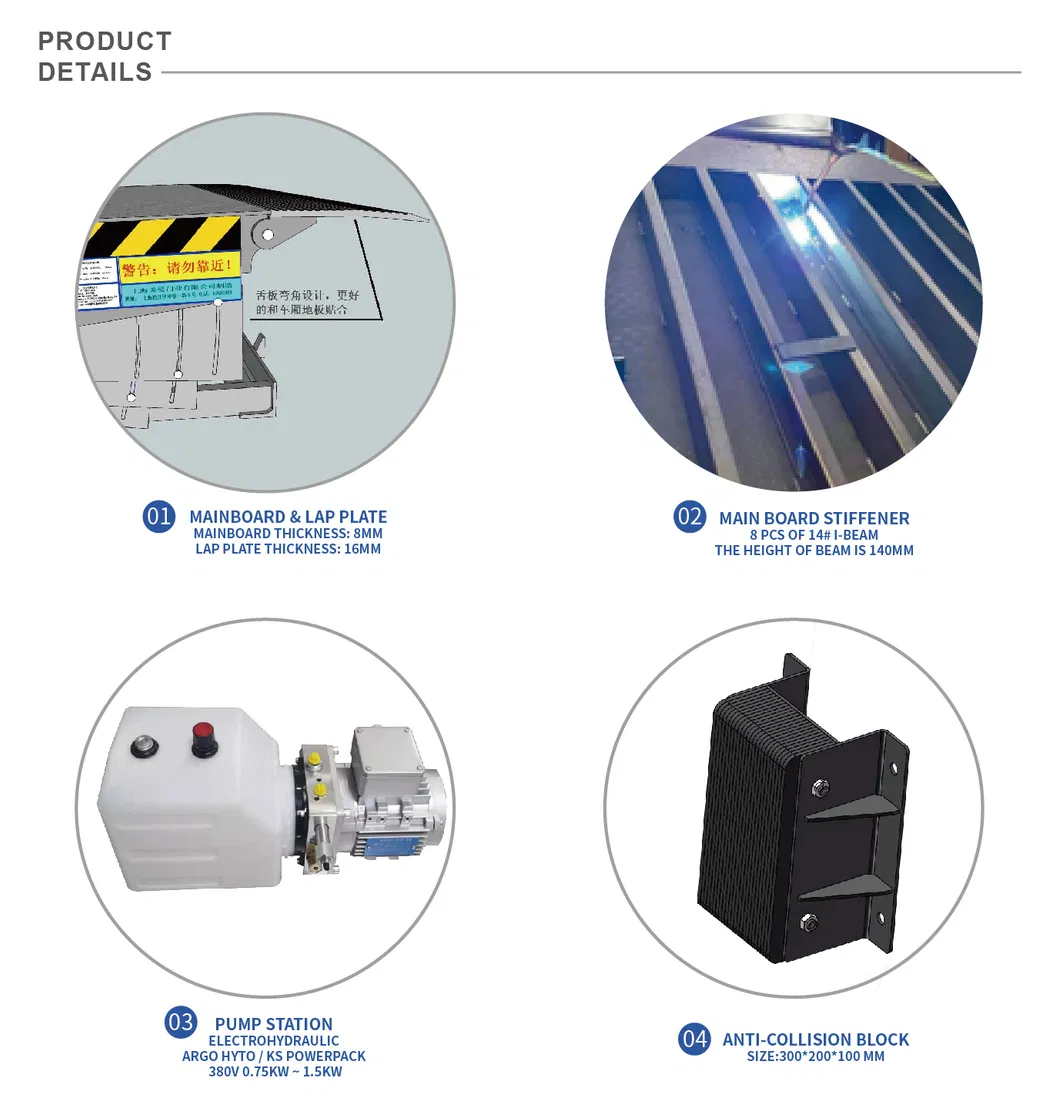

Main Board Stiffener	8 pcs of 14# I-Beam, height of Beam is 140mm
High Pressure Oil Pipe	T3683-2001; 60mpa

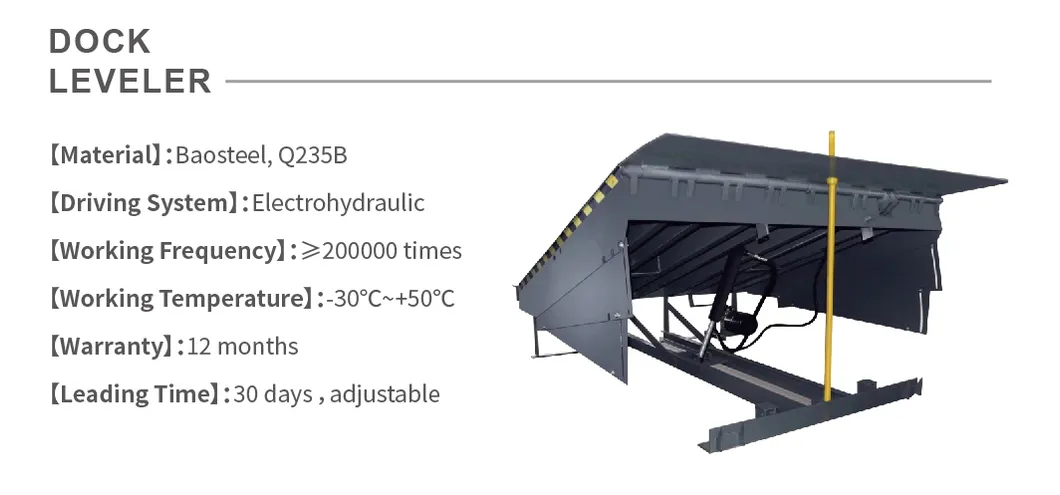

Working Temperature	-30ºC ~ +50ºC
Anti-collision Bumper	300200100 mm
Safety Part	Explosion proof valve
Working Frequency	≥ 200000 times

Frequently Asked Questions

1. What is the maximum load capacity for this hydraulic dock leveler? The system supports various dynamic load capacities including 6T, 8T, 10T, 12T, and 15T to suit different industrial requirements.

2. What safety features are integrated into the system? It includes an explosion-proof valve, side baffles for automatic retraction, and high-pressure oil pipes tested up to 60mpa.

3. Can this equipment operate in extreme weather conditions? Yes, the working temperature range is designed for durability between -30ºC and +50ºC.

4. What material is used for the platform surface? Both the main board and lap plate are made from Q235B steel plate with an anti-slide pattern for maximum grip and safety.

5. What is the standard adjustment range for the dock leveler? The adjustment scope allows for a vertical range of +400mm upwards and -300mm downwards.

6. Does the product meet international quality standards? Yes, the product is fully certified with CE and ISO 9001 management certifications.
