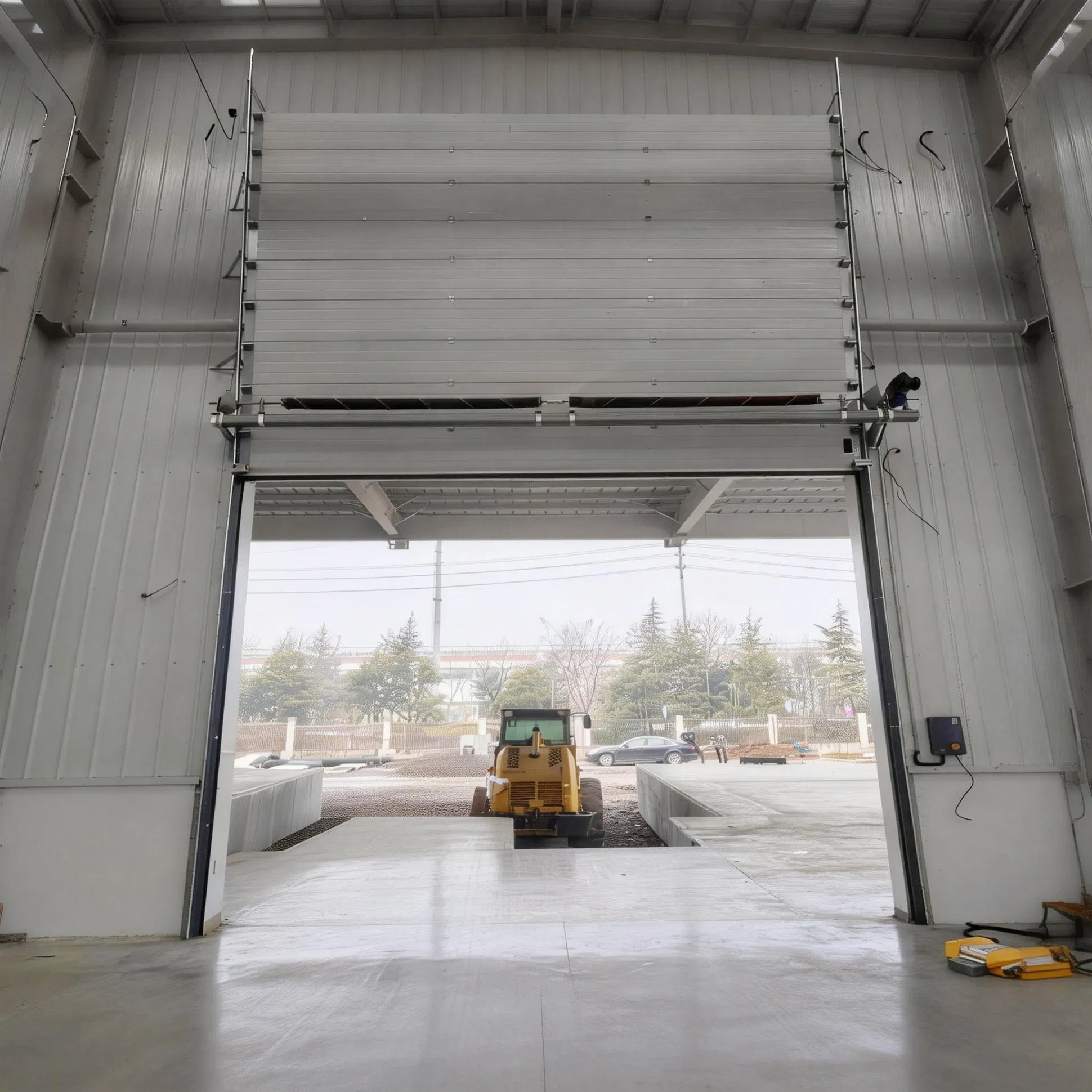

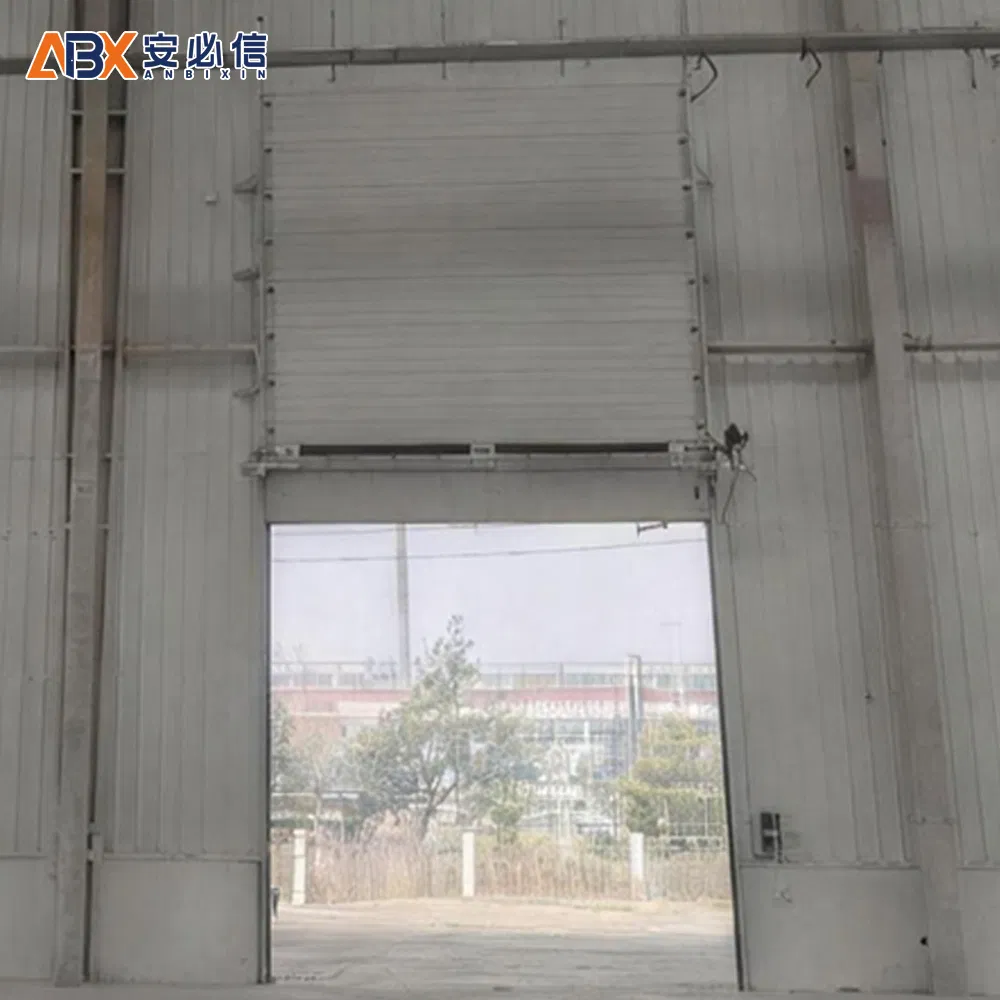

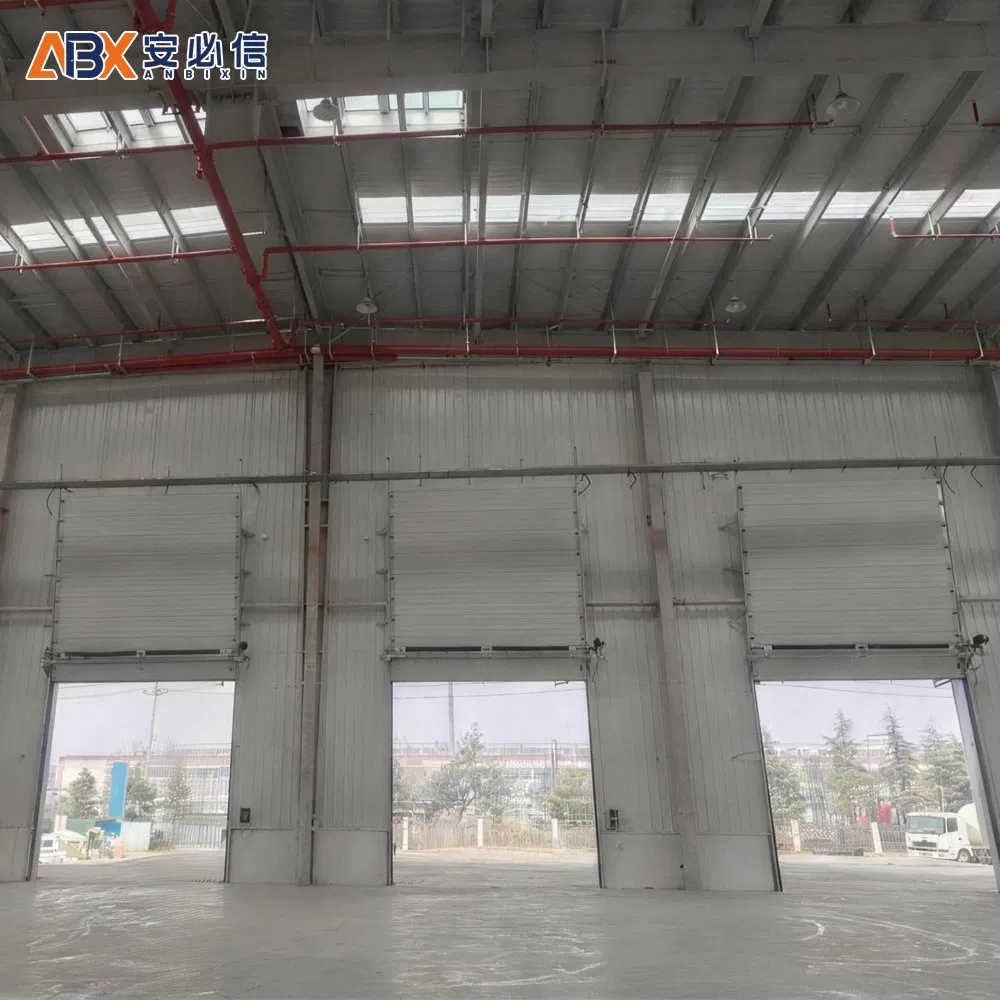

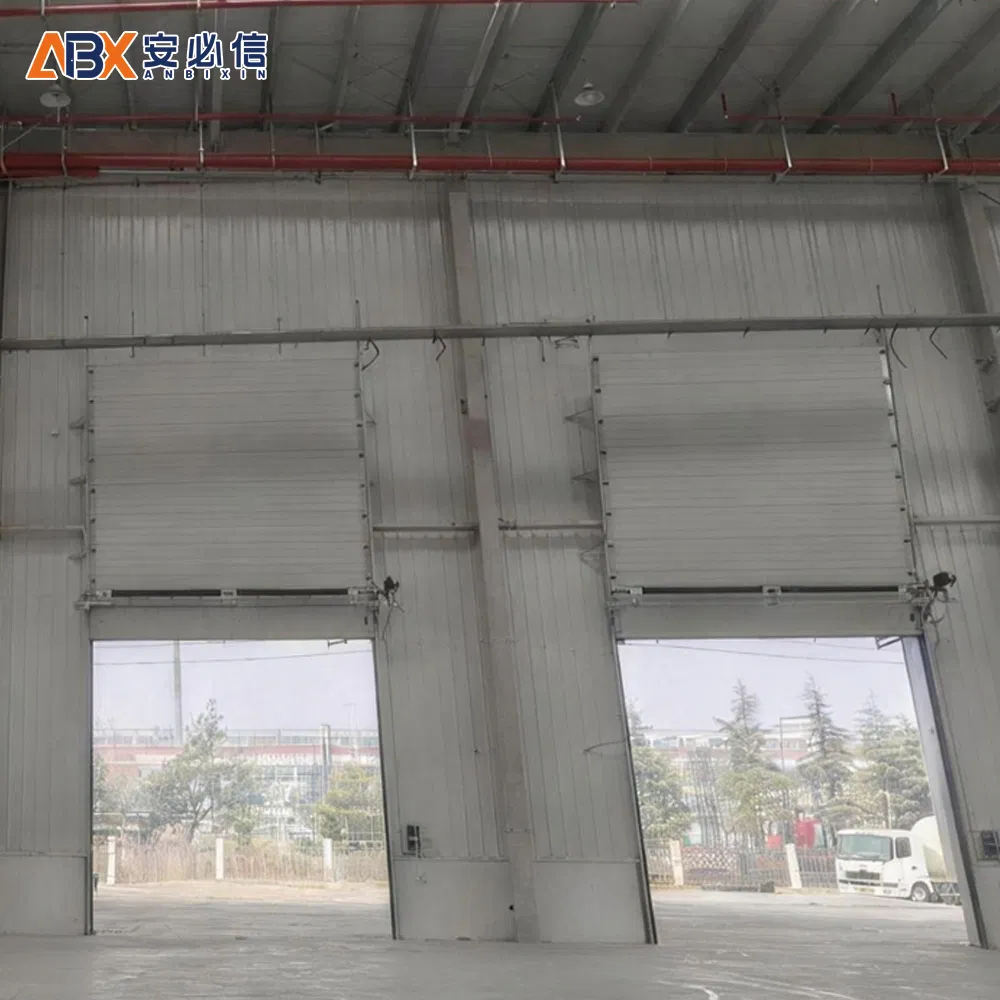

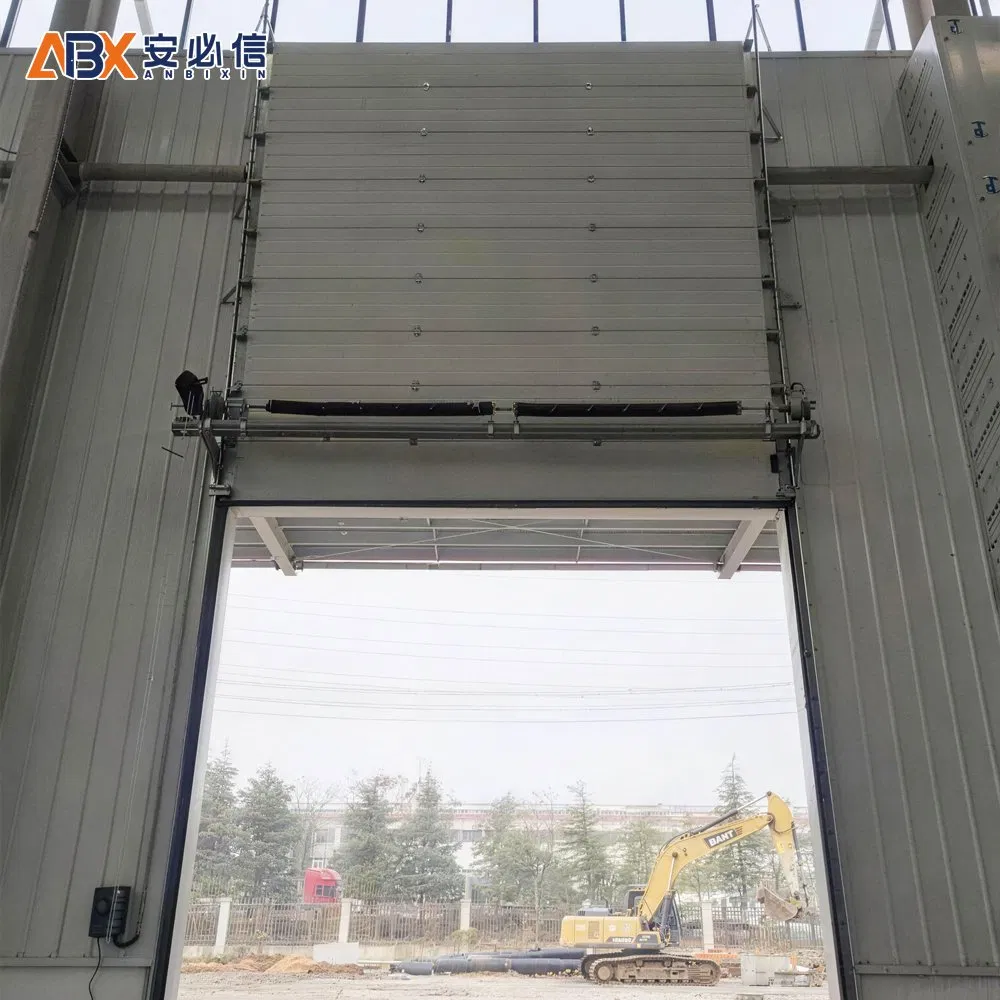

Heavy-Duty Industrial Vertical-Lift Insulated Sectional Garage Door for Logistics Buildings

After-sales Service:	Online Technical Support
Warranty:	Online Technical Support
Material:	Steel

Basic Information

Model NO.

TSM462

Type

Rolling

Open Style

Sliding

Opening Type

Remote Control

Special Function

Soundproof

Color

White

Certification

ISO9001, CE

Position

Industrial

Speed

0.25m/S

Design Style

Modern

Application

Workshop/Logistics

Door Panel Material

Aluminum Alloy

Door Panel Height

500mm

Opening Method

Electric/Manual

Product Description

Industrial lifting doors are professional industrial exterior doors designed to meet stringent requirements for insulation, sealing, high-frequency switching, and safe use. These systems are essential for modern industrial and logistics projects.

The lifting methods are categorized into three types: standard lifting, segmented vertical lifting, and high-position lifting. Standard lifting is commonly referred to as industrial sliding doors, while segmented vertical and high-position types are known as industrial lifting doors. These systems comprise high-quality door bodies, balance systems, advanced drive and control units, and multiple safety devices.

Quality Control & Certification

Product Parameters

Parameter Item	Technical Specification
Speed	0.2-0.3m / s
Door panel	42mm

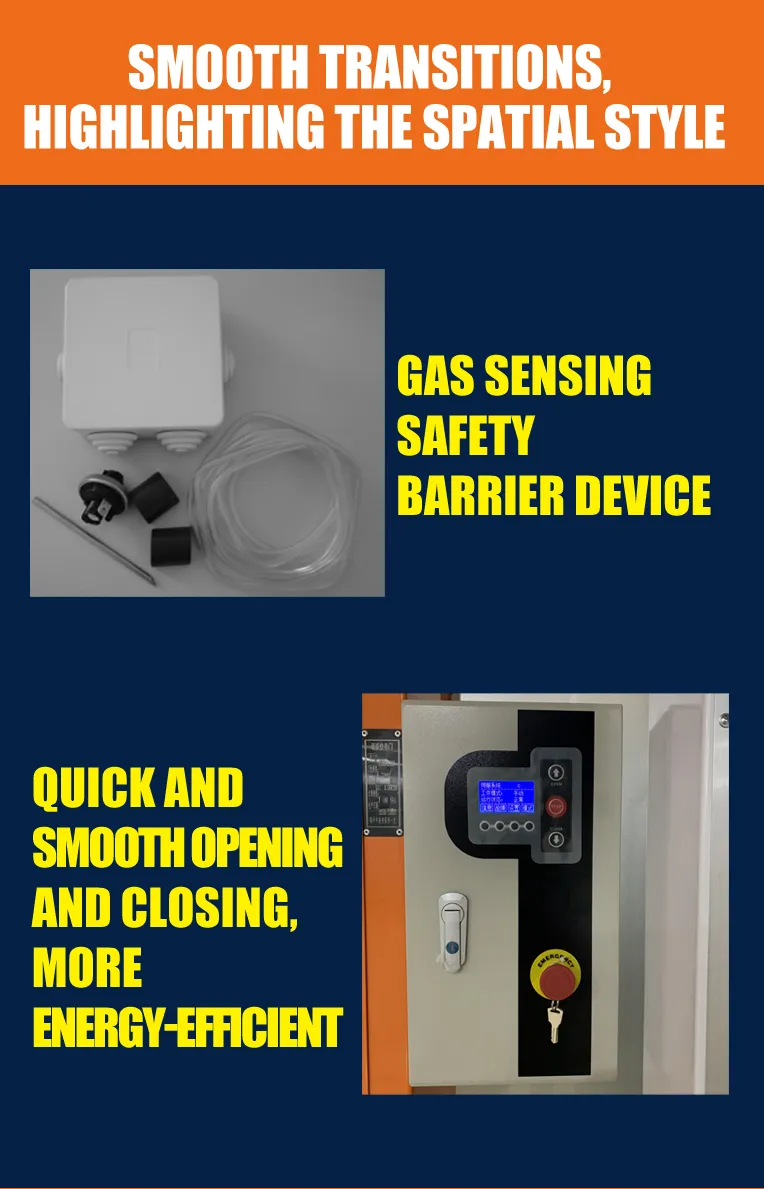

Safety protection	Anti-wire rope break device, bottom airbag device, torsion spring anti-break function
Torsion spring	≥30,000 times
Motor System	Intelligent human-machine interface control system
Watertightness	Level 3 (water pressure 30Pa)
Foam material	High-density polyurethane foaming material (48kg ± 2kg / m³)
Manual operation	Manual and electric interchangeable
Wind loading rating	700 N/m²
Sound insulation	24dB
Airtightness	Level 2 (2.0 m³/m²/h under 50Pa)
Fire rating	Class B fire retardant

Frequently Asked Questions

What are the different lifting methods available for industrial doors?

There are three primary methods: standard lifting (sliding doors), segmented vertical lifting, and high-position lifting, depending on your facility's ceiling clearance and operational needs.

What safety features are integrated into the TSM462 model?

The door includes an anti-wire rope break device, a bottom airbag safety sensor, and a torsion spring anti-break function to ensure maximum operational safety.

How effective is the thermal and sound insulation?

The door panels use high-density polyurethane foam (48kg/m³), providing a sound insulation rating of 24dB and excellent thermal retention for industrial environments.

Can the door be operated during a power outage?

Yes, the system features a manual-electric interchangeable design, allowing you to operate the door manually in case of emergency or power failure.

What is the wind resistance rating for these industrial doors?

The doors are engineered with a patented wind-resistant track design, capable of withstanding wind loads of up to 700 N/m².

What is the expected lifespan of the torsion spring?

The high-quality torsion spring system is designed and tested for a service life of 30,000 or more operation cycles.
