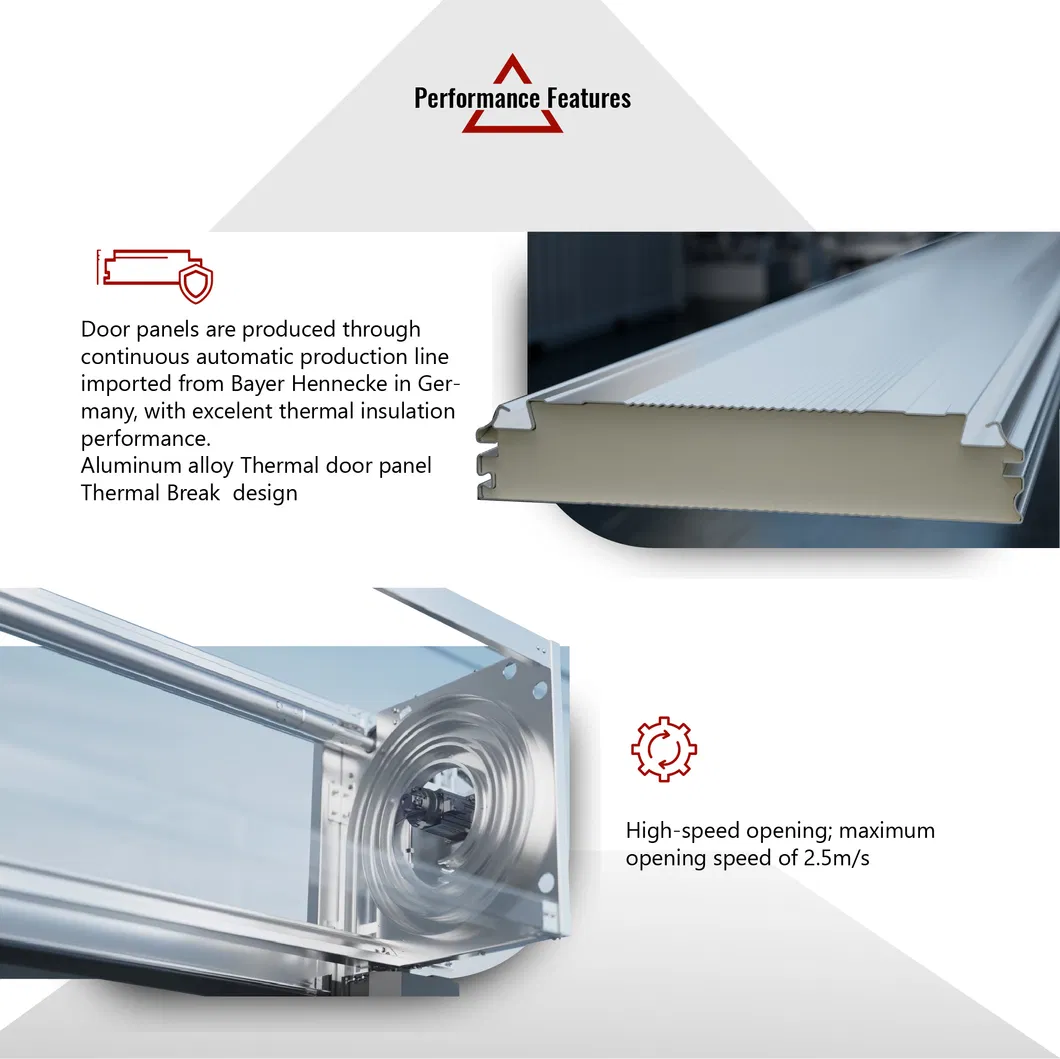

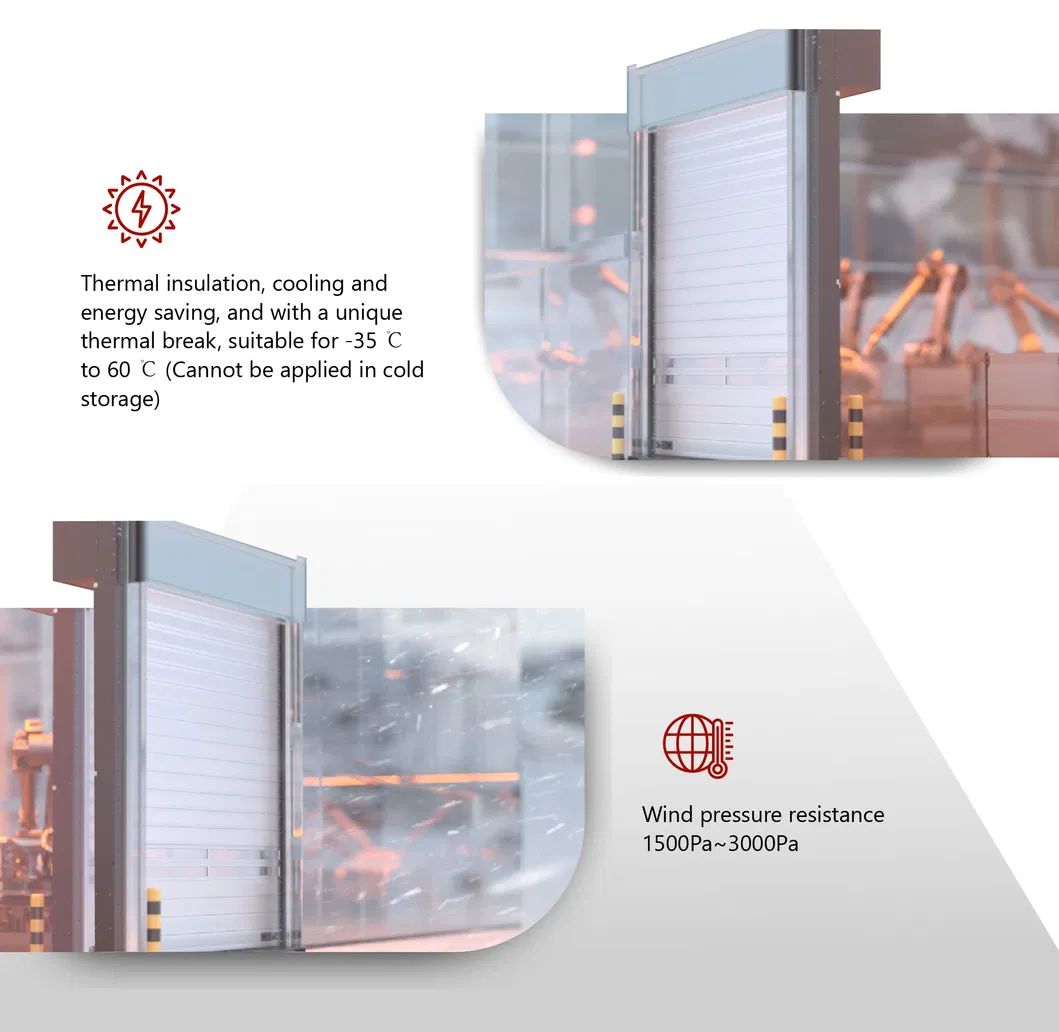

Critical Performance Features: Thermal insulation, extreme wind resistance, anti-theft design, superior sealing, and intelligent safety control.
| Technical Attributes |
| Product Name | Spiral High-Speed Door |
| Opening Method | Electric / Servo Drive |
| Max Speed | Opening: 2.5m/s, Closing: 0.8m/s |
| Standard Size Range | Min: 1250x2000mm | Max: 8000x9000mm |

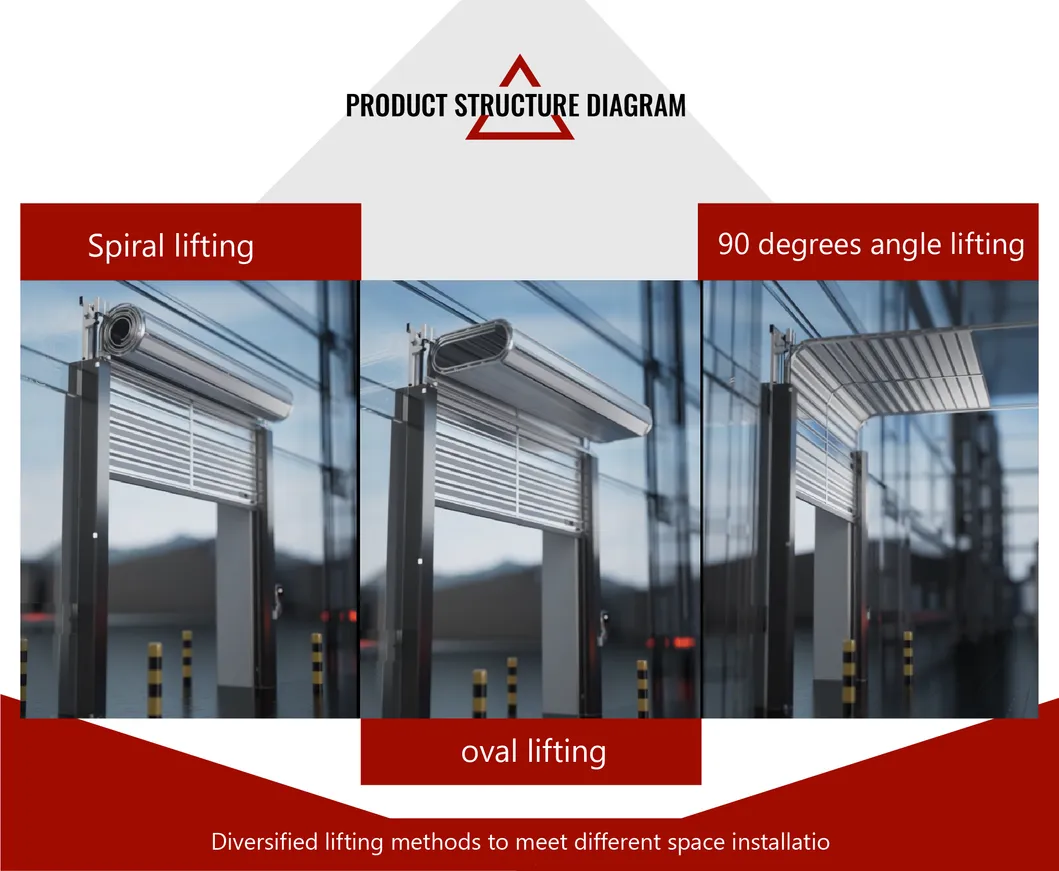

| Lifting Method | Spiral lift / Oval lift / 90 degree lift |

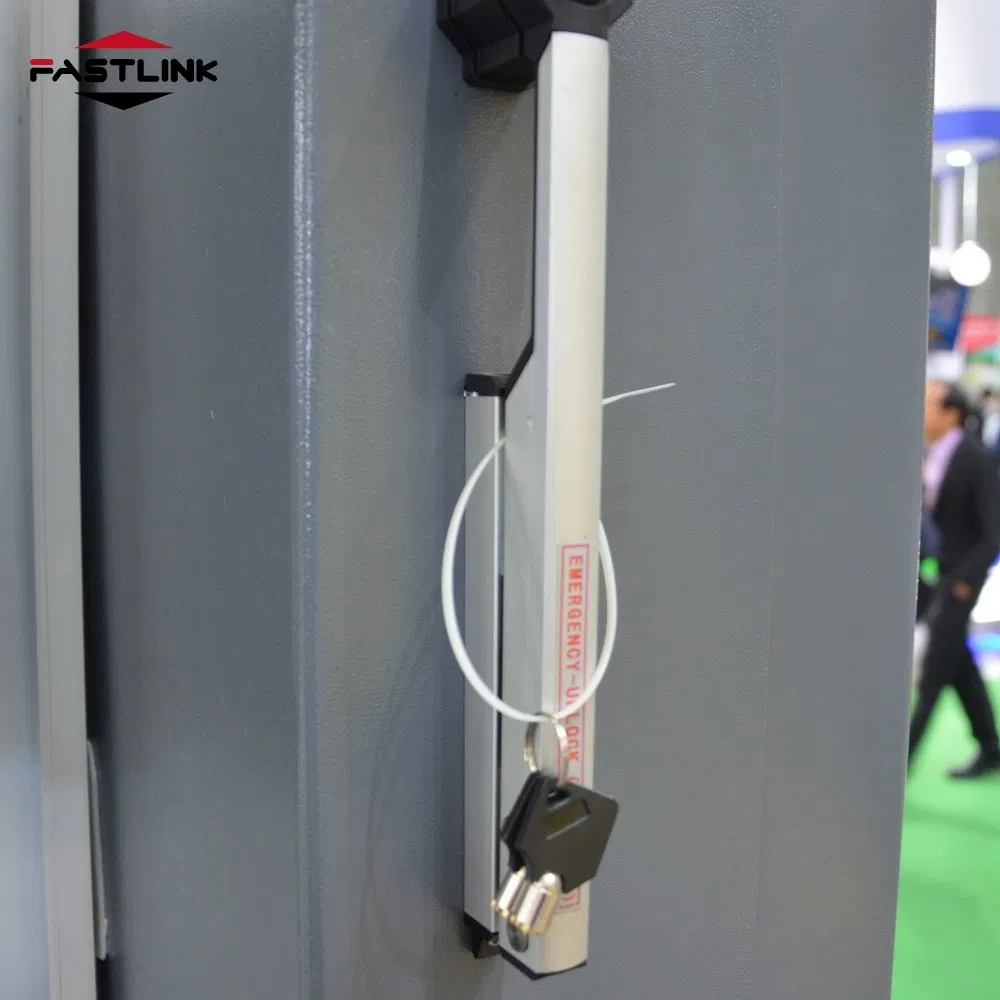

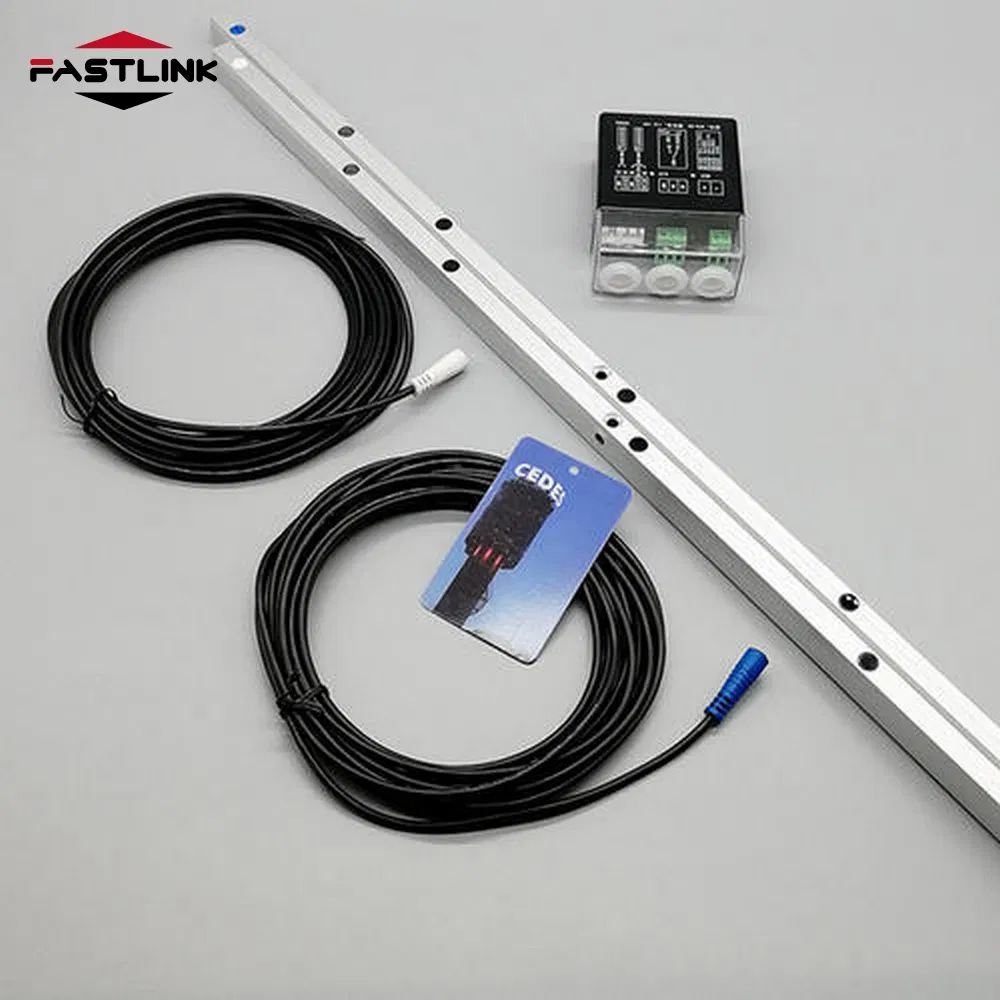

| Safety Config | Safety proximity sensor, Optoelectronics, Emergency manual opening |
| Air Tightness | Level 8 (GB/T 7106-2019) |
?
Frequently Asked Questions
How much installation space needs to be reserved above the doorway?
A minimum space of 1000mm is recommended to accommodate the spiral track and motor assembly.
Can the door withstand high-intensity winds or typhoons?
Yes, the spiral high-speed door features a unique door panel structure and hinge design. It offers exceptional stability, and frontal pressure up to 700pa will not impact its structural integrity.
Is this door suitable for residential or commercial garage use?

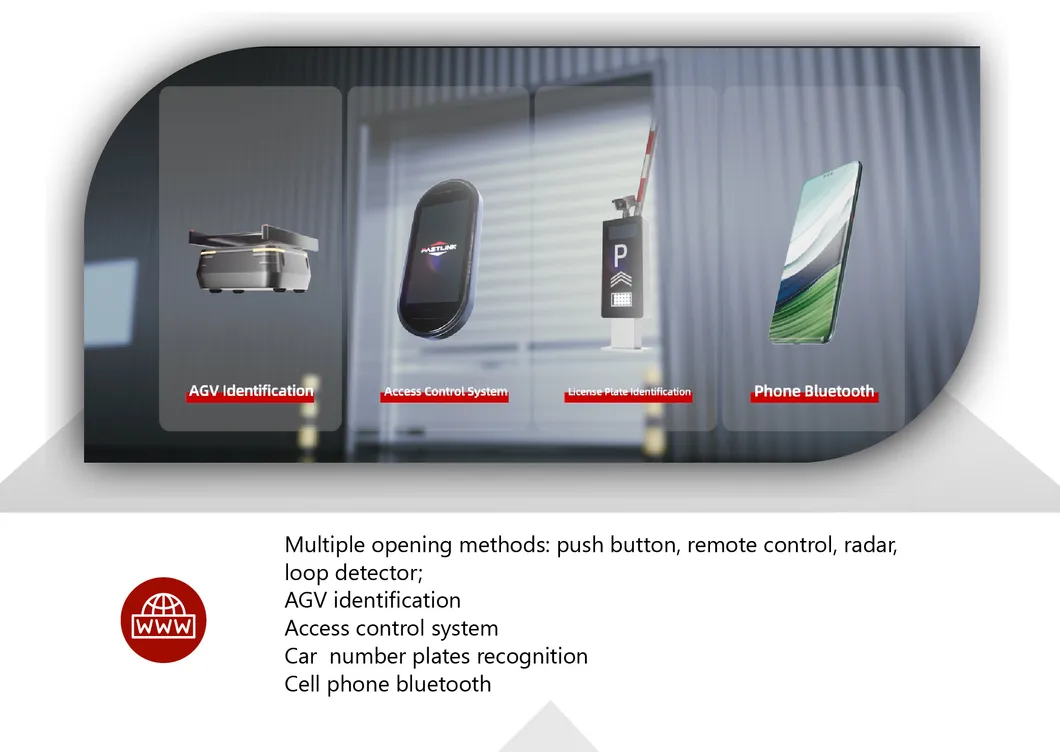

Absolutely. These doors are widely used in civil and commercial garages. They can be operated via remote control or mobile app, providing security, anti-theft protection, and high wind resistance.
Is the operation system user-friendly?
Yes, the door uses modular integrated circuits and a control box with simple push-button switches. It includes status displays and fault code indicators for easy manipulation and troubleshooting.
How often does the door require maintenance?

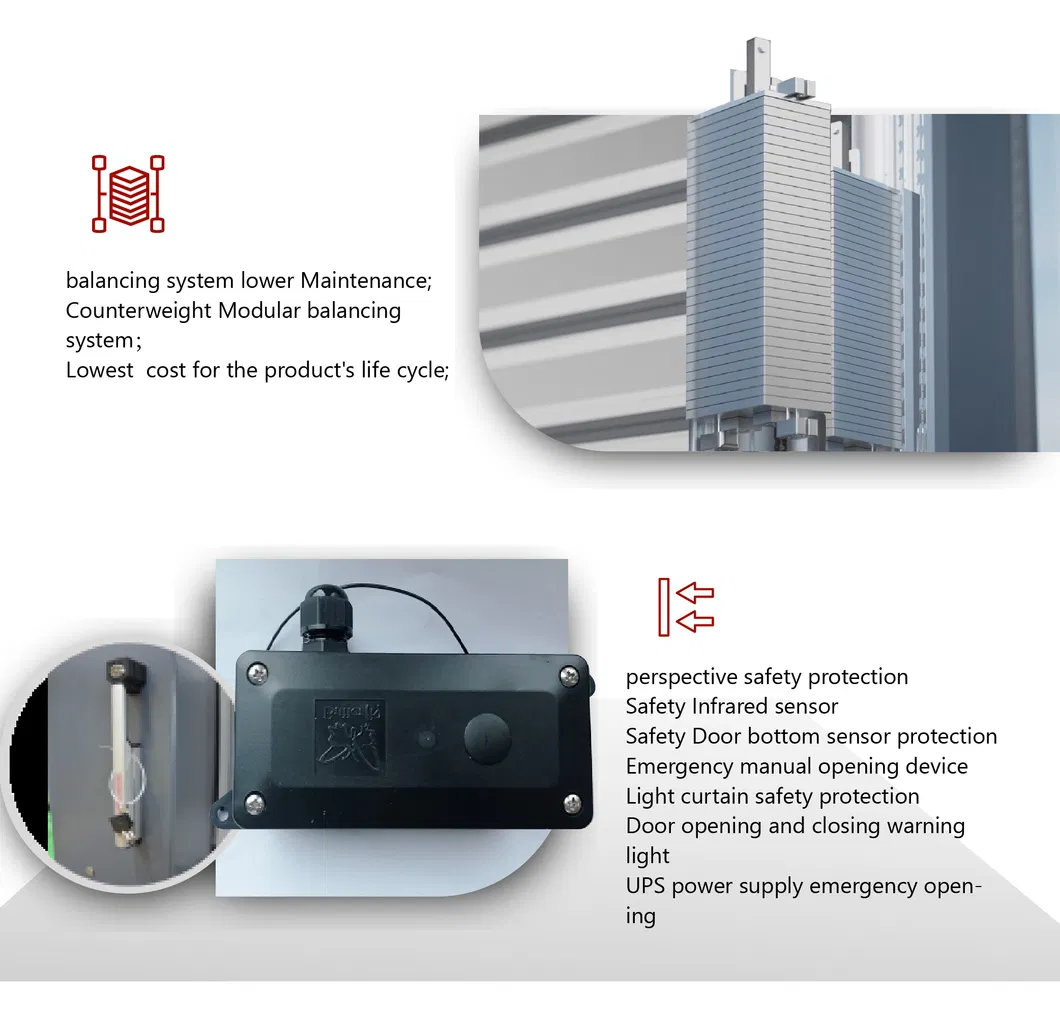

Thanks to the counterweight balancing system, the door can reach up to 1 million uses without major overhaul. However, we recommend a maintenance check once a year or every 200,000 cycles to ensure optimal performance.
What safety certifications does the product carry?
The product is backed by third-party testing reports, including CE and UL certifications, ensuring compliance with international safety and quality standards.
