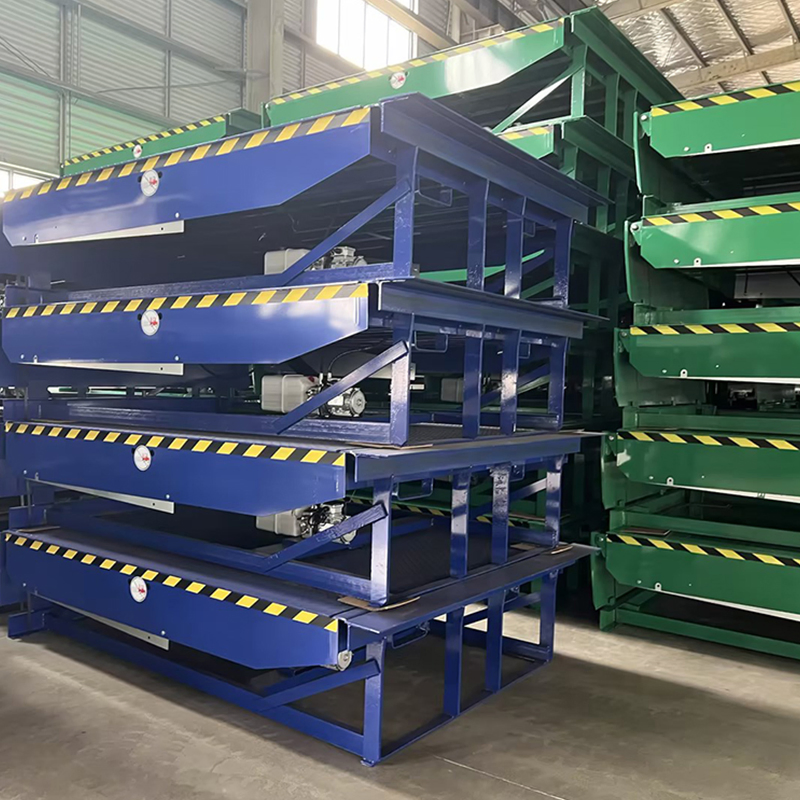

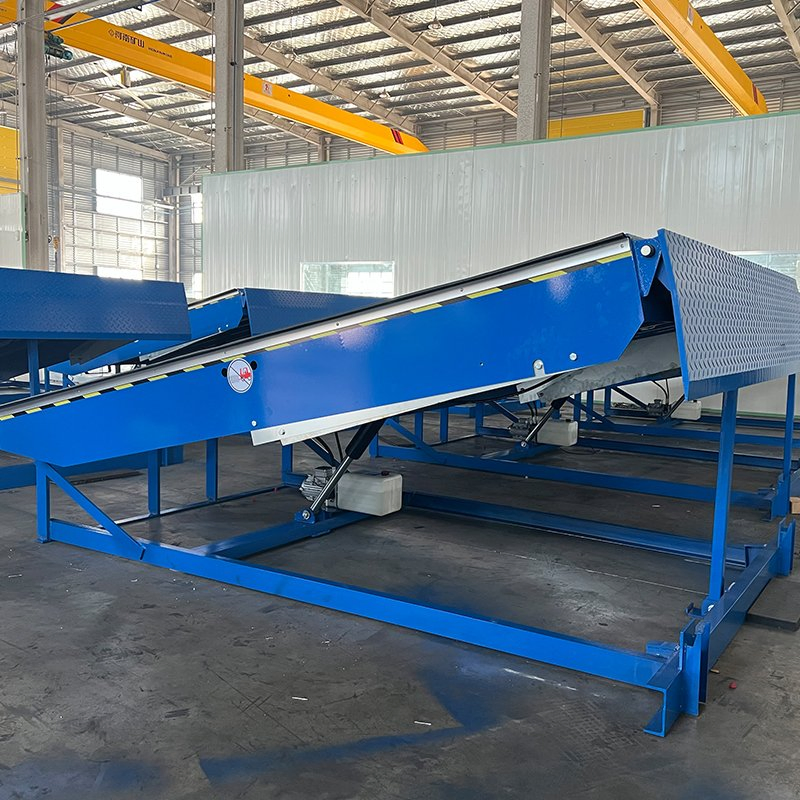

High Quality Wholesale China Telescopic Retractable Hydraulic Telescoping Lip Dock Leveler

Customization: Available
After-sales Service: Available
Warranty: 1 Year

Product Description

Basic Information
Model NO.:DL-
Application:Workshop Crane, Warehouse Crane
Lift Mechanism:Articulated Lift
Driven Type:Hydraulic
Certification:CE, RoHS, ISO 9001, AAA
Power Supply:380V/0.75kw
Loading Capacity:10000kg
Production Capacity:15000 Units Per Year
Product Description

Dock Leveler Solutions

The Dock Leveler is designed for use in docks, logistics terminals, cold storage platforms and other locations where the efficient loading and unloading of goods is essential. We offer a wide range of dock levelling solutions, including Hydraulic dock levelers, Telescoping lip dock levelers, Mechanical dock levelers, Vertical standing dock levelers, Air-powered dock levelers, EOM dock levelers and EOD dock levelers.

Hydraulic Telescoping Lip Dock Leveler

Hydraulic Dock Leveler

The hydraulic dock leveler is a specialized piece of equipment used for the loading and unloading of trucks on warehouse platforms. The height of the front end of the loading platform can be adjusted according to the height of the truck compartment, ensuring that the overlapping lip remains in close proximity to the compartment. Vehicles of various types can efficiently navigate the loading platform, facilitating the seamless transportation of goods between the warehouse floor and the carriages. The single-button control interface ensures straightforward operation.

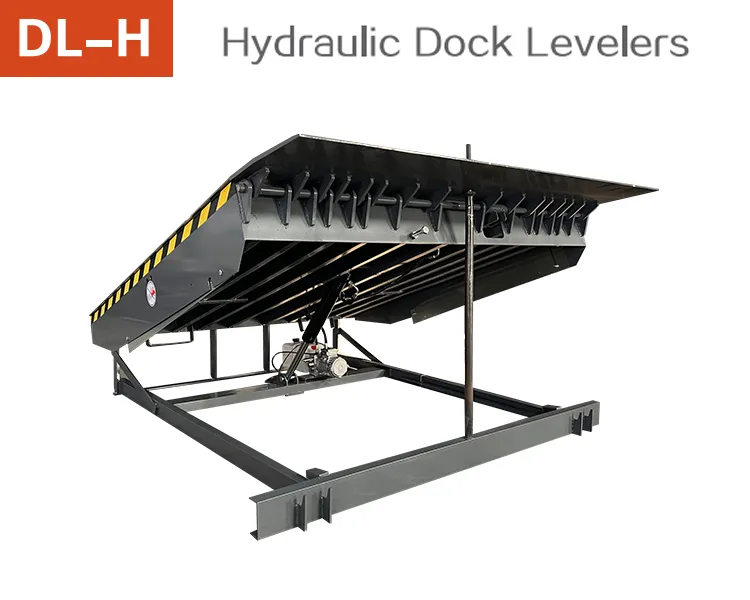

Hydraulic Dock Leveler Operation
Technical Parameters
Hydraulic Dock Leveler Specifications
Application EnvironmentNormal temperature logistics
LoadDynamic load 6-25 tons
Platform Width1830mm, 2000mm, 2130mm
Platform Length2000mm, 2500mm, 3000mm, 3500mm
Non-standard SizeCan be customized
Tongue LengthStandard 400mm, another 500mm optional
Tongue Plate Type8mm high strength non-slip patterned steel plate
Hydraulic Power UnitSwiss Bucher Hydraulic System / 380V/0.75Kw
Safety ConfigurationPlatform fall prevention, anti-toe pinch, maintenance support bar
ColorBlack, Gray, Blue, Green, or Custom
Product Characteristics
Employ the hydraulic system to elevate and depress the main tabletop and extension plate, ensuring seamless and secure operation.
Unified assembly of hydraulic pump, conduit, and storage tank at the base of the workbench for protection from pit debris.
Hydraulic speed valve reliably stops the load on the platform within the free fall range for maximum safety.
Minimal maintenance requirements with a wide range of optional safety accessories available.
Product Details Gallery

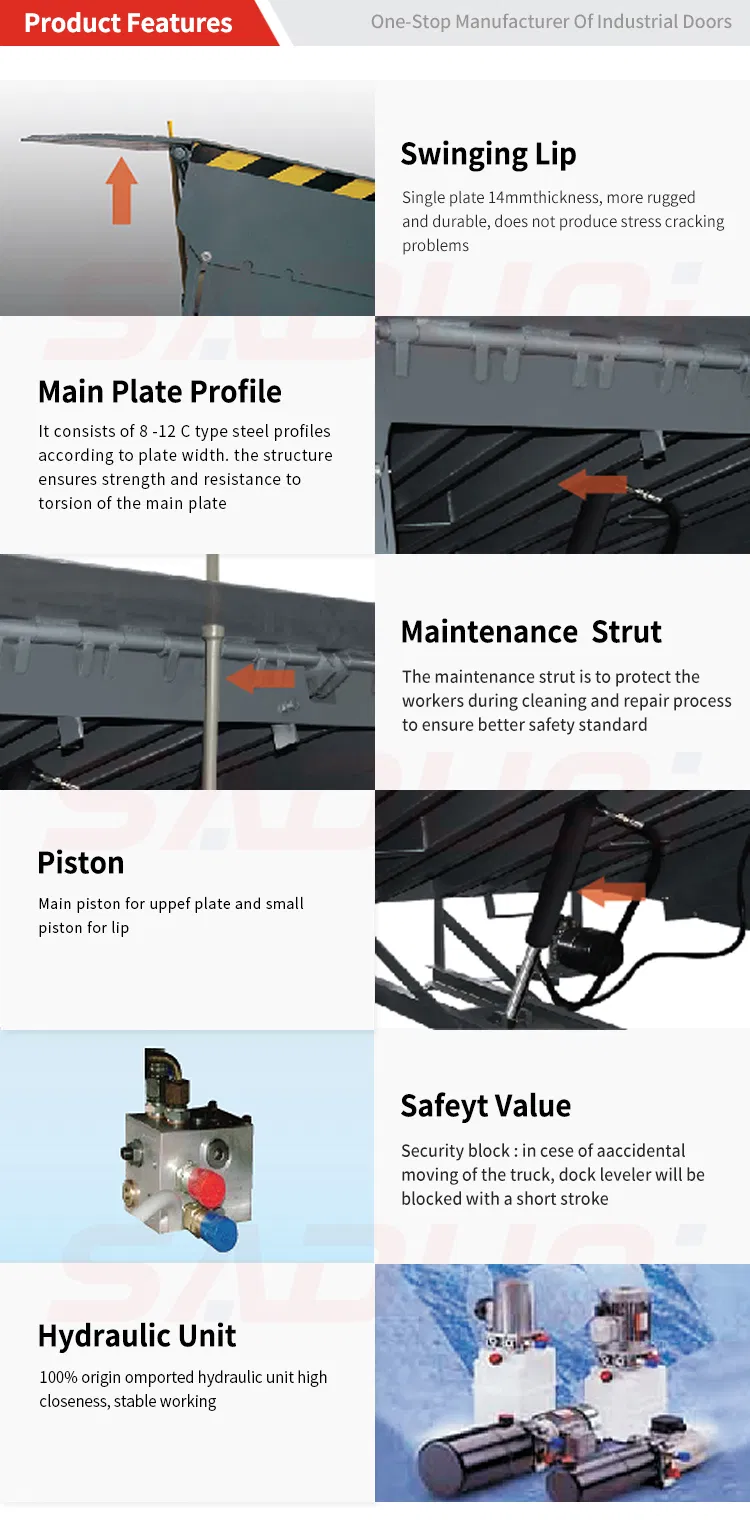

Structure Detail 1

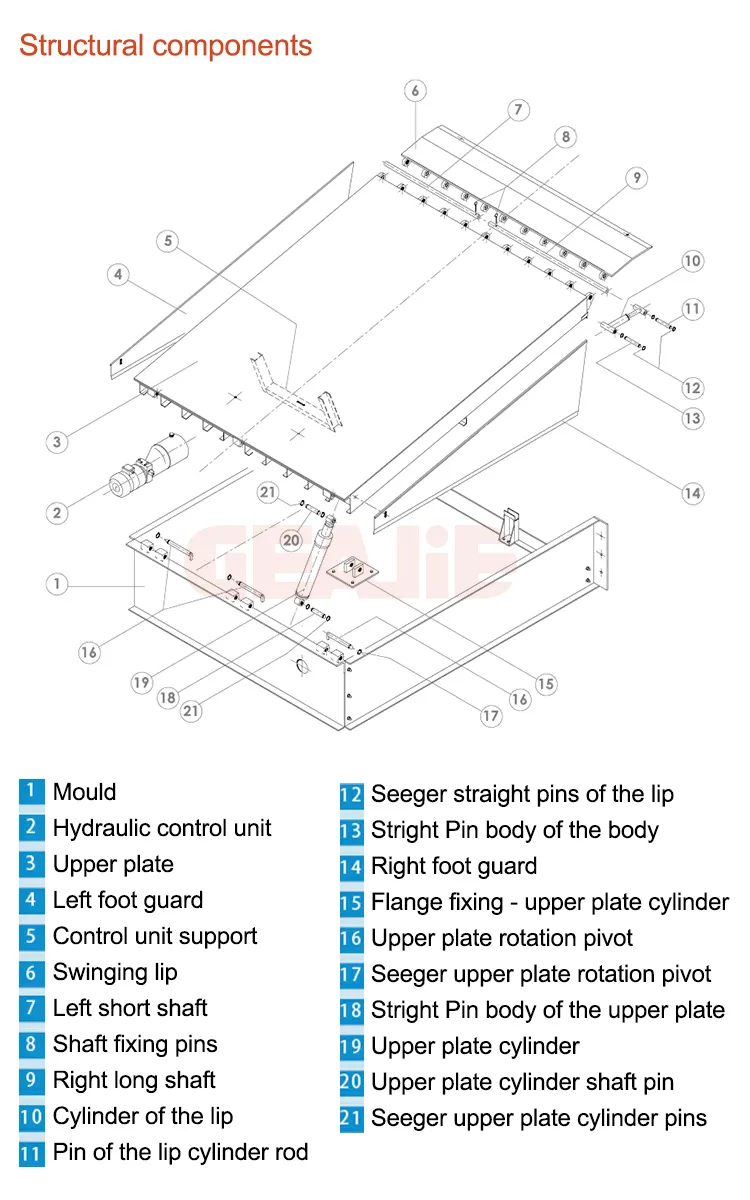

Structure Detail 2

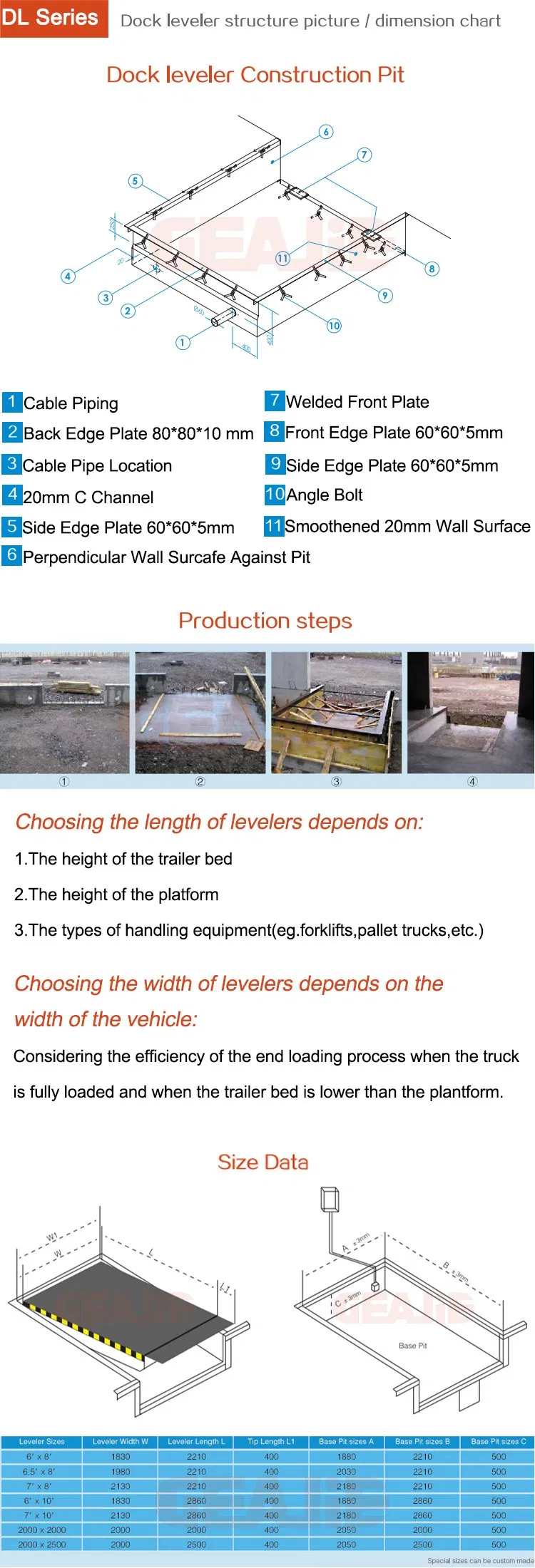

Structure Detail 3
Structure Detail 4

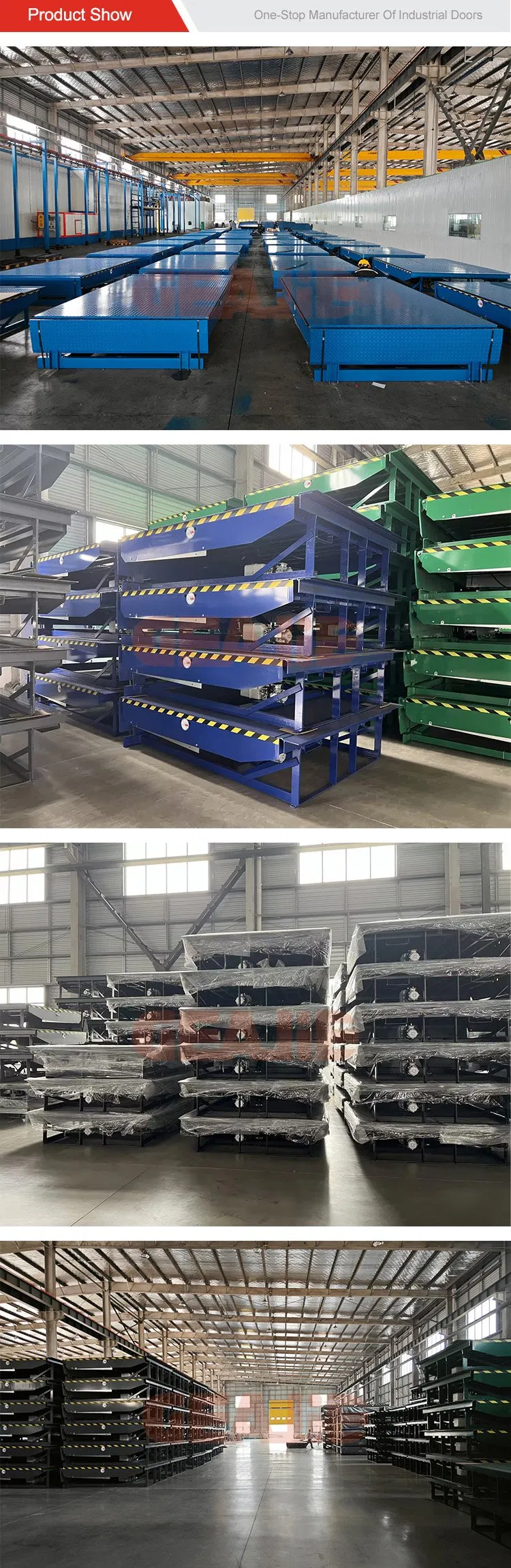

Structure Detail 5

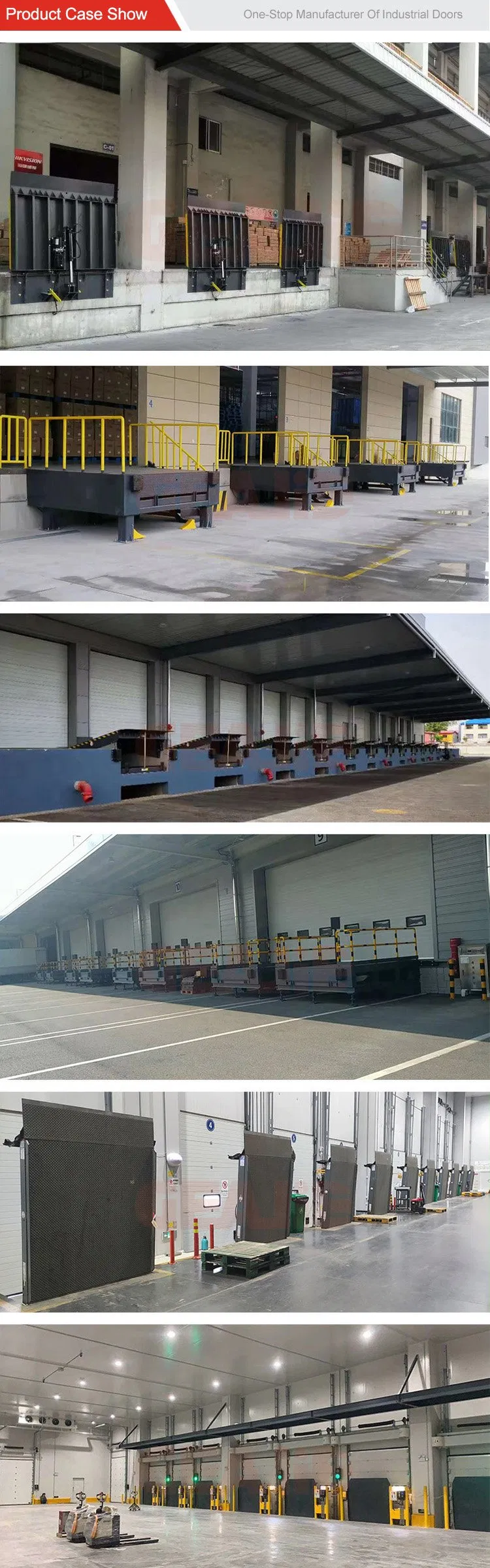

Full Unit Display
Packaging & Shipping
Package Size:200cm * 300cm * 60cm
Gross Weight:800.00kg
Package Type:Wooden Cases

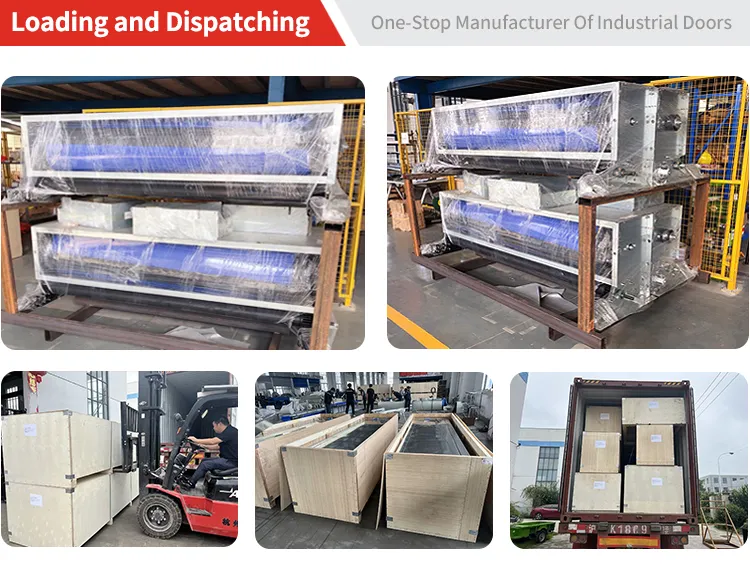

Packaging Detail
Frequently Asked Questions
How do I install the product?
It is easy to install. We provide related user manuals and installation videos. Technical guidance via engineers is also available for project sites if necessary.
What is your main market coverage?
We cover over 60 countries across all five continents.
Do you accept OEM or ODM orders?
Yes, we have extensive experience providing solutions with custom logos and designs for many clients.
What is the typical delivery time?
Trial orders typically take 10-15 days. Full container delivery depends on the specific quantity.
What are the available payment terms?
We accept T/T, L/C at sight, Western Union, and PayPal.
What is the Minimum Order Quantity (MOQ)?
The minimum order is one set, though discounts are available for larger quantity purchases.
