Vistaro Door
1 / 5

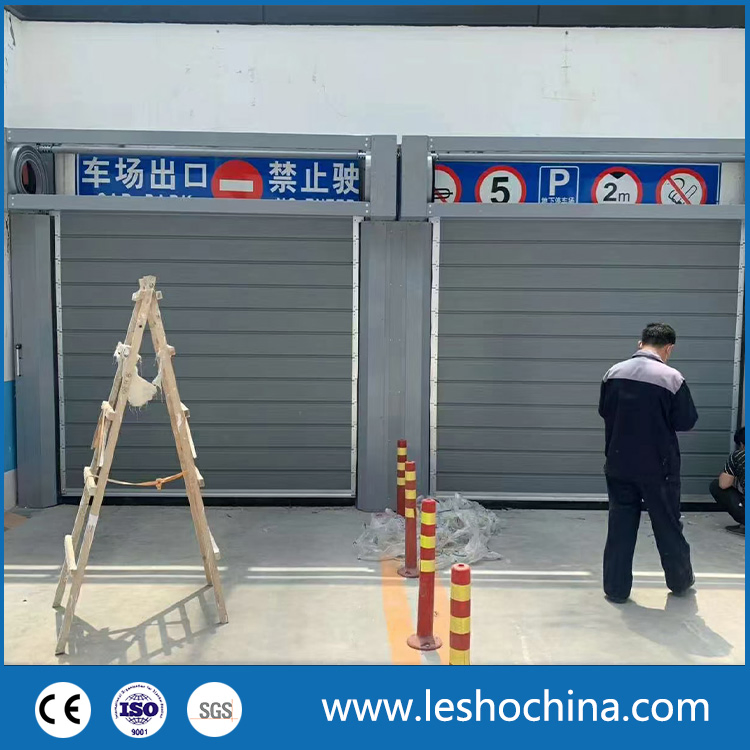

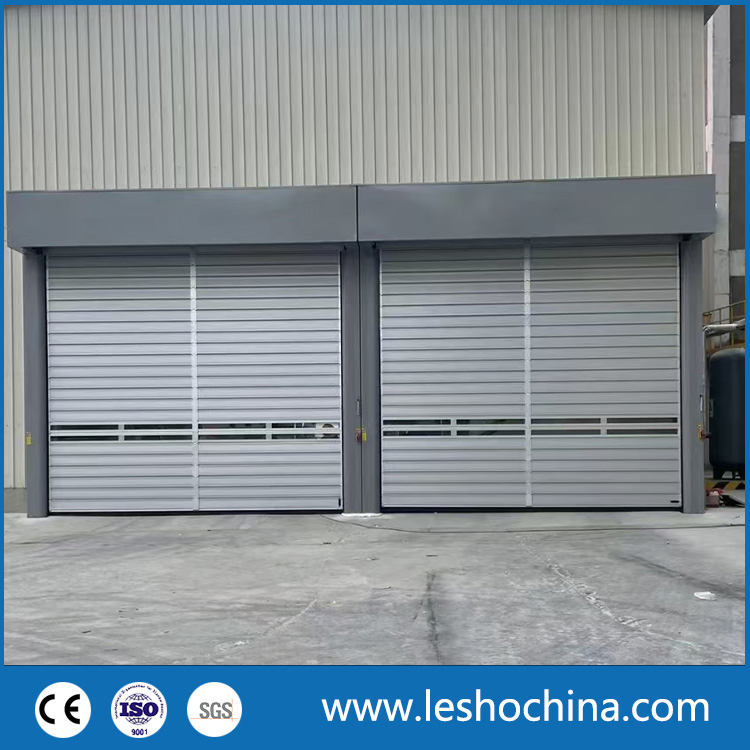

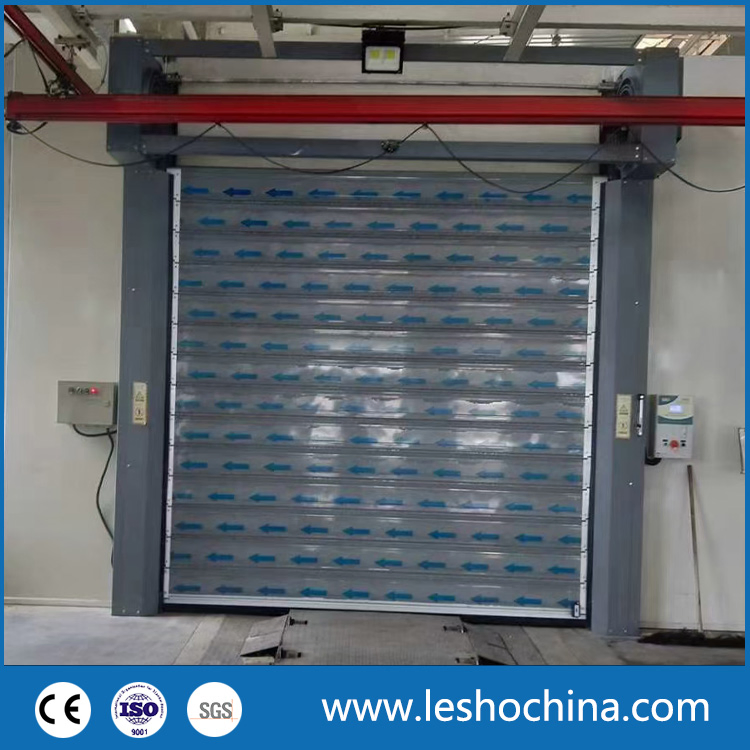

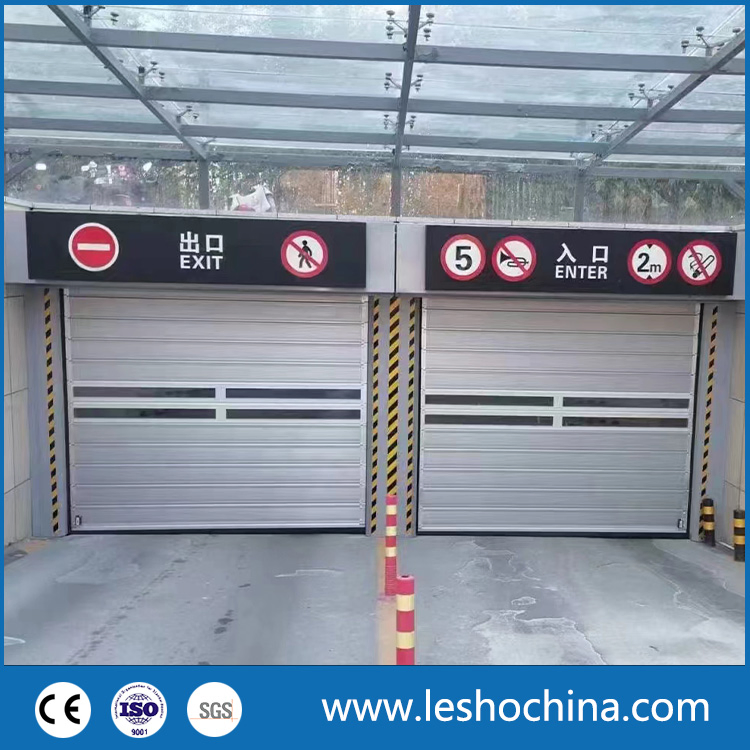

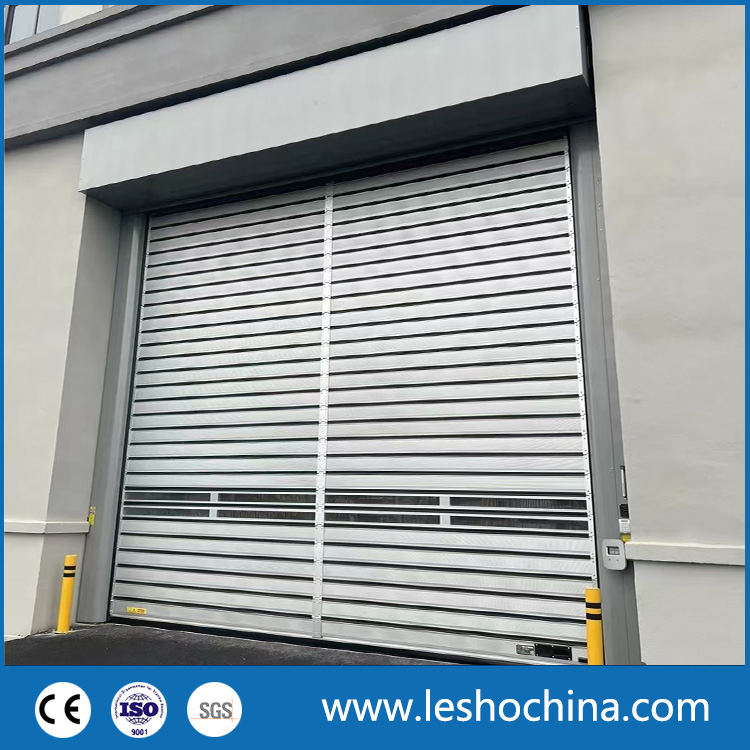

Application: A model of Rapid Doors with thermal insulated aluminum slats. Most advanced and high-oriented model. It is fit for areas with high demand of both security, high-strength, thermal insulation and high running speed.
| Max dimension | 8000mm wide * 8000mm high |
| Power supply | 1-phase 220V or 3-phase 380V, 50/60Hz |
| Wind resistance | Beaufort scale 12 (35m/s) |
| Max opening speed | 2.0m/s |
| Thermal conductivity | 1.9W/(m·K) |
| Sound insulation | R=25dB |
| Design Service Life | 20 years |

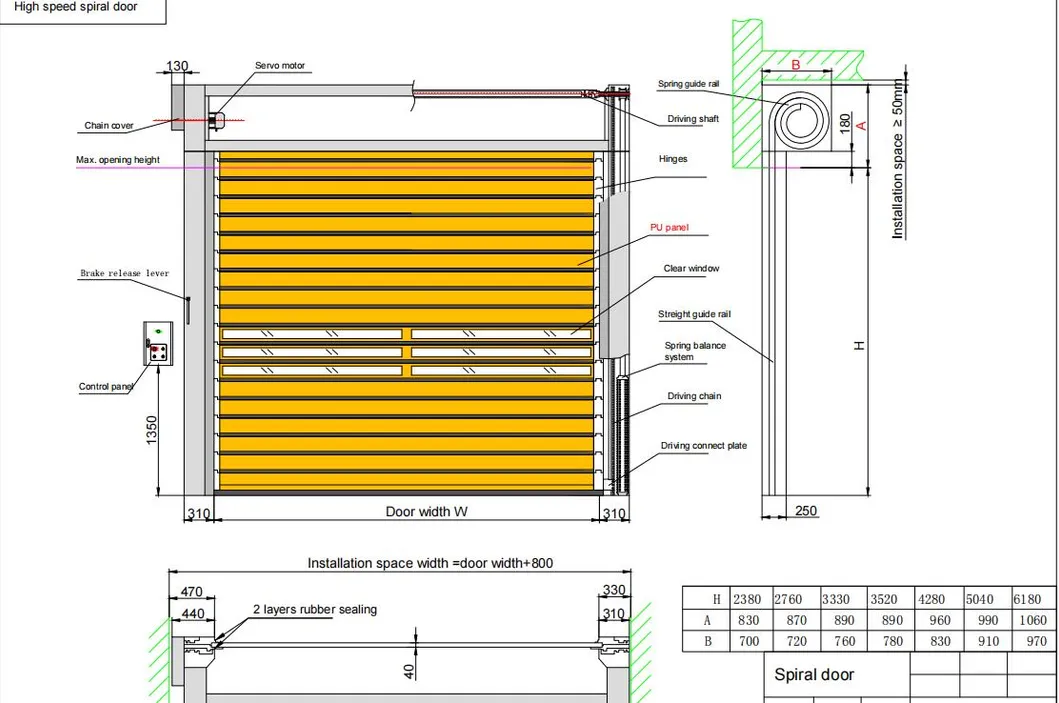

Accurate shop drawing to show the door dimension clearly, making sure there is no misunderstanding of the door size.

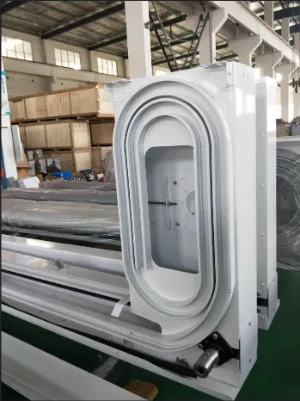

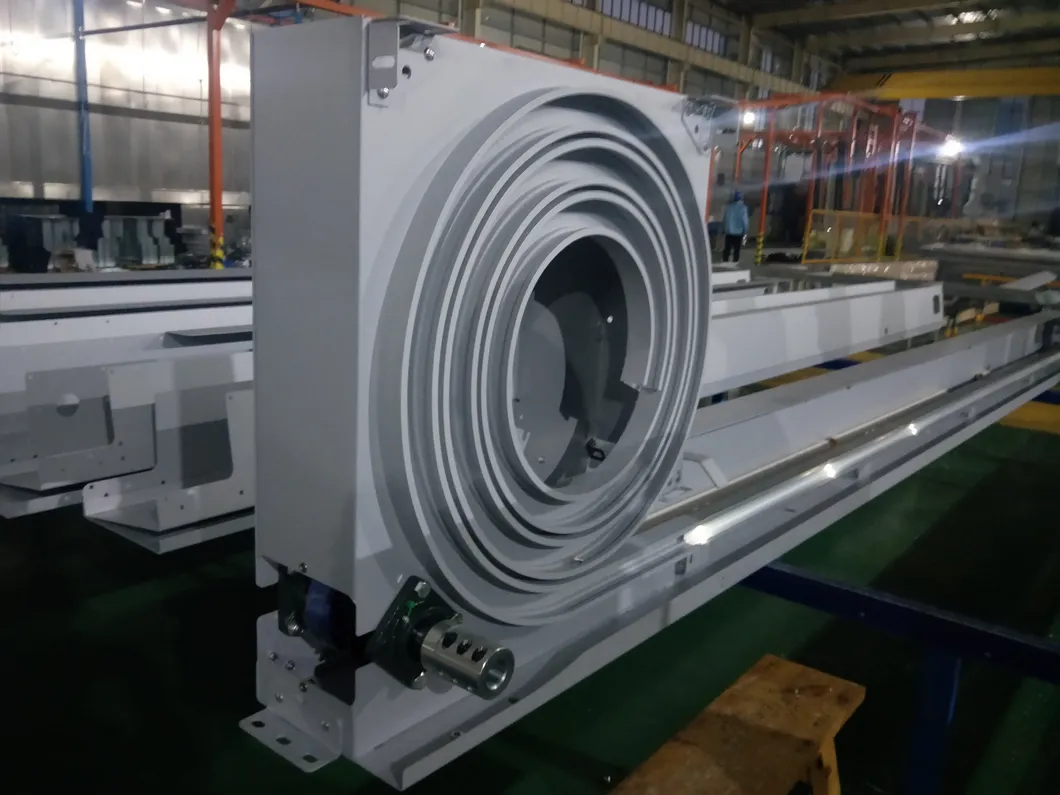

Aluminum alloy profile rail with smooth anodized surface. The door panel runs in guide rail by separate wheel, avoiding panel friction for a longer service life and higher efficiency.

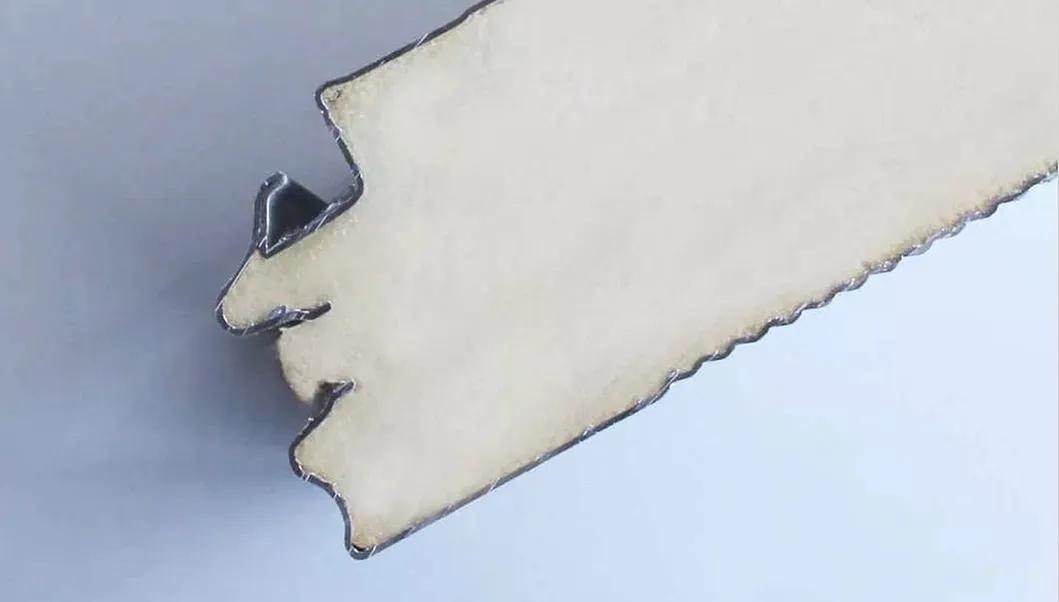

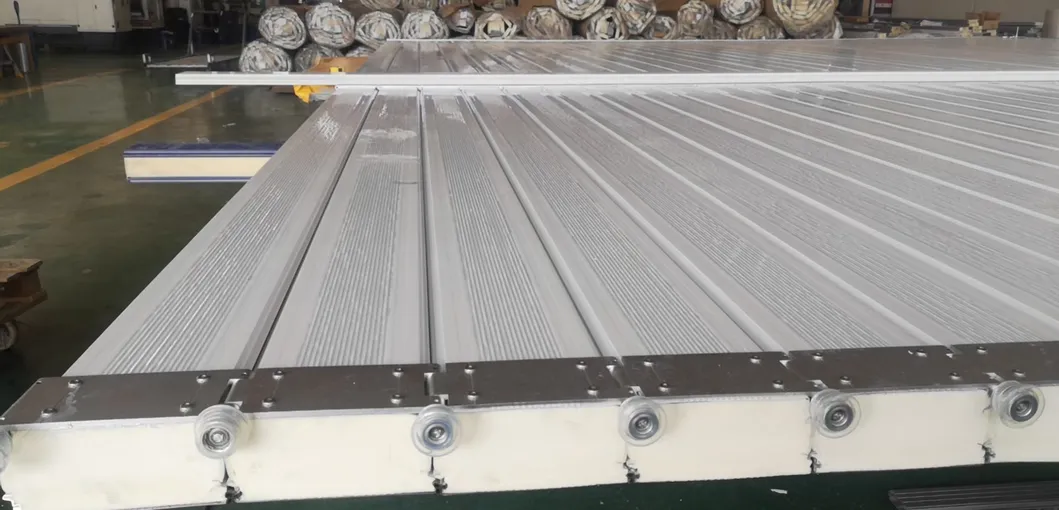

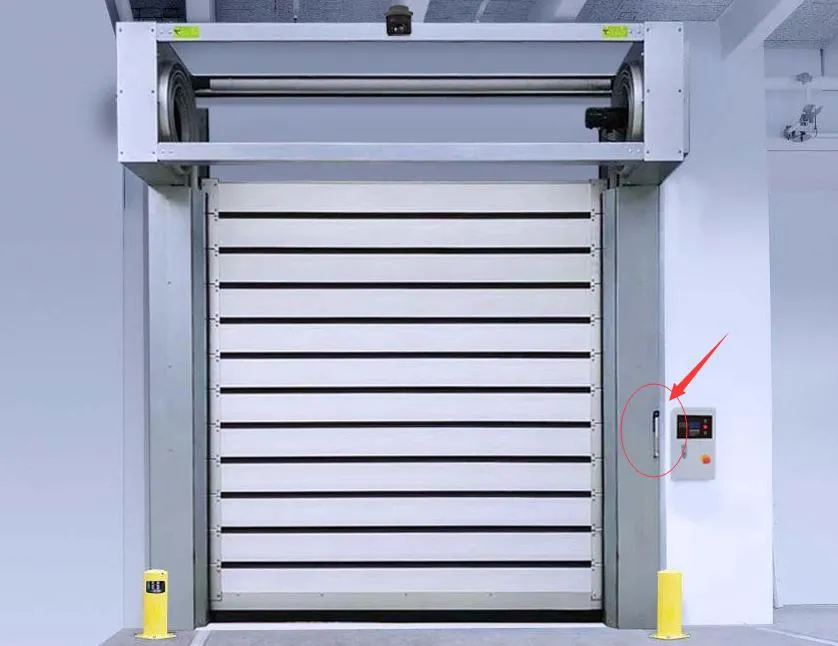

Double layer aluminum panel filled with polyurethane foam. The broken bridge design prevents temperature loss and saves energy. Equipped with emergency manual open device for power failures.

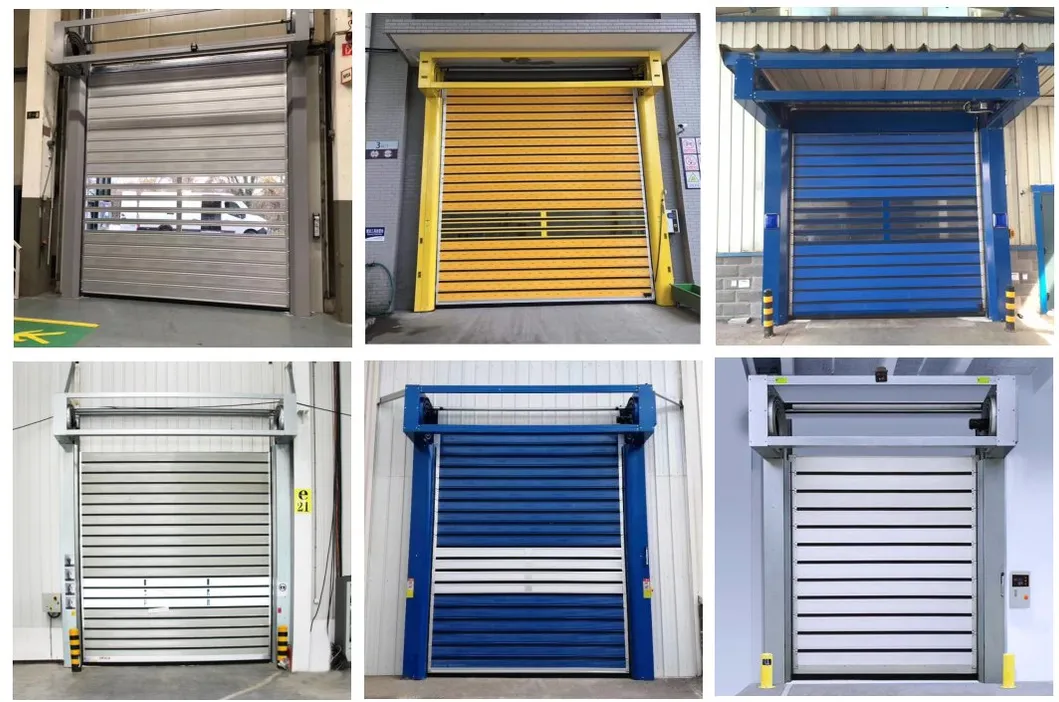

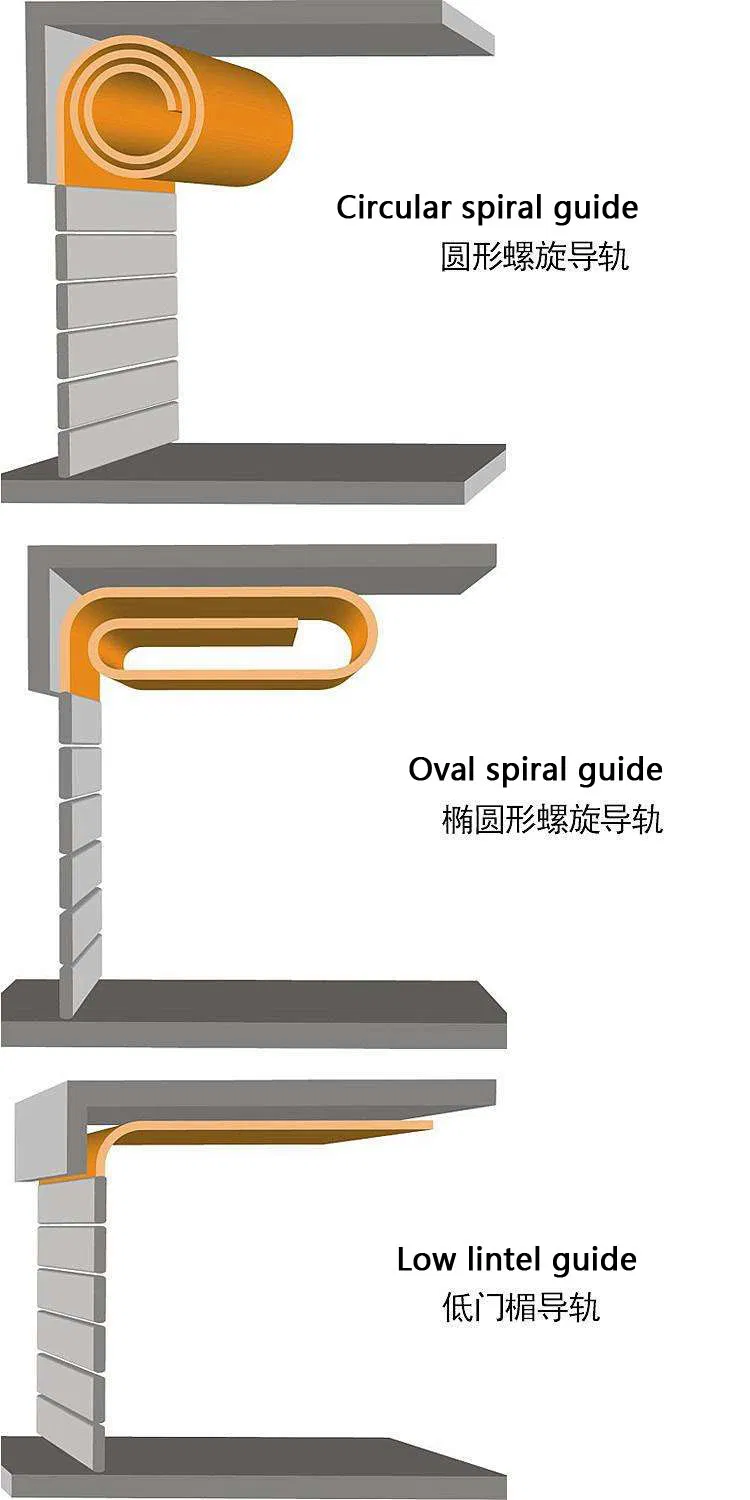

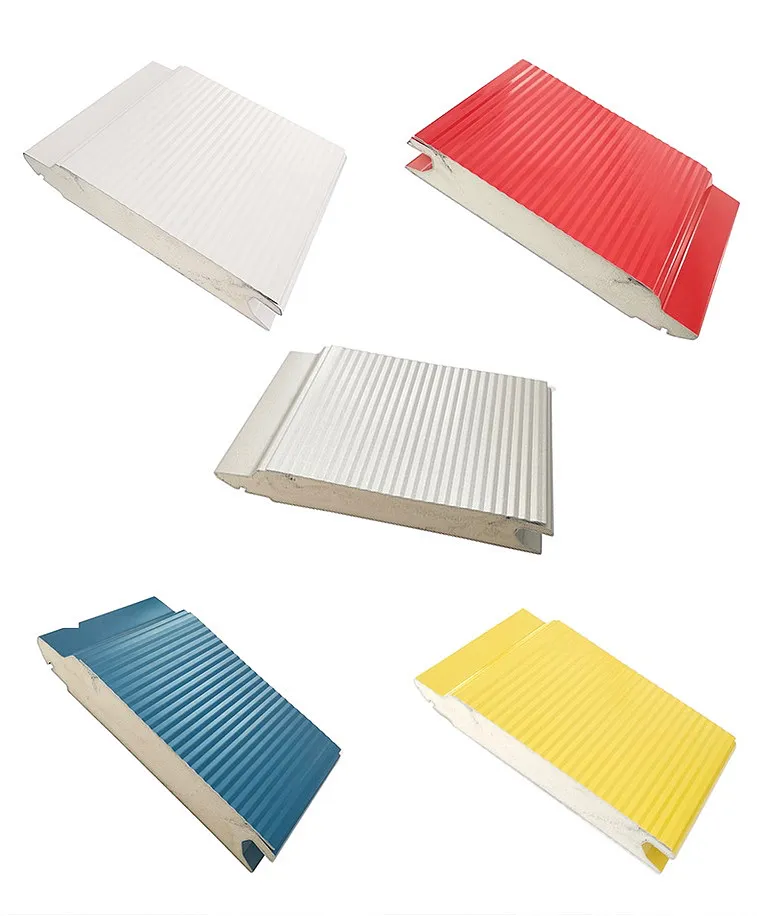

Available in various RAL colors to match your building facade. Variety guide rails meet different site situations to save indoor space.

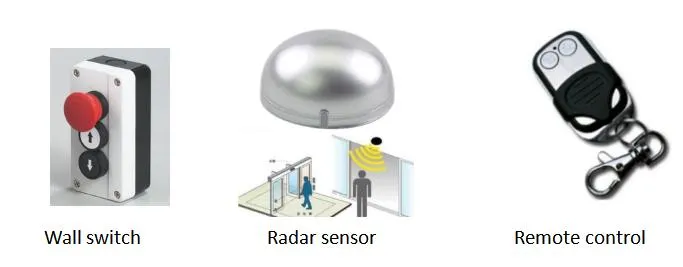

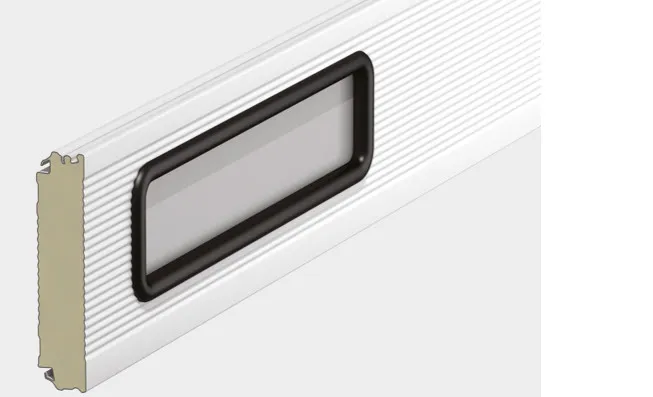

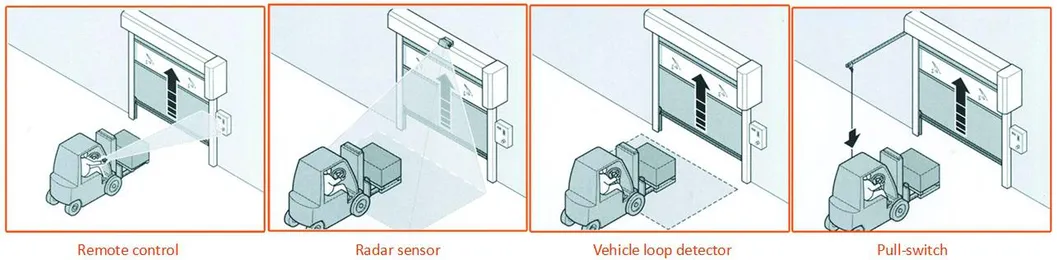

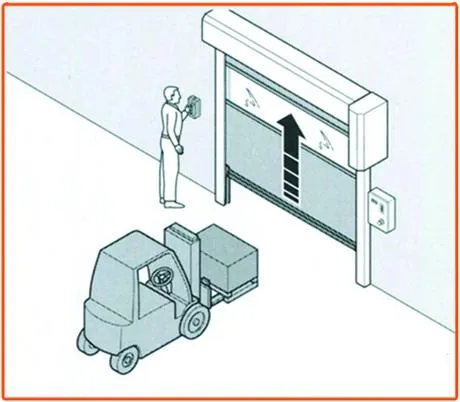

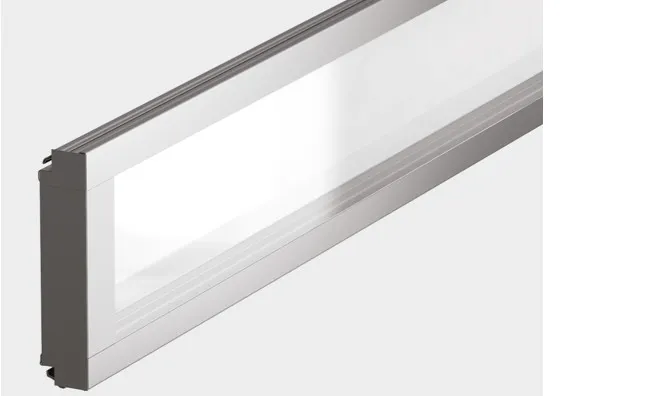

Different window types for better lighting and vision. Supports multiple operation methods: Push button, Remote control, Radar sensor, Vehicle loop detector, and Pull switch.

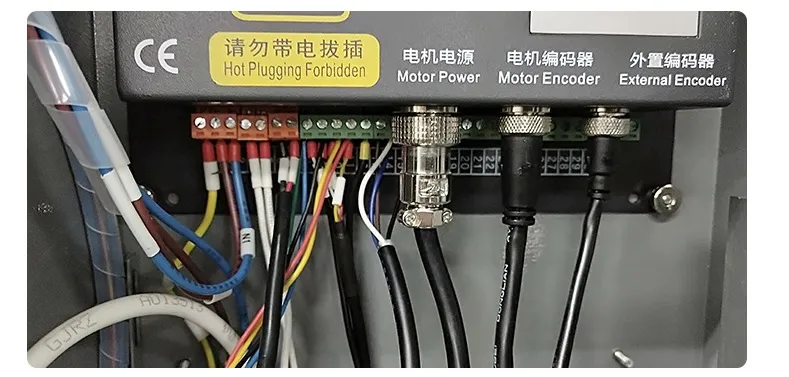

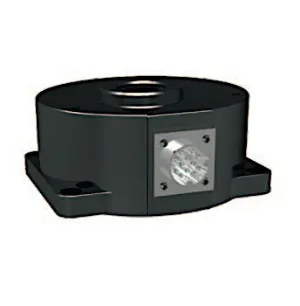

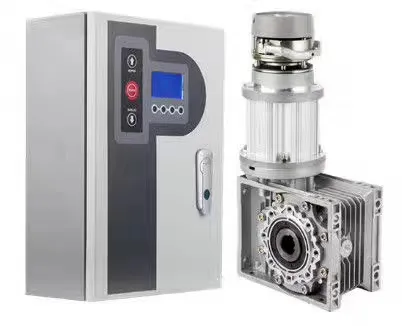

Equipped with an advanced AC Servo control system: 2500 rpm motor, high movement accuracy, soft start/stop, and a user-friendly LCD screen with self-diagnosis.
