Efficient Fast and Frequent Opening Aluminum Spiral Electric Operated High Speed Door

Customization: Available
After-sales Service: Online Technical Support,Free Spare Parts
Warranty: 1 Year

Product Description

Overview

An industrial Door Brand Exported to Over 50 Countries
Serving Over 3600 Clients Worldwide
Holder of Multiple Authoritative Certifications, Including CE, SGS, UL
Supplier Partner to Fortune 500 Companies
Advanced Servo Intelligent Control Systems for Professional Needs

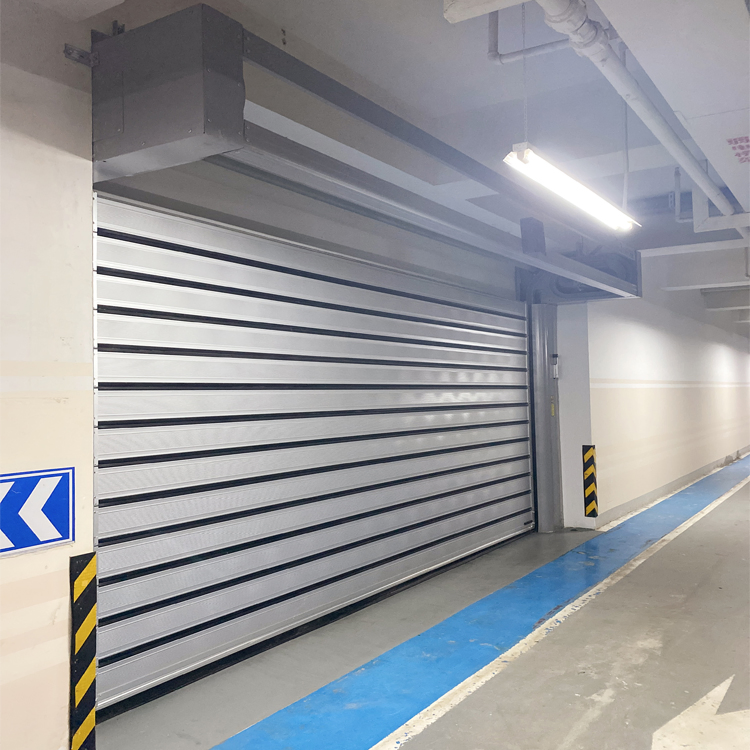

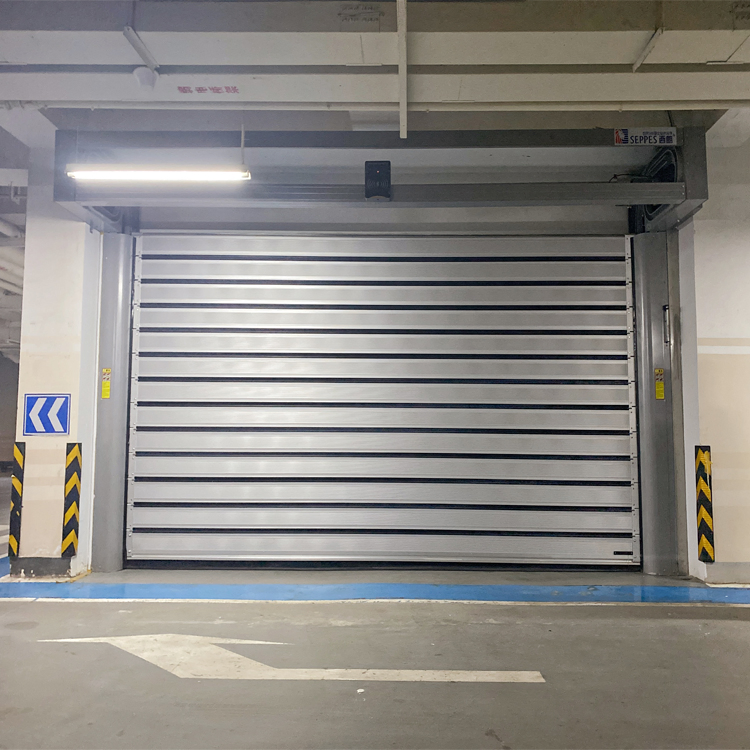

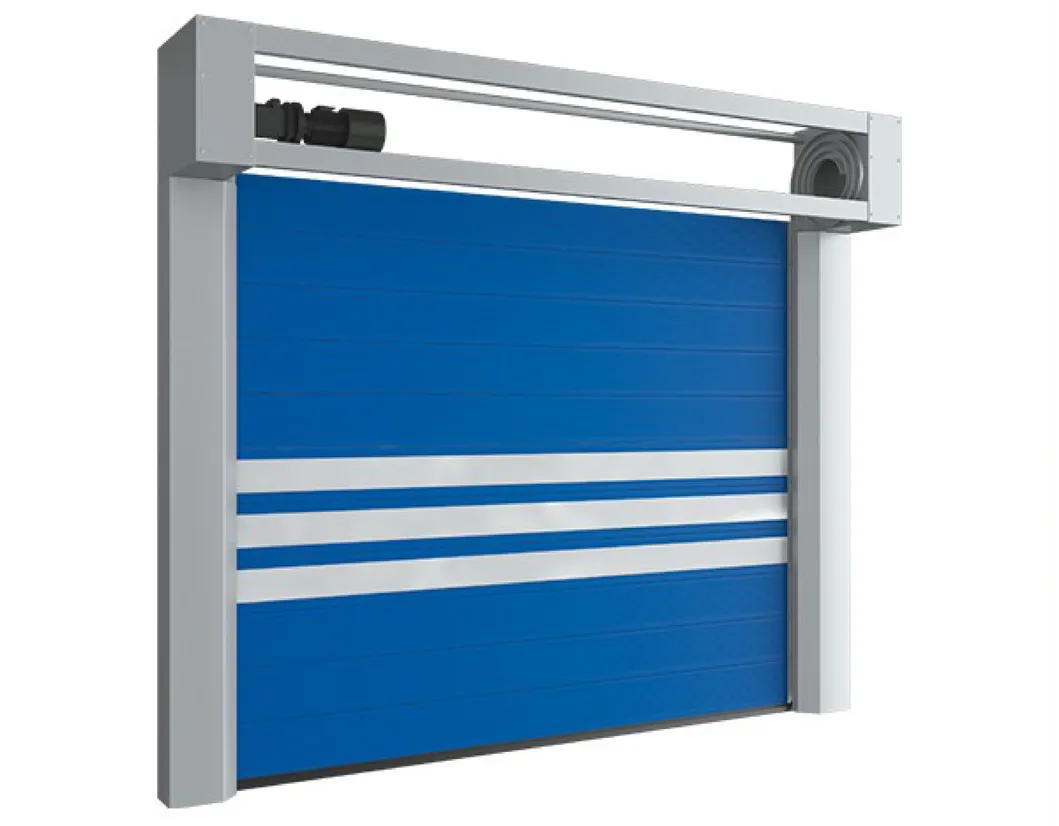

High Speed Spiral Door

High Speed Spiral Door

High speed spiral doors are suitable for installation in industrial buildings, factories, warehouses, workshops, garages and other industrial equipment exits. The new arc-shaped turbine and tensioning torque balance technology can ensure a more stable operation of the door body, and one person can easily open and close the operation.

Basic Info

Model NO.HSSD-100
MaterialAluminum Alloy
TypeRolling
CertificationISO9001, CE
Opening SpeedMax 2.35m/S (Adjustable)
Power Supply1-Phase 220V, or 3-Phase 380V
Max SizeWidth 10000mm, Height 10000mm
Surface FinishingFinished

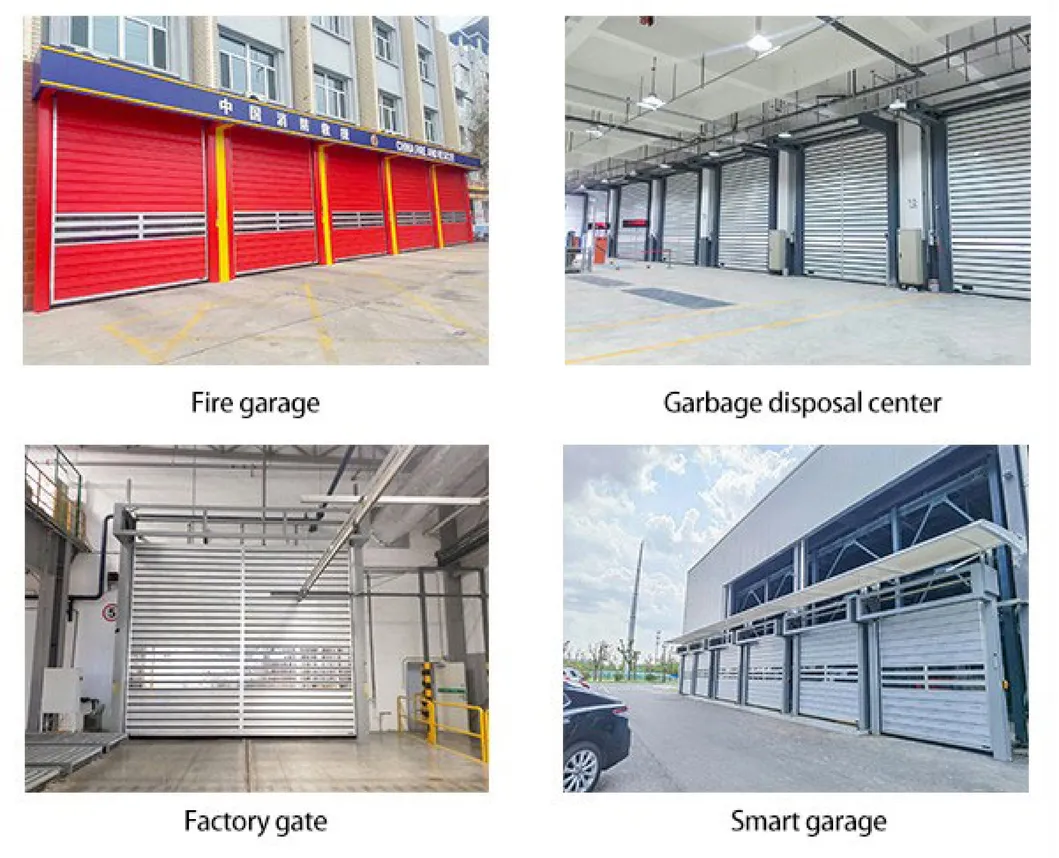

Installation Site

Installation Site

Product Advantages

Door Advantage

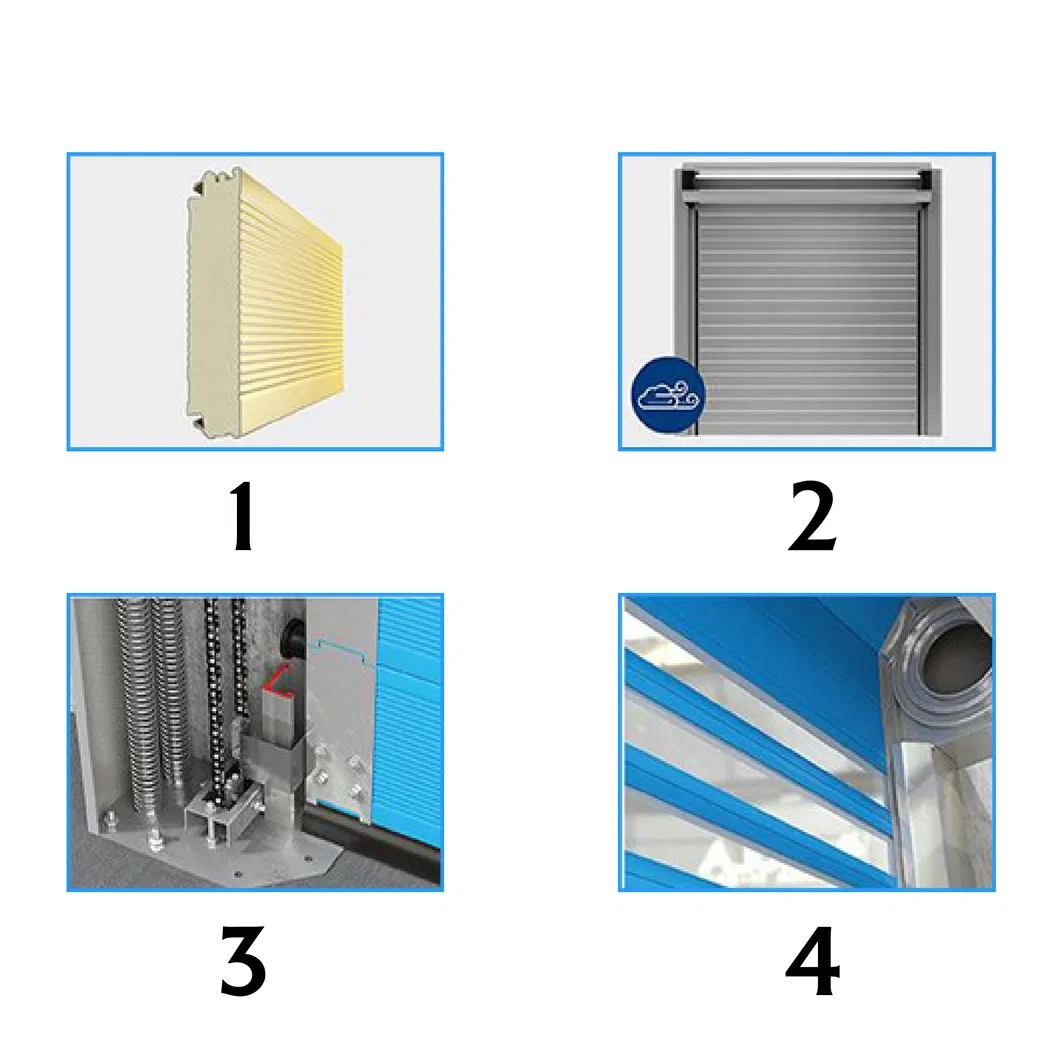

1. Panel: 0.7mm thick double-layer aluminum alloy door panel, filled with high-density polyurethane foam in the middle (40mm thickness).

2. Sealing: Four-fold sealing structure technology ensures airtightness (8.68m³/(xh)).

3. Balance: Advanced tensioning torque balance technology ensures smooth operation.

4. Safety: Equipped with photoelectric protection and wireless safety bottom edge protection.

Various colors available:

Available Colors

Technical Parameters

Features Specifications
Door curtain material0.7mm aluminum alloy, polyurethane foam filled (42mm)
Door frame material2.5mm galvanized steel paint frame
Control systemMicrocomputer system, English interface, LCD display
Security systemPhotoelectric protection, Wireless safety bottom
Maximum speed2.0m/s
Wind resistance11 winds (National standard)
Emergency openingSupported

Product Details

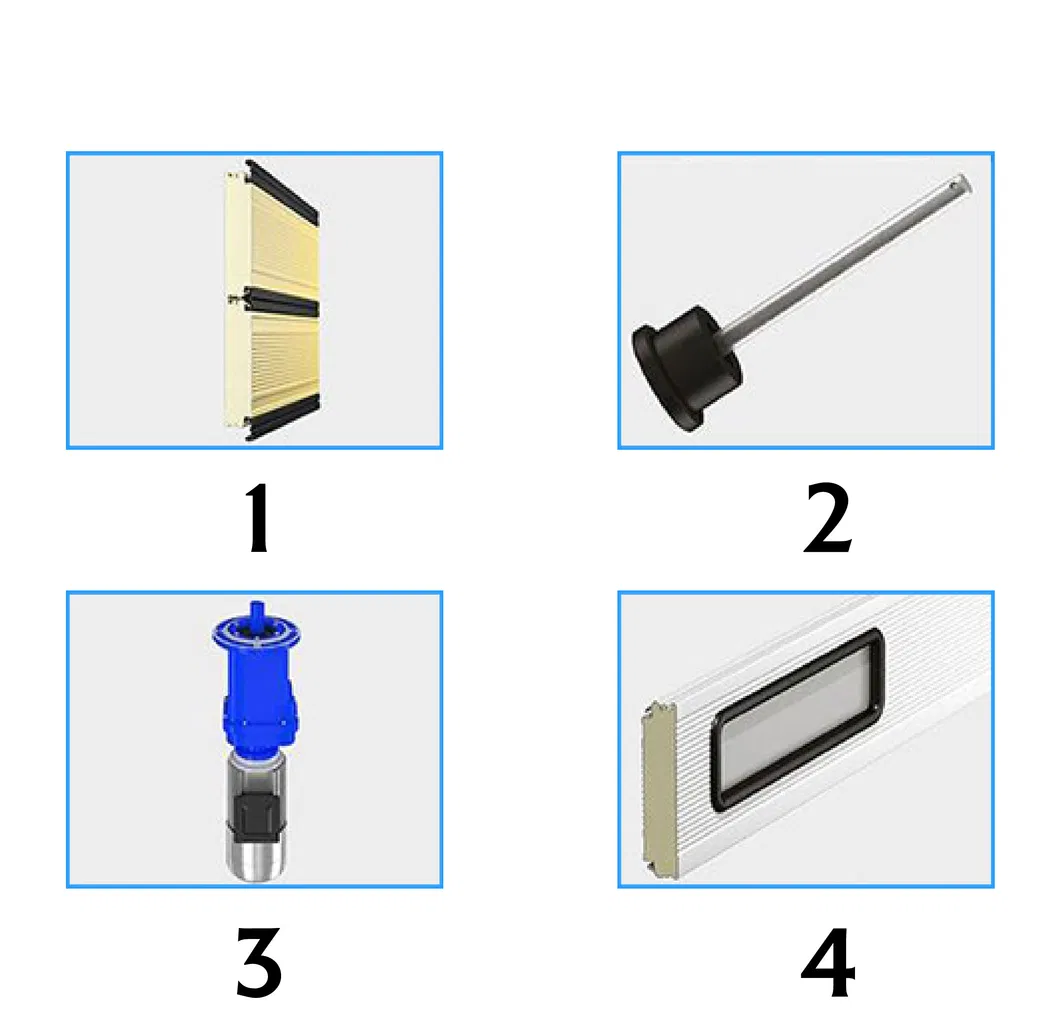

Product Detail 1
Product Detail 2

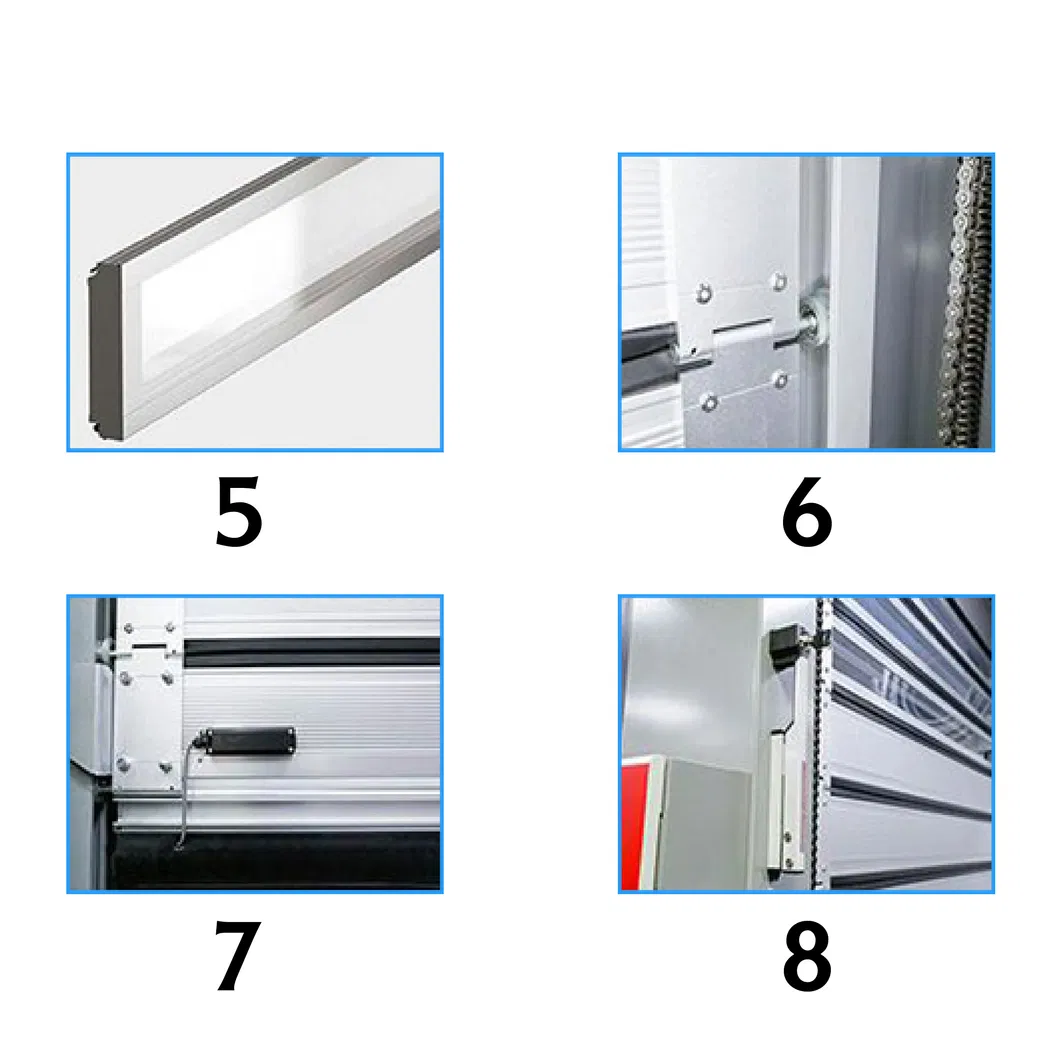

1. Double-layer aluminum alloy door panel (40mm thickness)

2. Wear-resistant pulley & Silent structure

3. Servo drive motor

4. Transparent windows & Power failure manual opening device

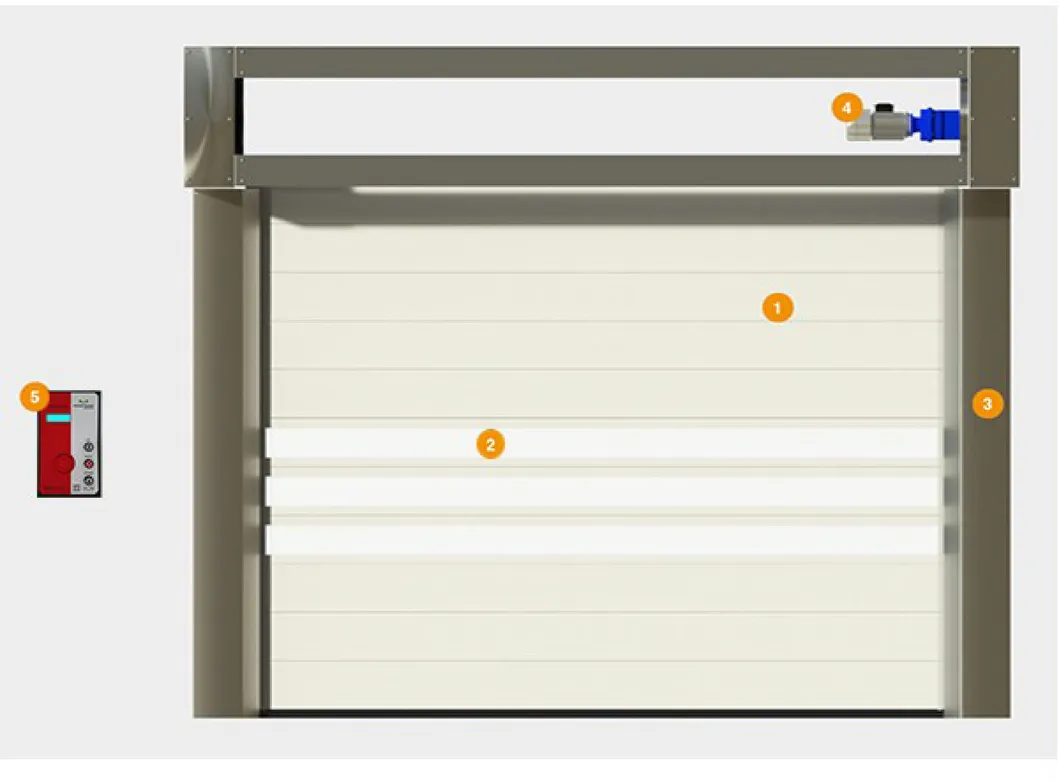

Internal components

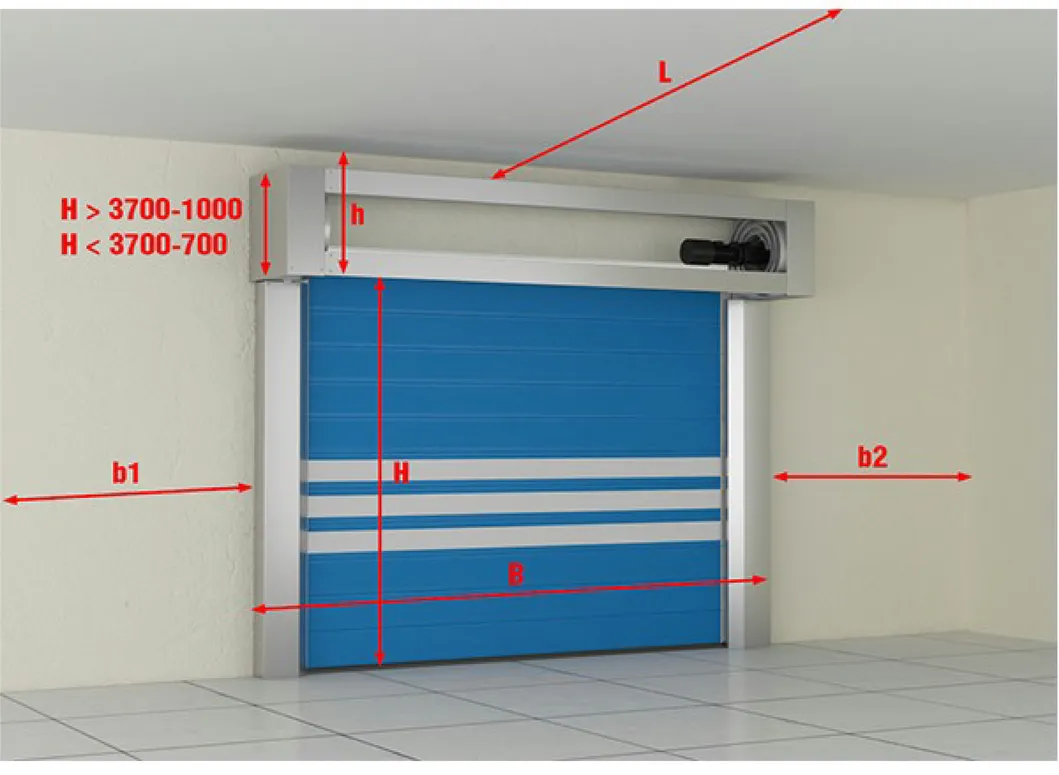

Measurement Guide

Measurement Guide

Key Measurement Points:

  • H: Height of the doorway (ground to top).
  • B: Width of the door opening.
  • h: Distance from top of doorway to ceiling (standard 900mm).
  • b1/b2: Lateral distances (minimum 350mm).

Project Cases

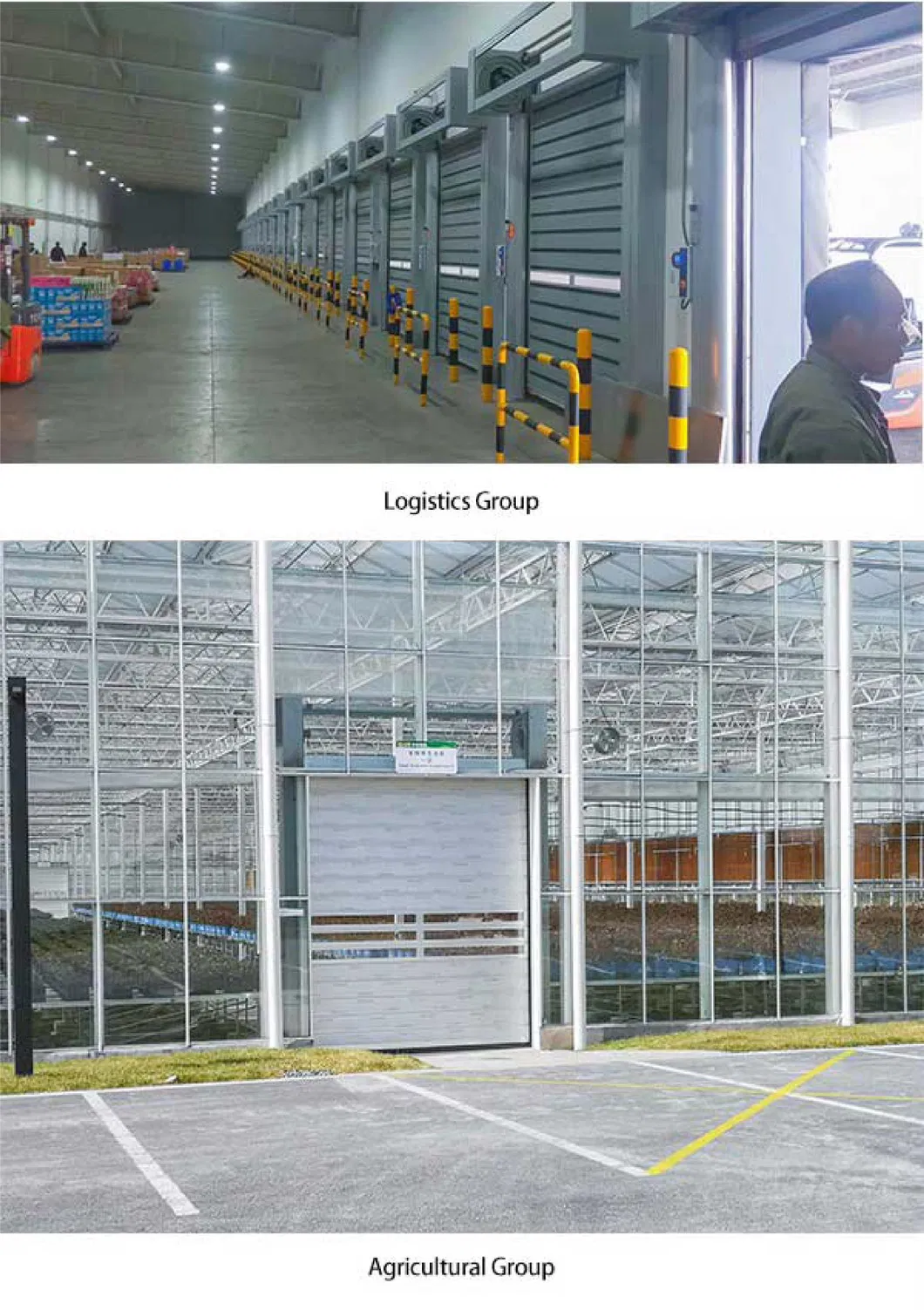

Case 1

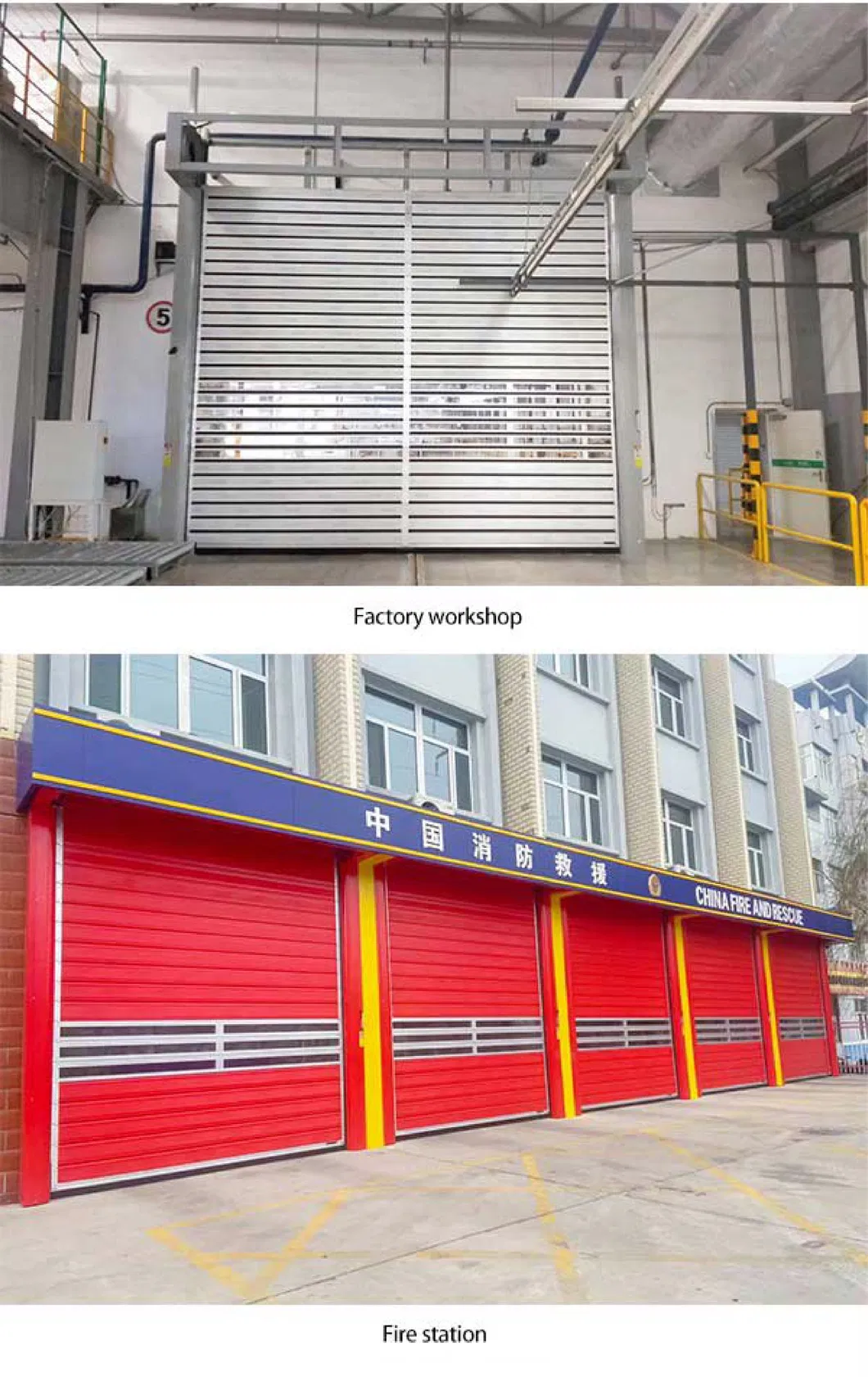

Case 2

About Us

The company is a high-tech enterprise focusing on the development, design, and manufacturing of industrial door technology, headquartered in China. We manufacture complete customized entrance door system solutions for industrial customers. Main products include high-speed doors, automatic roller shutter doors, and sectional doors. All products comply with European industry standards and have obtained EU CE, international SGS, and ISO9001 quality management system certifications.

Factory
Workshop

FAQ

Q1: What is your MOQ? A: There is no limit. We accept 1 set as a trial order.
Q2: What is your payment term? A: We accept T/T, D/A, D/P, and Western Union.
Q3: How about the package for shipping? A: We use robust wooden boxes to protect cargo from damage during transport.
Q4: How to install the high-speed door? A: Our products are easy to install. We provide detailed installation videos to assist you throughout the process.
Q5: What is the standard delivery time? A: For common orders, it takes 7-15 days. Fast-track orders can be completed in a week.
Q6: How does the after-sales service work? A: We implement a "one door, one code" lifelong service system, ensuring long-term product responsibility and support.
