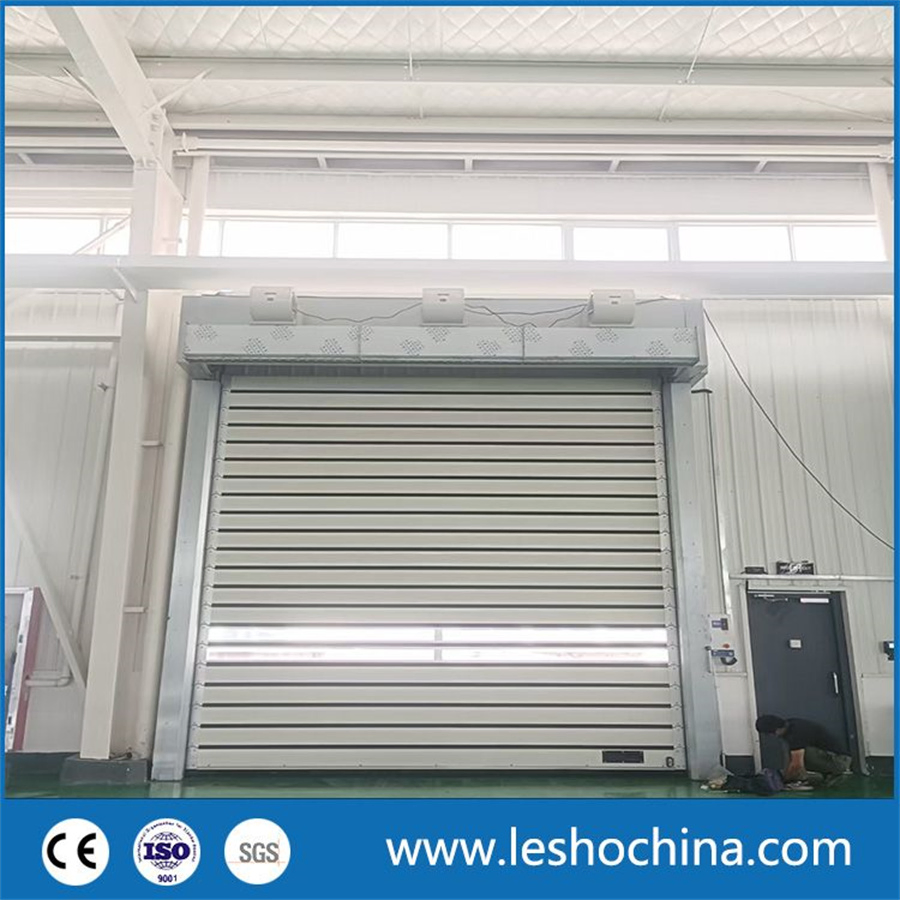

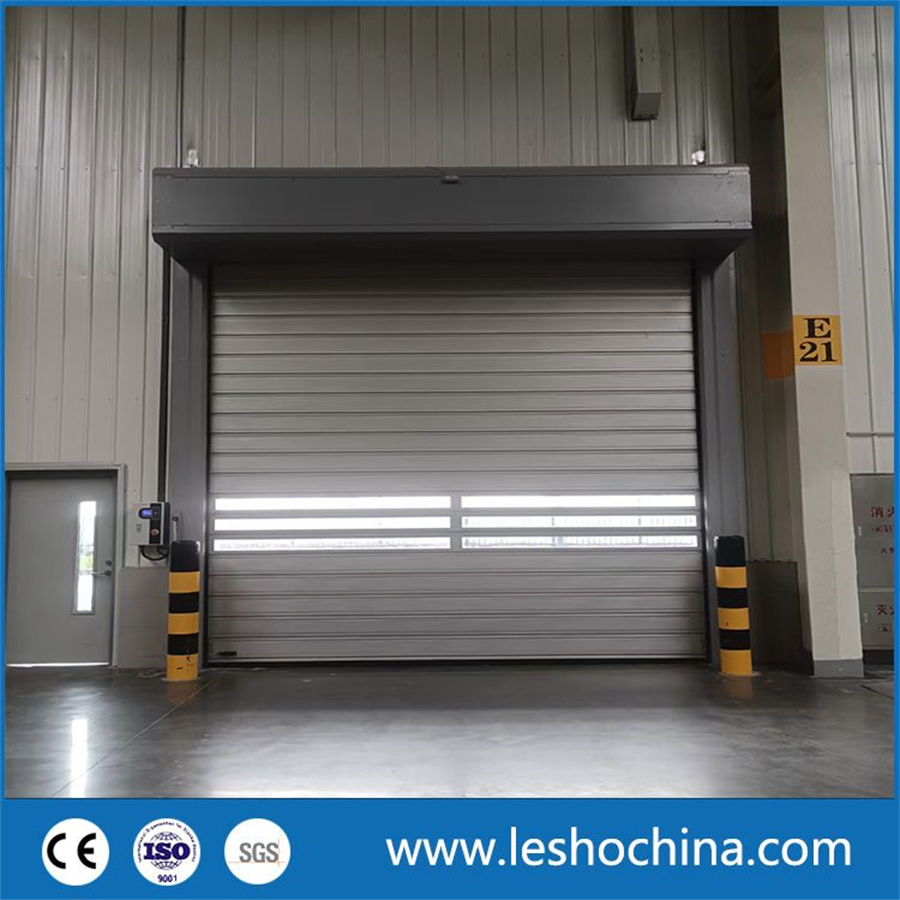

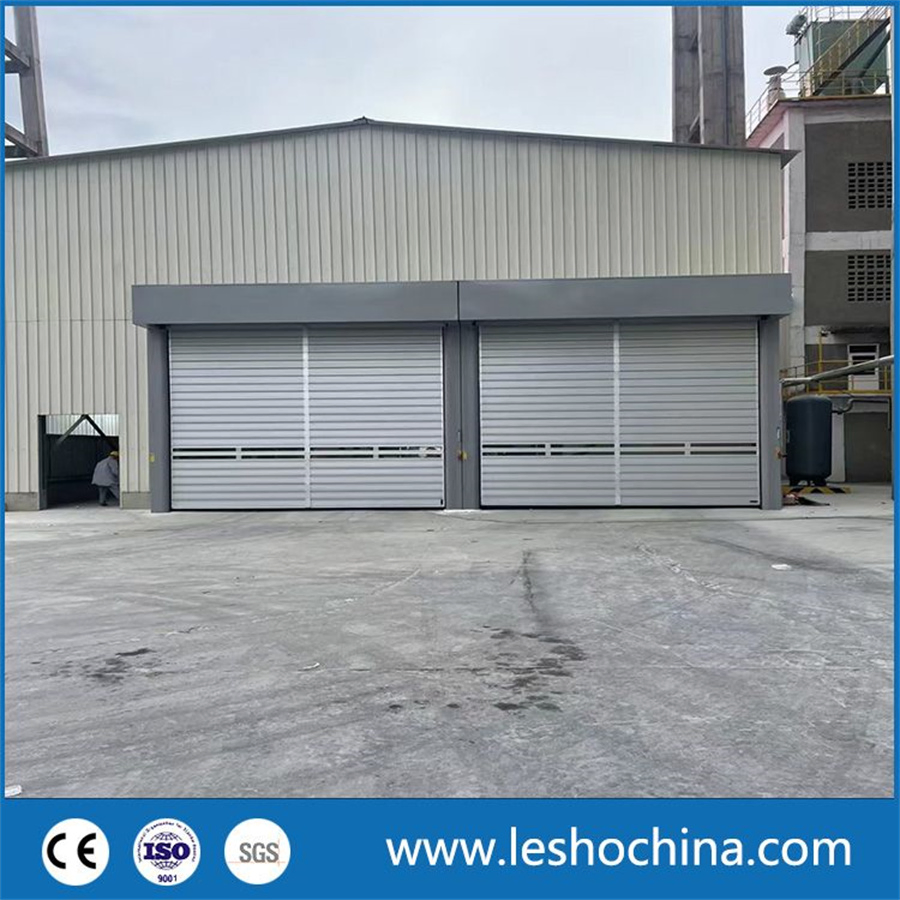

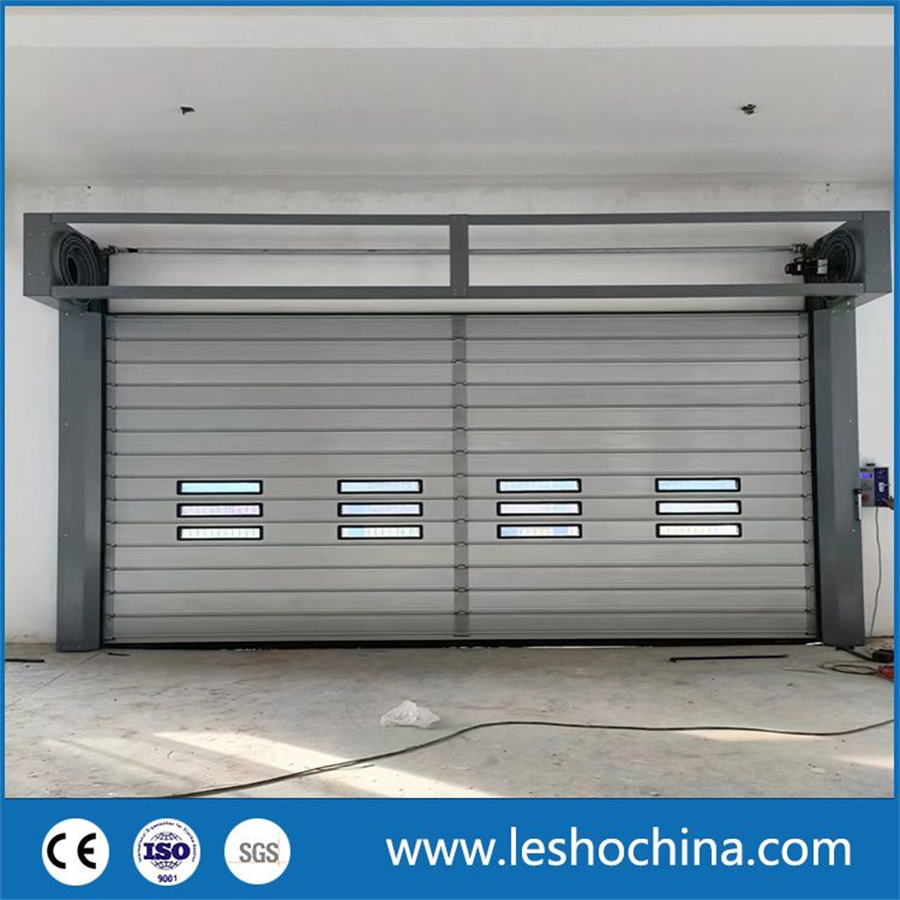

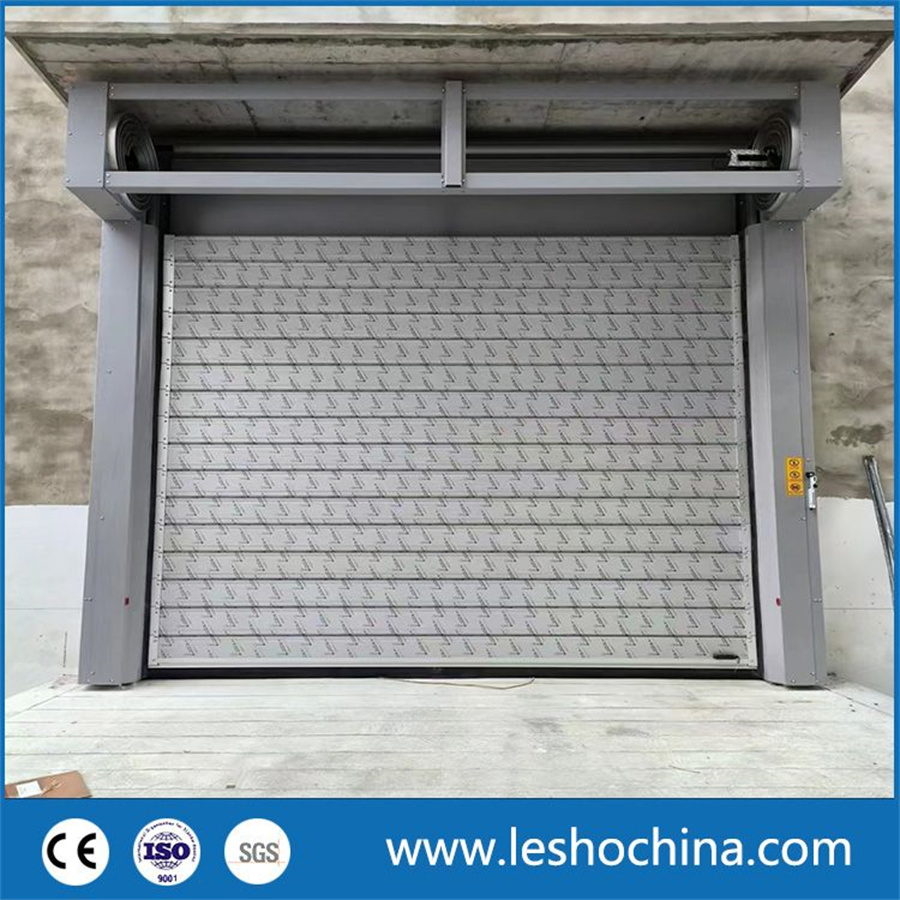

Aluminum Alloy Spiral High Speed Door
Application: A model of Rapid Doors with thermal insulated aluminum slats. Most advanced and high-oriented model. It is fit for areas with high demand of both security, high-strength, thermal insulation and high running speed.
| Max Dimension | 8000mm wide * 8000mm high |
| Power Supply | 1-phase 220V or 3-phase 380V, 50/60HZ |
| Protection Level | IP55 |
| Wind Resistance | Beaufort scale 12 (35m/s) |
| Max Opening Speed | 2.0m/s |
| Max Closing Speed | 1.0m/s |
| Thermal Conductivity | 1.9W/(m·K) |
| Sound Insulation | R=25dB |
| Design Service Life | 20 Years |

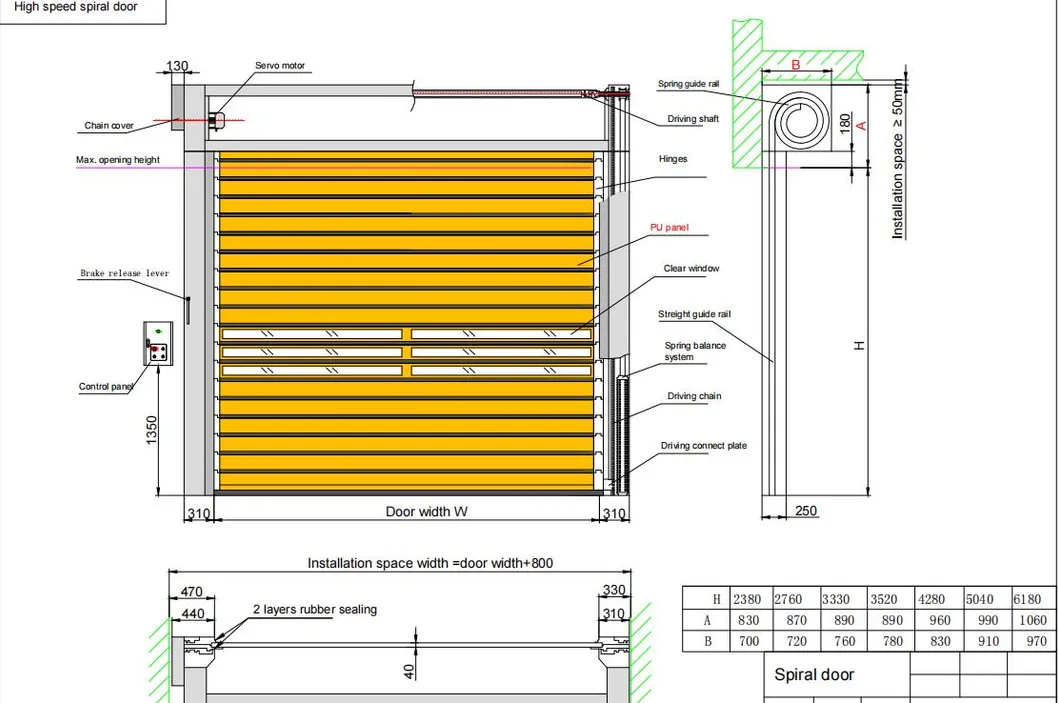

CAD Drawing: Accurate shop drawing to show the door dimension clearly, ensuring perfect installation.

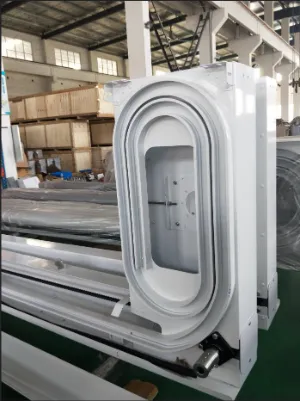

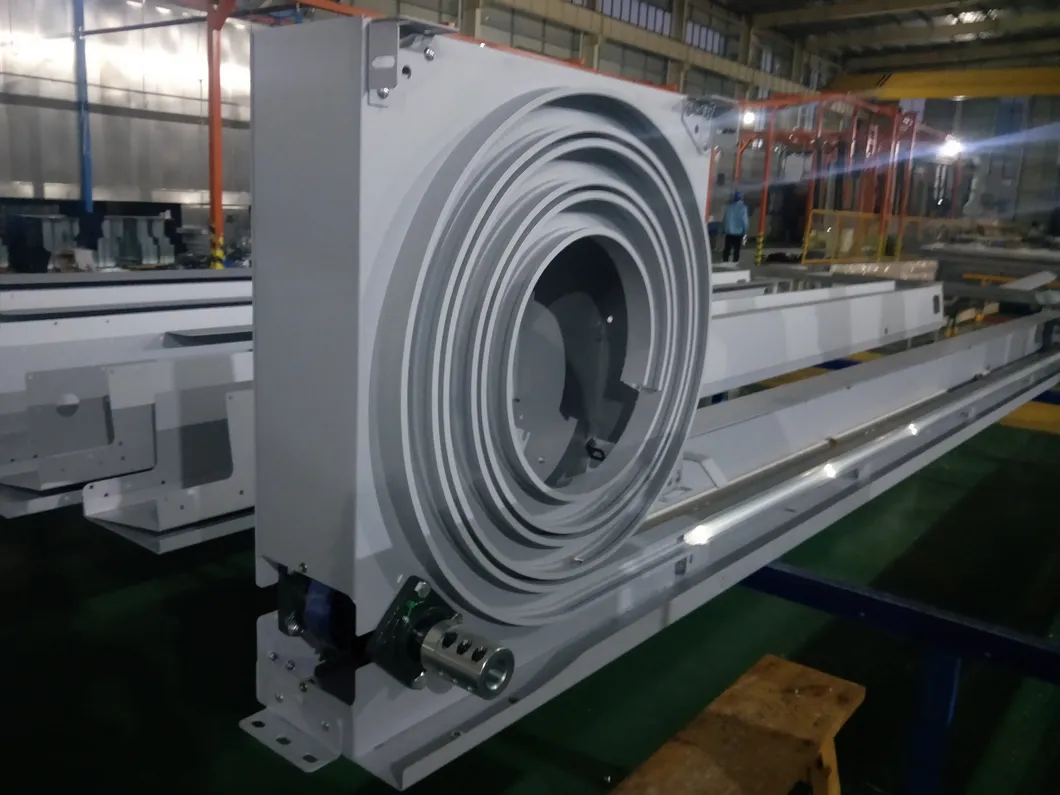

Special Spiral Guide Rail: Aluminum alloy profile rail with smooth anodized surface. The door panel runs in the guide rail by separate wheels without touching each other, avoiding friction.

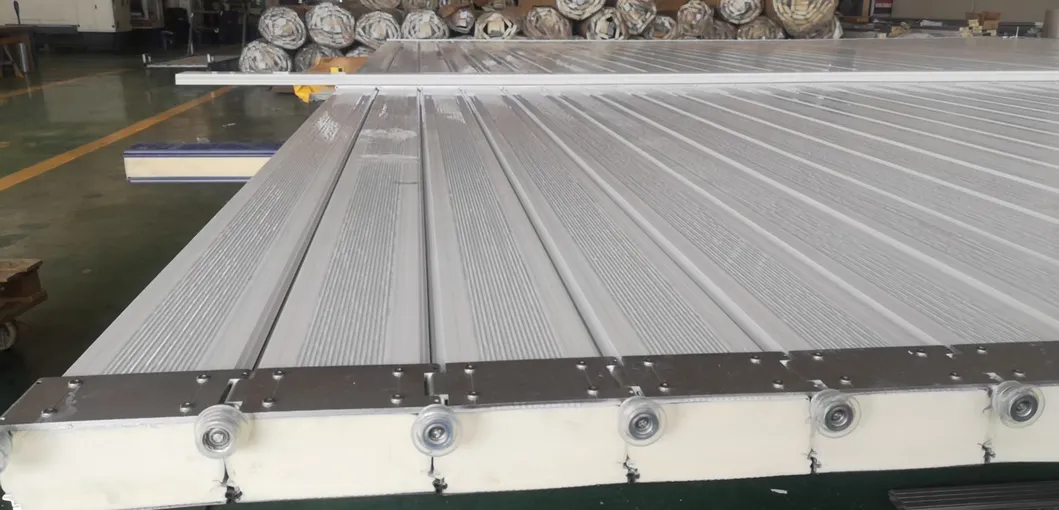

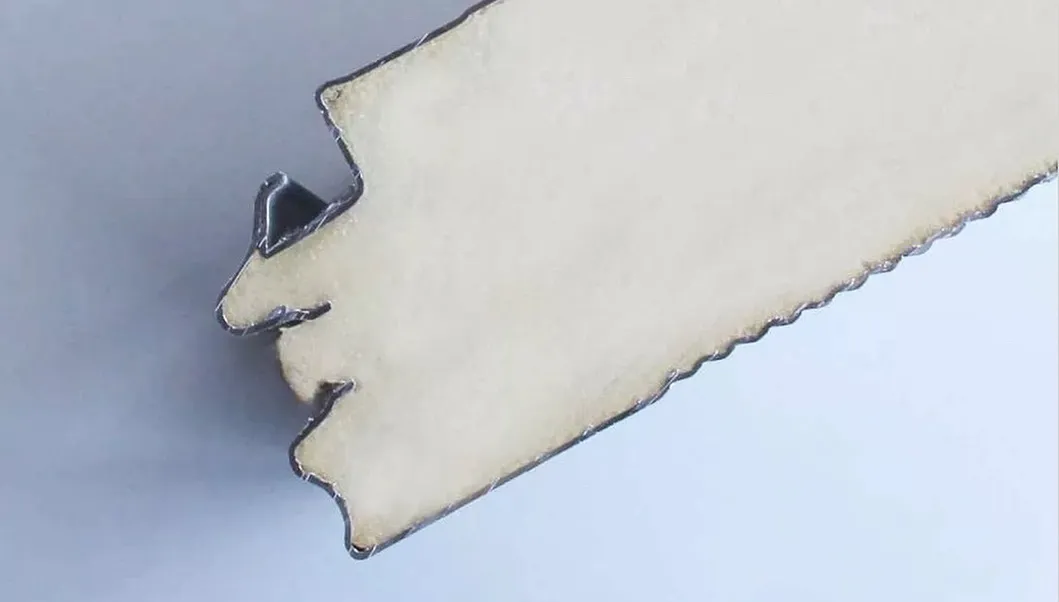

Thermal Insulation: Double layer aluminum panel filled with intermediate polyurethane foam. Broken bridge design prevents temperature loss and saves energy.

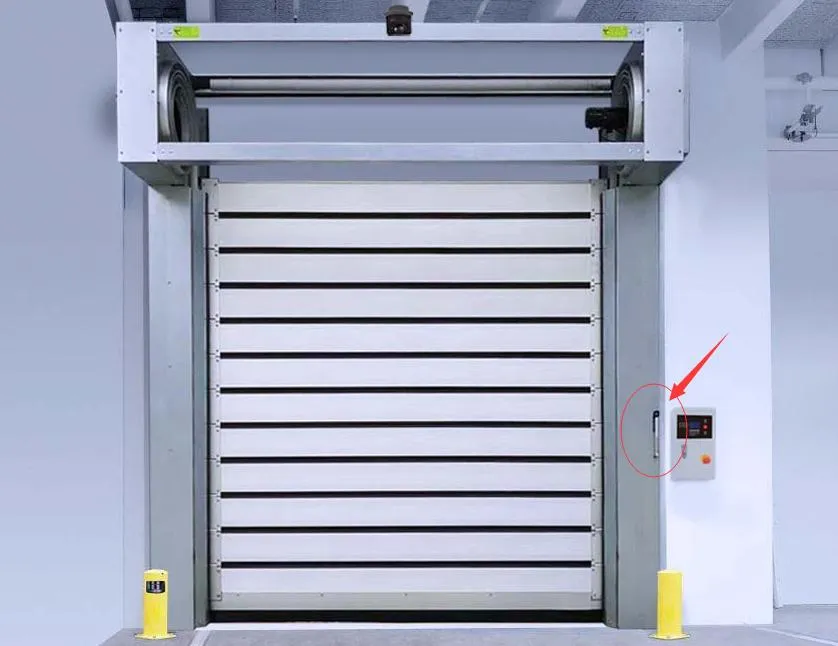

Emergency Manual Device: Most of the door weight is balanced by a spring system. It can be easily opened by hand during power failures.

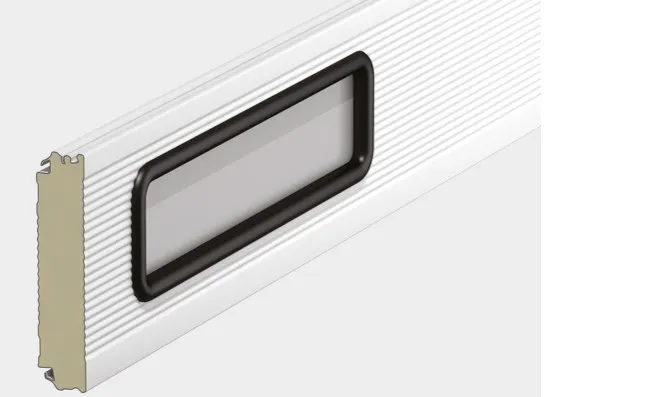

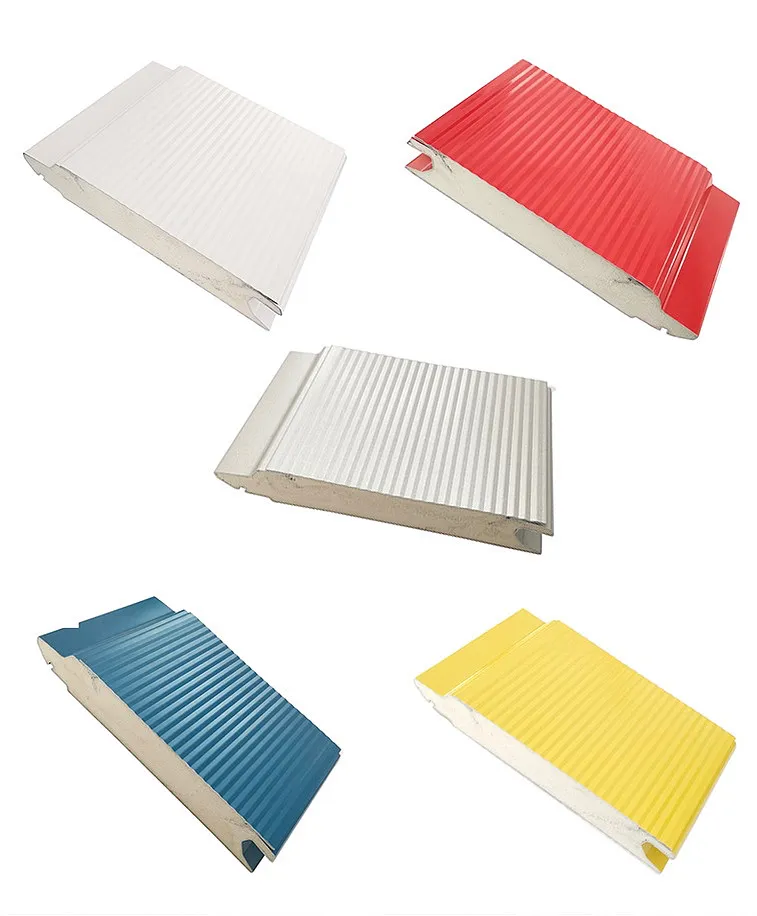

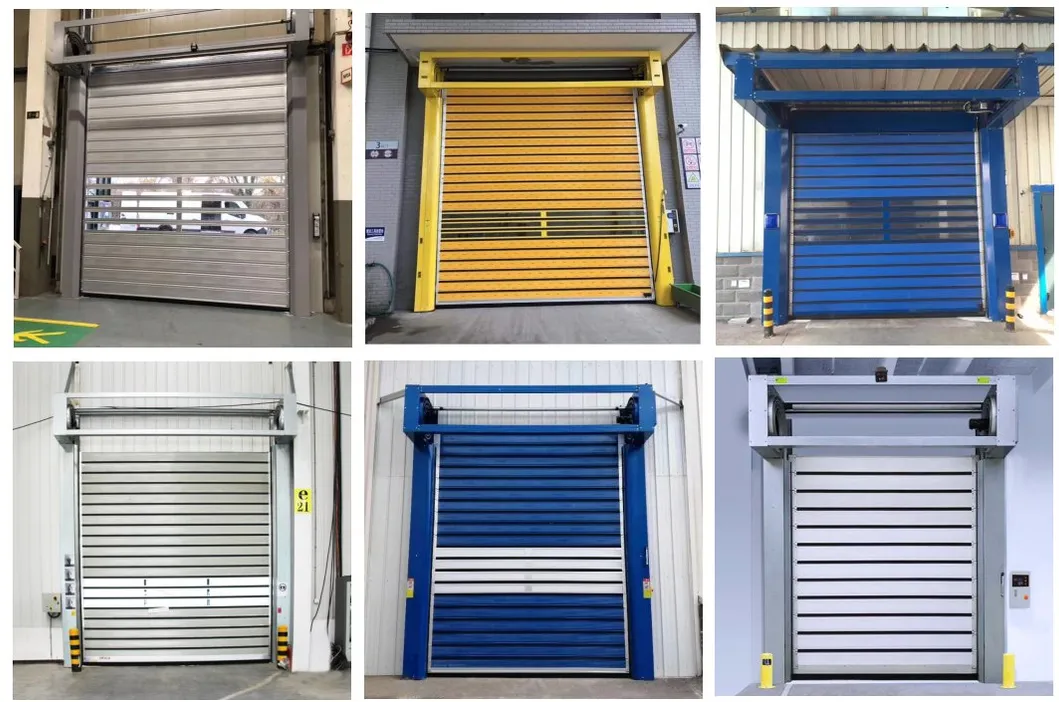

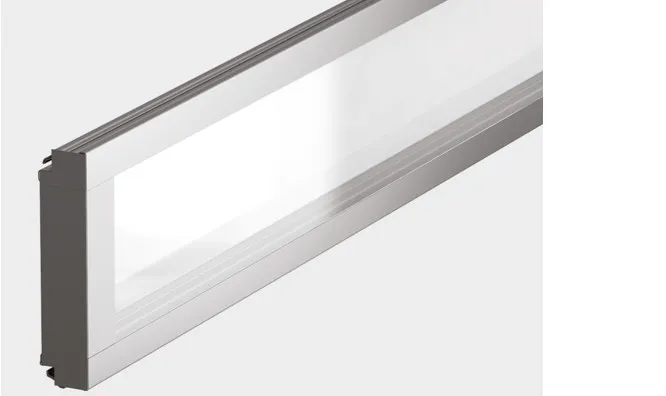

Window Types & Colors: Variety of windows for better lighting and vision. We support almost every RAL color system to match your building facade.

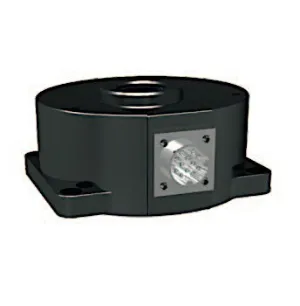

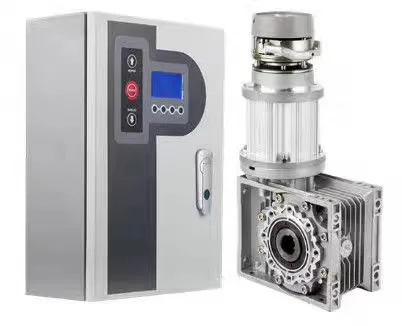

Equipped with an advanced AC Servo control system:
