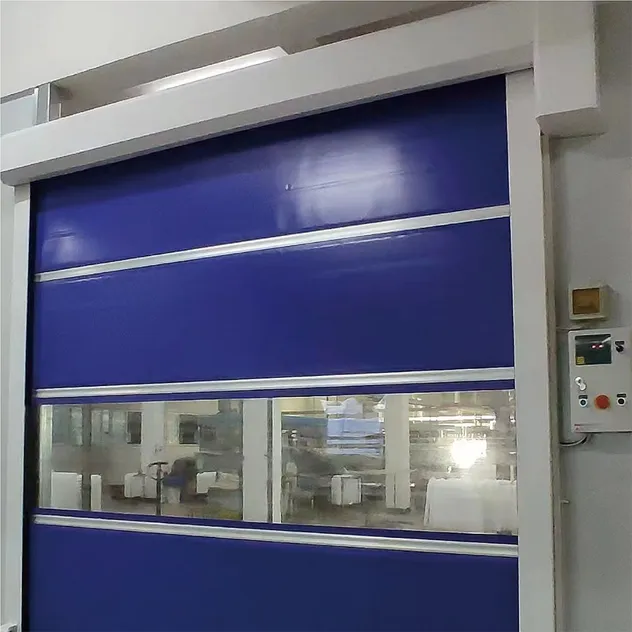

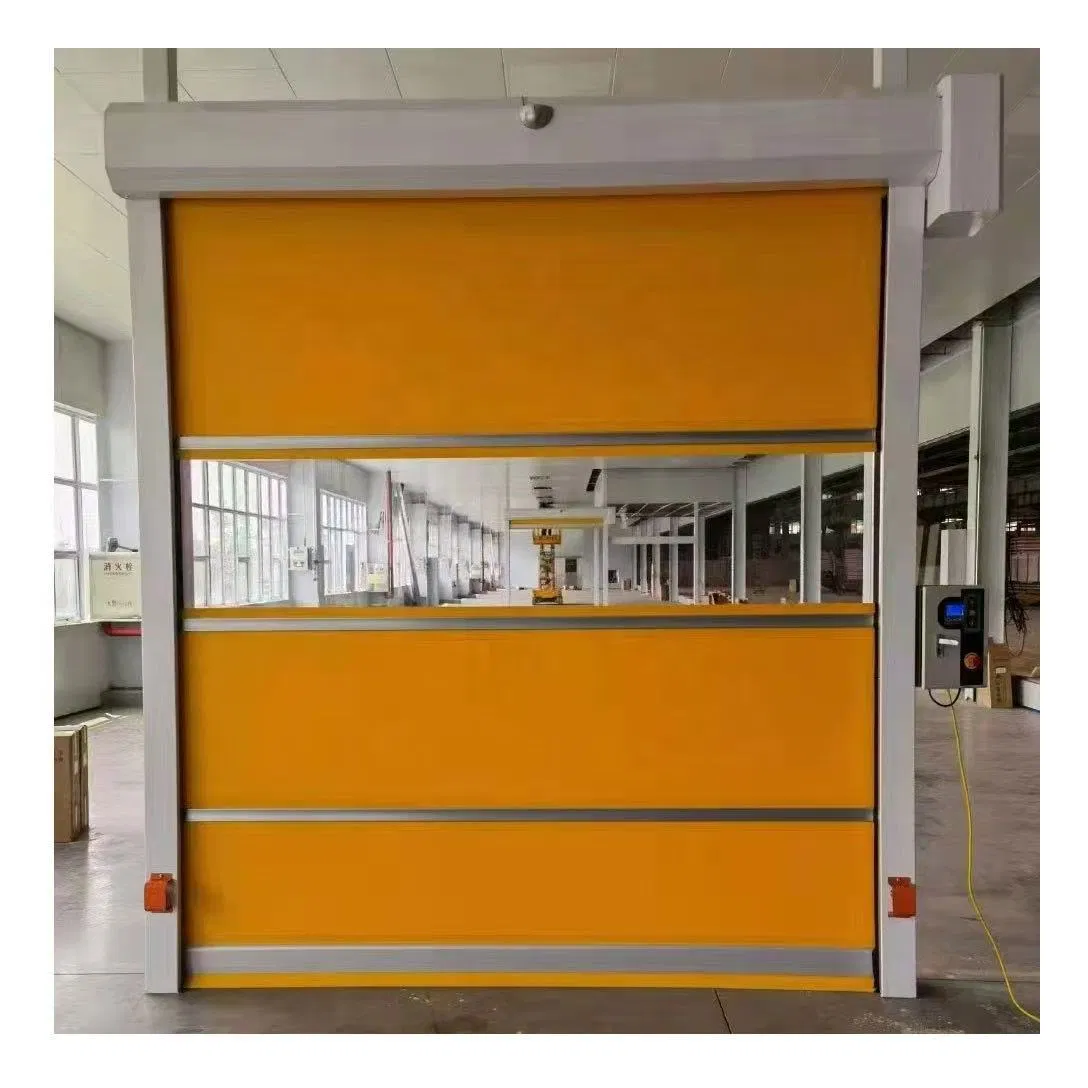

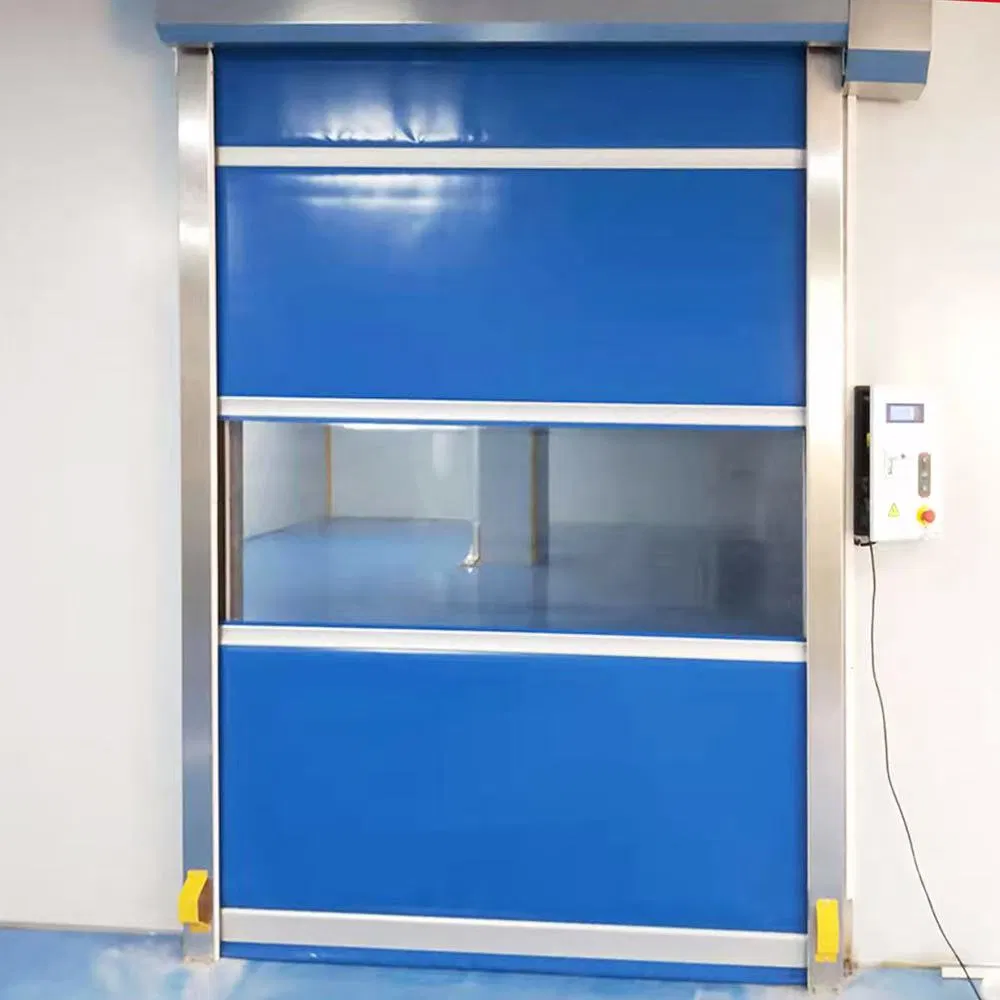

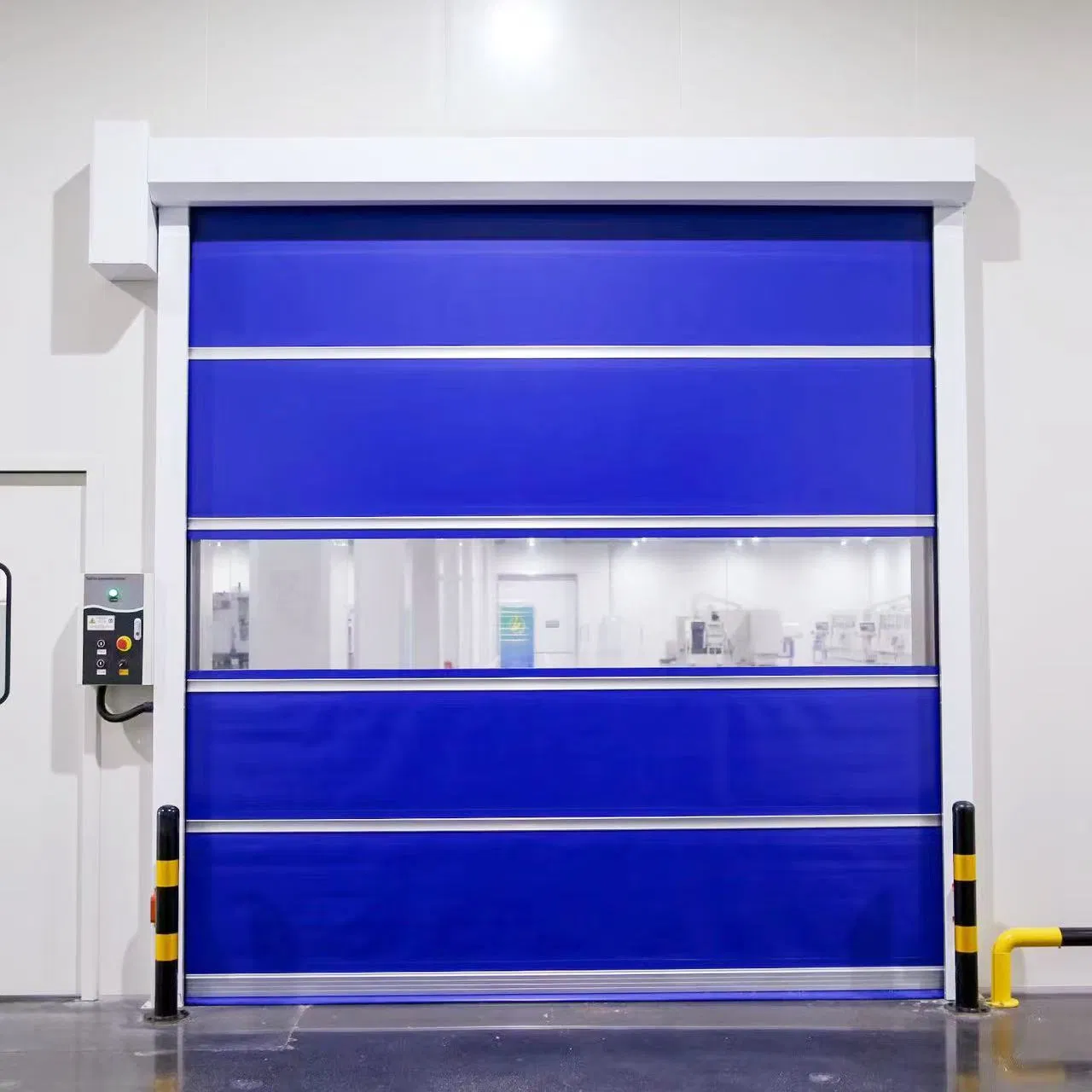

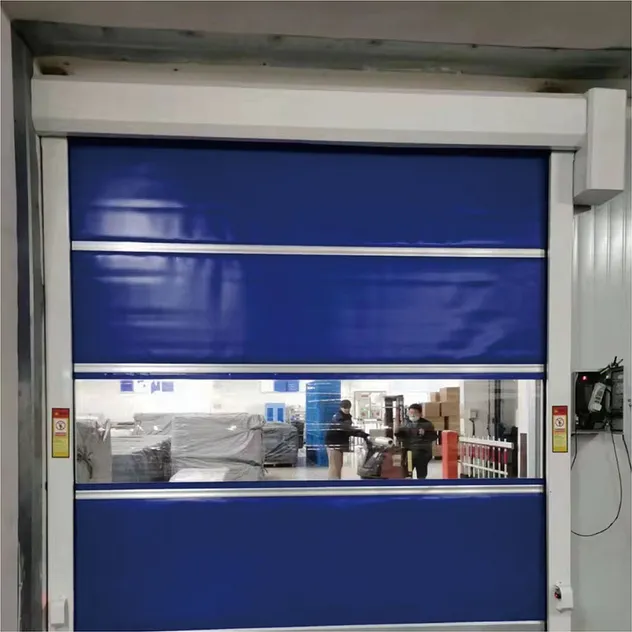

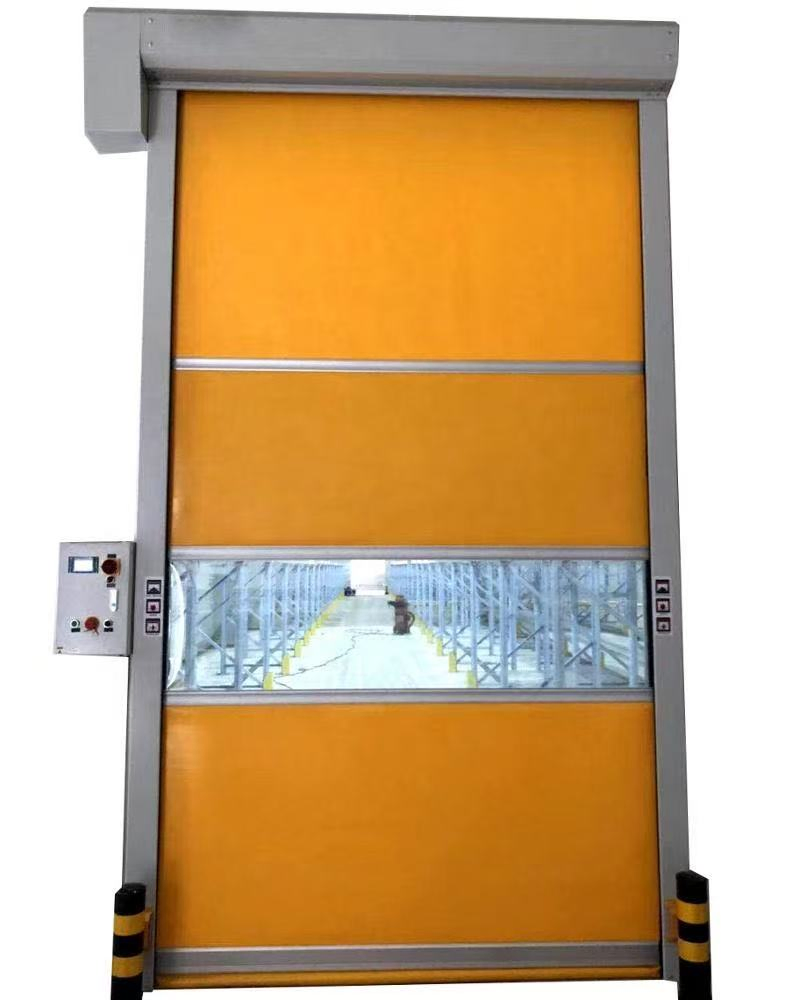

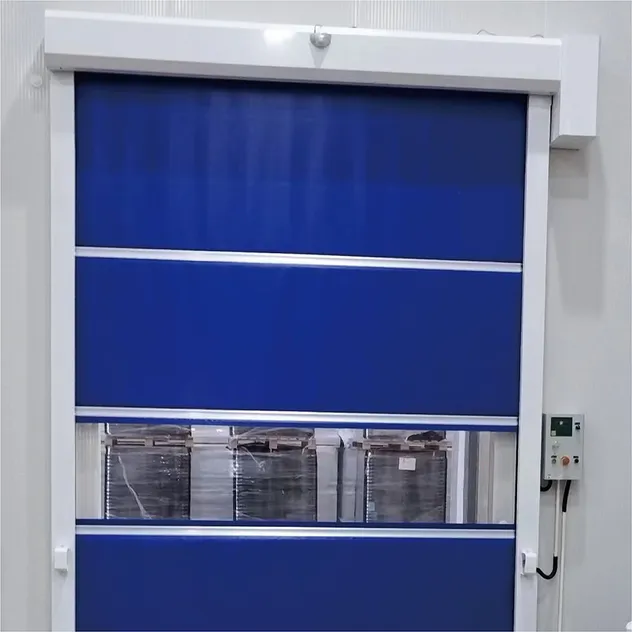

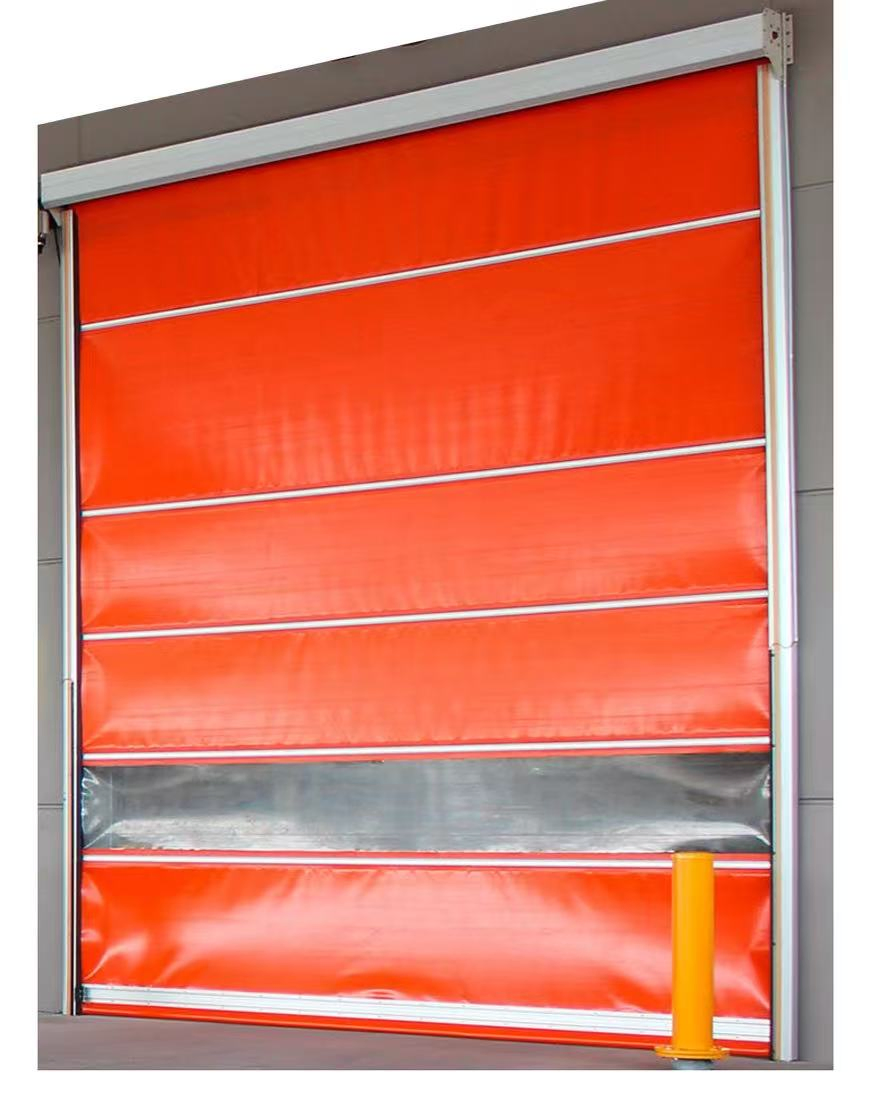

PVC quick door, also known as high-speed soft curtain door, is an industrial door with high-strength PVC polyester fiber cloth as the door curtain and high-speed opening and closing as the core. It is the most widely used and cost-effective type of fast door.

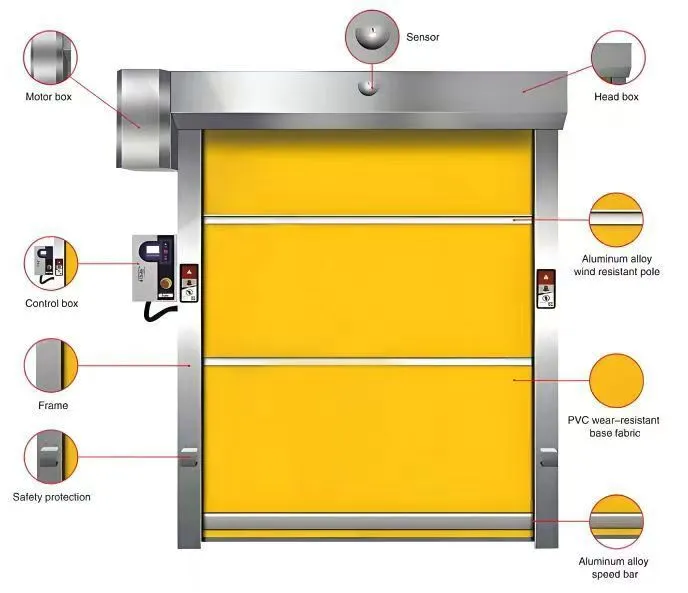

The PVC high-speed door features an excellent seal, being windproof, dustproof, moisture-proof, insect-proof, and capable of heat preservation and isolation. In terms of safety, it is equipped with anti-collision columns, safety light curtains, and wireless safety airbags for multiple protections. Driven by 220V variable frequency, it ensures smooth operation with adjustable speeds up to 0.8m/s opening and 0.5m/s closing.
| Feature | Details |
|---|---|
| Advantages | Perfect sealing, extremely high safety, reliable stability |
| Functions | Windproof, dustproof, moisture-proof, insect-proof, heat preservation |
| Maximum Size | W4500mm * H4500mm |
| Speed | Opening: 0.8m/s | Closing: 0.5m/s (Adjustable) |
| Drive Mode | 220V variable frequency drive |
| Frame Material | Stainless steel plate or Cold-rolled plate with epoxy resin spraying |
| Curtain Material | High-density PVC industrial base cloth |
| Vision Window | 1.2mm Japanese original transparent PVC |
| Opening Methods | Radar, Geomagnetism, Button, Pull rope, Remote control, Infrared |
Our high-speed doors are ideally suited for:
• Food & Pharmaceutical Factories
• Electronics & Chemical Plants
• Dust-free Workshops & Clean Rooms
• Warehouse Entrances & Repair Shops
• Garbage Stations & Storage Rooms
