| Model NO. | DL225 |
|---|---|
| Product Name | Dock Leveler |
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Equipment Dimensions | 2000mm Wide, 2500mm Long, 600mm High |
| Power Form | Electric-Hydraulic |
| Origin | Jiangsu, China |

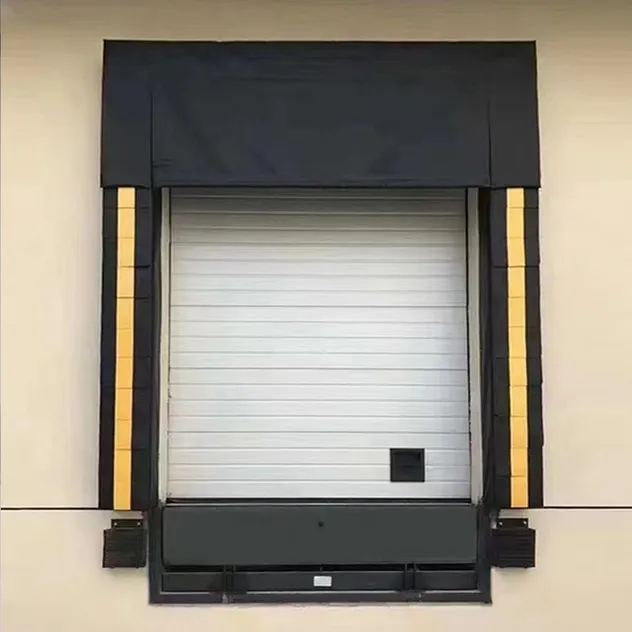

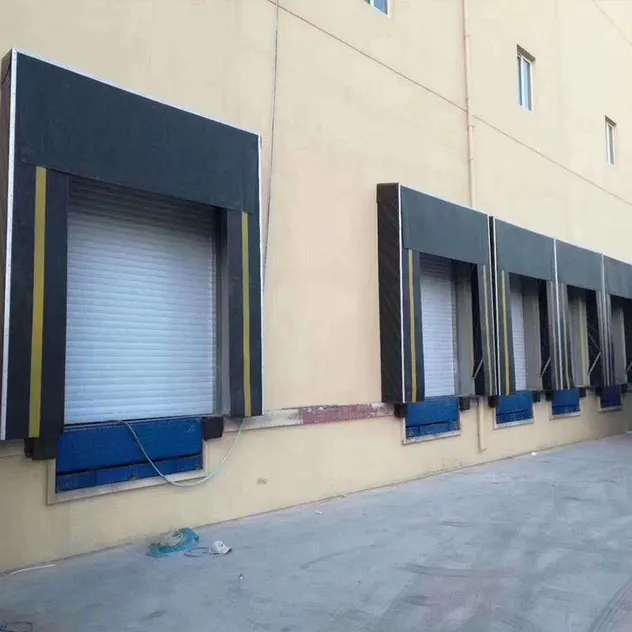

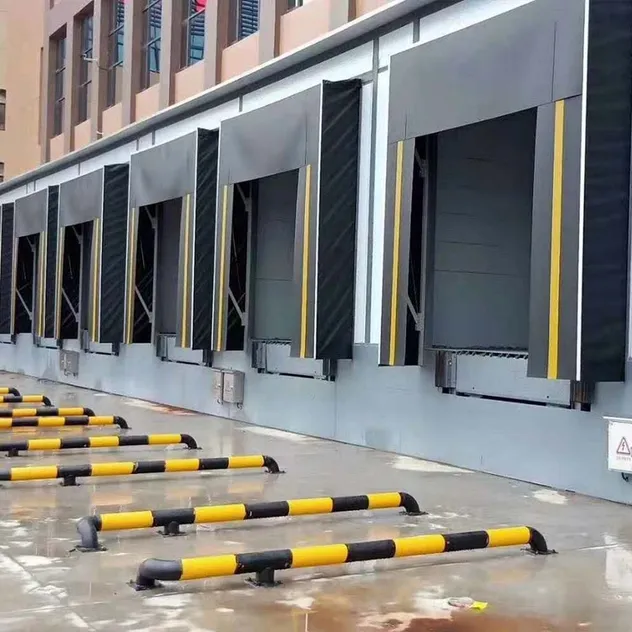

Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes.

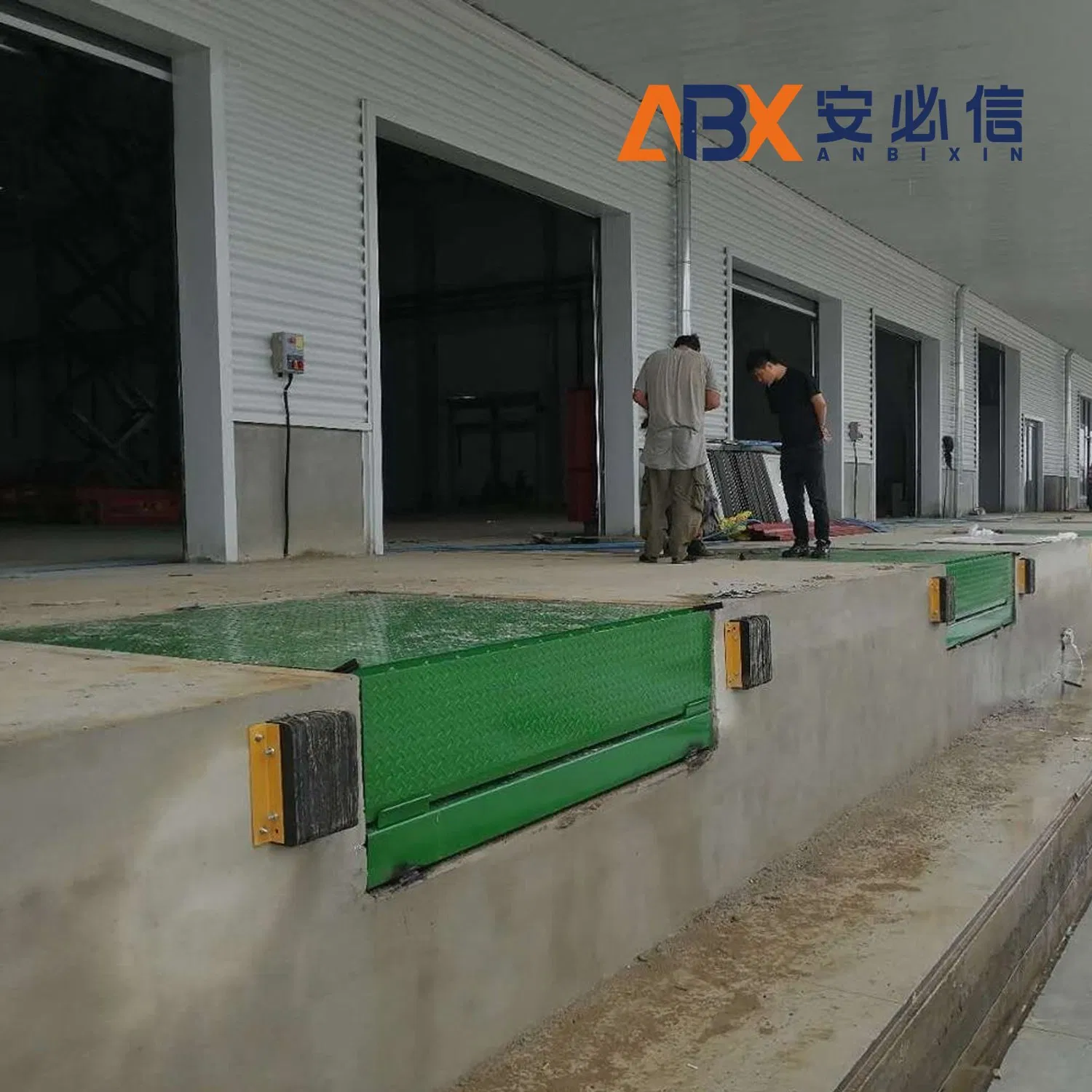

The loading and unloading platforms are divided into fixed and mobile types. The main function is to build a bridge between the cargo platform and the transport vehicle, allowing the forklift to travel conveniently for unloading.

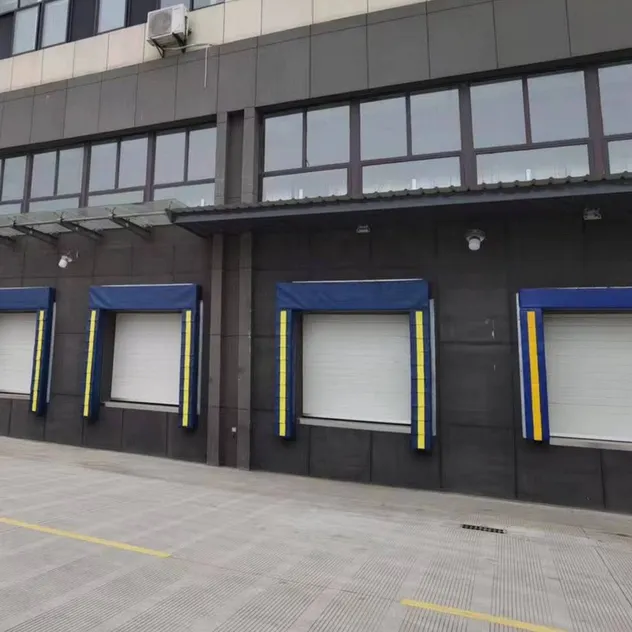

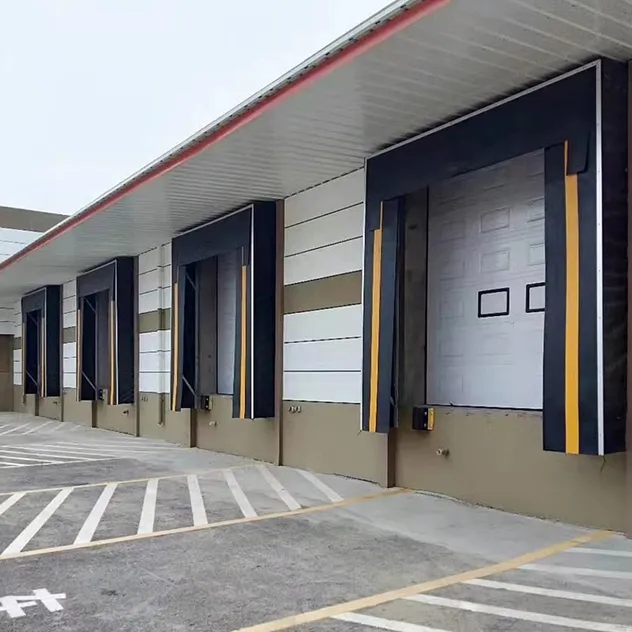

Keep your operations running smoothly with high-traction, anti-slip surfaces and weather-resistant components.

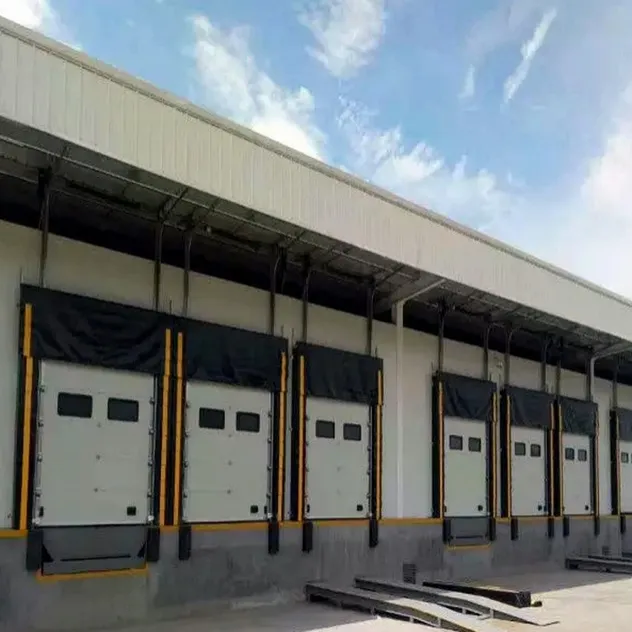

Fully customizable solutions with options for size, capacity, and control systems tailored to your unique requirements.
Advanced hydraulic system engineered for low energy consumption without sacrificing power or speed.
| SPECIFICATION DETAILS | |
|---|---|
| Pit Size | Width: 2030mm, Length: 2500mm, Height: 610mm |
| Adjustment Range | +300/-300M |
| Adjust Time | Up ≤ 16S, Down ≤ 10S |
| Board Thickness | 12mm / 400mm |
| Main Console Panel | 6mm Patterned Board |
| Motherboard Skeleton | L-Shaped Bend |

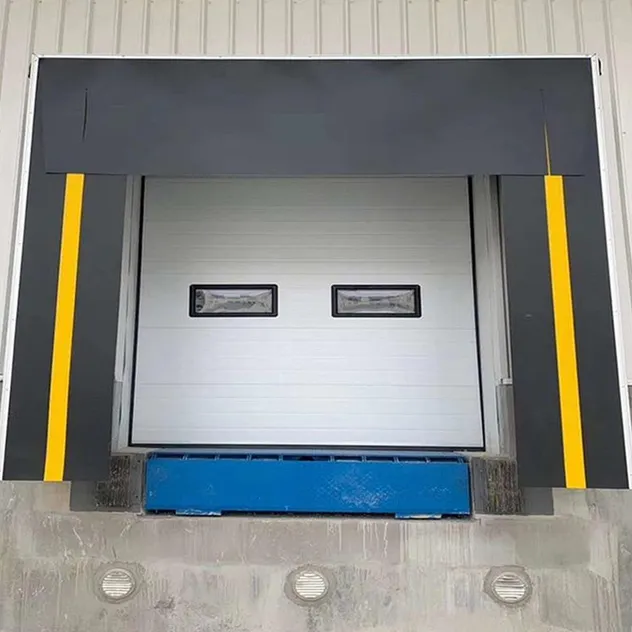

| Side Guard Baffles | Automatically Retractable for Safety |
| Hydraulic Oil | 32# Anti-Wear Hydraulic Oil (8Mpa+/-1Mpa) |
| Base Frame | 10# Channel Steel Welded H-Shaped Frame Structure |
| Use Times | ≥ 200,000 Times |
