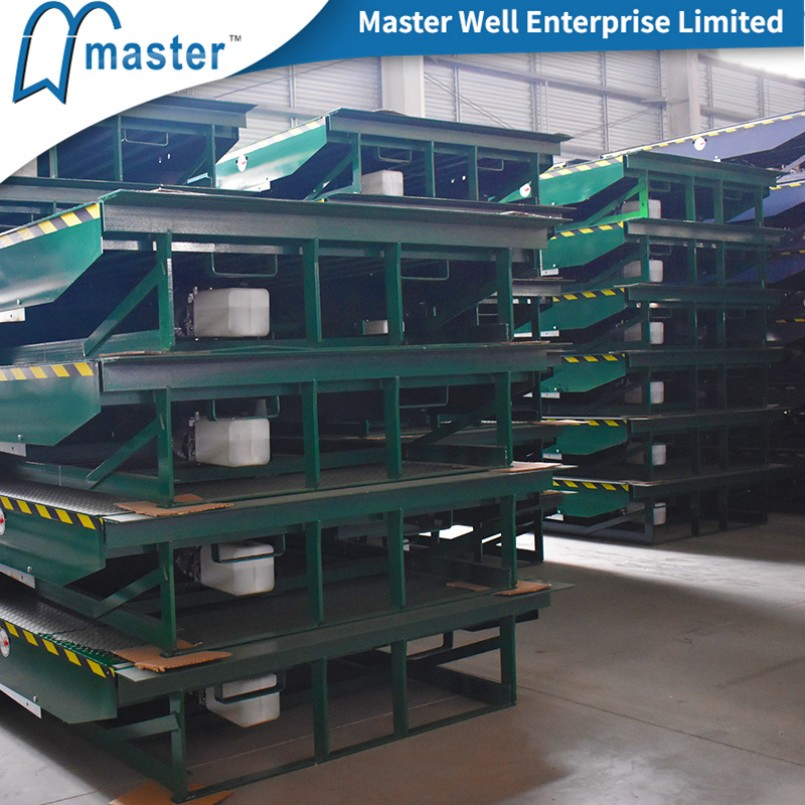

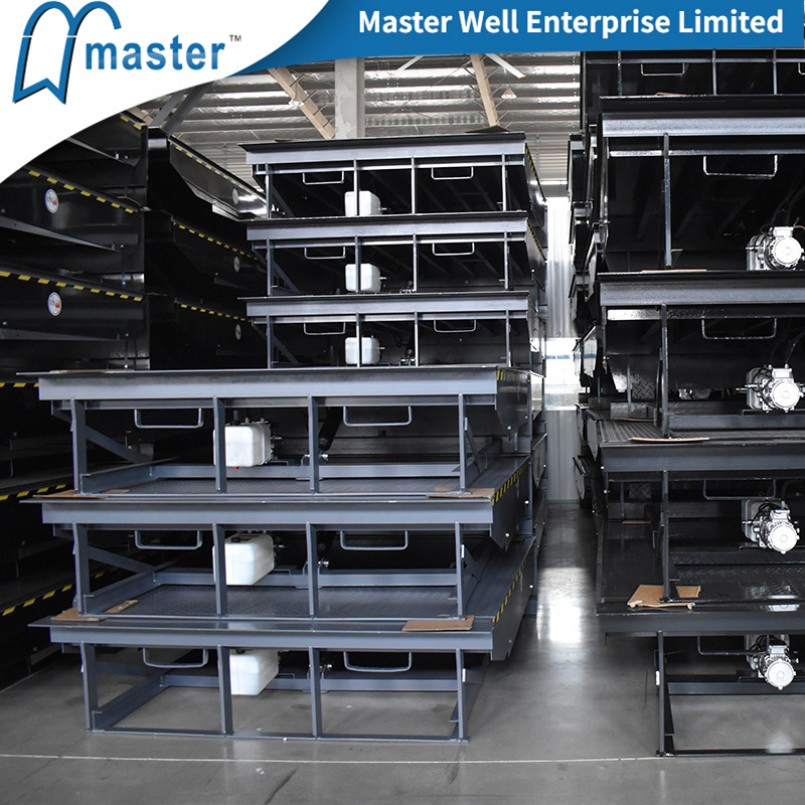

Hydraulic Dock Leveler characteristics:

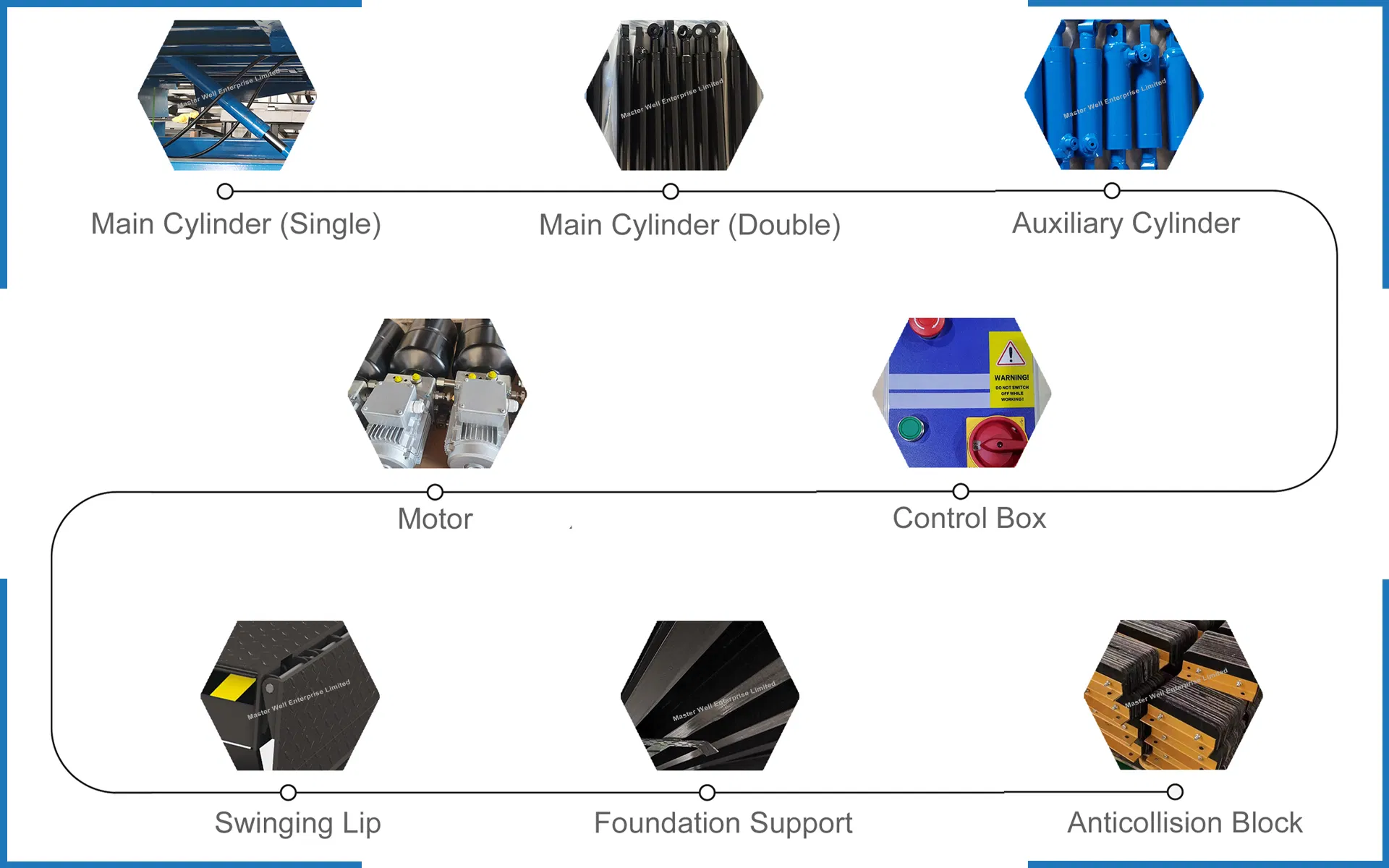

The dock leveler uses a hydraulic power unit to lift the upper main panel through the main oil cylinder, while a small auxiliary oil cylinder pushes out the lip plate. This system is essential when dock height and truck height differ. By utilizing the principle of self-weight drop, the lip plate is positioned onto the rear of the truck for seamless loading and unloading.
This hydraulic type is currently the most widely used platform due to its stable performance, simple operation, low maintenance requirements, and ease of repair.

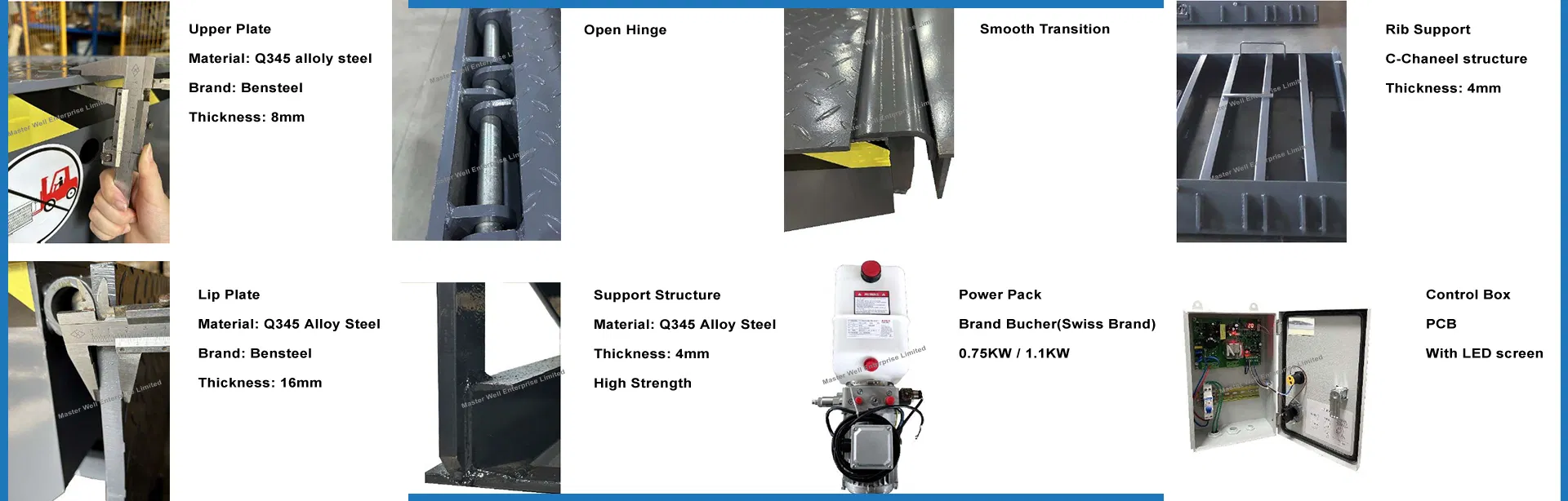

| Upper Plate | 8 mm thickness, anti-skate steel plate |

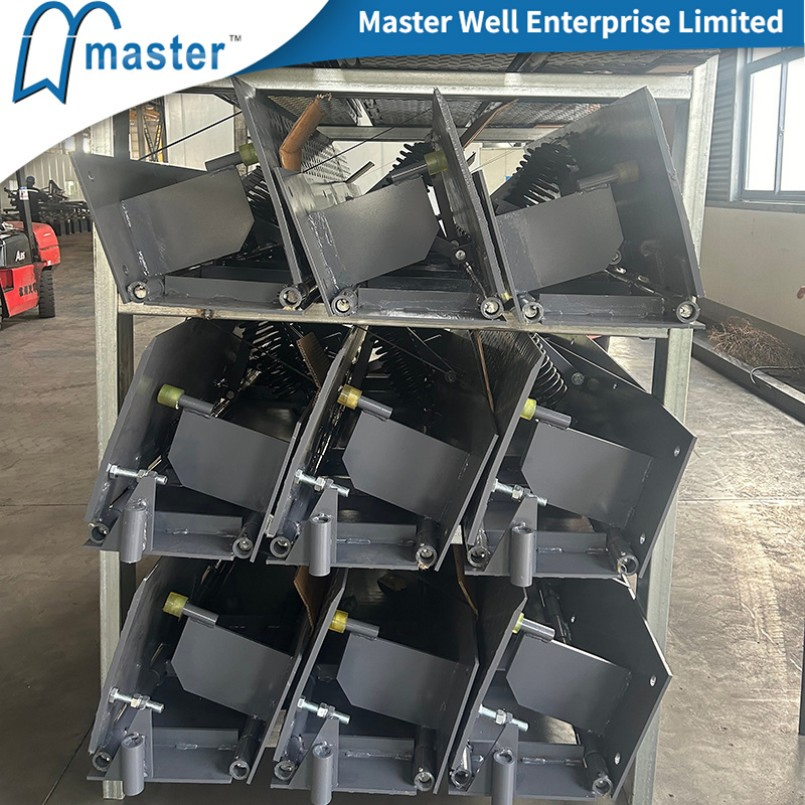

| Swinging Lip | Single 16 mm thickness, 400mm length |
| Support Profile | C-shaped stiffener / 14# I Beam |
| Sealing Element | Japan Brand NOK A505 |
| Working Range | +300mm / 260~300mm |
| Adjustment Time | Rise Time ≤16S, Fall time ≤10S |
| Dynamic Loading Capacity | 6,000 ~ 25,000 KG |
| Static Loading Capacity | 10,000 ~ 31,700 KG |
| Operating Temperature | -30℃ ~ +50℃ |
| Color Options | Blue / Grey / Black (Customizable) |
