Vistaro Door
1 / 5

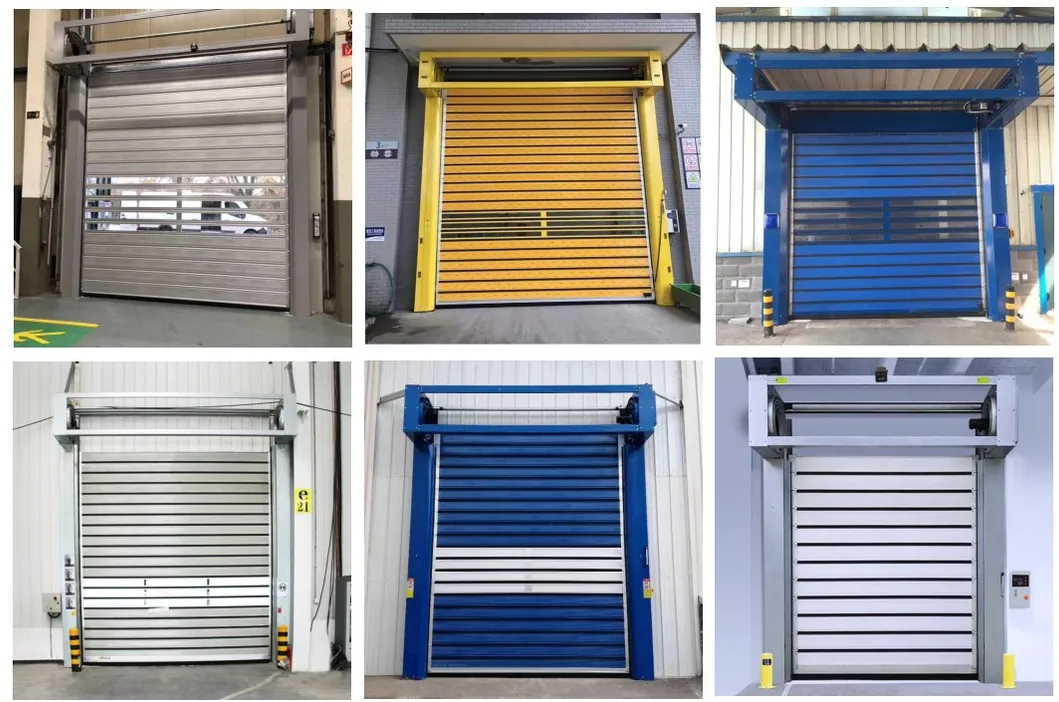

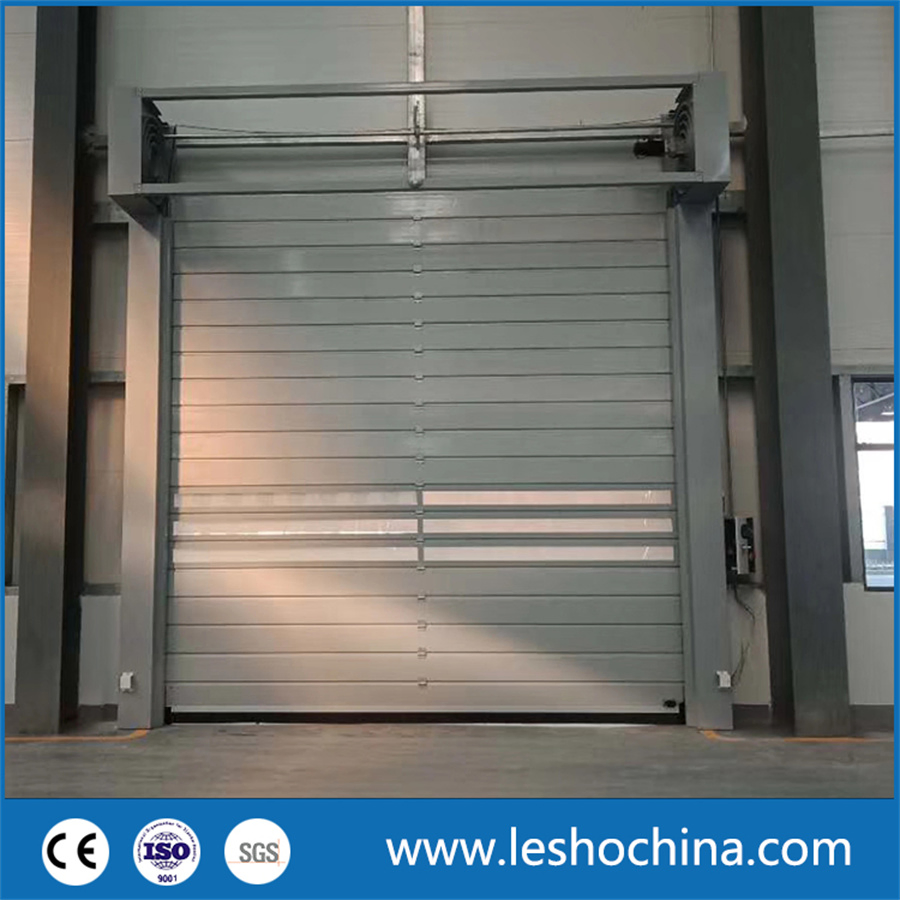

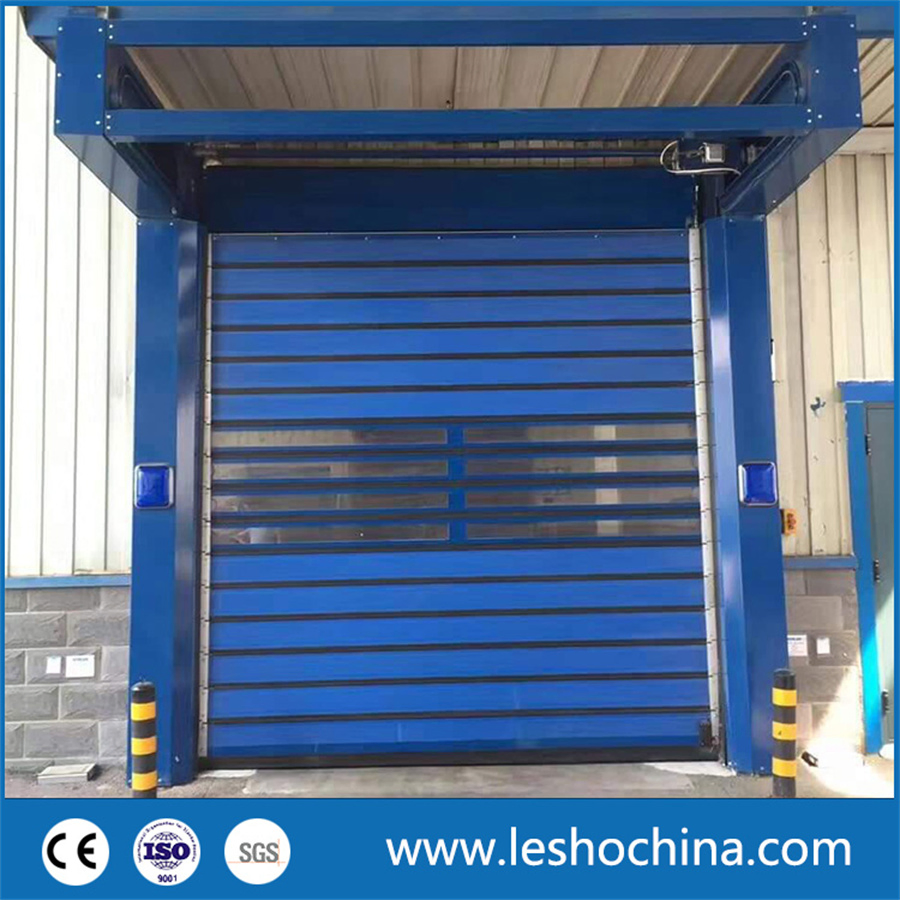

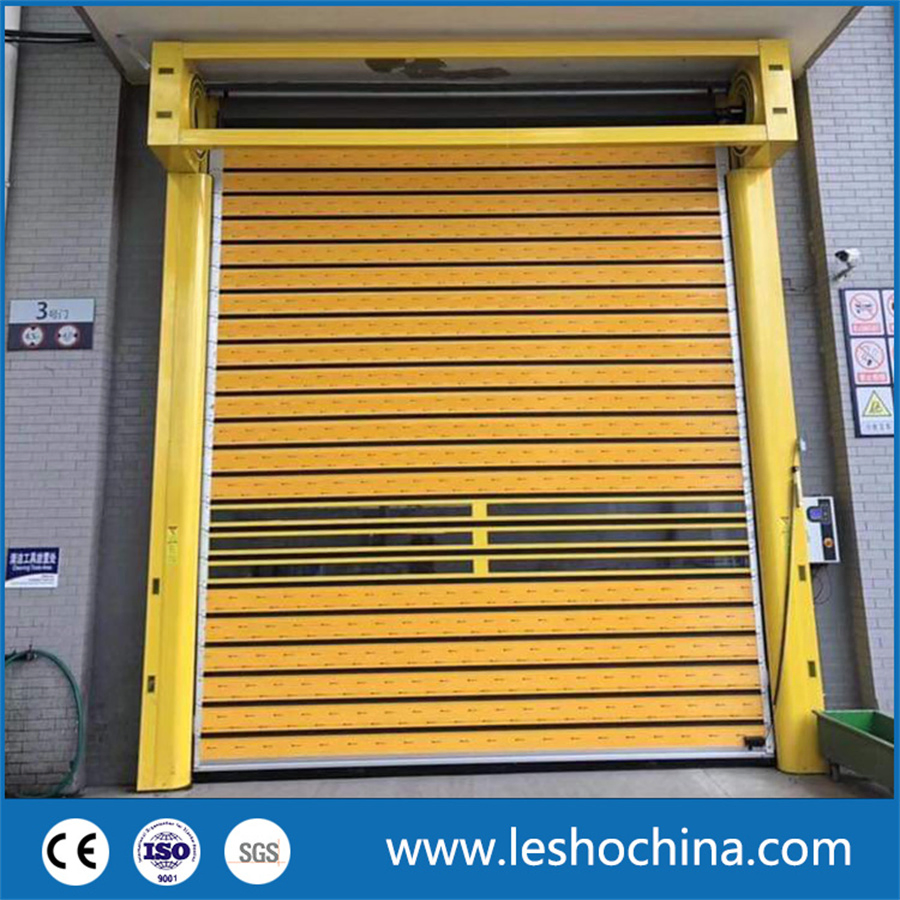

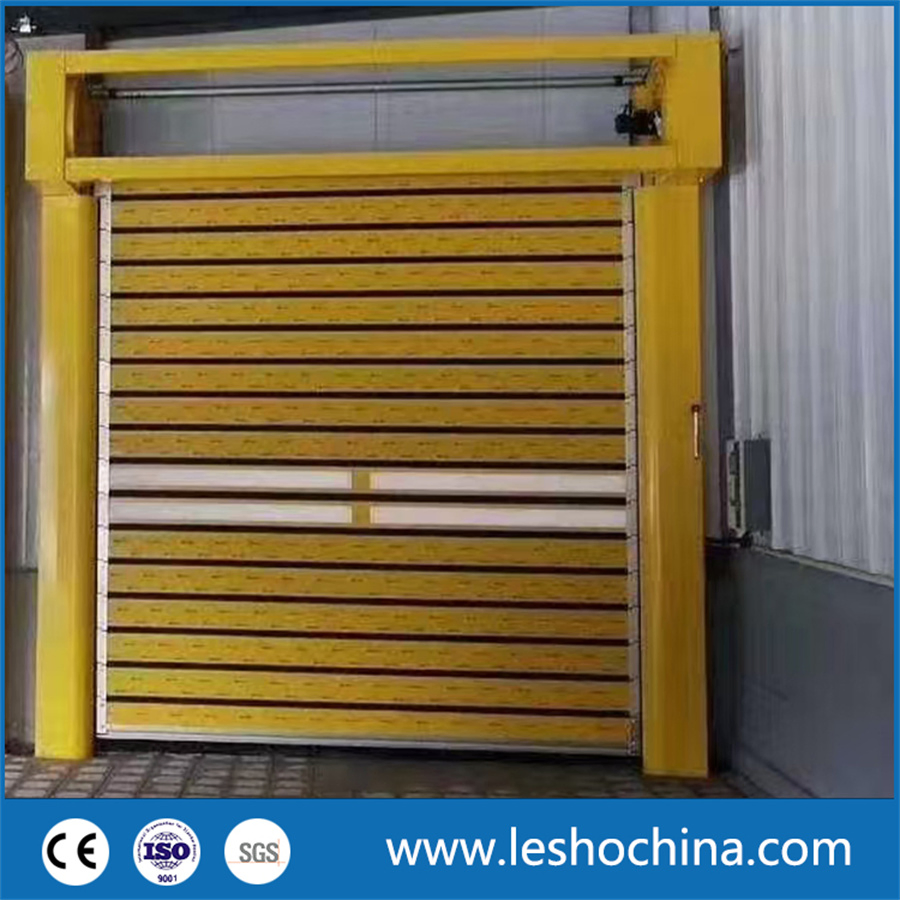

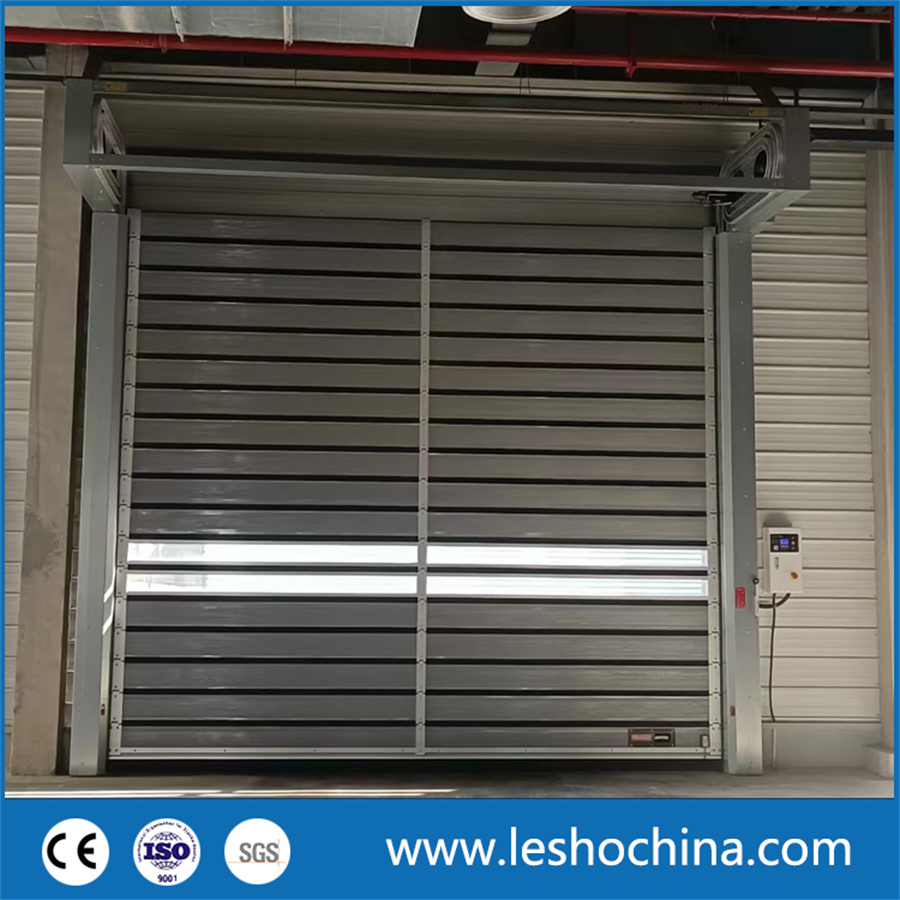

A model of Rapid Doors with thermal insulated aluminum slats. Most advanced and high-oriented model. It is fit for areas with high demand of both security, high-strength, thermal insulation and high running speed.
| Max dimension | 8000mm wide * 8000mm high |
| Wind resistance | Beaufort scale 12 (35m/s) |
| Max opening speed | 2.0m/s |
| Max closing speed | 1.0m/s |
| Sound insulation | R=25dB |
| Design Service Life | 20 years |

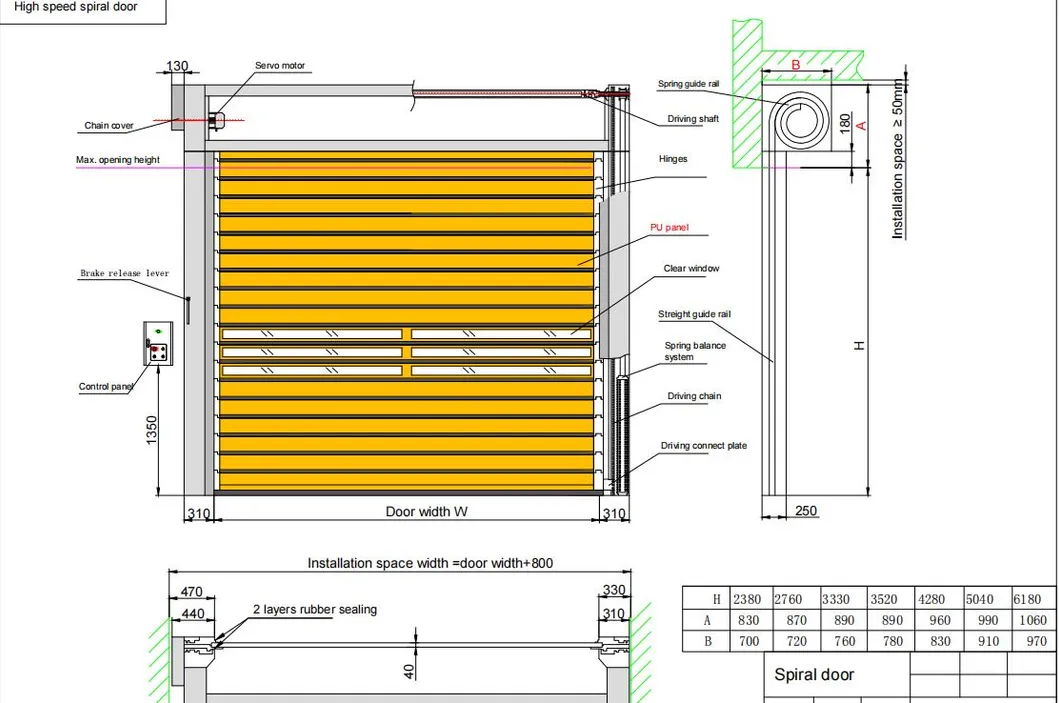

Accurate shop drawing to show the door dimension clearly, ensuring perfect fit and installation.

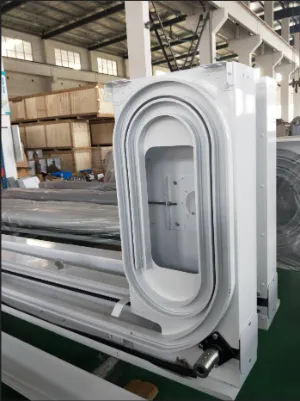

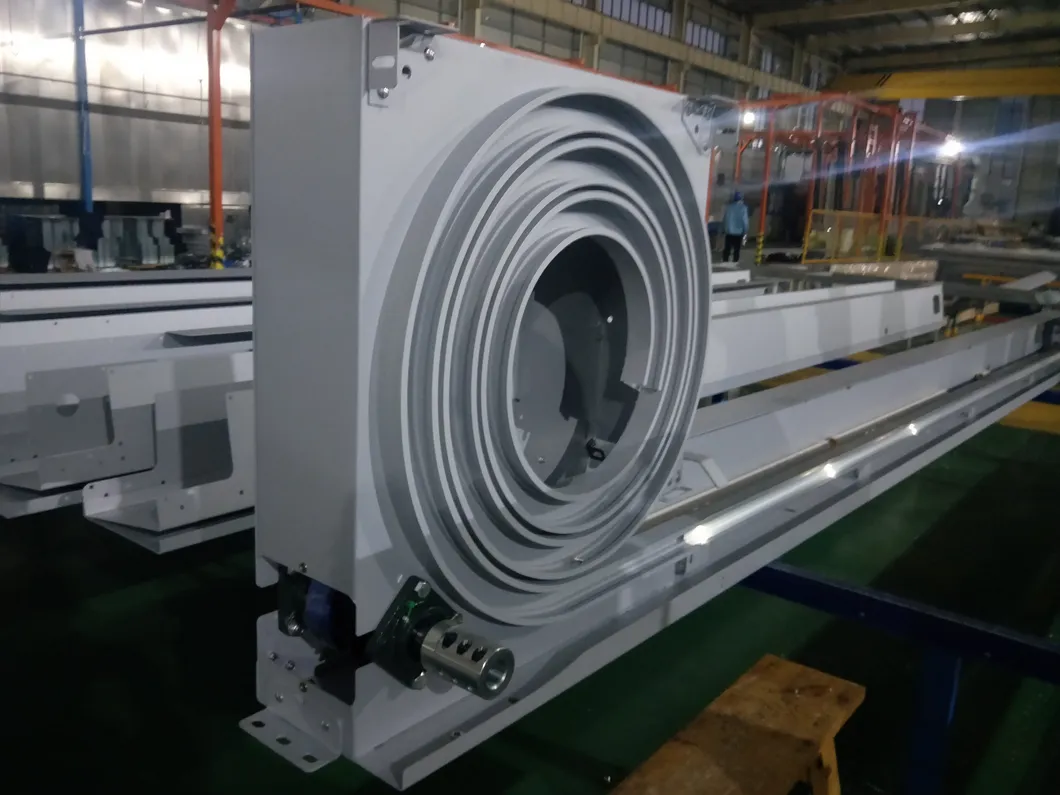

Aluminum alloy profile rail with smooth anodized surface. The door panel runs in guide rail by separate wheel, avoiding friction. This unique design combines high speed with a long service life.

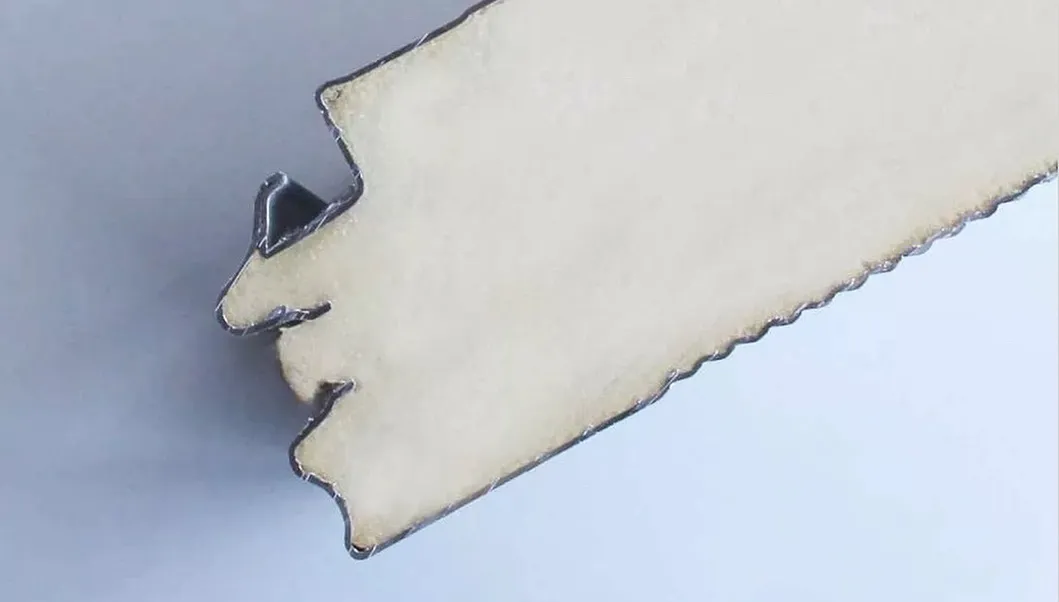

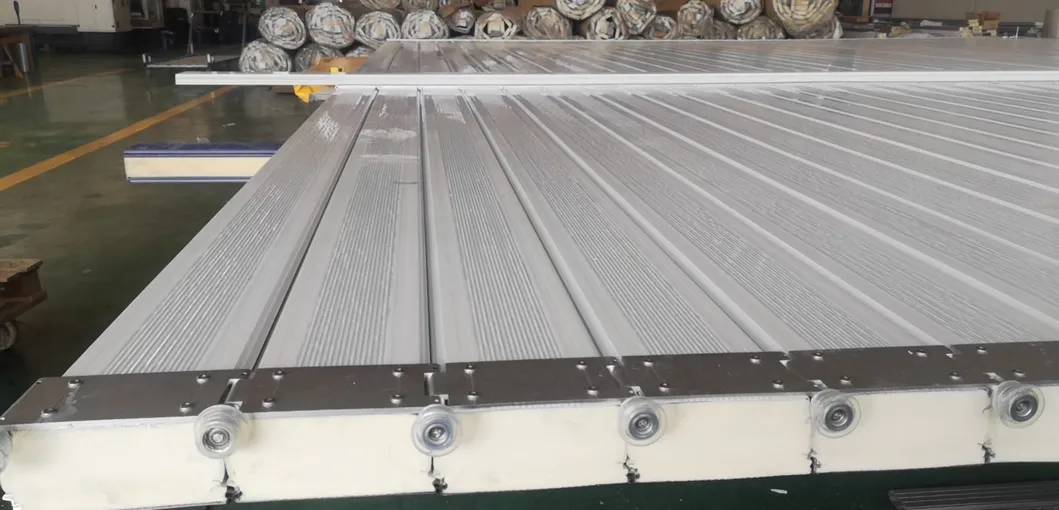

Double layer aluminum panel filled with intermediate polyurethane foam. The middle broken bridge design increases heat preservation, preventing energy loss.

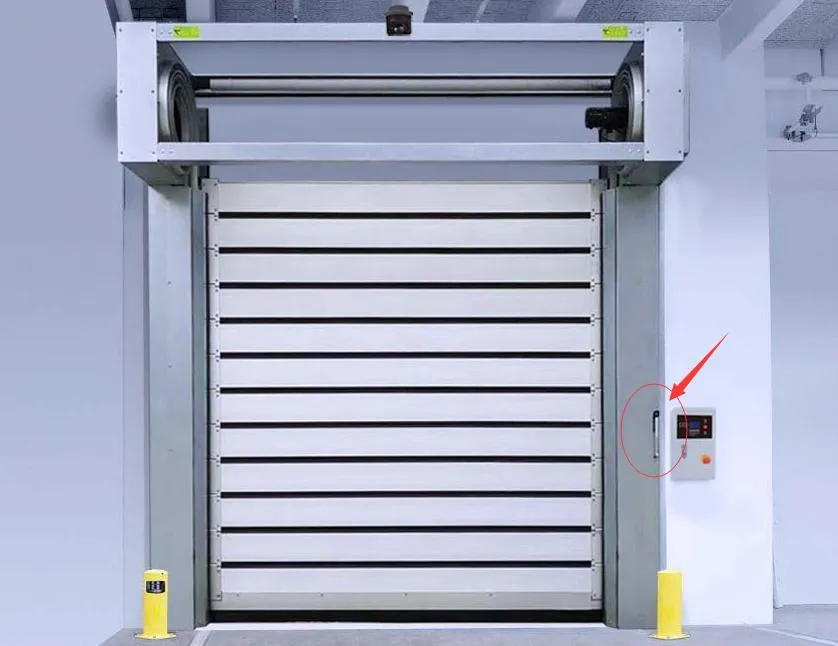

Most of the door weight is balanced by the spring system. It can be easily opened by hand under emergency situations like power failure.

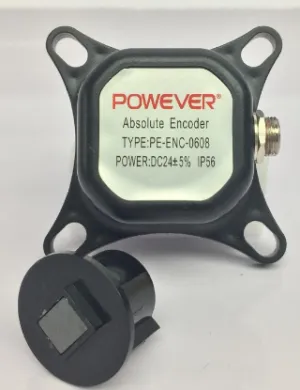

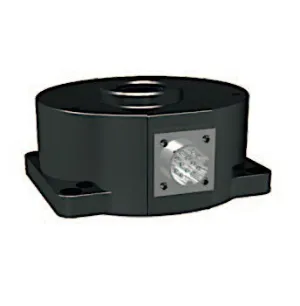

Equipped with advanced AC Servo control system for high-speed operation (up to 2.5m/s) and precise limits using double encoders.

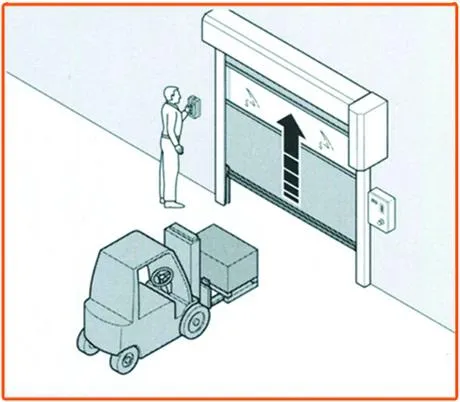

Standard push buttons, Remote control, Radar Sensor, Vehicle loop detector, or Pull switch.
1. Improve Transport Efficiency: Reduces waiting time for forklifts and personnel.
2. High Level Cleanness: Complies with GMP standards, ideal for food and pharmaceutical industries.
3. Energy Saving: Super seal and high speed opening keep indoor air regulated.
4. Intelligent Automation: Can be connected with production lines and AGV vehicles.
5. User Safety: Includes wireless safety edges and photo sensors as standard.
