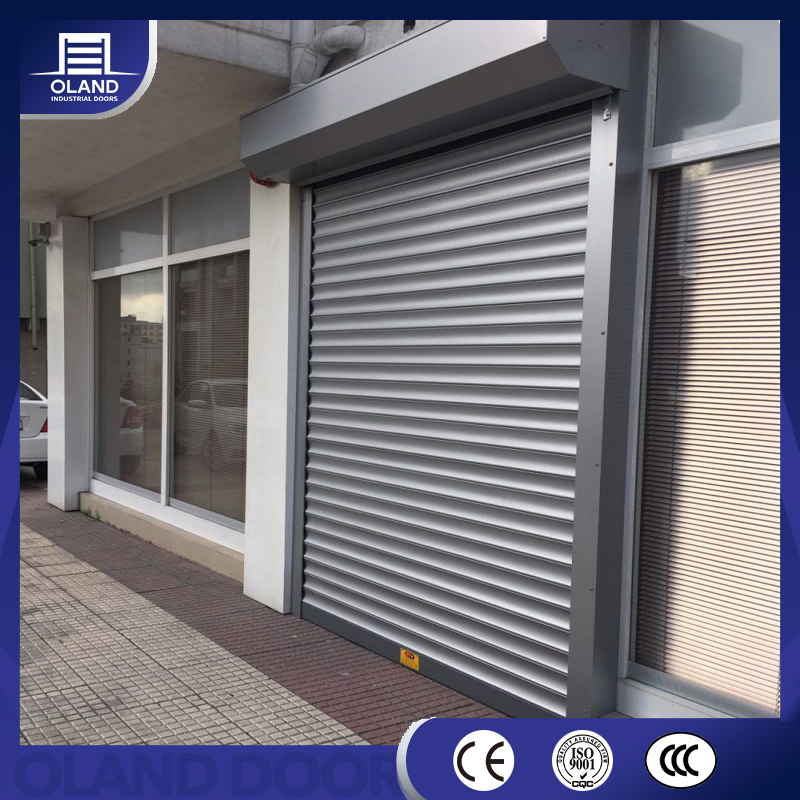

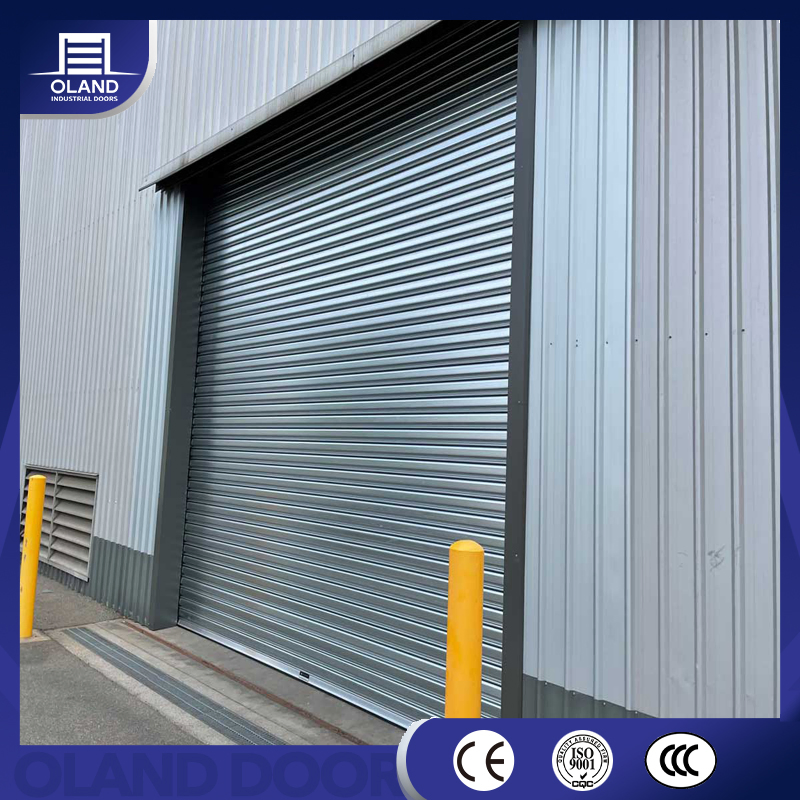

Industrial Metal Steel Fire Door 3 Hours Fire Proof Steel Rolling Industrial Doors Fire Rated Roller Shutter Door

1 / 5

Industrial Metal Steel Fire Door 3 Hours Fire Proof Steel Rolling Industrial Doors Fire Rated Roller Shutter Door

Customization:	Available
After-sales Service:	Online Technical Support/Parts Replacement
Warranty:	1 Years

Send Inquiry

Product Description

■ Basic Information

Model NO.

Steel fire rated roller shutter door

Material

Steel

Type

Rolling

Open Style

Rolling

Opening Type

Power Driven

Special Function

Fire Proofing

Certification

CCC, ISO9001, CE

Position

Industrial

■ Packaging & Delivery

Package Size

3500.00cm * 2000.00cm * 500.00cm

Gross Weight

1000.000kg

Transport Package

Wooden Box

■ Product Description

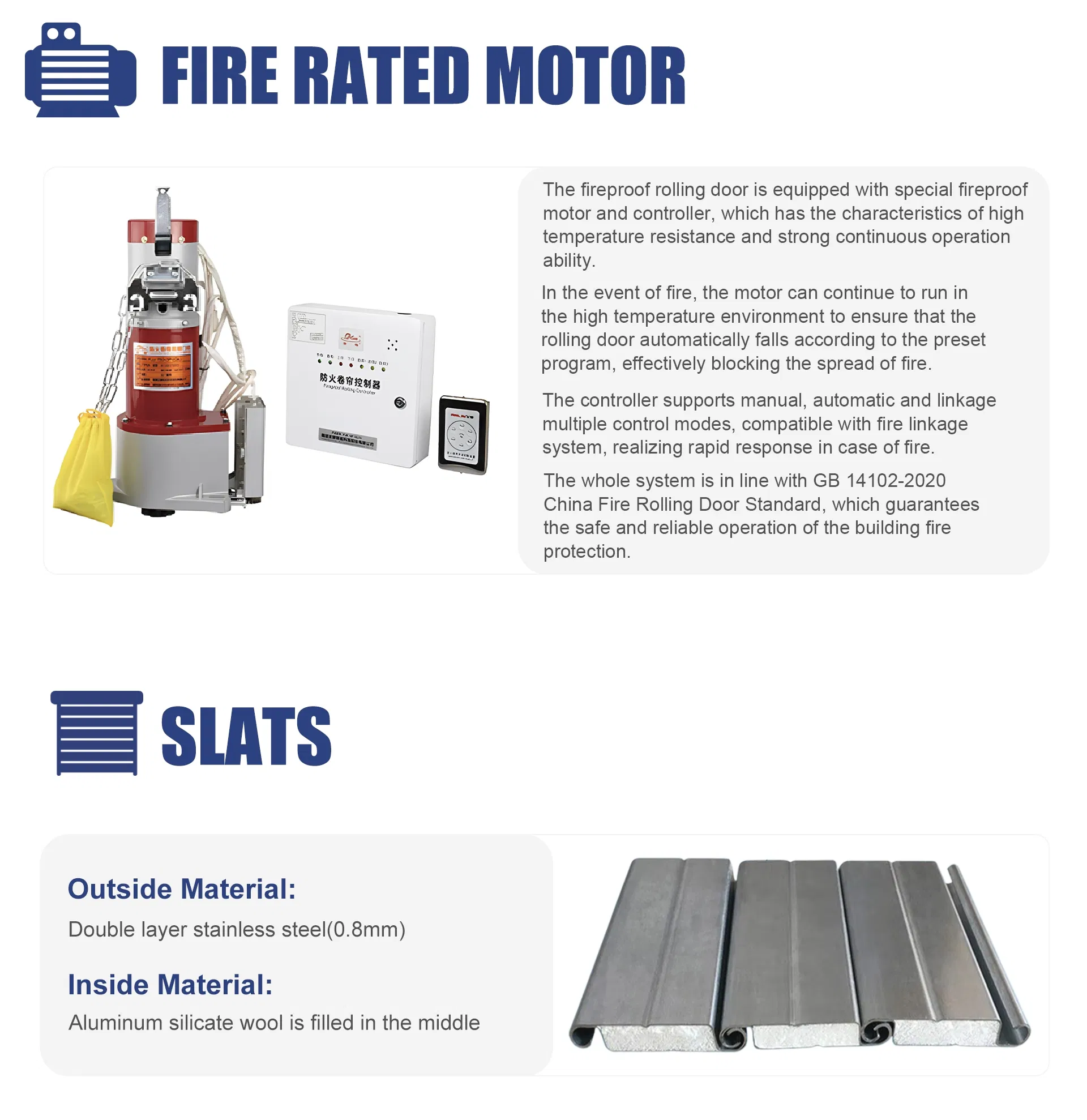

The steel fire rated roller shutter door adopts high-strength galvanized steel plate and is filled with fireproof material inside, which has excellent heat insulation and flame retardant properties. Equipped with special fireproof motor and control system, it can be linked with fire fighting to realize automatic response to fire. Widely used in shopping malls, garages, factories and other areas that require fire separation.

■ Technical Specifications

Technical Parameters
Max size	width * height 8000mm*10000mm
Panel material	Galvanized steel+aluminum silicate wool
Opening and closing speed	5-5.75m/min
Power supply	3phase 380v±10% m 50HZ, DC 24V CONTROLLER
Fire resistance time	≥3 hours
Wind resistance	10level-12level (34m/s)
Air tightness	Leakage through the door is 95m³/hour under 30 pa pressure
Unexposed surface temperature	≤154℃
Smoke leakage	≤0.12m³/(sqm/min)
Certification	Chinese CCC

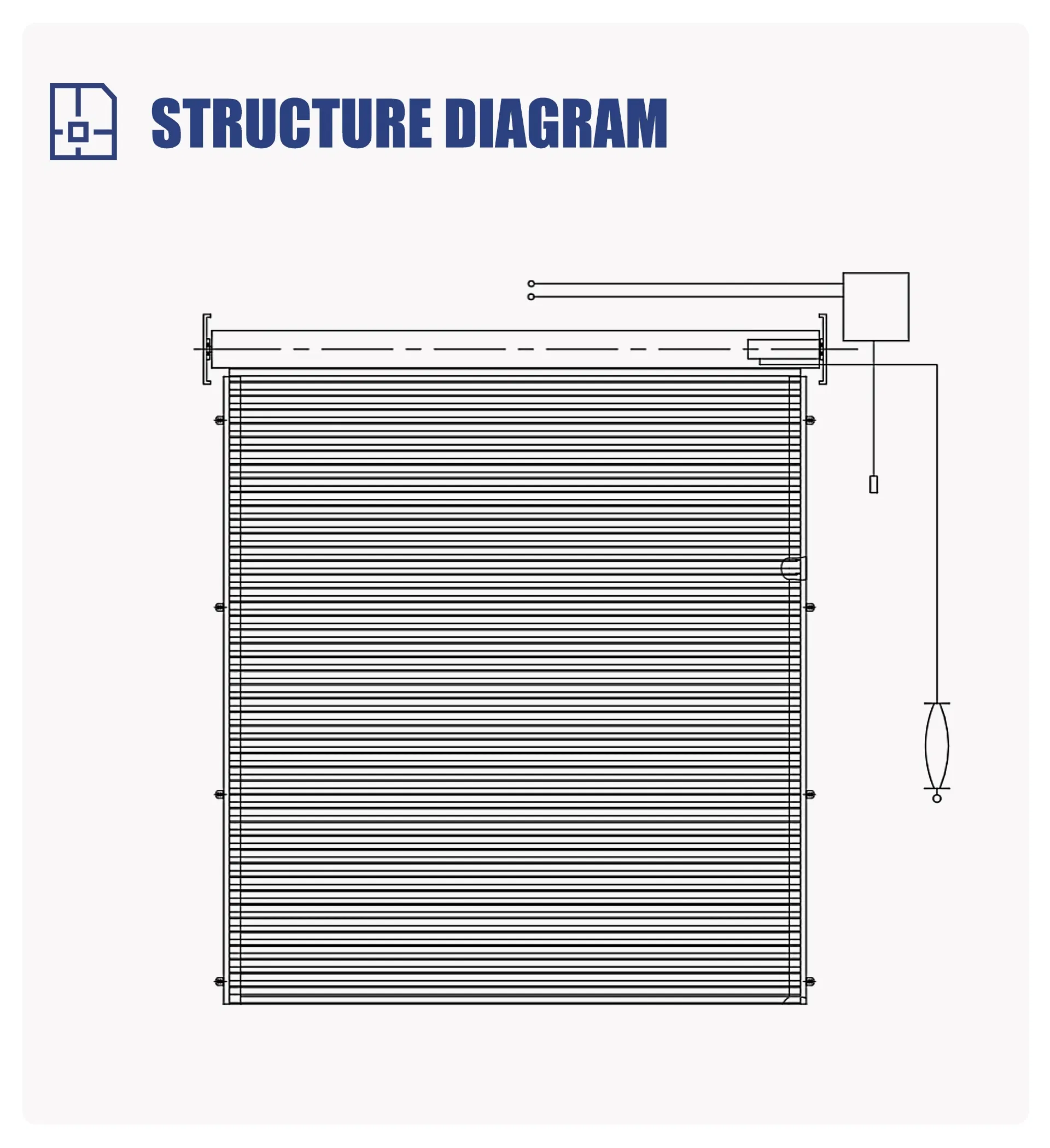

■ Structure Diagram

Standard version of the steel fire rated roller shutter door structure and accessories. Custom solutions available upon request.

■ Product Details

■ Production & Application

■ Frequently Asked Questions

What is your Minimum Order Quantity (MOQ)?

There is no limit. We accept orders for 1 set or more.

What is the estimated delivery time?

The delivery time is typically between 15 to 30 days.

What kind of packaging do you use?

We use high-quality polywood boxes to ensure the safety of the products during transport.

What are the accepted payment terms?

Usually we accept T/T, LC, Western Union, and Credit Cards. Other terms can be discussed based on preference.

Is it difficult to install these doors?

Installation is straightforward. We provide a manual and installation videos. Technical support and training for your staff are also available.

Do you produce other types of industrial doors?

Yes, we also manufacture sectional garage doors, industrial doors, high-speed doors, and hangar doors. We have extensive export experience since 2003.
