Industrial Roller Shutter Door Automatic Aluminum High Speed Door Aluminum Spiral Door Security Fast Rolling Door Fast Warehouse Door Fast Garage Door Price

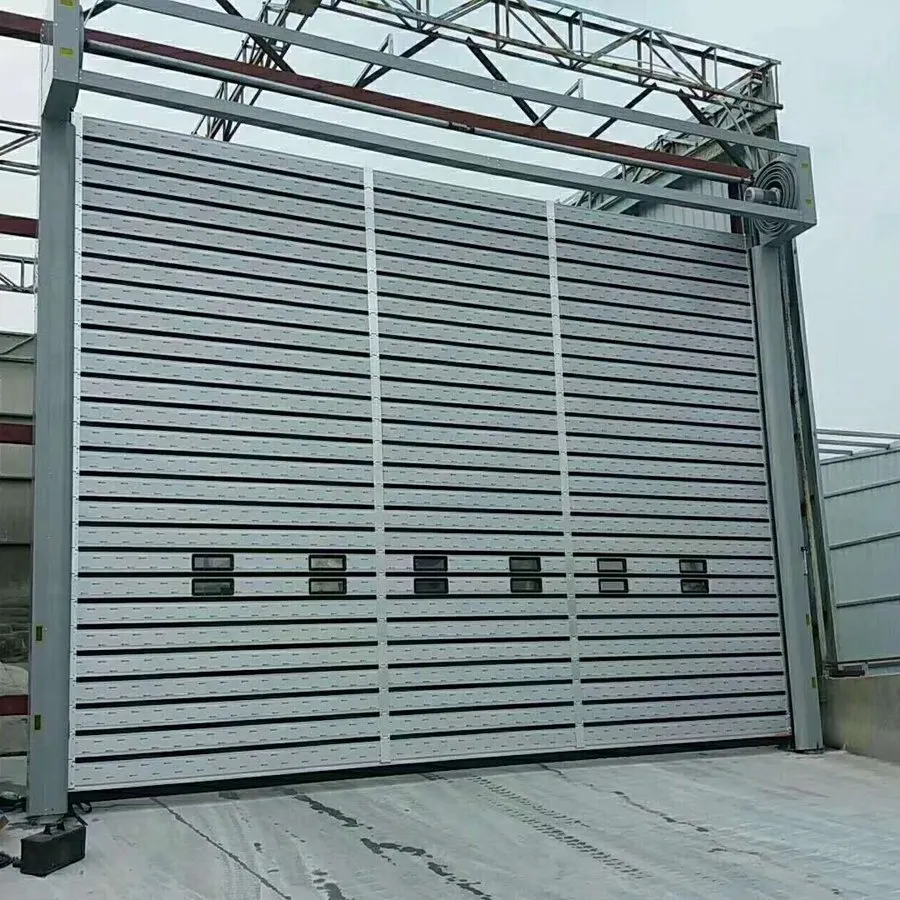

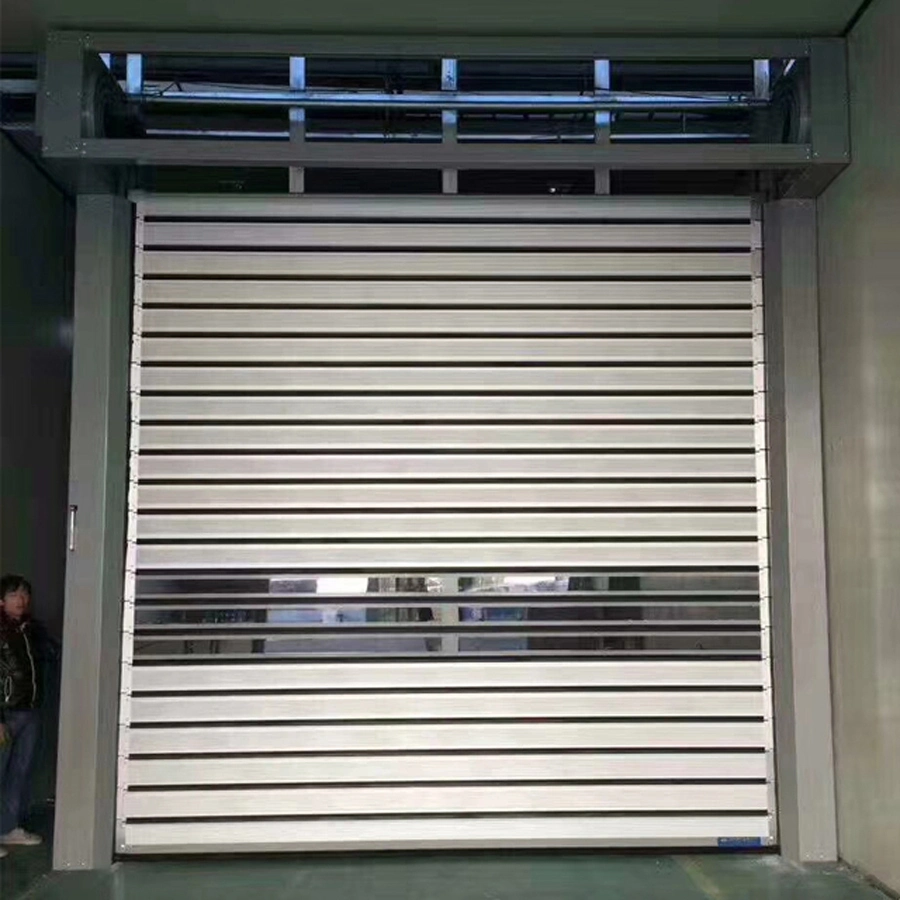

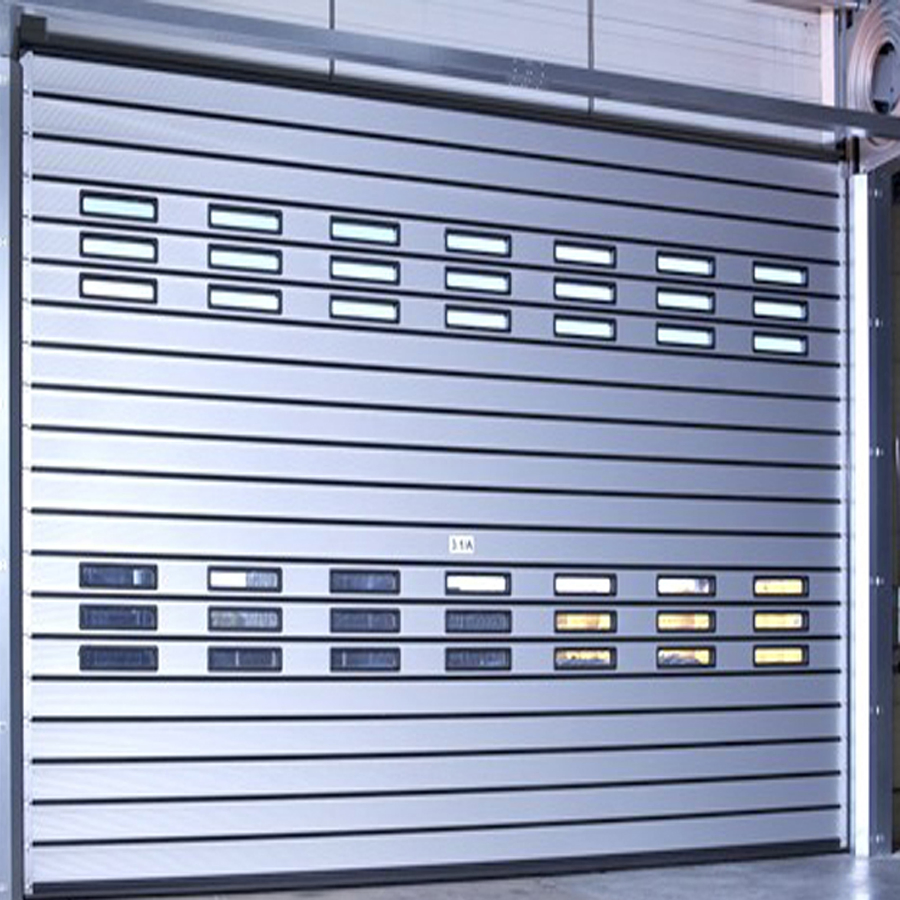

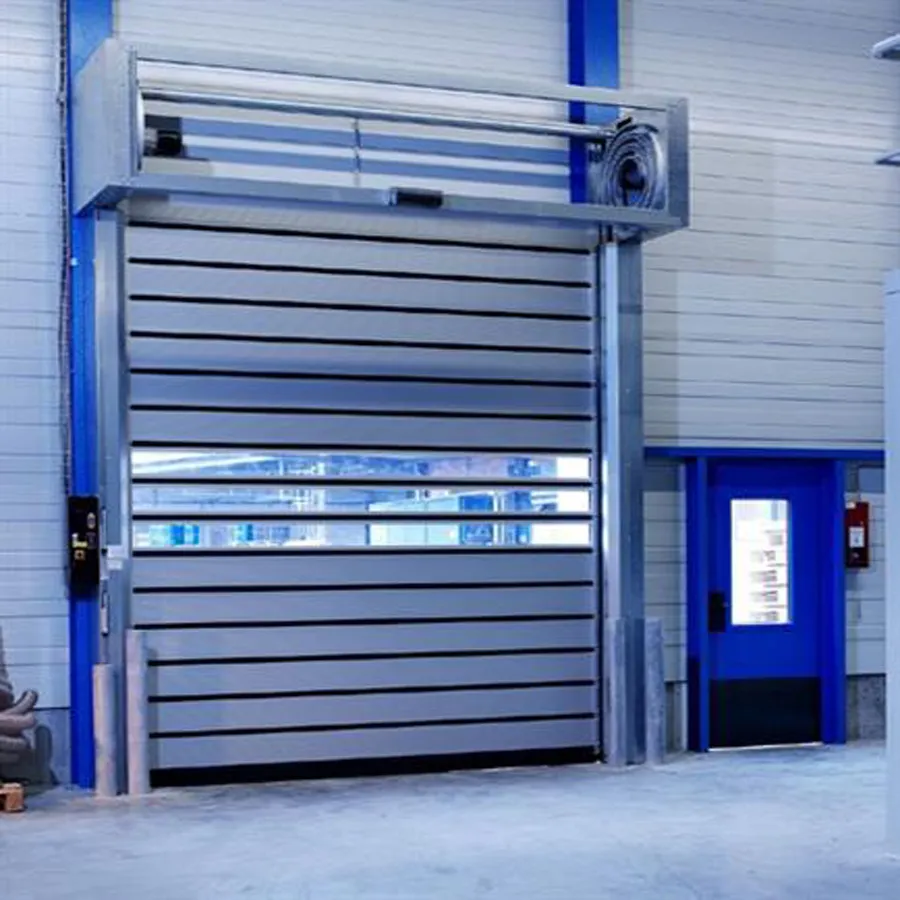

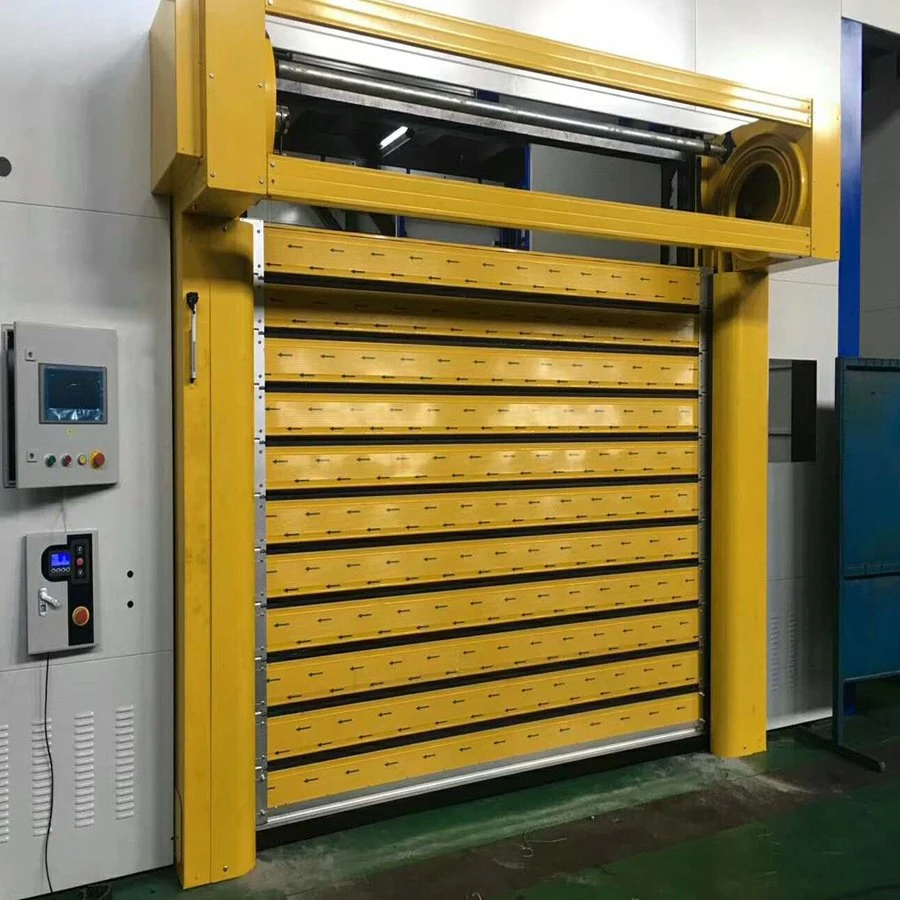

Aluminum Spiral Fast Rolling Security Door

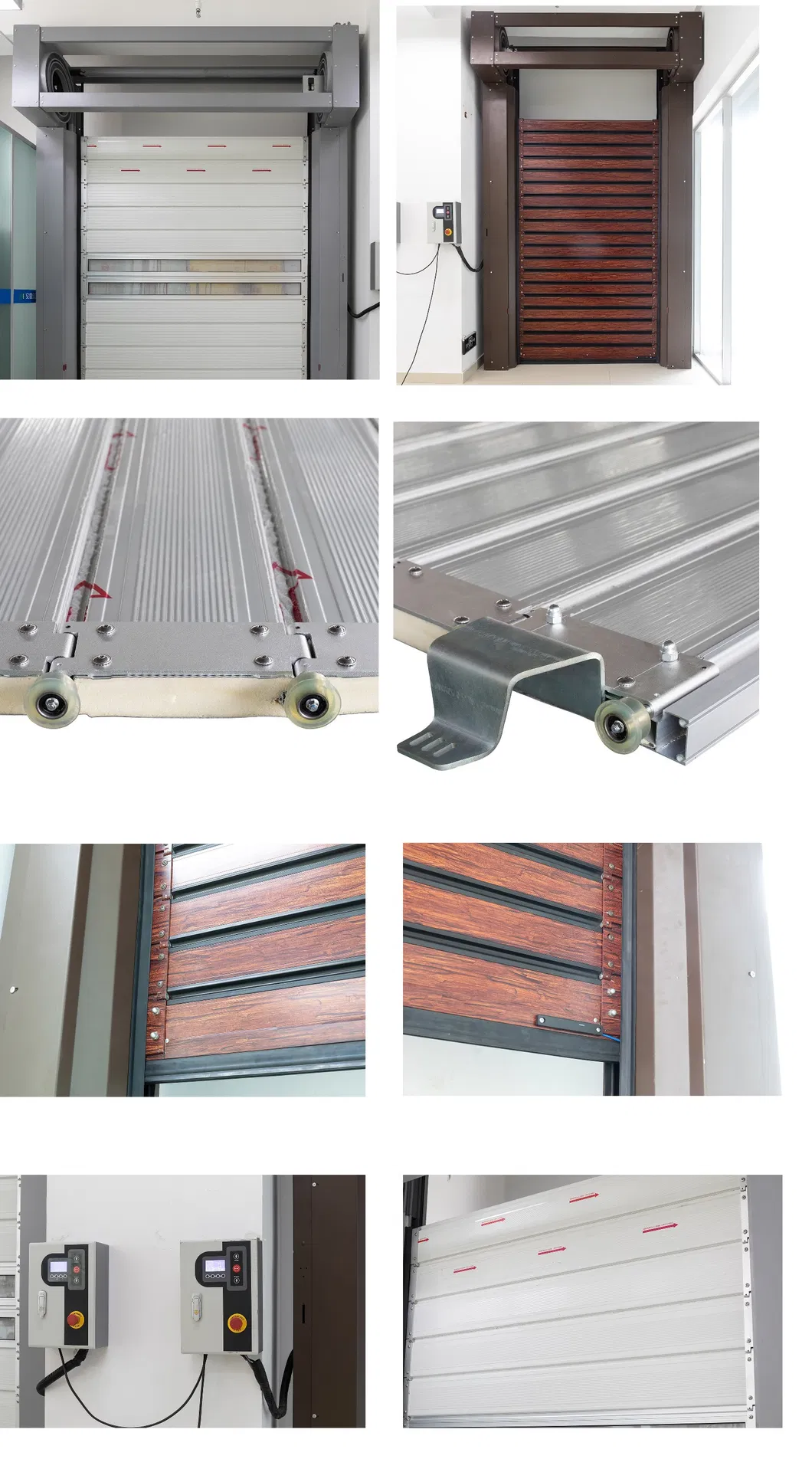

New anti-pinch broken bridge foam door panel technology makes the door body light, easy to install, and significantly improves heat preservation and operation efficiency.
The running track can be single spiral, double spiral, elliptical, smooth, straight, and special-shaped series, designed according to your door opening space. This technology is an upgrade of the hard fast door plate, solving issues like debris interference, deformation, and abnormal sound common in traditional panels. In environments with high temperature differences, the broken bridge foam door prevents ice or frost buildup, extending the overall life of the door.
Technical Overview
Performance Parameter
Max. Opening Speed
2.5m/sec
Max. Closing Speed
0.8m/sec
Material
0.8mm aluminum alloy with PU-foamed
Frame
Galvanized steel frame
Depth / Section Height
40mm / 220mm
Resistance to Wind Load
Class 4 (~130km/h)
Acoustic Insulation
R=22 dB
Thermal Insulation
UD=1.95W/(M²K)
Core Features
Practical & Durable
High efficiency operation with minimal failure probability during long-term use.
High Speed Stability
Variable frequency motor technology ensures fast, stable, and adjustable running speeds.
Windproof & Sealing
Excellent resistance to wind, providing a sealed environment against dust and insects.

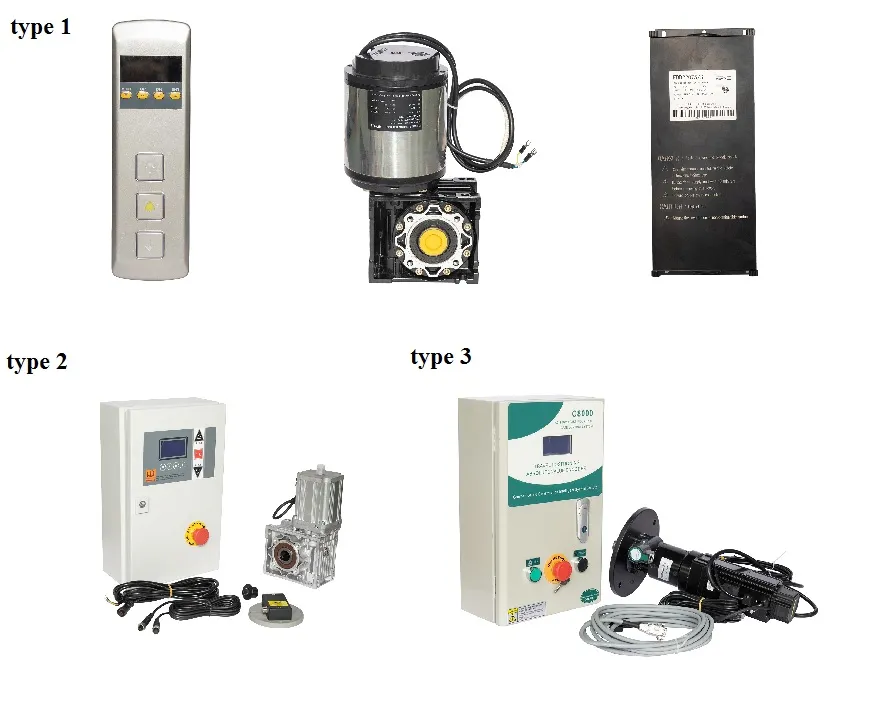

Motor System Advantages
Equipped with advanced servo motors or three-phase asynchronous motors. Servo motors offer:
Accuracy: Closed-loop control of position, speed, and torque.
Stability: Smooth low-speed operation without stepping issues.
Efficiency: Rapid acceleration and deceleration within milliseconds.
Packaging & Delivery
We provide two types of packaging: PE film packaging for long panels (full container orders) and wooden box packaging for complete sets (LCL or full container).
Frequently Asked Questions
1. What is the sample policy?
Samples are provided for free, but the freight cost is covered by the customer. This freight will be deducted from your first official order.
2. What is the standard delivery time?
For regular orders with standard colors and sizes, the delivery time is approximately 15 days after receiving the prepayment.
3. What payment terms do you accept?
We accept T/T, L/C at sight, Western Union, and PayPal for flexible transactions.
4. What is the warranty period for the doors?
We offer a 5-year warranty for the door panels and hardware, and a 2-year guarantee for the motors.
5. Do you provide OEM services?
Yes, we offer comprehensive OEM services to meet customized branding and specification requirements.
6. What is the maximum opening frequency?
The high-speed door system is designed for high-traffic areas, supporting a maximum opening frequency of up to 3000 times per day.
