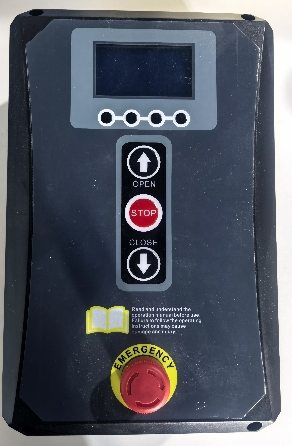

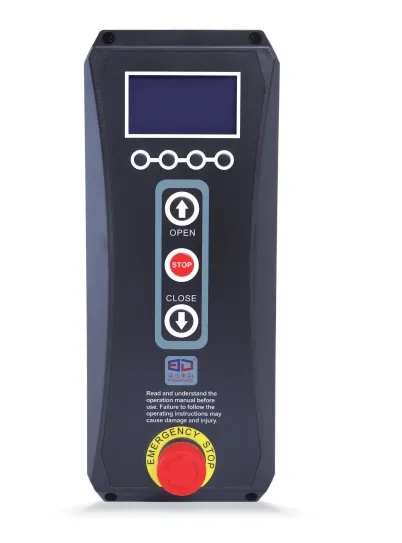

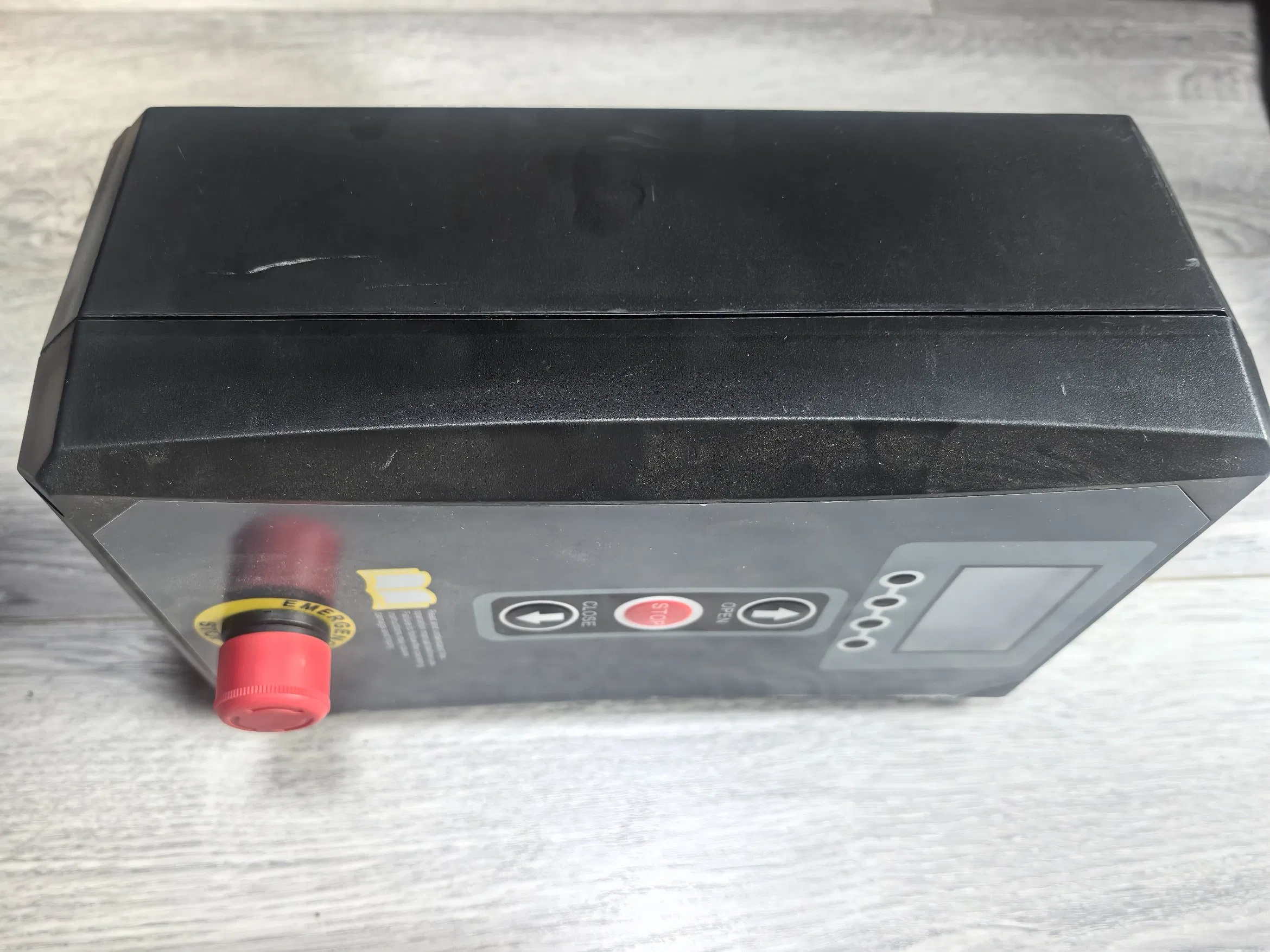

Control Box: The essential brain behind seamless industrial door operations, ensuring smooth and efficient functionality.

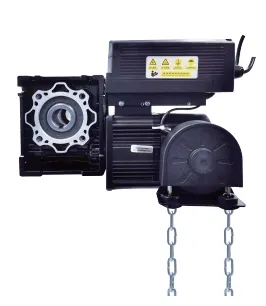

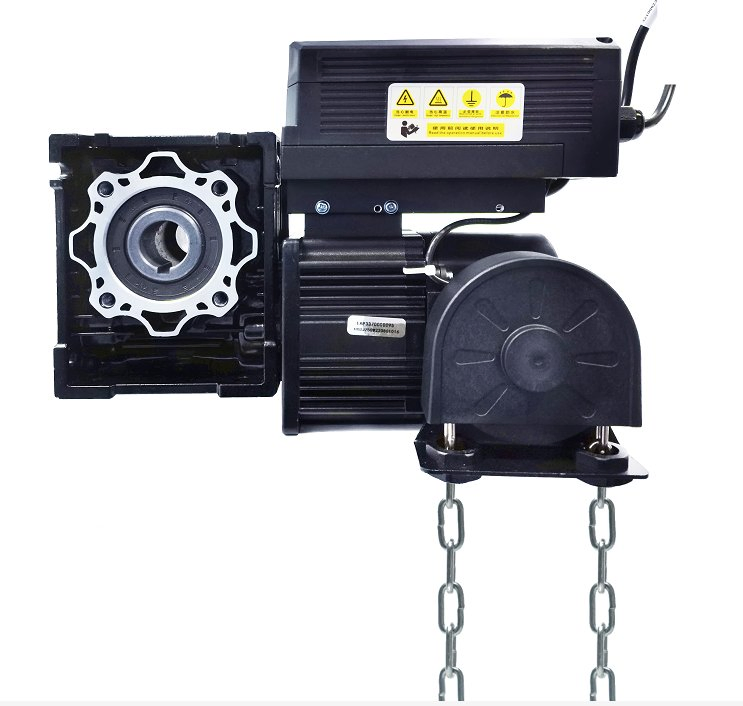

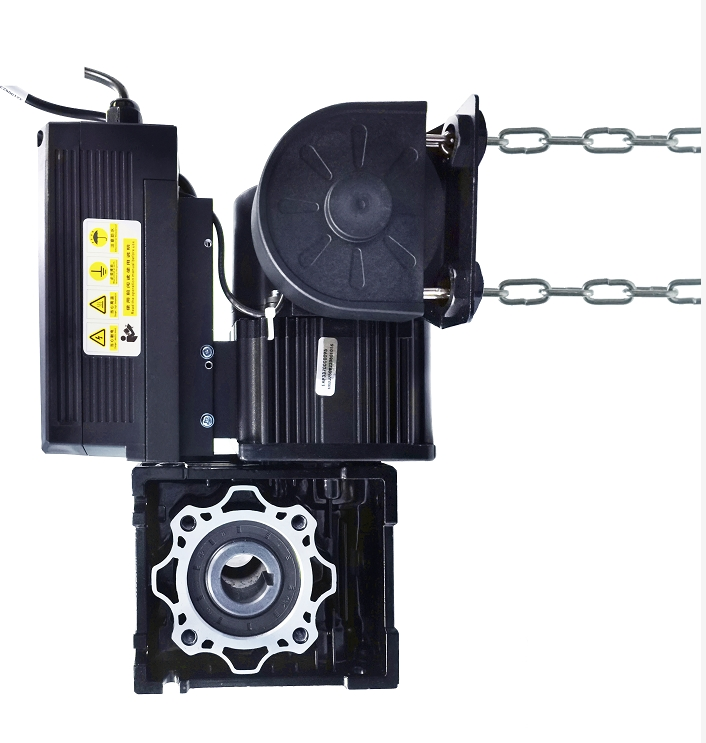

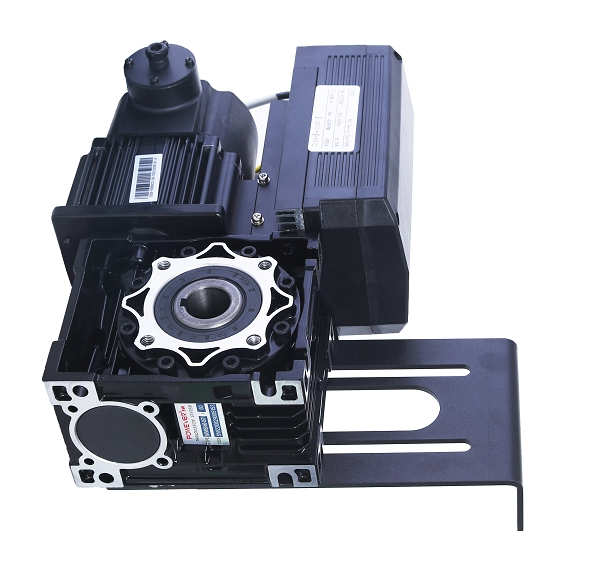

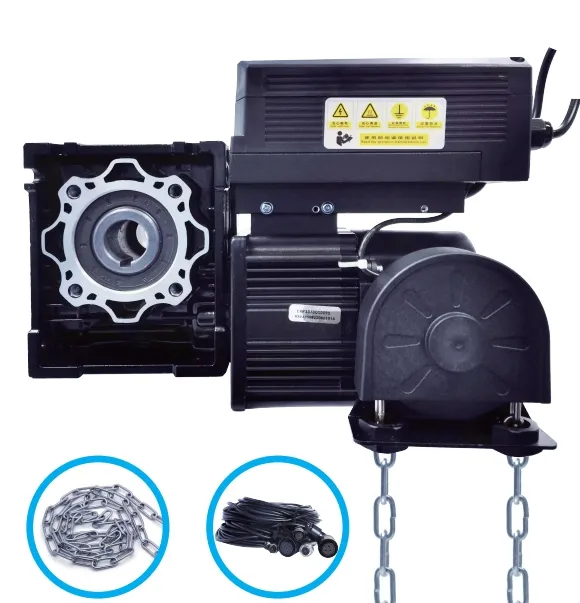

Motor Group: Engineered for excellence, the powerhouse for your high-speed doors.
| Parameter | Specification |
|---|---|
| Output rated torque | 40N.m |
| Motor power | 550W |
| Reducer specifications | RV50 1:60 |
| Output rated speed | 40 rpm |
| Maximum adaptation area | 20㎡ |
| Input current | 4.8A |
| Motor IP grade | IP54 |
| Working environment temperature | -20 ºC to 50 ºC |
| Limit mode | Electronic limit |
Control Box Size Line Diagram:

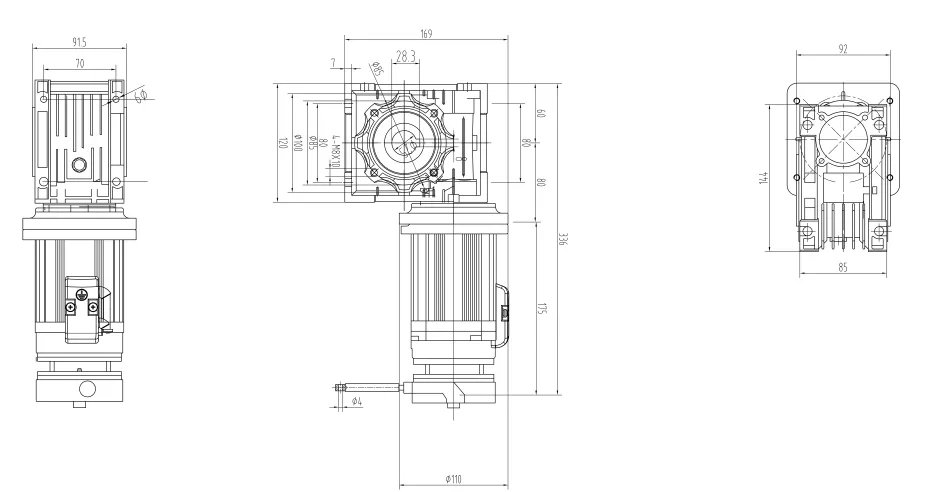

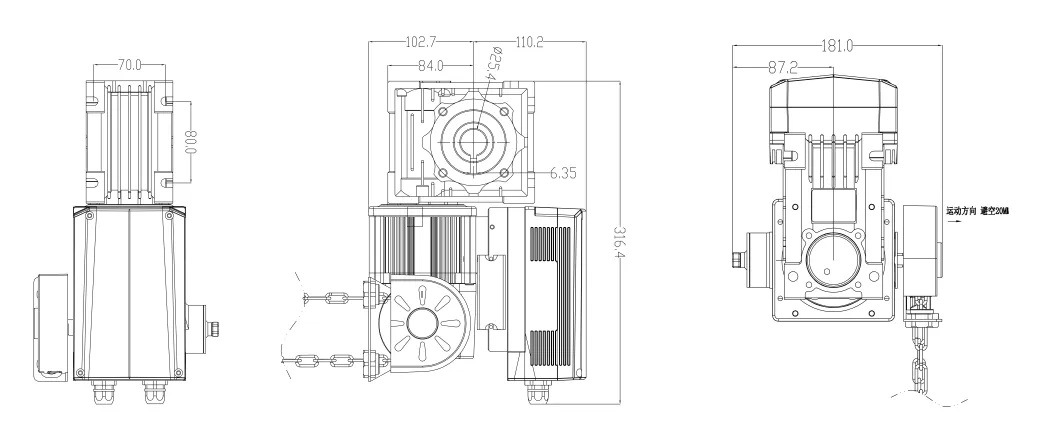

Electric Unit Size Line Diagram:
| Slow start and slow stop function | Standard |
| Self-test function | Standard |
| Active maintenance reminder | Standard |
| RS485 communication | Optional |
| Operation modes | Electric / Inching / Hand zipper |
| Speed regulation | Stepless speed regulation for opening/closing |
| Automatic door closing delay | Prohibited - 240s |
Industrial K Fast Door C40: Experience unparalleled speed and efficiency with our top-of-the-line model.
