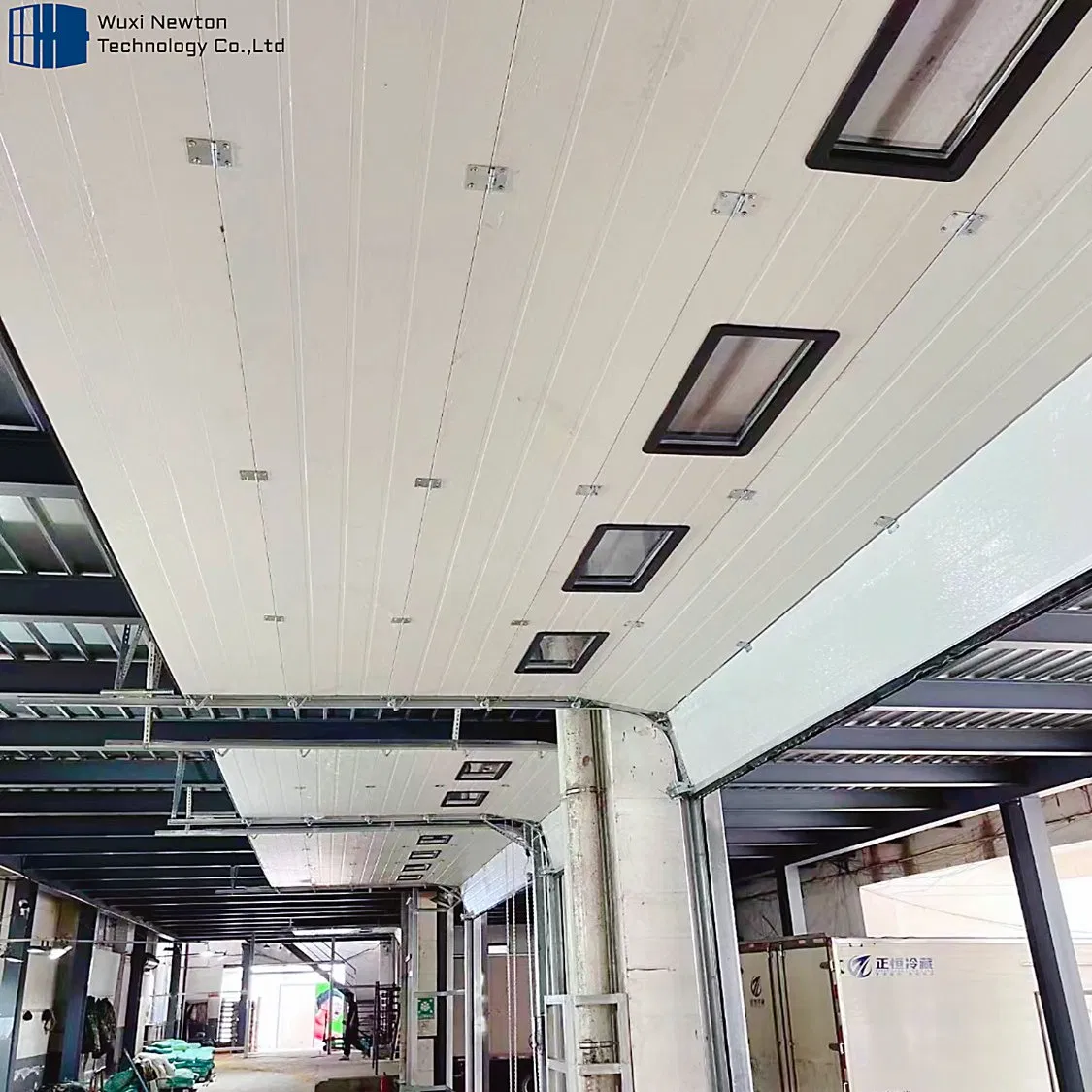

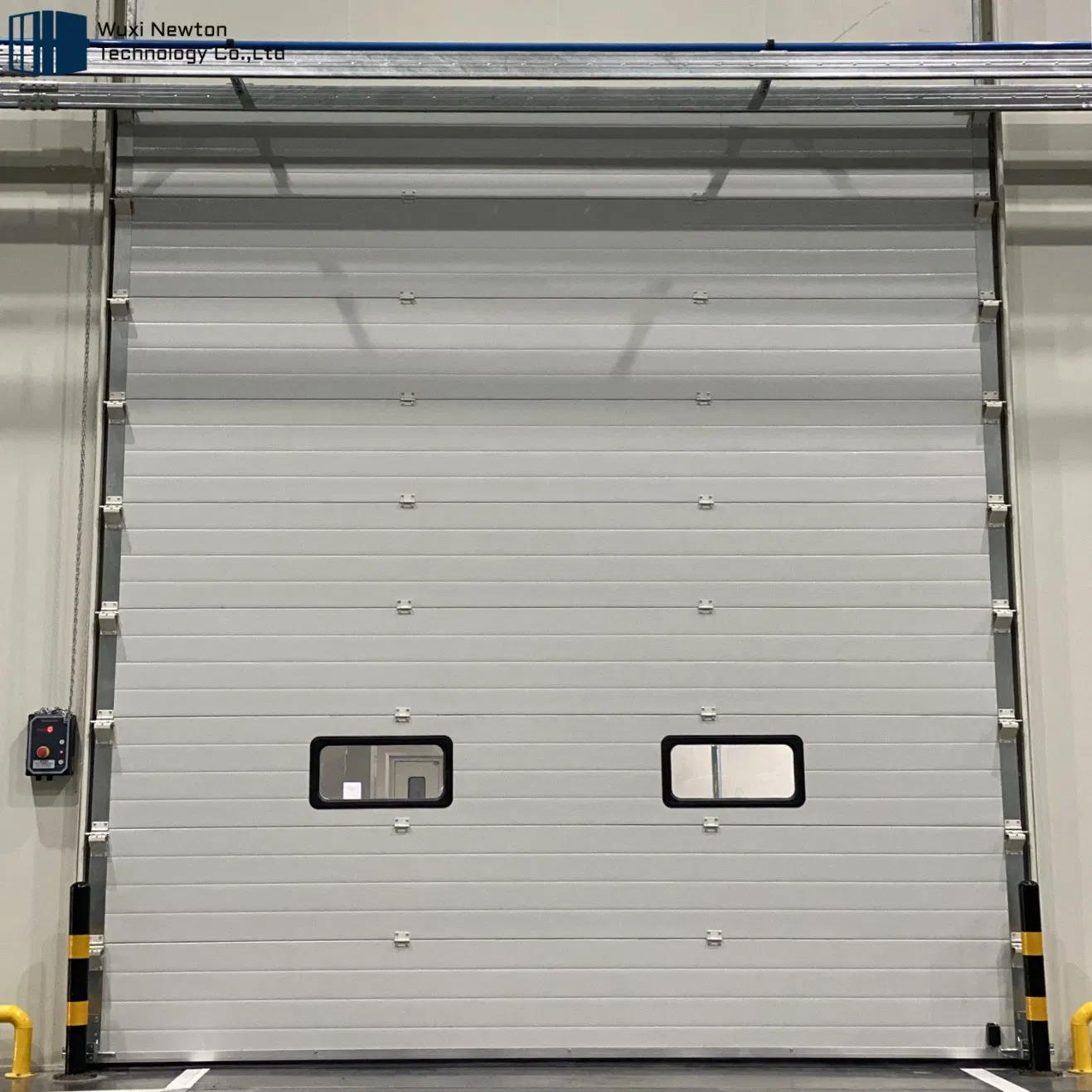

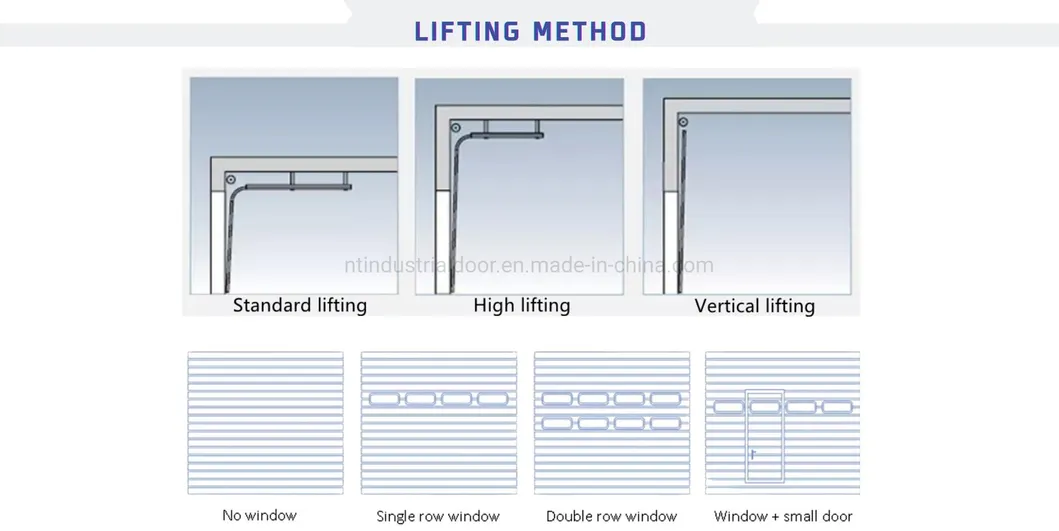

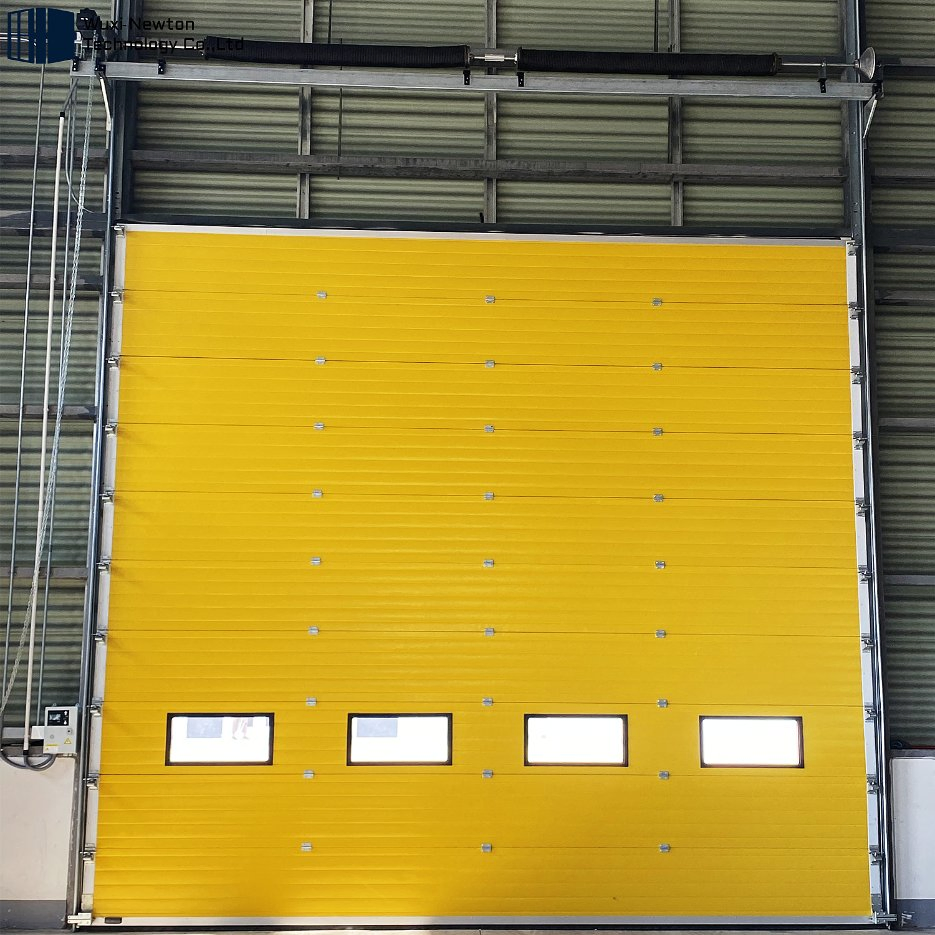

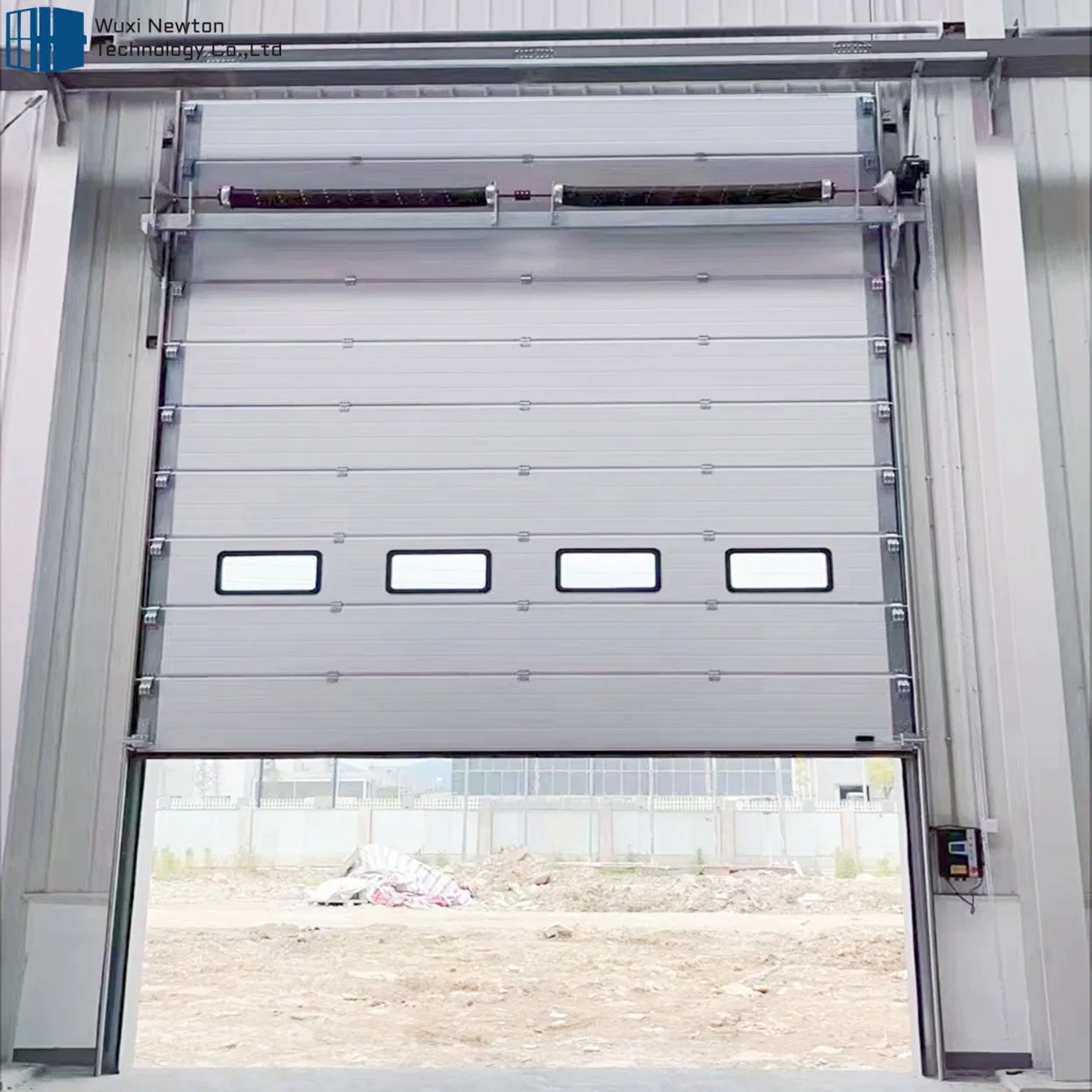

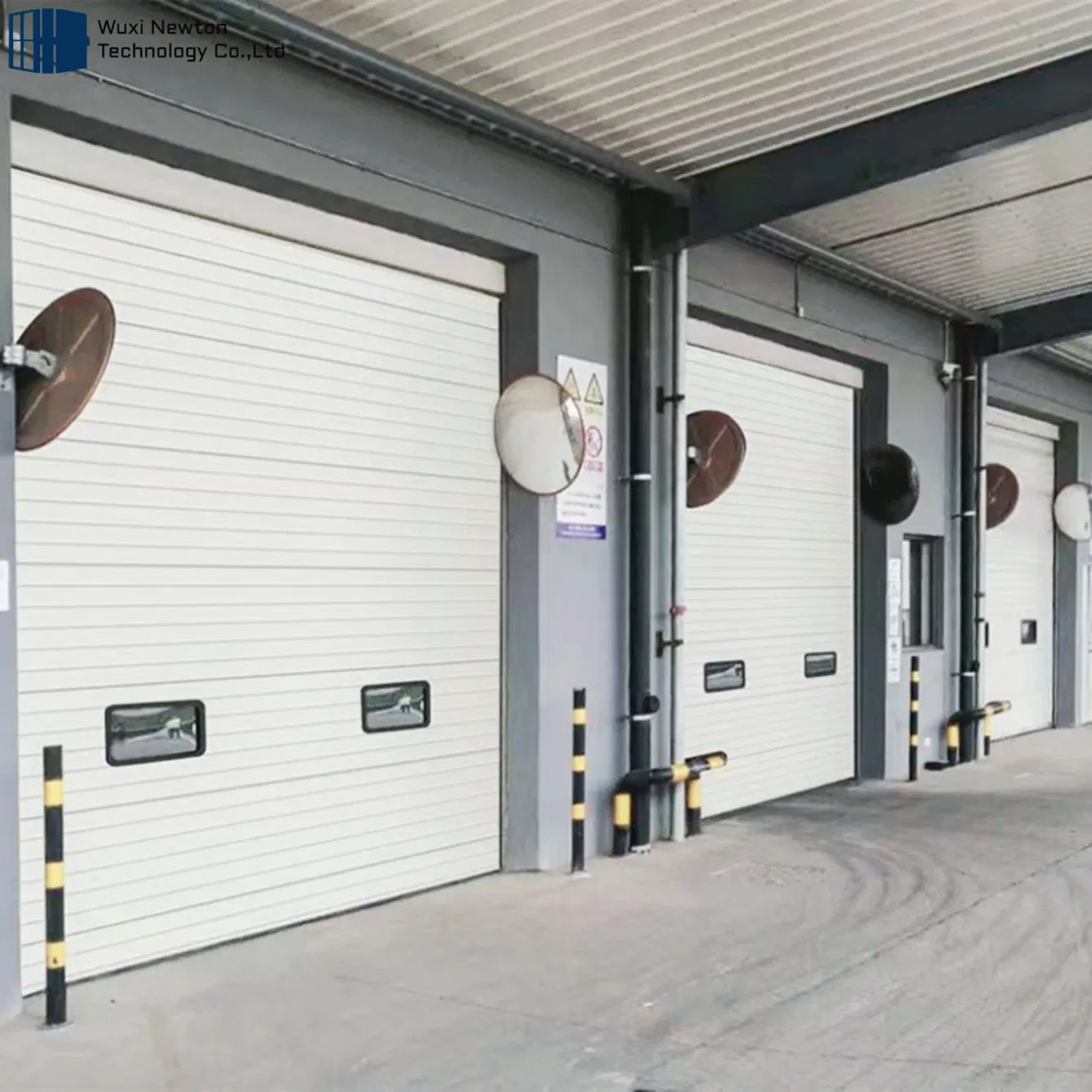

Industrial sectional vertical lift overhead garage doors are designed for heavy-duty industrial environments. They offer customized lifting methods based on civil structures, including straight type, standard lifting, high lintel, and low lintel configurations.
| STRUCTURE | FINGER SAFE | NON FINGER SAFE |
|---|---|---|
| Section's height | 450mm, 500mm, 550mm | 500mm, 550mm |

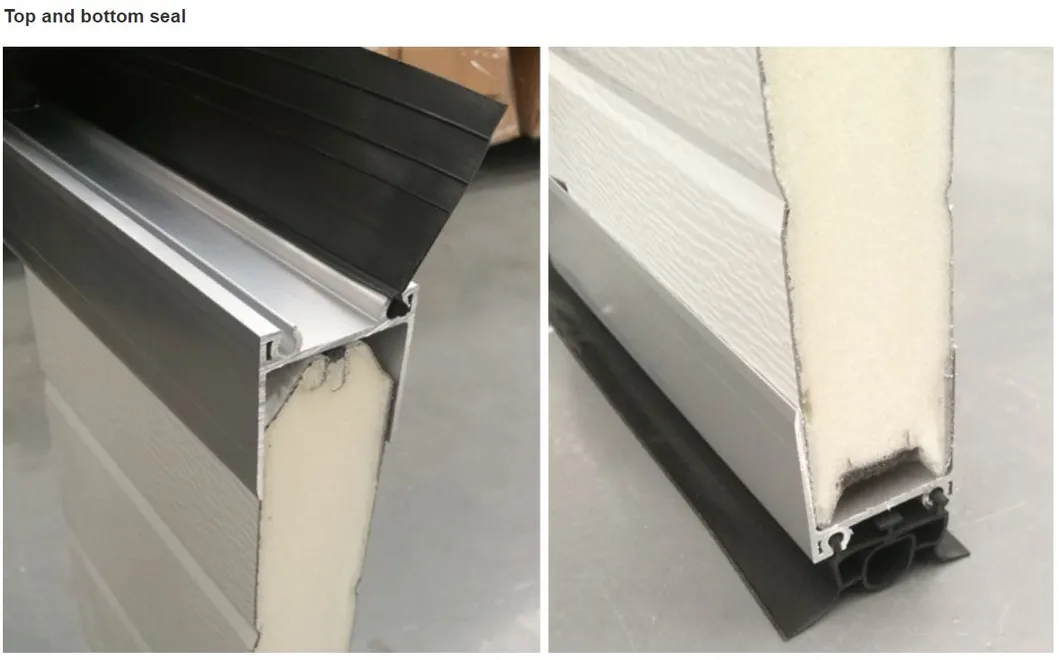

| Section's thickness | 40mm | 43mm, 50mm, 75mm |
| External/Inner Layer | PPGL steel made of hot-dipped galvanized steel | |
| Insulation Material | Polyurethane foam | |
Lifting speed: 0.2m/s
Wind resistance: ≥450N/m2
Spring Lifespan: At least 50,000 opening and closing cycles.

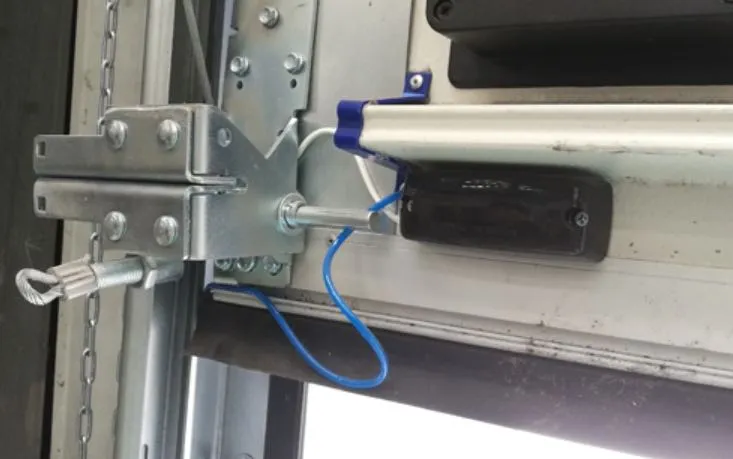

Safety Pressure Switch: Instantly rebounds when the door touches an object during closing.

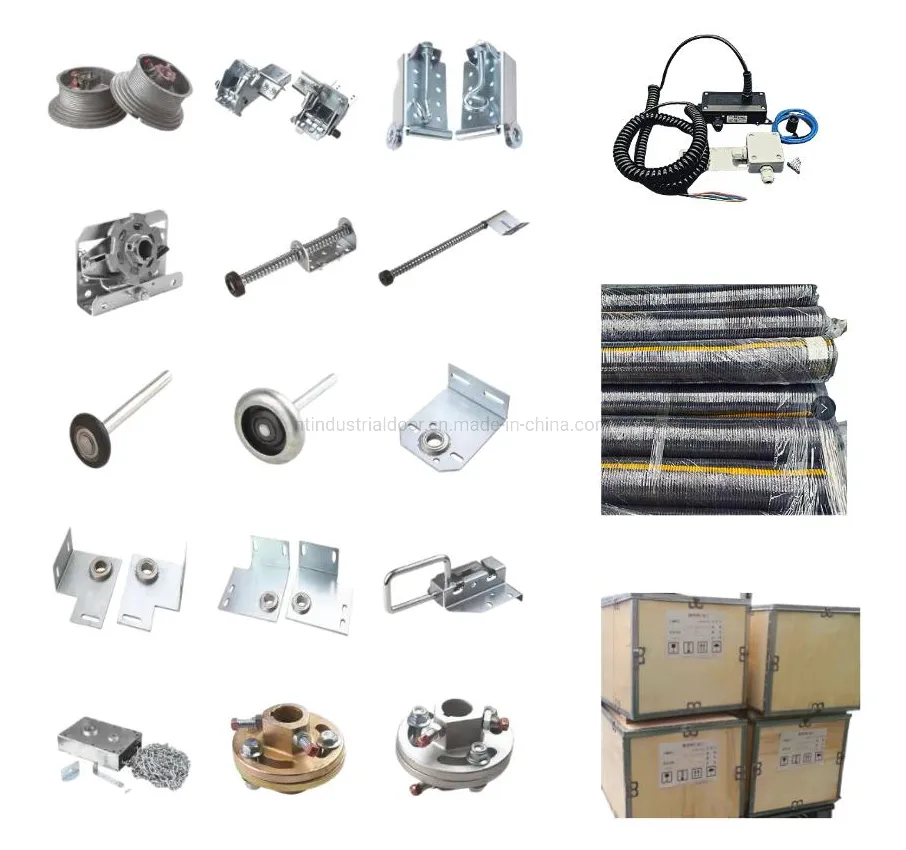

| Component Part | Description | Component Part | Description |
|---|---|---|---|
| 1. Supporter | Fall protection lifting supporter | 2. Track | Straight track |
| 4. Hinge | Middle hinge | 5. Rope | Steel rope |
| 7. Shaft | Transmission shaft | 9. Spring | High quality torsion spring |
| 12. Opener | Automatic Opener | 15. Rib | Reinforcing rib |
| Model | Input Voltage | Power | Starting Torque | Max Door Weight |
|---|---|---|---|---|
| NT50-220 | 220/50Hz | 200W | 30N.m | 15 m2 |
| NT70-380 | 380V/50Hz | 450W | 65N.m | 30 m2 |
| NT100-380 | 380V/50Hz | 650W | 100N.m | 50 m2 |
| NT120-380 | 380V/50Hz | 800W | 120N.m | 60 m2 |
Suitably designed for different projects at affordable rates. We provide full-sided support from design and manufacture to installation guidance.
