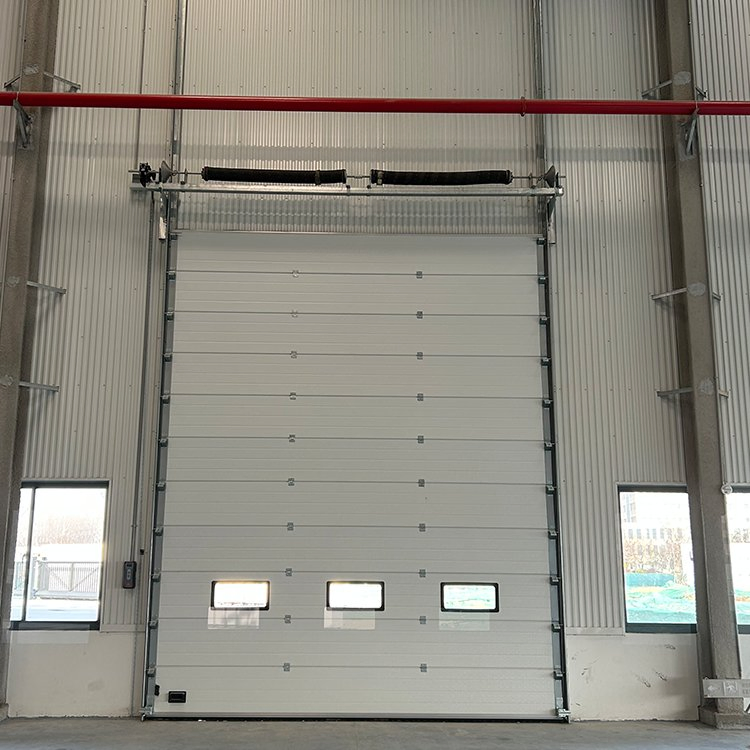

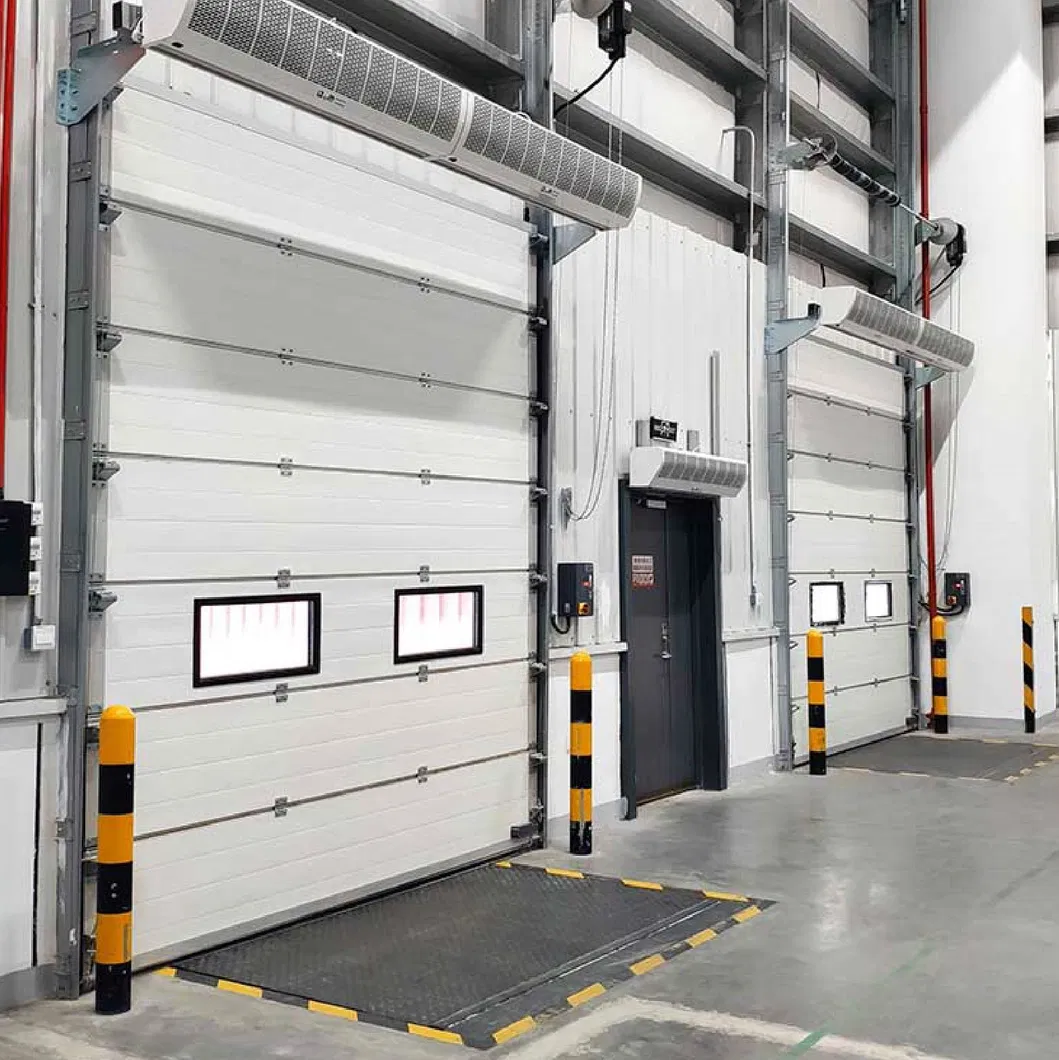

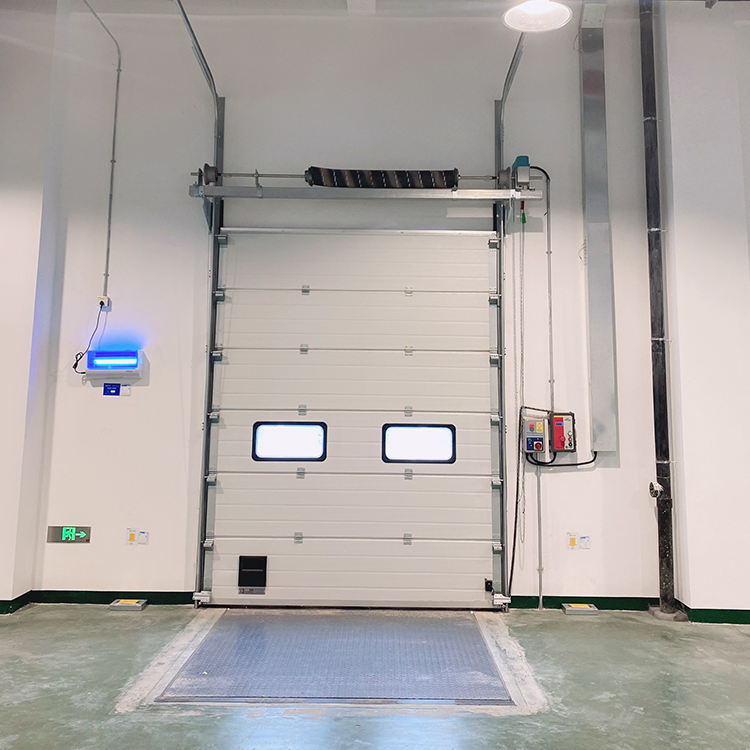

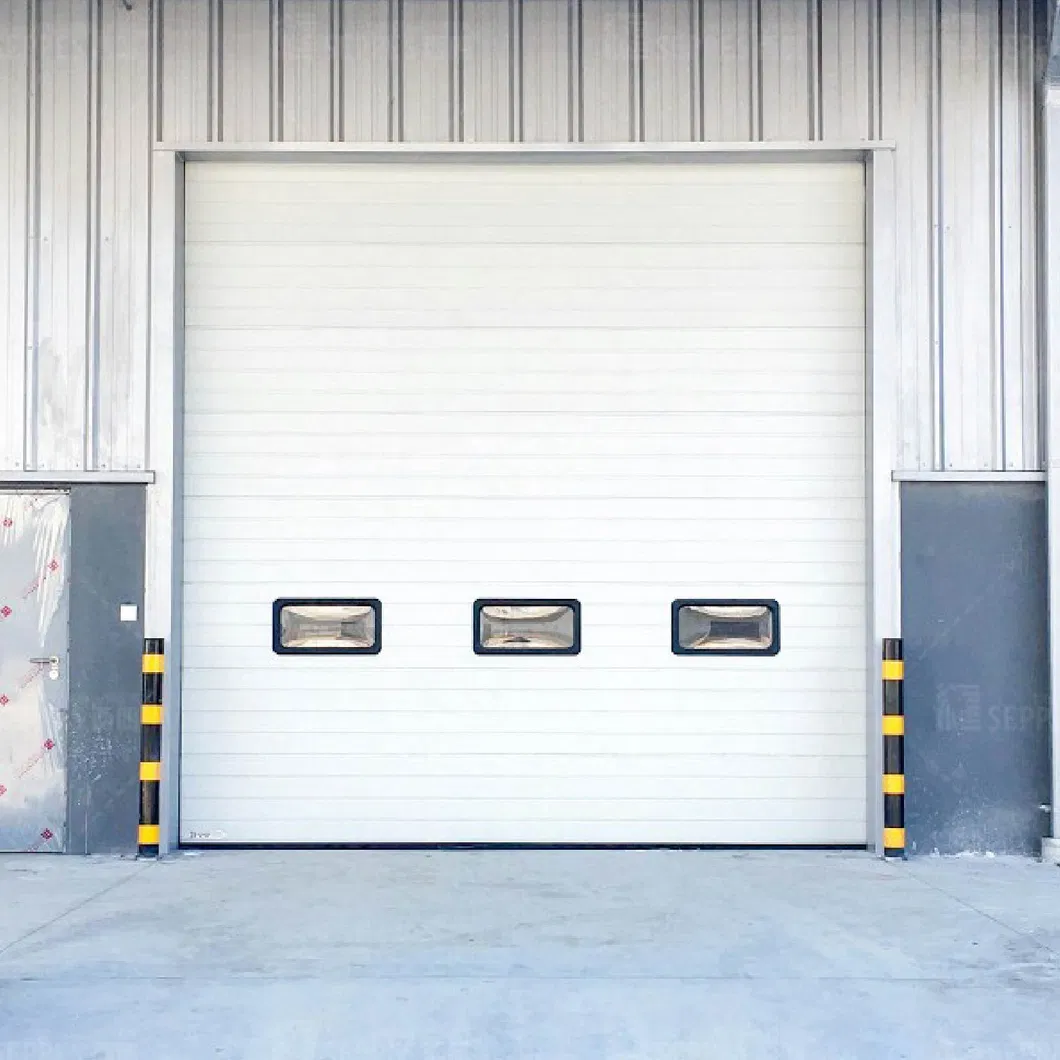

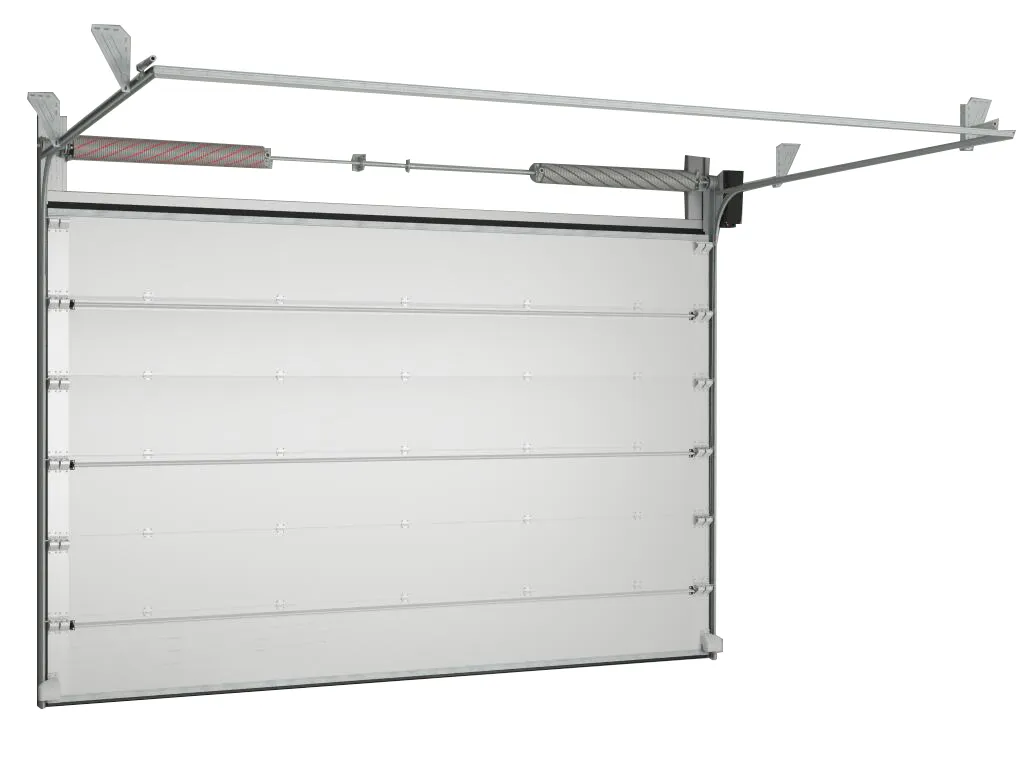

Sectional doors are installed at openings in industrial buildings, warehouses, workshops, docks and other industrial facilities. The reinforced door structure ensures uninterrupted operation and the reliable sealing system guarantees high thermal insulation of the room.
Factory gate + Equipment room + Warehouse
| Speed | 0.2-0.3m / s |
| Thickness of door panel | 40 mm |

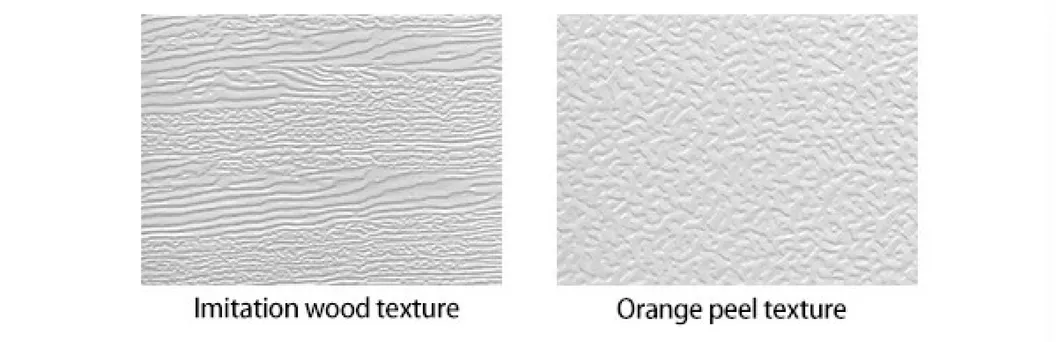

| Color | Yellow, Red, Blue, White, Grey |
| Motor | German Brand |
| Safety Protection | Anti-wire rope break device, bottom airbag device, torsion spring anti-break function. |
| Torsion Spring | ≥30,000 times |
| Foam Material | High-density polyurethane foaming material (48kg + 2kg / m³) |
| Wind Loading Rating | 4*4 Newton 700 / m2 |
| Sound Insulation | 24dB |

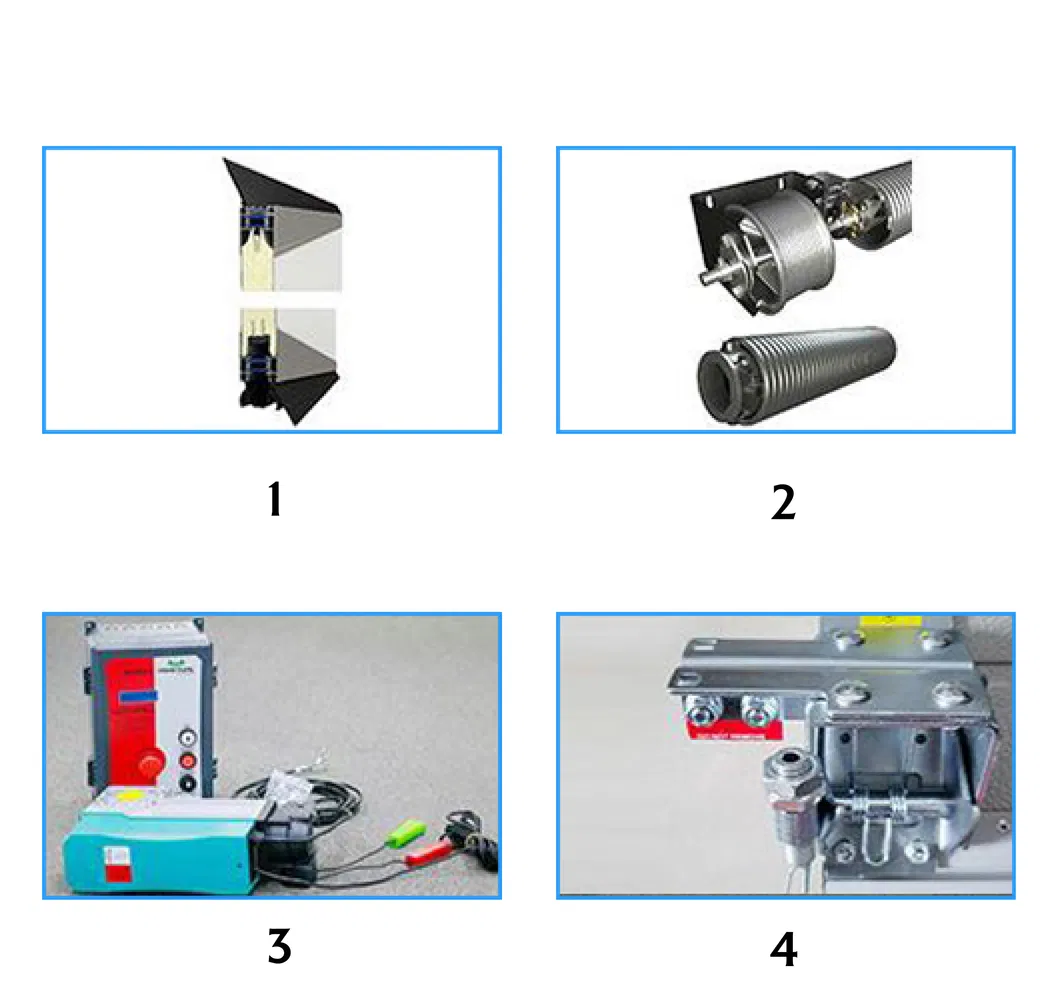

Equipped with EPDM sealing tapes and bottom seals. The door panel interface uses sealing rubber to cut off heat transfer and reduce energy loss.
Torsion spring made of high-quality spring steel with anti-corrosion treatment, designed for 30,000 to 100,000 cycles.
Frequency conversion intelligent control with slow start and stop. Supports interlock linkage and remote communication.
Quickly locks the door body within 20cm if the torsion spring breaks accidentally.

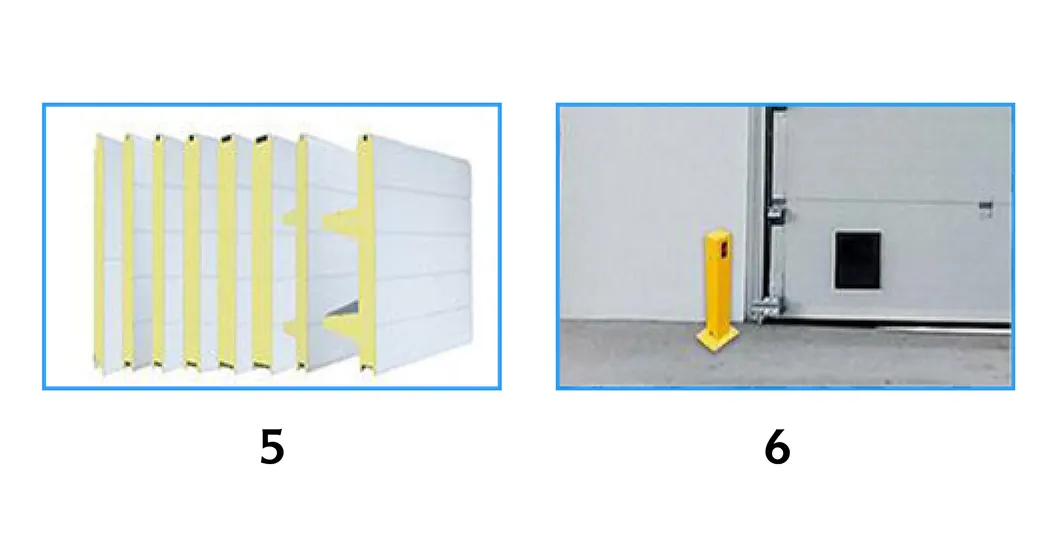

Available in various thicknesses (40/50/60/80mm). Polyurethane foam filling provides impact resistance and thermal insulation.

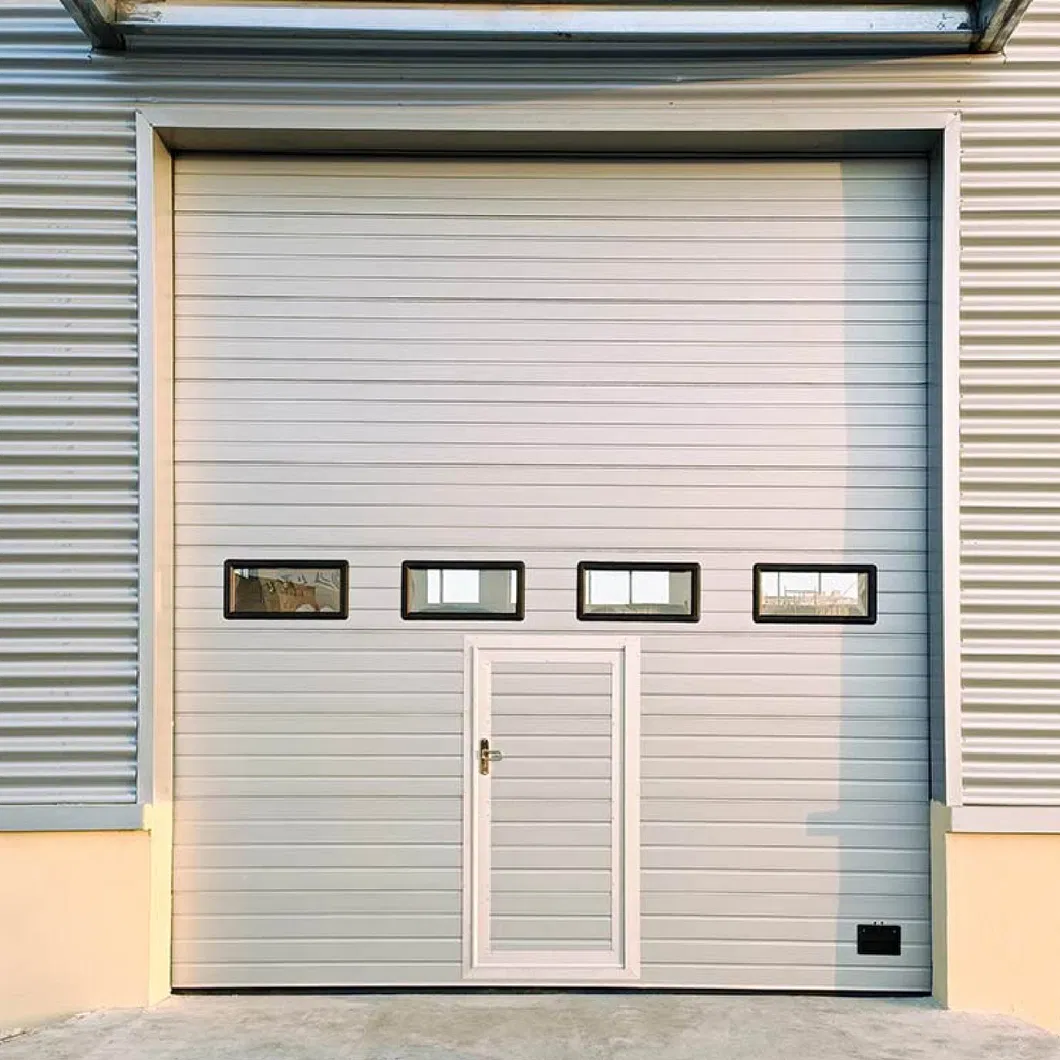

Optional window, door-in-door, wind-resistant components, infrared safety protection and various induction devices.

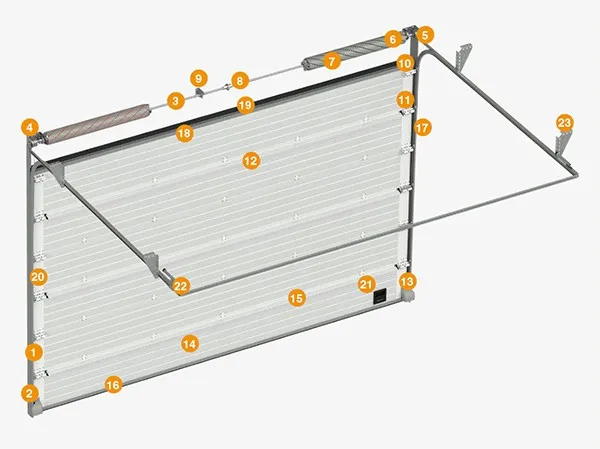

1. Vertical guide rail | 2. Side frame | 3. Door shaft | 4. Torsion spring protection | 5. Sheave | 7. Balance mechanism | 10. Top roller bracket | 14. Sandwich door panel | 16. Bottom sealing strip | 17. Side seal

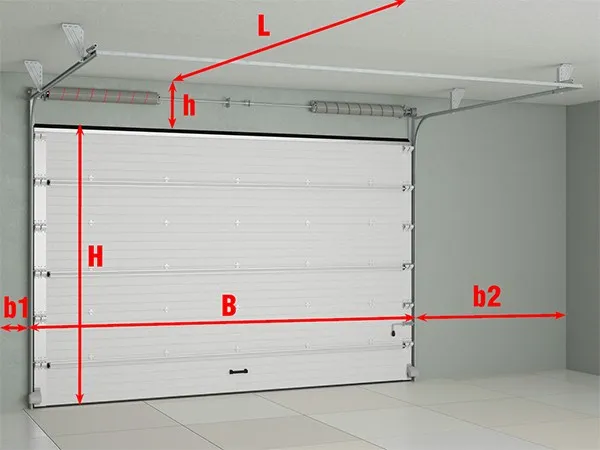

Required Measurements:
