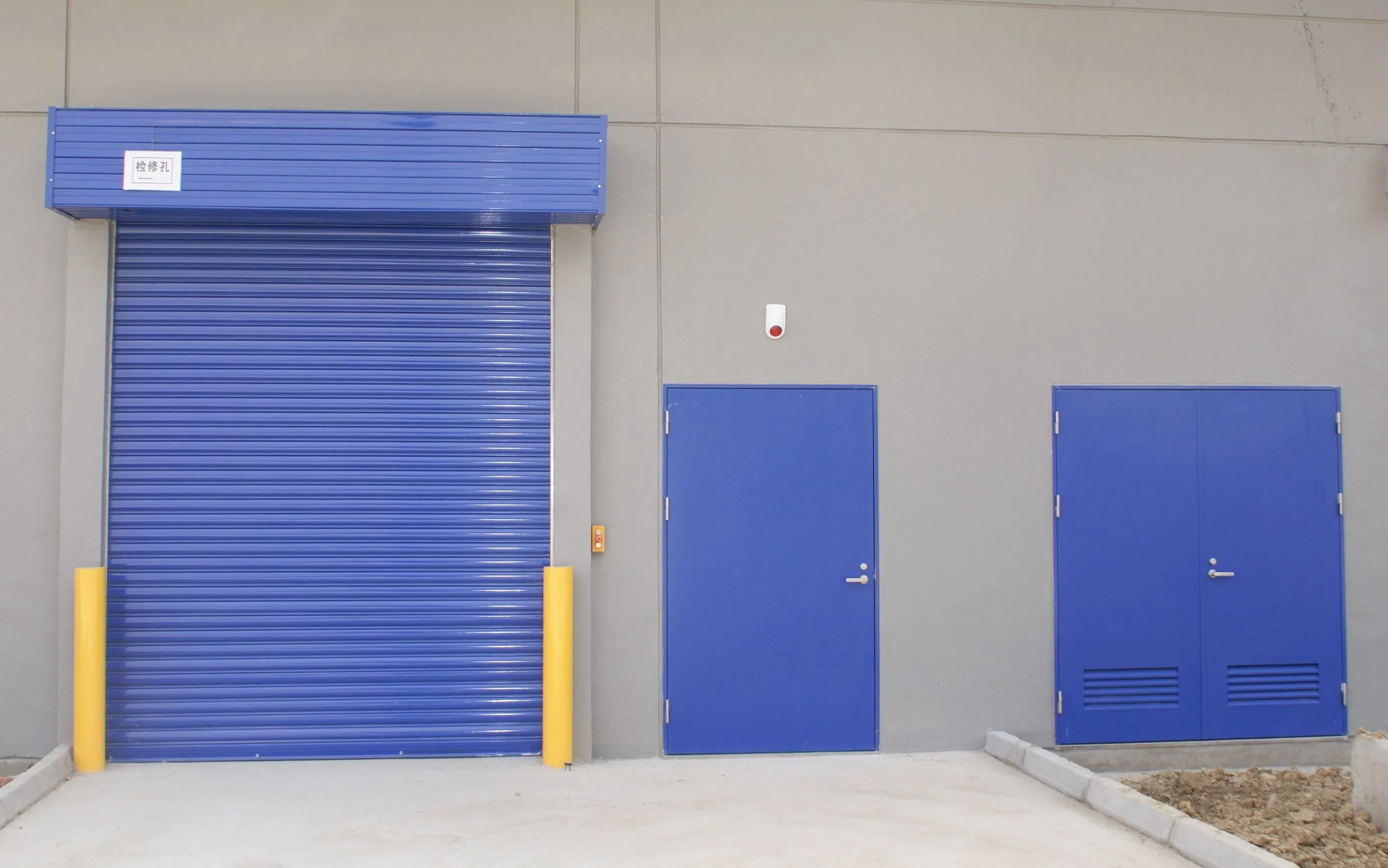

Industrial Exterior Waterproof Vertical Foamed Rolling Shutter Metal Galvanized Steel Power Driving Roll up Entry Fireproof Fire Rated Fire Safety Garage Door

1 / 5

Industrial Exterior Waterproof Vertical Foamed Rolling Shutter Metal Galvanized Steel Power Driving Roll up Entry Fireproof Fire Rated Fire Safety Garage Door

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

XF-R-2000

Material

Steel

Type

Rolling

Open Style

Rolling

Opening Type

Power Driven

Special Function

Security

Color

Customer-Tailor

Certification

CCC, CE

Position

Industrial

Surface Finishing

Finished

Voltage

220V/50Hz or 380V/50Hz

Wind-Resisting

Anti-Wind Hook Is Optional

Transport Package

Wooden Case

Specification

2500*1000*500mm

Origin

China

HS Code

7308300000

Capacity

20000 Sets / Year

Product Visuals

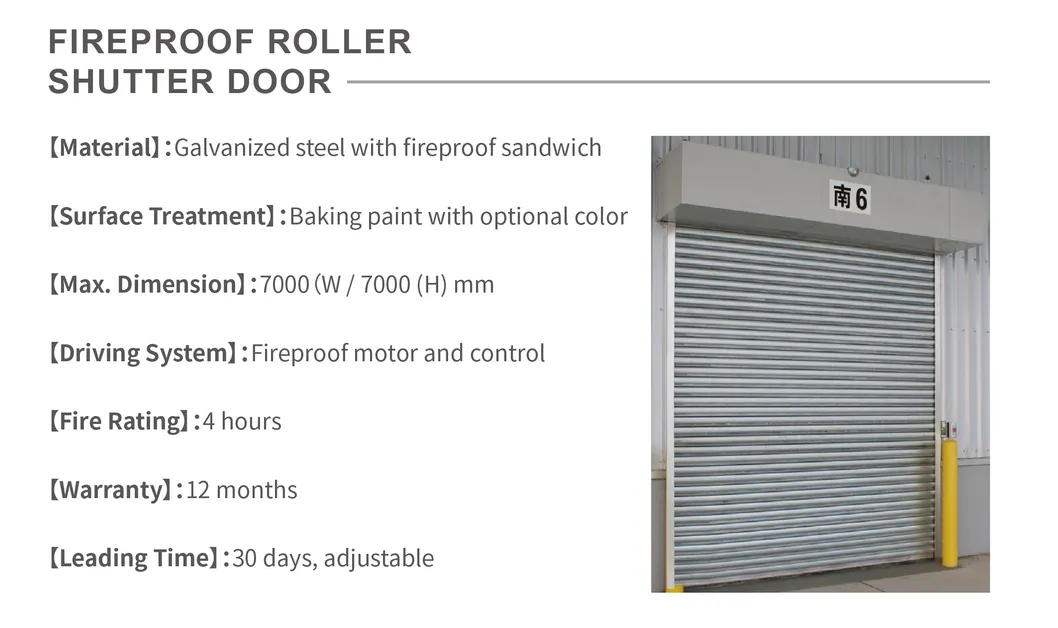

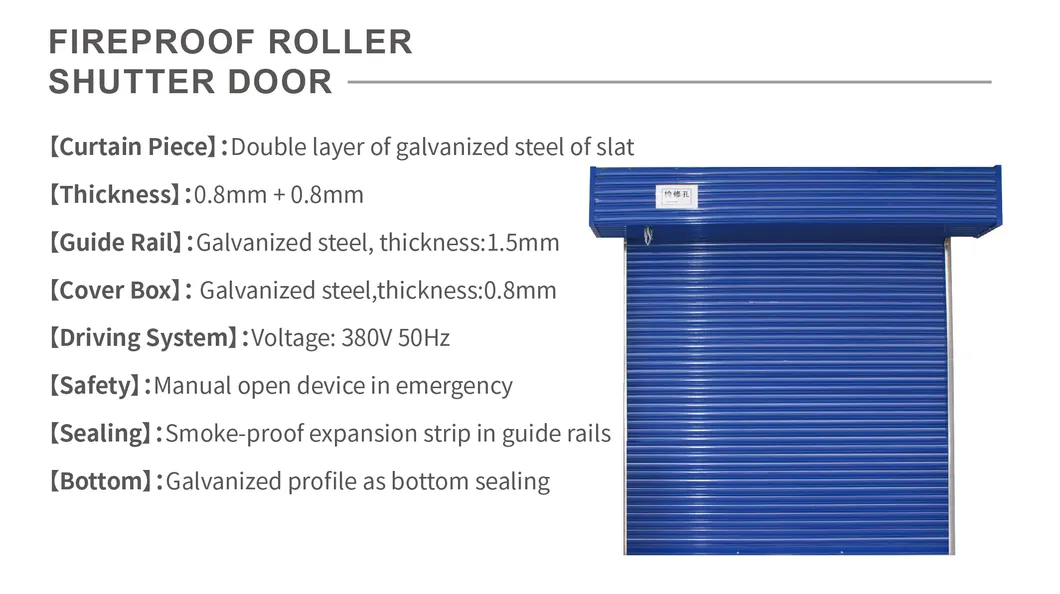

Technical Parameters

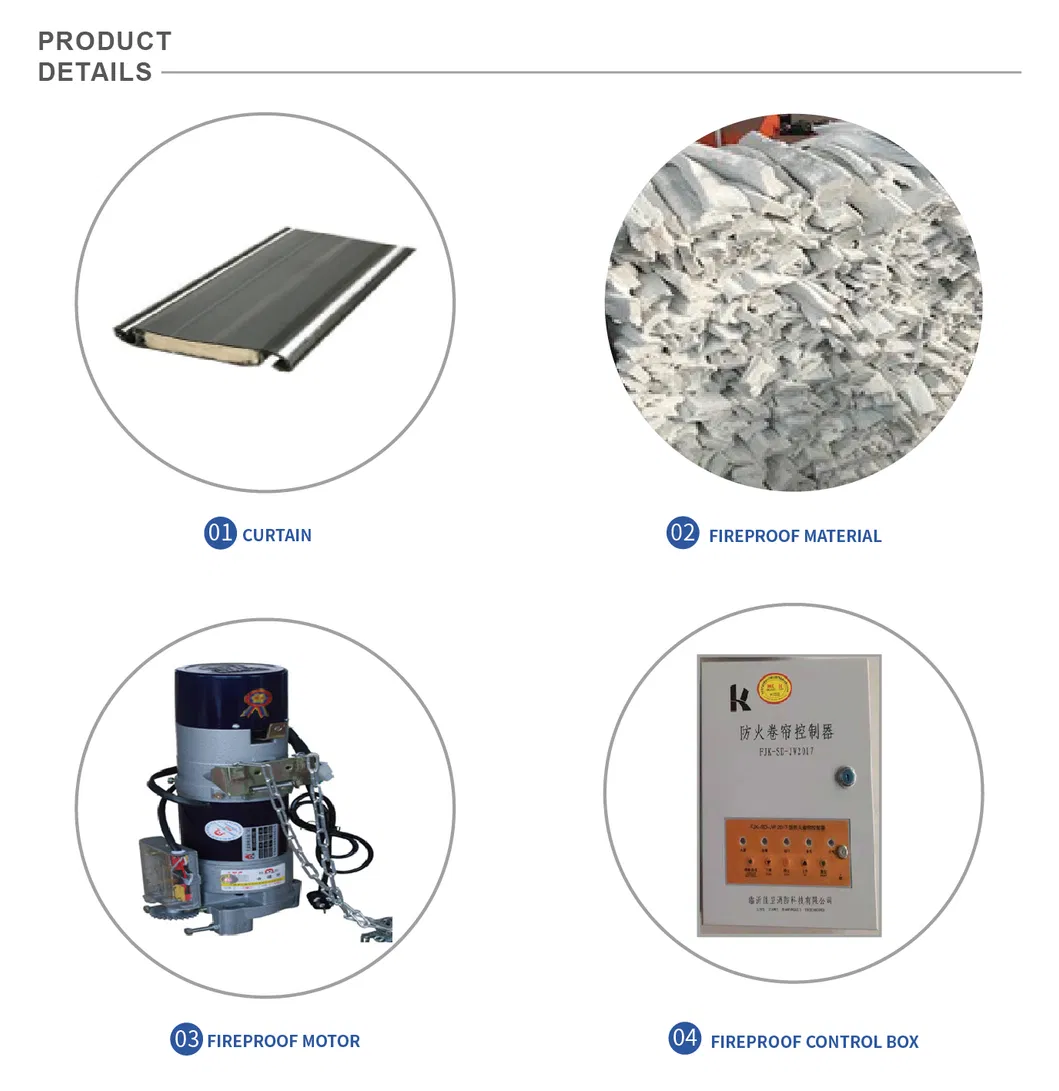

Component	Specifications
Shutter Curtain	Material: Galvanized steel, Double Layer: 0.8 mm + 0.8 mm; Filling: Aluminum silicate fiber
Guiding Rail	Material: Galvanized steel; Thickness: 2.0 mm

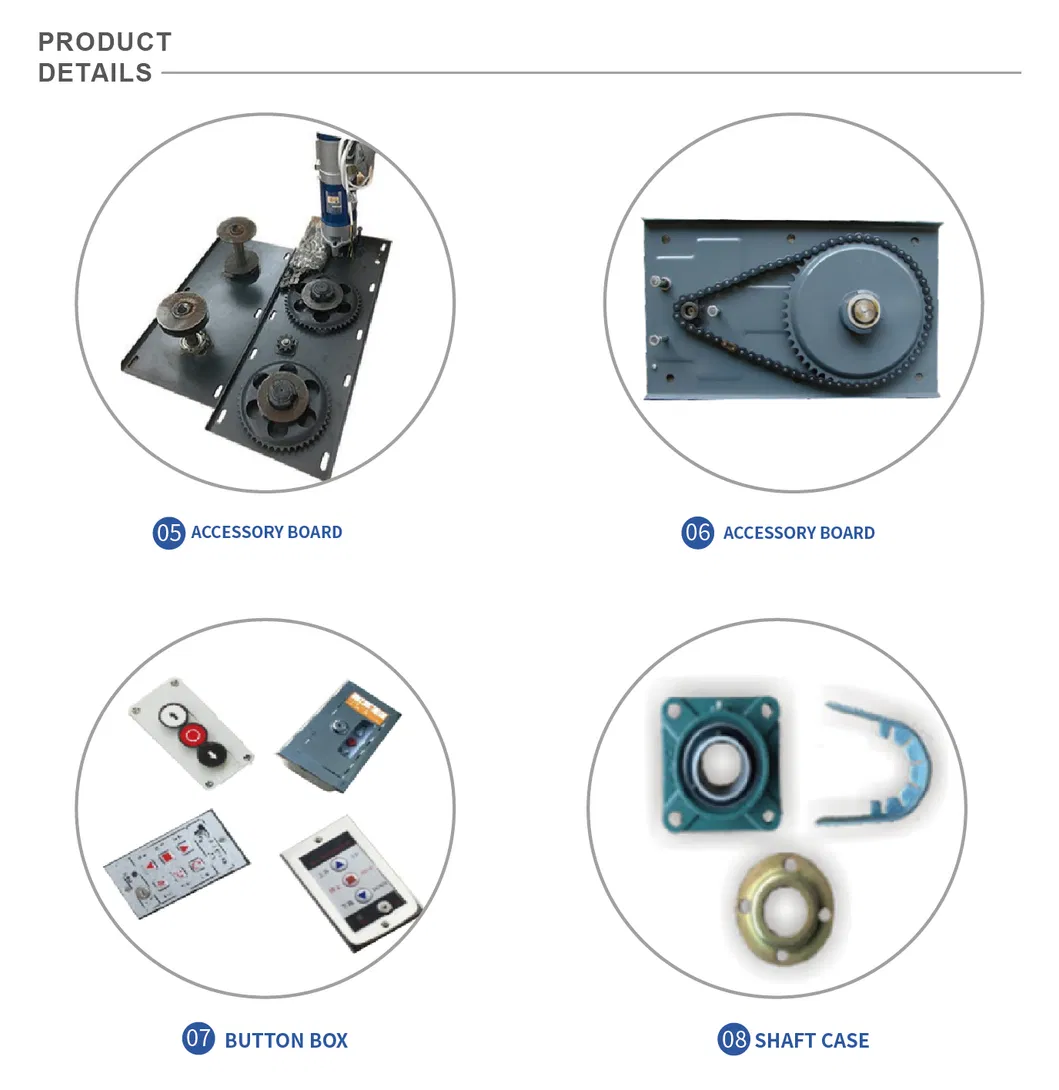

Motor	Fire-proof Motor; Voltage: 380V / 50Hz; Power: 400W/450W; Elevating Power: 600kg - 1000kg
Control Box	Fire-proof system with Manual UP/DOWN/STOP & Overload automatic protection
Box Cover	Material: Galvanized steel; Thickness: 0.8 mm
Sealing	All-round fire and smoke prevention expansion seal
Fire Rating	Up to 4 Hours

Key Features & Certifications

✔ Diverse product range including steel doors, wood doors, fire doors, high-speed doors, and sectional doors.
✔ High-quality management standards with ISO9001: 2000 Certification.
✔ Compliance with CE and CCC safety standards.
✔ Advanced equipment used for customized industrial solutions.

FAQ

What is the fire rating for this industrial rolling shutter?

This rolling shutter is designed for high-level fire safety and provides a fire rating of up to 4 hours.

What materials are used in the shutter curtain construction?

The curtain features a double-layer galvanized steel structure (0.8mm + 0.8mm) filled with aluminum silicate fiber for enhanced fire resistance.

What power supply is required for the power-driven system?

The fire-proof motor supports standard industrial voltages, typically 220V/50Hz or 380V/50Hz.

Can the color and size of the door be customized?

Yes, we offer customer-tailored colors and customized dimensions based on specific industrial requirements.

Is the door resistant to strong winds?

Yes, an anti-wind hook is available as an optional feature to enhance stability in high-wind environments.

What safety protections does the control system include?

The control box includes manual operation for Up/Down/Stop functions and an automatic overload protection system for safe operation.
