📋Basic Info.
| Application |
Workshop Crane, Warehouse Crane |
| Lift Mechanism |
Lift |
| Driven Type |
Hydraulic |
| Certification |
CE |
| Loading Capacity |
6000kg/ 8000kg |
| Working Range |
-300mm to +300mm |
| System |
0.75kw, 380V/ 50Hz |
| Upper Plate |
8mm Thick, Anti-Skate Steel Plate |
| Swinging Lip |
Single 16mm Thickness, 400mm Length |
| Production Capacity |
500 Sets/Month |
📦Packaging & Delivery
| Package Size |
200.00cm * 200.00cm * 55.00cm |
| Package Gross Weight |
800.000kg |
| Transport Package |
Cardboard |

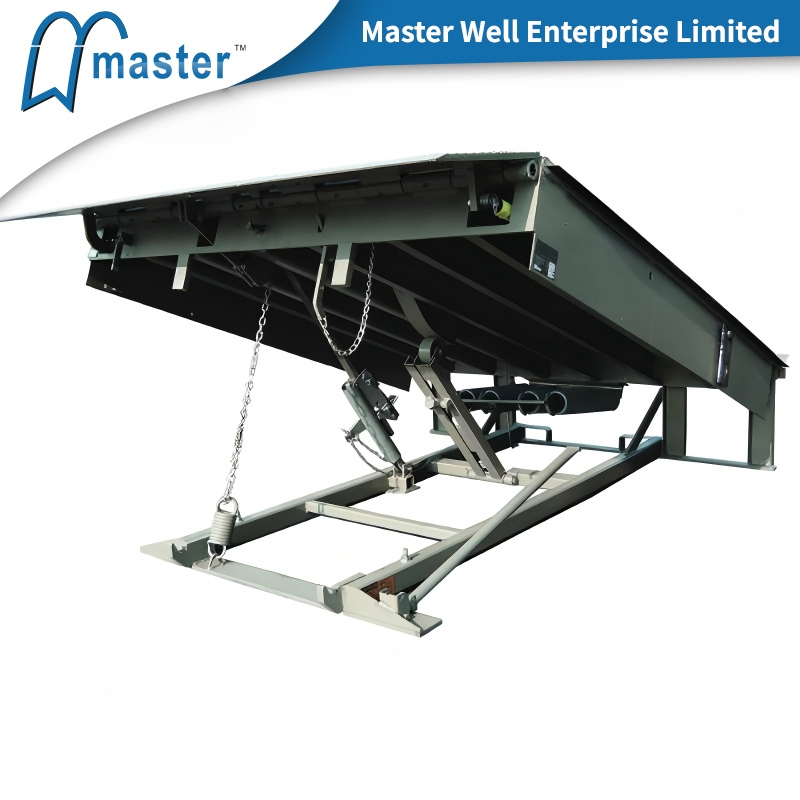

⚙️Product Description

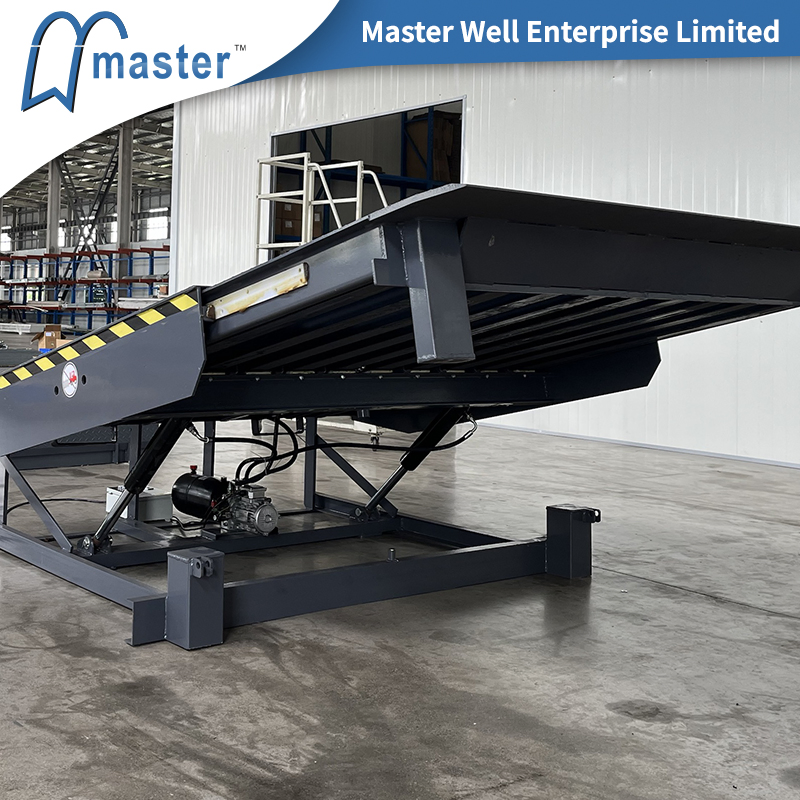

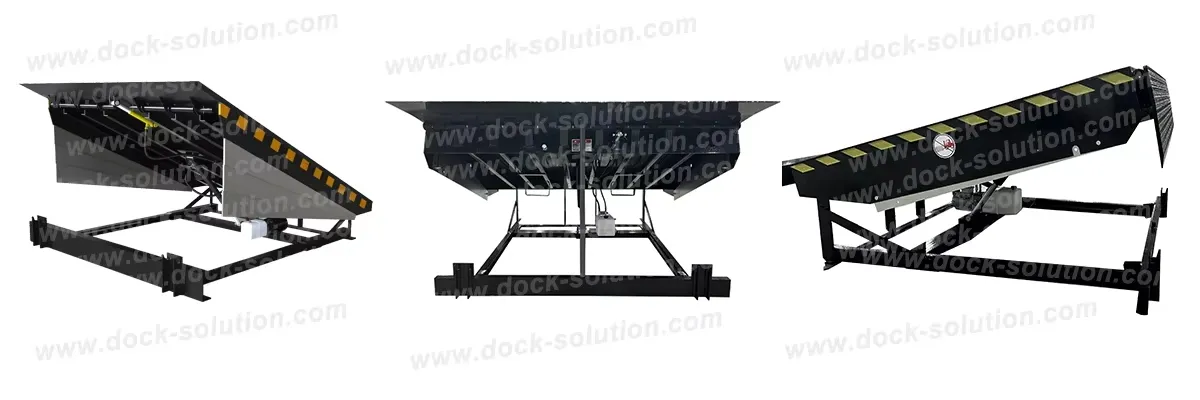

Dock Leveler Characteristics:
The Dock Leveler uses a hydraulic power unit to lift the upper main panel through the main oil cylinder, while a small auxiliary oil cylinder pushes out the lip plate. This equipment is essential when dock height and truck height differ. Utilizing the principle of self-weight drop, the lip plate is positioned onto the rear of the truck for seamless loading operations.
The hydraulic dock leveler is the most widely used loading platform due to its stable performance, simple operation, low maintenance requirements, and ease of repair.

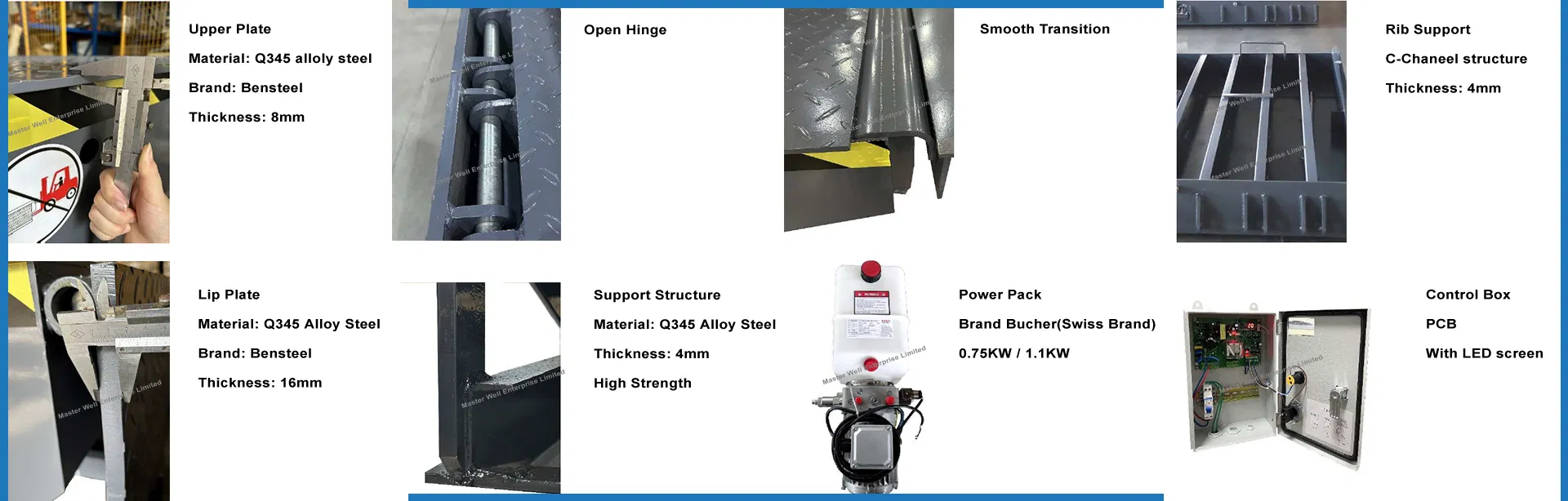

🛠️Material Description
| Upper Plate |
8 mm thickness, anti-skate steel plate |
| Swinging Lip |
single 16 mm thickness, 400mm length |
| Support Profile |
C-shaped stiffener/14#I Beam |
| Sealing Element |
Japan Brand NOK A505 |
| Adjustment Time |
Rise Time ≤ 16S, Fall time ≤ 10S |
| Dynamic Loading |
6,000 ~ 25,000 KG |
| Service Life |
≥ 200,000 times |
| Noise Level |
< 50db (±5db) |

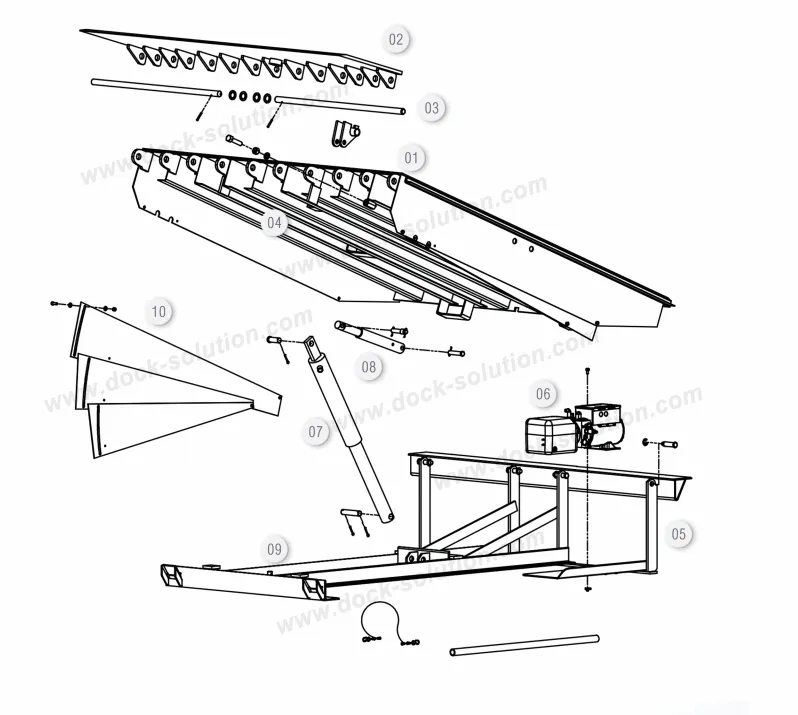

📐Structural Drawing
| 1. Upper Plate |
6. Power Pack |
| 2. Lip Plate |
7. Main Cylinder |
| 3. Hinge (Open) |
8. Auxiliary Cylinder |
| 4. Rib Support |
9. Frame |
| 5. Support Structure |
10. Guard |
🏢Professional Service
Our team includes dedicated International Sales, Purchase, Finance, Human Resources, and R&D departments. We are always ready to provide professional service and technical support for your projects.
📜Certifications
❓Frequently Asked Questions
What is the Minimum Order Quantity (MOQ) for dock levelers?
There is no minimum order requirement for our dock levelers.
Can you provide products based on specific project drawings?
Yes, our engineers will review your project drawings to ensure the accuracy of all fittings and quantities required.
What payment methods are accepted?
We usually accept T/T, L/C, and Western Union. Other payment terms can be discussed upon request.

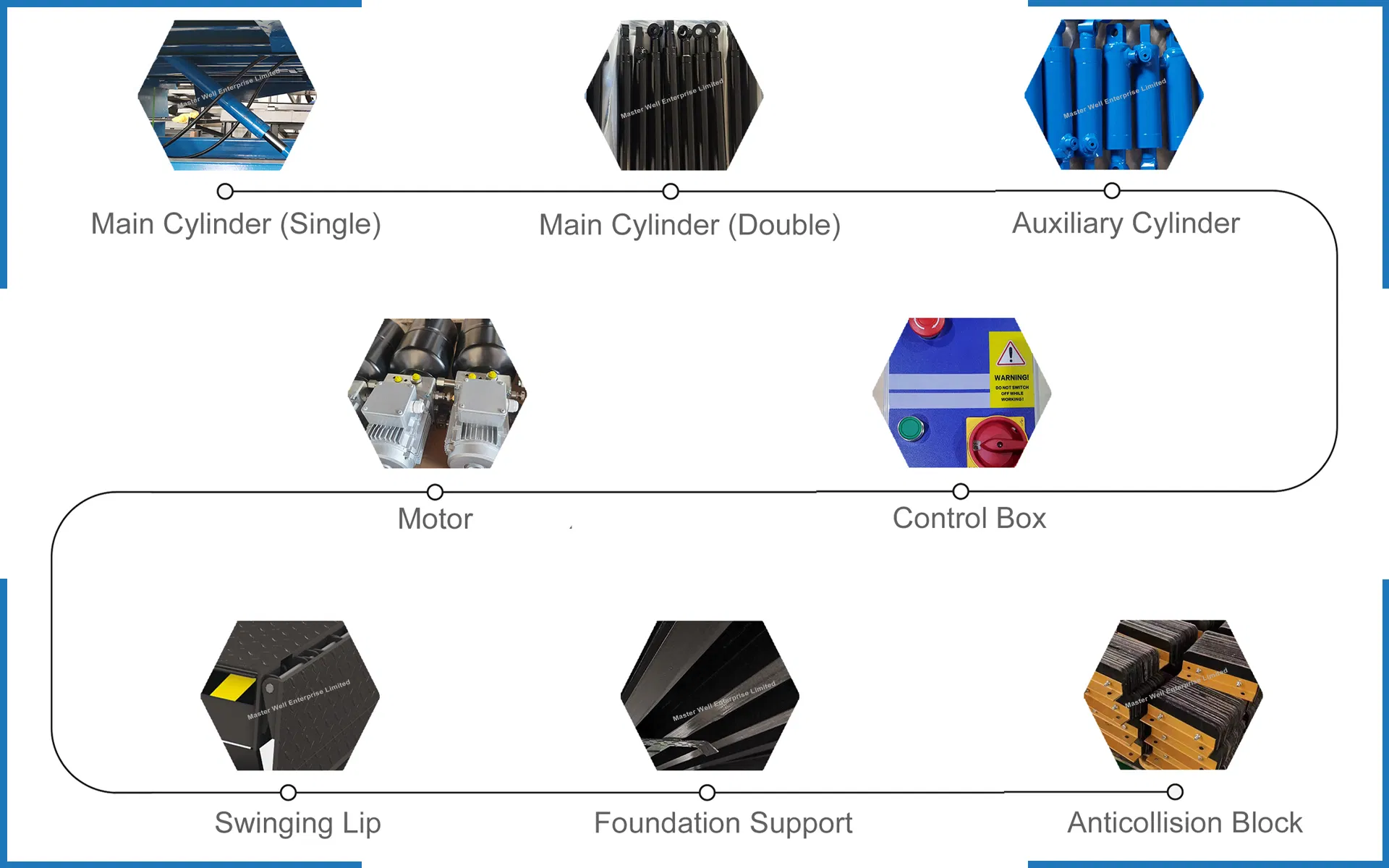

Do you produce your own accessories and parts?
Yes, we produce parts in-house to strictly control quality and costs. This includes components for dock levelers, seals, and various industrial doors.
What other industrial solutions do you offer?

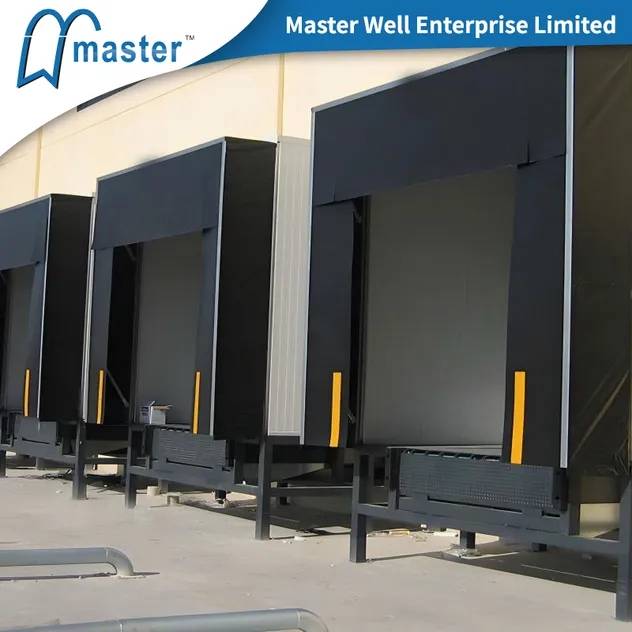

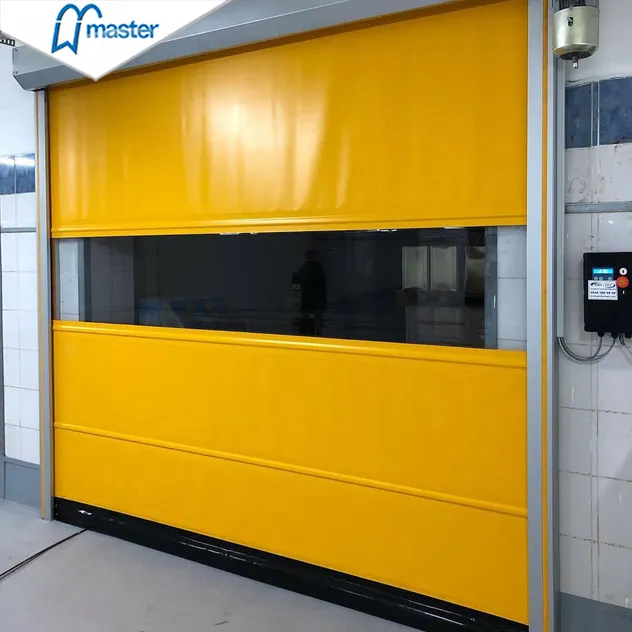

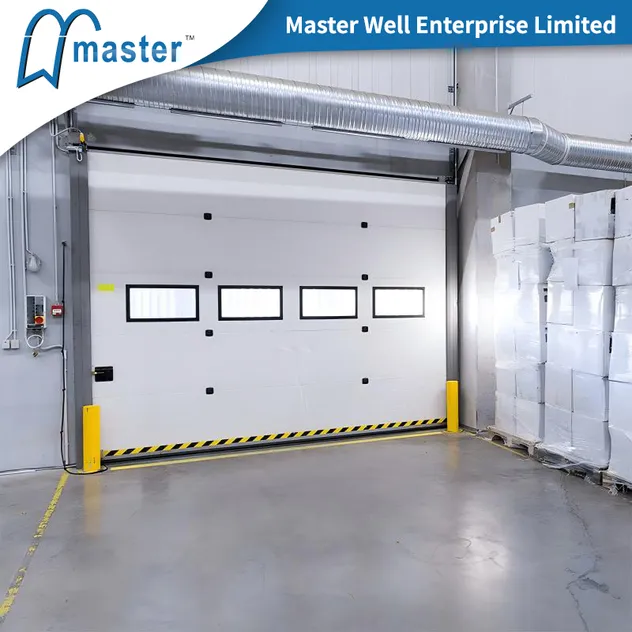

Beyond dock levelers, we produce glass aluminum sectional doors, industrial doors, high-speed doors, rolling shutters, dock seals, and motor/gate openers.
What is the typical working temperature range for the hydraulic leveler?
Our equipment is designed to operate reliably in temperatures ranging from -30℃ to +50℃.
