| Model NO. | MLK-HDL-A109 |
| Application | Warehouse Crane / Warehousing Docking |
| Driven Type | Hydraulic |
| Certification | GS, CE, RoHS, ISO 9001 |
| Size | W2000*L2000*H600mm (Customizable) |
| Power | 3 Phase/380V/50Hz, 3 Wires, 0.75/1.1/1.5kw |
| Load Capacity | Dynamic Load 8 Tons, Static Load 16 Tons |
| Adjust Range | +350mm, -300mm, Adjustable |
| Color | Black (Ral 9011), Can Be Customized |
| Dock Plate | 8mm Non-Slip Pattern Steel |
| Tongue Plate | 400/500mm, 16mm Non-Slip Pattern Steel |
| Hydraulic System | German Argo-Hytos/Switzerland Bucher |
| Oil Cylinder | Dual Cylinder, 2 Hydraulic Pistons |
| IP Grade | IP55 |
| Warranty | 3 Years |

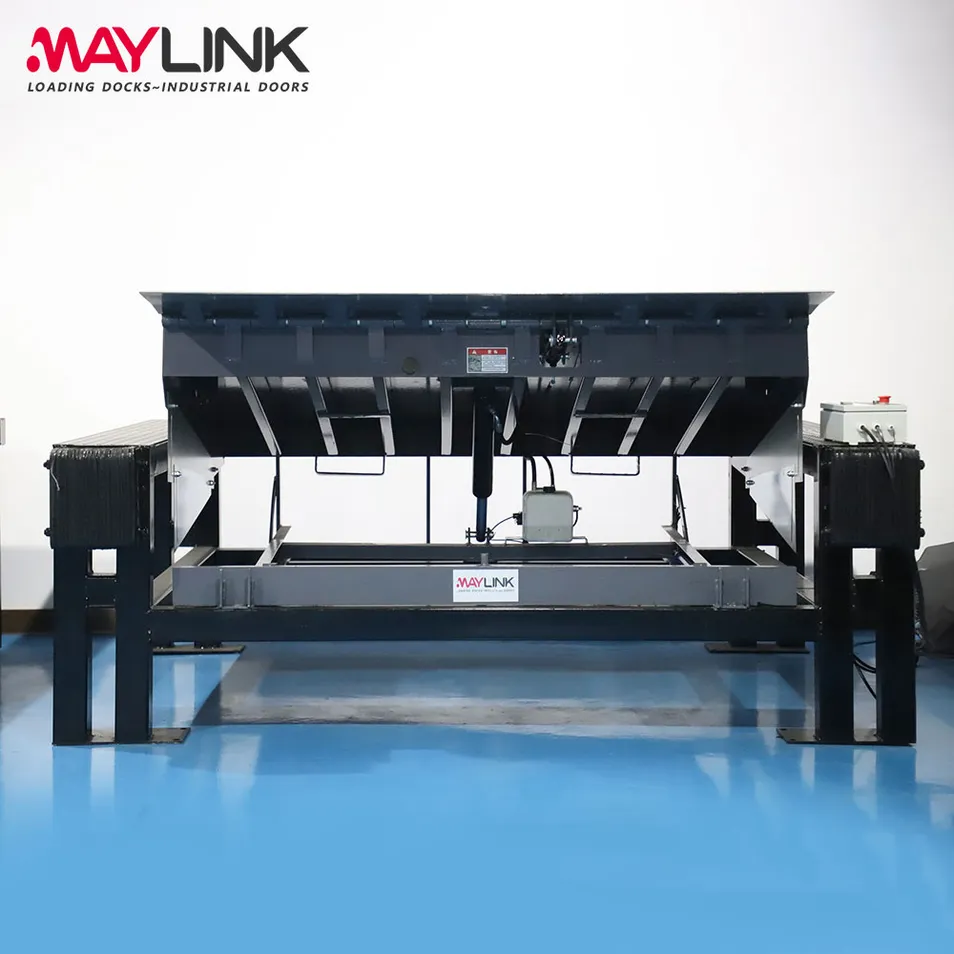

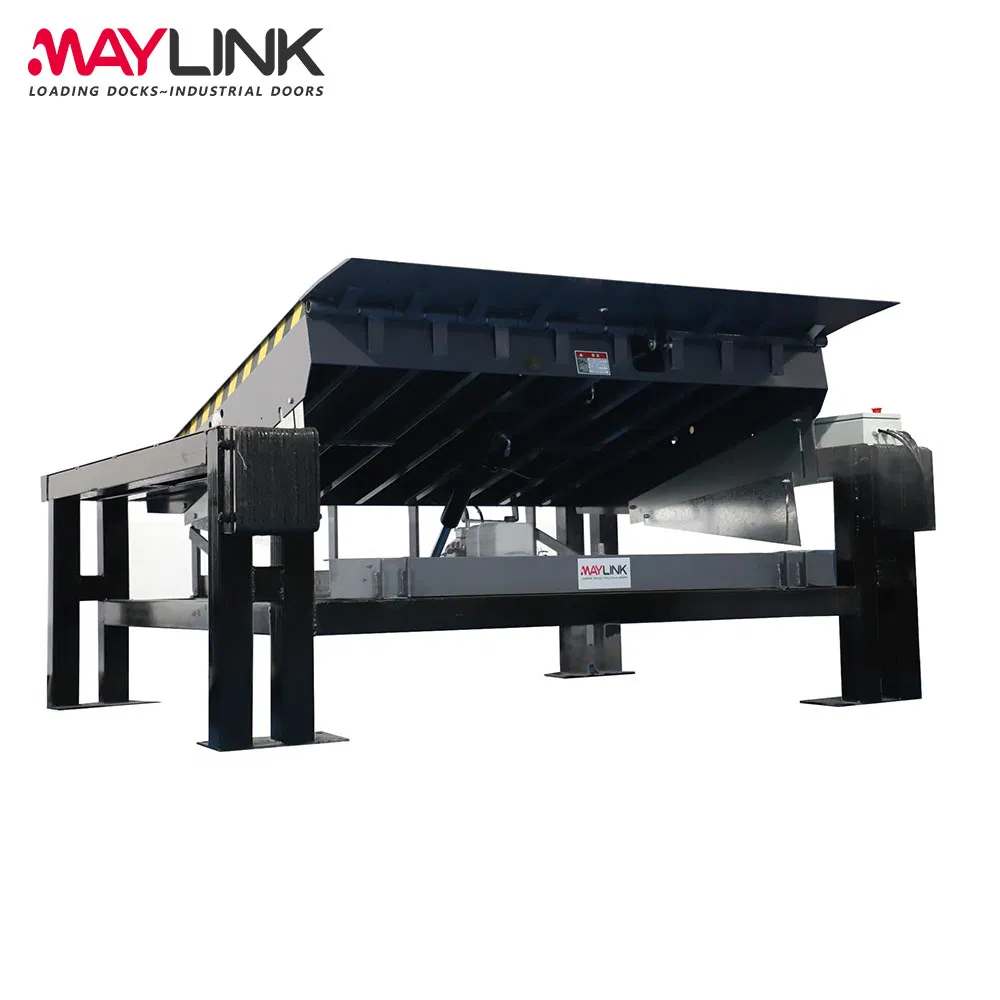

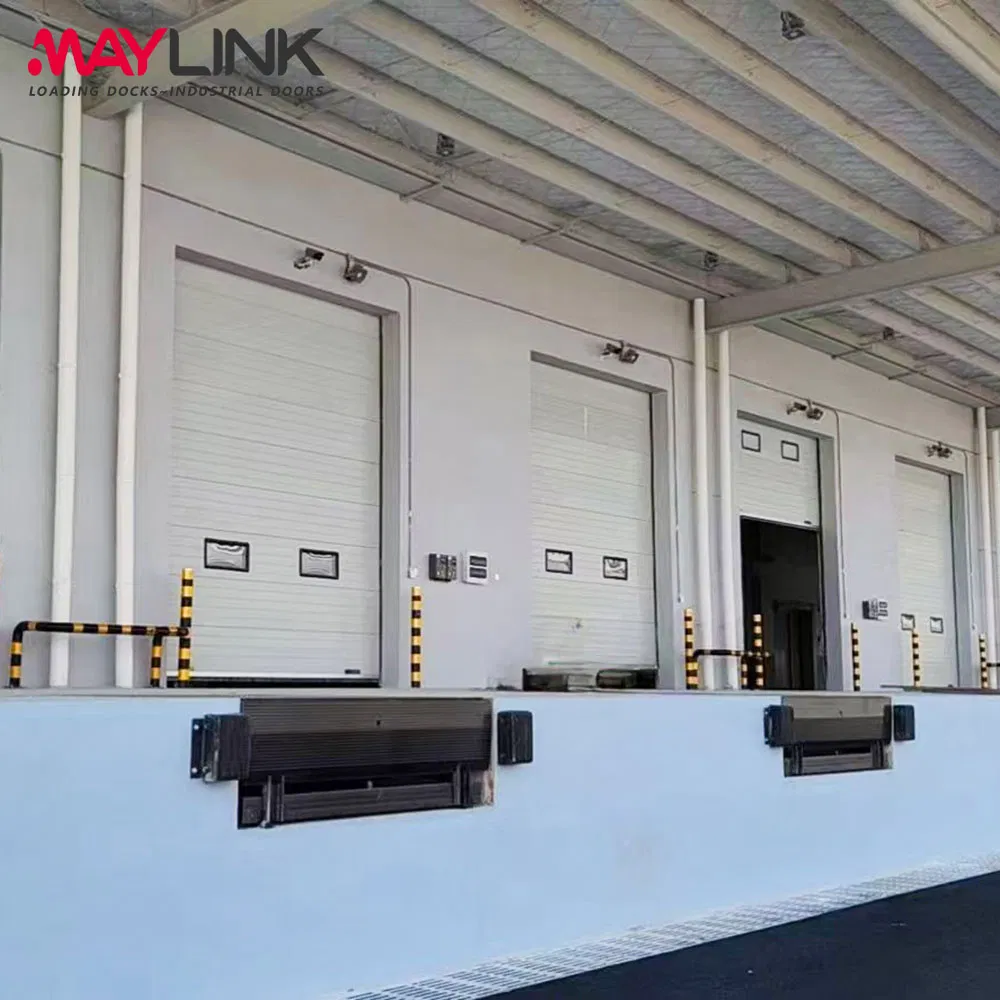

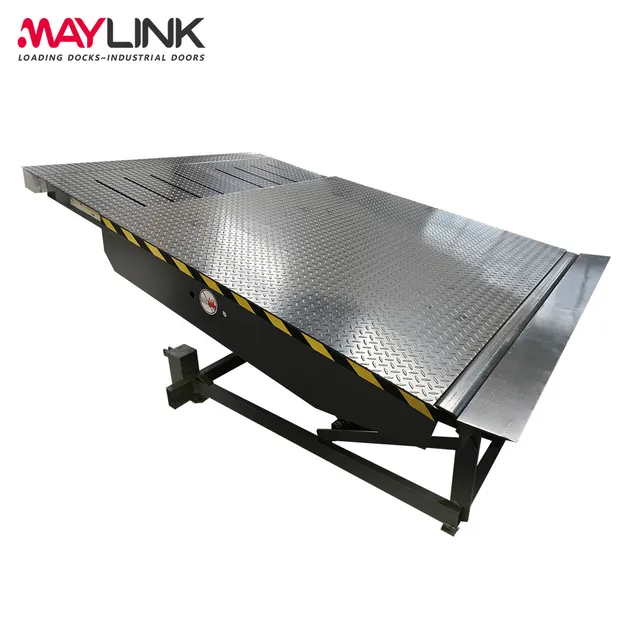

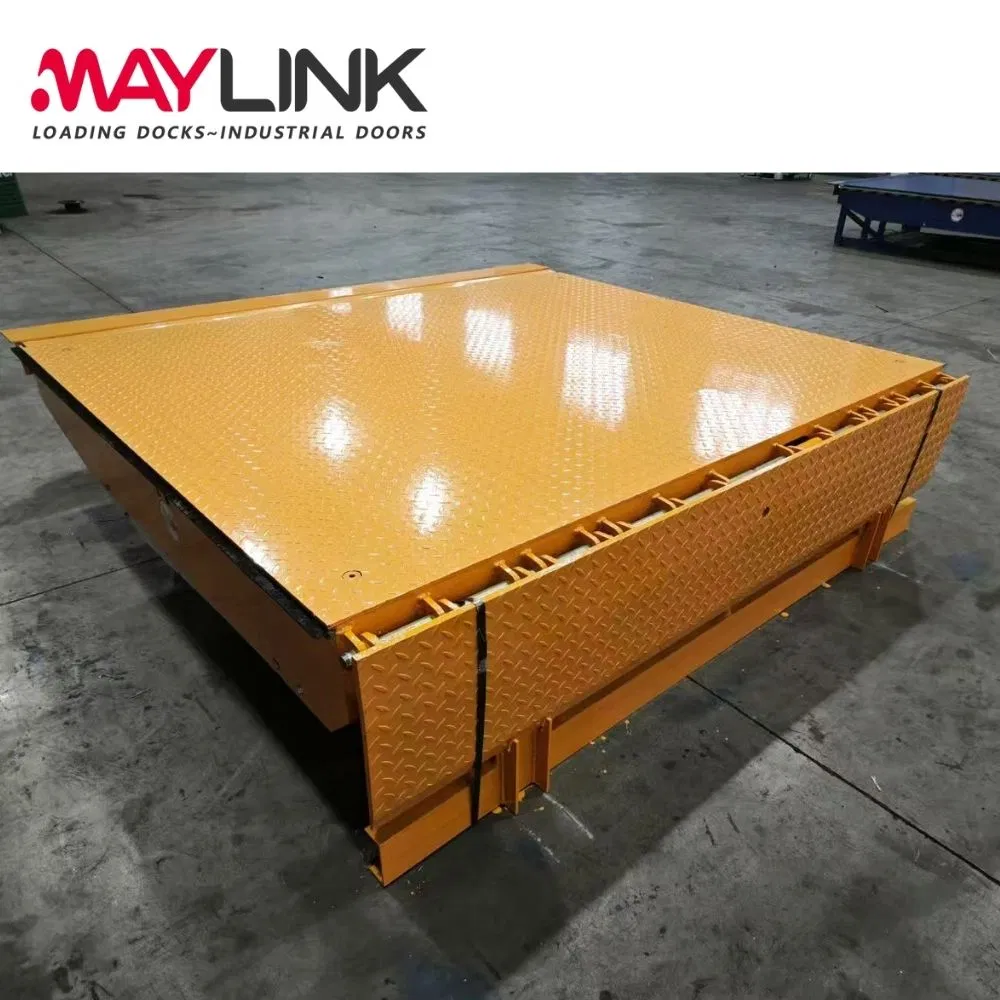

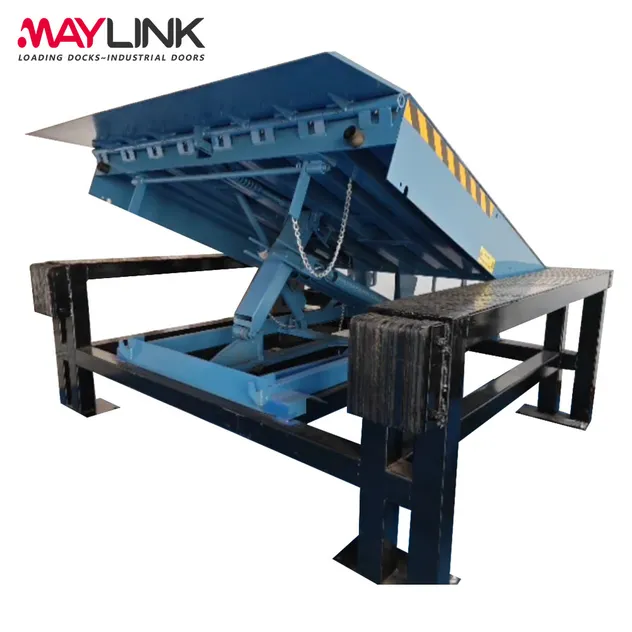

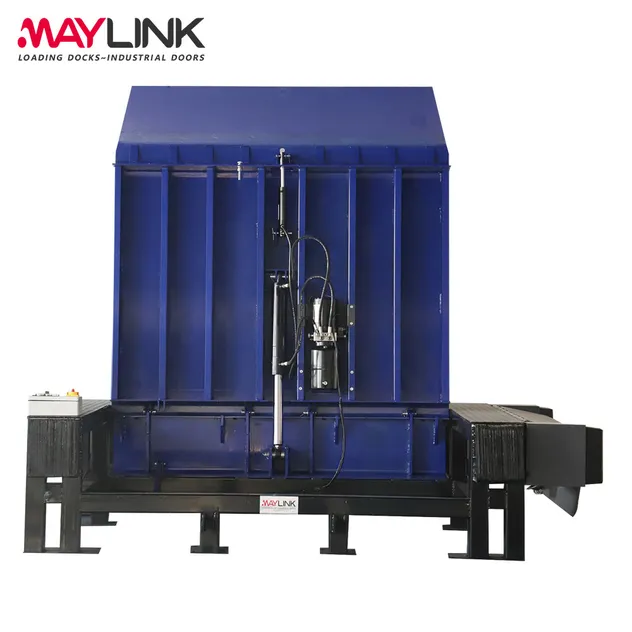

The hydraulic loading dock leveler is designed to bridge height differences between loading docks and truck carriages of varying heights. With the press of a button, the dock plate automatically rises and the lip extends to create a smooth, adjustable slope for forklift access, greatly improving loading and unloading efficiency.

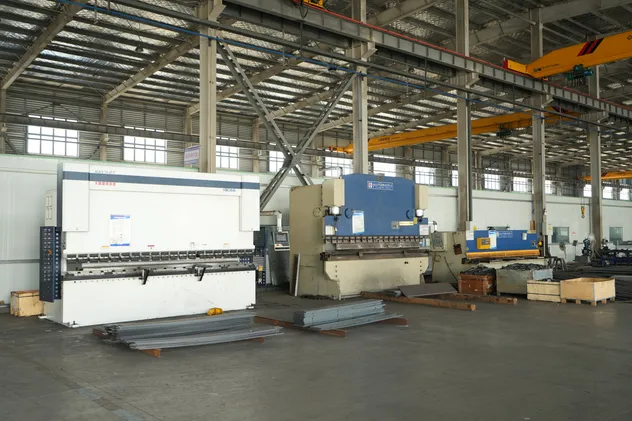

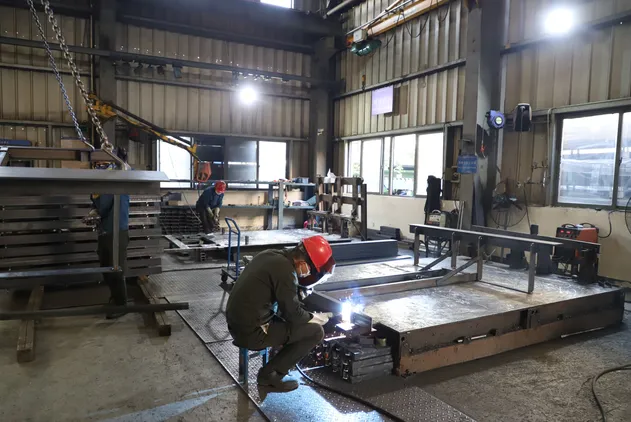

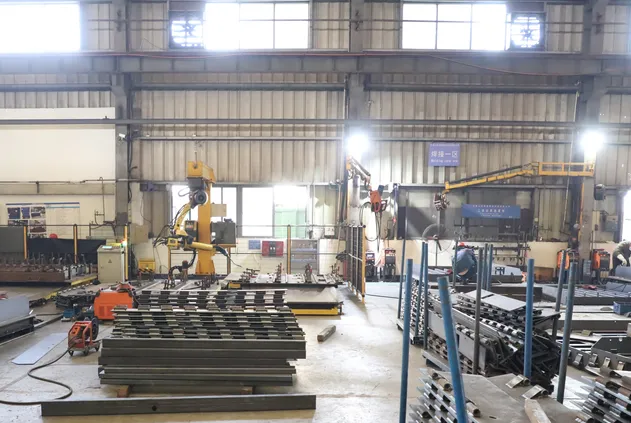

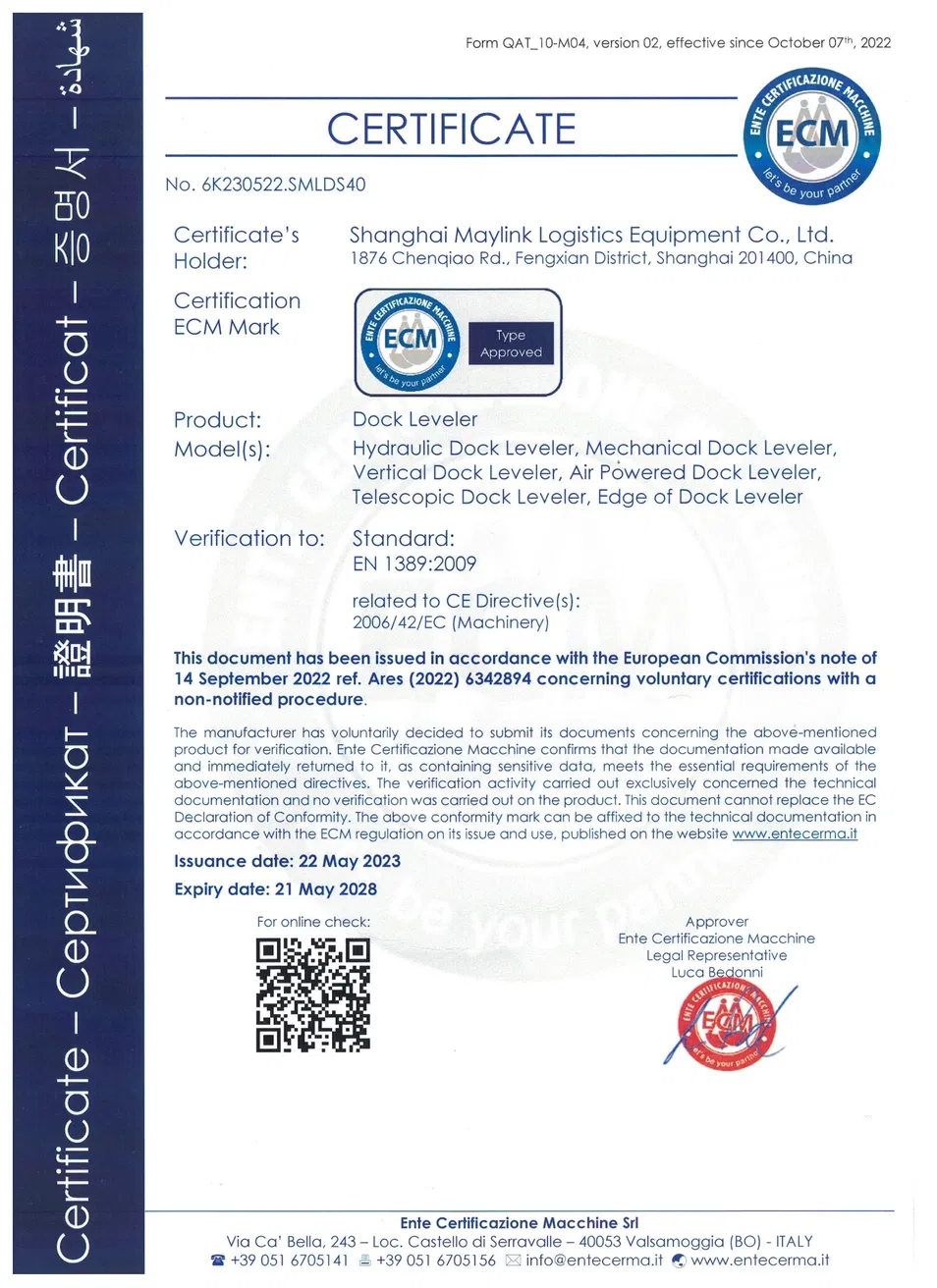

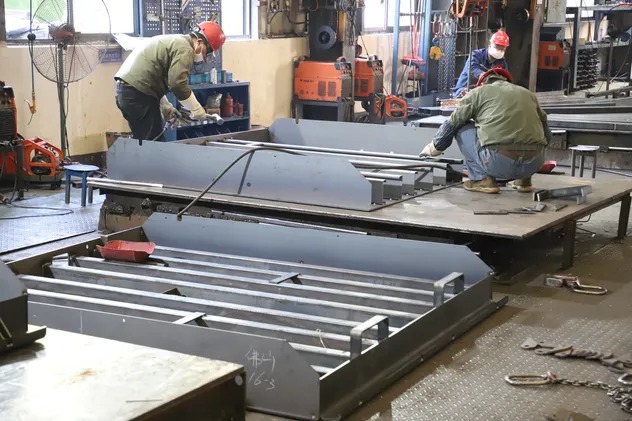

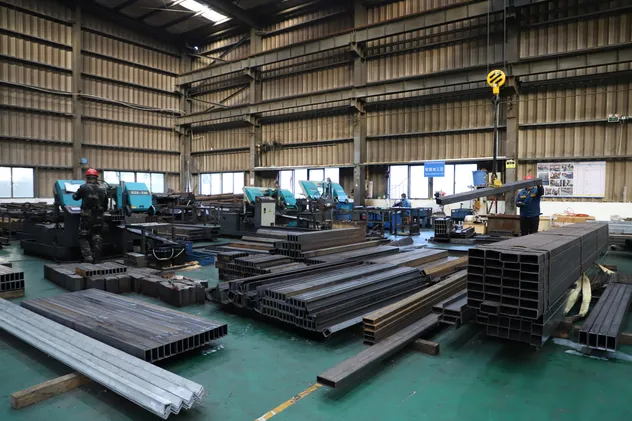

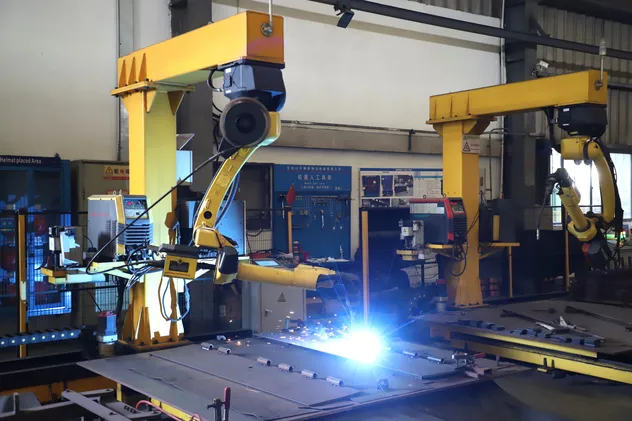

Quality Standards: All dock levelers have passed the CE certification EN1389:2009 standard. Production involves modern laser cutting, robot welding, and fully automated painting for precision and durability.
Available Variations:
Telescopic Dock Leveler
Mechanical Dock Leveler
Vertical Dock Leveler

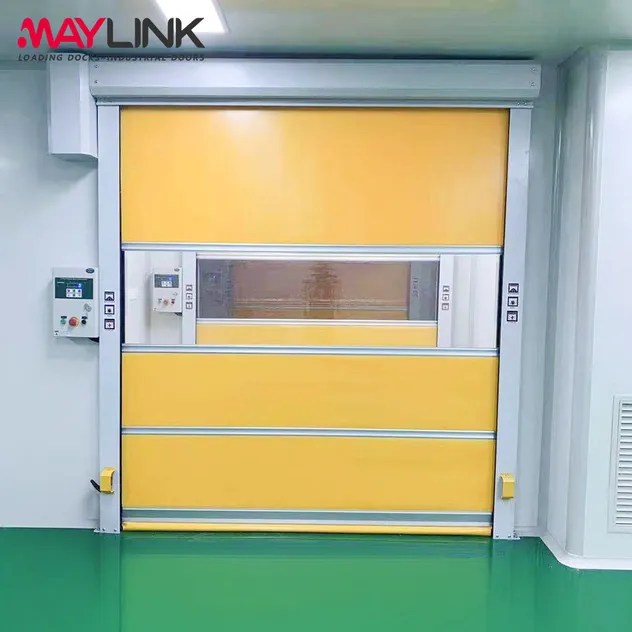

PVC High Speed Door

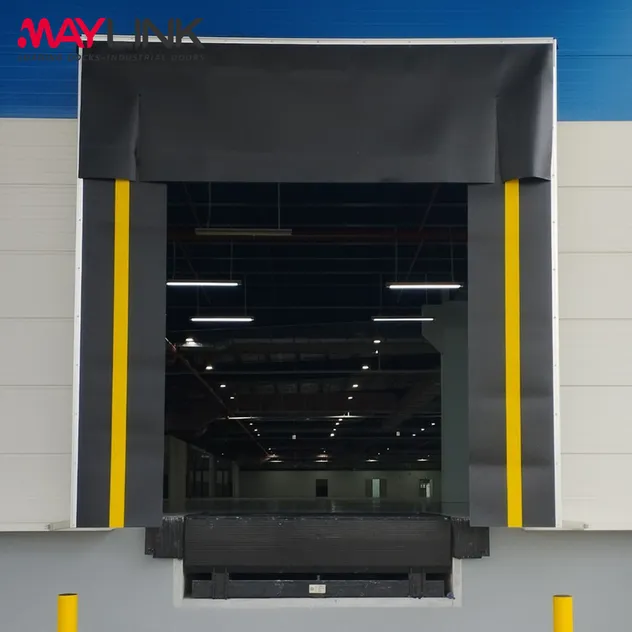

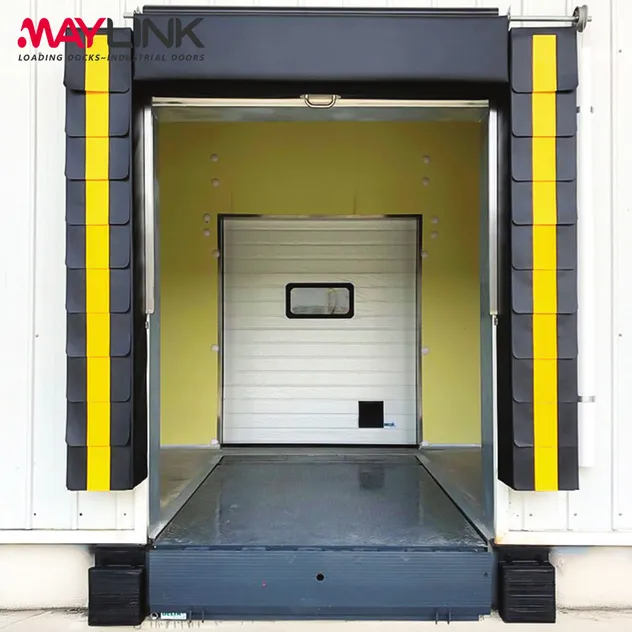

Sponge Dock Seal
