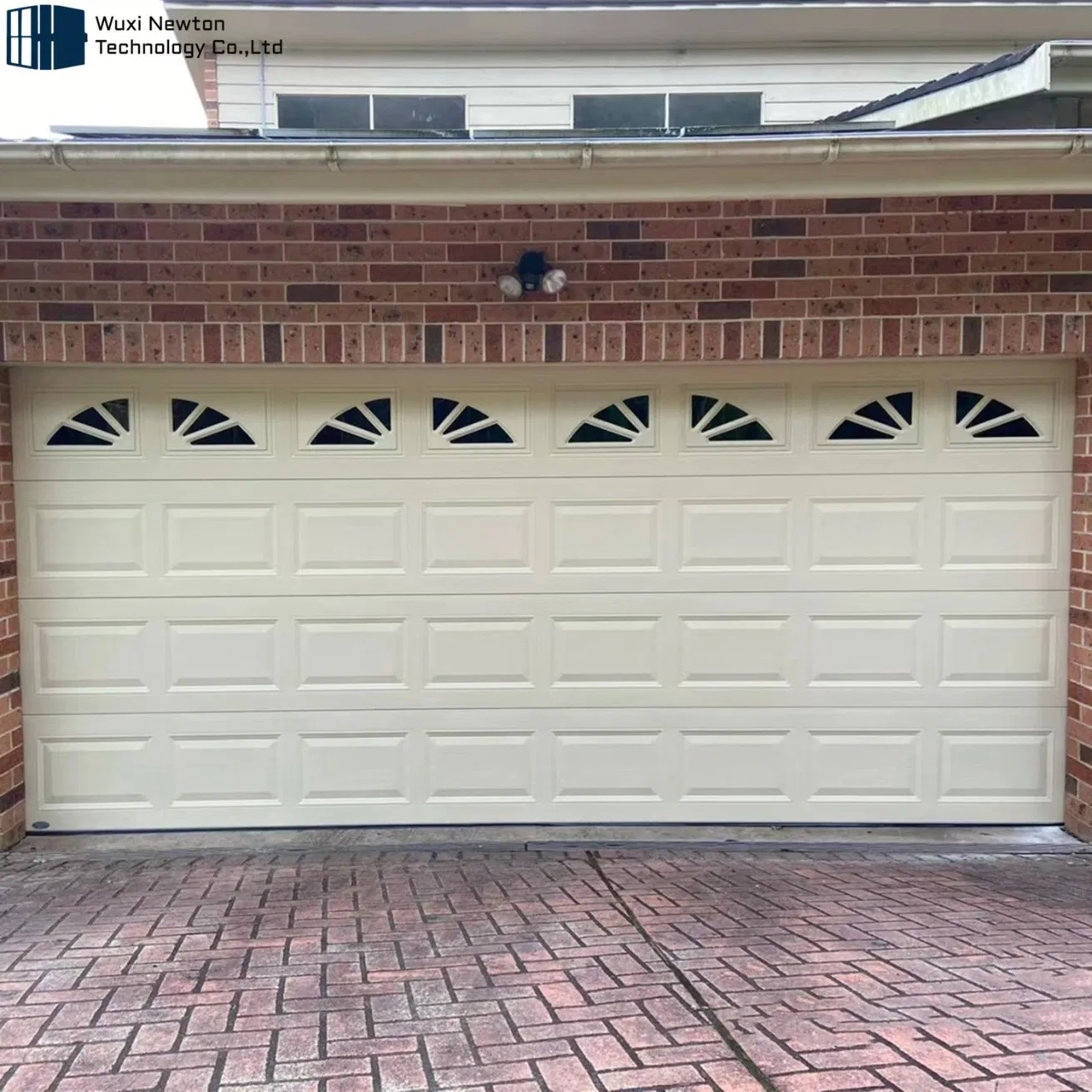

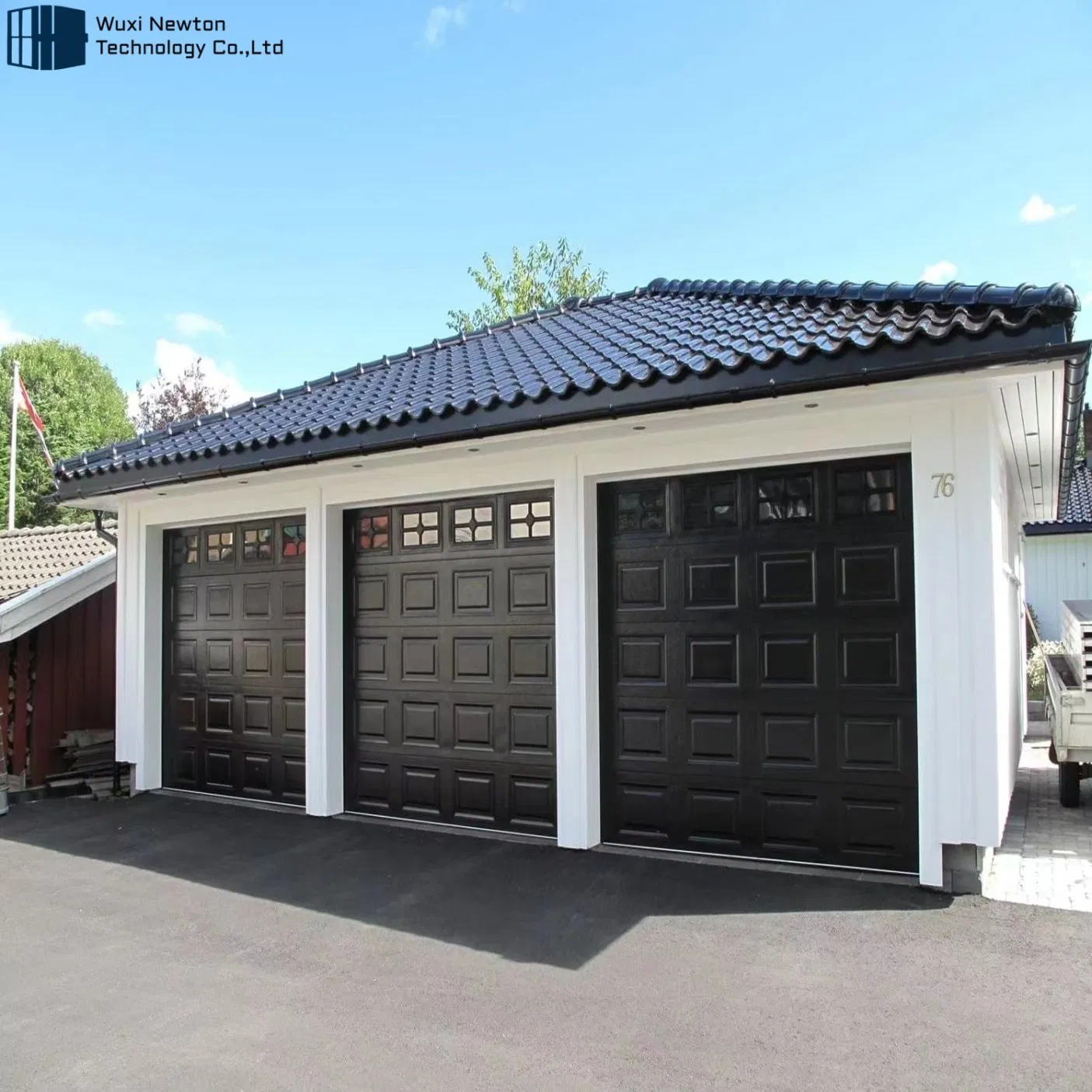

Newton Aluminum Steel PU Foam Sandwich Panel Insulated Automatic Sectional Garage Door
Newton Aluminum Steel PU Foam Sandwich Panel Insulated Automatic Sectional Garage Door
Newton Aluminum Steel PU Foam Sandwich Panel Insulated Automatic Sectional Garage Door
Newton Aluminum Steel PU Foam Sandwich Panel Insulated Automatic Sectional Garage Door
Newton Aluminum Steel PU Foam Sandwich Panel Insulated Automatic Sectional Garage Door
1 / 5
Newton Aluminum Steel PU Foam Sandwich Panel Insulated Automatic Sectional Garage Door
Newton Aluminum Steel PU Foam Sandwich Panel Insulated Automatic Sectional Garage Door
Newton Aluminum Steel PU Foam Sandwich Panel Insulated Automatic Sectional Garage Door
Newton Aluminum Steel PU Foam Sandwich Panel Insulated Automatic Sectional Garage Door
Newton Aluminum Steel PU Foam Sandwich Panel Insulated Automatic Sectional Garage Door

Newton Aluminum Steel PU Foam Sandwich Panel Insulated Automatic Sectional Garage Door

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
NTGD
Material
Steel
Thickness
40mm, 43mm, 50mm, 75mm Polyurethane Foam
Opening Style
Overhead
Opening Type
Remote Control / Wall Switch / Manual
Output Torque
600n/ 800n/ 1000n/ 1200n
Door Panel Pattern
Square, Linear, Stucco, Wavy
Color
White, Silver Grey, Golden Oak, Black Walnut etc
Panel Density
40kg/M³
Feature
Quiet Operation, Quick Installation, Low Maintain
Origin
China
Capacity
50000 Square Meters Per Month
Product Description
Insulated Automatic Sectional Garage Door
Feature Details
Panel Material 1. Aluminum material door panel with polyethene foam filled
2. Galvanized steel plate with polyethene foam filled (Thickness: 0.326mm-0.5mm)
Panel Thickness Anti-pinch finger: 40mm; Ordinary board: 43/50/75mm
Track System Single track: lintel > 35cm; Double track: lintel smaller than 35cm

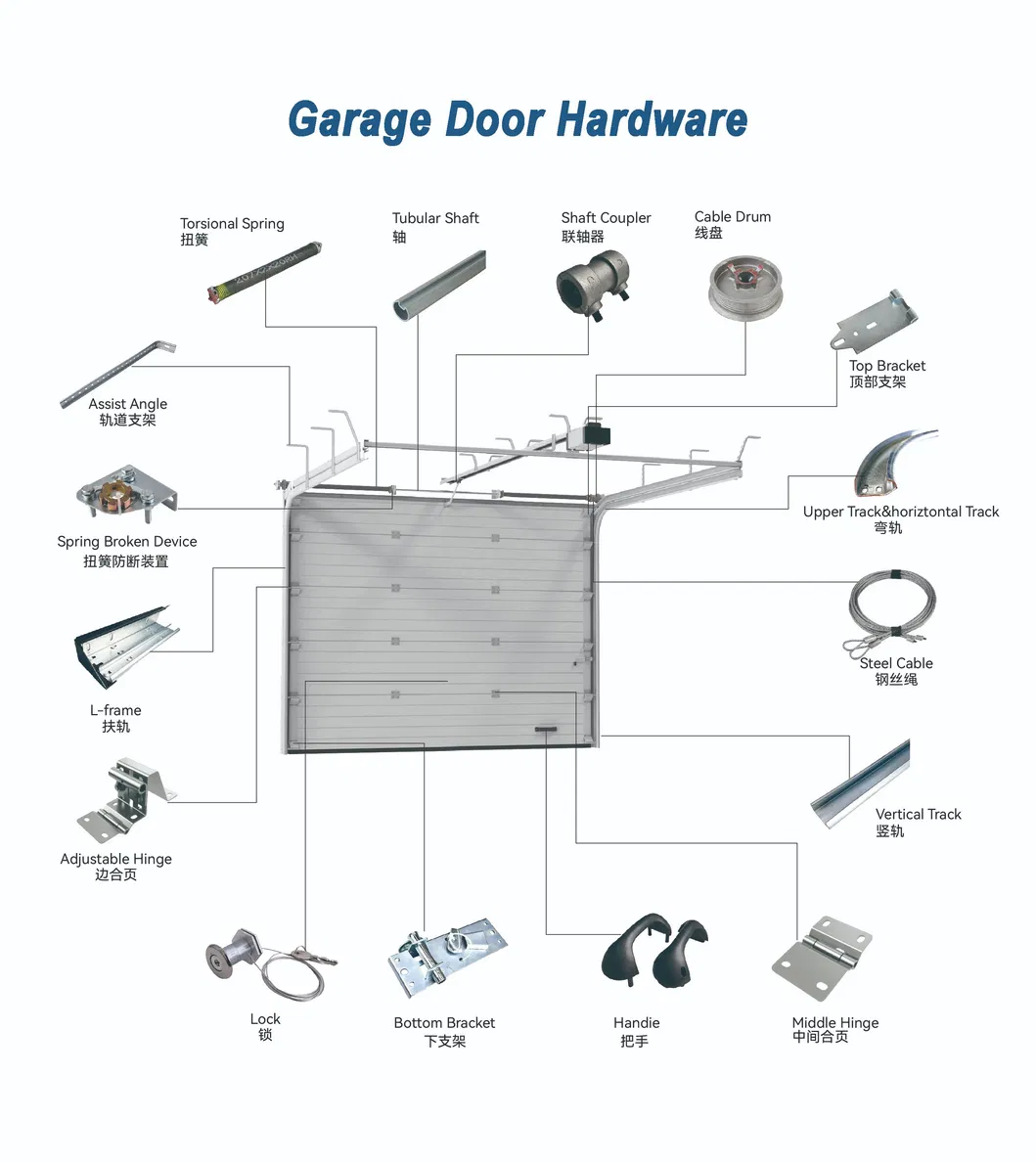

Sectional Garage Door Details

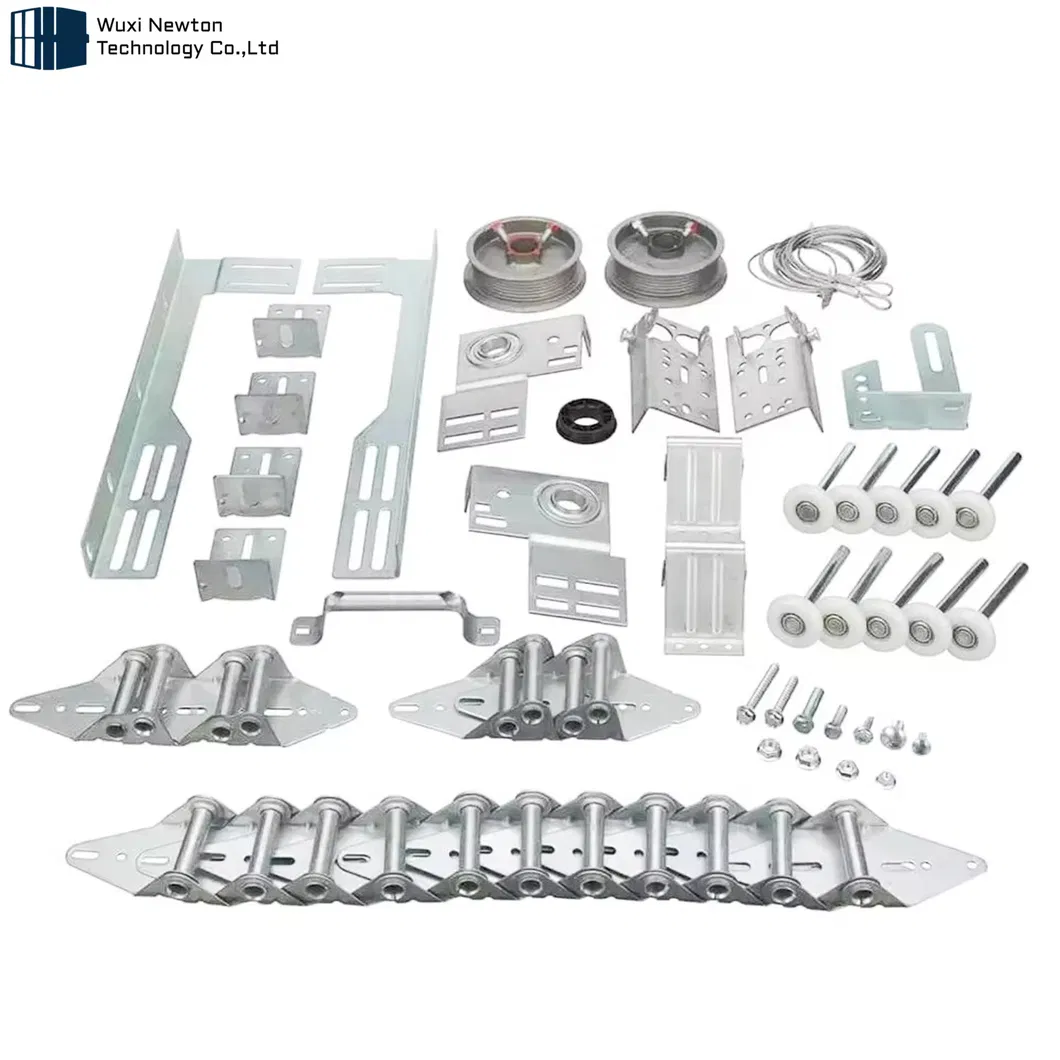

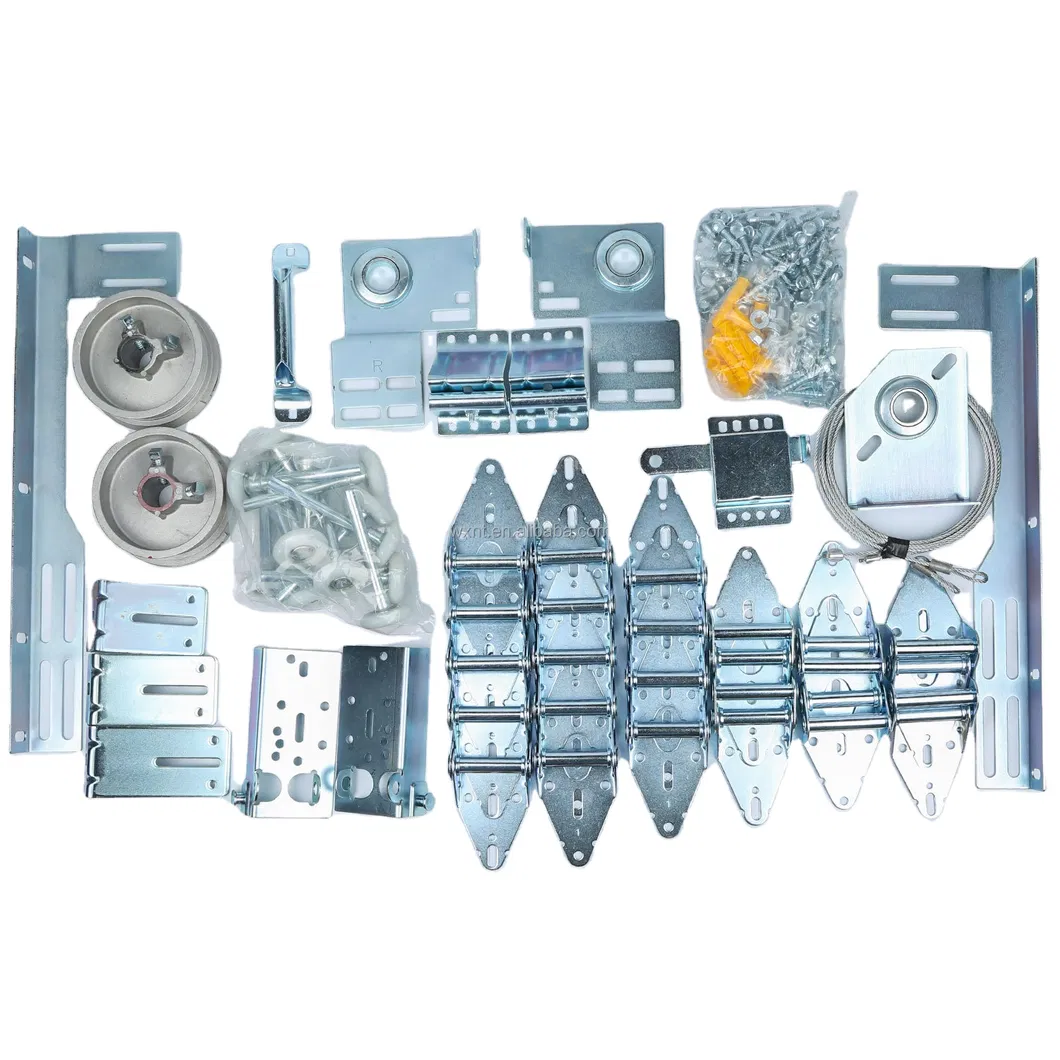

Panel Detail 1 Panel Detail 2
Product Selling Points

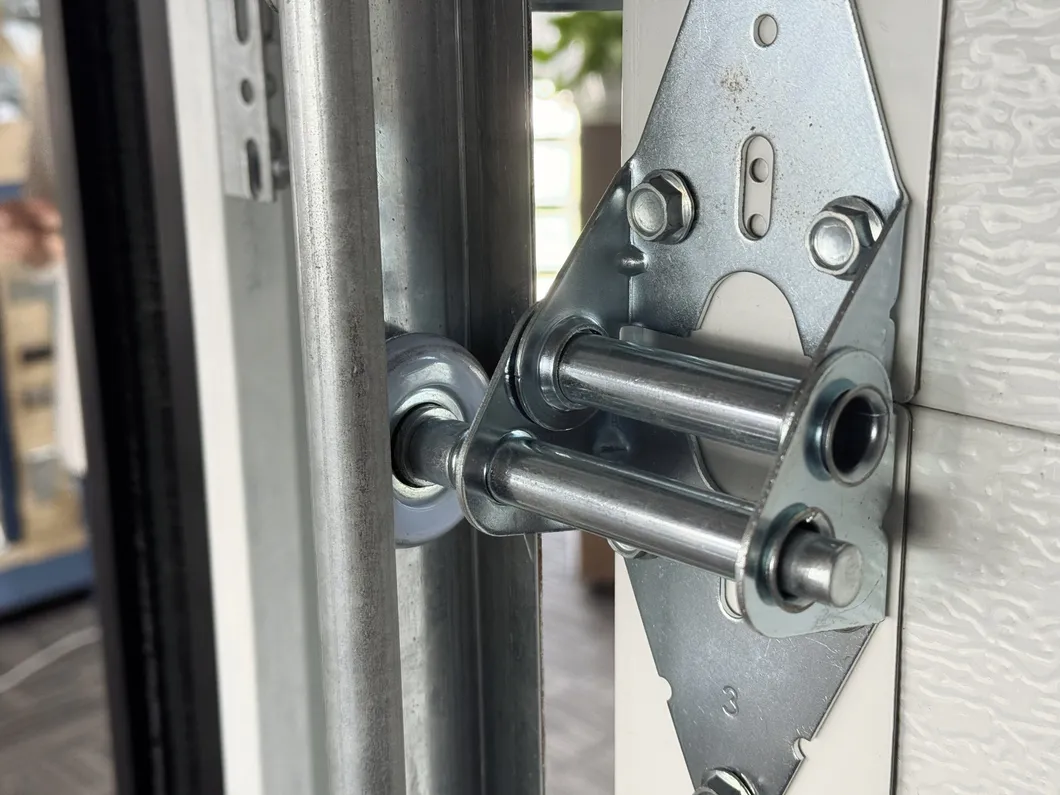

⚙️ Scroll Wheel and Tracks

High load smooth bearings, silent nylon wheels, and high quality solid metal rods for durable operation.

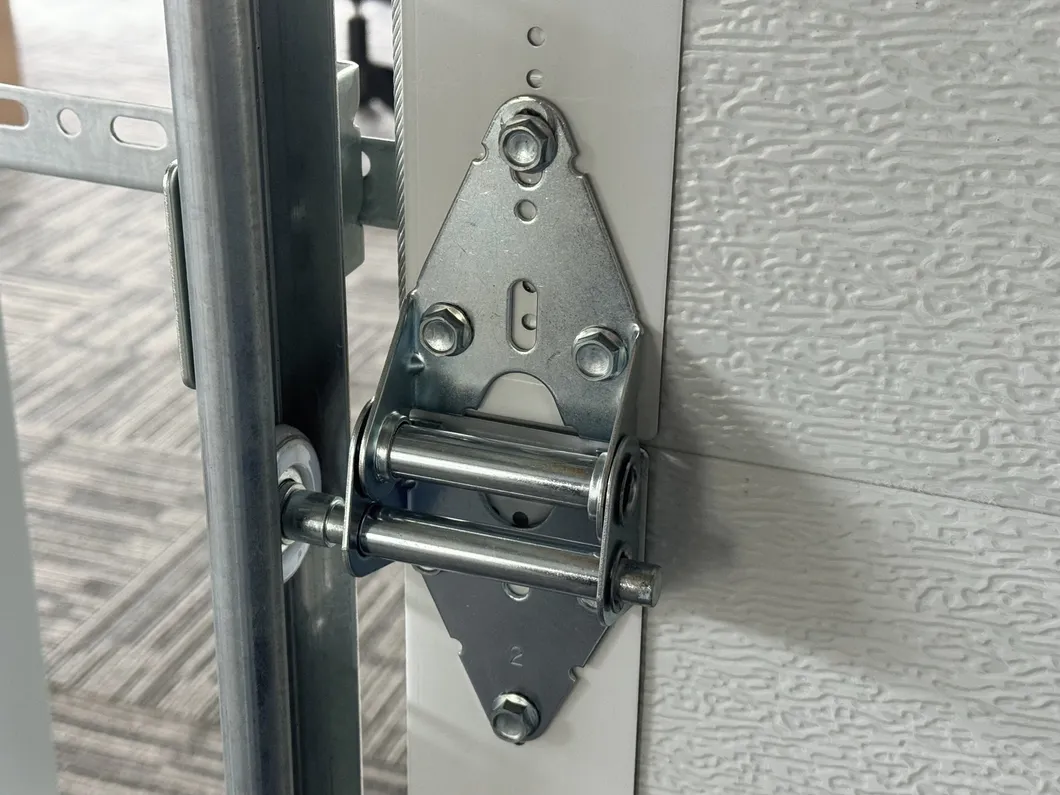

Scroll Wheel Garage Door Hinges

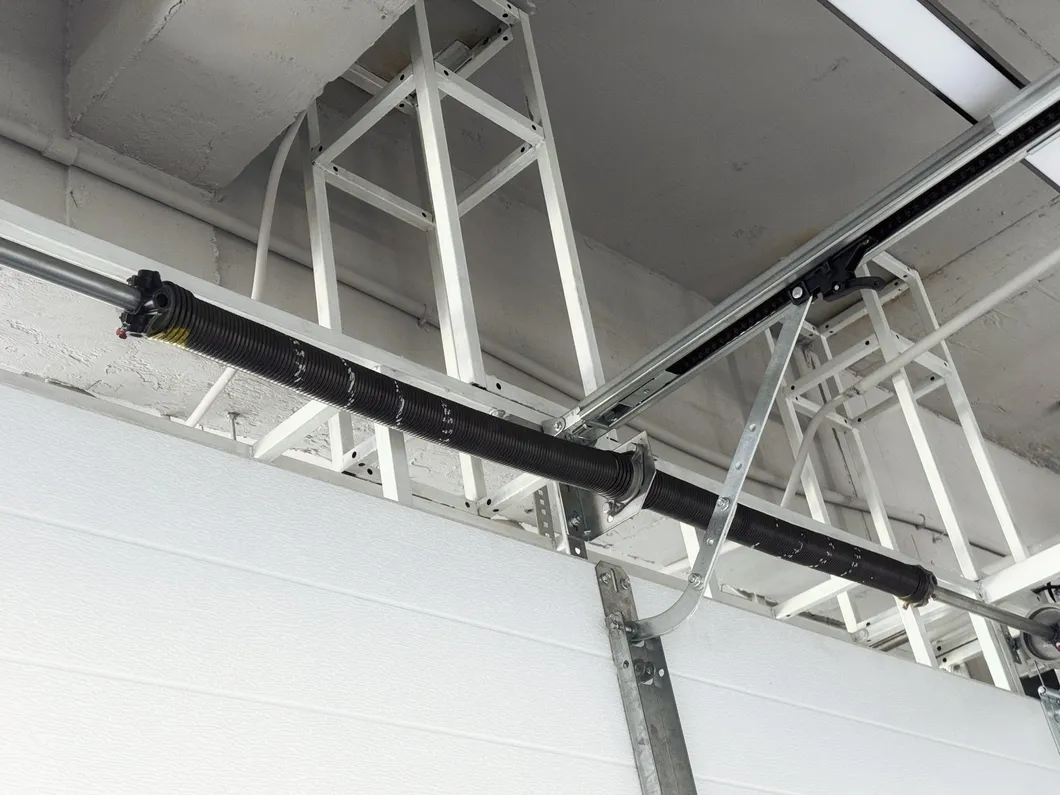

🔗 Torsional Spring & Hinges

High-strength balanced weight torsion spring to extend the service life of the motor. High-quality stainless steel hinges ensure flexible rotation and strong load-bearing.

Torsional Spring
Customization & Design

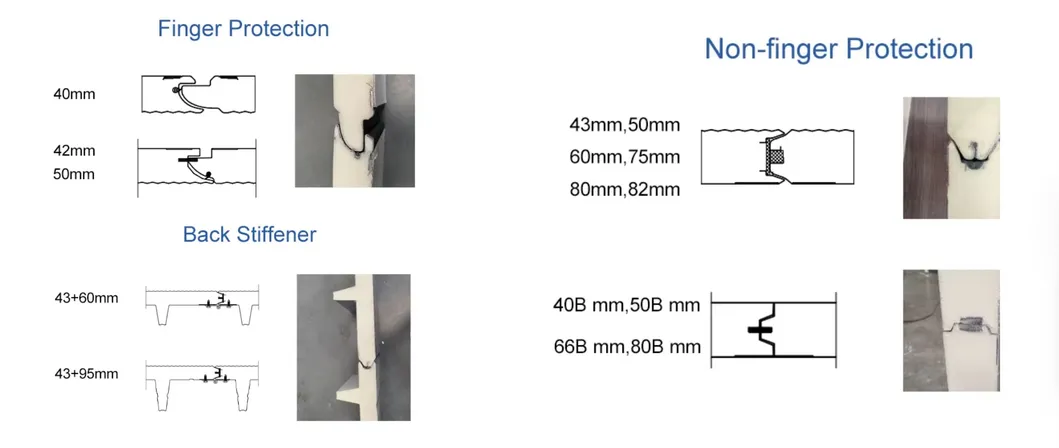

Design Options

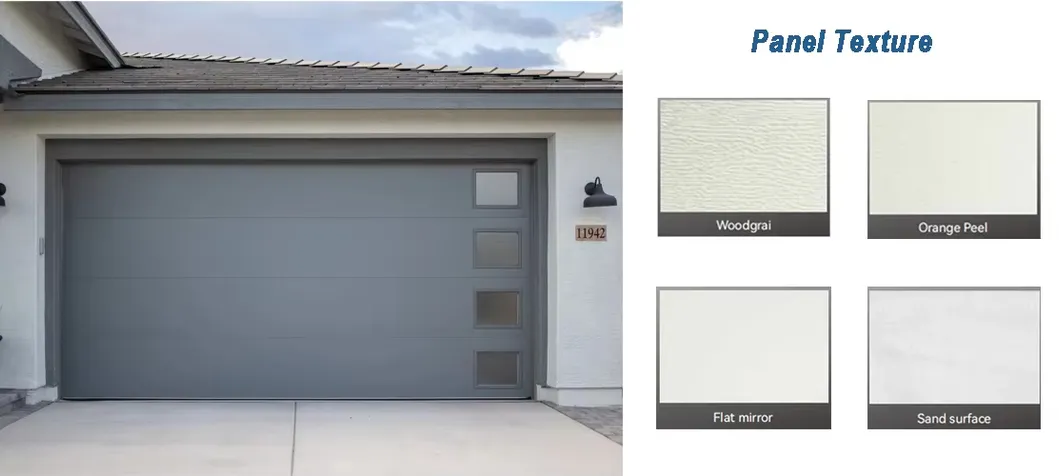

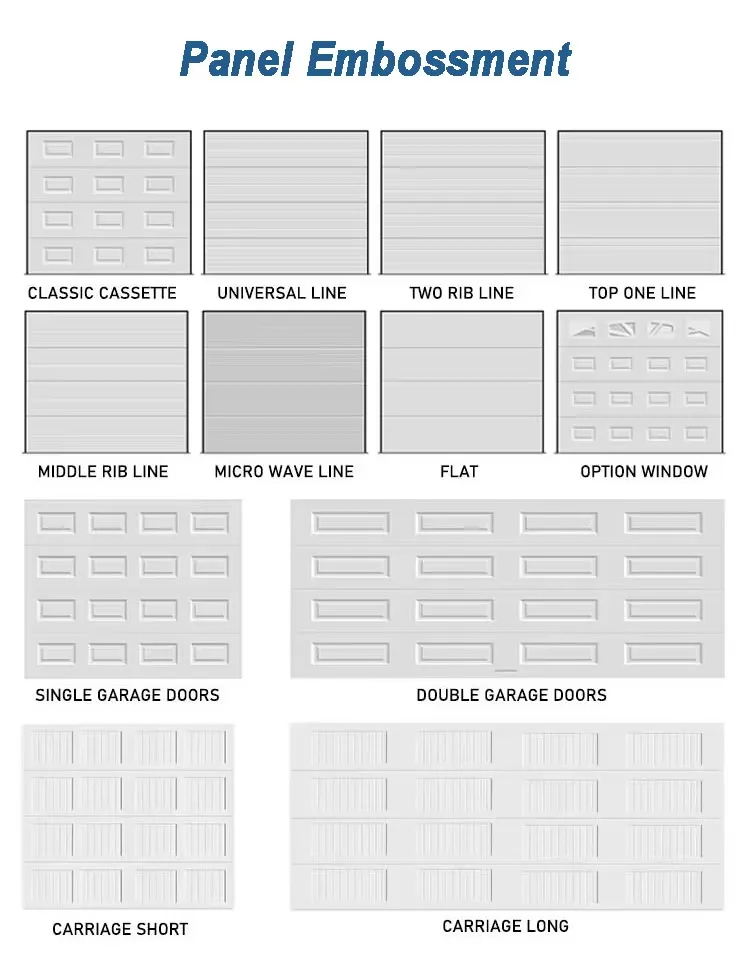

Customization 1 Customization 2 Customization 3
Technical Specifications: Garage Door Motor

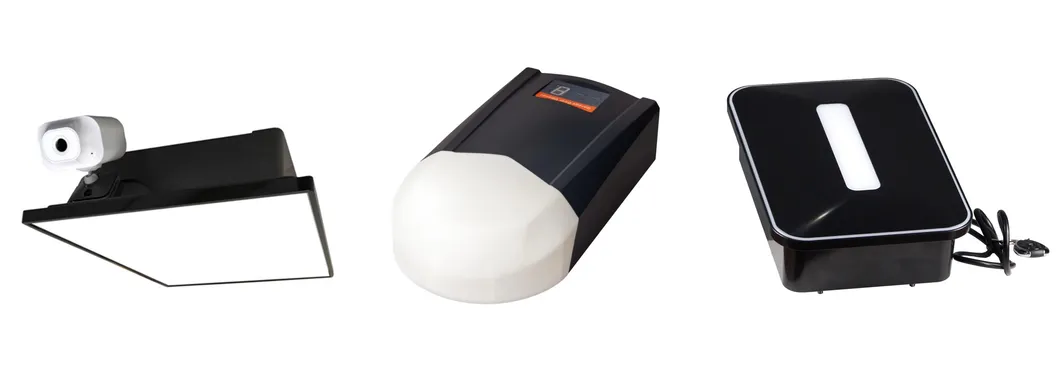

Motor Unit
Model Parameter NT800 NT1000 NT1200
Input Voltage230-240VAC 50/60Hz230-240VAC 50/60Hz230-240VAC 50/60Hz
Power Input235W245W260W
Max Pulling Force800N1000N1200N
Opening Speed160mm/s160mm/s160mm/s
Radio Frequency433.92MHz433.92MHz433.92MHz
Max Door Area12m²14m²16m²

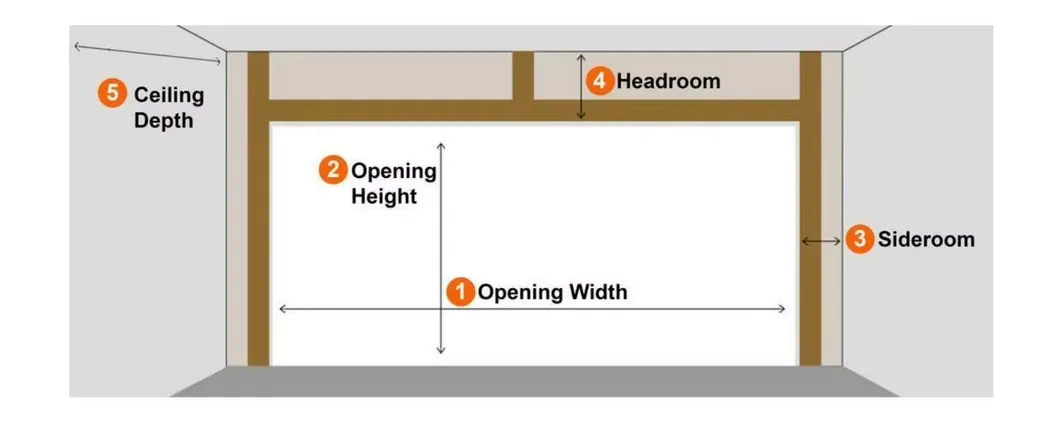

Measurement Guide

How to measure your garage opening:

  • 1. Opening Width: Distance between each side of the opening.
  • 2. Opening Height: Distance from floor to the top of the opening.
  • 3. Sideroom Width: Area on either side of the opening to the corner wall.
  • 4. Headroom Height: Space from the top of the opening to the ceiling.
  • 5. Ceiling Depth: Distance from the opening to the back of the garage.
Measurement Drawing

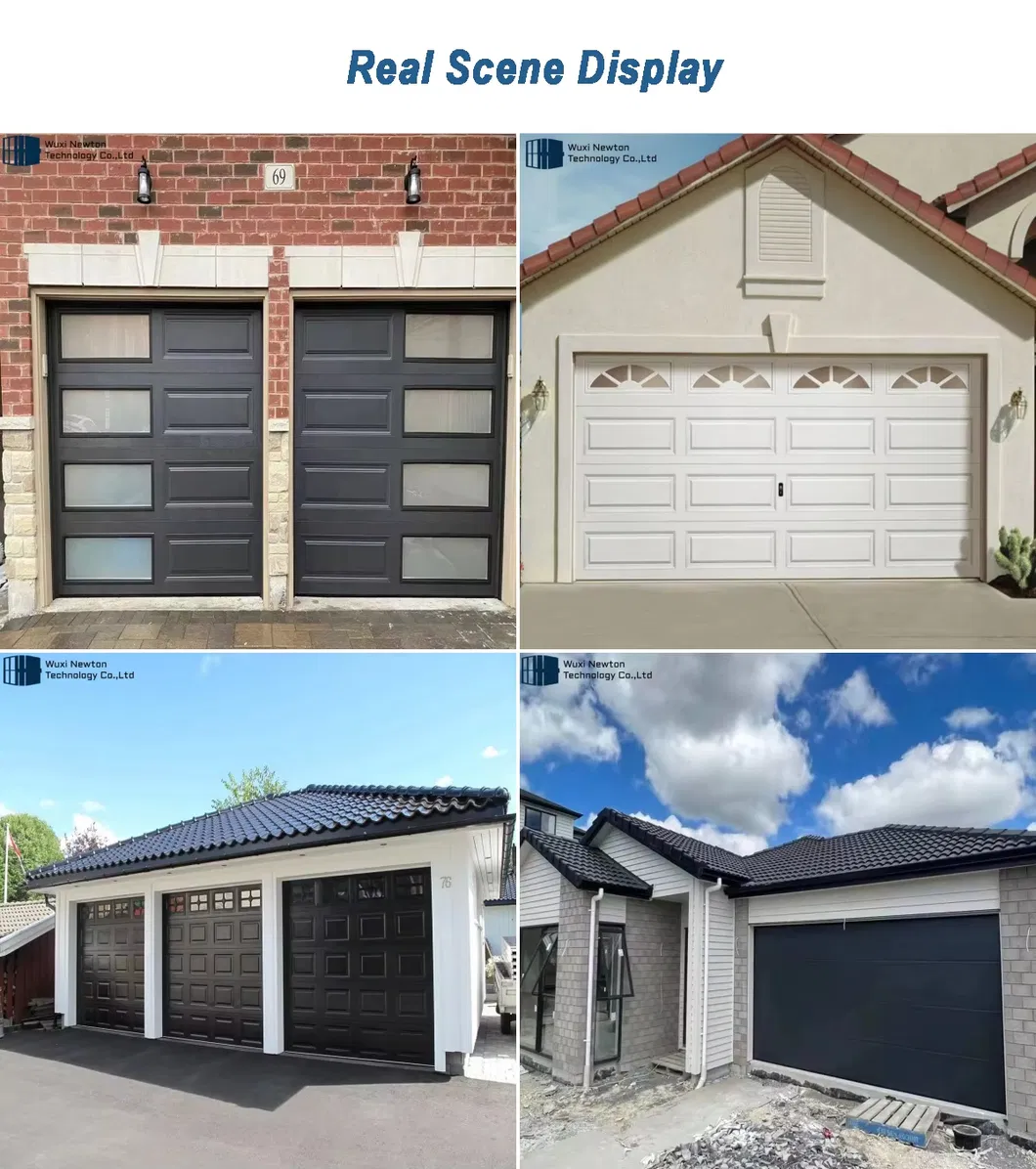

Installation 1 Installation 2 Installation 3
Frequently Asked Questions
Q1: Are you a professional manufacturer?
Yes, we have been a manufacturer in this industry for more than 20 years, serving customers globally with high-quality door solutions.
Q2: What types of doors do you provide?
Our range includes automatic and manual industrial folding doors, sectional garage doors, high-speed PVC doors, full-view aluminum doors, and dock equipment like hydraulic levelers.
Q3: Is customization available for specific sizes?
Absolutely. We provide comprehensive customization services to meet your specific dimensions, colors, and functional requirements.
Q4: Can I request a product sample?
Yes, we can provide free samples of materials. Shipping costs are generally handled by the customer's side.
Q5: What is the typical lead time for an order?
Normally, our standard lead time is 15-20 days after receiving the initial deposit.
Q6: What are the standard payment terms?
We typically accept TT (Telegraphic Transfer), requiring a 30% deposit with the remaining 70% balance paid against the Bill of Loading.
