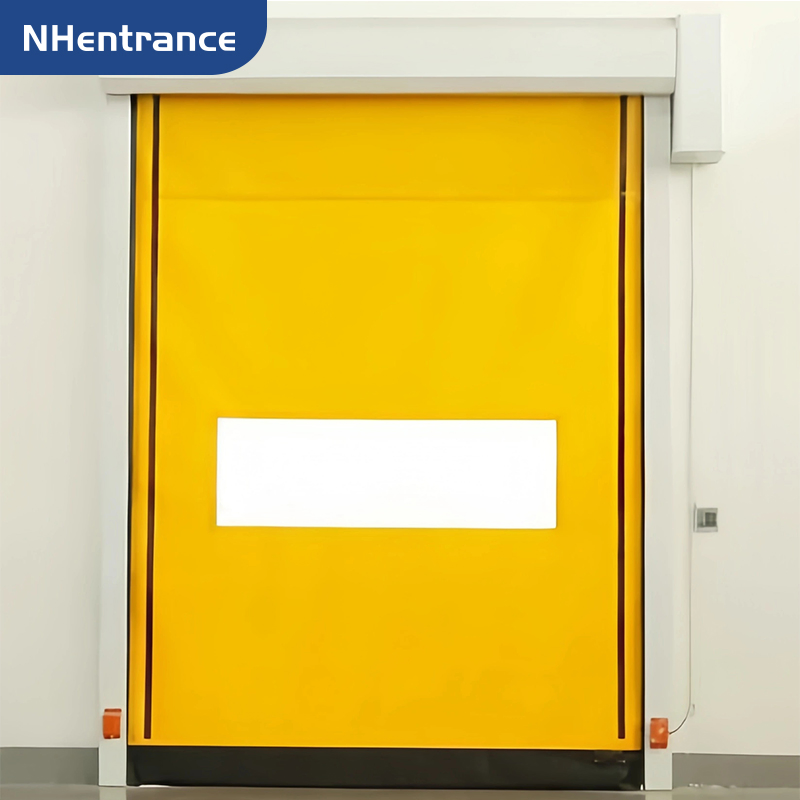

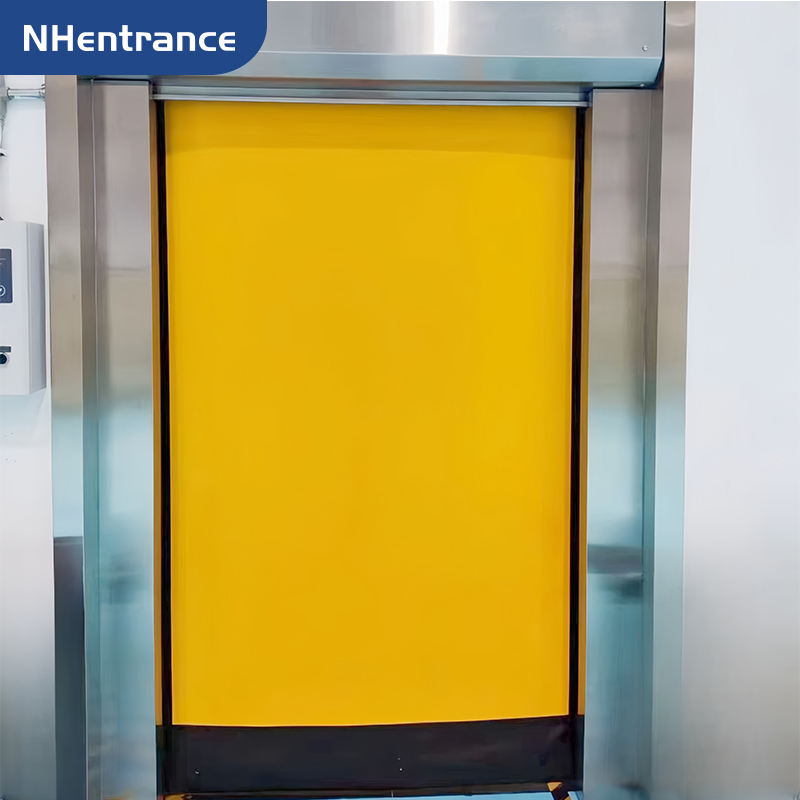

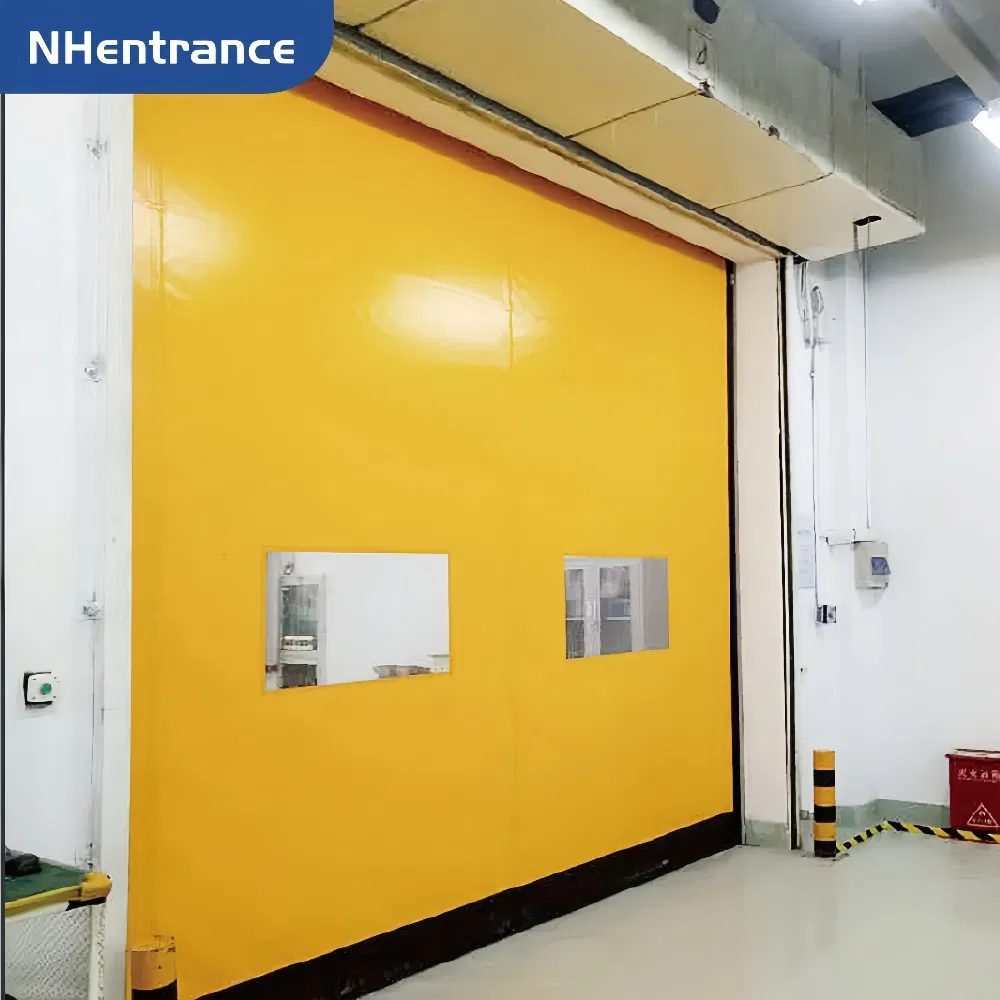

Our High-Speed Zipper Door is engineered for rapid, secure, and efficient access in high-traffic industrial environments. Equipped with a self-repairing zipper sealing system, the door automatically resets after accidental impacts, minimizing downtime and maintenance costs. Its durable PVC curtain and precise sealing provide reliable insulation against dust, moisture, and temperature fluctuations, helping to reduce energy loss and maintain clean conditions. With fast opening speeds and robust construction, this door is an ideal choice for warehouses, cleanrooms, and logistics facilities.
Built to Perform, Made to Last.
| Model NO. | High Speed Zipper Door |
| Material | PVC |
| Type | Rolling |
| Open Style | Rolling |
| Opening Type | Power Driven |
| Color | White, Blue, Orange, Yellow, Grey, Red |
| Certification | ISO9001, CE |
| Opening Speed | 0.8 - 1.5 M/S |
| Service Life | 1,000,000 Cycles |
| Production Capacity | 800 Sets/Month |
| Control System | Servo Control System |
| Drive Motor | Professional servo drive system, soft start/stop, chain/bar release, multiple safety inputs/outputs |
| Limit Switch | Multi-turn Absolute Encoder |
| Power Supply | 220 Volts 13A Single-phase 50Hz/380V |
| Door Curtain | Reinforced PVC coated fabric with internal mesh reinforcement, thickness 1.2mm |
| Safety Protection | Standard with infrared sensors and safety airbag edge |
| Sealing | Pull-chain zipper on both sides of the door track for tight sealing |
| Wind Resistance | Level 4-6 |

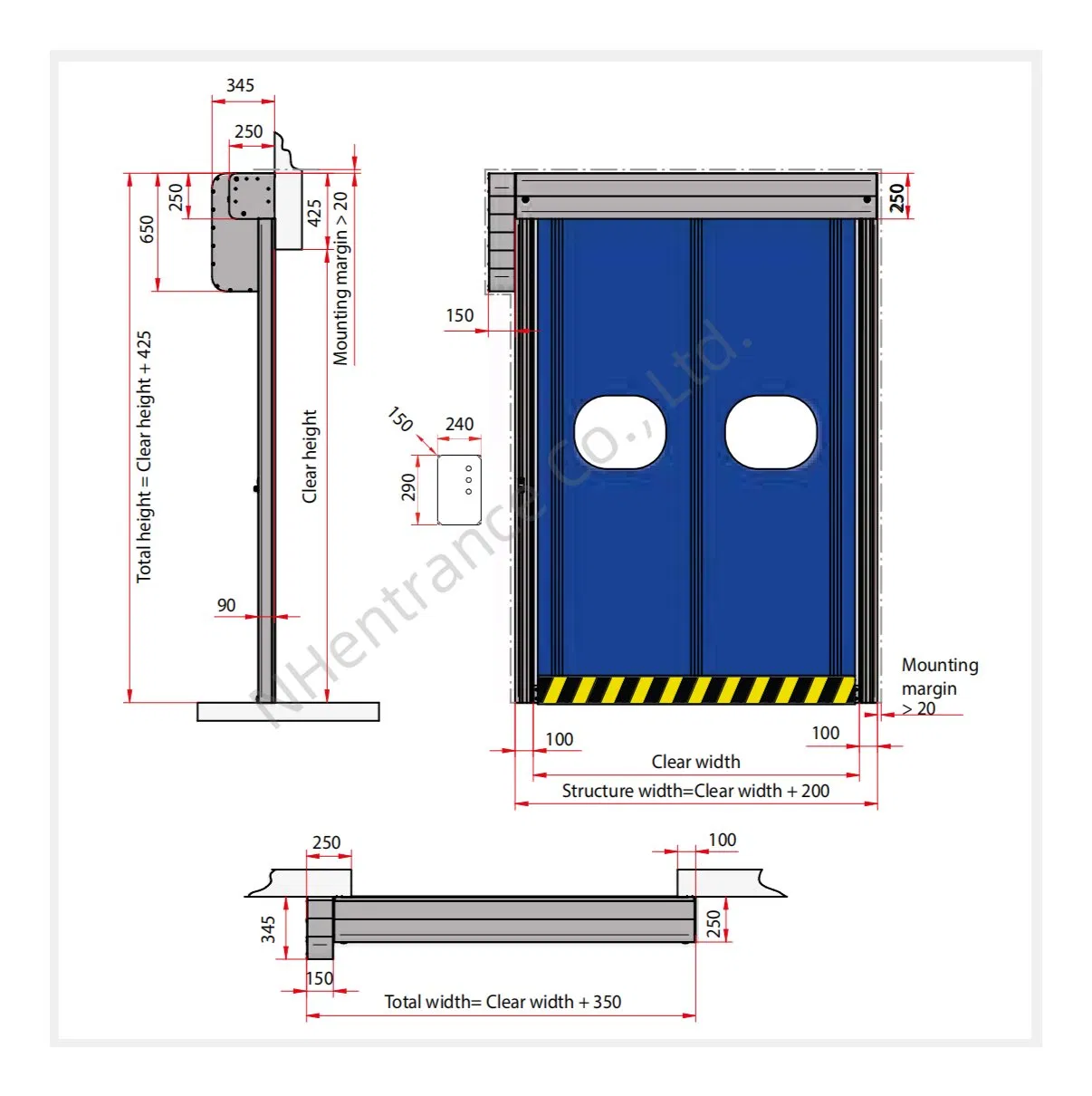

| Maximum Size | 4000×4500mm |
The zipper system automatically resets after impact, reducing downtime and maintenance costs.
Provides excellent protection against dust, moisture, and temperature variations, helping to save energy.
Fast opening speeds and heavy-duty materials ensure smooth operation in high-traffic environments.
Integrated sensors and soft bottom edges enhance safety for personnel and equipment.
The self-lubricating zipper system and modular design reduce the need for frequent service.

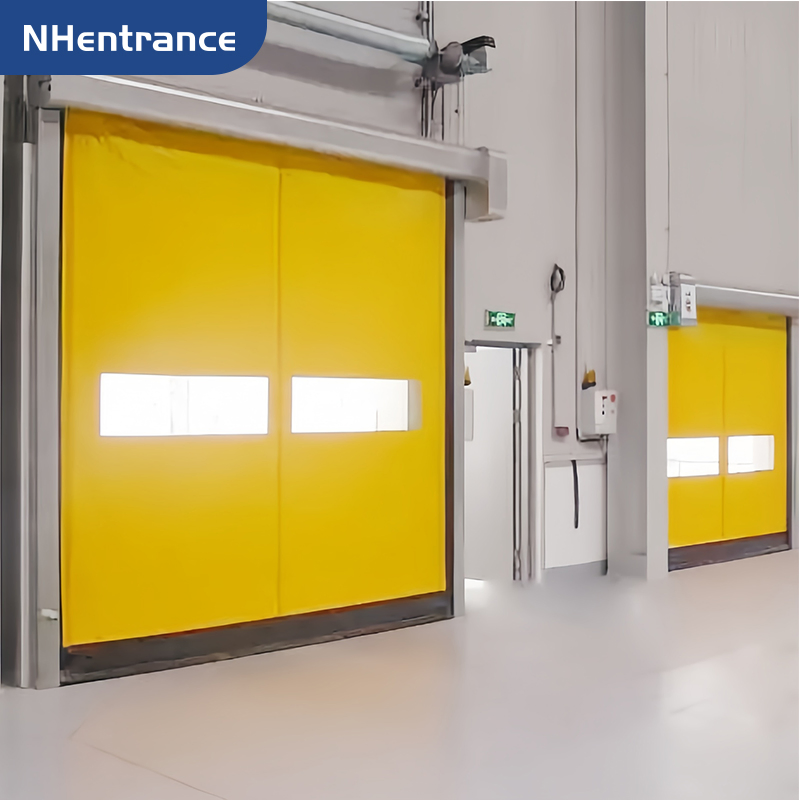

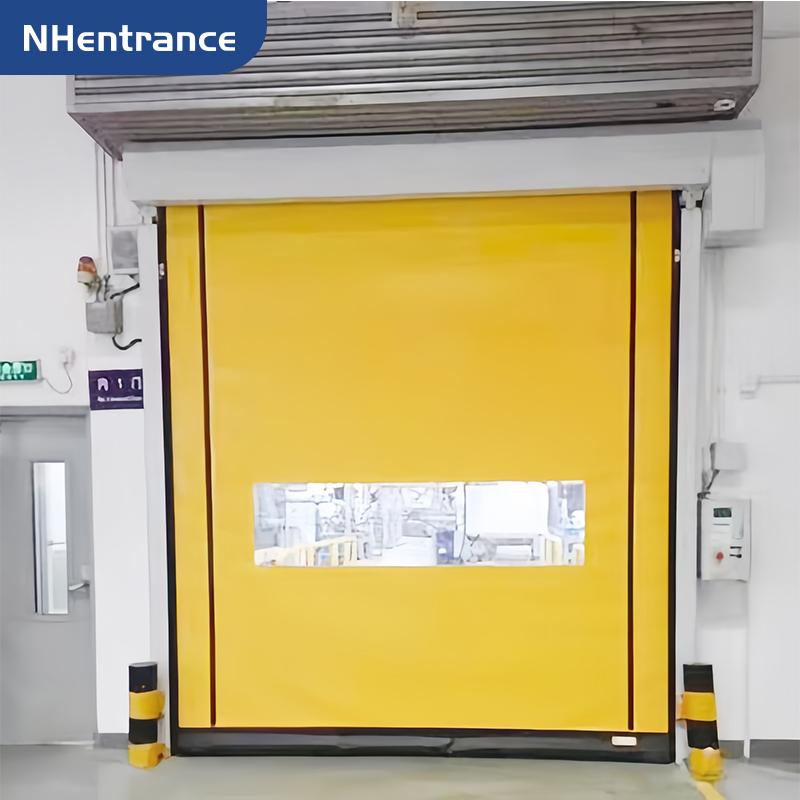

Suitable for warehouses, cleanrooms, logistics hubs, and other demanding facilities.
Our company is a trusted manufacturer of high-performance industrial doors, garage doors, and dock solutions, delivering efficiency, durability, and safety across industries. With over 20 years of expertise, we provide customized solutions for logistics, manufacturing, food processing, cold storage, and commercial applications. Our product range includes high-speed doors for fast and energy-efficient access, spiral and sectional doors for secure and insulated operation, garage doors for residential and commercial use, and dock levelers and shelters for seamless loading. We are committed to quality, innovation, and long-term performance to optimize your business operations.
