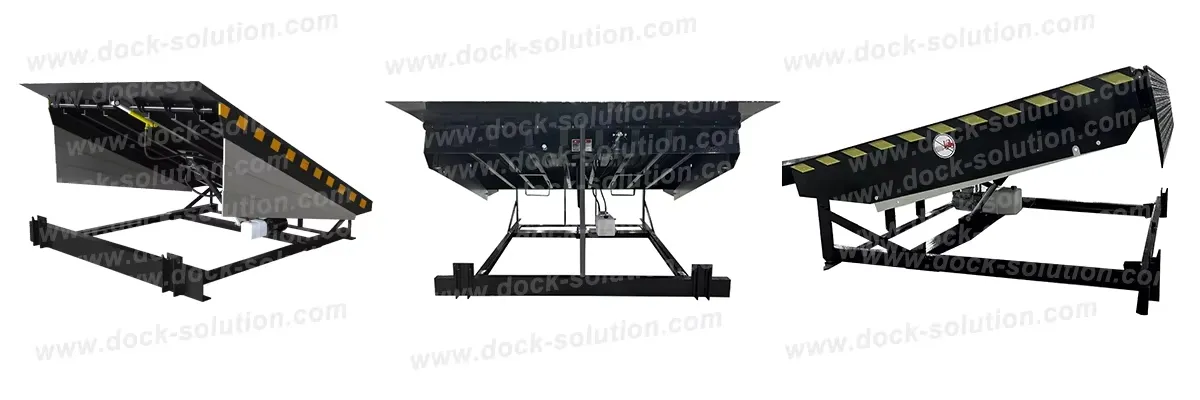

Hydraulic Dock Levelers utilize a hydraulic power unit to lift the upper main panel through a main oil cylinder, while a small auxiliary cylinder pushes out the lip plate. This system is essential for bridging the gap when dock and truck heights differ.
Through the principle of self-weight drop, the lip plate is positioned onto the rear of the truck for seamless loading and unloading. This hydraulic type is the most widely adopted platform due to its stable performance, simple operation, and low maintenance requirements.

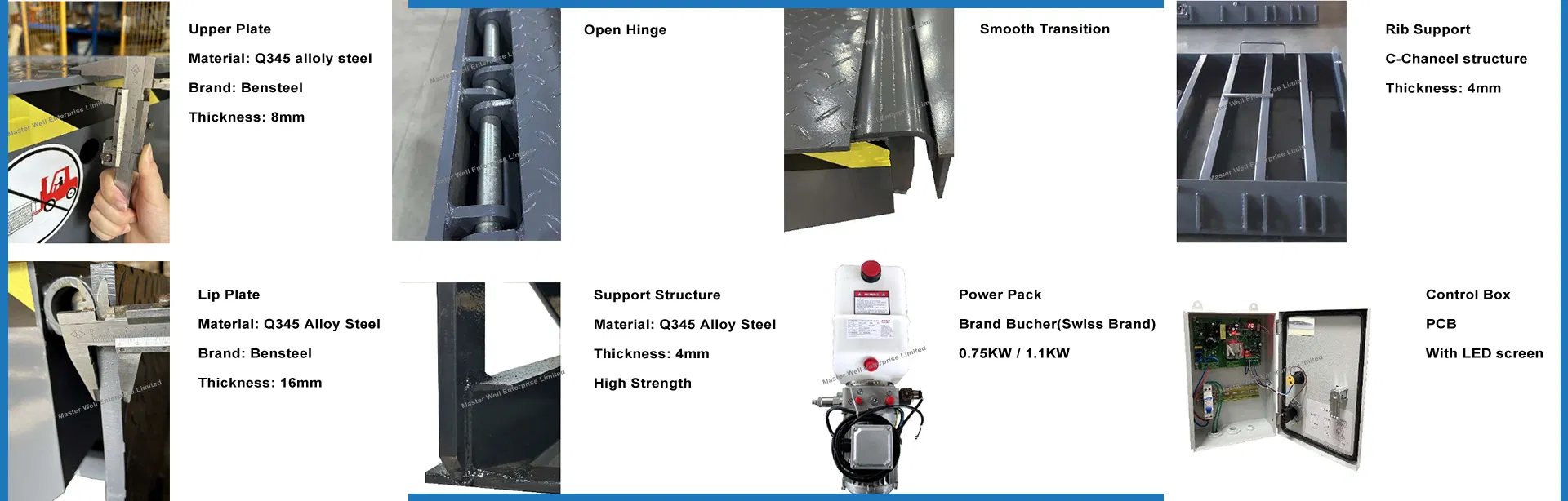

| Upper Plate | 8 mm thickness, anti-skate steel plate |
| Swinging Lip | Single 16 mm thickness, 400mm length |
| Support Profile | C-shaped stiffener / 14# I-Beam |
| Sealing Element | Japan Brand NOK A505 |
| Adjustment Time | Rise Time ≤ 16s, Fall Time ≤ 10s |
| Dynamic Loading | 6,000 ~ 25,000 KG |
| Static Loading | 10,000 ~ 31,700 KG |
| Operating Temp | -30℃ to +50℃ |
| Noise Level | < 50db (±5db) |

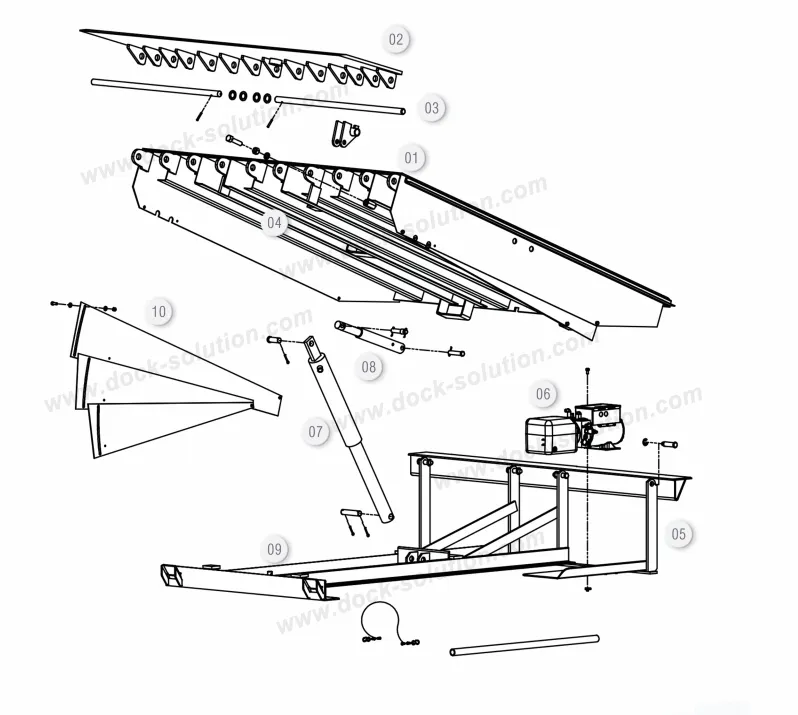

| 1. Upper Plate | 6. Power Pack |
| 2. Lip Plate | 7. Main Cylinder |
| 3. Hinge (Open) | 8. Auxiliary Cylinder |
| 4. Rib Support | 9. Frame |
| 5. Support Structure | 10. Guard |
