Vistaro Door
1 / 5
| Model NO. | GKM466 | Thickness | 40mm |
| Opening Style | Rolling | Opening Type | Power Driven |
| Power | 350W | Color | White |
| Product Name | Industrial Lifting Door | Service Life | 10 Years |

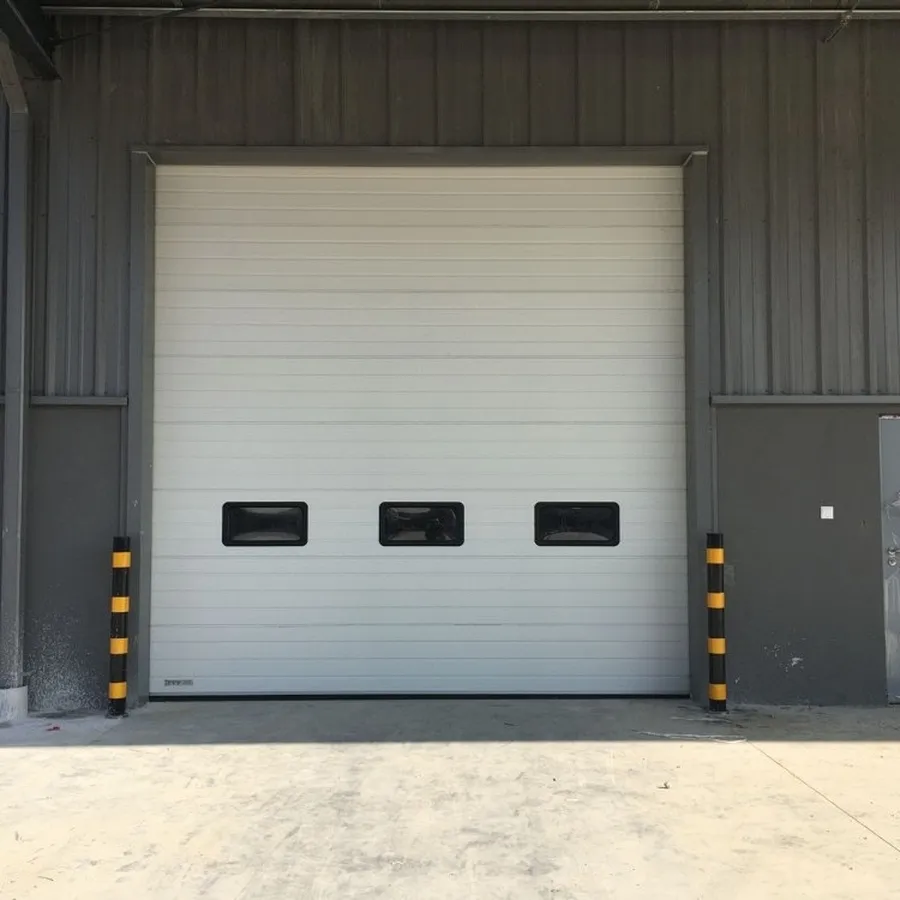

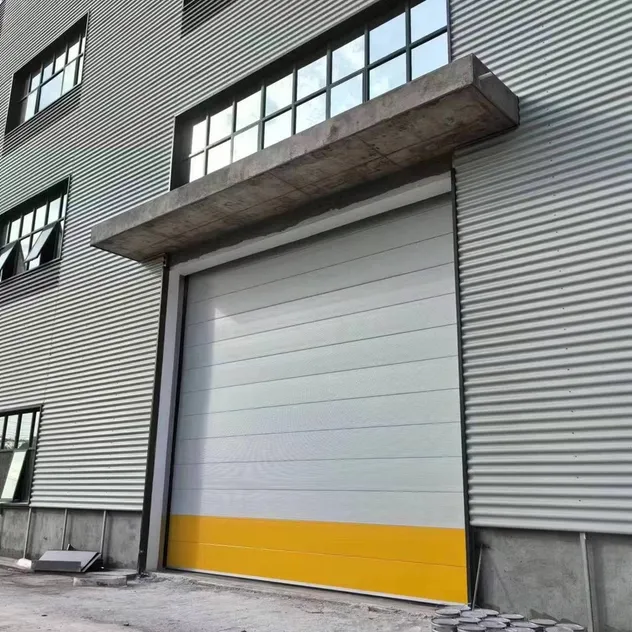

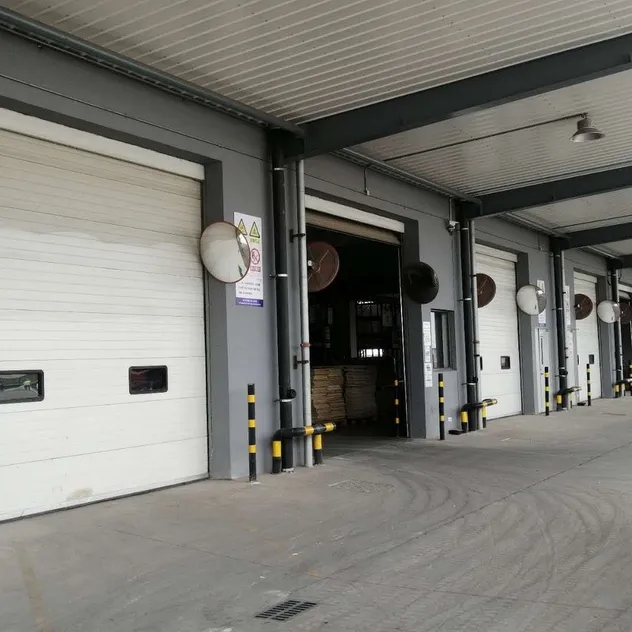

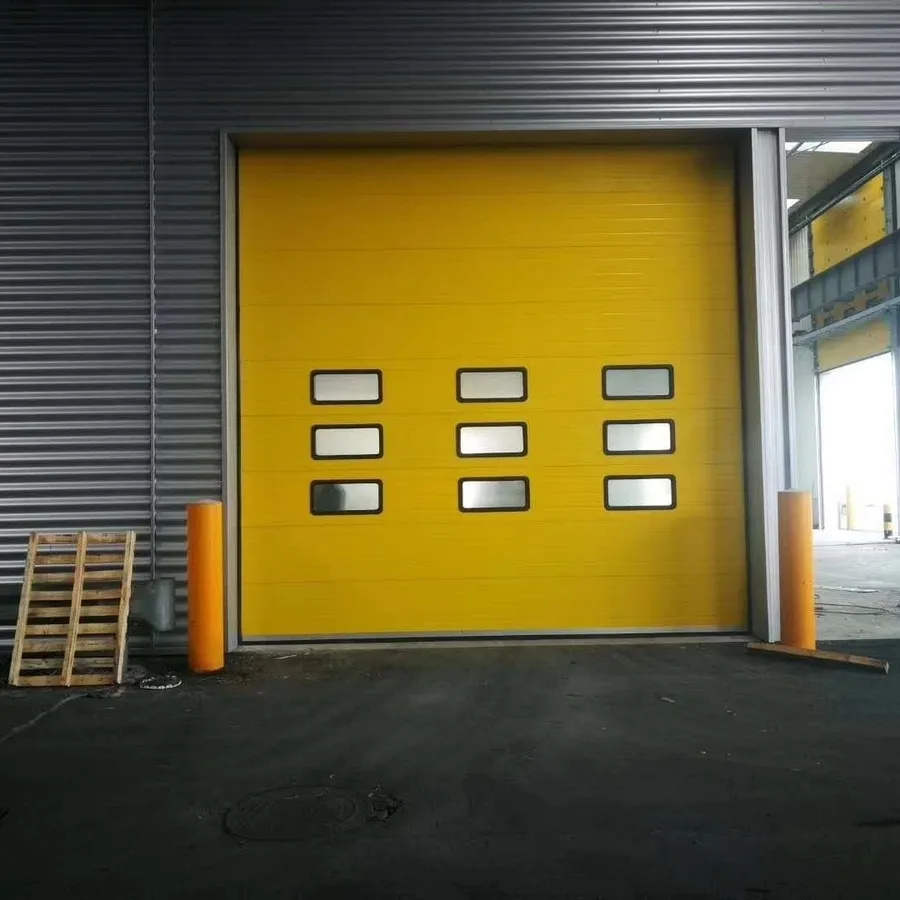

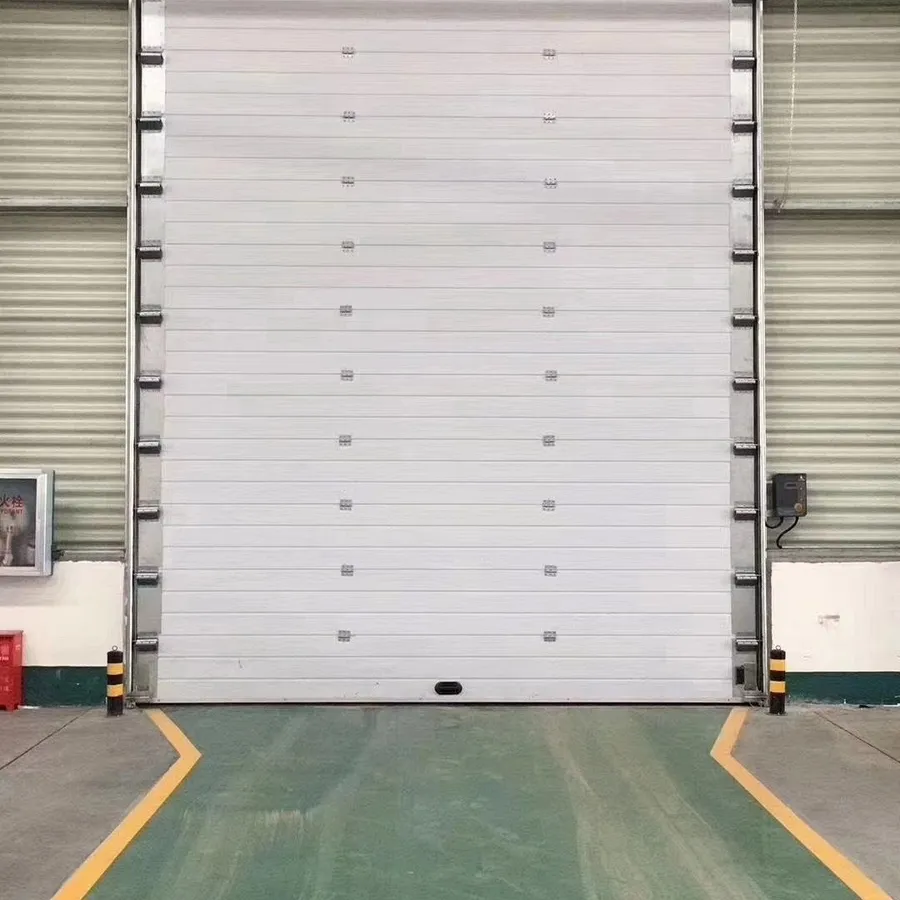

Industrial lifting door is a professional industrial exterior door. It can meet the requirements of insulation, sealing, high-frequency switching, service life, professional control, and safe use. It is widely adopted by industrial and logistics projects.

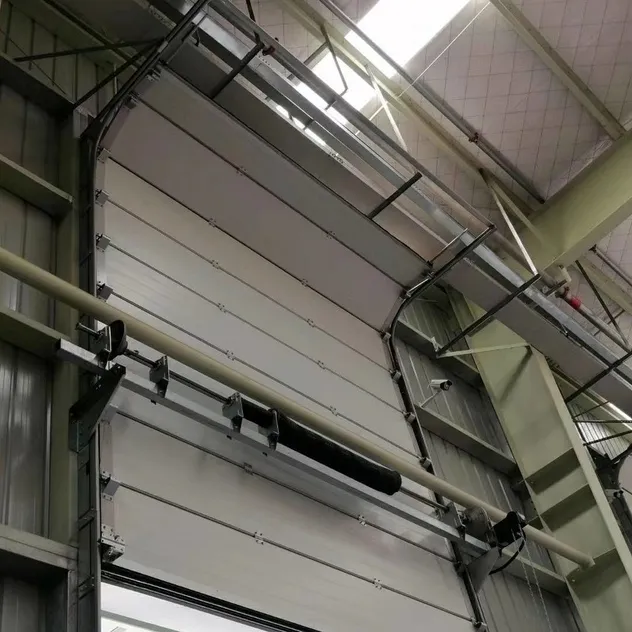

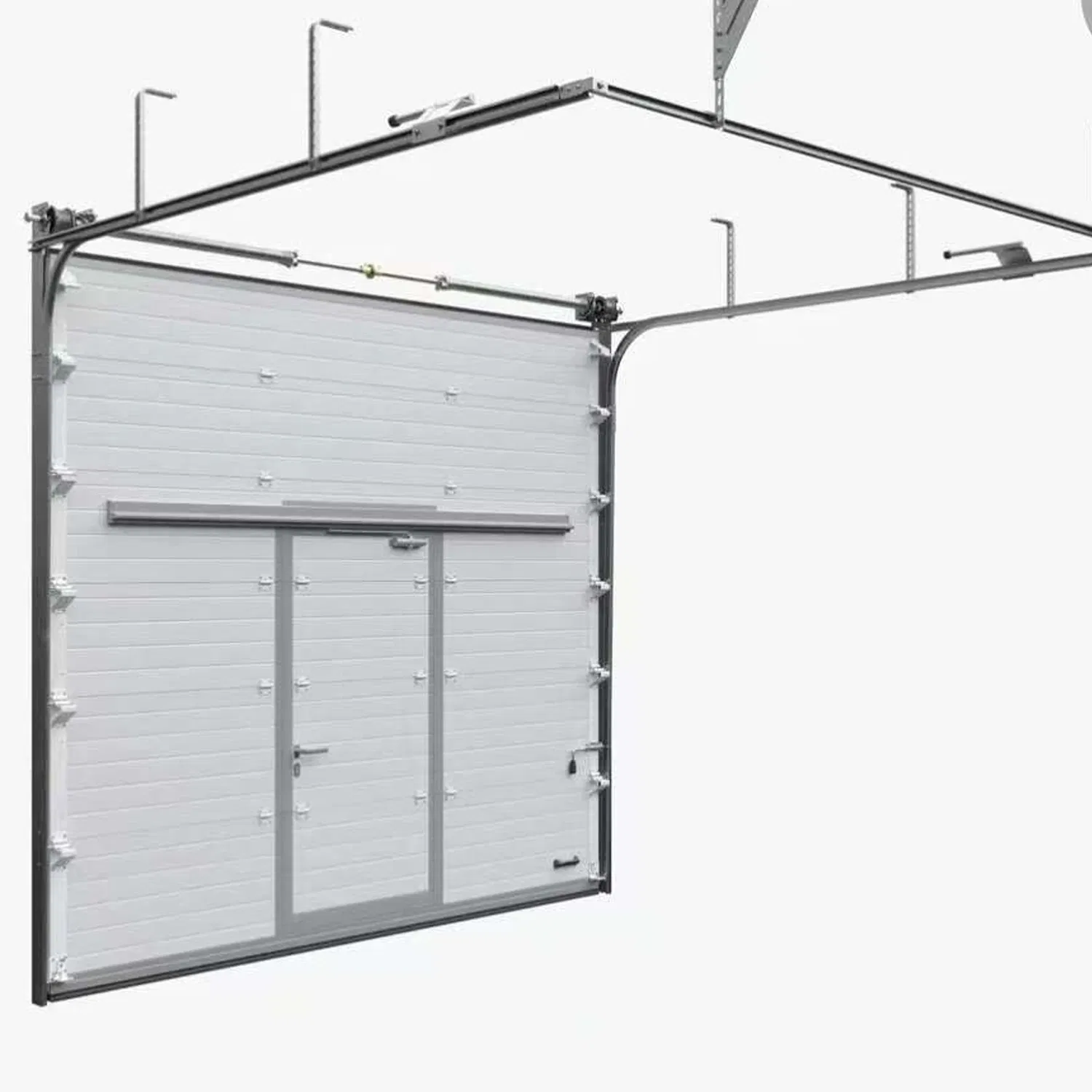

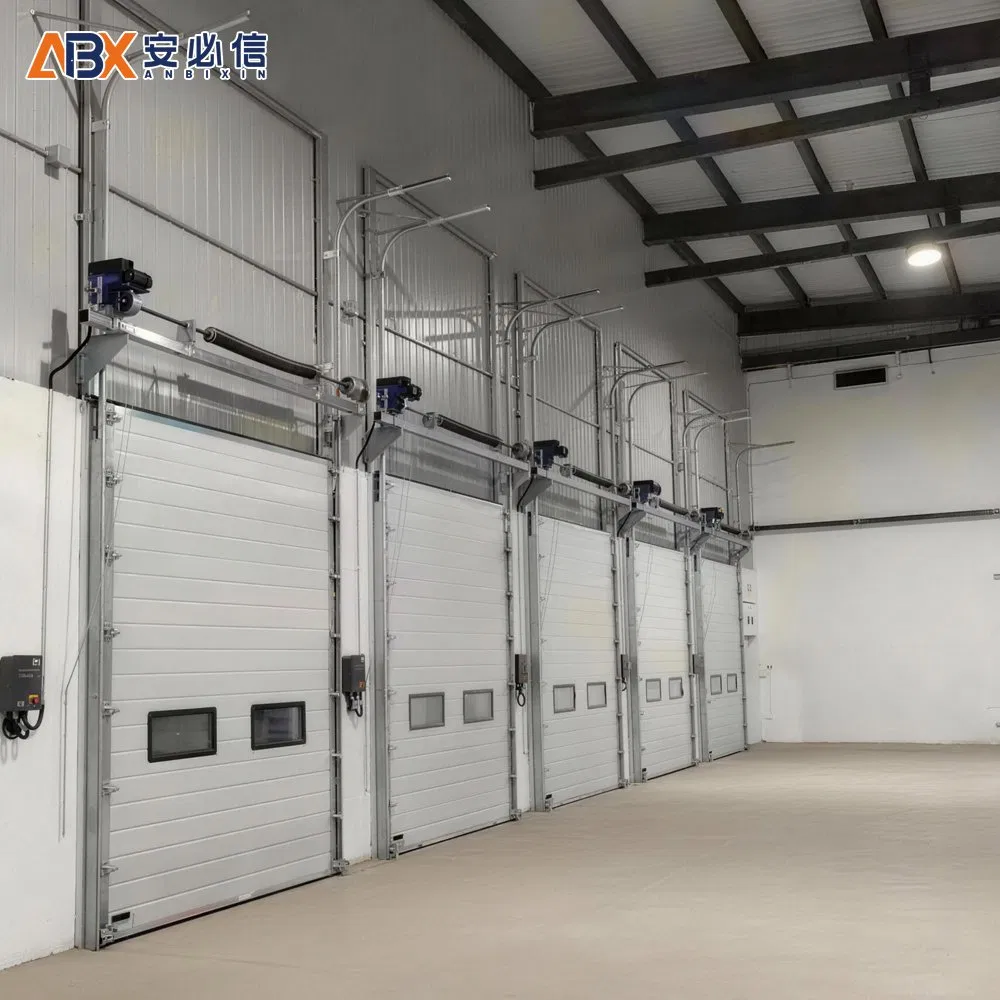

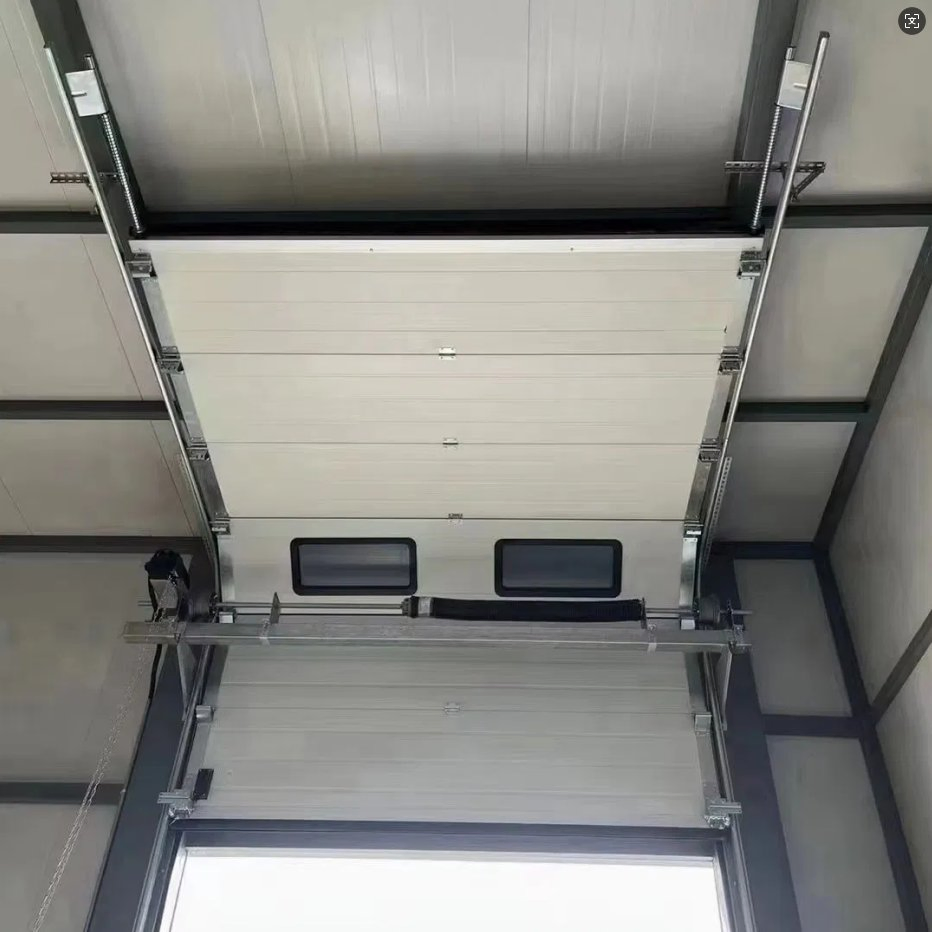

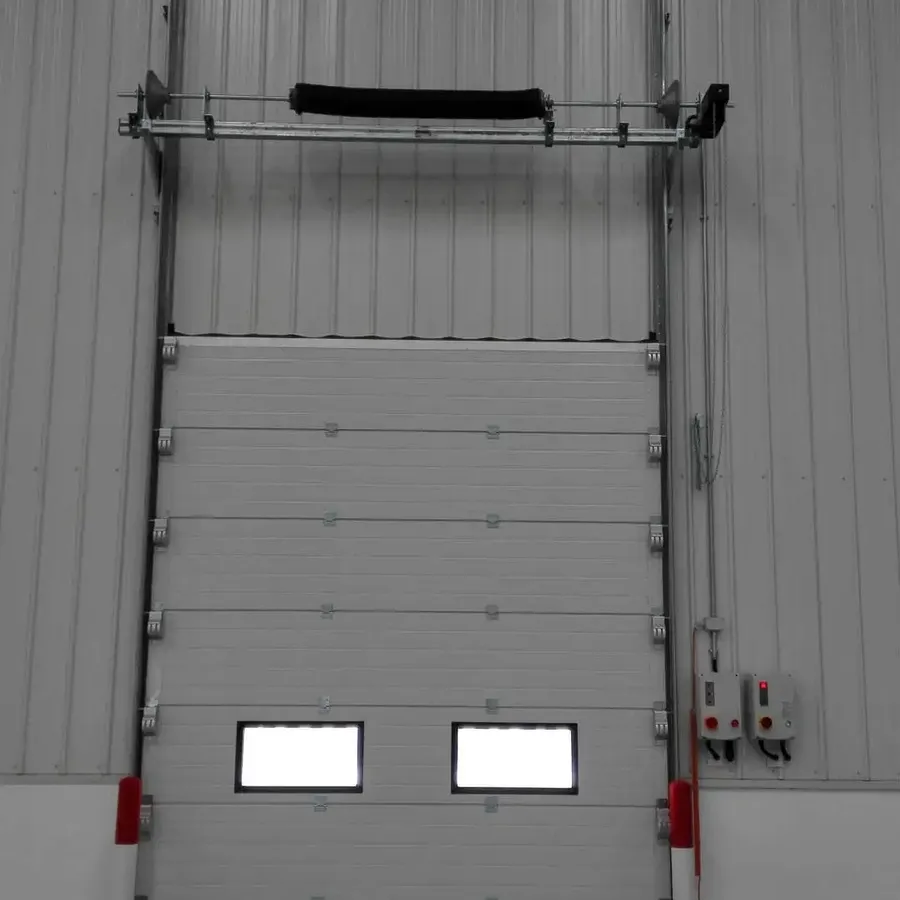

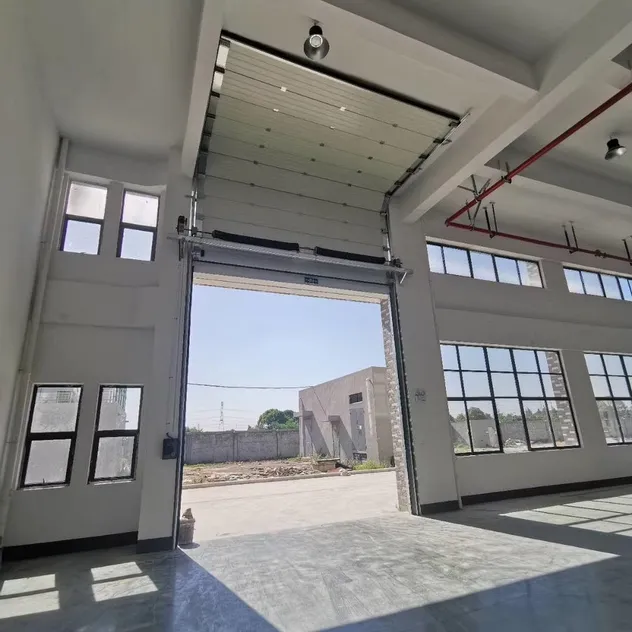

The lifting methods are divided into three types: Standard lifting, Segmented vertical lifting, and High-position lifting. These doors are composed of door bodies, balance systems, drive and control systems, safety devices, tracks, and seals.
| Parameter | Details |
|---|---|
| Lifting Speed | 0.25 - 0.3m/S |

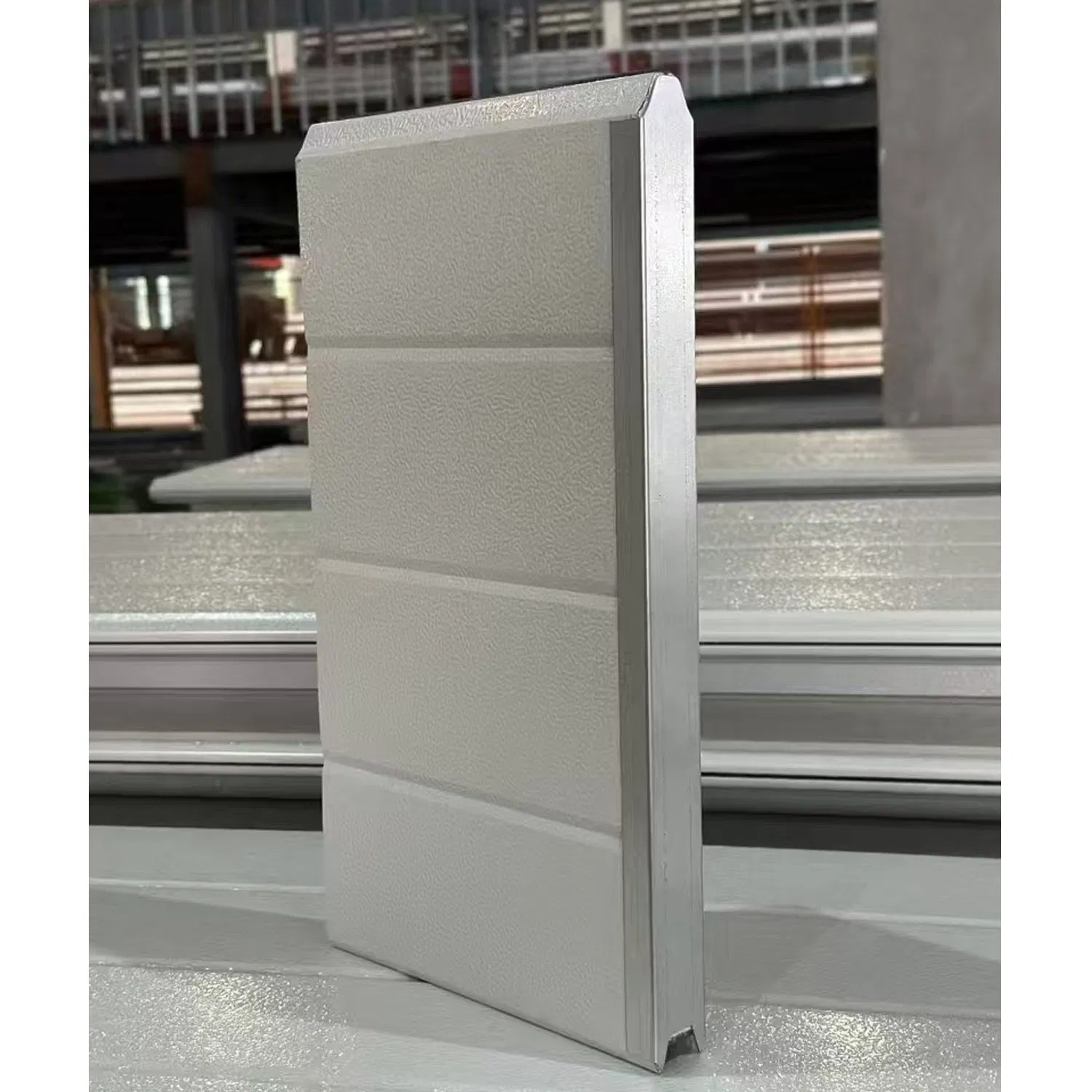

| Door Panel Thickness | 40mm |
| Foam Density | 48Kg/m3 +/-2Kg/m3 |
| U Value | 0.84W/m2ºC |
| Torsion Spring | 82b material with advanced heat treatment |
| Wire Rope | Flexible steel wire ∮3.8mm |
| Guide Rail | 2mm thick galvanized steel plate |
| Noise Level | ≤60DB |
