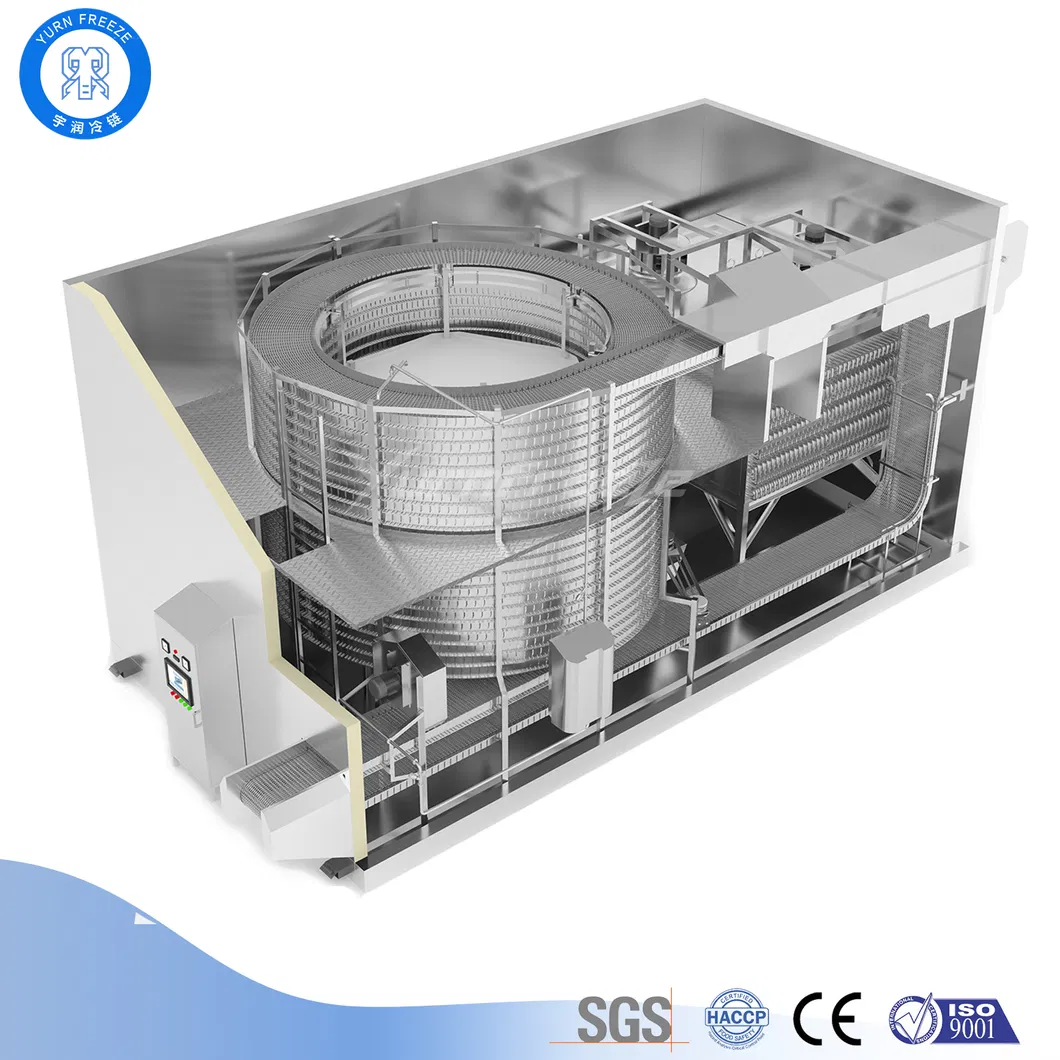

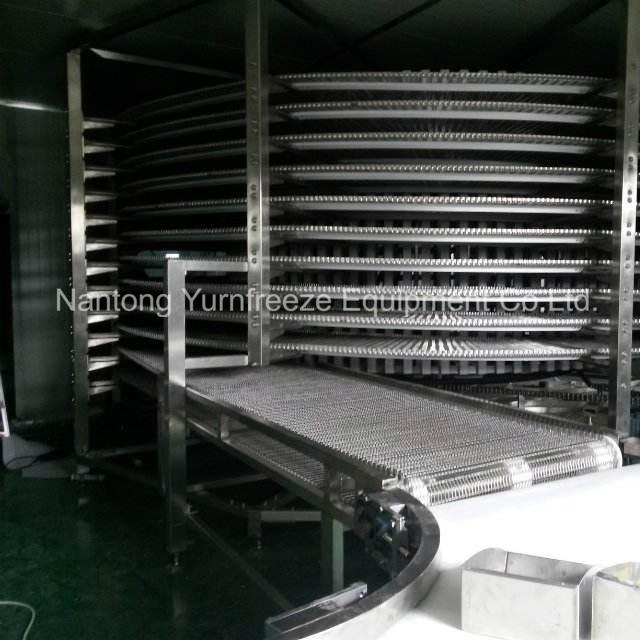

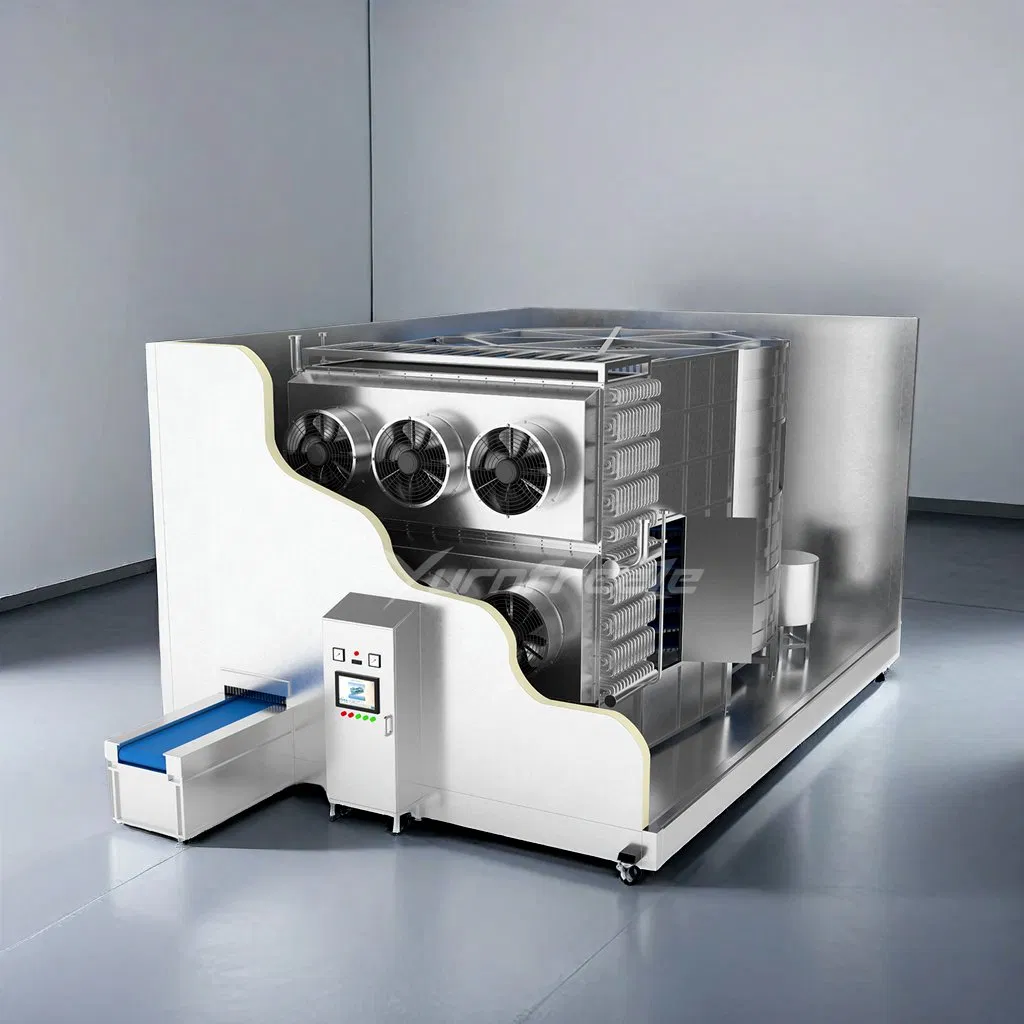

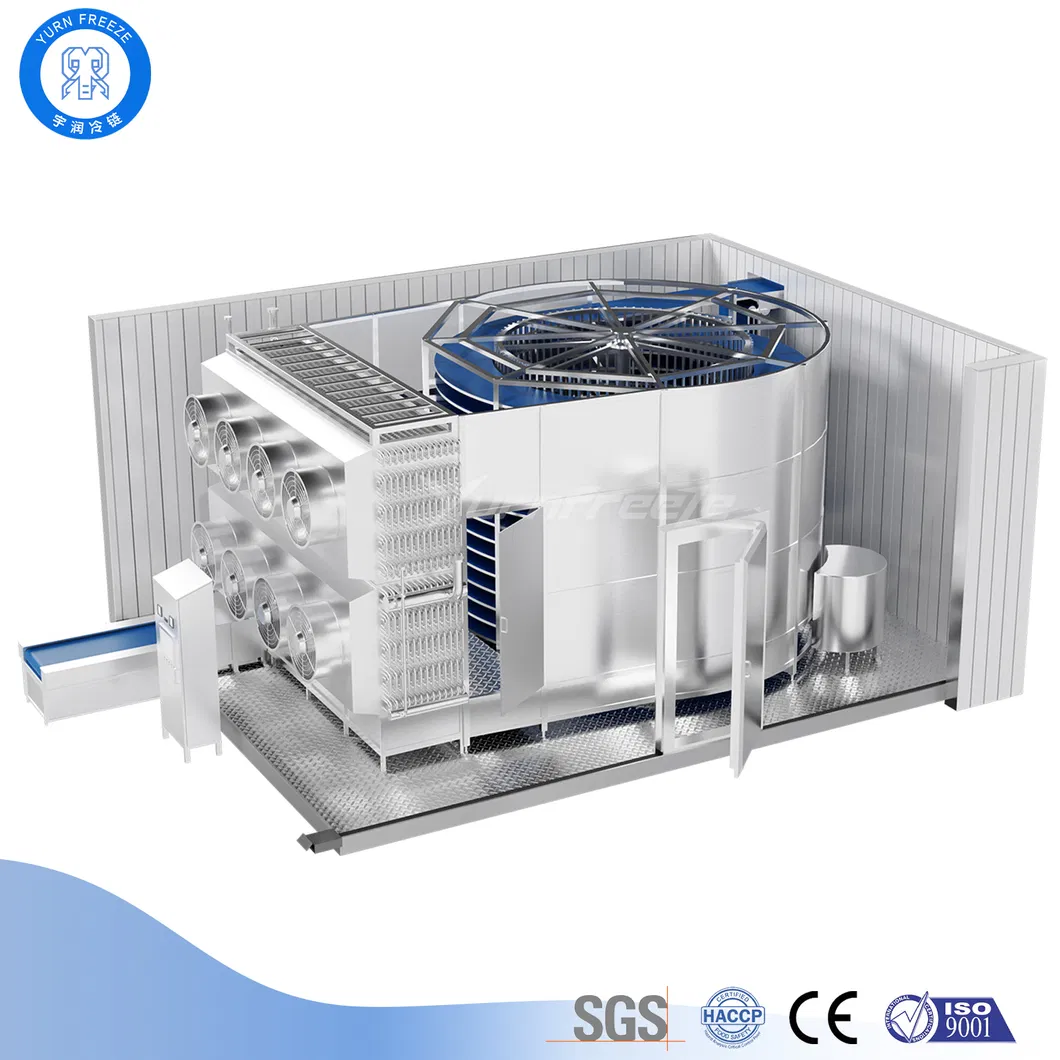

Stainless Steel IQF Spiral Freezer with SUS304/Food Grade Polyethylene Plastic Screw Mesh Belt

• Reliable transmission system.
• High-strength mesh belt, full stainless steel structure.
• Efficient and sanitary evaporator.
• Insulated enclosure with two-sided stainless steel skin plate, optimum airflow pattern.
• CIP automatic cleaning system.
• ADF automatic air defrosting.

Capacity: 200kg/h-6000kg/h, customized according to requirements and space limitations.

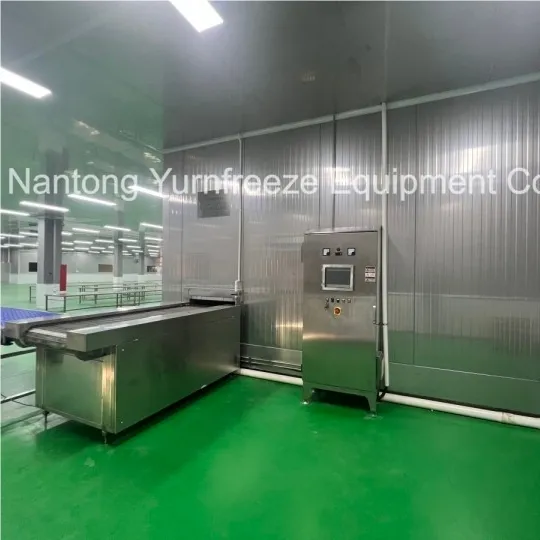

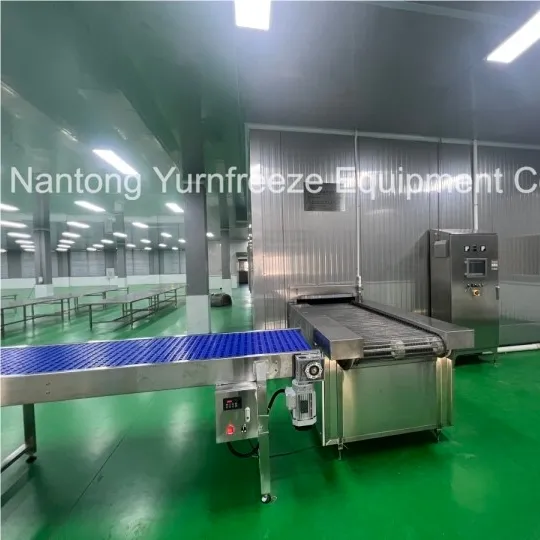

The insulation body is a stainless steel polyurethane sandwich panel (0.6mm thickness). Internal polyurethane is high-pressure foaming (density ≥ 42kg/m³). The library board thickness is 120mm with a concave-convex stop connection. Doors are reinforced with electric heaters and magnetic sensors.

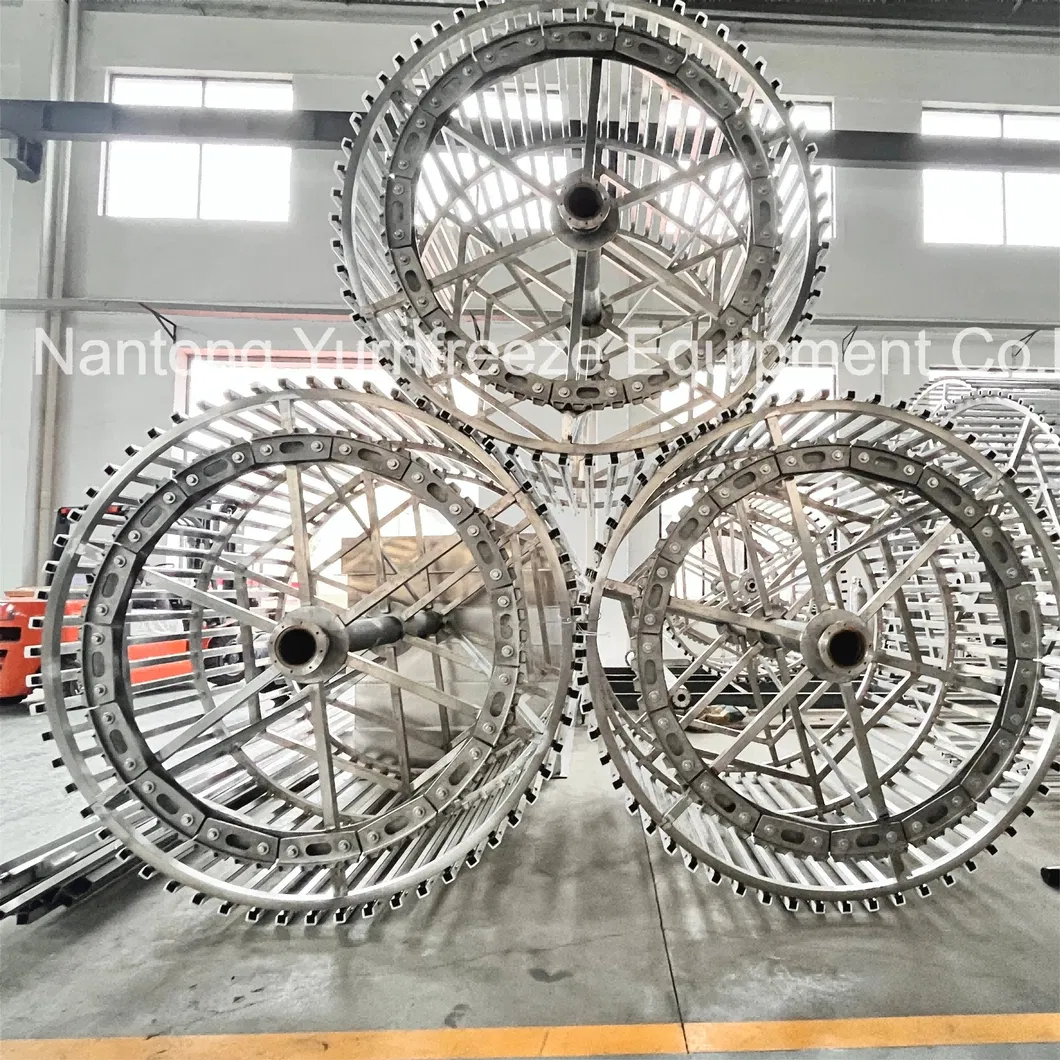

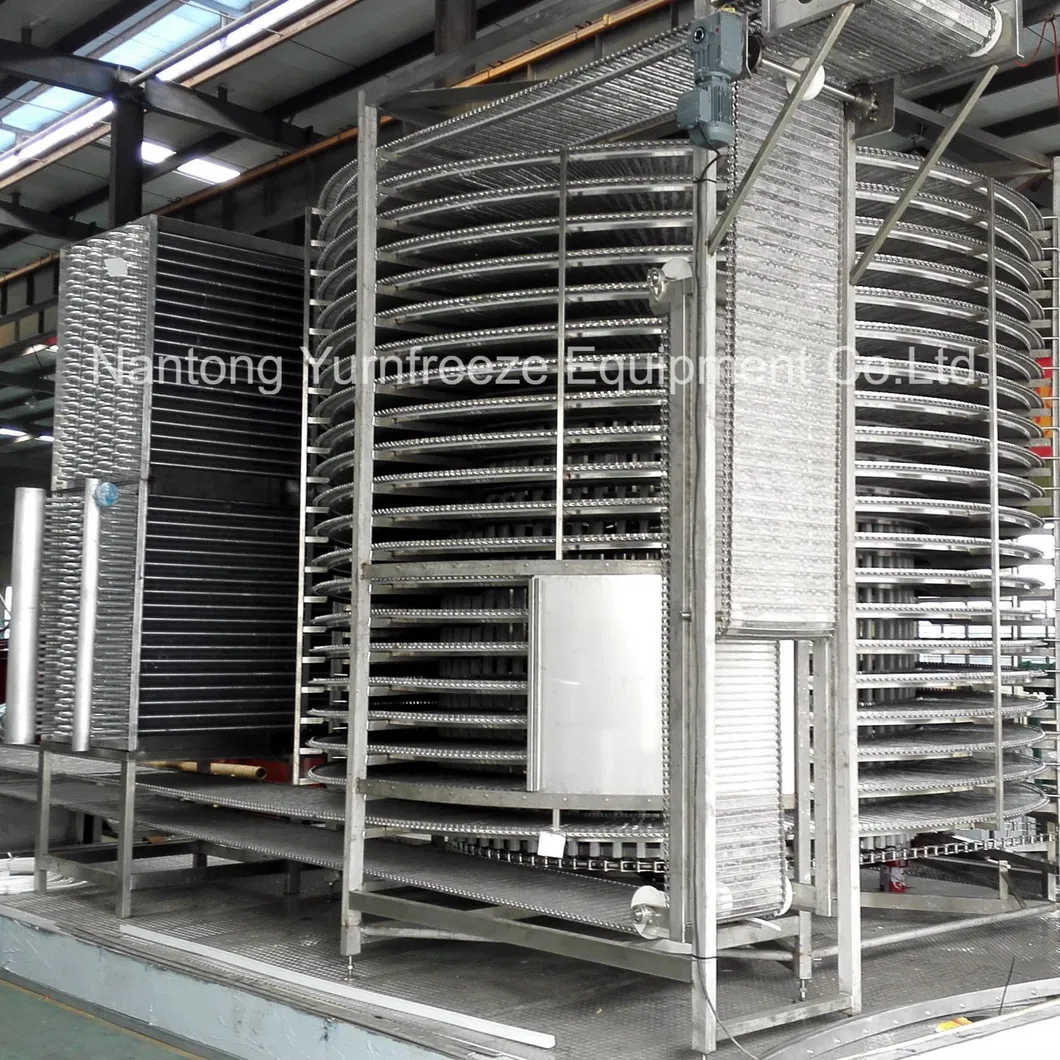

The rotating cage column support, shaft, gear, and chain are all made of SUS304 stainless steel. Guide rails are covered with wear-resistant polymer composite material to minimize friction.

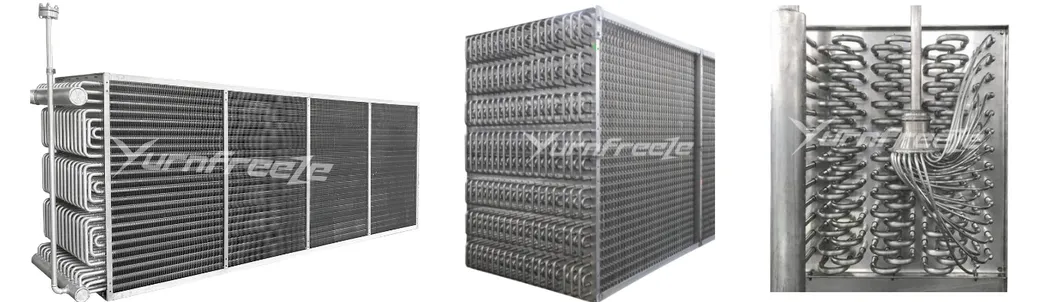

Aluminum alloy evaporation tubes and fins with variable fin pitch design (20mm inlet / 10mm outlet). This ensures uniform frosting and extends operating hours. Efficiency is 30% higher than ordinary evaporators.

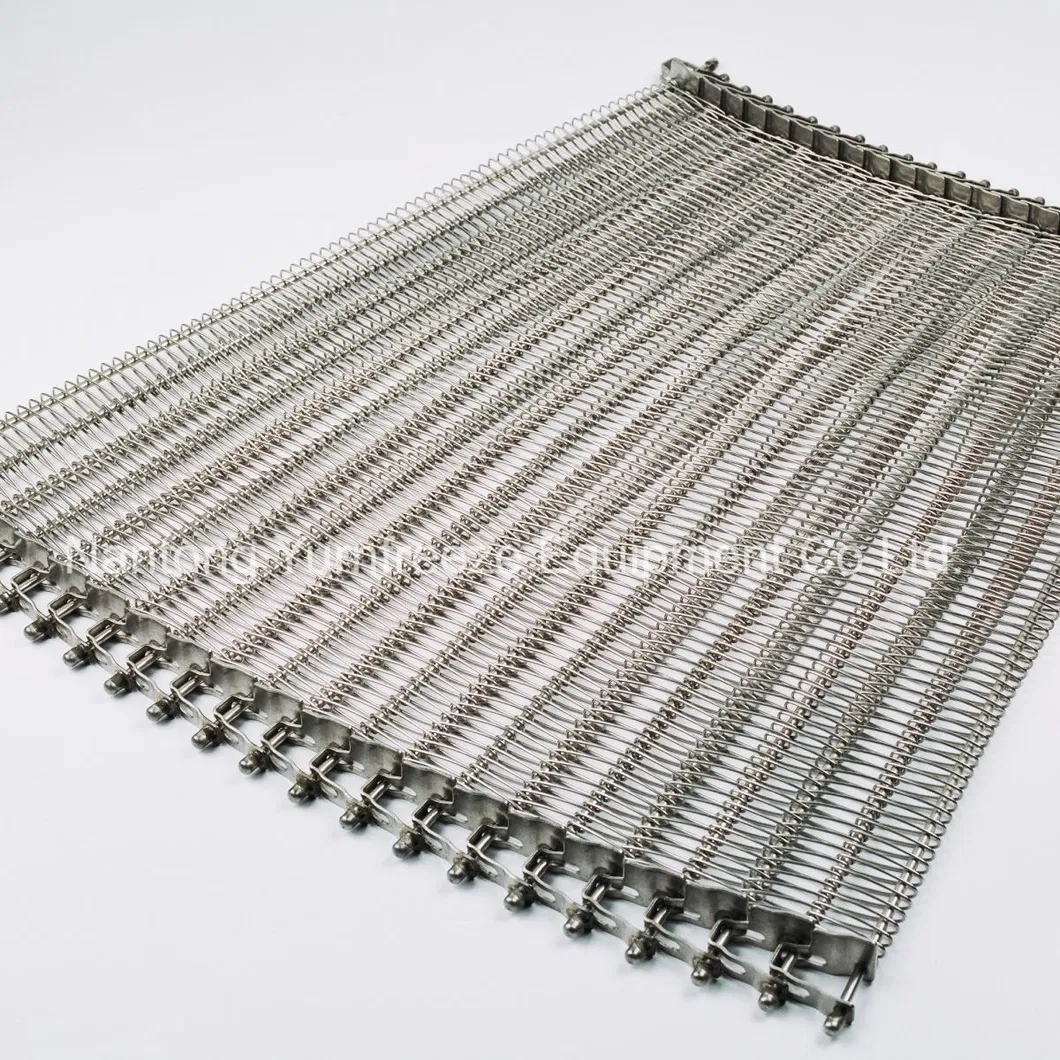

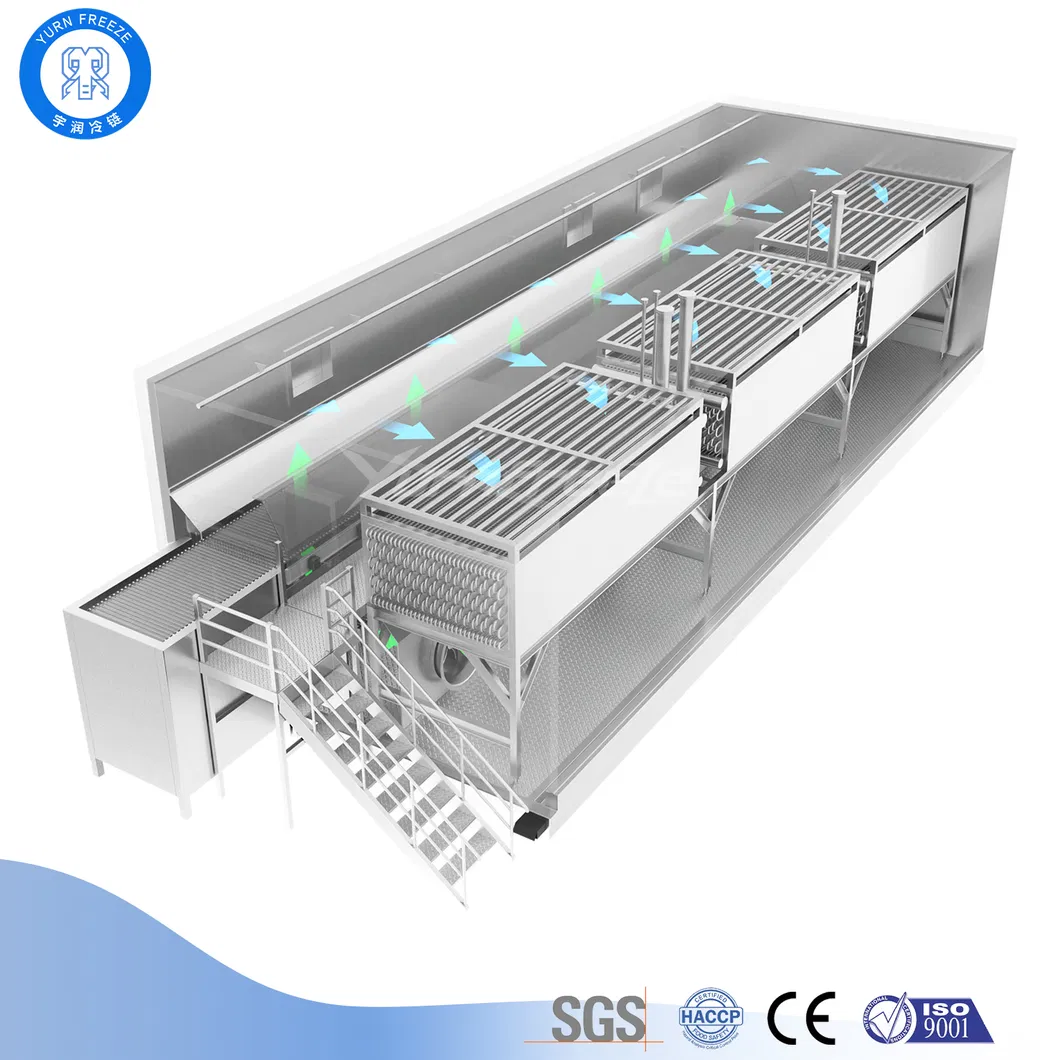

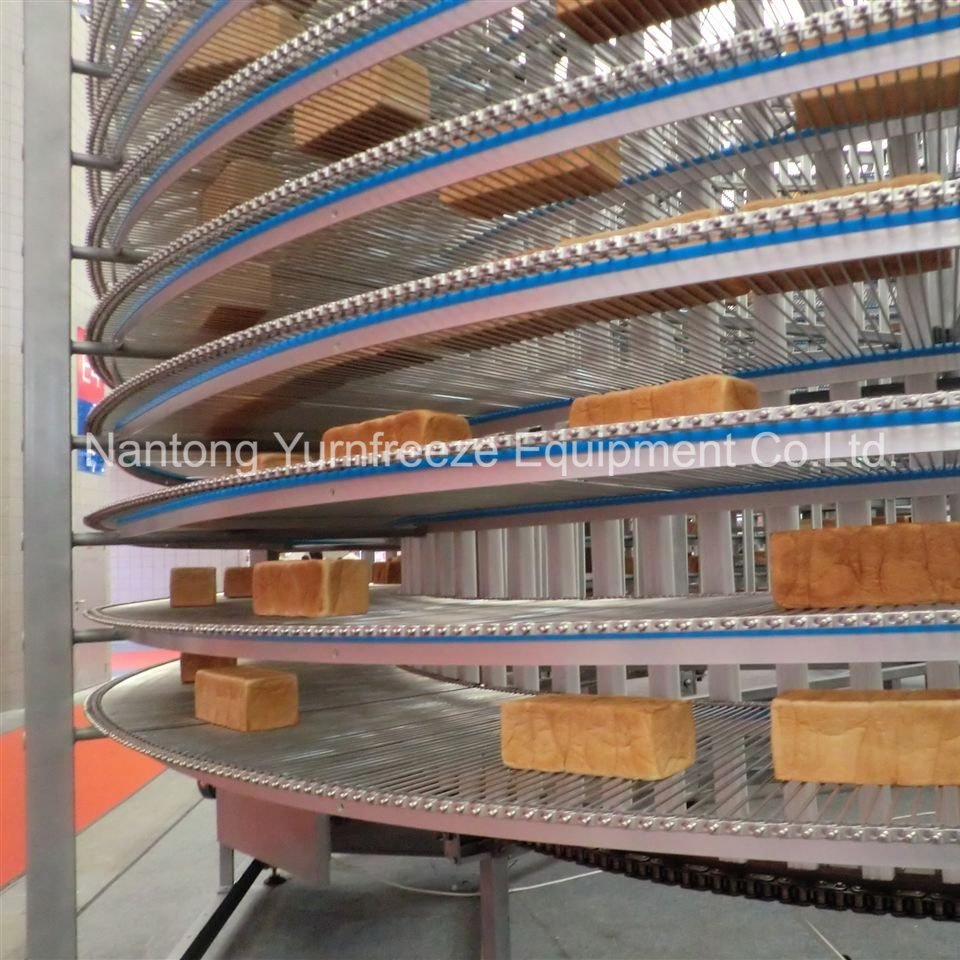

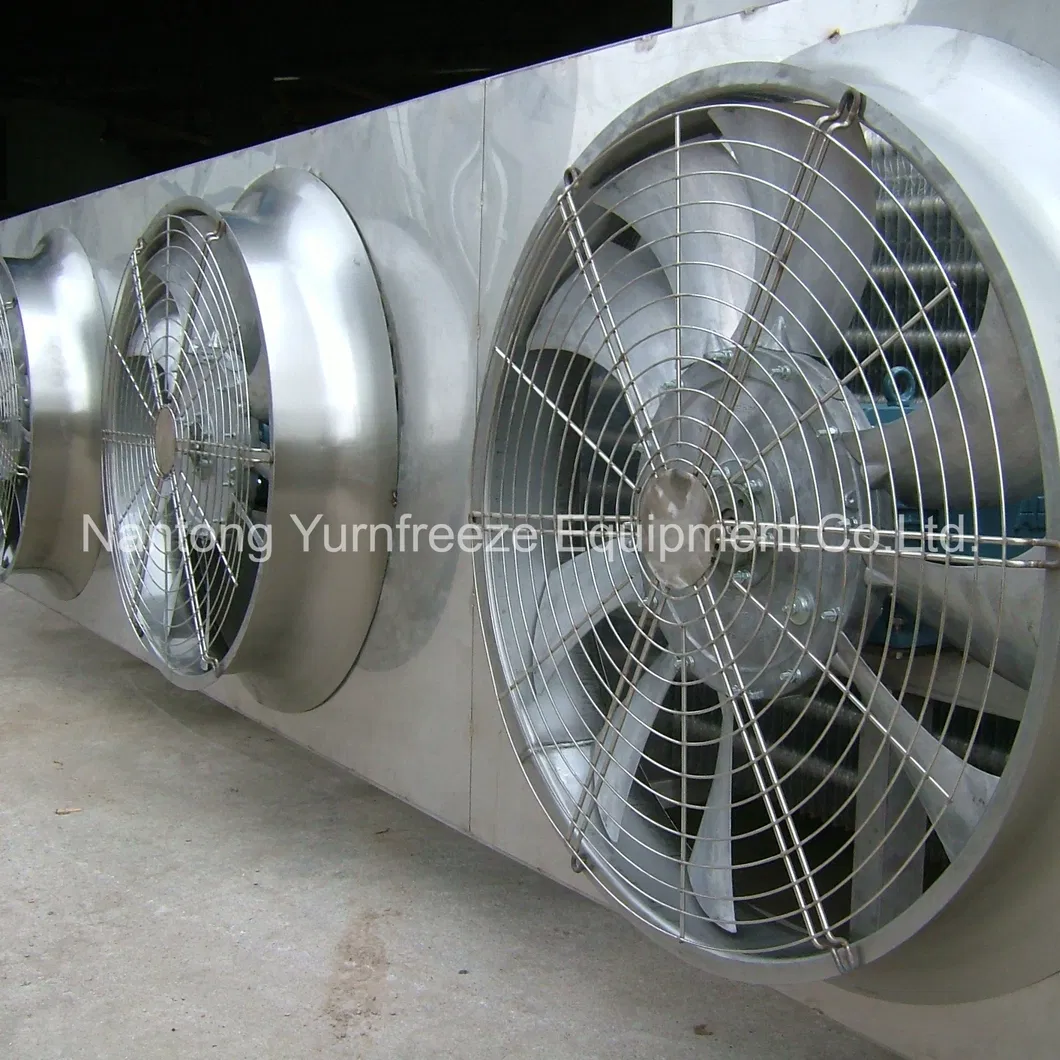

Horizontal airflow design for fast freezing and low dry consumption. The high-strength SUS304 mesh belt meets "Ashworth" standards with internally retractable design and 12mm ribs to prevent product slippage.

As a globally recognized leader in food freezing solutions, we are dedicated to delivering high-quality, cost-effective, and customized freezing equipment and cold rooms. Our expert assembly integrates world-renowned compressor brands to ensure efficient cooling and precise freezing performance.
