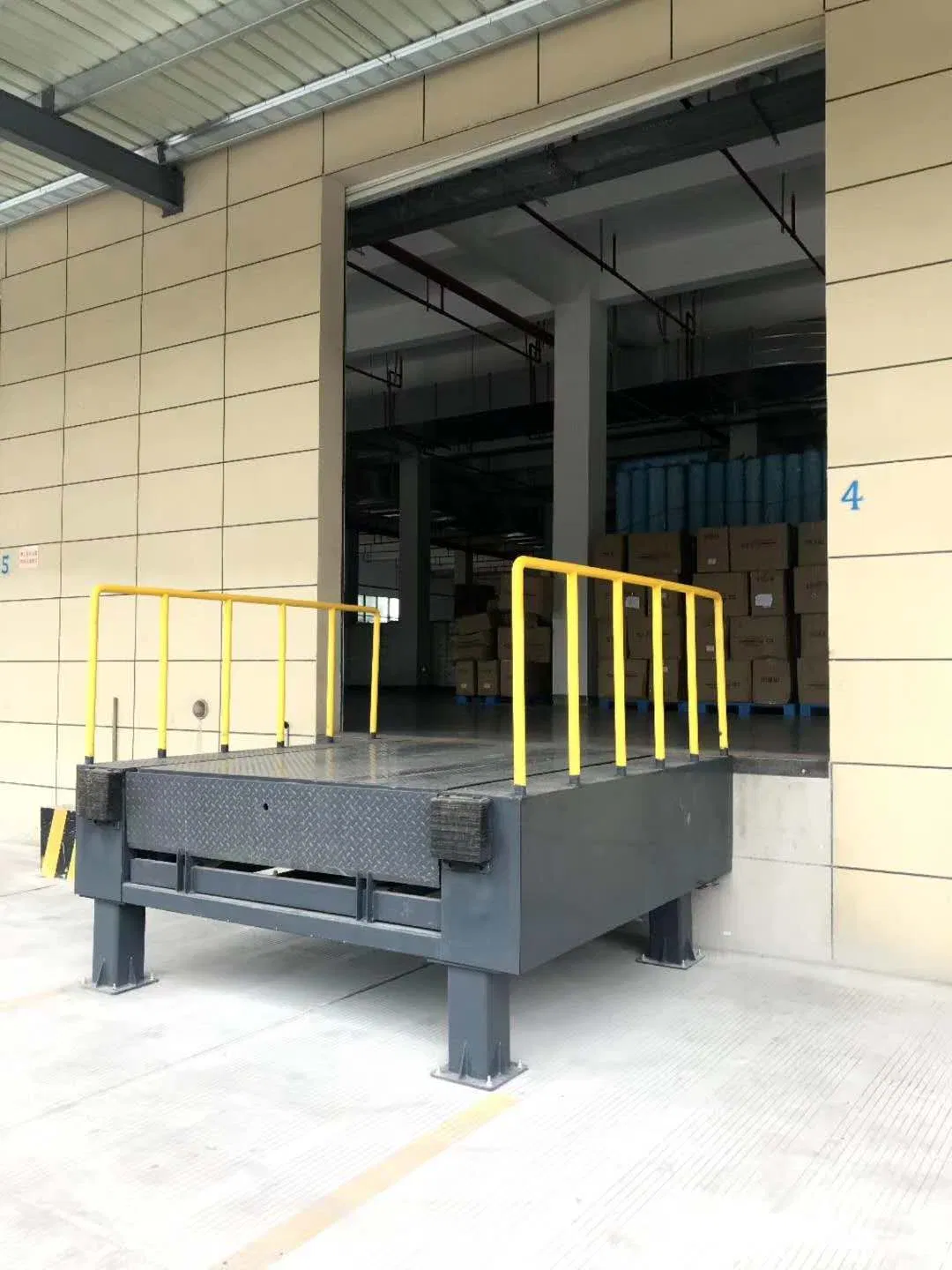

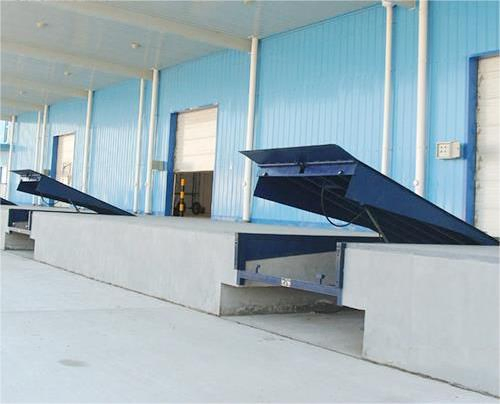

Telescopic-Lip Swinging Lip Vehicle Lift Equipment Car Lift Dock Leveler Garage Equipment Loading and Unloading Device

1 / 5

Telescopic-Lip Swinging Lip Vehicle Lift Equipment Car Lift Dock Leveler Garage Equipment Loading and Unloading Device

Customization:	Available
After-sales Service:	Yes
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

XF-O-2500

Lift Mechanism

Hydraulic Cylinder

Carrying Capacity

6t / 8t / 10t

Moves

Stationary

Driven Type

Hydraulic

Running Mode

Stationary

Feature

Explosion-Proof

Certification

CE, ISO 9001

Voltage

220V 50Hz / 380V 50Hz

Power

0.75 Kw / 1.5kw

Specification

2000*2000*600 mm

Origin

Made in China

HS Code

84254290

Production Capacity

10000/ Year

Packaging & Delivery

Package Size

200.00cm * 200.00cm * 60.00cm

Gross Weight

1000.000kg

Transport Package

Wrapping Film

Product Description

MORE TECHNICAL PARAMETERS

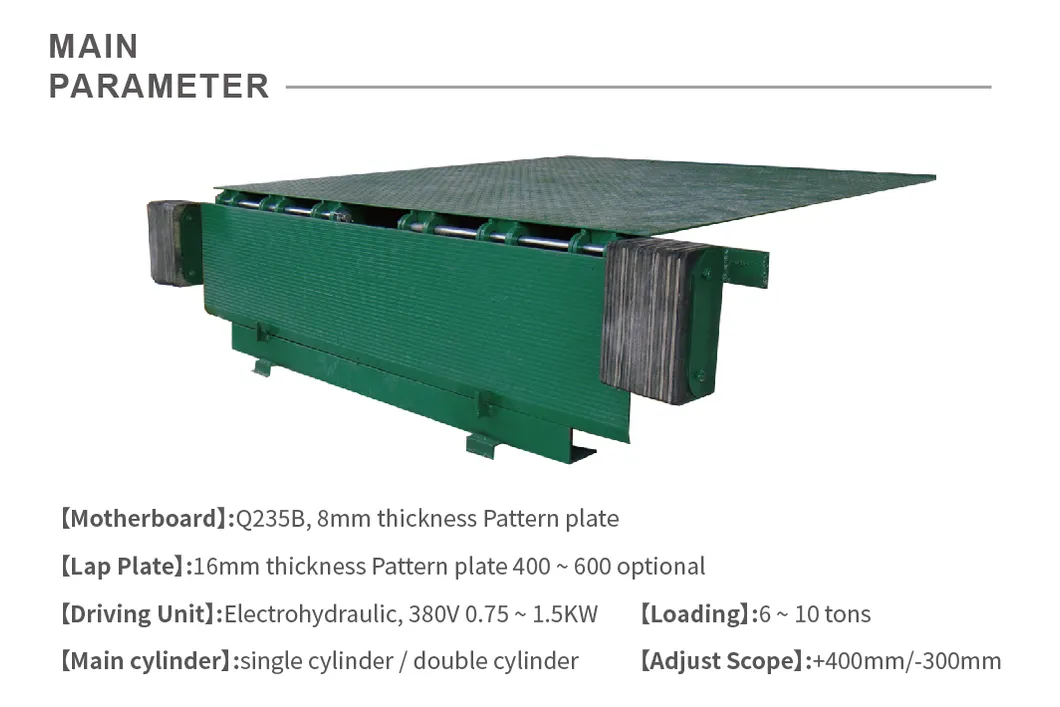

Main Board	Q235B steel plate with anti-slide pattern, thickness: 6/8 mm; blasting surface treatment and powder coating
Lap Plate	Q235B steel plate with anti-slide pattern, thickness: 14/16mm; blasting surface treatment and powder coating
Hinge	Open type, 8*150mm
Loading Weight	Dynamic load: 6T / 8T / 10T / 12T / 15T
Driving	Electrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Control System	Standard 380V English interface
Adjust Scope	+400mm / -300mm
Adjust Time	Up ≤ 16S; Down ≤ 10S
Sealing Parts	Brand: NOK A505 Complete set of seals for oil cylinder
Main cylinder	Single cylinder / double cylinders
Main Board Stiffener	8 pcs of 14# I-Beam, the height of Beam is 140mm
High Pressure Oil Pipe	T3683-2001; 60mpa
Side Baffles	Automatic retraction to ensure safety

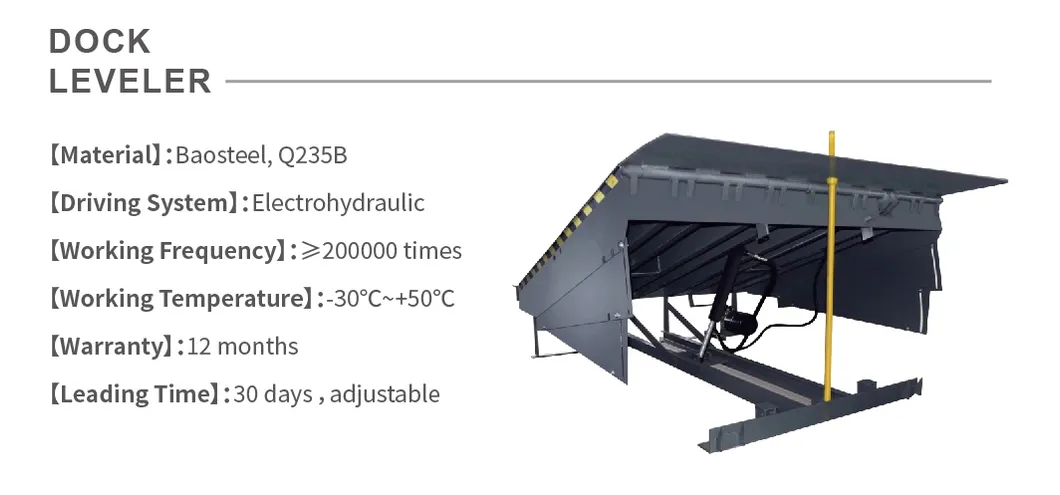

Working Temperature	-30ºC ~ +50ºC
Anti-collision Bumper	300200100 mm
Safety Part	Explosion proof valve
Working Frequency	≥ 200000 times

Key Features:
1. Professional enterprise standards for industrial door and docking system design and manufacturing.
2. Advanced equipment and technology integration for high-quality product solutions.
3. Wide product range including steel doors, fire doors, high-speed doors, and logistic docking systems.
4. Certified quality management and international safety standards compliance (ISO9001, CE).

Frequently Asked Questions

1. What is the maximum carrying capacity of the XF-O-2500?

The standard carrying capacity options include 6t, 8t, and 10t, with dynamic load capabilities reaching up to 15T depending on specific configurations.

2. What safety features are included in this dock leveler?

The equipment is equipped with explosion-proof valves, automatic retraction side baffles, and anti-collision bumpers (300*200*100 mm) to ensure maximum operational safety.

3. Can the equipment operate in extreme weather conditions?

Yes, the working temperature range for the hydraulic system and mechanical components is between -30ºC and +50ºC, making it suitable for various climates.

4. What are the materials used for the main platform?

The main board and lap plate are constructed from Q235B steel plate with an anti-slide pattern. The surface undergoes blasting treatment and powder coating for durability and grip.

5. What is the adjustment range and speed?

The dock leveler has an adjustment scope of +400mm upward and -300mm downward. The rising time is less than or equal to 16 seconds, and the lowering time is within 10 seconds.

6. Does the product meet international standards?

Yes, the product is fully certified with CE and ISO 9001: 2000 Management Certification, ensuring compliance with global quality and safety requirements.
