Telescopic-Lip Swinging Lip Vehicle Lift Equipment Car Lift Dock Loading Ramp Leveler Garage Equipment Loading and Unloading Device

Customization:	Available
After-sales Service:	Yes
Warranty:	12 Months After Delivery

Send Inquiry

Product Description

Basic Info & Technical Specs

Model NO.

XF-O-2500

Lift Mechanism

Hydraulic Cylinder

Carrying Capacity

6t / 8t / 10t

Moves

Stationary

Driven Type

Hydraulic

Running Mode

Stationary

Feature

Explosion-Proof

Certification

CE, ISO 9001

Voltage

220V 50Hz / 380V 50Hz

Power

0.75 Kw / 1.5kw

Specification

2000*2000*600 mm

Origin

Made in China

HS Code

84254290

Production

10000/ Year

Packaging & Delivery

Package Size

200.00cm * 200.00cm * 60.00cm

Gross Weight

1000.000kg

Transport Package

Wrapping Film

Product Description

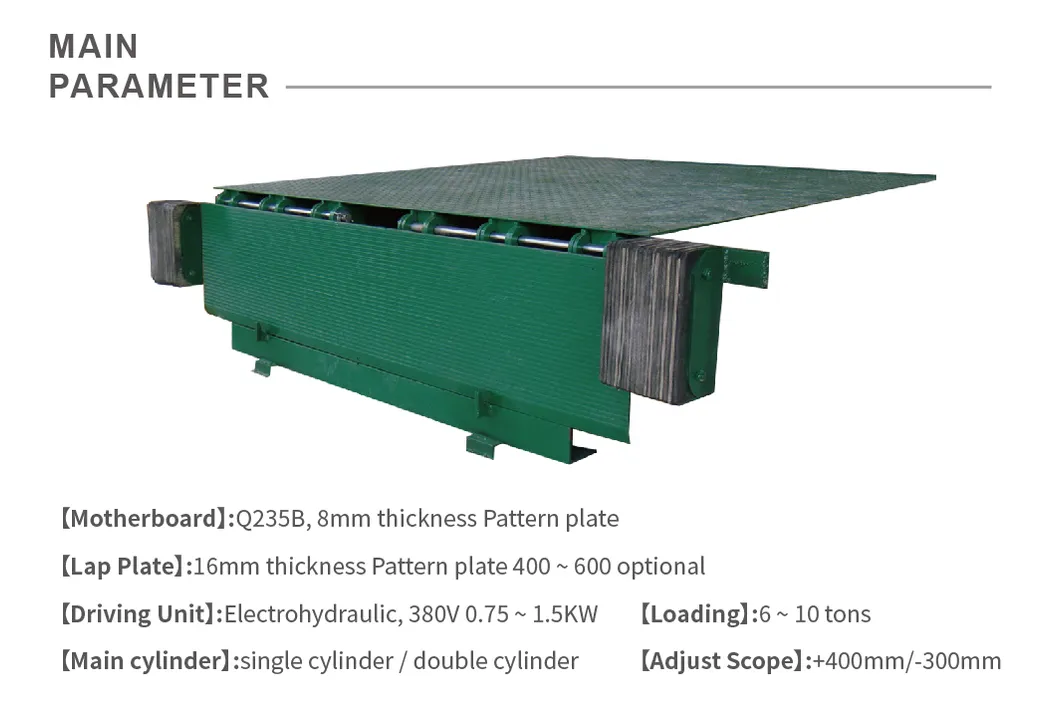

DETAILED PARAMETERS

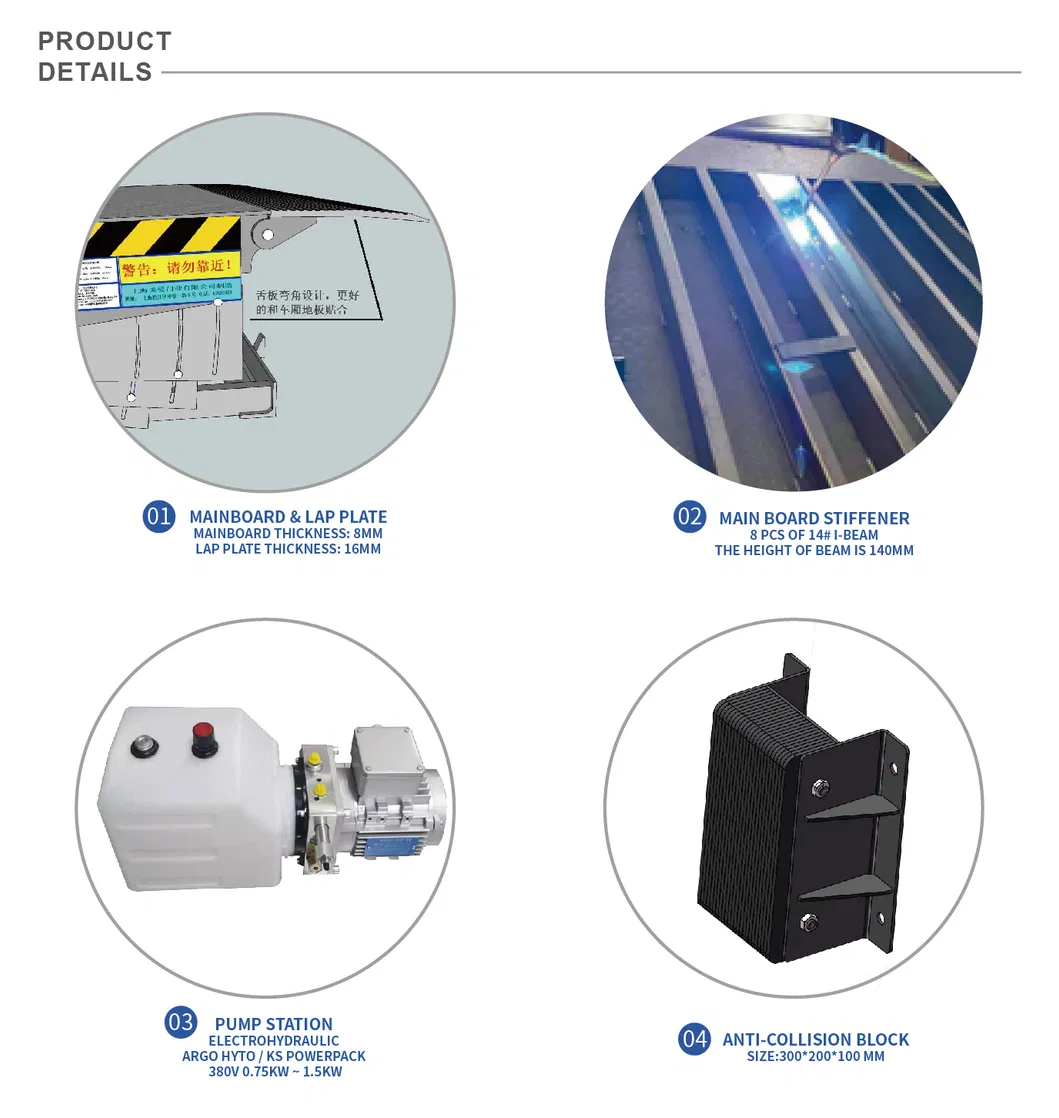

Main Board	Q235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap Plate	Q235B steel plate with anti-slide pattern, thickness: 14 / 16mm; blasting and powder coating
Hinge	Open type, 8*150mm
Loading Weight	Dynamic load: 6T / 8T / 10T / 12 T / 15T
Driving System	Electrohydraulic, 380V 0.75KW ~ 1.5KW powerpack
Control System	Standard 380V English interface
Adjust Scope	+400mm / -300mm
Adjust Time	Up ≤ 16S; Down ≤ 10S
Sealing Parts	Brand: NOK A505 Complete set of seals for oil cylinder
Main Cylinder	Single cylinder / double cylinders options
Main Board Stiffener	8 pcs of 14# I-Beam, height: 140mm
High Pressure Pipe	T3683-2001 Standard; 60mpa durability
Side Baffles	Automatic retraction to ensure operator safety
Hydraulic Oil	32# Anti-wear hydraulic oil (5-6L capacity)
Working Temperature	-30ºC to +50ºC
Safety Part	Explosion proof valve included
Working Frequency	≥ 200,000 times lifecycle

Key Features & Expertise

✔ Professional expertise in industrial docking systems, design, and manufacturing.

✔ Advanced equipment and technology integrated to provide high-quality professional solutions.

✔ Specialized in logistic docking systems, sectional doors, high-speed doors, and various industrial steel door solutions.

✔ Compliance with international standards including ISO9001:2000 Management Certification and CE Certification.

Frequently Asked Questions

What is the dynamic loading capacity of this dock leveler?

Our dock levelers support a wide range of dynamic loads including 6T, 8T, 10T, 12T, and 15T, making them suitable for various heavy-duty industrial requirements.

Is the equipment safe for use in hazardous environments?

Yes, it features an explosion-proof safety valve and automatic retraction side baffles to ensure maximum safety for operators during loading and unloading.

Can this hydraulic dock leveler work in extreme cold?

Absolutely. The system is designed to operate efficiently within a temperature range of -30ºC to +50ºC using high-quality 32# anti-wear hydraulic oil.

What kind of surface treatment is used for durability?

Both the main board and lap plate are made of Q235B steel with an anti-slide pattern. They undergo surface blasting and powder coating for superior rust resistance and durability.

What is the typical lifecycle of the hydraulic system?

The system is engineered for long-term use with a working frequency of over 200,000 times, supported by high-pressure oil pipes tested at 60mpa.

Does the control system support international use?

Yes, the standard control system comes with an English interface and supports common industrial voltages such as 220V/380V at 50Hz.
