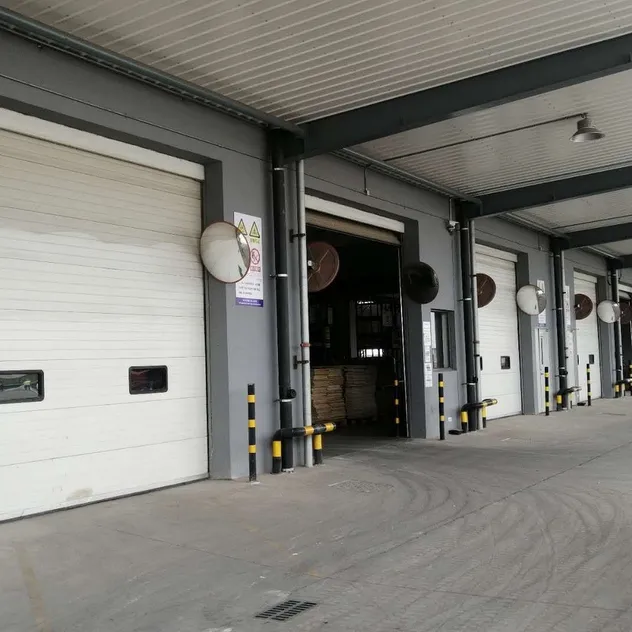

Industrial lifting door is a professional industrial exterior door designed to meet rigorous requirements for insulation, sealing, and high-frequency switching. It is the ideal solution for modern industrial and logistics projects requiring professional control and safety.
These systems are composed of door bodies, balance systems, drive and control systems, safety devices, tracks, and high-quality seals.

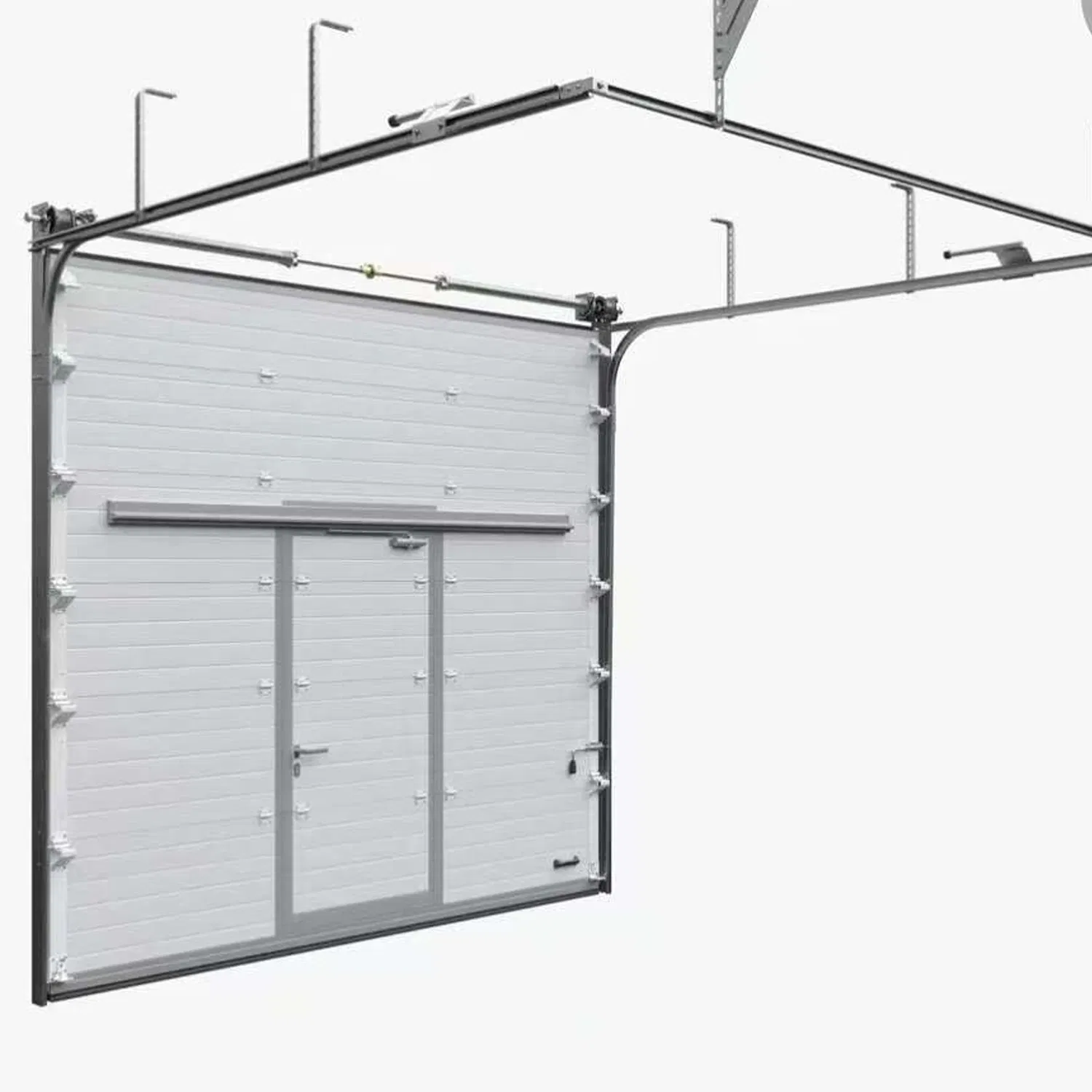

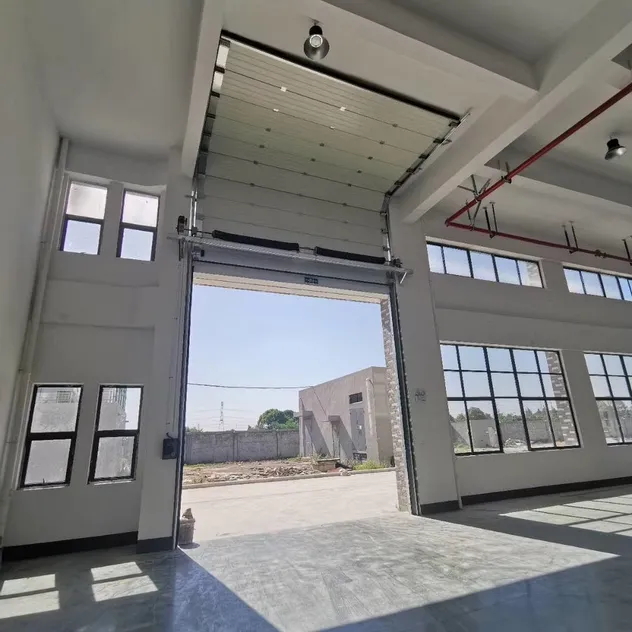

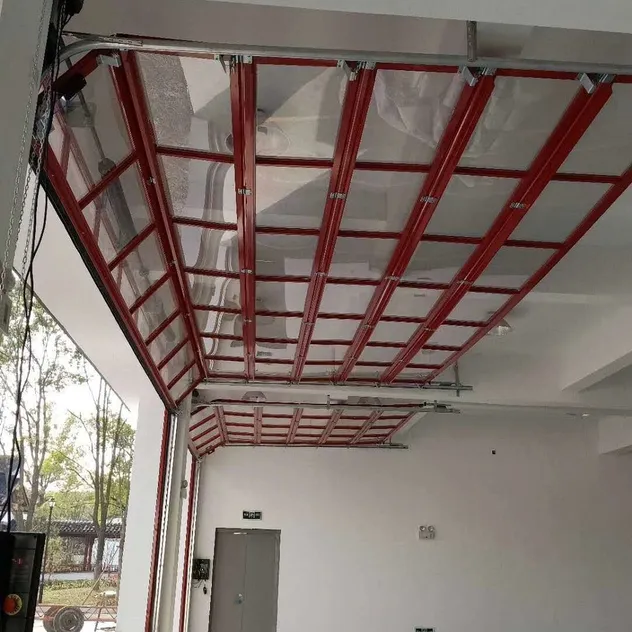

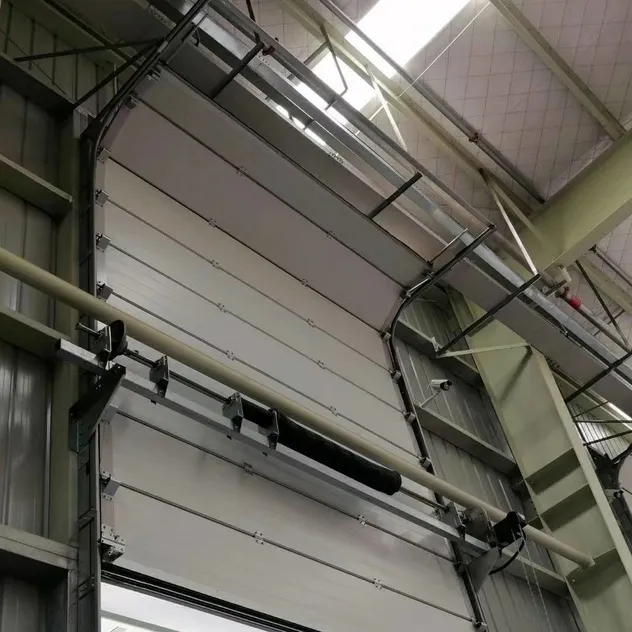

Opens vertically upwards and hangs flat on the inner side of the wall, saving valuable indoor space.

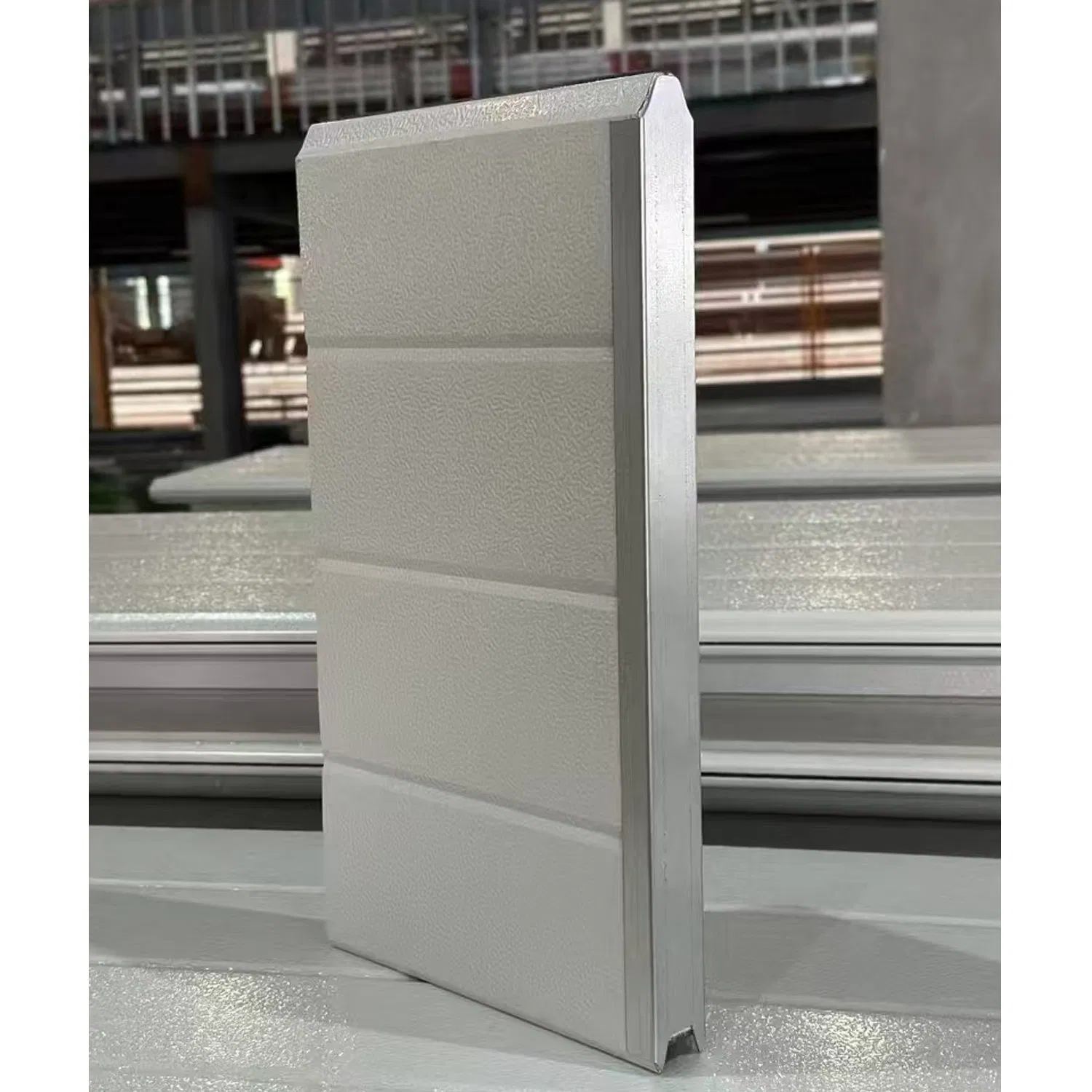

Double-layer galvanized steel with polyurethane. Surface embossed design is durable, easy to clean, and elegant.
High-density polyurethane insulation layer provides excellent thermal effects and reduces energy loss.
Equipped with adjustable ball bearings and wear-resistant rubber wheels to ensure silent operation.

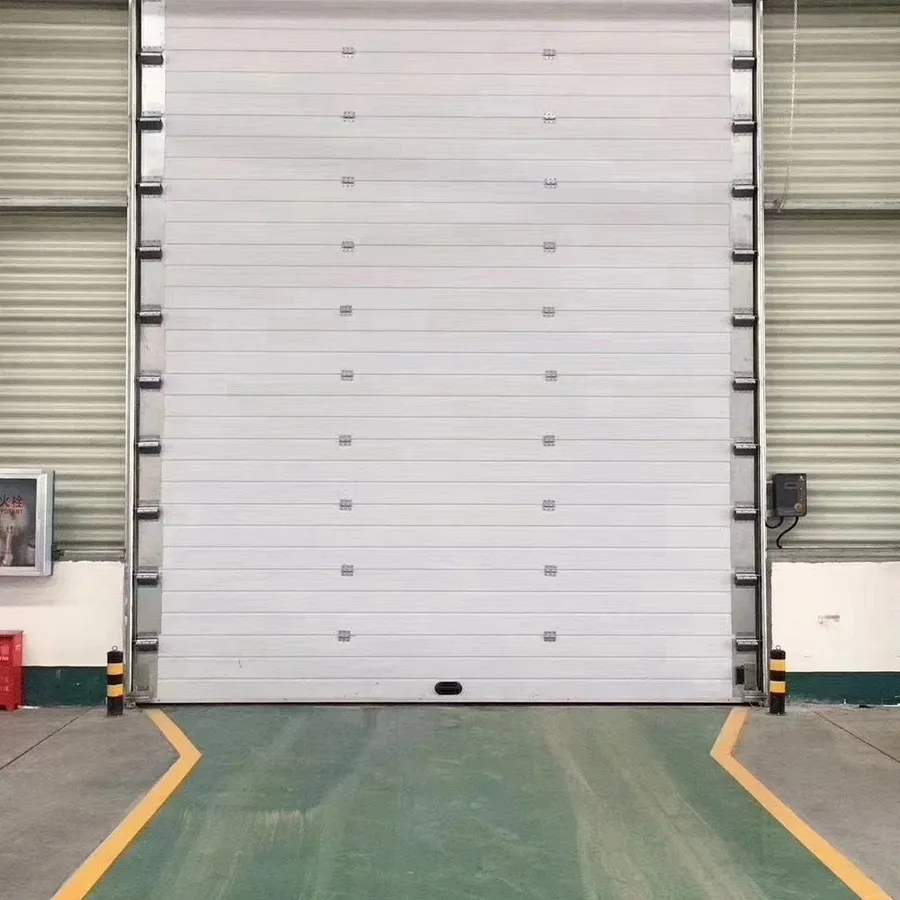

Designed with external reinforcement ribs. Tested to resist instantaneous 10-level wind force per European standards.
Includes anti-fall devices, airbags, torsion spring breakage safety, and anti-wire rope breakage protection.
| Technical Specifications | |
|---|---|
| Panel Thickness | 40mm (Standard Wind Pressure 450N/m2) |
| Foam Density | 48Kg/m3 +/- 2Kg/m3 |
| Lifting Speed | 0.25 - 0.3 m/S |
| U Value Index | 0.84 W/m2ºC (Panel) / 0.4 W/m2ºC (Between panels) |

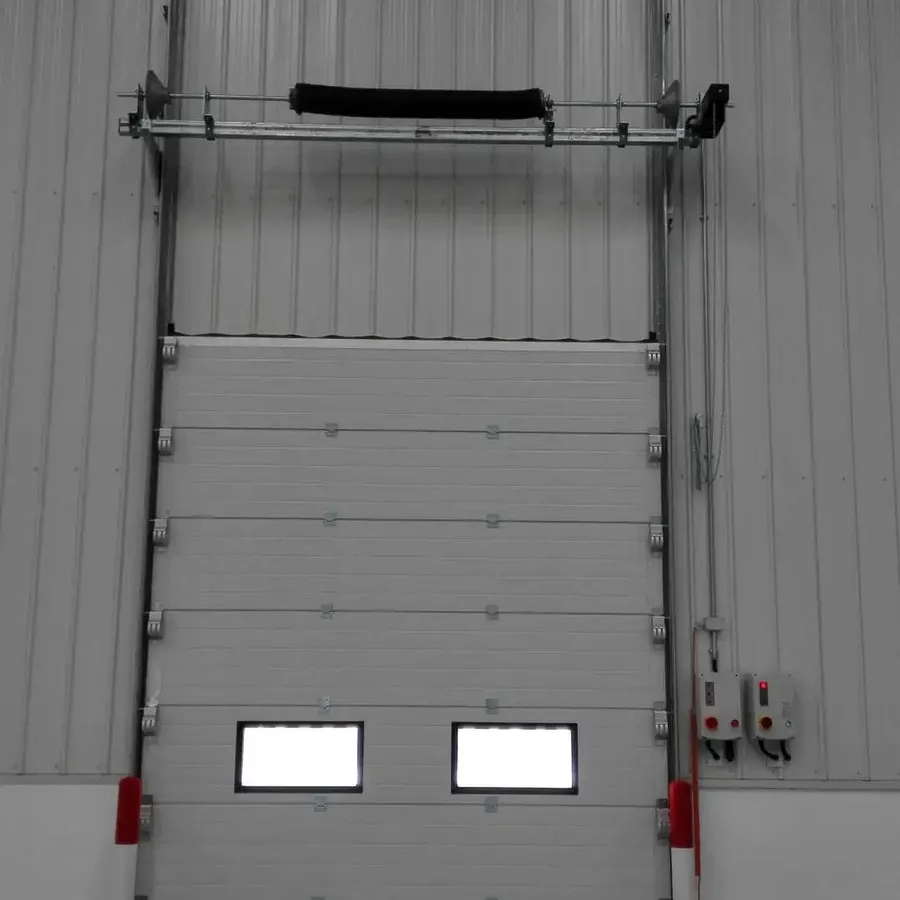

| Torsion Spring | 82b Material with heat technology and anti-break device |
| Guide Rail | 2mm Thick Baosteel Galvanized Steel Plate |
| Rollers | 3-Inch Industrial Grade Steel Rollers |
| Noise Level | ≤ 60DB during stable operation |

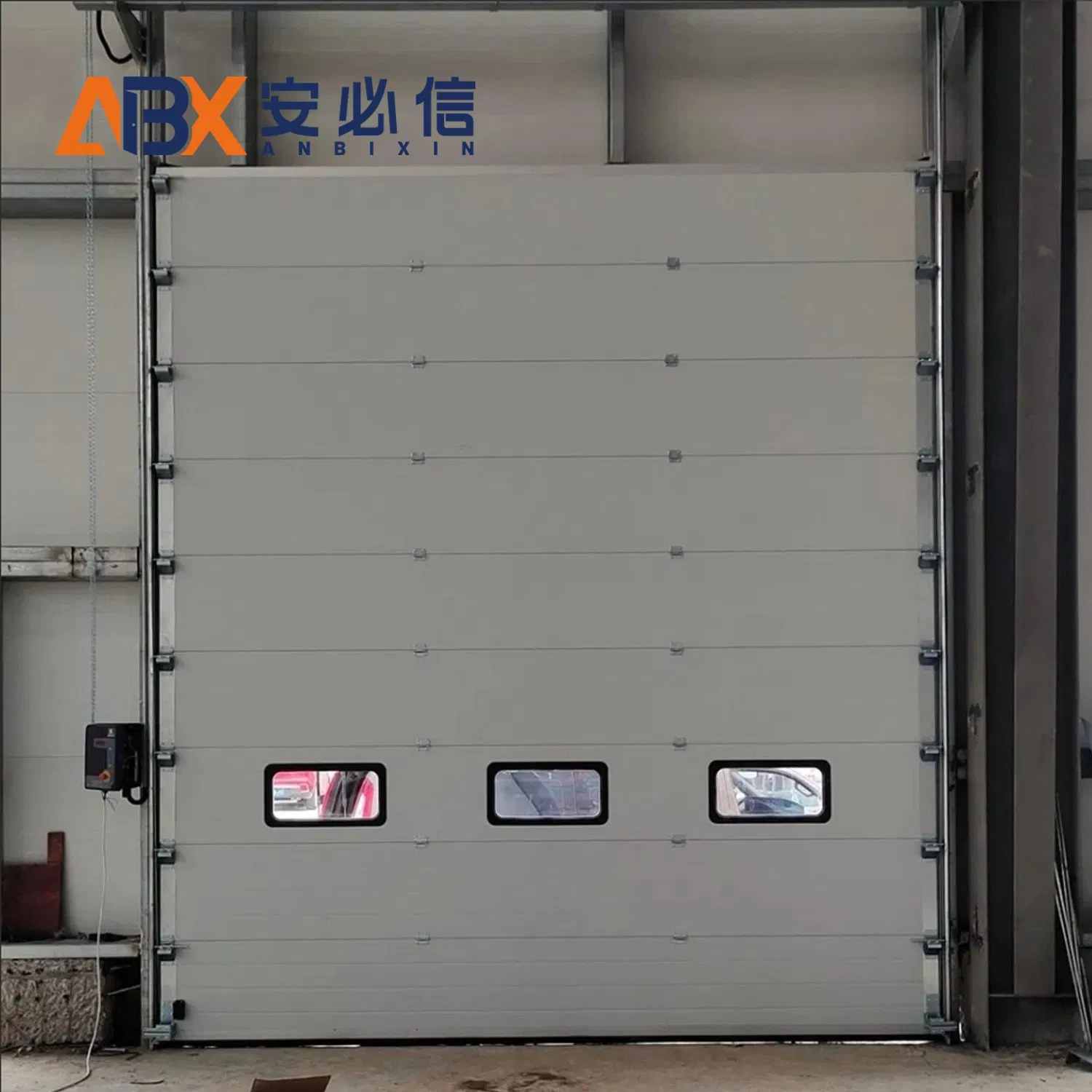

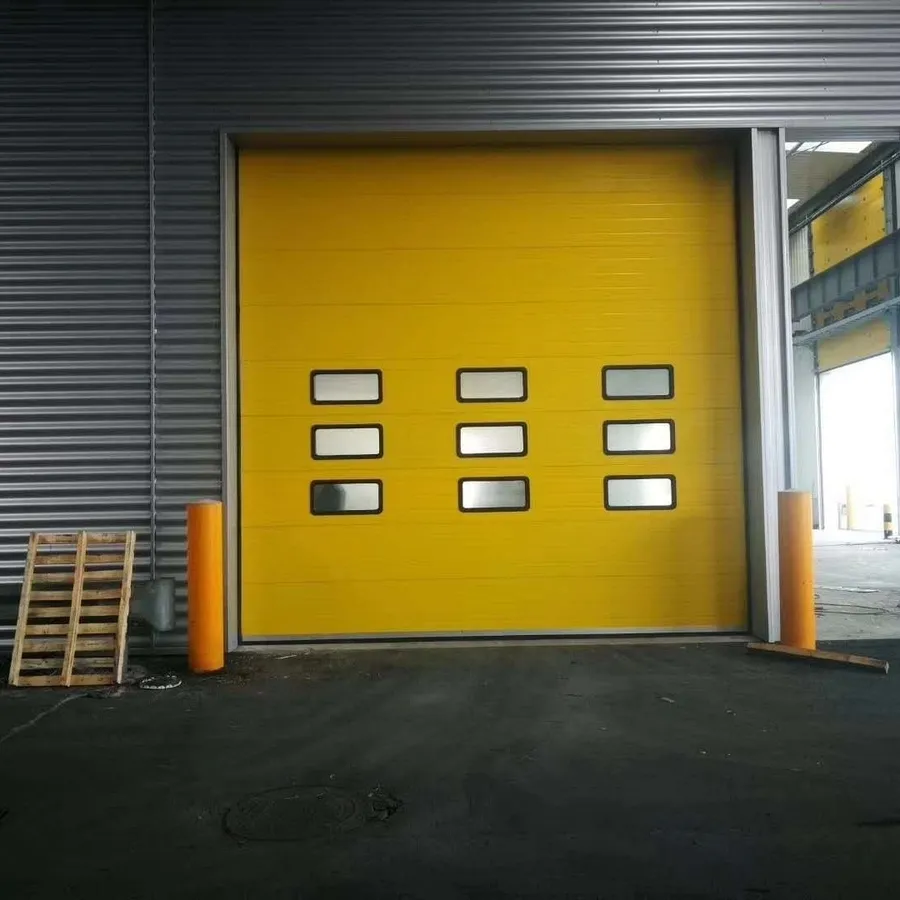

| Window Material | 3mm Thick Plexiglass (2-10 windows depending on size) |
