UHMWPE Sheet Ultra High Molecular Weight Polyethylene Sheet with High Impact Resistance
UHMWPE Sheet Ultra High Molecular Weight Polyethylene Sheet with High Impact Resistance
UHMWPE Sheet Ultra High Molecular Weight Polyethylene Sheet with High Impact Resistance
1 / 3
UHMWPE Sheet Ultra High Molecular Weight Polyethylene Sheet with High Impact Resistance
UHMWPE Sheet Ultra High Molecular Weight Polyethylene Sheet with High Impact Resistance
UHMWPE Sheet Ultra High Molecular Weight Polyethylene Sheet with High Impact Resistance

UHMWPE Sheet Ultra High Molecular Weight Polyethylene Sheet with High Impact Resistance

Customization: Available
Material: UHMWPE
Size: 1000X2000 1200X2400
Send Inquiry

Product Description

Basic Specifications

Model NO.
UHMWPE Sheet
Color
White, Blue and Others
Tensile Strength
30~40 MPa
Thickness
1-350mm
Transport Package
Wooden Box
Specification
SGS
HS Code
39209910
Production Capacity
500 Tons Per Year

Product Overview

UHMW PE is a kind of engineering plastic with medium price and superior properties. It combines almost all the excellent properties of plastics, including outstanding abrasion resistance, high impact resistance, self-lubricating properties, and an exceptional ability to withstand extreme cold. It is eco-friendly and lightweight.
Excellent wear resistance
Temperature: -200°C to +80°C
Impact and noise reduction
Chemical resistant
No water absorption
Anti-adhesive properties
Food safe material
Lightweight & Durable

Product Display

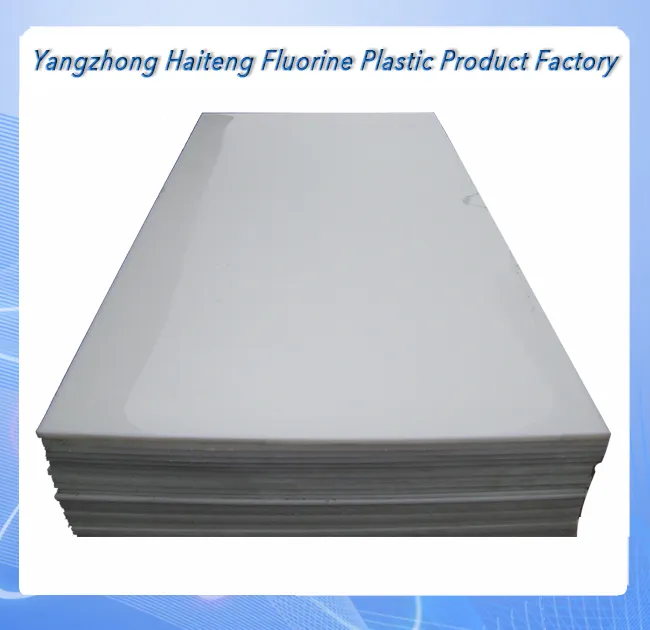

UHMWPE Sheet Display 1

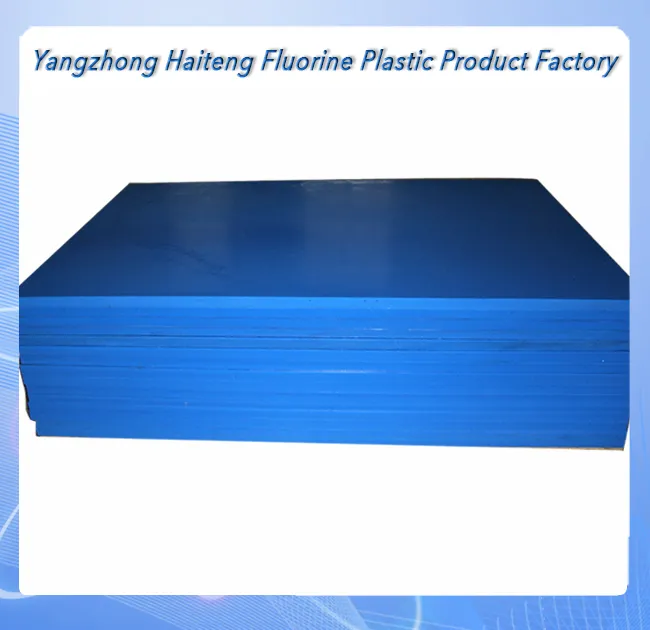

UHMWPE Sheet Display 2

Typical Applications

Furnitures & Doors
Windows
Chopping Boards
Water Storage Boxes
Playground Barriers

Technical Data Sheet

PROPERTIES Test Method Unit Value
I. Physical Properties
Density ISO 1183 g/cm3 0.96
Water absorption 24hrs ISO 62 % 0.01
II. Thermal Properties
Heat deflection temperature - HDT/A ISO 75-2 ºC 42
Min. service temperature - ºC -269
Max. service temperature-Long Term - ºC 90
Thermal conductivity at 23 ºC DIN 11359 W/(K*m) 0.42
Flammability Rating (6mm) UL 94 - HB
III. Mechanical Properties at 23ºC
Tensile strength at break ISO 527-2 Mpa 40
Elongation at break ISO 527-2 % >50
Modulus of elasticity (Tensile) ISO 527-2 MPa 650
Hardness - Shore D DIN 53505 - 61
Friction coefficient DIN 53375 - 0.25
IV. Electrical Properties at 23ºC
Dielectric strength IEC 60243-1 kV/mm 45
Surface resistivity IEC 60093 Ohm (Ω) >10¹¹

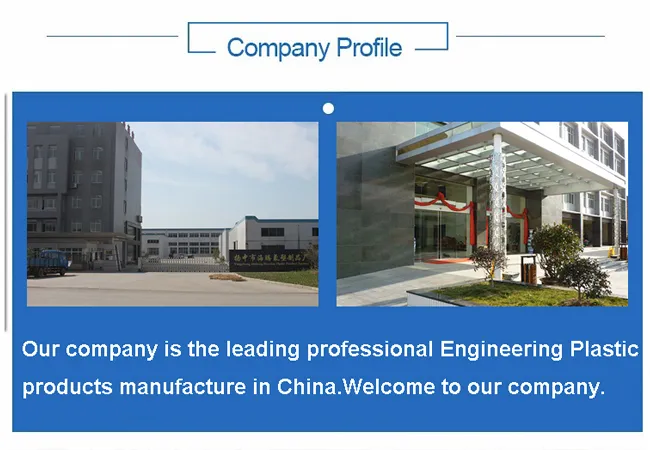

UHMWPE Production

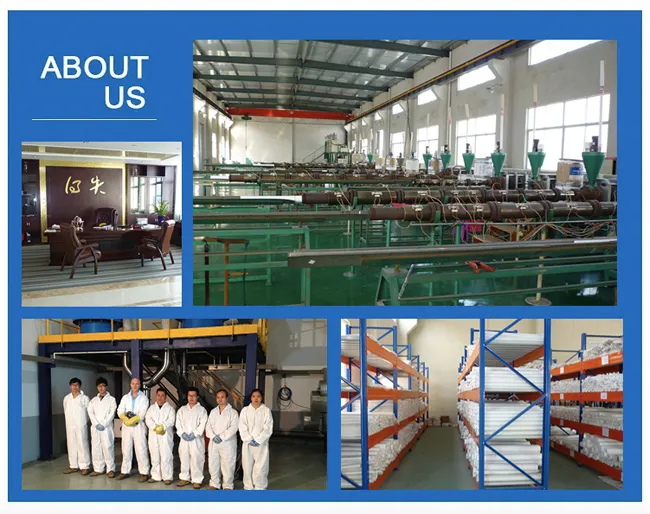

UHMWPE Sheet Stock

Frequently Asked Questions

Q1: What are the main benefits of using UHMWPE sheets? A: UHMWPE offers extreme wear resistance, high impact strength, low friction (self-lubricating), and excellent chemical resistance, making it superior to most standard plastics.
Q2: Can UHMWPE sheets be used in extreme cold environments? A: Yes, it has an outstanding ability against cold and can work under temperatures as low as -200°C.
Q3: Is the material safe for food contact? A: Yes, UHMWPE is food safe and commonly used for chopping boards and other food processing applications.
Q4: Does UHMWPE absorb water? A: No, it has practically zero water absorption (0.01%), ensuring it maintains its dimensions and properties in wet environments.
Q5: What is the tensile strength of these sheets? A: The tensile strength at break for our UHMWPE sheets is approximately 40 MPa.
Q6: What colors and thicknesses are available? A: We offer colors in White, Blue, and others, with a thickness range from 1mm up to 350mm.
