Exterior Vertical Lift Overhead Steel Sectional Industrial Door for Logistics or Warehouse

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
KW-ID-VL
Material
Galvanised Steel Epoxy Paint
Type
Rolling
Open Style
Rolling
Opening Type
With Remote Control
Special Function
Fire Proofing
Color
Customized
Certification
ISO9001, CE
Position
Industrial
Surface Finishing
Finished
Dimension
Customized
Open Type
Automatic
Driver
Motor
Noisy
23dB
Transport Package
Wooden Case
HS Code
73083000
Production Capacity
50PCS/Month
Product Description
Exterior Vertical Lift Overhead Steel Sectional Industrial Door for Logistics or Warehouse

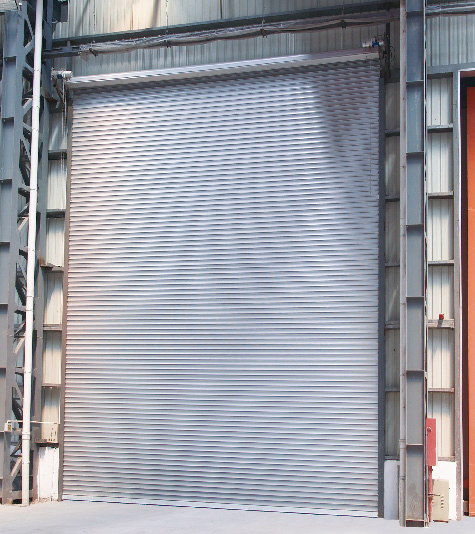

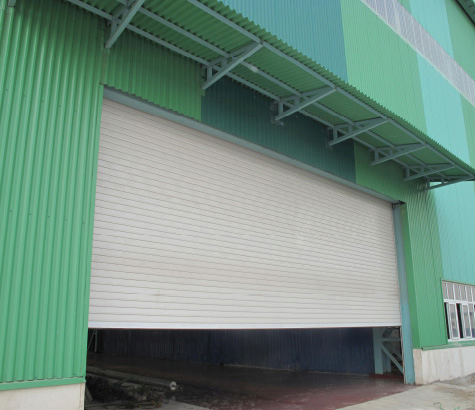

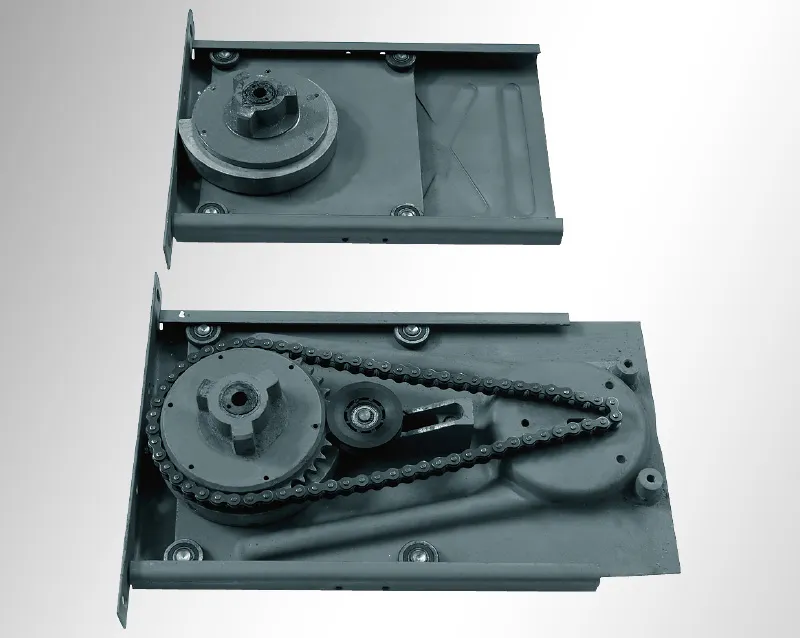

Windproof rolling shutter is made up mainly by wind shutter curtain, windproof wheel, windproof rail, door-opening drive mechanism and other components. Compared with ordinary shutter curtains, this model features an inner layer made of polyurethane foam sheet, offering significant advantages in heat preservation, heat insulation, and sound insulation.

Both ends of the shutter curtain are equipped with windproof wheels that operate within the windproof rail during opening or closing. This design prevents the curtain from derailing and provides robust resistance to wind loads, making it ideal for workshops and warehouses of all types.

Main Technical Parameters
Parameter Item Specification Details
Applicable door openingMaximum width: 12000 / Maximum height: 8000
Reserved size for upper edge500-1000
Reserved size for lateral side≥300
Working voltage/frequency380V / 50HZ
Motor power550W - 1100W
Operating speed~1.7m/s
Width of Shutter Curtain100mm / 77mm
Applicable temperature-40°C ~ 50°C
Resistance to wind pressure650N/m²
Product Visuals

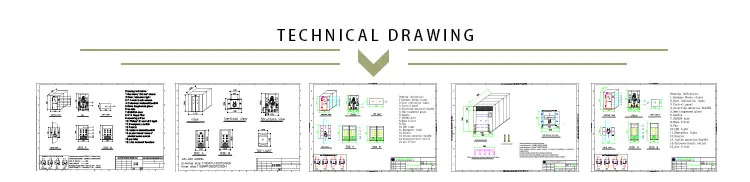

Technical Drawing 1
Technical Drawing 2
Frequently Asked Questions
What materials are used for the door's insulation?
The inner layer of the shutter curtain is made of high-quality polyurethane foam sheet, which provides excellent heat and sound insulation.
How does the windproof mechanism work?
The door features specialized windproof wheels at both ends of the curtain that run along a windproof rail, preventing derailment and resisting high wind loads up to 650N/m².
What is the maximum size available for these industrial doors?
The doors can accommodate openings up to a maximum width of 12,000mm and a maximum height of 8,000mm.
Is the door operation noisy?
No, the system is designed for quiet operation with a noise level of approximately 23dB, ensuring a better working environment.
Can the door be operated manually?
While it is an automatic system powered by a motor and remote control, it is designed for industrial efficiency and high-speed operation (~1.7m/s).
What temperatures can the door withstand?
The door is engineered to operate reliably in extreme environments ranging from -40°C to 50°C.
