Basic Specifications
Model NO.
Glass Sectional Door
Material
Aluminum Alloy+Glass
Opening Style
Rolling / Sectional
Motor Power
120W / Induced
Output Torque
800/1000/1200/1500n
Color
RAL Colors Available
Max Size
W7500mm * H4000mm
Power Supply
220V/380V, 50/60Hz
Product Description

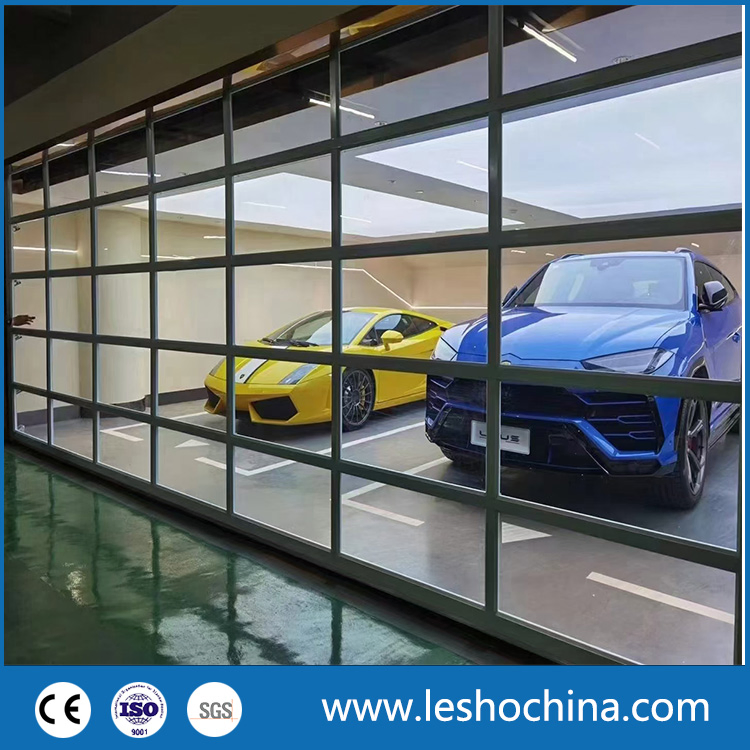

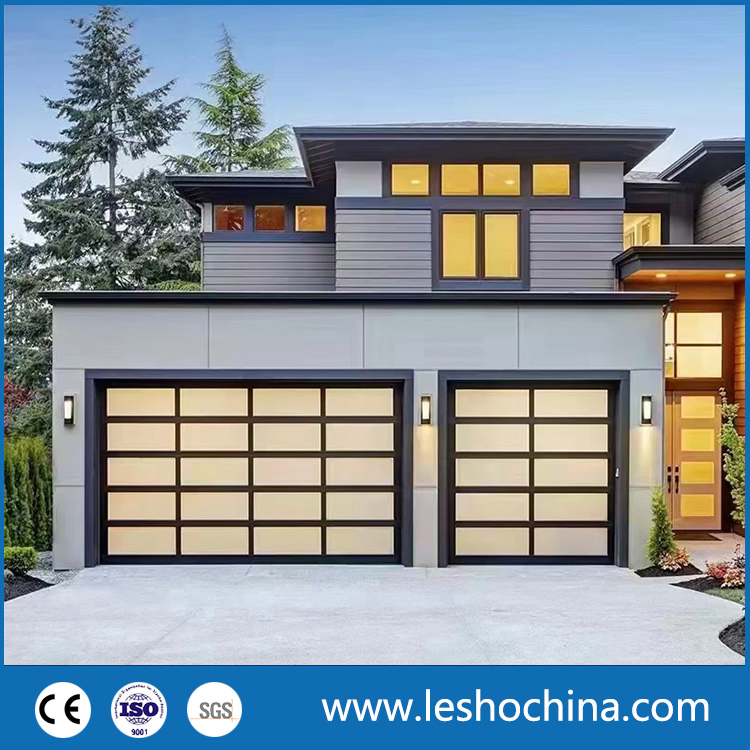

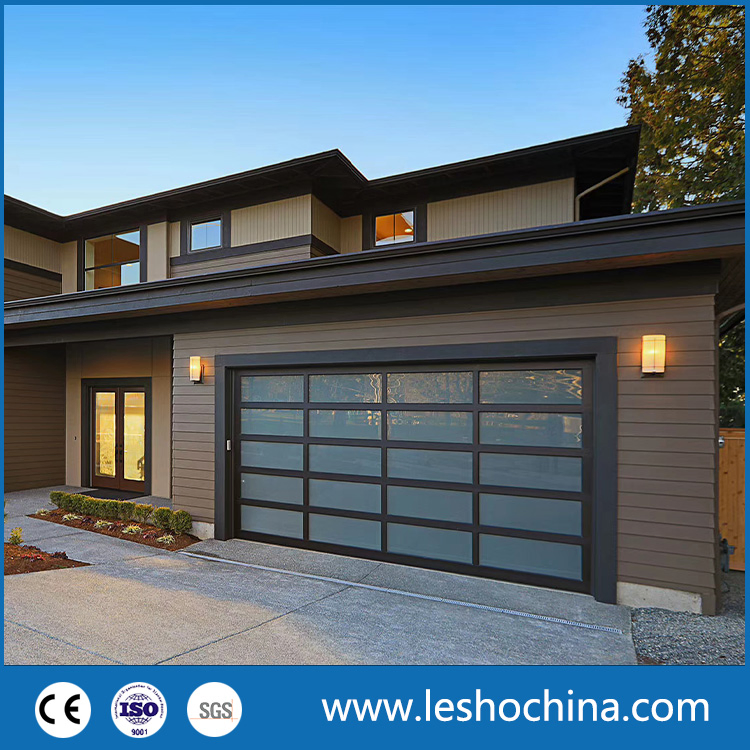

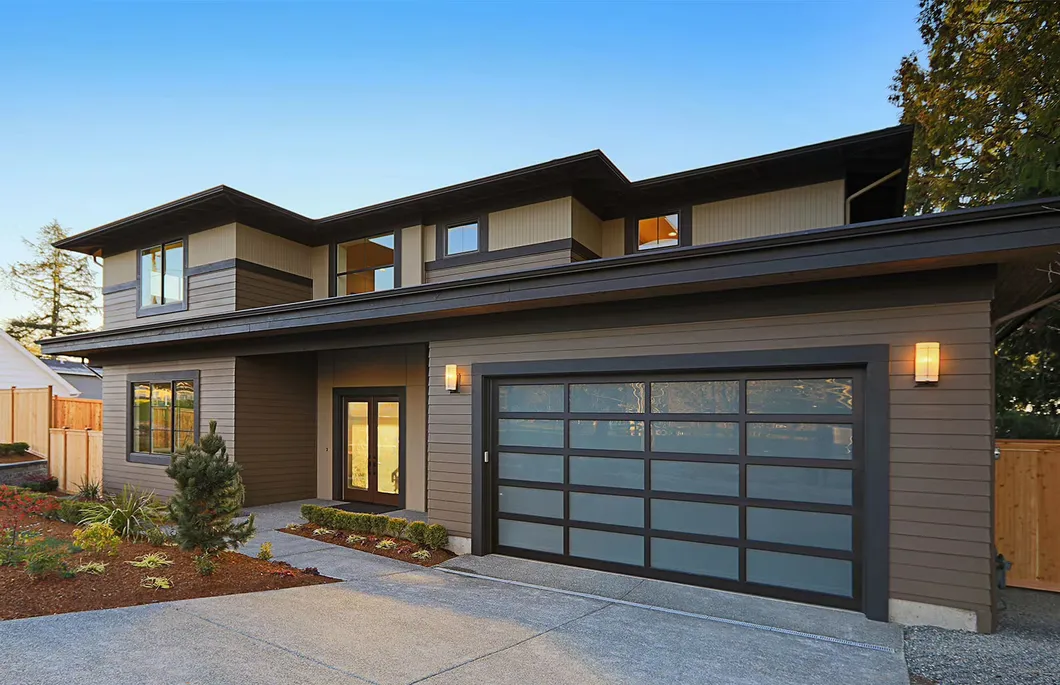

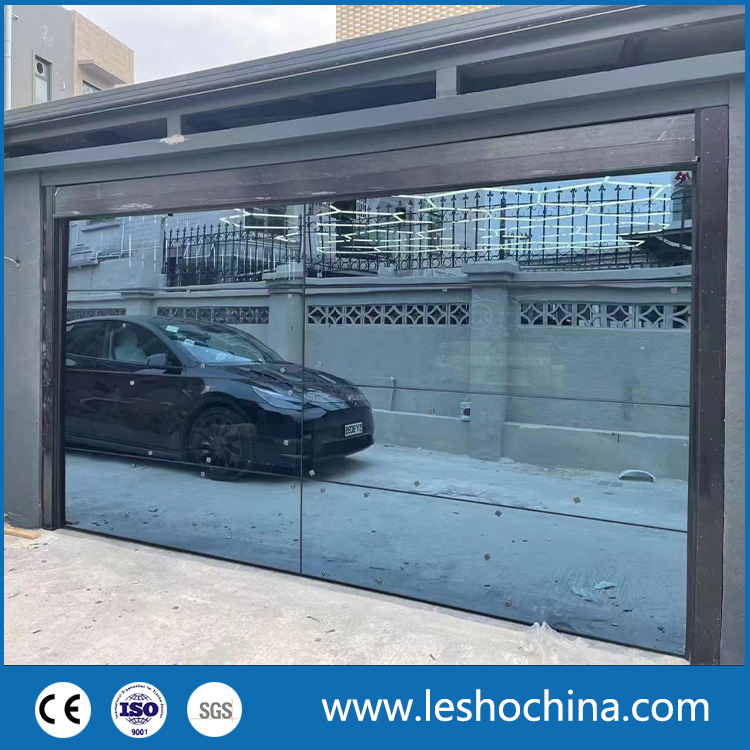

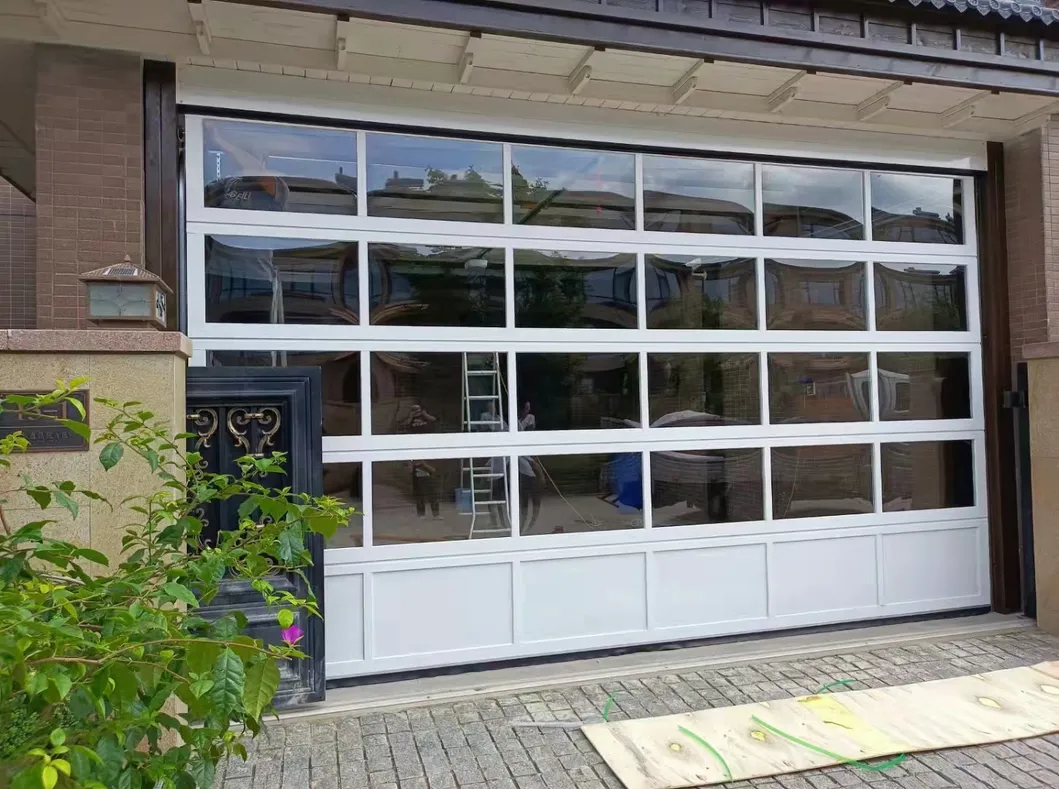

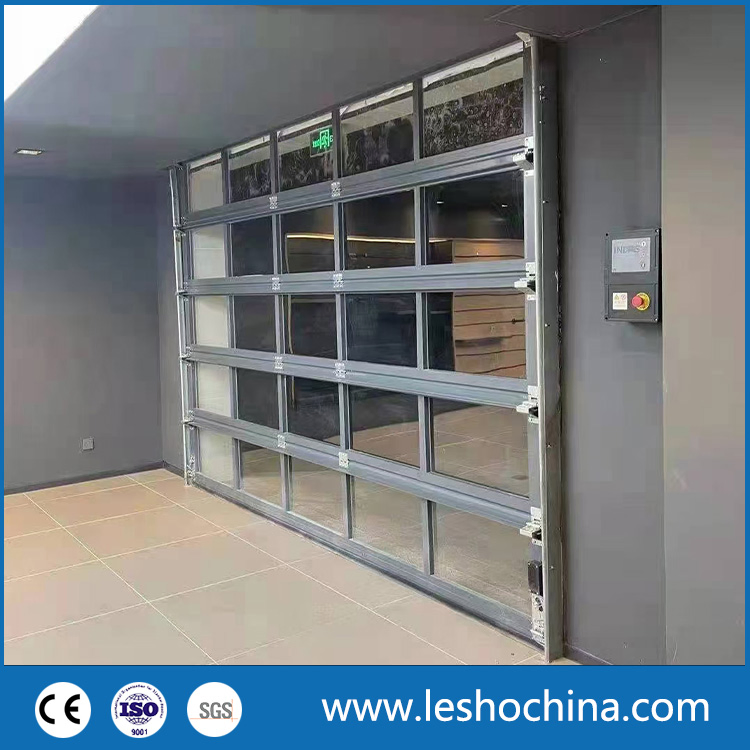

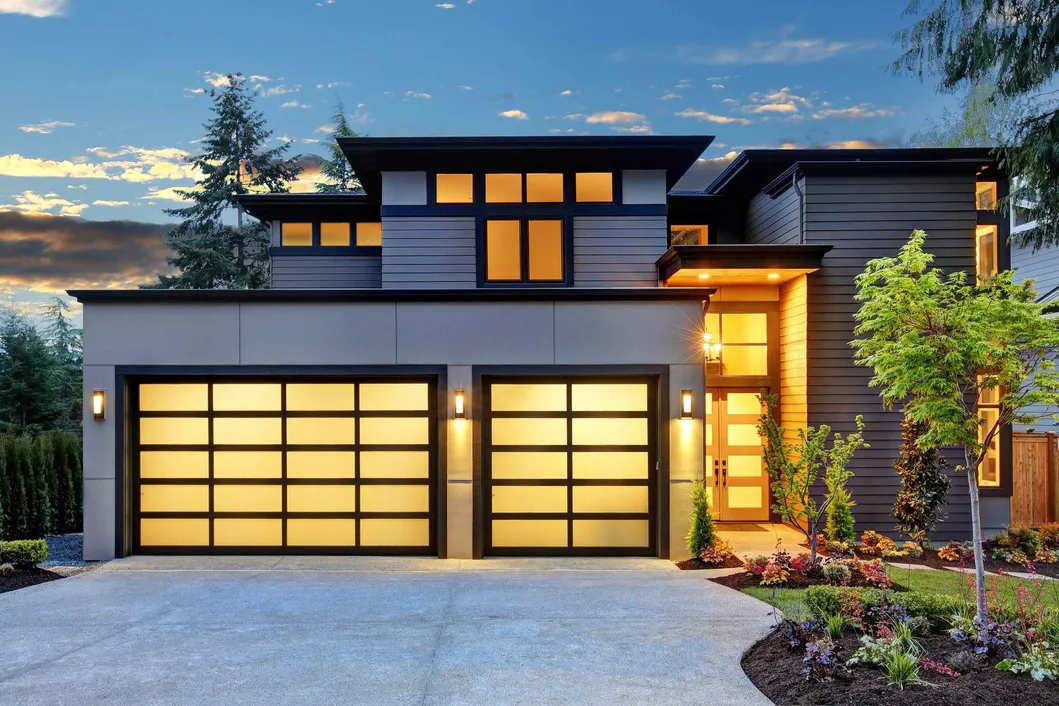

Transparent sectional Garage doors are designed for those pursuing a better lifestyle and modern aesthetics. The door body consists of high-strength aluminum alloy and thick carbonated glass. It offers a space-saving design, lifting to the ceiling, and is widely used in automobile 4S stores, shopping malls, supermarkets, and luxury villas.
Technical Data
| Application Location | Warehouse, 4S Shop, Garage, Villa, Hotel, Office Building |
| Opener Options | 800N to 1800N, or Industrial side motor |
| Running Speed | 0.2m/s |
| Door Panel Material | Aluminum frame + (3-5mm PC or 5mm tempered glass) |
| Wind Resistance | 28m/s, Class 10 |
| Water Tightness | Thermal Break, Header Seal, Section Joint Seal, Bottom Seal |
| Sound Insulation | ≤60dB |
| Service Life | 15 Years |

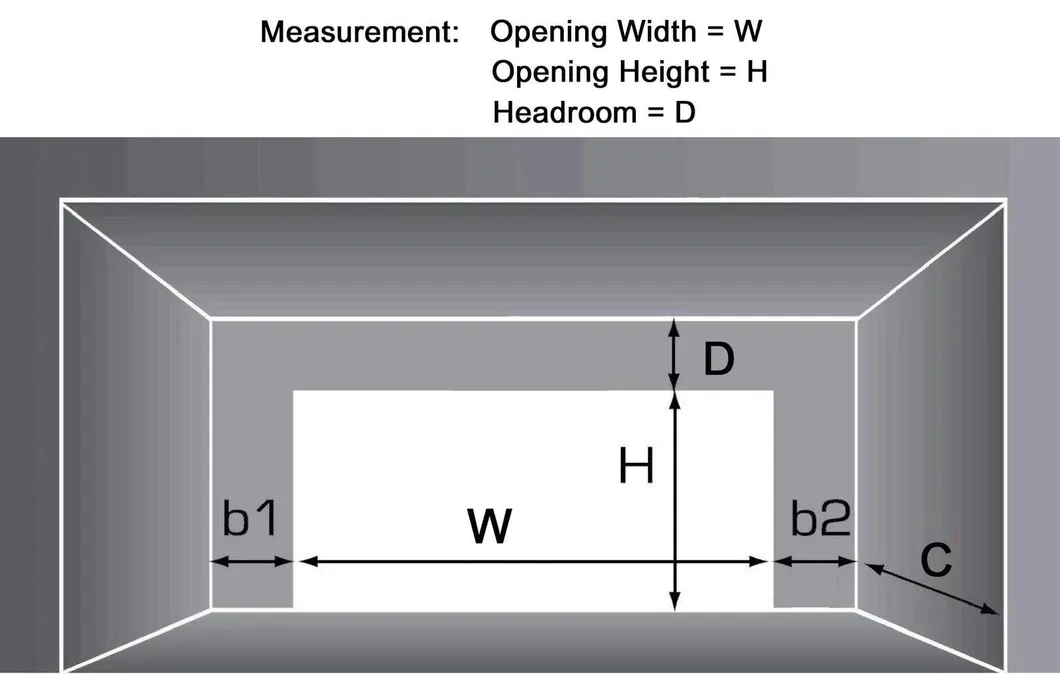

Door Opening Measurement
Before production, the clear door opening size (wall hole size) is required. Site pictures help our technical team ensure perfect installation sizing.
Core Features & Safety
Excellent Display Effect
The aluminum frame is available in over 20 powder coating colors. Glass finishes range from clear transparent to soft matte effects.
EPDM Sealing
Equipped with EPDM Seal rubber all around to prevent deformation from weather, ensuring air tightness and rejecting dust/insects.
Superior Safety Performance

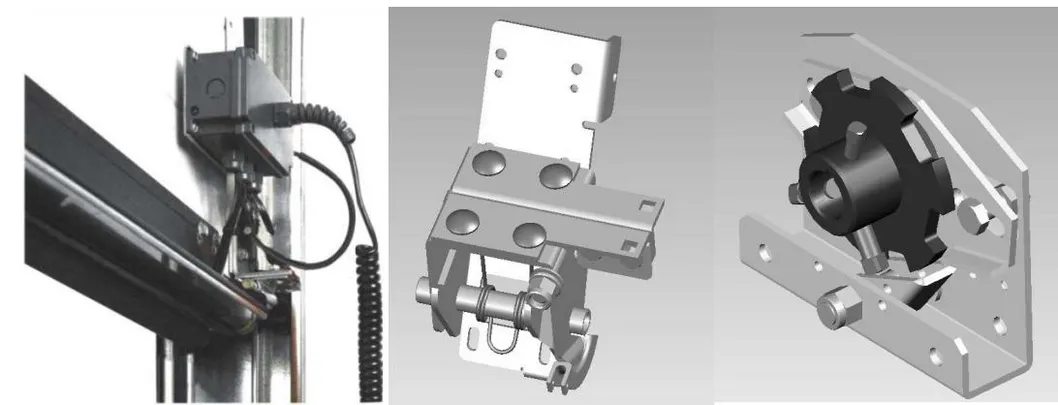

- Finger Safe Panels: Prevents injuries during operation.
- Anti-fall Device: Stops the door from falling even if the steel wire rope breaks.

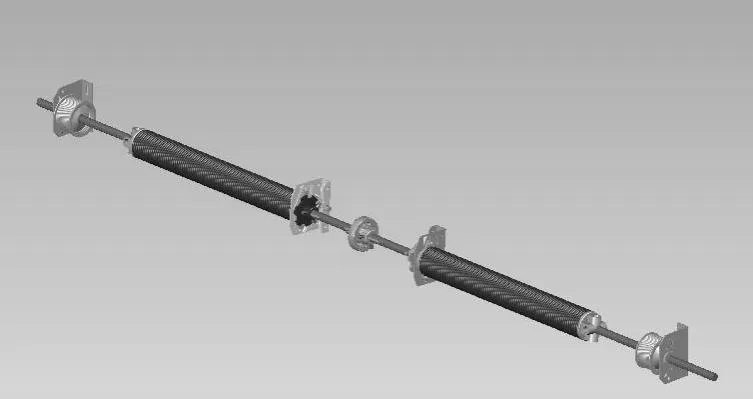

- Torsion Spring Anti-breaking: Extra layer of protection against spring failure.
- Bottom Airbag: Reverts the door to the open position if it touches an obstacle.

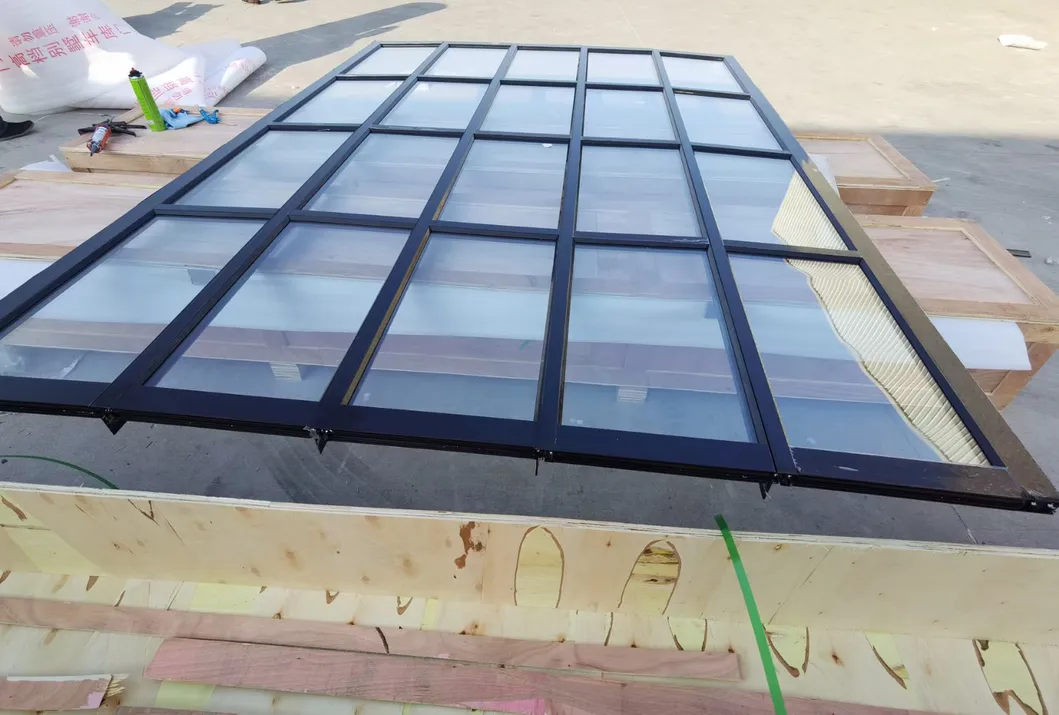

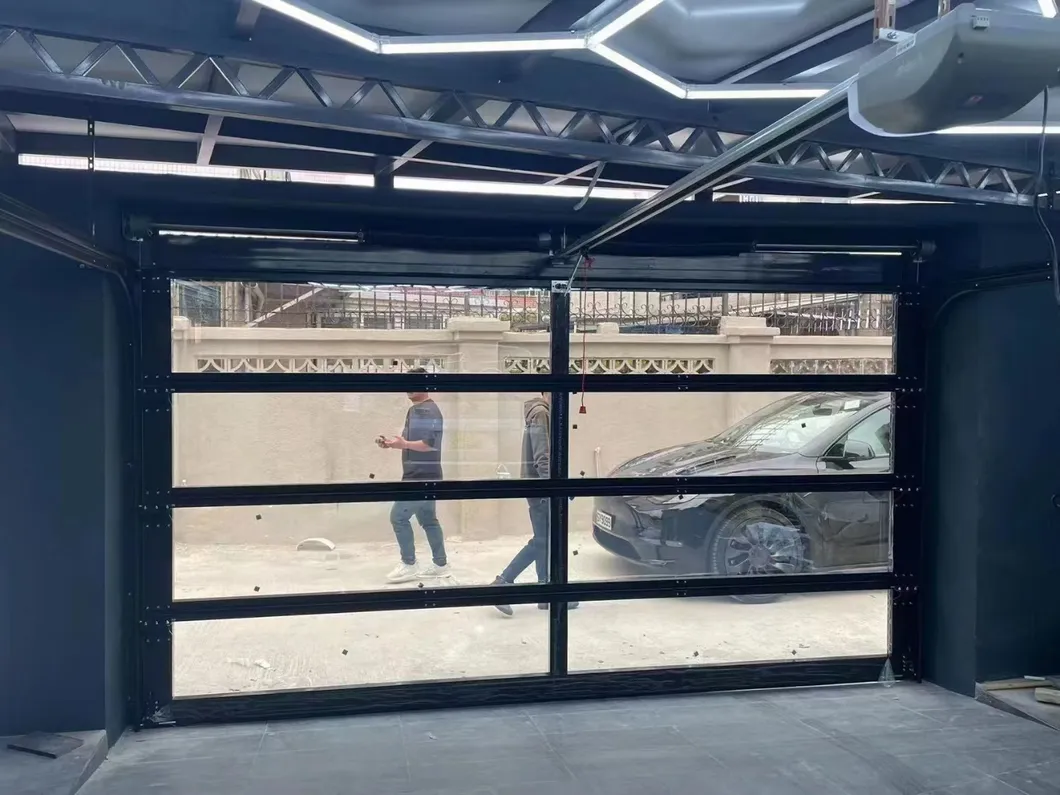

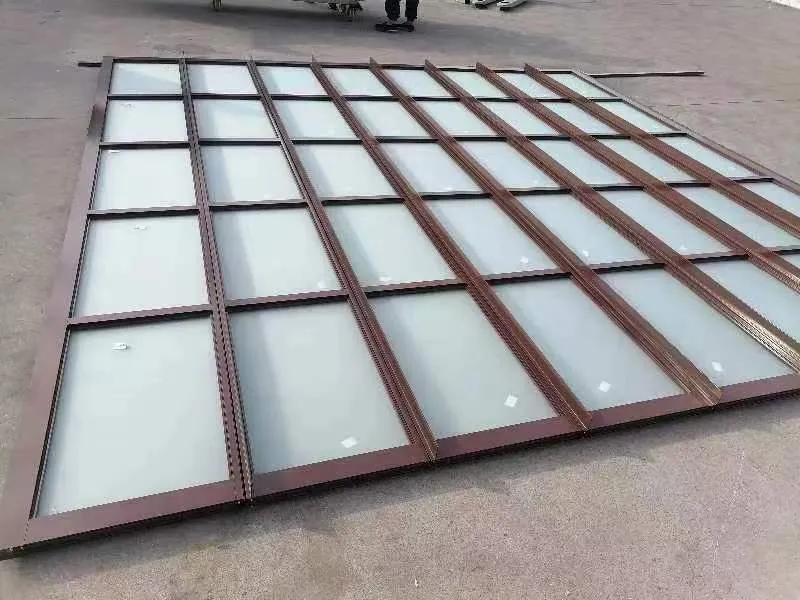

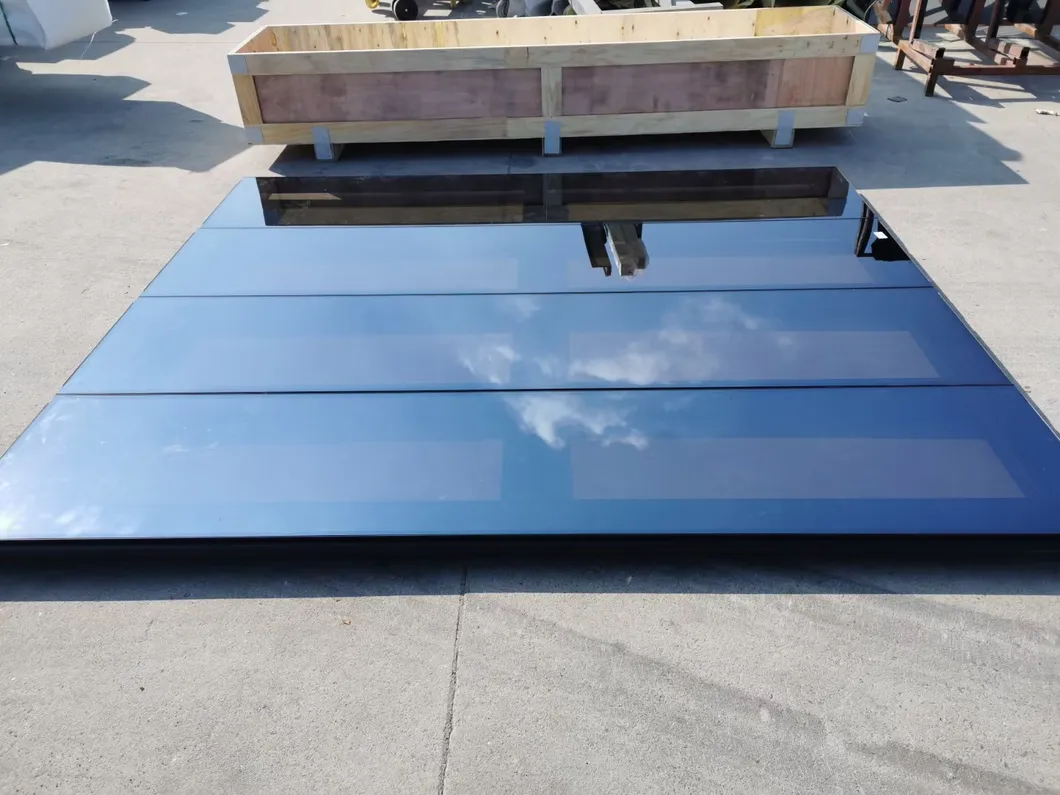

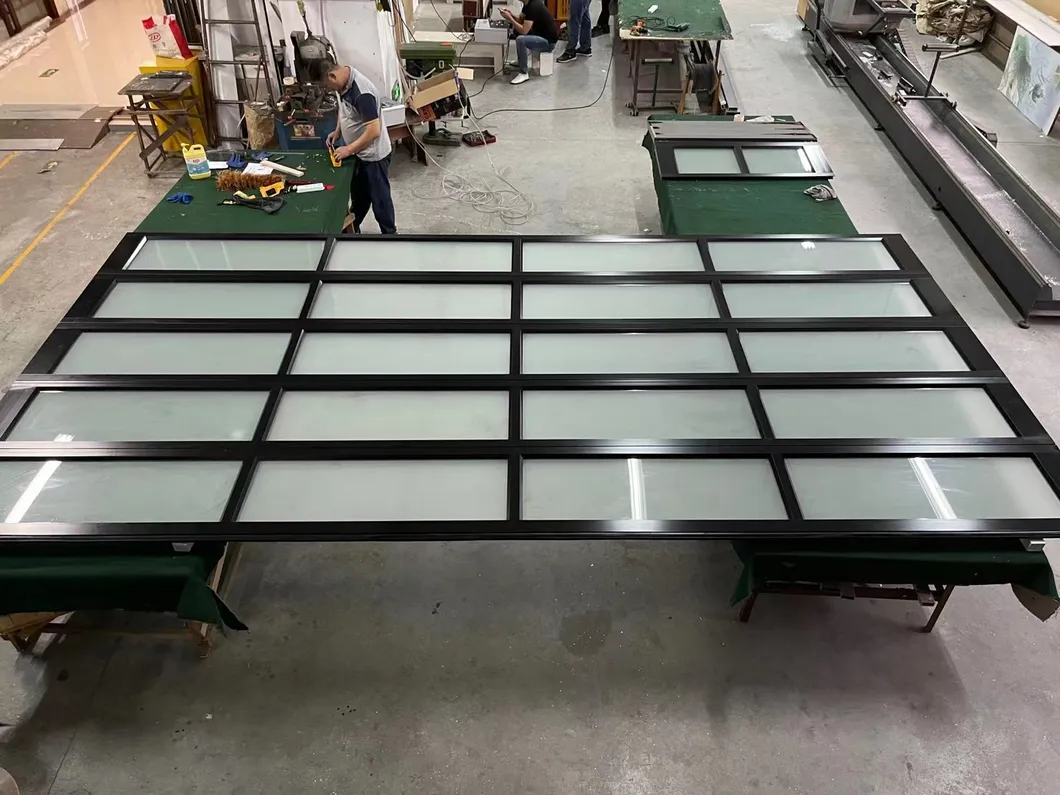

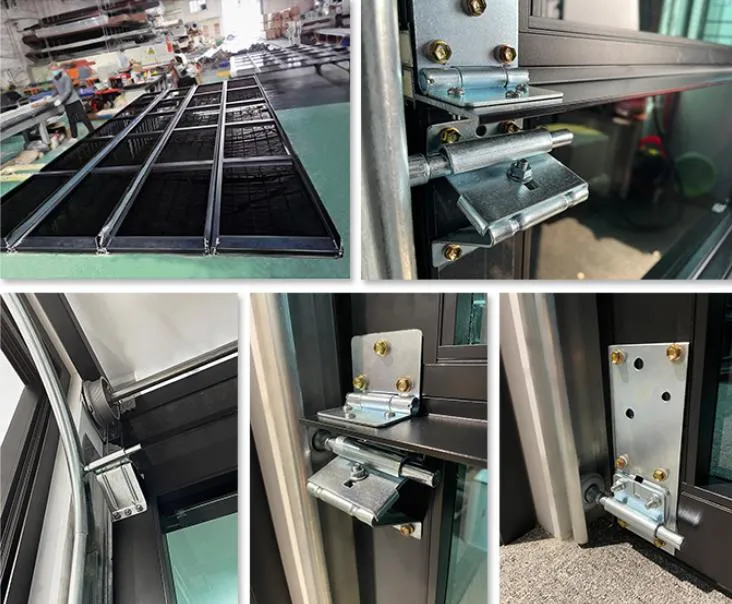

Real Shot Display

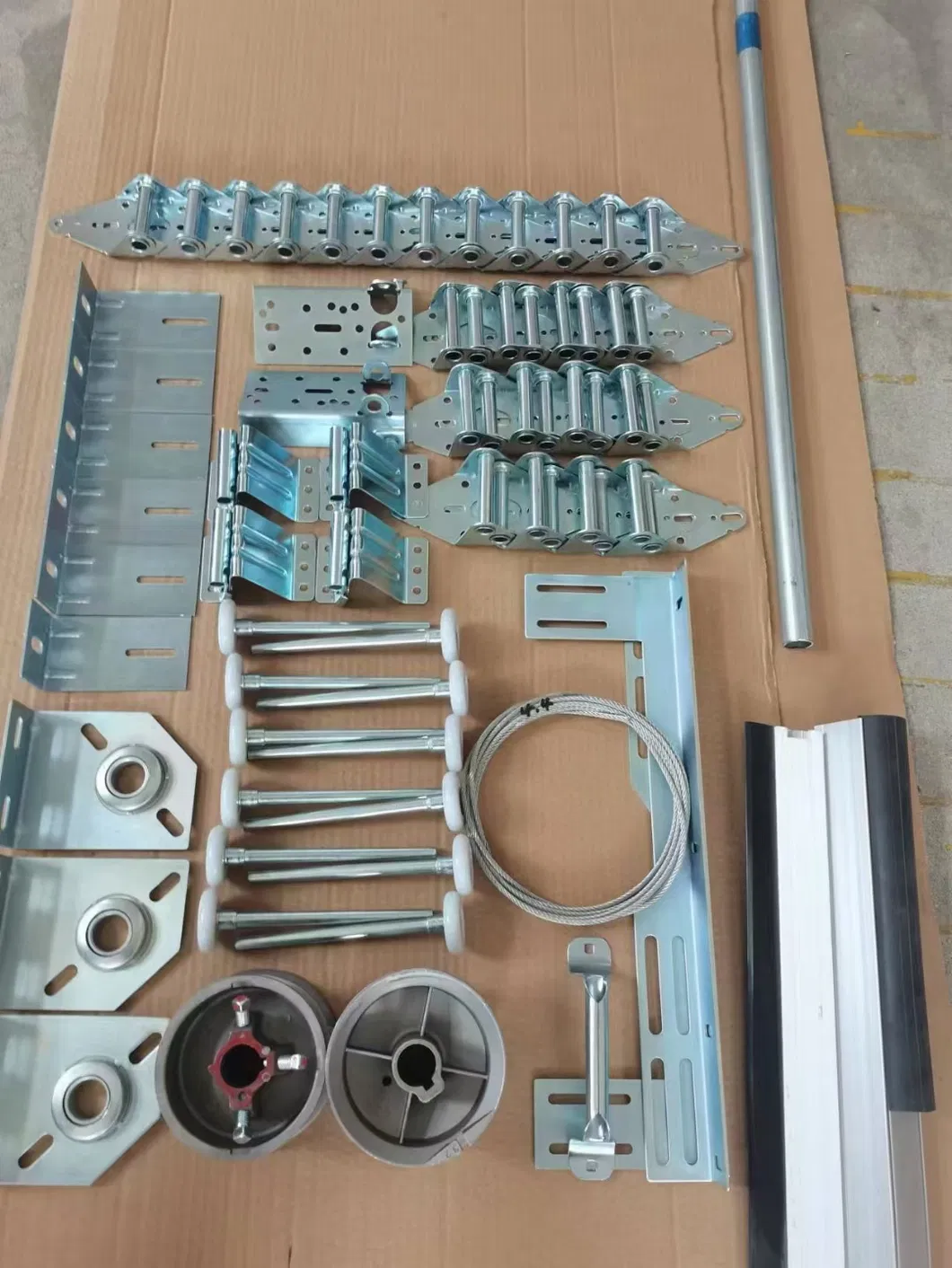

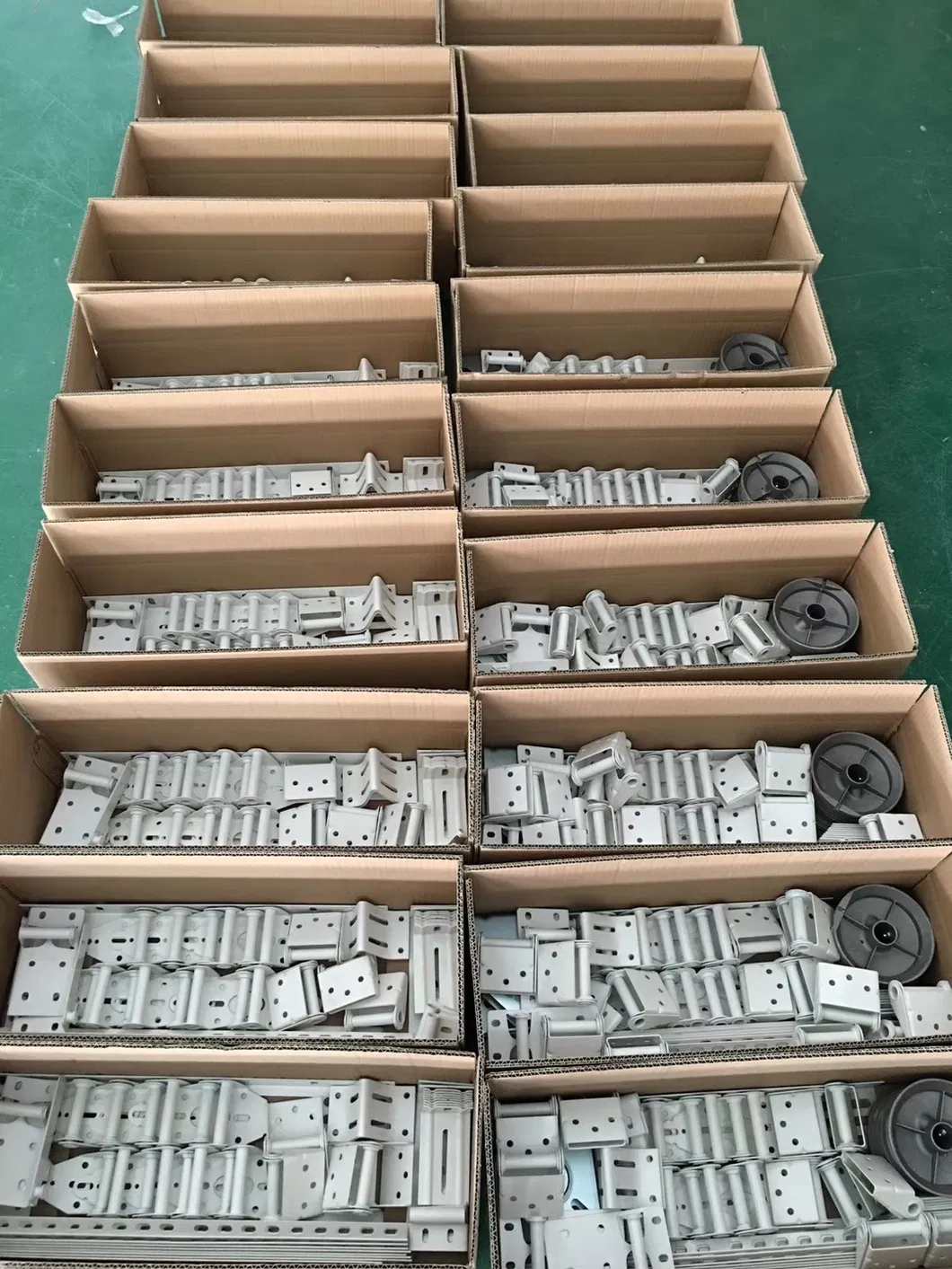

Packaging & Hardware
Certifications & Exhibitions
Frequently Asked Questions
Q: Why should I choose these glass sectional doors?
A: We provide cost-effective products with stable quality, backed by over 20 years of production and customization experience. Our technical support covers both pre-sale and after-sale requirements.
Q: How do we start the first project?
A: We simply need your basic project background and site information. Providing drawings of your site plan is best, allowing us to offer a complete, tailored solution.
Q: Is the installation process difficult?
A: No. We provide clear installation manuals, videos, and precaution documents. Even workers without experience can install the doors. For complex large-scale projects, we can provide engineering guidance.
Q: What is the standard lead time for production?
A: The standard lead time for production is typically between 7 to 10 days, depending on the order volume and customization requirements.
Q: What payment terms are accepted?
A: We usually accept T/T in advance and L/C for large sums. Other terms like Western Union are also available upon request.
Q: How do you handle after-sales service and spare parts?
A: Spare parts can be delivered within 24 hours via international couriers like DHL, UPS, or TNT to ensure minimal downtime for your operations.
