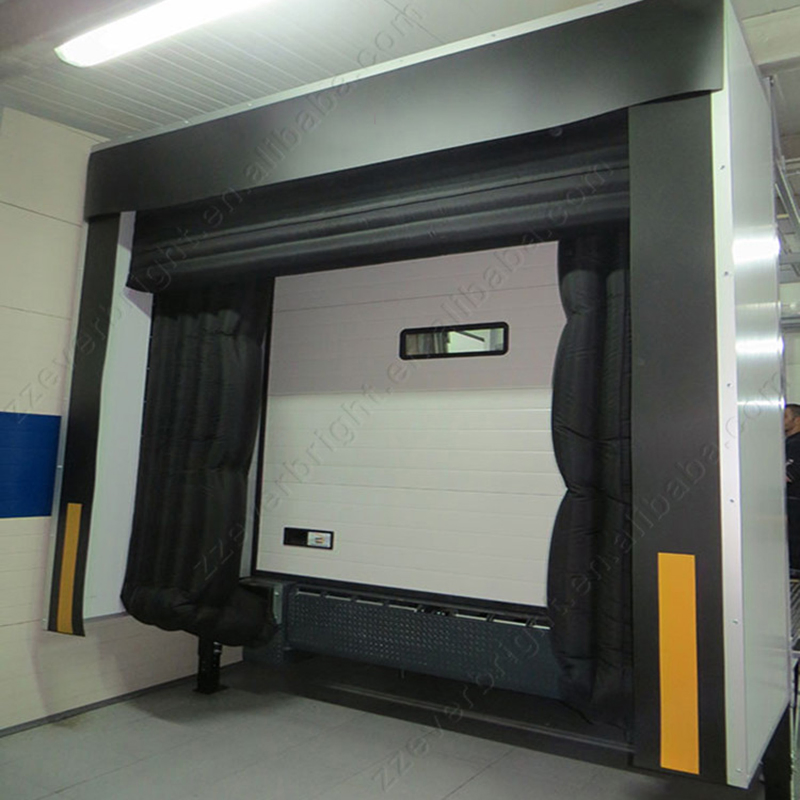

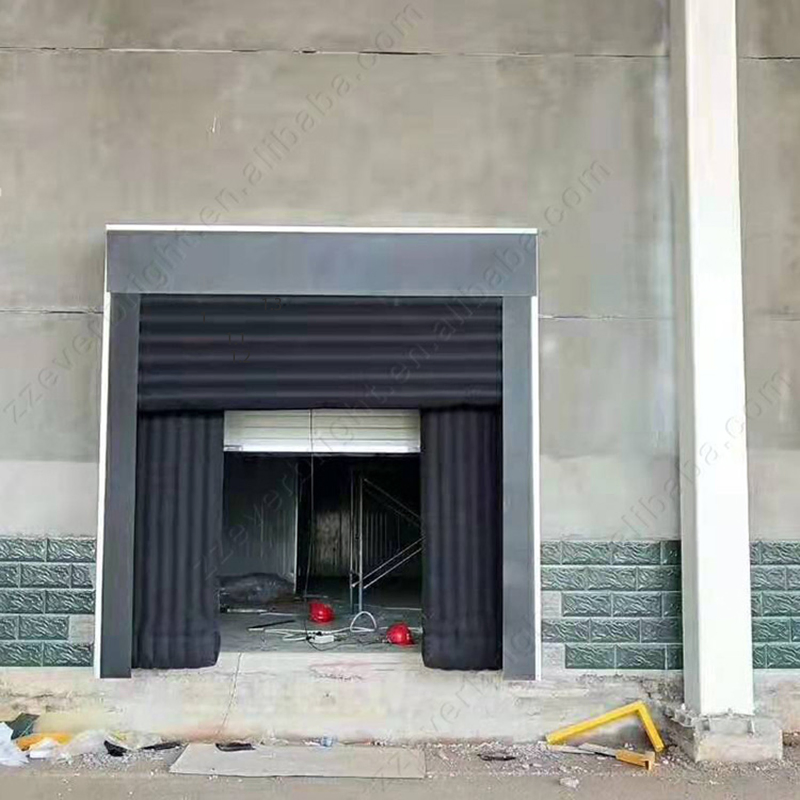

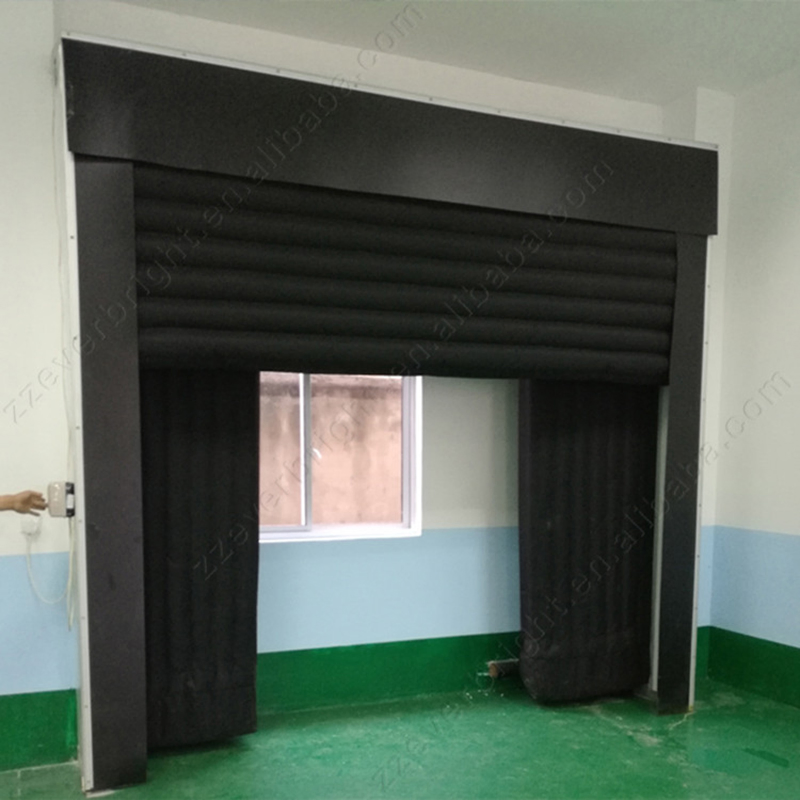

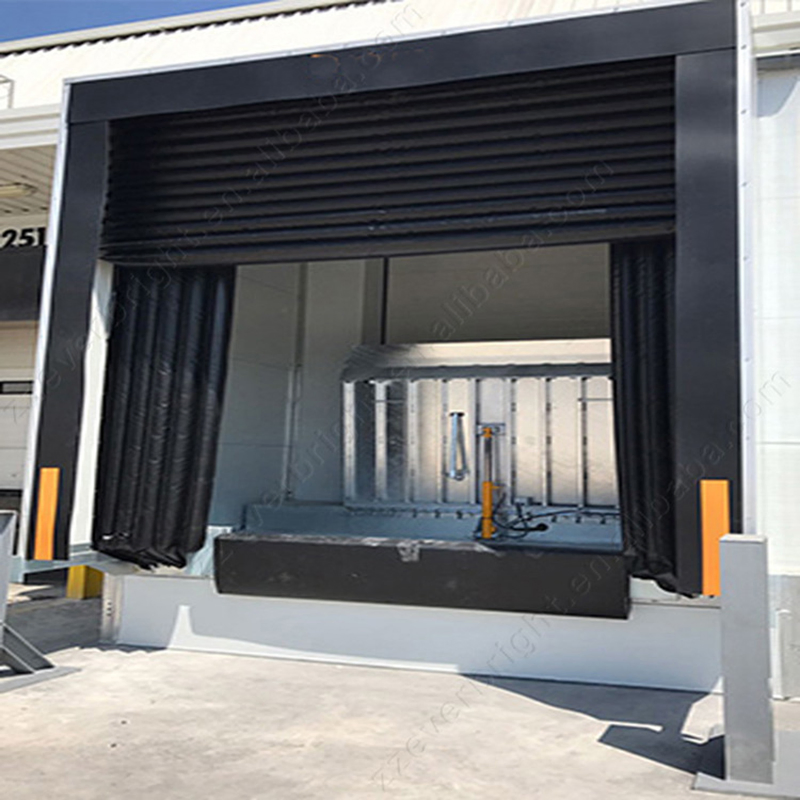

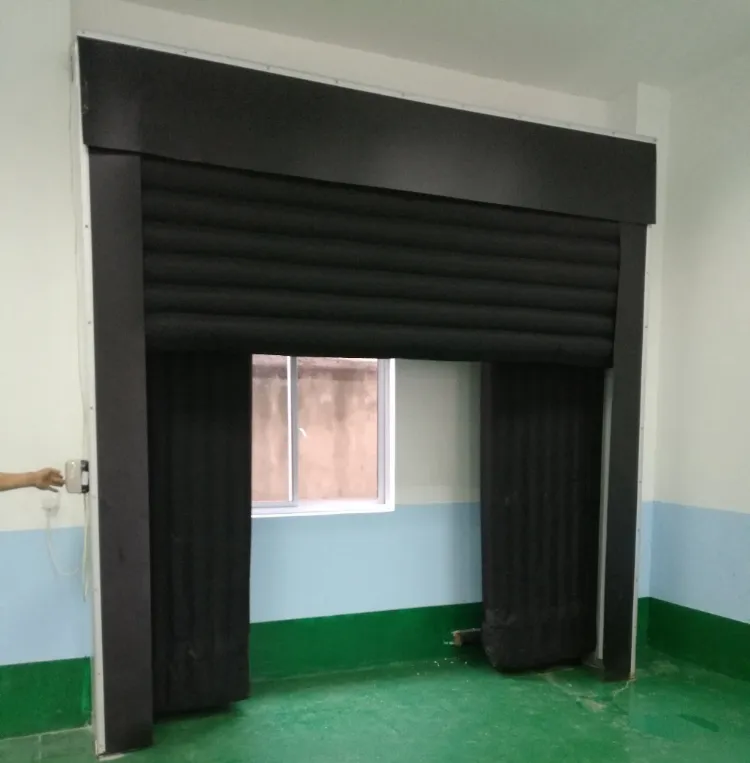

Loading door dock seals warehouse inflatable automatic dock seal
The inflatable dock shelter is growing in popularity as more comprehensive control of vehicles and equipment becomes available. The use of inflatable dock seals works very simply; the vehicle arrives at the dock usually with an external traffic light showing green, alerting the warehouse operative to its presence.
Once the fan is energized, the cushions fill with high volume, low pressure air and maintain steady contact on the sides and roof of the vehicle. This provides a tight seal, reducing the ingress of weather elements and maintaining temperature-controlled air within the facility.

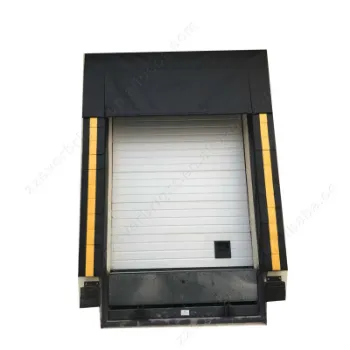

Sponge Dock Seal

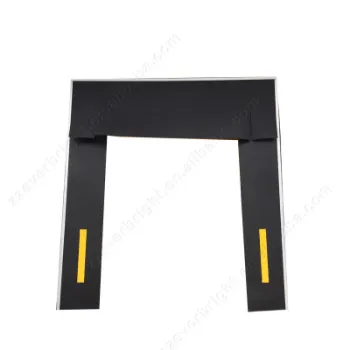

Mechanical Dock Seal
| Feature | Specification |
|---|---|
| Power | 0.35KW |
| Voltage | 3 phase, 380V 50 HZ |
| Control Cabin | External |
| Average Inflation Time | 40s |
| Operating Temperature Range | -35ºC to 70ºC |
| Outside of Airbag | 0.8mm PVC material |
| Inside of Airbag | Single or double-layer coated film curtain sheet |
| Opening Method | Electric or remote control |
The outer side (upper, left, right) of the inflatable door seal is provided with an 800 mm wide polyurethane foam door panel on three sides. The sealing column is a hollow continuous cylinder, continuously inflated by an external blower and equipped with balancing holes. This wraps the truck compartment tightly to achieve the sealing effect.
Packaging: Dock seals use standard export packaging for maximum protection.
Delivery Time: Within 7-25 days after deposit. Transport is typically conducted by sea.

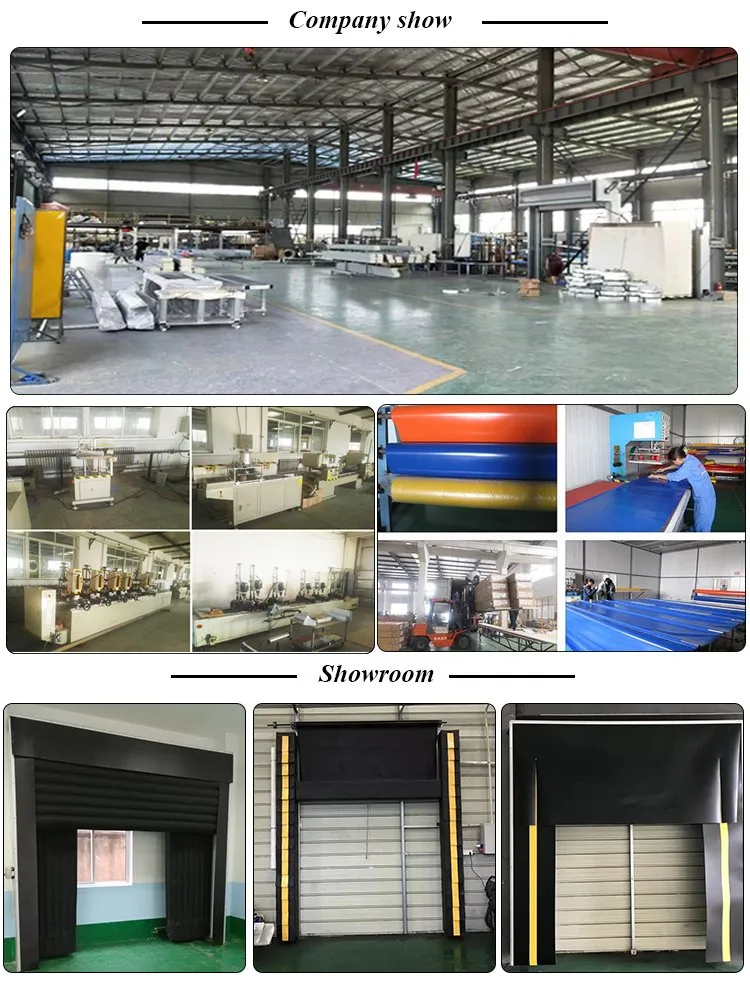

Our company specializes in the Doors & Windows industry, managed by an experienced team in production and trading. Our product scope covers industrial lifting doors, aluminum commercial doors, dock equipment, high-speed doors, and sectional garage doors.

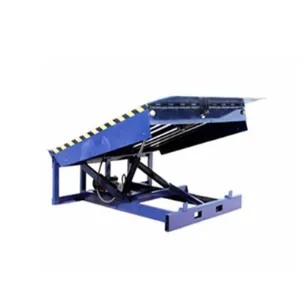

Dock Leveler

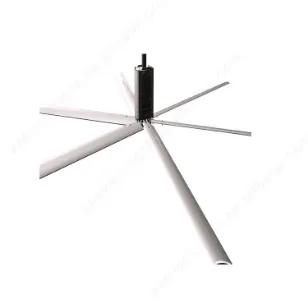

Industrial Fan
