Retractable Head Curtain Cold Storage Retractable Warehouse Loading Bays PVC Polyester Fabric Adjustable Anti-Crush Rubber Inflatable Dock Shelter Door Seal

1 / 5

Retractable Head Curtain Cold Storage Retractable Warehouse Loading Bays PVC Polyester Fabric Adjustable Anti-Crush Rubber Inflatable Dock Shelter Door Seal

Customization:	Available
After-sales Service:	Yes
Warranty:	Yes

Send Inquiry

Product Description

Basic Specifications

Model NO.

XF-O-2000

Material

PVC + Aluminum Alloy Frame

Type

Air Tight

Opening Type

Automatic / Air Blowing

Function

Sealing & Industrial

Certification

ISO9001, CE

Fireproof Grade

EU Grade II

Specification

3400*3400 mm

Origin

Made in China

HS Code

3926909090

Packaging & Delivery

Package Size

200.00cm * 100.00cm * 120.00cm

Gross Weight

100.000kg

Transport Package

Wooden Case

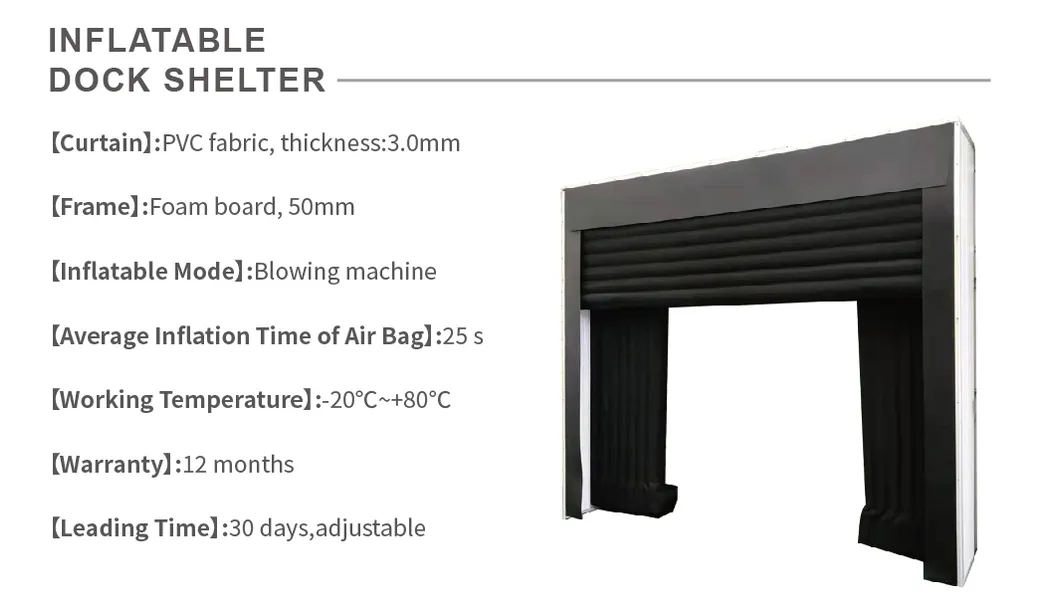

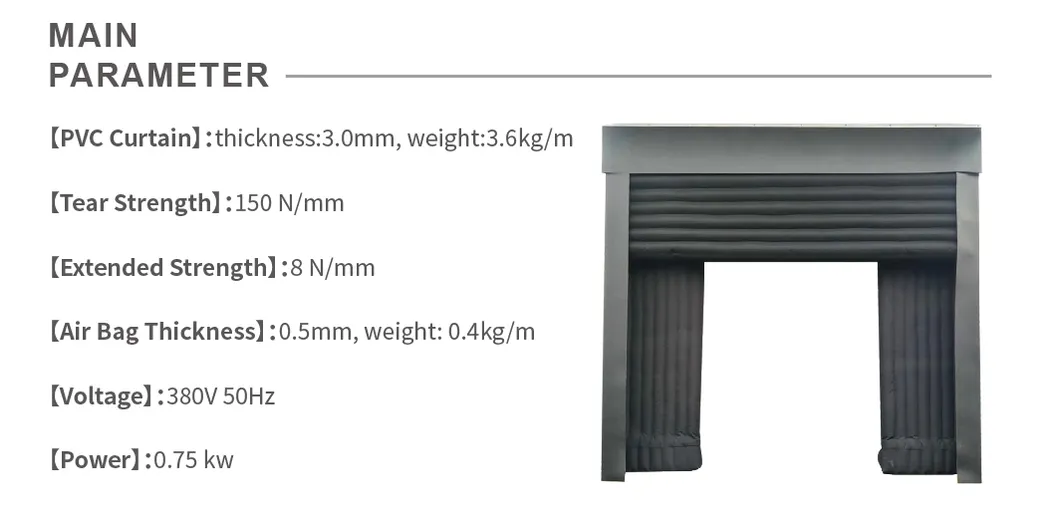

Technical Parameters

Category	Details & Features
Features & Benefits	Adjustable space between truck and door; Meets various truck dimensions; Maintains indoor temperature; Anti-wind and cleaning; Sealing achieved via airbag inflation.
Air Bag Fabric	Polyester fabric with PVC coating; Thickness: 0.5mm; Strength at break: 290N/mm2; Weight: 0.4kg/m; Fireproof: EU Grade II.
Front Fabric Curtain	Polyester fabric with PVC coating; Thickness: 3.0mm; Strength at break: 150N/mm2; Weight: 3.6kg/m; Fireproof: EU Grade II.
Air Pump System	Voltage: 380V 50Hz (3 Phase); Power: 0.75kw; Average inflation time: 25s.
Metal Frame	Aluminium alloy / Polyurethane sandwich panel / Galvanized steel; Thickness: 50mm.
Standard Size & Color	3600(W)*3600(H) MM or customized; Black, Blue or optional.
Temperature Scope	Operates between -35ºC to +70ºC.

Frequently Asked Questions

What materials are used for the airbag?

The airbag is constructed from high-strength polyester fabric with a 0.5mm PVC coating, offering a break strength of 290N/mm2.

How long does it take to fully inflate the dock shelter?

The system is equipped with a 0.75kw air pump, allowing for an average inflation time of approximately 25 seconds.

Is the inflatable dock shelter fire-resistant?

Yes, both the air bag fabric and the front fabric curtain meet the EU Grade II fireproof standards.

What temperature range can this product withstand?

This inflatable dock shelter is designed for durability in extreme environments, with a working temperature scope of -35ºC to +70ºC.

Can the size be customized for specific loading bays?

While the standard size is 3600(W)*3600(H) MM, we offer customer-tailored sizing to meet various truck dimensions and loading conditions.

What are the primary benefits of using an inflatable dock seal?

It provides superior sealing to maintain indoor temperatures, ensures cleanliness by blocking dust and wind, and adapts to various truck heights for efficient loading.
