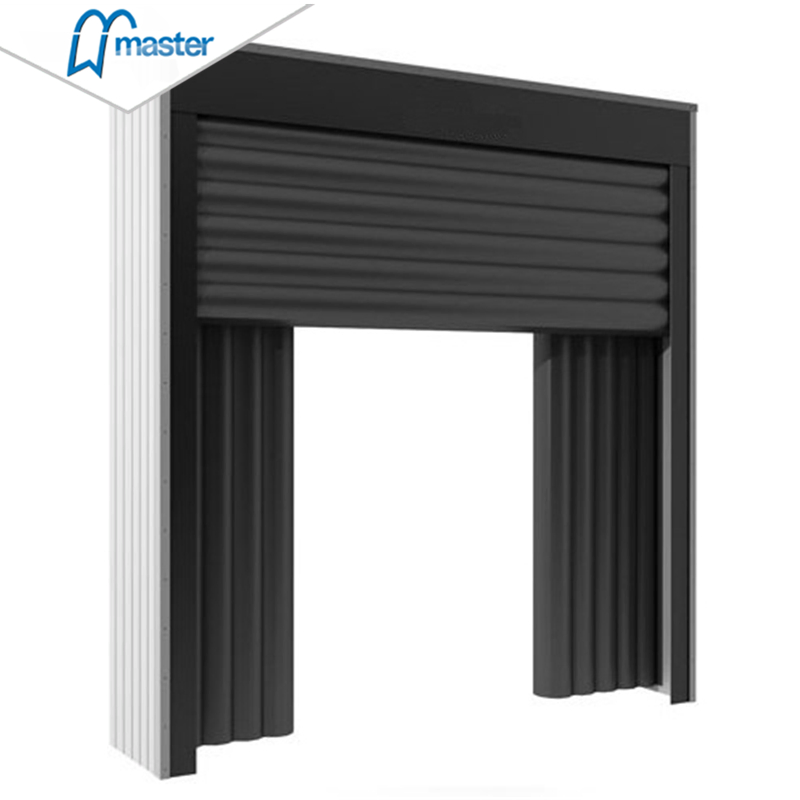

Fixed front curtain: Largely meets the requirements of all types of vehicles of different heights.

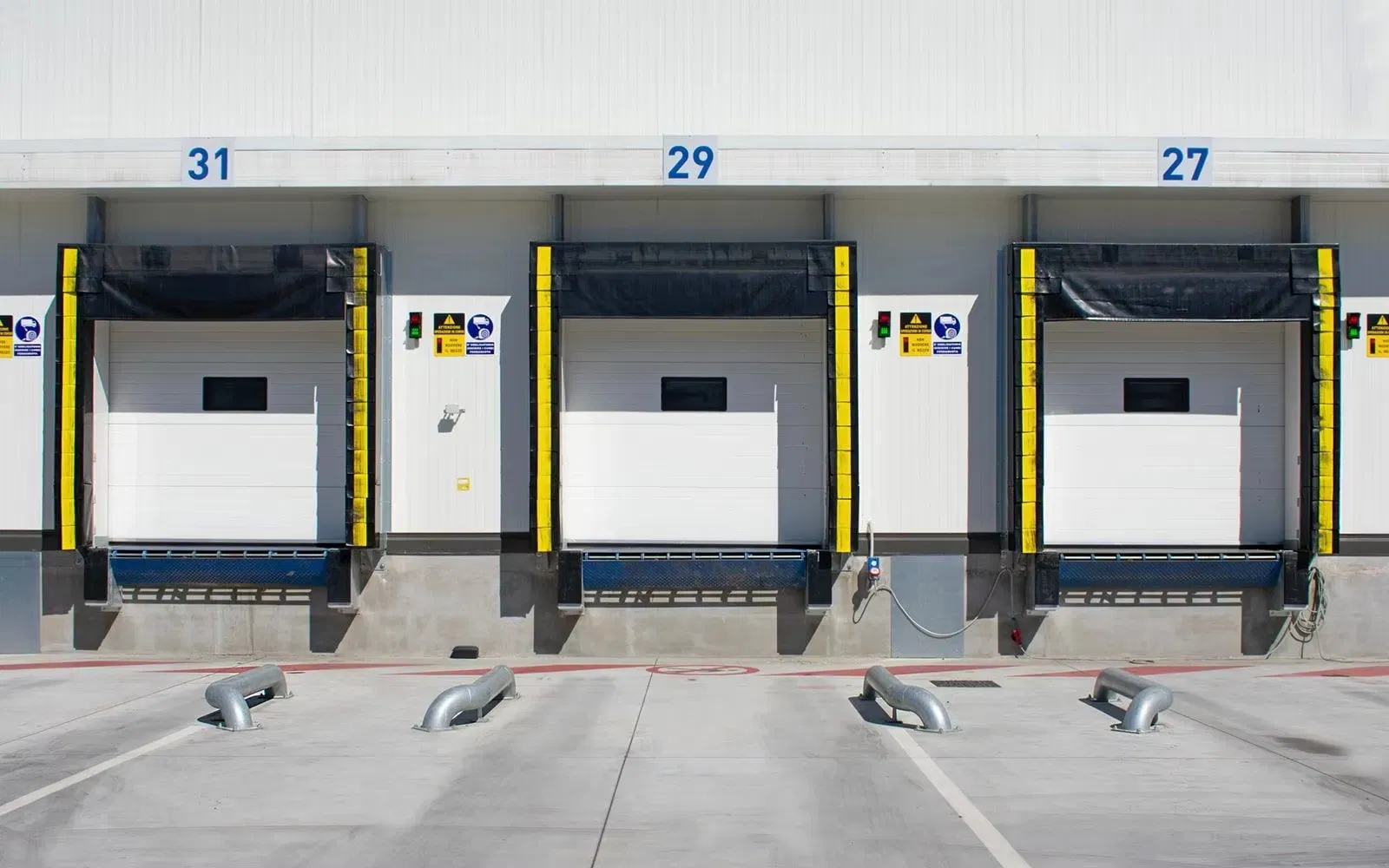

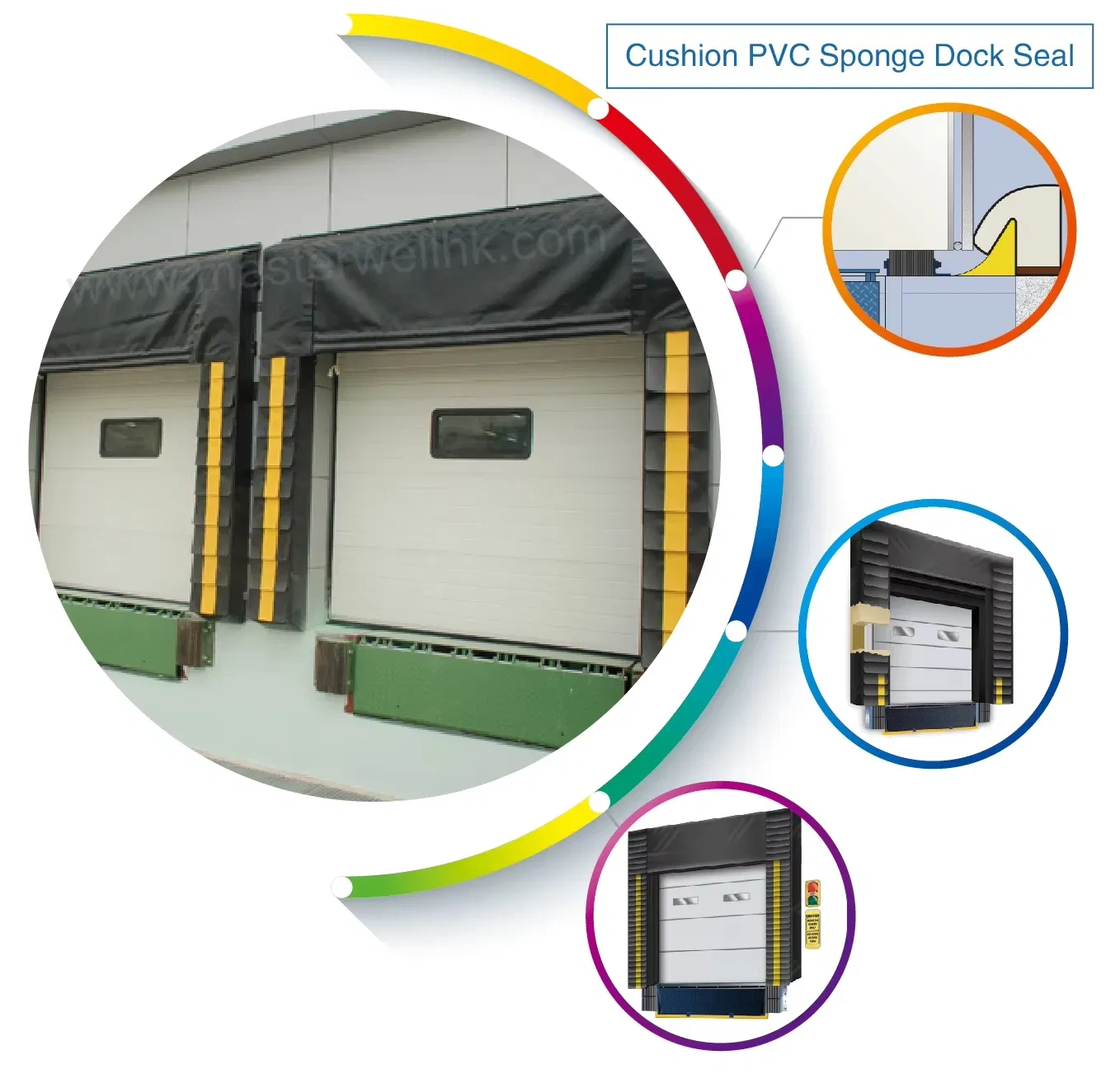

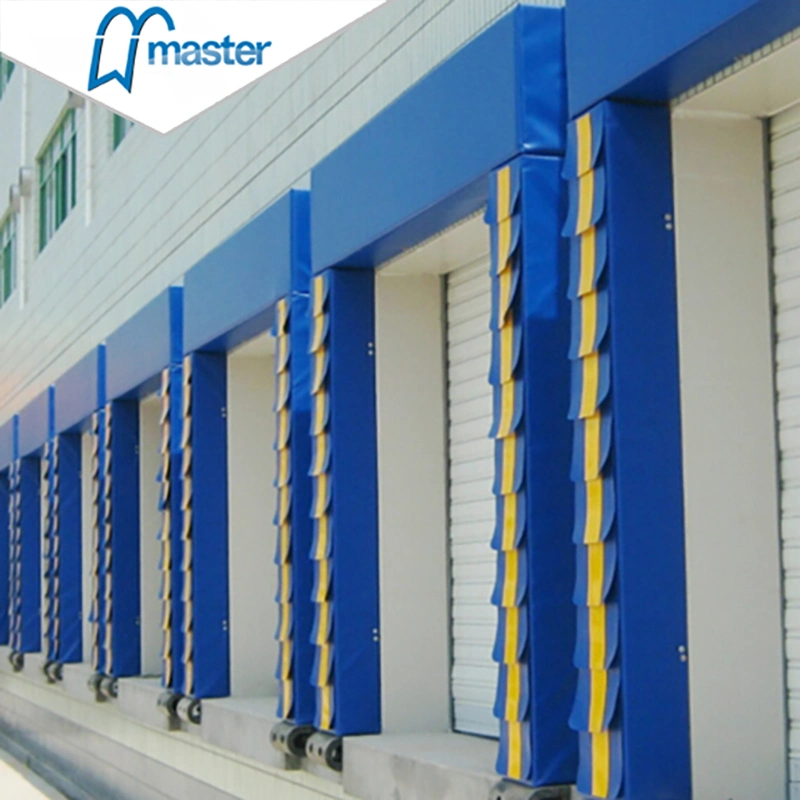

Cushion dock seal: Coupled with high elastic sponge, it ensures a tight seal between the vehicle tail and the door, significantly reducing energy consumption.
| Configuration | ||
|---|---|---|
| Top Sponge Seals | 1 Item | Wear-resistant vinyl crude fiber fabric. Filled with high elasticity sponge (98% restorability) functional in -40 ℃. |
| Vertical Sponge Seals | 2 Items | Wear-resistant louver folds for extra protection. Reflective warning strips for enhanced safety. |
| Hardware | 1 Set | Galvanized anti-rust surface treatment for increased durability. |

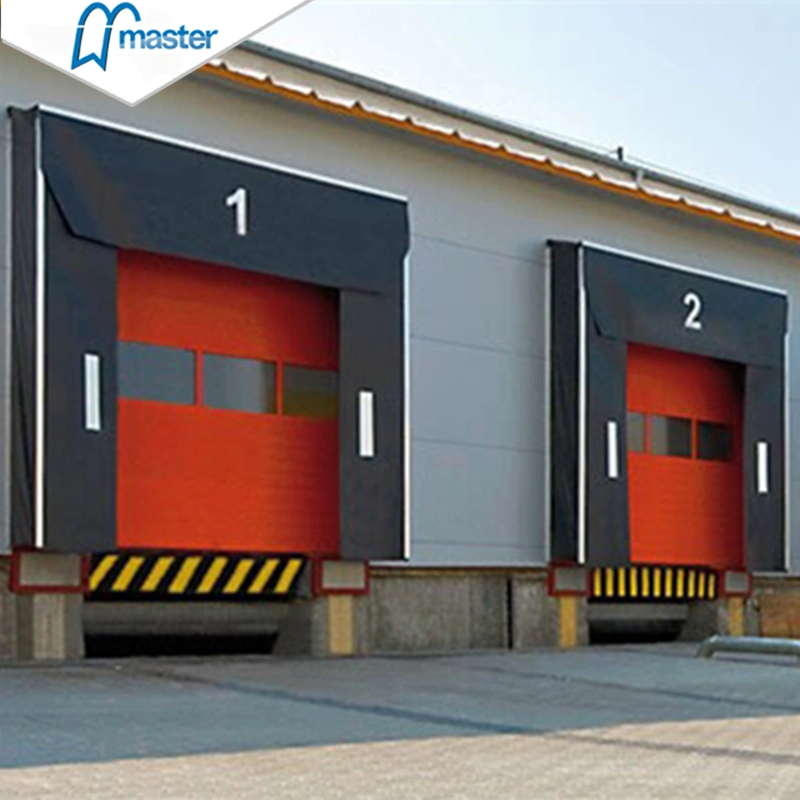

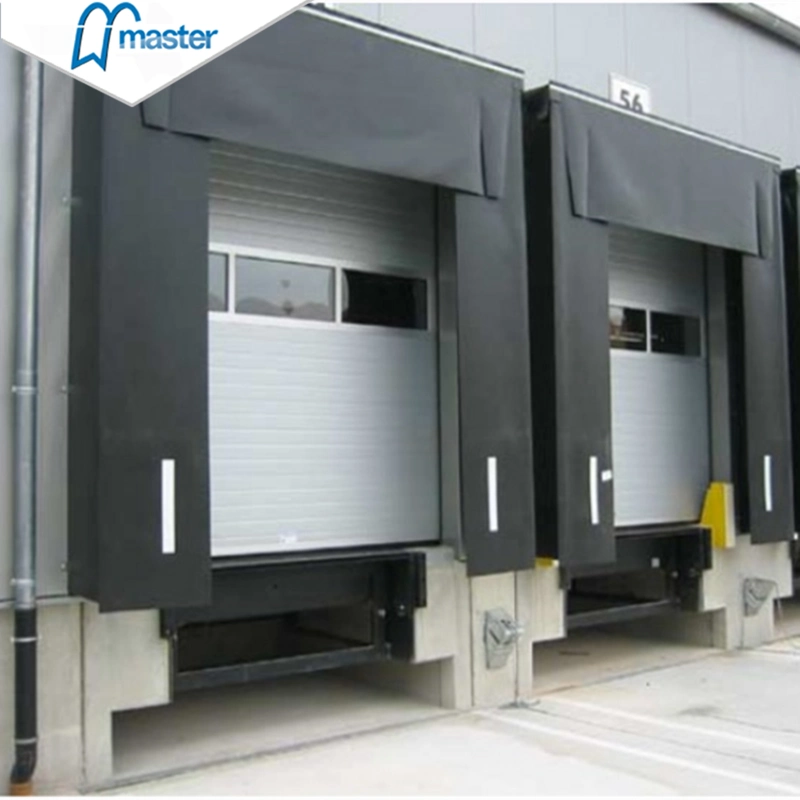

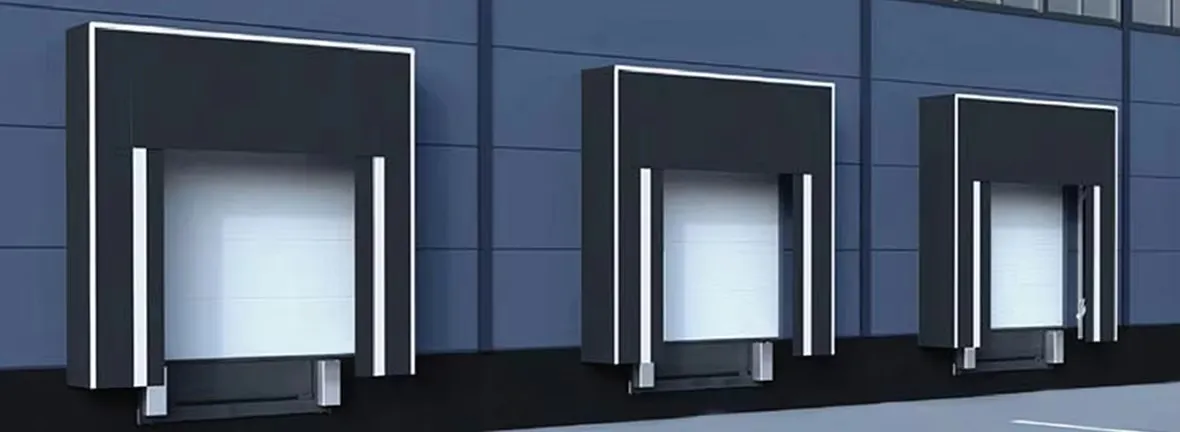

Ideal for medium strength loading places, featuring an aluminum alloy structure. The front curtain is made of special PVC with high elasticity, wear resistance, and tensile strength. The curtains fully adapt to the vehicle to ensure maximum sealability.
| Mechanical Specifications | |
|---|---|
| Width (mm) | 3000, 3200, 3400 |
| Height (mm) | 3000, 3200, 3400, 4400 |
| Thickness | 3mm |
| Profile Color | Aluminum intrinsic color (RAL9006) |

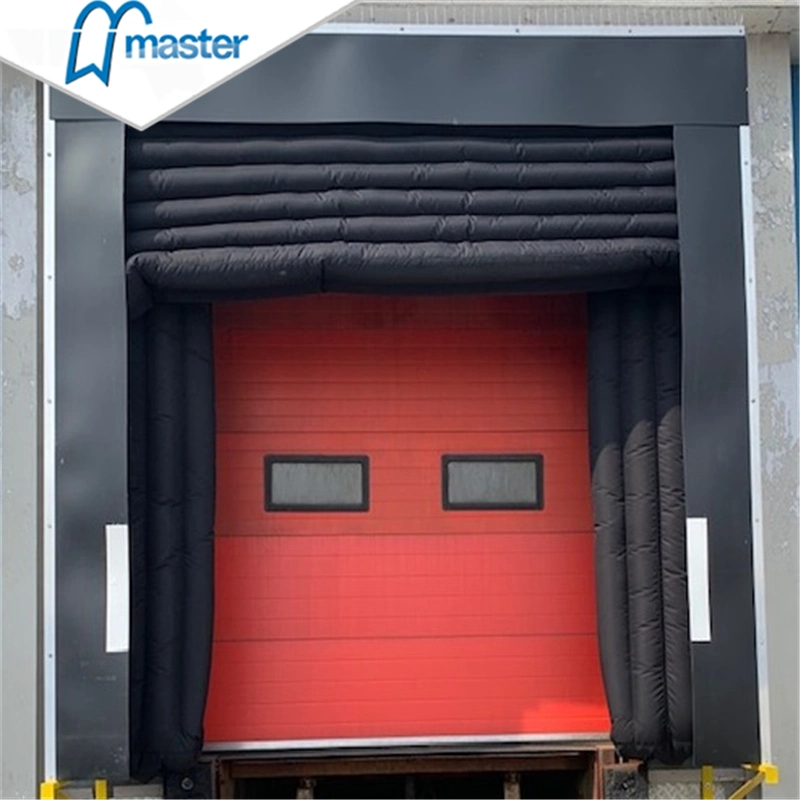

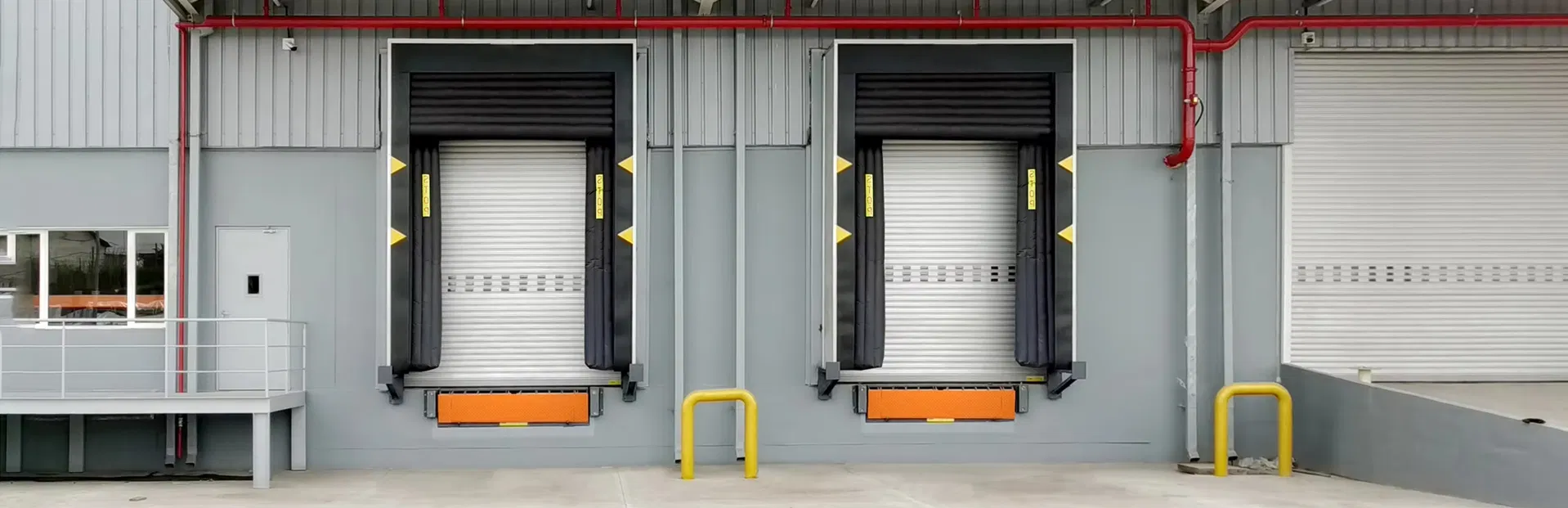

High Insulation: Perfect for environments requiring strict temperature control and strong sealing.
Efficiency: High-efficiency air blower provides stable pressure. Air bags retract into a small package after use to prolong service life.
| Technical Parameters | |
|---|---|
| Power Supply | 380V/50HZ |
| Power | 0.75kw |
| Airbag Average Time | 30s |
| Working Temperature | -35℃ - +70℃ |
| Panel Thickness | 50mm |
