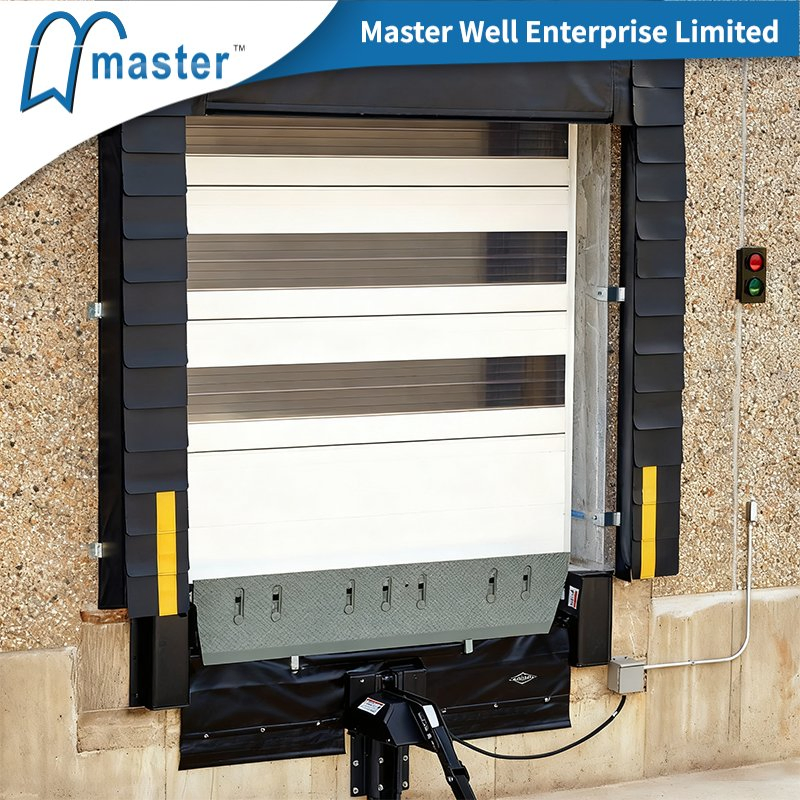

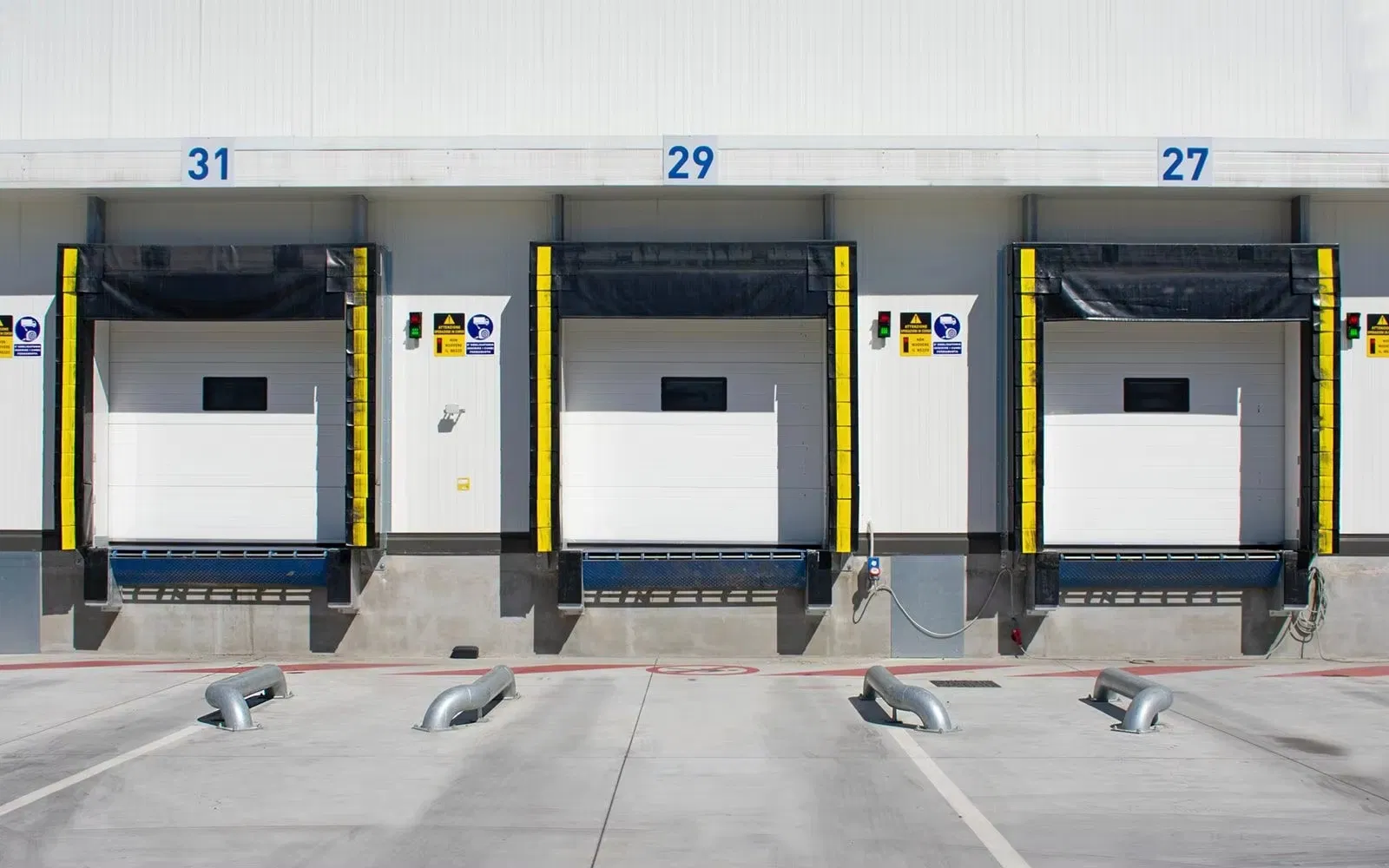

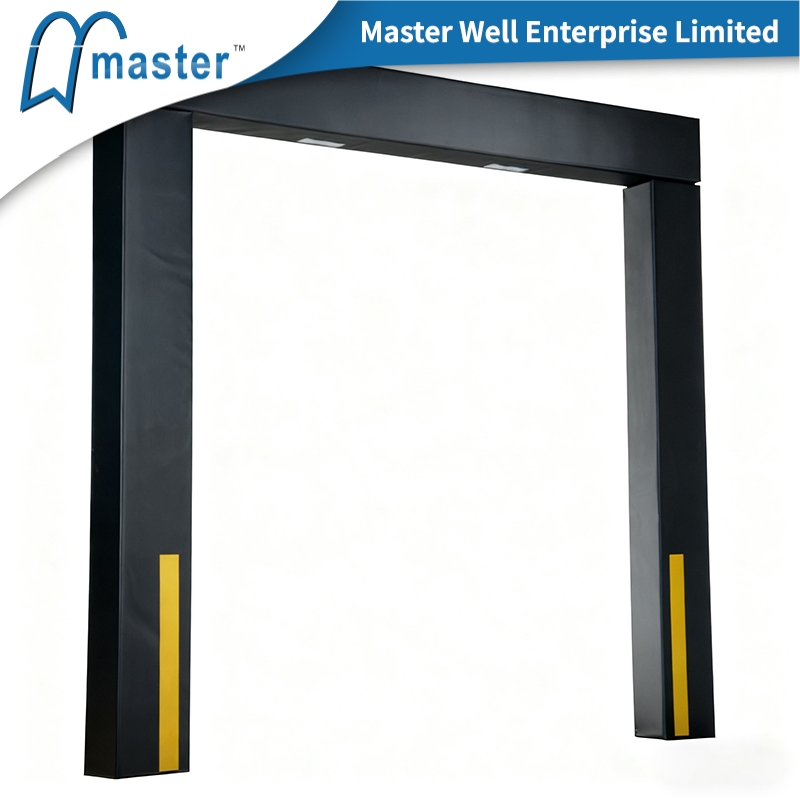

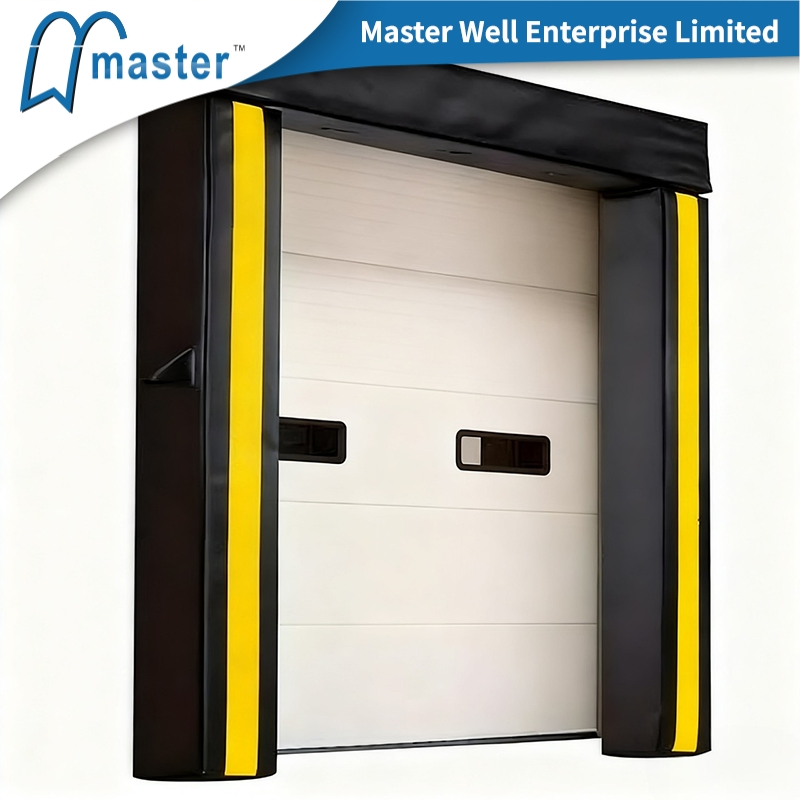

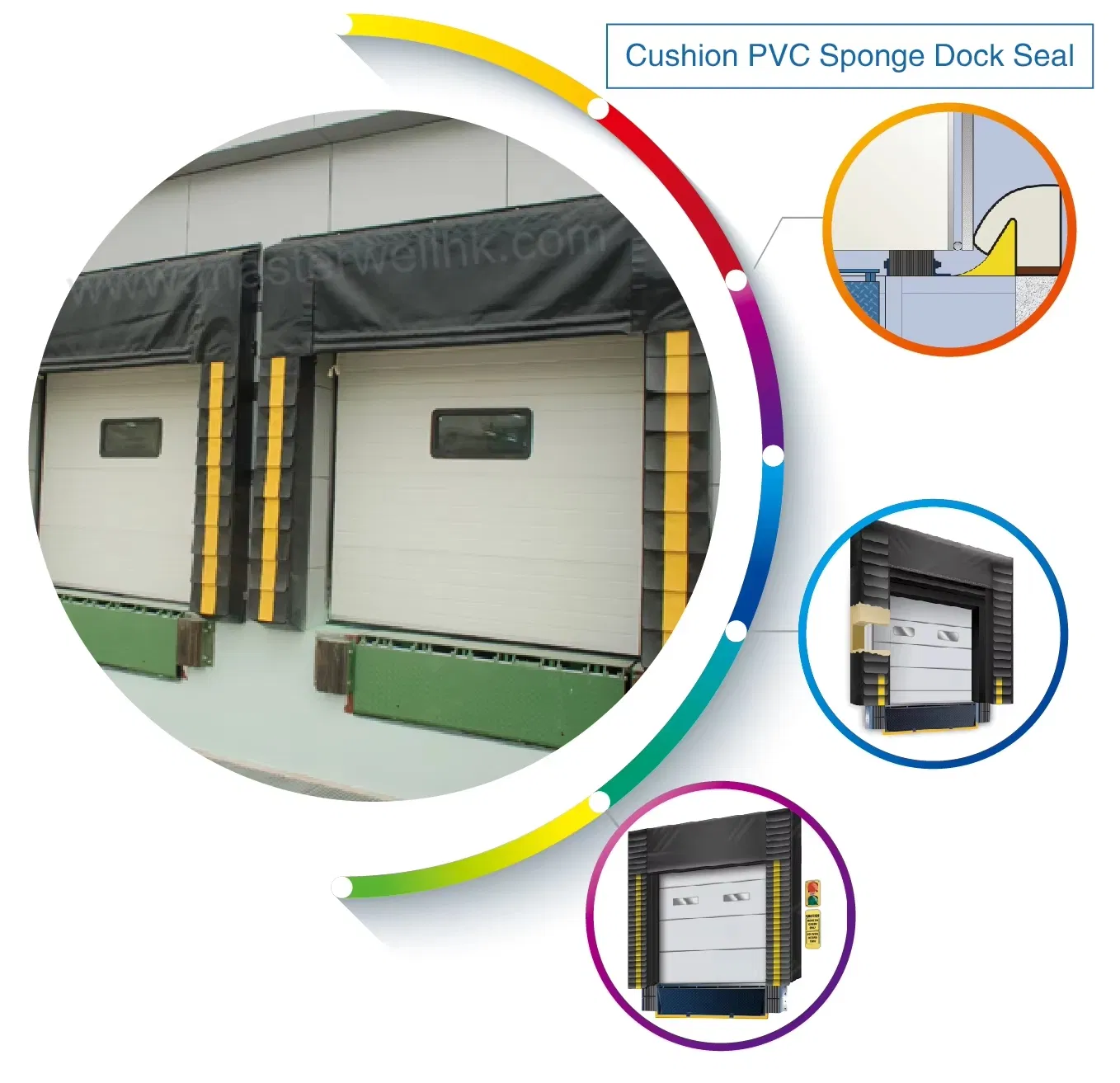

Fixed front curtain, largely meet the requirements of all types of cars of different height. Cushion dock seal, coupled with high elastic sponge, make the distance between car tail and door seal tight sealing, reducing energy consumption.
| Configuration | ||
|---|---|---|
| Top of the sponge Seals | 1 item | The fabric is made of wear-resistant vinyl crude fiber material. The lining is filled with high elasticity sponge pad, with 98% restorability and flexibility in -40 ℃ environment. |
| Vertical sponge Seals | 2 items | Positive distribution wear-resistant louver folds, providing additional wear protection, effectively extending the life of the door seal; The middle of the reflective strip with a warning, with better security. |
| Hardware | 1 set | Surface galvanized anti-rust treatment, an increase of product durability. |
| Parameters | |||
|---|---|---|---|
| Width | 3000/3200/3400 mm | Thickness of side PVC sheet | 0.5 mm |
| Height | 3000/3200/3400 mm | Height of top PVC curtain | 1000 mm |
| Dock shelter depth | 250 mm | Width of side PVC curtain | 300 mm |
| Sponge thickness | 25/20mm | Frame | High quality steel strips, covered by transparent PVC or Color PVC material |
| PVC Color | Black/Blue | Operating temperature | -35℃ - +70℃ |

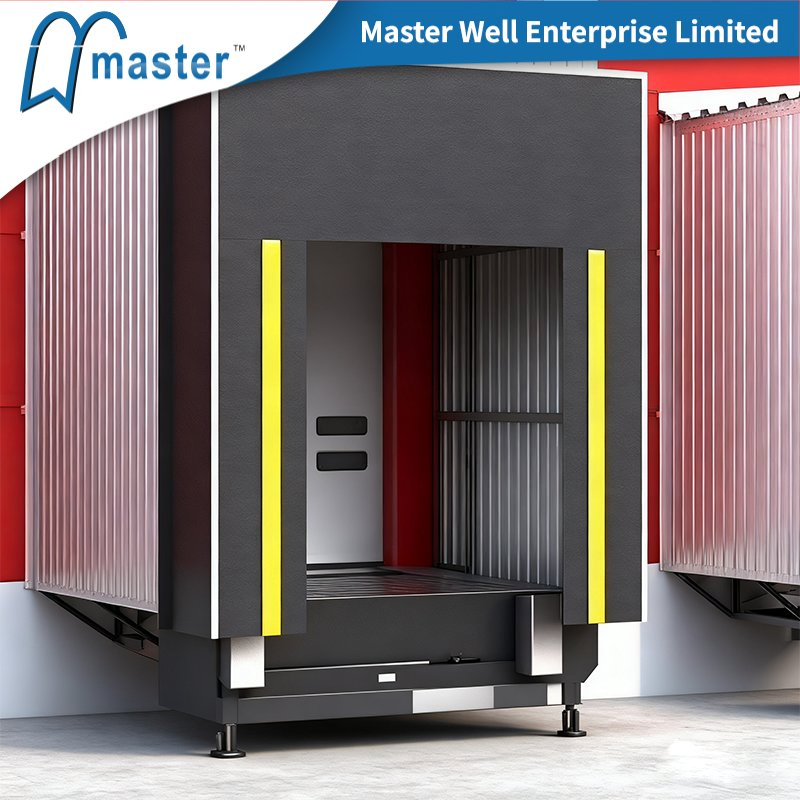

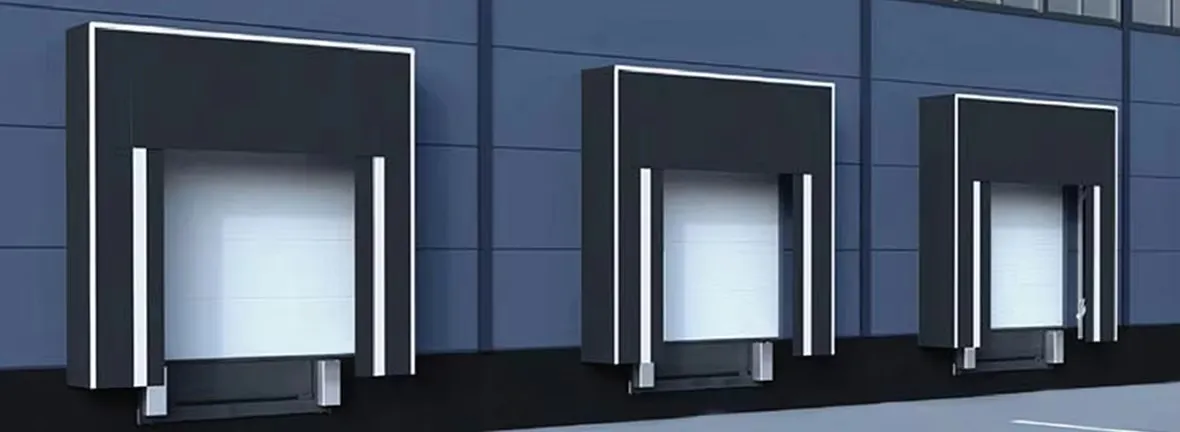

The foldable door seal series of aluminium alloy structure is an ideal configuration scheme for medium strength loading and unloading places. The front curtain board made of special PVC material has the advantages of high elasticity, wear resistance and tensile strength.
| Mechanical Specification | |
|---|---|
| Width mm | 3000, 3200, 3400 |
| Height mm | 3000, 3200, 3400, 4400 |
| Thickness | 3mm |
| Profile color | Aluminum intrinsic color(RAL9006) |

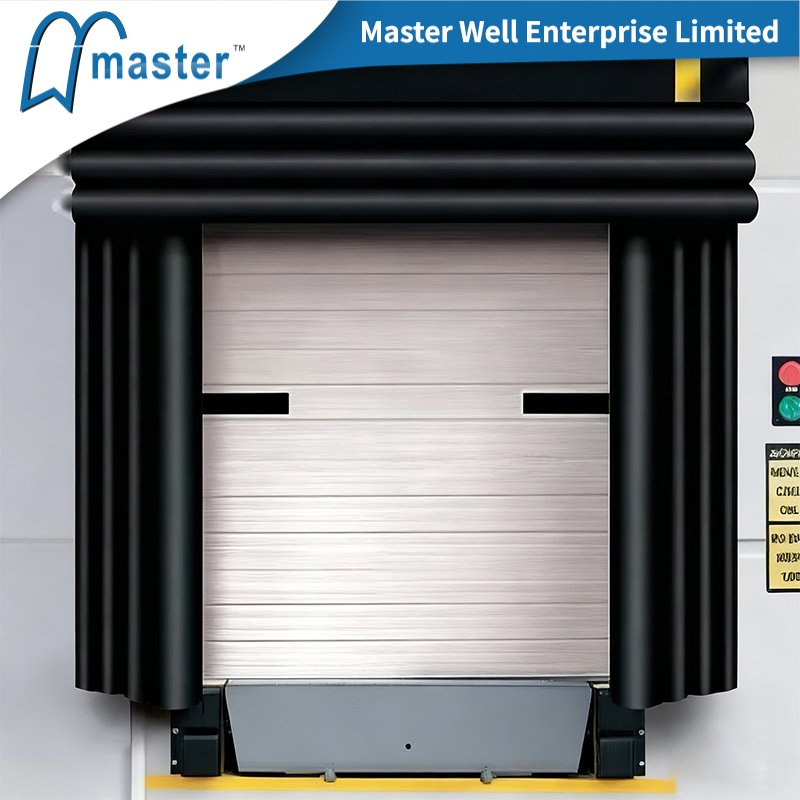

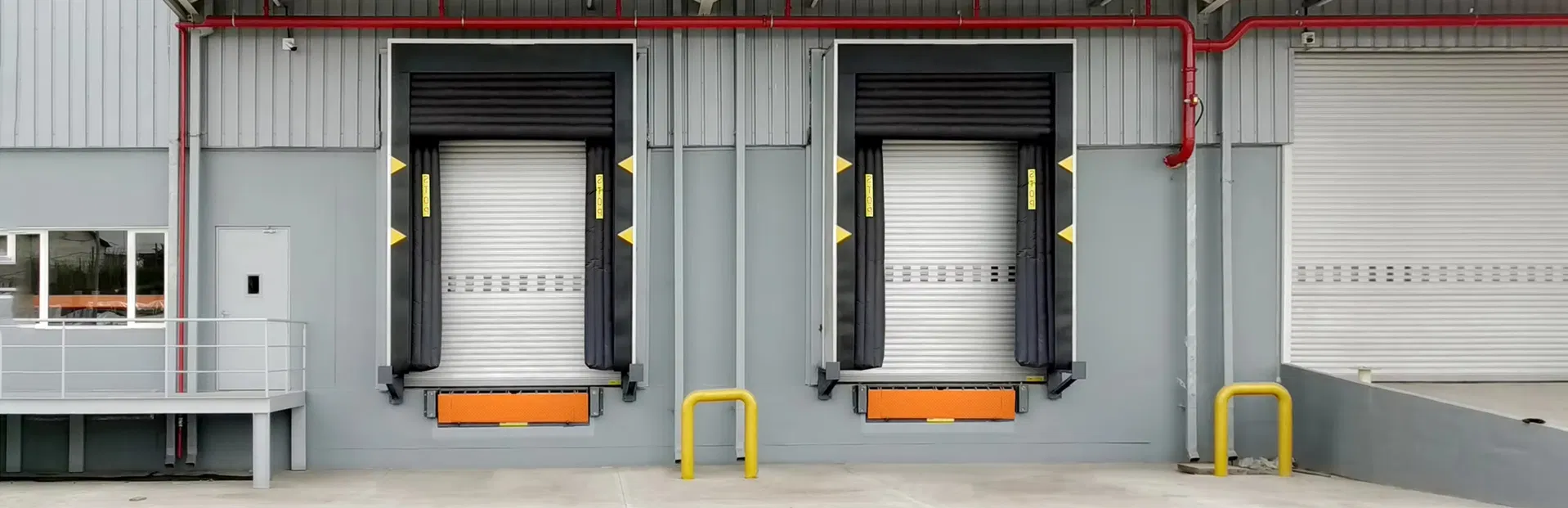

Installation applied for requirements of high insulation and strong sealing. High efficient air blower offering stable air pressure. After loading & unloading, the air bag exhausted and packed into small package.
| Inflatable Parameters | |||
|---|---|---|---|
| Power supply | 380V/50HZ | Thickness | 3mm |
| Power | 0.75kw | Airbag average time | 30s |
| Protection Class | IP54 | Material | Cordura 1000 |
