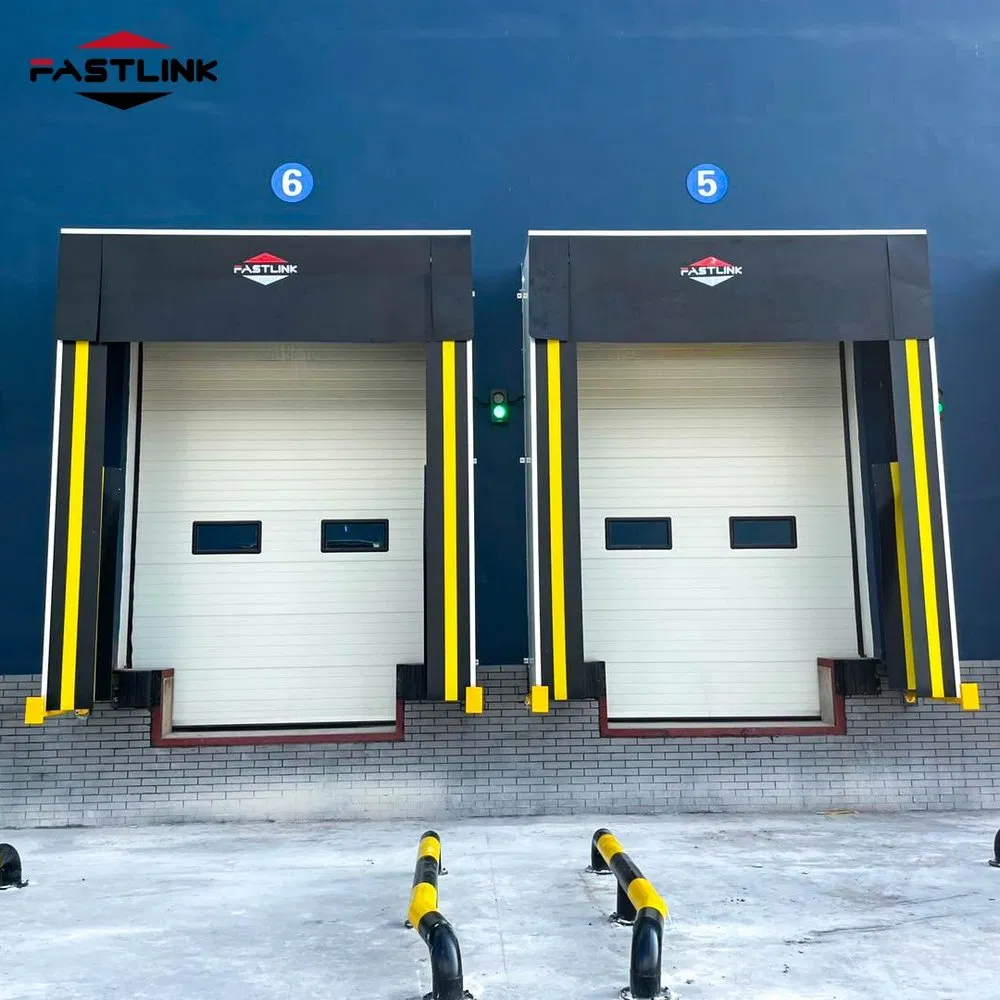

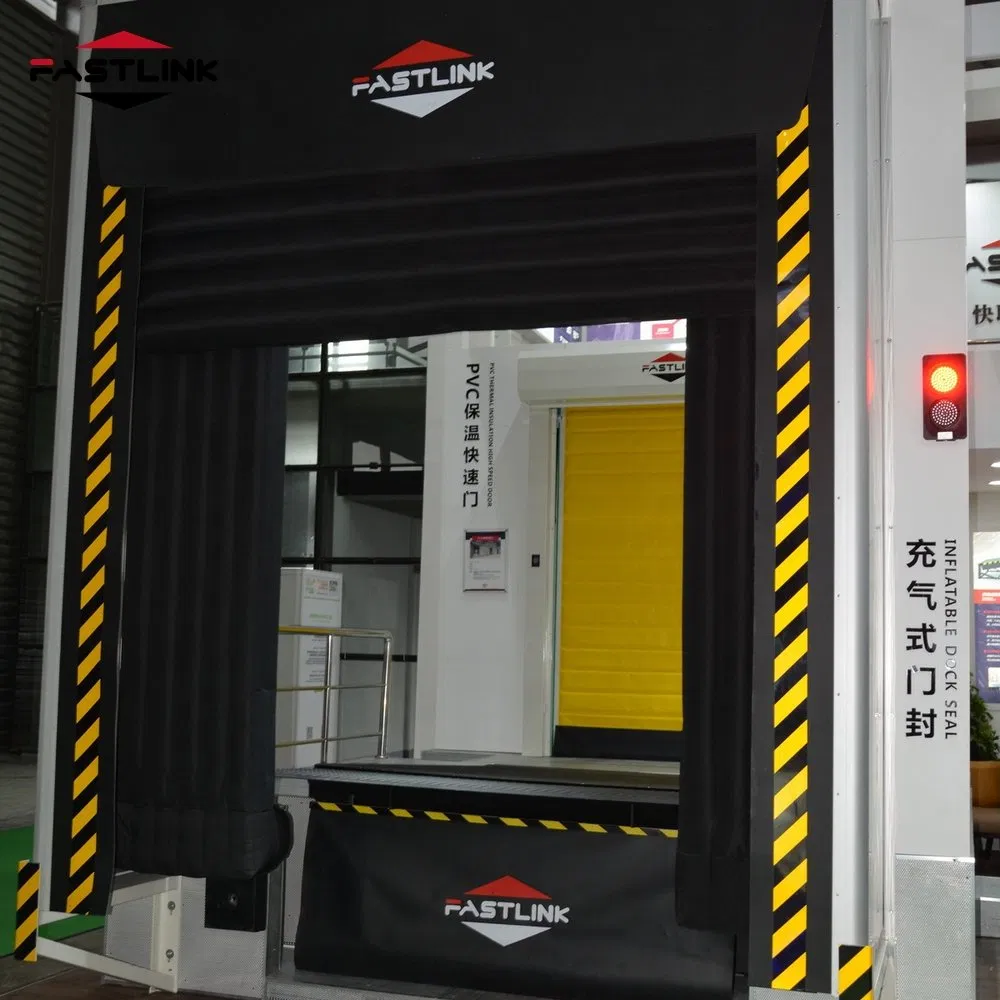

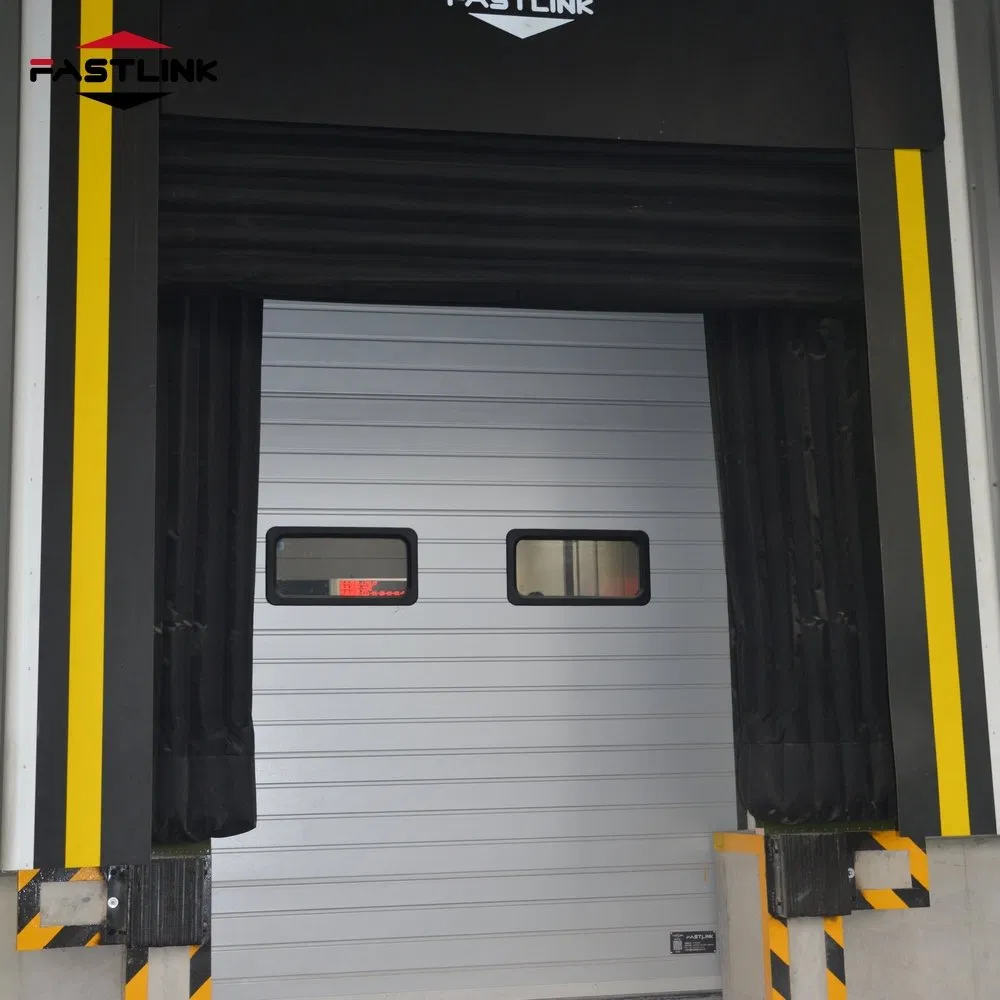

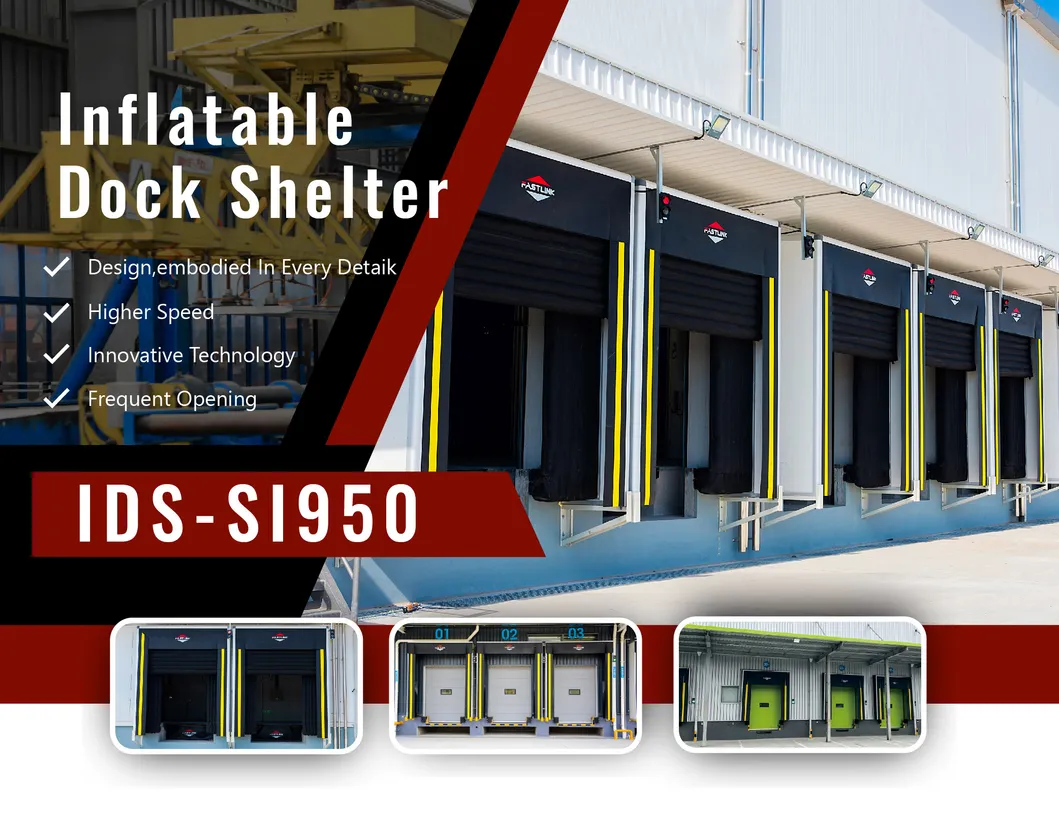

Logistic Customized PVC Fabric Increased Security and Protection Automatic Inflatable Loading Dock Shelter Compression Dock Seals

Customization:	Available
After-sales Service:	2years
Warranty:	1year

Basic Specifications

Model NO.

IDS-SI950

Material

Polyurethane Board+Polyethylene Fiber

Type

Industrial Inflatable

Open Style

Electric Remote Control

Special Function

High Security & Sealing

Color

Ral9011

Certification

CE

Single Gross Weight

220.000kg

Characteristics

Sealed, Durable, Safe, Intelligent Control

Specification

W4000mm * H4500mm

Technical Attributes

Key Performance Parameters

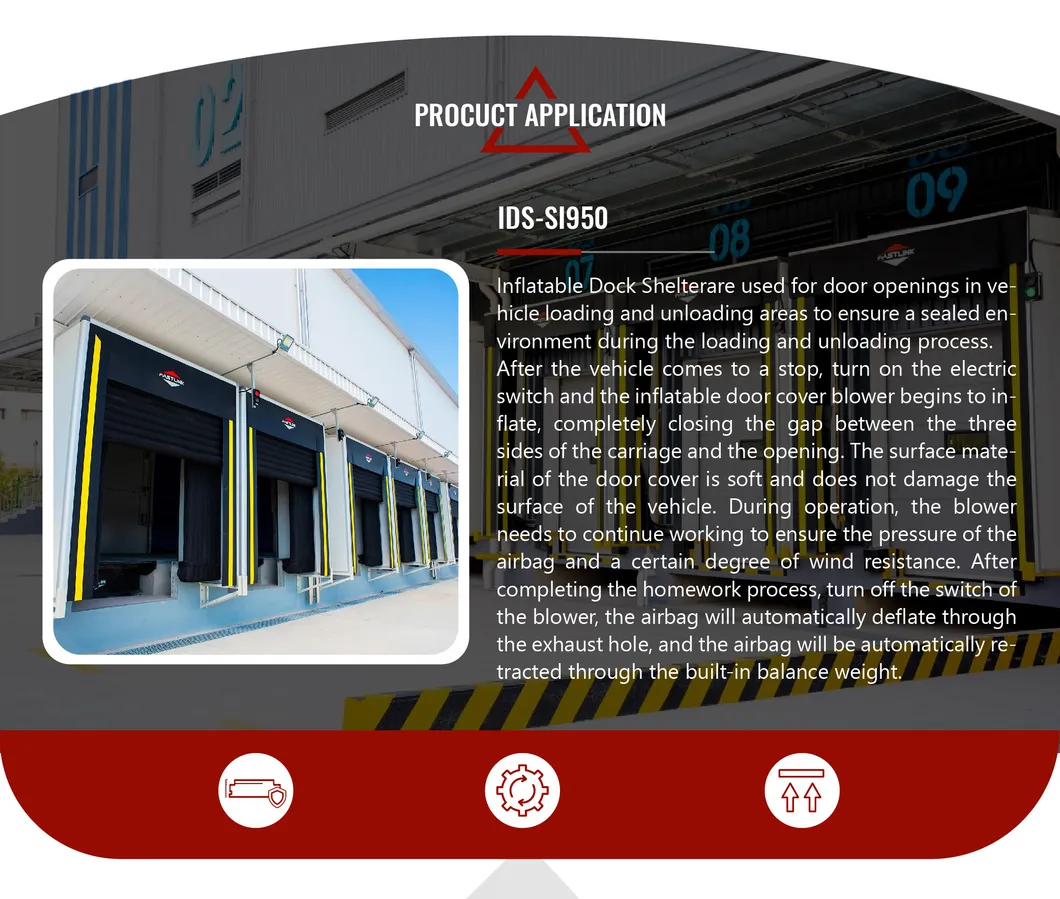

Product Name	Inflatable dock shelter
Application Scenarios	Cold chain, pharmaceutical, food, electronics, and industrial logistics platforms.
Size Range	W2800mm-4000mm * H3000mm-4500mm
Side Panel	PU sandwich panel, total thickness 40mm
Polyurethane Density	48kg/m³, closed-cell rate >95% (Freon-free)

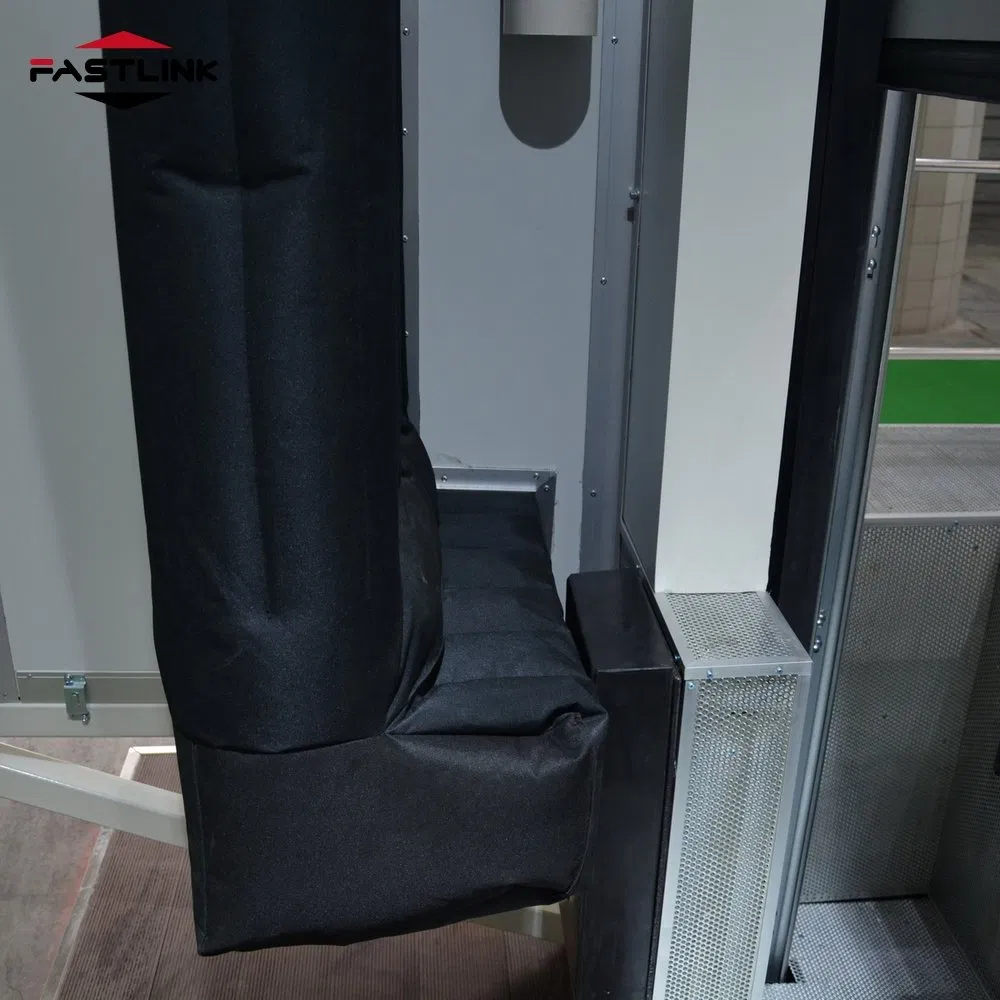

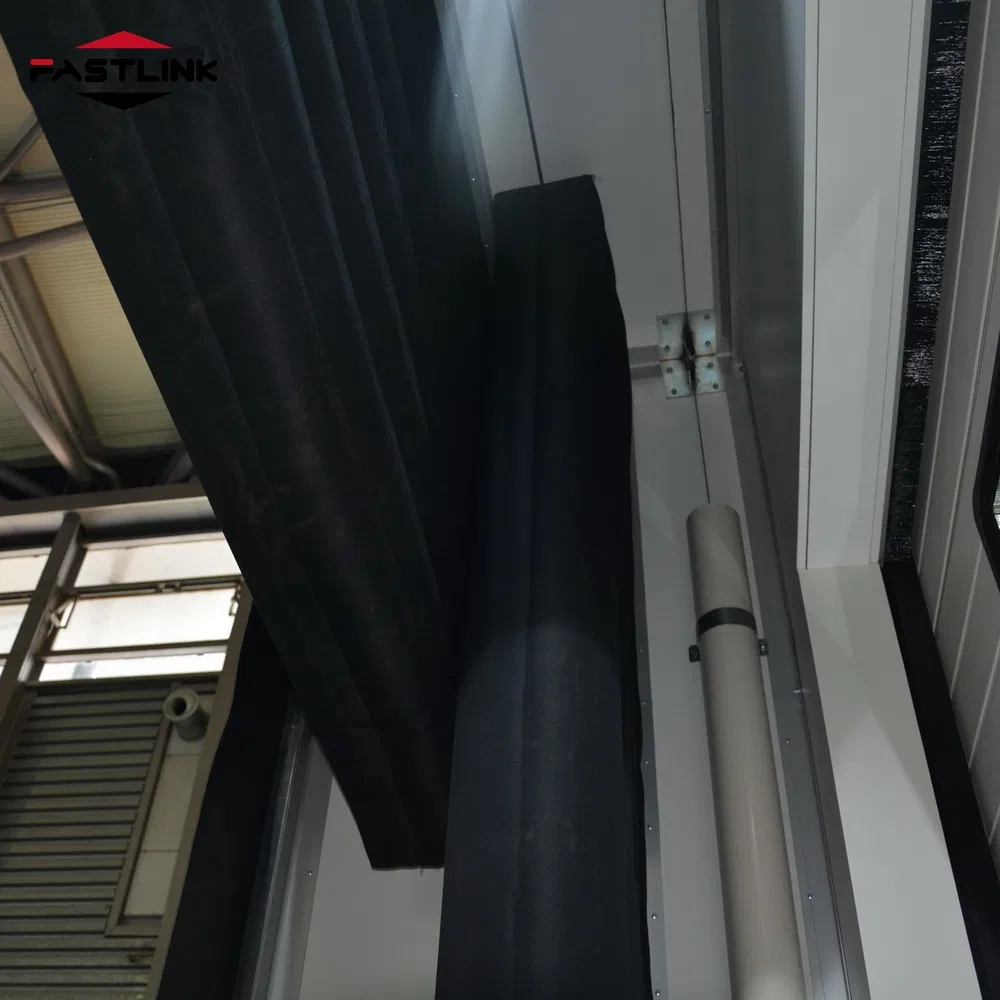

Airbag Material	High quality polyethylene fiber (Service life ≥ 30,000 times)
Dynamic System	High-power blowing machine
Intelligent Control	Patent system; integrated with doors, platforms, and traffic lights
Curtain Board	Chloroprene fiber rubber Material with PVC coating
Safety Warning	Yellow reverse warning tape for vehicle alignment

Visual Details

Frequently Asked Questions

How long does it take for complete sealing?

The inflatable dock shelter adopts a high-power blower, and the fully inflated seal does not exceed 15 seconds.

Which car models can be sealed with this inflatable dock shelter?

It offers the best sealing performance and covers the most car models. Appropriate sizes can be selected to meet the requirements of almost all vehicle models.

Can these be used as vehicle access doors in garages?

Yes, as long as the installation space is sufficient, sectional doors can be installed in garages for vehicle access.

What is the expected service life of the sectional doors?

With normal maintenance, they can be used for more than 10 years. Proper usage and regular check-ups help extend this lifespan.

How can I protect the inflatable dock shelters from damage?

Avoid frequent collisions by: 1) Using reverse guide rails to ensure accurate stopping; 2) Having professional personnel guide drivers to designated parking spots.

What is the durability of the airbag?

The airbag is made of high-quality polyethylene fiber with high wear resistance, designed to meet a service life of no less than 30,000 inflation cycles.
